MAXTRA ML-44GDRS-ES-E100 User manual
Thank you for choosing
MAXTRA!
Please take a few minutes to read this user manual
before using it.This manual will help you better under-
stand your scooter and, with proper care, it will provide
years of trouble-free use.
If you have any questions, please do not hesitate to
contact us. If you can attach some pictures or videos, it
will help us better understand your difficulties.Our
customer service team will give you a satisfactory reply
within 24 hours.
.
Email: [email protected]
(7x24 hours)
Phone Call: 302-261-5366
Contents
Must Read 01
............................................................................
Safety Warning 02
....................................................................
Parts 04
Assembly 05
............................................................................
Charge 06
Battery 07
Controller 08
Functions 09
.............................................................................
.............................................................................
Maintain 10
...............................................................................
...............................................................................
...............................................................................
..................................................................................
Troubleshooting 11
...................................................................
Check List
Brake: Check the brakes for proper function. When you squeeze the lever, the brake
should provide positive braking action. Make sure that brakes are not rubbing.
Frame, Fork and Handlebars: Check for cracks or broken connections. Although broken
frames are rare. Get i nto the habit of inspecting your scooter on a regular basis.
Tires: Periodically inspect the tires for excess wear.
Hardware: Check all parts such as nuts, bolts, cables, fasteners, etc. to ensure they are
secure and assembled correctly. If the unit is damaged do not ride.
01
02
1.CHECK AND MAINTAIN SCOOTER CONDITIONS: Before use, check to make sure that any
and all parts are in place and in a usable state.Riding an electric scooter does present potential
risks and caution is required.Like any riding product, electric scooters can and are intended to
move and it is therefore, of course, possible to lose control or otherwise get into dangerous
situations. Both children and adults responsible for supervising them must recognize that if such
things occur, a rider can be seriously injured or die, even when using safety equipment and other
precautions.Neither MAXTRA is responsible for any injuries, damages or legal disputes caused
by a rider's inexperience or failure to follow the instructions in this manual.
2.PARENTAL AND ADULT RESPONSIBILITY AND SUPERVISION IS NECESSARY: Because
products like electric scooters,can and do present potential hazards plainly associated with their
use, it is well recognized THE NEED FOR EXERCISE OF PARENTAL RESPONSIBILITY IN
SELECTING RIDING PRODUCTS APPROPRIATE TO THE AGE OF A CHILD.
3.The recommended rider age is 6 an d older. Any rider unable to fit comfortably on the scooter
should not attempt to ride it. A parent’s decision to allow his or her child to ride this product should
be based on the child’s maturity, skill and ability to follow rules.Keep this product away from small
children and remember that it is intended for use only by persons who are, at a minimum,
completely comfortable and competent while operating the scooter.Persons with heart
conditions, head, back or neck ailments (or prior surgeries to these areas of the body), or
pregnant women, should be cautioned not to operate such products.
4.Always check and obey any local laws or regulations, which may affect the locations where the
electric scooter may be used. Keep safely away from cars and motor vehicle traffic at all times,
and only use where allowed and with caution.
5.Do not activate the speed control on the hand grip unless you are on the scooter and in a safe,
outdoor environment suitable for riding.The normal powered top speed of this scooter will be
approximately 13 km/h, which can be affected by conditions, such as rider weight, inclines and
battery charge level. Avoid excessive speeds that can be associated with downhill rides.
03
6.Maintain a hold on the handlebars at all times. Do not touch the brakes or motor on your
scooter when in use or immediately after riding as these parts can become very hot.
7.Ride defensively. Watch out for potential obstacles that could catch your wheel or force you to
swerve suddenly or lose control. Be careful to avoid pedestrians, skaters, skateboards, scooters,
bikes, children or animals who may enter your path, and respect the rights and property of
others. The electric scooter is intended for use on flat, dry surfaces such, as pavement or level
ground, without loose debris, such as sand, leaves, rocks or gravel. Wet, slick, bumpy, uneven
or rough surfaces may impair traction and contribute to possible accidents. Do not ride your
scooter in mud, ice, puddles or water. Watch out for potential obstacles that could catch your
wheel or force you to swerve suddenly or lose control. Avoid sharp bumps, drainage grates, and
sudden surface changes.Do not use on ramps.
8.PROPER RIDING ATTIRE: Always wear proper protective equipment, such as an approved
safety helmet (with chin strap securely buckled), elbow pads and kneepads. A helmet may be
legally required by local law or regulation in your area.Never ride barefooted or in sandals, and
keep shoelaces tied and out of the way of the wheels, motor and drive system.
9.USING THE CHARGER: The charger supplied with the electric scooter should be regularly
examined for damage to the cord, plug, enclosure and other parts. In the event of such damage,
the scooter must not be charged until the charger has been replaced.
10.DO NOT EXCEED THE WEIGHT LIMIT OF lbs. The minimum carrying weight shall not be
less than 40lbs and the maximum carrying weight shall not be more than 155lbs. Rider weight
does not necessarily mean a person’s size is appropriate to fit or maintain control of the scooter.
06
Note
1. Charge immediately after receiving the product.
2. After plugging the charger into the socket, the green light will light up, indicating that the
charger is normally connected.When the charging port is connected to the scooter, the red light
of the charger lights up, indicating that it is charging.
3. Please turn off the power of the scooter when charging. After turning off the power, the lights
of the scooter will not be on during the charging process.
4. The battery must be charged immediately after each use until the indicator light turns green.
Warning
1. The power cord, plug, shell and other parts of the charger should be checked regularly for
damage. If there is any damage, the scooter can be charged only after the charger is repaired or
replaced.
2. Only use the original charger.
3. Chargers are not toys.The charger should be operated by an adult.
4. Do not operate the charger near flammable objects.
5. Charging time should not exceed 20 hours.After charging, the charger should be removed
from the socket in time.
6. Charging, running, storage temperature :0-40℃/32-104℉Paramter
Use the only charger Model LC-2538, made by GUANGDONG MARSHELL ELECTRIC
VEHICLE CO., LTD.
08
Maintenance Tips
1. Charge immediately after each use.
2. Even when not in use, it must be charged every 60 days to protect the battery.
3. Do not let the scooter discharge deeply.When not in use, make sure the scooter's power
switch is turned off. If the power switch is left on for a long time, the battery may not be recharged.
4. In order to ensure long battery life, do not store the product in the freezing point or below the
freezing point temperature, freezing will permanently damage the battery.
Warning
1. Do not attempt to open, repair or change the behavior of the battery, which may damage the
battery or cause accidents.
2. If the battery leaks, avoid contact with the leaking acid and place the damaged battery in a
plastic bag.If acid comes into contact with skin or eyes, rinse with cold water for at least 15
minutes and contact a doctor.
3.Risk of Fire - No User Serviceable Parts, The prolonged exposure to UV
Disposal
Do not dispose of a lead-acid battery in a fire. The battery may explode or leak.Do not dispose of
a lead-acid battery in your regular household trash. The incineration, land filling or mixing of
sealed lead-acid batteries with household trash is prohibited by law in most areas.Return
exhausted batteries to a federal or state approved lead-acid battery recycler or a local seller of
automotive batteries.
Batteries are consumables and have a certain life cycle. If you have any questions, please
contact us in time.
08
Information
The controller is the core part of the power control of scooter.If something goes wrong with your
scooter, you can see the motorcycle's status by watching the power LED light flash.
Controller
Led
Lamp
Led
Status
Scooter
Status Troubleshooting No Light Controller
not working
1.Check that the battery and wires are
properly connected
2.Check whether the power switch is in
good condition
3.Check whether overload insurance is
good
Always On
（but scooter not work）Motor not turning
1.Check that the motor connector is in
good contact
2.Replace the throttle and motor
Flash 1 Time Low-voltage
protection
1. Low voltage, need to charge
2. Replace the battery
Flash 2 Time Over-temperature
protection
1.Controller temperature is too high,
shut down after a period of time restart
Flash 3 Time Overcurrent
protection
1.The controller is overloaded, turn off
the main power supply and repower it
Flash 4 Time Output short circuit
protection
1.Motor short circuit or controller output
blue, brown wire short circuit.Replace
motor and controller
Flash 5 Time Speed protection 1.The controller MOS device short circuit,
replace the controller
09

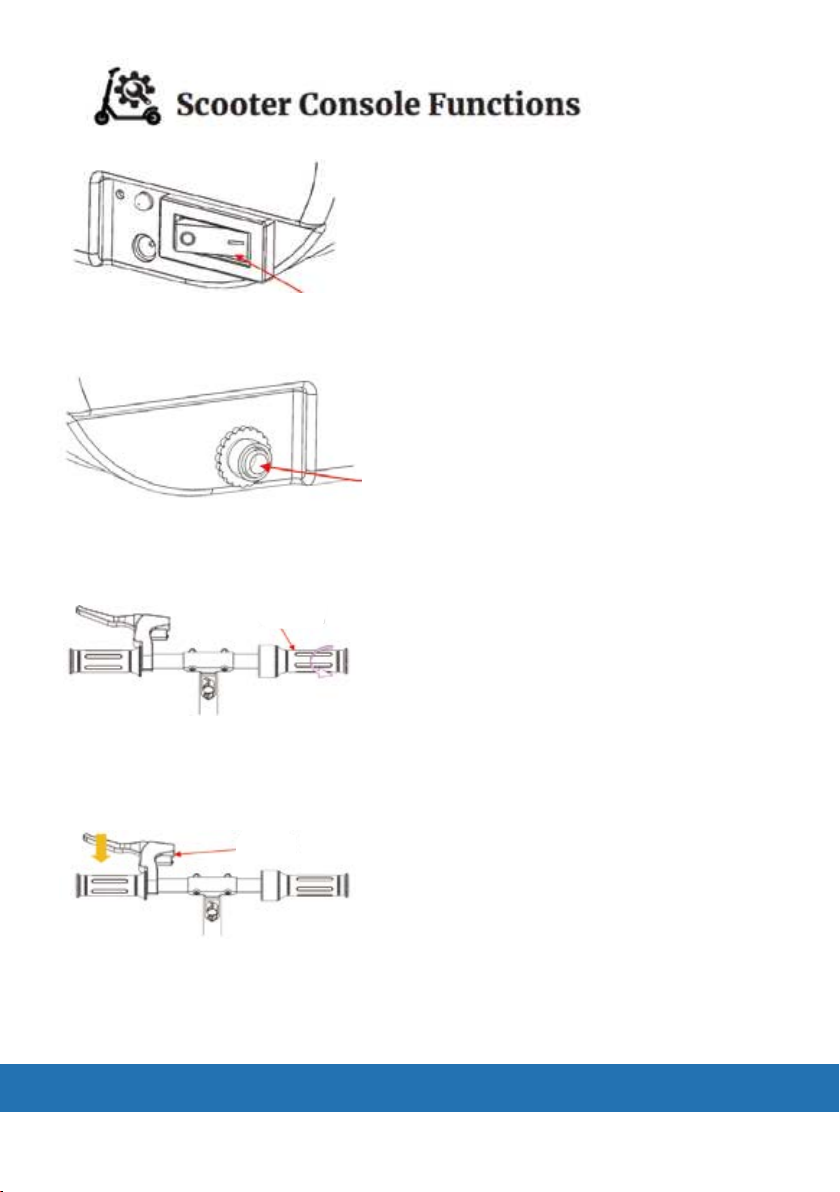

Power Switch:
When the switch is placed in "O", it is in the power
off state;When the switch is placed in "-", it is in the
energized state. At the same time, the red status
indicator beside the switch is on. At this time, the
vehicle can be started as long as the accelerating
handle is rotated.
Reset Switch:
On the left side of the bottom is the reset button of
overcurrent protection switch. When the scooter
exceeds the set current for some reason, the
overcurrent switch pops up and turns off the power
supply of the whole machine.Press the reset button
and the overcurrent switch returns to normal.
Speed Control:
Adjust the speed by twisting the Angle of the
handle. When the handle is in its original
position, the vehicle will stop.When the direction
of the arrow to twist the speed control handle, the
vehicle is moving forward, let go of the speed
control handle, the vehicle is walking slowly by
inertia.
Brake Handle:
The principle of combining the mechanical brake
system with the electronic brake is adopted.
When braking, the brake lock drives the wheel
hub to brake. At the same time, the brake hand
closes the micro switch inside, and the controller
stops the output voltage (motor power off), which
makes it easier to brake.
10
Tips
Scooters are consumable, with certain parts requiring regular maintenance
and replacement
1.Turn off the power and charge it after use
2. Regularly tighten the driving belt to reduce belt shedding and damage
3. Check the tightness of all screws regularly to reduce noise
4. Replace tires regularly to avoid accidents
11
Words In The End
Thank you very much for your patience in reading this manual.We have been committed to
providing you with better after-sales service, but the electric scooter is a complex electronic
product, if you encounter any problems, we hope you can give us a little patience to help
you.Thank you again for choosing the MAXTRA electric scooter.
Problem
Does Not
Work Out
Of The Box
Runs Slow
Possible Cause Solution
Circuit Failure
Loose connection
Obtain the LED lighting status（page 07）to get the
situation of the scooter and contact us
Damage of the
wheel
Check whether the wheel is badly worn or dirty, clean the
surface of the wheel or contact us to replace the wheel
Motor fault
Remove the motor, turn the motor by hand, check whether
the motor has abnormal sound, motor problems should be
contact us to replaced
Check for loose connections/wires underneath the deck
plate
Battery capacity
attenuation Charge/replace the battery
Throttle fault Contact us to replace the throttle
Motor fault Contact us to replace the motor
Controller fault Contact us to replace the controller
External drag Adjust the tightness of the brake (the rear wheels should
rotate flexibly)
Short Ride
Time
Battery capacity
attenuation Charge/replace the battery
Motor fault Contact us to replace the motor
External drag Adjust the tightness of the brake (the rear wheels should
rotate flexibly)
When braking, the controller still has a current output (in
normal braking, the current output of the controller should
immediately drop to "0" after pinching the brake handle),
contact us to replace the brake handle or check whether
the terminal connection is good
Defective
electronic brake
switch or poor
contact with brake
connector
Noise
Coming From
The Rear
Wheel
Belt is too loose
or tight
Adjust the tightness of the belt or contact us to replace the
belt
Charging port
damaged
If there is damage or shedding, you need to contact us to
replace the charging port
Circuit Failure Contact us to replace the battery and controller
Screws are loose Tighten all internal and external screws
Charger damaged Check if the charger is working properly (Page 05) and
contact us to replace the charger if there is a problem
Cannot
charge
Other manuals for ML-44GDRS-ES-E100
1
Table of contents
Other MAXTRA Scooter manuals
