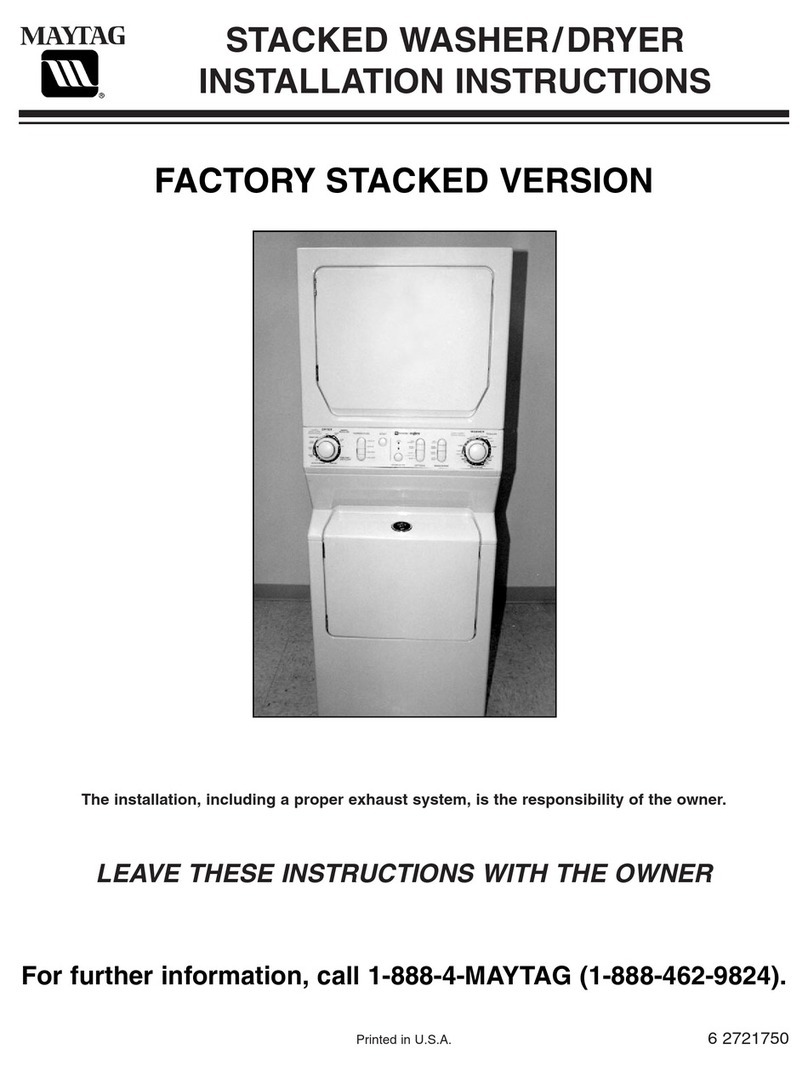

Maytag Stacked Washer/Dryer User manual

Maytag

Maytag Stacked Washer/Dryer User manual

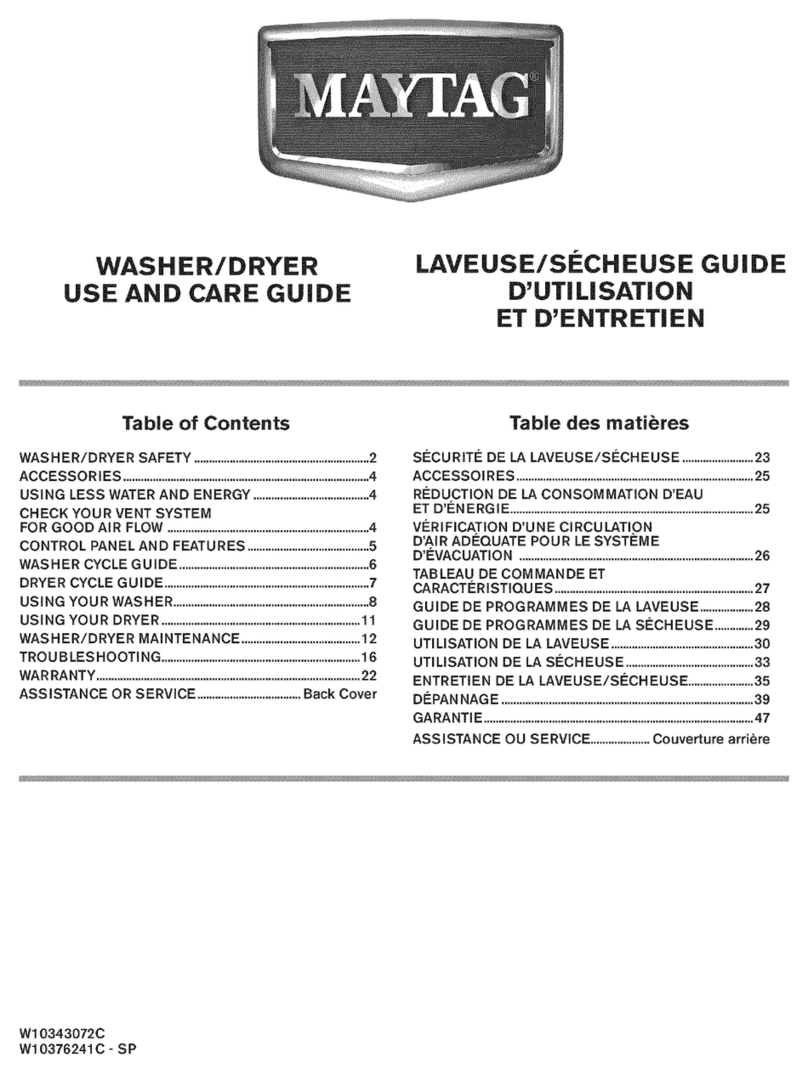

Maytag YMET3800XW1 User manual

Maytag

Maytag YMET3800XW1 User manual

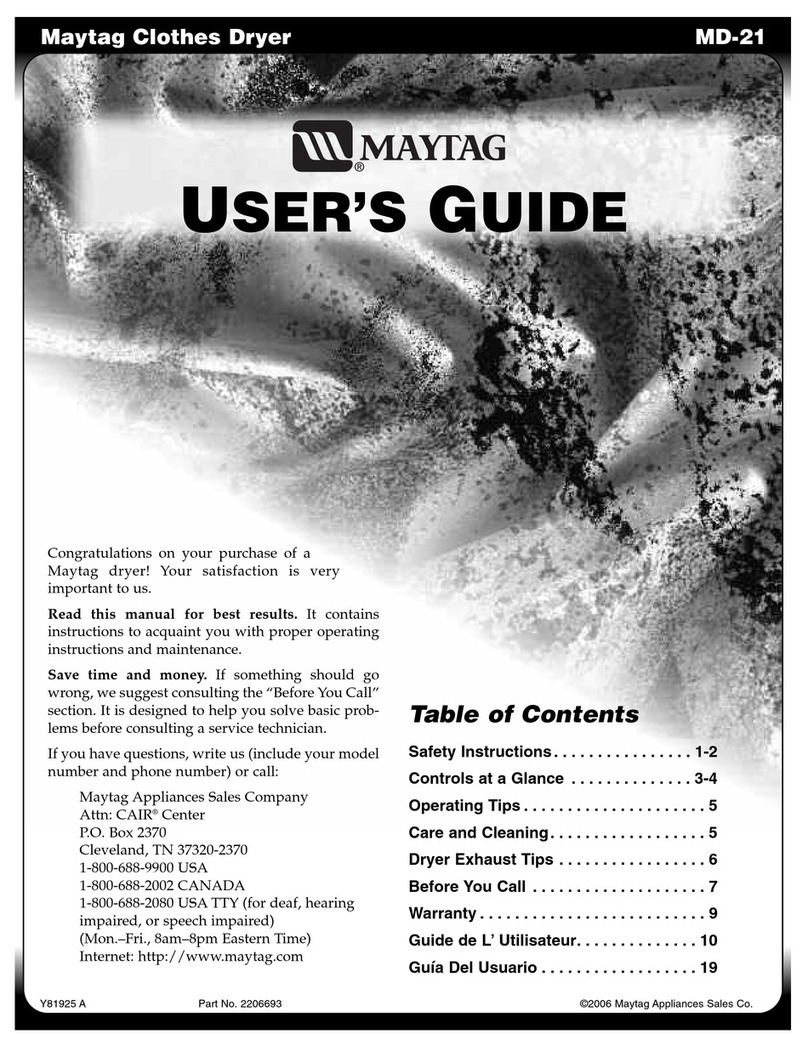

Maytag MDG3600BWQ User manual

Maytag

Maytag MDG3600BWQ User manual

Maytag MVW6230HC Assembly instructions

Maytag

Maytag MVW6230HC Assembly instructions

Maytag MLG21PN User manual

Maytag

Maytag MLG21PN User manual

Maytag MET3800XW1 User manual

Maytag

Maytag MET3800XW1 User manual

Maytag MHN33PDCWW User manual

Maytag

Maytag MHN33PDCWW User manual

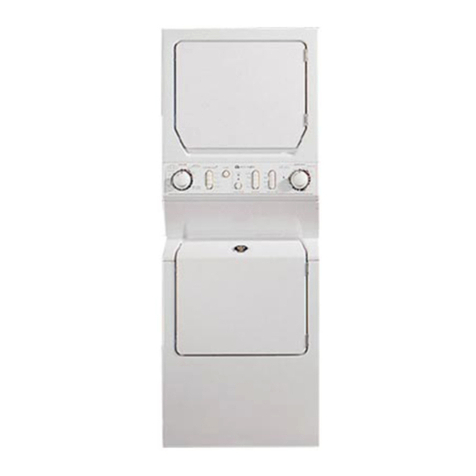

Maytag Neptune MUG2000 User manual

Maytag

Maytag Neptune MUG2000 User manual

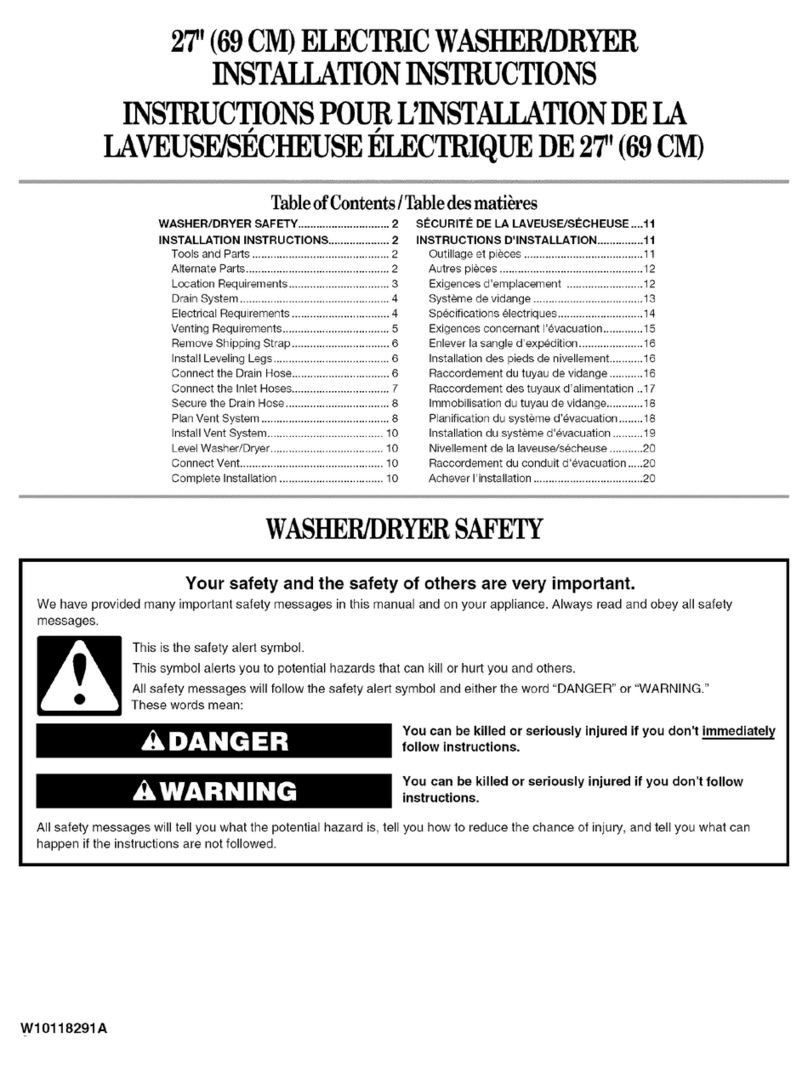

Maytag YMET3800TW1 User manual

Maytag

Maytag YMET3800TW1 User manual

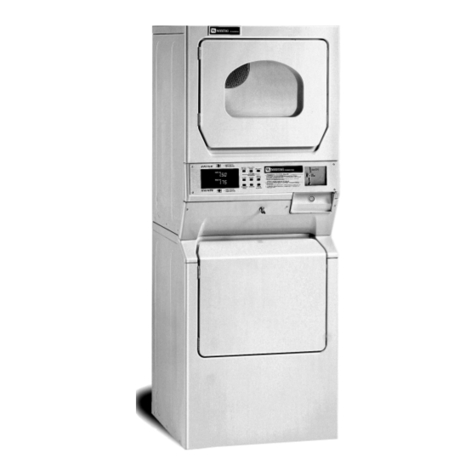

Maytag MLG19PD User manual

Maytag

Maytag MLG19PD User manual

Maytag W10376697 User manual

Maytag

Maytag W10376697 User manual

Maytag Neptune MAH6700AWW User manual

Maytag

Maytag Neptune MAH6700AWW User manual

Maytag WGTLV27FW0 User manual

Maytag

Maytag WGTLV27FW0 User manual

Maytag W10196552A User manual

Maytag

Maytag W10196552A User manual

Maytag MLG2000AXW User manual

Maytag

Maytag MLG2000AXW User manual

Maytag MGT3800TW - 27" Gas Laundry Center User manual

Maytag

Maytag MGT3800TW - 27" Gas Laundry Center User manual

Maytag Neptune MUG2000 User manual

Maytag

Maytag Neptune MUG2000 User manual

Maytag MLE22PRAZW User manual

Maytag

Maytag MLE22PRAZW User manual

Maytag MGT3800TW - 27" Gas Laundry Center User manual

Maytag

Maytag MGT3800TW - 27" Gas Laundry Center User manual

Popular Washer Dryer manuals by other brands

Whirlpool WFC8090GX Use and care guide and installation instructions

Whirlpool

Whirlpool WFC8090GX Use and care guide and installation instructions

GE GUD27GSSM2WW installation instructions

GE

GE GUD27GSSM2WW installation instructions

Beko WDIX7523000 user manual

Beko

Beko WDIX7523000 user manual

Beko HTV 8733 XS0 user manual

Beko

Beko HTV 8733 XS0 user manual

Ariston Margherita AL 108 D Instructions for installation and use

Ariston

Ariston Margherita AL 108 D Instructions for installation and use

GE GTUN275GMWW owner's manual

GE

GE GTUN275GMWW owner's manual

Frigidaire FLSG62MRFS4 installation instructions

Frigidaire

Frigidaire FLSG62MRFS4 installation instructions

AEG L7WEE861 user manual

AEG

AEG L7WEE861 user manual

Hoover Performa Family Instruction book

Hoover

Hoover Performa Family Instruction book

Ariston Margherita AWD 12 Instructions for installation and use

Ariston

Ariston Margherita AWD 12 Instructions for installation and use

Speed Queen Horizon Specification sheet

Speed Queen

Speed Queen Horizon Specification sheet

Indesit IWDD 7123 S Instructions for use

Indesit

Indesit IWDD 7123 S Instructions for use

Smeg WDI14C7-2 instruction manual

Smeg

Smeg WDI14C7-2 instruction manual

LG WDV5149 VP Series owner's manual

LG

LG WDV5149 VP Series owner's manual

Smeg WDF6127-1 instruction manual

Smeg

Smeg WDF6127-1 instruction manual

GE Unitized Spacemaker WSM2480DWW Dimension Guide

GE

GE Unitized Spacemaker WSM2480DWW Dimension Guide

Frigidaire Laundry Center Installation

Frigidaire

Frigidaire Laundry Center Installation

EdgeStar CWD1510S owner's manual

EdgeStar

EdgeStar CWD1510S owner's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

CABINET AND DRAWER PARTS
1
For Models: MVP8600TW0, MVP8600TU0, MVP8600TB0
(White) (Ultimate Silver) (Black)
12−07 Litho in U.S.A. (djc) Part No. W10182563 Rev. A
LAUNDRY TOWER
CABINET AND DRAWER PARTS
2
For Models: MVP8600TW0, MVP8600TU0, MVP8600TB0
(White) (Ultimate Silver) (Black)
W10182563
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10101294
Guide, Use & Care
2 Top
W10011320
White
W10064060
Ultimate Silver
W10064030
Black
3
W10070580
Bracket,
Top Support
4
W10101183
Bushing Sleeve
Rear, Stop
5
W10101184
Bushing Sleeve
Front
6 489437 Screw, 10−16 x 1/2
7
W10011880
Bracket,
Pogo Front (2)
8 688983 Screw, 8−18 x 5/8
9 Front, Pogo
(Includes
Illus. 10)
W10101270
White
W10101272
Ultimate Silver
W10101271
Black
10
W10101253
Medallion
11
W10011750
Pogo Bar
Assembly
12
W10011740
End Cap,
Pogo Bar
13 Front,
Organizer Drawer
W10011560
White
W10103270
Ultimate Silver
W10103250
Black
14 Front,
Middle Drawer
W10011550
White
W10070360
Ultimate Silver
W10070340
Black
15 Front,
Bottom Drawer
W10011540
White
W10070320
Ultimate Silver
W10070300
Black
16
W10113962
Screw,
8−18 x 1−1/4
17
W10011410
Drawer Bin,
Large (2)
18
W10011500
Drawer Bin,
Small
20
W10011420
Slide, Assembly
21 3359452 Nut, Foot
22 8563585 Leveling Foot
& Nut
23 Cabinet
(Not Serviceable)
24
W10011660
Clip, Top Lock
25
W10101220
Push Mechanism
Assembly
26 3400842 Screw, 8−18 x 1/2
27 3400893 Screw, 8−18 x 5/8
28 Bracket, Console
W10070490
White
W10101240
Ultimate Silver
W10101238
Black
29 Console Assembly
W10070550
White
W10070840
Ultimate Silver
W10070820
Black
Following Parts Not Illustrated
and Optional Parts Not Included
PAINT, TOUCH−UP (1/2oz.)
72017 White
8212605 Ultimate Silver
72032 Black
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Black
350938 Primer, Gray
