Maytag Washer/Dryer User manual

W10343072C
W10376241C - SP
WASHER/DRYER
USE AND CARE GUIDE
Table of Contents
WASHER/DRYER SAFETY ...........................................................2
ACCESSORIES...................................................................................4
USING LESS WATER AND ENERGY .......................................4
CHECK YOUR VENT SYSTEM
FOR GOOD AIR FLOW ....................................................................4
CONTROL PANEL AND FEATURES .........................................5
WASHER CYCLE GUIDE................................................................6
DRYER CYCLE GUIDE.....................................................................7
USING YOUR WASHER..................................................................8
USING YOUR DRYER ...................................................................11
WASHER/DRYER MAINTENANCE ........................................12
TROUBLESHOOTING...................................................................16
WARRANTY.........................................................................................22
ASSISTANCE OR SERVICE................................... Back Cover
Table des matières
SÉCURITÉ DE LA LAVEUSE/SÉCHEUSE ........................23
ACCESSOIRES................................................................................25
RÉDUCTION DE LA CONSOMMATION D’EAU
ET D’ÉNERGIE..................................................................................25
VÉRIFICATION D’UNE CIRCULATION
D’AIR ADÉQUATE POUR LE SYSTÈME
D’ÉVACUATION ...............................................................................26
TABLEAU DE COMMANDE ET
CARACTÉRISTIQUES...................................................................27
GUIDE DE PROGRAMMES DE LA LAVEUSE..................28
GUIDE DE PROGRAMMES DE LA SÉCHEUSE.............29
UTILISATION DE LA LAVEUSE ................................................30
UTILISATION DE LA SÉCHEUSE ...........................................33
ENTRETIEN DE LA LAVEUSE/SÉCHEUSE......................35
DÉPANNAGE .....................................................................................39
GARANTIE...........................................................................................47
ASSISTANCE OU SERVICE.................... Couverture arrière
LAVEUSE/SÉCHEUSE GUIDE
D’UTILISATION
ET D’ENTRETIEN

2

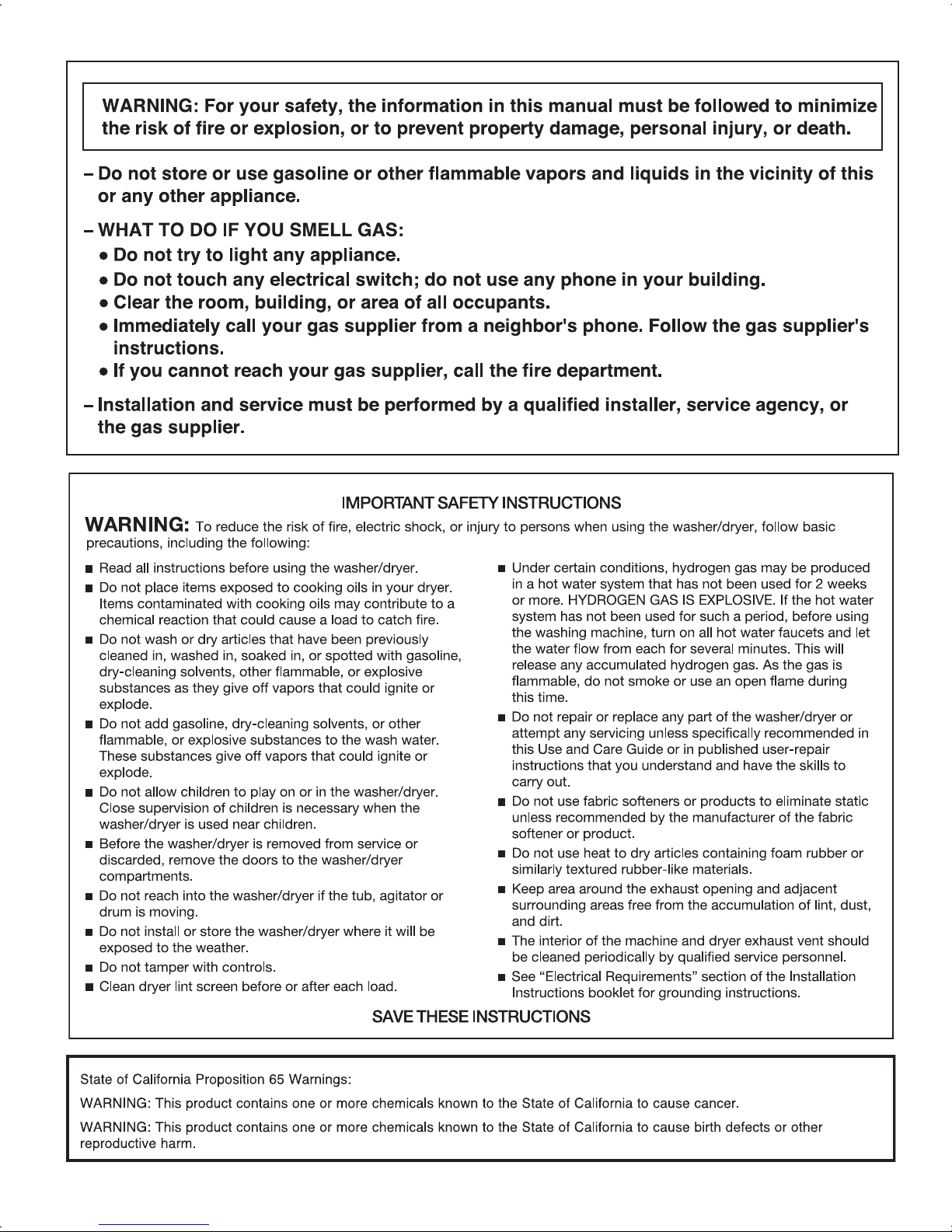

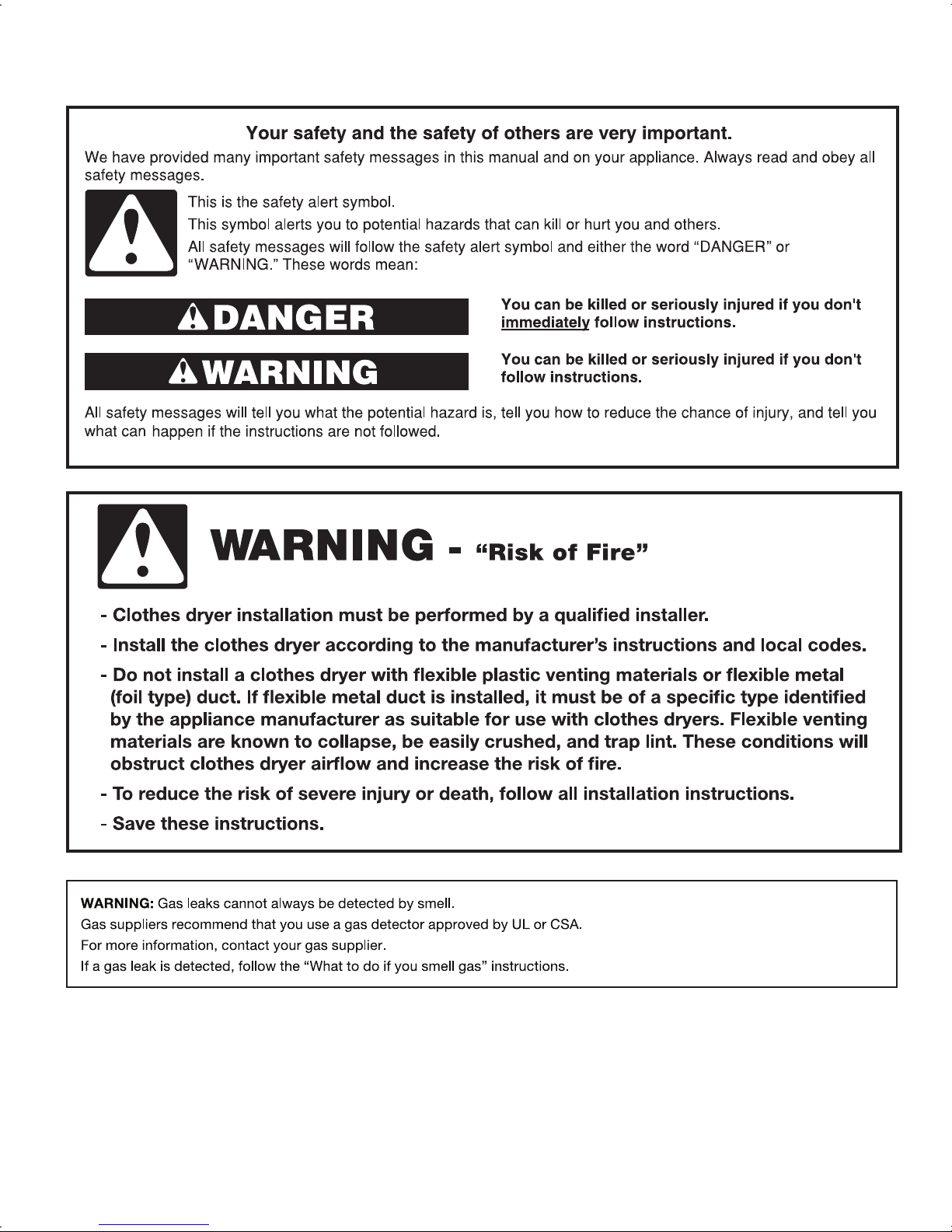

WASHER/DRYER SAFETY

3

4
CHECK YOUR VENT SYSTEM FOR GOOD AIRFLOW
Good airflow
Along with heat, dryers require good airflow to efficiently dry
laundry. Proper venting will reduce your drying times and
improve your energy savings. See Installation Instructions.
The venting system attached to the dryer plays a big role in
good airflow.
Service calls caused by improper venting are not covered by
the warranty and will be paid by the customer, regardless of
who installed the dryer.
Maintain good airflow by:
Good Better
n Cleaning your lint screen before each load.
n Replace plastic or foil vent material with 4" (102 mm)
diameter heavy, rigid vent material.
n Use the shortest length of vent possible.
n Use no more than four 90° elbows in a vent system;
each bend and curve reduces air flow.
n Remove lint and debris from the exhaust hood.
n Remove lint from the entire length of the vent system
at least every 2 years. When cleaning is complete, be
sure to follow the Installation Instructions supplied with
your dryer for final product check.
n Clear away items from the front the dryer.
4"
(102 mm)
ACCESSORIES
This washer does not include inlet water hoses.
See Installation Instructions for installation accessories.
Enhance your washer with these premium accessories.
For more high-quality items or to order, call 1-800-901-2042,
or visit us at www.maytag.com/accessories. In Canada
call 1-800-807-6777, or visit us at www.whirlpoolparts.ca.
Part Number Accessory:
8212526 Washer drip tray, fits under all
All-purpose appliance cleaner
31682
Laundry supply storage cart
1903WH
Use Sensor Dry cycles for better fabric care and energy savings
Use the Sensor Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During Sensor Dry cycles,
drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off
when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings.
With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to
over-drying. Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.
USING LESS WATER AND ENERGY
This washer is designed to use less water and energy, and complies
with all 2011 energy standards. Wash cycles with controlled
temperatures are designed to maintain cleaning performance while
using less water and energy compared to older traditional washers.
As a result, water levels will be lower, and hot and warm wash
temperatures may not be as warm as you are used to.
Traditional washer Reduced water washer

5
34
1
CONTROL PANEL AND FEATURES
2
WASH CYCLE KNOB
Use the Wash Cycle knob to select available cycles on your
washer. Turn the knob to select a cycle for your laundry load.
See “Cycle Guide” for detailed descriptions of cycles.
WASH TEMPERATURE
You may select a Wash Temperature based on the type of fabric
and soils being washed. Use the warmest wash water safe for
the fabric. Follow garment label instructions.
WATER LEVEL
Use this option to adjust the amount of water used with your
load size. Use enough water to allow the load to move freely.
NOTE: The highest water level will be lower than that
of pre-2011 washers.
FABRIC SOFTENER
This option must be selected if using fabric softener
during a cycle. It ensures that fabric softener is added
at the correct time in the rinse for even distribution.
4
1
2
3
5
Not all features and options are available on all models.
Appearance may vary.
5 6
PUSH TO START/END OF CYCLE SIGNAL
The End of Cycle Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at the end
of the cycle reduces wrinkling.
Turn the END OF CYCLE SIGNAL knob to select the desired
setting (On or Off). Press the PUSH TO START knob to start
the dryer.
DRYER CYCLE KNOB
Use your Dryer Cycle knob to select available cycles on
your dryer. Turn the knob to select a cycle for your laundry load.
See “Cycle Guide” for detailed descriptions of cycles.
TIMED DRY
Will run the dryer for the specified time on the control.
Drying time and temperature will depend on your dryer
model.
SENSOR DRY
Senses moisture in the load or air temperature and shuts off
when the load reaches the selected dryness level. Gives the
best drying in the shortest time. Drying time will vary based
on fabric type, load size, and dryness setting.
6
WASHER DRYER

6
* You should use the amount of detergent or presoak additive recommended by the manufacturer. After the cycle ends, you may add
detergent and start a new wash cycle.
**Approximate time in minutes.
IMPORTANT: Do not presoak items in your washer by lifting the lid or stopping the cycle. Failure to follow this instruction can result in
property damage. If needed, presoak items in a small wash basin prior to loading the washer.
WASHER CYCLE GUIDE
Items to wash: Cycle: Wash Times**: Wash/Spin
Speed: Cycle Details:
Light to moderately
soiled delicate items
and washable knits
Delicate Low/Low
Permanent press
blends and synthetic
fabrics that are
lightly to moderately
soiled
Cottons and linens;
loads that are
moderately or heavily
soiled
Heavily soiled
or stained
items that need
pretreatment
Casual
Normal
Prewash*
Gently removes soils and minimizes wrinkling.
Features a cool down, rinse and low-speed final spin
to reduce wrinkling.
You may select a wash time based on the soil level of
your load.
Brief periods of agitation and soak followed by a
4-minute Pre-Wash featuring high-speed agitation.
6–10
6–14
4
High and
Low/Low
High and
Low/High
High/High
6–10
Not all cycles or options are available on all models.
Refer to the cycle control knob on your washer.
Wash temperatures are selected using the Wash Temperature
control knob.
For best performance:
• Choosethecyclethatbesttstheloadbeingwashed.
• UsePrewashforheavilysoiledclothing.
• Donotleavethewasherlidopenunattendedoncethewasherhas
started to fill.

7
DRYER CYCLE GUIDE — SENSOR DRY CYCLES
Not all cycles and settings are available on all models.
SENSOR DRY – Sensor dry cycles give the best drying in the
shortest time. They sense moisture in the load or air temperature and
shut off when the load reaches the selected dryness level. Drying
time varies based on fabric type, load size, and dryness setting.
Select a drying temperature based on the fabrics in your load. If you
are unsure of the temperature to select for a load, select the lower
setting rather than the higher setting.
Items to dry: Available
Options: Cycle Details:
End of Cycle Signal
NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load. If loads seem drier than you like, select
Less Dry next time you dry a similar load.
SENSOR DRY
(Low Heat)
SENSOR DRY
(High Heat) End of Cycle Signal Sensor Dry cycles include a cool down cycle to make the load easier to handle.
An ENERGY PREFERRED cycle (*) is available for optimal
energy savings.
Cycle:
DRYER CYCLE GUIDE — TIMED DRY
Items to dry: Temperature:
Cycle: Available
Options: Cycle Details:
Not all cycles and settings are available on all models.
Will run the dryer for the selected time.
Heavy, bulky, or
lightweight items Timed Dry
Time Adjustment
End of Cycle Signal
Completes drying if items are still damp.
High
Rubber, plastic,
heat-sensitive fabrics Air Fluff No Heat Time Adjustment
End of Cycle Signal
No-heat drying.
Any load Wrinkle Prevent No Heat Time Adjustment
End of Cycle Signal
Helps remove wrinkles, such as those
found in clothes packed in a suitcase
or in items wrinkled from being left in
the dryer too long.
Most loads, including
jeans, heavy work
clothes, towels
Medium to lightweight
synthetics, permanent
press, no-iron items or
smaller, lighter loads,
including work clothes,
medium weight fabrics,
sheets, casual, shirts,
pants, lightweight items,
synthetics, delicates,
athletic wear

8
• Emptypockets.Loosechange,buttons,oranysmallobject
can pass under the agitator and become trapped, causing
unexpected sounds.
• Sortitemsbyrecommendedcycle,watertemperature,
and colorfastness.
• Separateheavilysoileditemsfromlightlysoiled.
• Separatedelicateitemsfromsturdyfabrics.
• Donotdrygarmentsifstainsremainafterwashing,because
heat can set stains into fabric.
• Treatstainspromptly.
• Closezippers,fastenhooks,tiestringsandsashes,and
remove non-washable trim and ornaments.
• Mendripsandtearstoavoidfurtherdamagetoitems
during washing.
Helpful Tips:
• Whenwashingwater-prooforwater-resistantitems,loadevenly.
• Usemeshgarmentbagstohelpavoidtanglingwhenwashing
delicate or small items.
• Turnknitsinsideouttoavoidpilling.Separatelint-takersfrom
lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint
from towels, rugs, and chenille fabrics.
NOTE: Always read and follow fabric care label instructions to avoid
damage to your garments.
1. Sort and prepare your laundry
Add a measured amount of detergent or single-dose laundry
packet into the basket before adding clothes. If using Oxi-type
boosters, color-safe bleach, or fabric softener crystals, add to
the bottom of the washer basket as well.
IMPORTANT: Follow the manufacturer’s instructions to
determine the amount of laundry products to use.
2. Add laundry products
USING YOUR WASHER

9
5. Add fabric softener to dispenser
(on some models)
Pour a measured amount of liquid fabric
softener into dispenser, always follow
manufacturer’s directions for correct amount
of fabric softener based on your load size.
Dilute liquid fabric softener by filling the dispenser with warm
water until liquid reaches the underside of the rim. See max fill line
arrows. Do not overfill.
IMPORTANT: Fabric Softener option must be selected to “On”
to ensure proper distribution at correct time in cycle.
Adding Liquid Fabric Softener Manually to Wash Load
During the final rinse, wait until the washer has completed filling,
push in the Cycle knob to pause the washer. Lift the lid and add
the measured recommended amount of liquid fabric softener
(diluted with 1/2 to 1 cup [125 to 250 mL] warm water). Do not
allow liquid fabric softener to spill, splash, drip, or run into the basket
or on load. Do not use more than the recommended amount. Close
the lid and pull out the Cycle knob to start the washer.
IMPORTANT: Fabric Softener option must be selected to “On”
to ensure proper distribution of the fabric softener during the rinse
portion of the cycle.
4. Add liquid chlorine bleach
to dispenser
Liquid
Chlorine Bleach
Do not overfill, dilute, or use more than 1 cup (250 mL).
Do not use color-safe bleach or Oxi products in the same
cycle with liquid chlorine bleach.
Load garments in loose heaps evenly around basket wall.
For best results, do not pack the load tightly. Do not wrap large
items such as sheets around the agitator; load them in loose piles
around the sides of the basket. Try mixing different sized items to
reduce tangling.
3. Load laundry into washer
MAX FILL
Turn Cycle knob clockwise to choose your wash cycle.
For more information, see “Cycle Guide.”
6. Select cycle
IMPORTANT: Do not tightly pack or force items into washer.
Items need to move freely for best cleaning and to reduce
wrinkling and tangling.

10
Wash Temp
Hot
Some cold water is added to save
energy. This will be cooler than your
hot water heater setting.
Warm
Some cold water will be added, so
this will be cooler than what your
previous washer provided.
Cool
Warm water may be added to
assist in soil removal and to help
dissolve detergents.
Cold
This is the temperature from your
faucet. If your tap cold water is very
cold, warm water may be added
to assist in soil removal and help
dissolve detergent.
Suggested Fabrics
8. Select WASH TEMPERATURE
Once you select a cycle, select the desired wash temperature
by turning the WASH TEMPERATURE knob to the appropriate
setting based on your load. All rinses are tap cold.
NOTE: Always read and follow fabric care label instructions
to avoid damage to your garments.
10. Pull out Cycle knob to begin wash
cycle
Close the washer lid and pull out the Cycle knob to start the
washer.
NOTE: Some washers will only fill with the lid in the closed
position.
To add a garment after washer starts:
• PushintheCycleknobtostopthewasher.
• Openthelidandaddtheitem(s).
• ClosethelidandpulltheCycleknobouttoresumethecycle.
Do not leave the lid open unattended once the washer has
started filling.
• Forbestperformancedonotinterruptwashercycleoncethe
washer has been started.
Set FABRIC SOFTENER to ON if you want to add fabric softener.
IMPORTANT: Fabric Softener option must be selected to “On” to
ensure proper distribution at correct time in cycle.
Whites and pastels
Durable garments
Heavy soils
Bright colors
Moderate to light soils
Colors that bleed
or fade
Light soils
Dark colors that
bleed or fade
Light soils
9. Select FABRIC SOFTENER On or Off
Select the load size setting most suitable for your load. Small will
add a low amount of water for smaller loads and Large will add
the most amount of water for large or bulky loads. Items need to
move freely.
7. Select WATER LEVEL

11
USING YOUR DRYER
1. Clean the lint screen
Clean the lint screen before each load. Pull the lint screen straight
up. Roll lint off the screen with your fingers. Do not rinse or wash
screen to remove lint. Push the lint screen firmly back into place.
For additional cleaning information, see “Cleaning the Lint Screen.”
2. Load the dryer
Place laundry in the dryer. Close the door.
NOTE: Your model may have a different door than the one shown.
Some models have drop down doors.
Do not tightly pack the dryer; clothes should be able to
tumble freely.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this dryer.
Before using your dryer, wipe the dryer drum with a damp cloth
to remove dust from storing and shipping.
3. Select cycle
Select the desired cycle for your load. See “Cycle Guide”
for more information about each cycle.
SENSOR DRY Cycles
You can select a different dryness level, depending on your load,
by turning the knob to dryness level.
Selecting More Dry, ENERGY PREFERRED, or Less Dry
automatically adjusts the dryness level at which the dryer will shut
off. Once a dry level is set, it cannot be changed without stopping
the cycle.
SENSOR DRY cycles give the best drying in the shortest time.
Drying time varies based on fabric type, load size, and dryness
setting.
NOTE: More Dry removes more load moisture. ENERGY
PREFERRED is used for a starting point for SENSOR DRY
cycles. Choose ENERGY PREFERRED for optimal energy
savings. Less Dry removes less moisture and is used for loads
you may want to put on a hanger to complete drying.

12
5. Press PUSH TO START to
begin cycle
Push and hold the PUSH TO START knob to begin the cycle.
Promptly remove garments after cycle has completed to reduce
wrinkling. Use the Wrinkle Prevent feature to avoid wrinkling when
you are unable to remove a load from the dryer as soon as it stops.
4. Select End of Cycle signal
(optional)
Your dryer may have an End of Cycle signal. The signal is helpful
when drying items that should be removed from the dryer as
soon as it stops. The End of Cycle signal is part of the PUSH
TO START button and is selectable. Turn the PUSH TO START
button to ON or OFF. The signal will sound only if the selector is
set to ON.
NOTE: When the Wrinkle Prevent setting is selected and the End
of Cycle signal is on, the tone will sound every 5 minutes until the
clothes are removed or the Wrinkle Prevent setting ends.
Replace inlet hoses after 5 years of use to reduce the risk of hose
failure. Periodically inspect and replace inlet hoses if bulges, kinks,
cuts, wear, or leaks are found.
When replacing your inlet hoses, mark the date of replacement on
the label with a permanent marker.
WATER INLET HOSES
WASHER/DRYER MAINTENANCE
WASHER CARE
Recommendations to Help Keep Your Washer Clean
and Performing at its Best
1. Always follow the detergent manufacturer’s instructions
regarding the amount of detergent to use. Never use more than
the recommended amount because that may increase the rate
at which detergent and soil residue accumulate inside your
washer, which in turn may result in undesirable odor.
2. Use warm and hot wash water settings sometimes (not
exclusively cold water washes), because they do a better job
of controlling the rate at which soils and detergent accumulate.
3. Always leave the washer lid open between uses to help dry out
the washer and prevent the buildup of odor-causing residue.
Cleaning Your Top Loading Washer
Read these instructions completely before beginning the
routine cleaning processes recommended below. This Washer
Maintenance Procedure should be performed, at a minimum, once
per month or every 30 wash cycles, whichever occurs sooner,
to control the rate at which soils and detergent may otherwise
accumulate in your washer. To keep washer interior odor-free,
follow this recommended monthly cleaning procedure:
affresh®Washer Cleaner Cycle Procedure (Recommended for
Best Performance):
a. Open the washer lid and remove any clothing or items.
b. Place an affesh®Washer Cleaner tablet in the bottom of
the washer basket.
c. Do not add any detergent or other chemical to the
washer when following this procedure.
d. Close the washer lid.
e. Select Normal Heavy cycle, Hot Temperature, and High
Water Level.
f. Pull out the Cycle knob. Water will pour into washer
for a moment and then pause; the lid will lock and
the cycle will continue.
NOTE: For best results, do not interrupt cycle. If cycle must
be interrupted, push in the Cycle knob.

13
Keep washer/dryer area clear and free from items that would
block the airflow for proper washer/dryer operation. This
includes clearing piles of laundry in front of the washer/dryer.
CLEANING THE DRYER INTERIOR
To clean dryer drum
1. Apply a liquid, nonflammable household cleaner to the
stained area of the drum and rub with a soft cloth until stain
is removed.
2. Wipe drum thoroughly with a damp cloth.
3. Tumble a load of clean cloths or towels to dry the drum.
NOTE: Garments that contain loose dyes, such as denim blue
jeans or brightly colored cotton items, may discolor the dryer
interior. These stains are not harmful to your dryer and will not
stain future loads of clothes. Dry these items inside out to avoid
drum staining.
REMOVING ACCUMULATED LINT
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often, depending
on dryer usage. Cleaning should be done by a qualified servicer.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending
on dryer usage.
CLEANING THE WASHER/DRYER LOCATION
WASHER CARE
Chlorine Bleach Procedure (Alternative):
a. Open the washer lid and remove any clothing
or items.
b. Add 1 cup (236 mL) of liquid chlorine bleach
to the bleach compartment.
NOTE: Use of more liquid chlorine bleach than is
recommended above could cause washer damage
over time.
c. Do not add any detergent or other chemical to the
washer when following this procedure.
d. Close the washer lid.
e. Select Normal Heavy cycle, Hot Temperature, and
High Water Level
f. Pull out the Cycle knob. Water will pour into washer
for a moment and then pause; the lid will lock and
the cycle will continue.
NOTE: For best results, do not interrupt cycle. If cycle must
be interrupted, push in the Cycle knob.
Cleaning the liquid fabric softener dispenser
1. Remove dispenser by grasping top with both hands and
squeezing, while pushing upward with thumbs.
2. Rinse dispenser under warm water, then replace it.
NOTE: To avoid damage to the washer or clothing,
do not wash clothes with the liquid fabric softener
dispenser removed.
Cleaning the bleach dispenser
Wipe the inside of the bleach dispenser with a clean, damp
cloth.
Cleaning the Outside of the Washer
Use a soft, damp cloth or sponge to wipe away any spills. Use
only mild soaps or cleaners when cleaning external washer
surfaces.
IMPORTANT: To avoid damaging the washer’s finish, do not use
abrasive products.
CHANGING THE DRUM LIGHT (on some models)
1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the back
wall of the dryer. Using a Phillips-head screwdriver, remove
the screw located in the lower right-hand corner of the cover.
Remove the cover.
3. Turn bulb counterclockwise. Replace the bulb with a 10-watt
appliance bulb only. Replace the cover and secure with the
screw.
4. Plug into a grounded outlet or reconnect power.

14
CLEANING THE LINT SCREEN
Every load cleaning
The lint screen is located in the door opening of the dryer.
A screen blocked by lint can increase drying time.
To clean:
1. Pull the lint screen straight up. Roll lint off the screen with
your fingers. Do not rinse or wash screen to remove lint.
Wet lint is hard to remove.
2. Push the lint screen firmly back into place.
IMPORTANT:
n Do not run the dryer with the lint screen loose,
damaged, blocked, or missing. Doing so can cause
overheating and damage to both the dryer and fabrics.
n If lint falls off the screen into the dryer during removal,
check the exhaust hood and remove the lint. See
“Venting Requirements.”
As needed cleaning
Laundry detergent and fabric softener residue can build up
on the lint screen. This buildup can cause longer drying times
for your clothes, or cause the dryer to stop before your load is
completely dry. The screen is probably clogged if lint falls off
while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months,
or more frequently, if it becomes clogged due to a residue
buildup.
To wash:
1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent.
Scrub lint screen with the brush to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel.
Reinstall screen in dryer.
VACATION, STORAGE, AND MOVING CARE
Non-Use or Storage Care
Operate your washer/dryer only when you are at home.
If you will be on vacation or not using your washer/dryer
for an extended period of time, you should:
1. Unplug washer/dryer or disconnect power.
2. Turn off water supply to washer, to avoid flooding due
to water pressure surge.
3. For gas dryers only: Close shut-off valve to gas supply line.
4. Clean lint screen. See “Cleaning the Lint Screen.”
Moving Care
For power supply cord-connected washer/dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in washer/dryer base.
3. Continue with “For washers” on next page.
For direct-wired washer/dryers:
1. Turn off power at fuse or breaker box.
2. Disconnect wiring.
3. Make sure leveling legs are secure in washer/dryer base.
4. Continue with “For washers” on next page.
For gas washer/dryers:
1. Unplug or disconnect power to washer/dryer.
2. Close shut-off valve in gas supply line.
3. Disconnect gas supply line pipe and remove fittings
attached to dryer pipe.
4. Cap the open fuel supply line.
5. Make sure leveling legs are secure in washer/dryer base.
6. Continue with “For washers” on next page.

15
WINTER STORAGE CARE
IMPORTANT: To avoid damage, install and store washer/dryer
where it will not freeze. Because some water may stay in
hoses, freezing can damage washer/dryer. If storing or moving
during freezing weather, winterize your washer/dryer.
To winterize washer/dryer:
1. Shut off both water faucets, disconnect and drain water inlet
hoses.
2. Put 1 qt. (1 L) of R.V. - type antifreeze in basket and run
washer on RINSE cycle for about 30 seconds to mix
antifreeze and remaining water.
3. Unplug washer/dryer or disconnect power.
VACATION, STORAGE, AND MOVING CARE (cont.)
For washers:
1. Shut off both water faucets. Disconnect and drain water inlet
hoses.
2. If washer/dryer will be moved during freezing weather,
follow “Winter Storage Care” directions before moving.
3. Disconnect drain from drain system and drain any
remaining water into a pan or bucket. Disconnect drain hose
from back of washer.
4. Place inlet hoses and drain hose inside washer basket.
5. Drape power cord over edge and into washer basket.
6. Place packing tray from original shipping materials back inside
washer/dryer. If you do not have packing tray, place heavy
blankets or towels into basket opening. Close doors and place
tape over doors and down front of washer/dryer. Keep doors
taped until washer/dryer is placed in new location.
REINSTALLING/USING WASHER/DRYER AGAIN
To reinstall washer/dryer after non-use, vacation, moving
or winter storage:
1. Refer to Installation Instructions to locate, level, and
connect washer/dryer.
2. Before using again, run washer/dryer through the following
recommended procedure:
To use washer/dryer again:
1. Flush water pipes and hoses. Reconnect water inlet hoses.
Turn on both water faucets.
(continued in next column)
2. Plug in washer/dryer or reconnect power.
3. Run washer through a complete cycle to clean washer
and remove antifreeze, if used. Use half the manufacturer’s
recommended amount of detergent for a medium-size load.
In the U.S.A.
In Canada

16
First try the solutions suggested here or visit our website to possibly avoid the cost of a service call.
In U.S.A. www.maytag.com/help – In Canada www.maytag.ca.
If you experience Possible Causes Solution
Feet may not be in contact with the
floor and locked. Front and rear feet must be in firm contact with floor, and washer/dryer must be level to operate properly. Jam nuts must be
tight against the bottom of the cabinet.
Check floor for flexing or sagging. If flooring is uneven, a 3/4"
(19 mm) piece of plywood under your washer/dryer will reduce
sound.
See “Level the Washer/Dryer” in Installation Instructions.
Load could be unbalanced. Load dry items in loose heaps evenly around basket wall. Adding
wet items to washer or adding more water to basket could
unbalance washer.
Do not tightly pack. Avoid washing single items.
See “Cycle Guide” and “Using Your Washer” in this Use and
Care Guide.
Empty pockets before washing. Loose items such as coins
could fall between basket and tub or may block pump.
It may be necessary to call for service to remove items.
It is normal to hear metal items on clothing such as metal snaps,
buckles, or zippers touch against the stainless steel basket.
Objects caught in washer drain
system.
Clicking or metallic noises
Gurgling or humming It is normal to hear the pump making a continuous humming sound
with periodic gurgling or surging as final amounts of water are
removed during the Spin cycle.
Washer may be draining water.
Check the following for
proper installation or
see “Using Your
Washer” section. Washer/dryer may not be level.
Vibration or Off-Balance
Noises
TROUBLESHOOTING – WASHER
Washer not level. Water may splash off basket if washer is not level. Check that load
is not unbalanced or tightly packed.
Fill hoses not attached tightly. Tighten fill-hose connection.
Make sure all four fill hose flat washers are properly seated.
Drain hose connection. Pull drain hose from washer cabinet and properly secure it to
drainpipe or laundry tub.
Do not place tape over drain opening.
Check household plumbing for leaks or
clogged sink or drain. Water can back up out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drain pipe, water
pipes, and faucets.)
Fill hose washers.
Check the following for
proper installation:
Improper loading can cause basket to be out of alignment
and cause water to splash off tub. See “Using Your Washer”
for loading instructions.
Washer not loaded as
recommended.
Water Leaks
Washer not performing as expected
Washer won’t run
or fill, washer stops
working
Check for proper water supply. Both hoses must be attached and have water flowing to
inlet valve.
Both hot and cold water faucets must be turned on.
Check that inlet valve screens have not become clogged.
Check for any kinks in inlet hoses, which can restrict water flow.
Humming You may hear the hum of the sensing spins after you have started
the washer. This is normal. Sensing spins will take several minutes
before water is added to the washer.
Washer is in sensing spin.

17
TROUBLESHOOTING – WASHER cont.
In the U.S.A. In Canada
If you experience Possible Causes Solution
Normal washer operation. Door must be closed for washer to run.
Washer will pause during certain phases of cycle. Do not
interrupt cycle.
Washer spins the dry load for several minutes before filling to
determine if load is balanced. You may hear the hum of the spins.
This is normal.
Washer not loaded as
recommended. Remove several items, rearrange load evenly in basket and add detergent. Close door and press PUSH TO START.
Do not add more than 1 or 2 additional items after cycle has started
to avoid tightly packing or unbalancing.
First try the solutions suggested here or visit our website to possibly avoid the cost of a service call.
In U.S.A. www.maytag.com/help – In Canada www.maytag.ca.
Washer not performing as expected (cont.)
Use a cycle with a low spin speed. Cycles with lower spin speeds remove less water than cycles
with high spin speeds. Use the recommended cycle/speed spin for
your garment. To remove extra water in the load, select Spin. Load
may need to be rearranged to allow even distribution of the load in
the basket.
Small items may have been caught in pump or between basket and
tub, which can slow draining.
Empty pockets and use garment bags
for small items.
Washer not draining/
spinning, loads are
still wet
Washer not loaded as recommended. Tightly packing or unbalanced loads will not allow the washer to
spin correctly, leaving the load wetter than normal. See “Using Your
Washer” for loading recommendations.
Check plumbing for correct drain hose
installation. Drain hose extends into
standpipe farther than 4.5" (114 mm).
Check drain hose for proper installation. Use drain hose form
and securely attach to drainpipe or tub. Do not tape over drain
opening. Lower drain hose if the end is higher than 96" (2.4 m)
above the floor. Remove any clogs from drain hose.
Washer won’t run
or fill, washer stops
working (cont.)
Too much detergent causing suds
to slow or stop draining and spinning. Always measure and follow detergent directions for your load. To remove extra suds, select Rinse and Spin. Do not add
detergent.
Plug into a grounded outlet or reconnect power.
Do not use an extension cord.
Ensure there is power to outlet.
Reset a tripped circuit breaker. Replace any blown fuses.
NOTE: If problems continue, contact an electrician.
Check proper electrical supply.

18
If you experience Possible causes Solution
Incorrect or wrong
wash or rinse
temperatures
Check for proper water supply. Check that hot and cold inlet hoses are not reversed.
Both hoses must be attached to both washer and faucet, and
have both hot and cold water flowing to inlet valve.
Check that inlet valve screens are not clogged.
Remove any kinks in hoses.
This washer uses cooler wash and rinse water temperatures
than your previous washer. This includes cooler hot and warm
washes.
Load not rinsed Check for proper water supply.
First try the solutions suggested here or visit our website to possibly avoid the cost of a service call.
In U.S.A. www.maytag.com/help – In Canada www.maytag.ca.
Washer not performing as expected (cont.)
Energy-saving controlled
wash temperatures.
Check that hot and cold inlet hoses are not reversed.
Both hoses must be attached and have water flowing to the
inlet valve.
Both hot and cold water faucets must be on.
Inlet valve screens on washer may be clogged.
Remove any kinks in the inlet hose.
Using too much detergent. The suds from too much detergent can keep washer from
operating correctly. Always measure detergent and follow
detergent directions based on load size and soil level.
Washer not loaded as recommended. The washer is less efficient at rinsing when load is tightly packed.
Load garments in loose heaps evenly around the basket wall.
The washer will not rinse well if tightly packed. Load with dry items
only.
Use cycle designed for the fabrics being washed.
Add only 1 or 2 garments after washer has started.
The high spin speeds combined with air flow during the final
spin can cause items near the top of the load to develop dry spots
during the final spin. This is normal.
High speed spins extract more
moisture than traditional top-load
washers.
Add an extra rinse to the selected cycle.Heavy sand, pet hair, lint, and
detergent or bleach residues may
require additional rinsing.
Sand, pet hair, lint,
etc. on load after
washing
Load is tangling Washer not loaded as recommended. See “Using Your Washer” section.
Select a cycle with a slower wash action and spin speed;
however, items will be wetter than those using a higher
speed spin.
Load garments in loose heaps evenly around the basket wall.
Reduce tangling by mixing types of load items. Use the
recommended cycle for the type of garments being washed.
Not cleaning or
removing stains Washer is less efficient at cleaning when load is tightly packed.
Load garments in loose heaps evenly around the basket wall.
Load with dry items only.
Add only 1 or 2 garments after washer has started.
Washer not loaded as recommended.
TROUBLESHOOTING – WASHER cont.
Adding detergent on top of load. Add detergent, oxi products, and color-safe bleach to the
bottom of the basket before adding the load items.
Water level seems
too low, or the washer
appears to not fill
completely
The top of the agitator is much higher
than the highest water level. This is normal and necessary for clothes to move freely.
Clothes not completely
covered with water This washer uses much less water
than traditional top-load washers. Clothes may not be completely covered with water.
Dry spots on load
after cycle Select a higher load-size setting, or wash a smaller load.
This washer uses much less water than
traditional top-load washers.

19
If you experience Possible Causes Solution
First try the solutions suggested here or visit our website to possibly avoid the cost of a service call.
In U.S.A. www.maytag.com/help – In Canada www.maytag.ca.
Using too much detergent.
Not using correct cycle for fabric type.
Not using dispensers.
Not washing like colors together.
The suds from too much detergent can keep washer from
operating correctly. Always measure detergent and follow
manufacturer’s directions based on load size and soil level.
Use a higher soil level cycle option and warmer wash
temperature to improve cleaning.
Use Heavy cycle for tough cleaning.
Use dispensers to avoid chlorine bleach and fabric softener
staining.
Load dispensers before starting a cycle. Set FABRIC SOFTENER
to ON when using fabric softener.
Do not add products directly to load.
Wash like colors together and remove promptly after the cycle
is complete to avoid dye transfer.
Washer not performing as expected (cont.)
Clogged dispenser.
Incorrect dispenser
operation
Fabric damage Sharp items were in pockets during
wash cycle. Empty pockets, zip zippers, and snap or hook fasteners before
washing to avoid snags and tears.
Strings and straps could have tangled. Tie all strings and straps before starting wash load.
Items may have been damaged before
washing. Mend rips and broken threads in seams before washing.
Fabric damage can occur if load is
tightly packed. Load garments in loose heaps evenly around the basket wall. Load with dry items only.
Use cycle designed for the fabrics being washed.
Add only 1 or 2 garments after washer is started.
Monthly maintenance not done as
recommended. See “Washer Care” in “Washer/Dryer Maintenance.”
Unload washer as soon as cycle is complete.
Be sure to measure correctly. Always follow the manufacturer’s
directions.
See “Washer Care” section.
Odors
Liquid chlorine bleach may have been
added incorrectly. Do not pour liquid chlorine bleach directly onto load. Wipe up
bleach spills.
Undiluted bleach will damage fabrics. Do not use more than
recommended by manufacturer.
Do not place load items on top of bleach dispenser when
loading and unloading washer.
Garment care instructions may not have
been followed. Always read and follow garment manufacturer’s care label
instructions.
Using too much detergent.
Not cleaning or
removing stains (cont.)
Use only liquid chlorine bleach in the bleach dispenser. Use only
fabric softener in the fabric softener dispenser.
TROUBLESHOOTING – WASHER cont.
Single-dose laundry
packet not dissolving Adding laundry packet incorrectly. Be sure laundry packet is added to washer basket before adding clothes. Do not add packet to dispenser. Follow the manufacturer’s
instructions to avoid damage to your garments.

20
First try the solutions suggested here or visit our website to possibly avoid the cost of a service call.
In U.S.A. www.maytag.com/help – In Canada www.maytag.ca.
If you experience Possible Causes Solution
TROUBLESHOOTING – DRYER
Door not closed completely. Make sure the dryer door is closed completely.
Household fuse is blown or circuit
breaker has tripped. Electric dryers use 2 household fuses or circuit breakers.
The drum may be turning, but you may not have heat. Replace both
fuses or reset the circuit breaker. If the problem continues, call
an electrician.
Dryer will not run
PUSH TO START knob not pressed
firmly or held long enough.
Incorrect power supply. Electric dryers require 240-volt power supply.
Check with a qualified electrician.
Wrong type of fuse. Use a time-delay fuse.
Unusual sounds Dryer had a period of non-use. If the dryer hasn’t been used for awhile, there may be a
thumping sound during the first few minutes of operation.
Check the front and rear edges of the drum for small objects.
Clean out pockets before laundering.
The four legs are not installed, or the
dryer is not level front to back and side
to side.
The dryer may vibrate if not properly installed.
See Installation Instructions.
A coin, button, or paper clip is
caught between the drum and front
or rear of the dryer.
Clothing knotted or balled up. When balled up, the load will bounce, causing the dryer to vibrate.
Separate the load items and restart the dryer.
Press and hold the PUSH TO START knob until you hear the dryer
drum moving.
It is a gas dryer. The gas valve clicking is a normal operating sound.
Clothes are not drying
satisfactorily, drying
times are too long
Lint screen clogged with lint. Lint screen should be cleaned before each load.
The Air Fluff cycle has been selected. Select the correct cycle for the types of garments being dried.
See “Cycle Guide.”
Load too large and heavy to dry
quickly. Separate the load to tumble freely.
Exhaust vent or outside exhaust
hood clogged with lint, restricting air
movement.
Run the dryer for 5–10 minutes. Hold your hand under the
outside exhaust hood to check air movement. If you do not feel air
movement, clean exhaust system of lint or replace exhaust vent with
heavy metal or flexible metal vent. Make sure vent is not crushed or
kinked. See Installation Instructions.
Exhaust vent diameter not the
correct size. Use 4" (102 mm) diameter vent material.
Dryer located in a room with
temperature below 45ºF (7ºC). Proper operation of dryer cycles requires temperatures above 45ºF
(7ºC).
Dryer located in a closet without
adequate opening. Closet doors must have ventilation openings at the top and
bottom of the door. The front of the dryer requires a minimum
of 1" (25 mm) of airspace, and, for most installations, the rear
of the dryer requires 5" (127 mm). See Installation Instructions.
Exhaust vent not the correct length. Check that the exhaust vent is not too long or has too many turns.
Long venting will increase drying times. Make sure vent
is not crushed or kinked. See Installation Instructions.
Fabric softener sheets blocking
the grille. Use only one fabric softener sheet, and use it only once.
Dryer not performing as expected
