Mazda BT50 2015 User manual

Mazda BT50
In-Dash
GPS/Multimedia System
User Manual
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 3:49 PM Page 1

Since we adhere to the strategy of sustainable development, printing error in the manual,
incompliance with latest materials, software upgrade, the product improvement may be
performed at any time. The product is subject to change without further notice and a
revised version will be directly edited in new edition of manual.
.

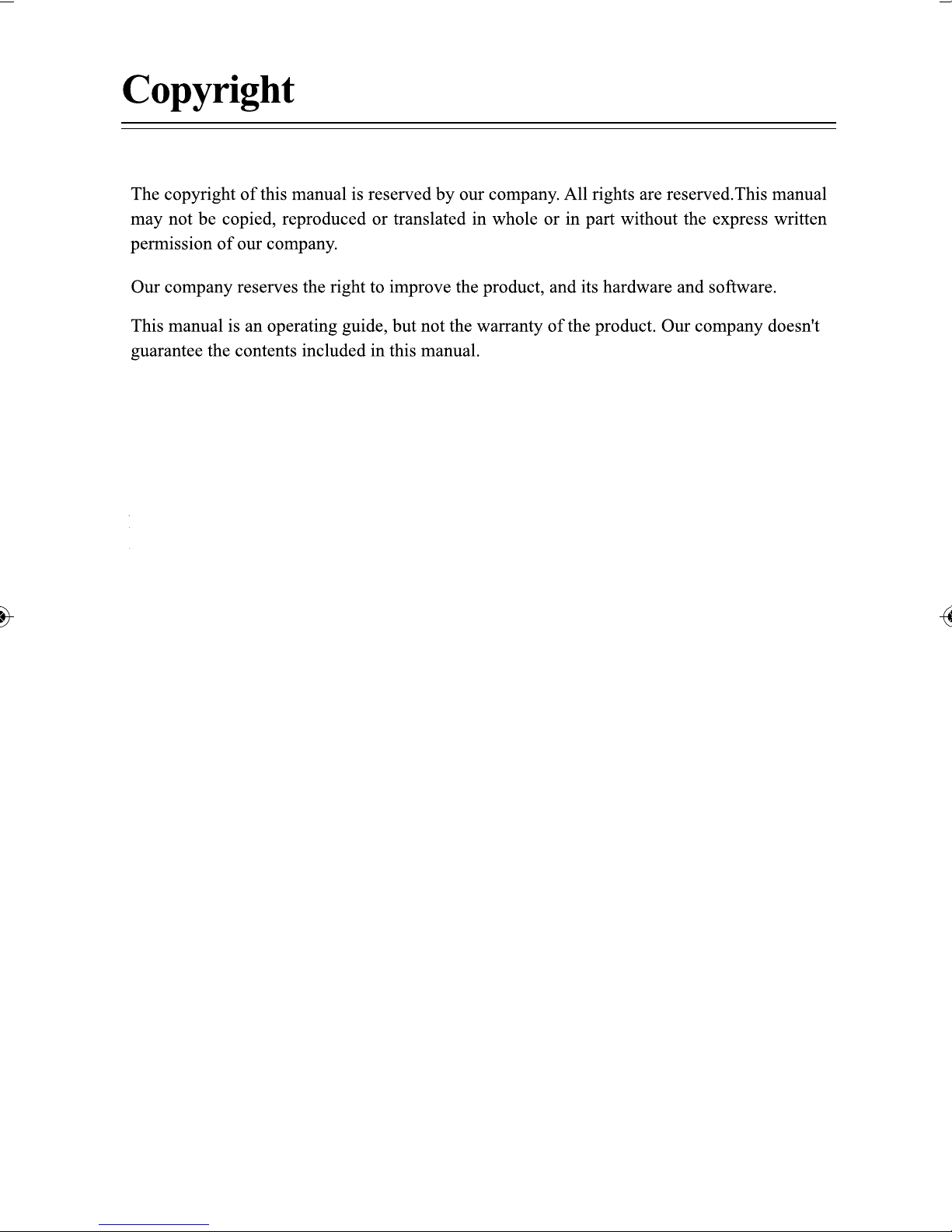

Our company reserves the right to the final interpretation of this manual.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 2

To ensure the traffic safety and avoid contravening the traffic regulations, please obey the local
laws while the Bluetooth or any other options are working. And do not watch any programs or
operate the system whilst driving.
For the safety and correct operation of this product, the product shall be installed by a professional.
Do not disassemble or repair the system by yourself to avoid an accident or damage to the system.
To avoid electric shock, damage and fire resulting from short-circuit, do not place the product in
water or places that are wet.
The screen of this product uses precision electronic structure, do not hit the TFT display to
avoid damage to the product.
Please do not insert any coins or metal objects.
Please rub the disc surface only with a soft damp cloth.
In order to use this product correctly and safely, please read this manual carefully. Due to the technical
improvements specifications and design are subject to change without notice!
Please read this manual carefully before using this product and keep the manual for future reference.
Remark: the above symbol indicates that this product does not have any harmful material or elements,
it is environmental and recyclable and safe and should not be littered at random.
This system as well as the car reversing camera and the tyre pressure monitoring system work
simply as an assistant tool while driving. Our company is responsible for any potential accidents
caused by careless driving.
NOTE
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 3

Note: For safe and correct use of the product, please read this manual carefully. If there
are any further technology improvements later on, the specifications are subject to
change without further notice.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 4

Pull out the car key from the ignition and the system will recognize the information to turn off the unit.
Press and hold on the power button for more than 2 seconds and the system then enters stand-by mode
automatically.
If the unit was turned off by removing the car key from the ignition, it will turn on automatically by
inserting the key again and turning to the accessory position.
If you pressed the power button on the panel to turn off the unit last time, press the power button lightly
again to turn the unit on.
Radio is the default state when turning on the system,
then touch
home page menu interface.
Touch the icons in the menu to enter into the
corresponding function operation interface.
Note: If you touch the above-mentioned icon lightly, and “Device not connected” is indicated it
means there is no connection between the device and the host unit present.
When the spectrum display is enabled and when in Disc state and playing discs that are in the format of
MP3/CD and other discs without any video, if there is no operation within 10 seconds, the screen will
automatically switch to the spectrum mode.
Touch lightly and the screen will switch between the different spectrum modes.
Rectangular spectrum
Column spectrum
lightly on screen to enter the
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 5

In the spectrum mode interface. Touch to
switch between the different EQ modes whilst still in
the spectrum mode state.
Turn the volume button on the panel to adjust the volume up/down. Press the
Mute button on the panel to enable the mute function and then press the mute
button again to exit the mute mode.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 6

In the main menu, touch on the main page to
enter the radio interface.
After a few seconds, the screen will automatically
return to the spectrum mode interface, Click
to switch between the frequency spectrum
modes then touch anywhere on the screen or touch
to return to the radio interface.
Touch to search radio stations and program
automatically and it will save stations during search.
Whilst searching, a progress bar occurs and you can
stop the automatic search function by touching the
icon AMS again.
Touch to search the band for low/high frequencies semi-automatically.
A long press to adjust low/high frequency, then touch once to start searching, and touch again to stop.
It will also stop searching as soon as a radio signal has been received, and touch certain stations more
than 2sec to save then to save a radio station as a preset in the left column touch the preset position for
more than 2 seconds and it will save the radio station.
Touch to switch between FM1/FM2/FM3/
AM1/AM2
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 7

Select the band first, then touch the preset of a radio
station (which can play radio station of the exact
preset ones. The selected radio station will be blue).
For example: The figure on the right side represents
FM1 band, M1 radio station and frequency digit is
87.50KHz.
Click to open up the keyboard, then input
the frequency digits according to the station you’ve
chosen.
After inputting, press “OK” to confirm and close the
keypad to show the radio interface. For example, If it
is in a AM band, and you want to change station to
523KHz just input 523 and click “OK” to achieve. If
it is in the FM band, and you want to change station
to 89.50KHZ, just input 8950 and click “OK” to
achieve.
In factory mode, when the RDS function is set to “off”
then it does not function. When the RDS is set to
“on” then click to make it available, as in the
picture shown on the right.
For detailed operations of the RDS function please refer
to directions of overseas version.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 8

The unit can play discs in format of DVD/VCD/CD/MP3/WMA/JPEG/MPEG4/CD-R
(Only for those standard discs with diameter of 12cm).
In the main menu, touch to enter the disc
menu interface.
When hand brake is off the disc function interface
displays a warning - like the picture shown on the
right.
When hand brake is on the disc function interface
will be displayed with a full screen - like the
picture on the right.
Press
to enter the main menu interface and then touch function keys from the other icons to exit
Touch
from the disc function.
In RADIO/AV//iPOD/states and a disc is inserted - it will be played automatically and will change to
the disc playing function. When inserting a disc in Nav state, vehicle stays in Nav mode and is still
visable on-screen while music from disc is played.
In the DVD status, insert the disc into the slot with the label facing upward. When the system detects
the disc - it will automatically take the disc in, read it and then start playing.
If there is a disc in the DVD Player press the “eject” button on the panel to eject the disc.
If the disc isn’t removed within 12sec of ejecting - then the system will take the disc in again and start
playing.
will be displayed on the screen to toggle page down/page up. Select from the menu function
keys as needed.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 9

Touch
Touch
to display the keyboard, as the figure shows on the right:
to confirm to play that track
or to play the other tracks automatically minutes later. Touch again to hide the keyboard.
Touch the numbers on the numeric keyboard to select tracks directly, then touch
Note: While Playing - if you want to select the track more than track 9, click the two numbers
directly on the numeric keyboard then click “OK” to confirm. For example if you want to select the
12th track - touch “1” first and touch “2” second - then touch “OK” to play track.
When the FF (fast forwarding) option is selected when playing a disc - to enter back into normal
playing mode - press the FR (fast rewind) option. And when FR is selected when playing a disc to
enter back to normal playing mode. Select FF.
Open/close random option
When playing a disc in the format of a JPEG, press to save
image as the DVD wallpaper.
Switch audio output (Disc support is required)
Touch to enter the home page menu.
Touch anywhere on the screen for more than 2sec to show / hide the menu (except for position of menu displayed.
JPEG
TITLE
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 10

If the unit has a disc in the format of DVD in - without
showing a menu - the system will read it automatically
and start playing directly, if the disc has main menu
page press the option to start playing disc.
When the disc supports the option to play by the
numeric keyboard - you can open the numeric keyboard
to select tracks directly, and it shows the playing
information on the small screen.
Press
You may touch the name of a favourite track to play
instantly.
to return to the main menu of the disc
(Disc is required)
Note: During playback operation of the touch menu and to perform various play options -
the Functions of Touch Menu - please refer to the 4th section in the DVD function operations.
TRACK 5/12 ------- Current track no.
Total tracks
PLAY ------------------ Play
00:00:45 -------------- Playing time
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 11

Insert a disc in a format of VCD into the DVD player,
the system will play the songs in order after reading
disc.
When the disc support to play by the numeric keyboard,
you can open the numeric keyboard to select tracks
directly, and it will show the information playing on the
small screen.
Note: During playback operation of the touch menu and to perform various play options -
the Functions of Touch Menu - please refer to the 4th section in the DVD function operations.
TRACK 1/16 ------- Current track no.
Total tracks
PLAY ------------------ Play
00:00:45 -------------- Playing time
00:04:19
During playback, press to return to the PBC
menu catalogue (Disc is required)
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 12

PLAY
PLAY
PLAY
Insert a disc in the format of a CD into the DVD player, the system will play songs/tracks in order after
reading the disc .
When playing a disc and there is no operation within 10sec,
the system will switch to the spectrum mode automatically.
When the disc supports to play by the numeric keyboard, you
can open the numeric keyboard to select the tracks directly.
Insert a disc in the format of MP3s into the DVD player, the
system will play the first track automatically after reading the
disc.
When playing a disc and there is no operation within 10 sec -
the system will switch to the spectrum mode automatically.
When the disc supports to play by the numeric keyboard, you
can open the numeric keyboard to select tracks directly.
Current track no..
Audio state
Current track no.
Total tracks.
Note: During playback operation of the touch menu and to perform various play options -
the Functions of Touch Menu - please refer to the 4th section in the DVD function operations.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 13

* MPEG is the abbreviation of “Moving Pictures Experts Group”, and the MPEG4 is the fourth generation
encoder standard for video/audio as released by the specialist’s group.
* The operation of MPEG4 is basically the same as the DVD.
* The MPEG4 disc available on the market adopts different kinds of file formats such as XVID, the AVI
DIVX RM etc. And it is a normal phenomena, if some of these files are not compatible and cannot be
played because of the many different file formats.
* MPEG files are displayed on the player in the order of folder/file- select the folder - then select the file that
is to be played and playback will begin. The detailed operation - refer to the “MP3 playing” section.
The playing interface is the same as that of the DVD
interface screen.
Folders selection:
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 14

Insert a disc in the format of a JPEG into the DVD player - the system will start playing the first file after
reading the disc.
The JPEG USB connection Touch
play after reading the USB, it will
automatically start playing the first file on the
USB drive.
Slideshow play
Touch
In the browsing interface Touch to obtain the current picture and set the picture as the
wallpaper screen in DVD function.
Note:
• When the wallpaper image in “General Setting Page” is set as “User Image” in the DVD
settings menu only then will it capture the image which will be displayed in the DVD ejecting state
or no-disc state.
• When another image is captured again - the last image will then be replaced.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 15

Enter into the DVD state and then touch screen to bring
up the menu. Then ...
Touch the items of each setup menu directly on the screen to select and then confirm the current
setup. Click “exit” to exit.
Dolby stereo, distributing the sound from the middle and the surround chanels to the left
and right stereo.
Images will be scanned and the “output” is in the format of “Panorama” mode.
Images will be scanned and the “output” is in the format of “Message Box” mode.
Images will be scanned and the “output” is in the format of “Wide Screen” mode.
Display the angle mark
in DVD function.
Select this to display or hide subtitles from the disc (disc support is required)
(When host is without disc, this operation in invalid)
Display the default logo type
Display the picture captured by the user
During the disc playback the audio output is left and right channel signal.
The audio will output the 5.1 channel audio signal (only supports 5.1ch DVD disc)
gently touch
Touch
touch the exit icon
In the setup interface, click the icons to enter into the
corresponding functions interface.
Again to exit from the setup menu or
to enter DVD set-up options
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 16

Stereo/L-Mono/R-Mono/Mix-Mono (choose the dolby digital sound channel)
Note: Preference Set - can be set only when there is no disc inside player.
1 KID SAFE/2G/3PG/4PG 13/5PGR/6R/7NC17/8ADULT Select one to lock the level.
English/Chinese/French/Hungarian/Italian/Russian/German/Spanish/Portuguese/others
Select the language for audio during playback. (disc support is needed)
English/Chinese/French/Hungarian/Italian/Russian/German/Spanish/Portuguese/others
Select the language to be displayed during playback. (disc support is needed)
Click “Change” button and long press the screen and then click
Reset all the values of DVD function setup options to system default.
board appears - enter the original password and then enter the new password - and you can finish
this setup procedure by pressing “OK”
button, once the numeric
English/Chinese/French/Hungarian/Italian/Russian/German/Spanish/Portuguese/others
Select the language to be displayed.. (disc support is needed)
Stereo/L-Mono/
R-Mono/Mix-Mono
(choose the dolby digital sound channel)
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 17

Insert/remove Portable USB Drive
This unit is equipped with a USB port and portable USB drives can be connected to the unit through
the USB connection.
When removing the USB drive, please exit from the playing state in the USB drive - then remove USB
drive from the port.
In the interface, touch
playing function.
to enter USB
Touch
USB function interface.
After the portable USB Drive is read, the operation is the same as the one for playing MP3 discs -
please refer to the “MP3 Disc Playing Section”
to enter the main menu interface, and then touch the other icons to exit from the
As the standards of manufacturers which produce portable hard discs with MP3 player
are different - some portable USB drives may not play.
The USB connecting cable is better if it is the shortest when used to connect, or else it
may cause abnormal operation of the portable USB drive.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 18

The system provides bluetooth hands free communication function. If your mobile phone is bluetooth
enabled, it can establish a point-to-point connection with the system, providing telephone dial up and
call answering, phonebook, bluetooth music play functions.
In the main menu, touch
Touch the icon
phone through BT and touch to enter the
pairing interface.
For using the Bluetooth hands-free function, you need to
establish the connection first. Pair the unit with a mobile
to enter into the main menu,
touch the icons to exit BT interface.
to enter into the bluetooth
hands free interface.
Note: In the BT interface, your current operation is invalid when icons are grey. You need to connect
your mobile phone with the unit in the bluetooth function after pairing successfully - this function is
available.
As the bluetooth modules and software of mobile phones differ between brands - some functions may be
different or not compatible with the system.
Then enter into BT in phone and search for unit name
(shown on screen). When phone has found unit touch the
name, the phone wll the prompt the user to input a password
(shown on screen). Once password is entered touch on pair
phone and after few seconds the phone will be connected -
displaying on screen.
* Pair/connect via unit option* Select to search for
users phone when the unit has found the device it will
display phone name in the list. Touch phone name on screen
then press to start connection process between phone
and unit. The phone will prompt user to input a password on
the phone. Enter password then select pair on phone, use the
password displayed in bottom right corner of screen and after
seconds the phone will be connected to the unit - a icon
will appear on screen.
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 19

Touch and enter in pairing interface.
Enter in the Bluetooth paired
list interface.
Delete the paired mobile phone list
Connect to the selected mobile phone
Touch and enter into the setup interface
Touch and enter into the automatic
search interface.
Disconnect from the current Bluetooth
connection with a mobile phone
List up
Touch
Touch
Touch
Bluetooth PIN code, press confirm modification.
and input a new Bluetooth name or
and open the qwerty keypad and input a
new Bluetooth name or Bluetooth pin code, then press
icon to enter the Bluetooth setting
interface.
List down
interface.
icon to enter the Bluetooth setting
to confirm change.
to change from uppercase / lowercase
Touch
to hide the quoter keypad.
selected the option highlights in blue - this means that when a phone is connected
selected the option will be highlighted in blue - this means connection with phone
phone automatically. When paired successfully it can reconnect automatically. After turning
on/off - the system can also reconnect after several seconds after being disconnected.
the bluetooth will answer automatically after ringing three times.
Touch
When
When
Touch
phone list interface.
The pairing list of the mobile phones interface shows
all phones that have been paired to the unit. And will
also show the selected phone that is currently
connected to the unit.
icon to enter into the bluetooth paired
Turn on the Bluetooth function of your mobile phone and enable the Bluetooth device searching function,
the screen will display, after the connection succeeds, the phone wil display the device name. During
connection input device connection password by prompt of phone (PIN code : 0000). The Bluetooth icon
will appear
BT50 User Manual 2015_BT50 Manual 40pp Polaris 24/06/15 2:49 PM Page 20
