Mazda C960 V7 620 User manual

GENUINEREMOTE ENGINE START
USER’S INSTRUCTIONS
Parts number䠖
䠖
C960 V7 620
Thank you for purchasing a genuine Mazda accessory.
Before use, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly use the Remote Engine Start.
Your safety depends on it.
After using this instruction manual, store it in a place where it can be easily located.
Note, consult your authorized Mazda dealer, or a dealer appointed store, for proper
vehicle installation of the Remote Engine Start.
If the vehicle equipped with this product, or the product itself, is sold, transferred or
loaned to another party, be sure to give this instruction manual to the new owner, so he
or she can use this product safely and correctly.
<Safe and correct use of the product>
Various warnings and cautions are displayed in this manual to assist you in the safe and
correct use of the product and as precautions against you or others being injured, or the
product being damaged.
Depending on the degree of possible injury or damage that may be incurred,
precautionary items have been divided into ‘Warnings’ and ‘Cautions’ and illustrated with
symbols to depict the nature of the precautionary content.
WARNING
A WARNING indicates a situation in which serious
injury or death could result if the warning is ignored.
A CAUTION indicates a situation in which bodily injury
or damage to objects, or both, could result if the
caution is ignored.
Always follow the ADVICE noted to ensure vehicle
safety and performance. Vehicle damage could result,
or proper performance may be compromised if the
advice is ignored.
A NOTE indicates information or a point related to
vehicle usage. Vehicle damage could result, or proper
performance may be compromised if the note
is
ignored.
ADVICE
G
B
CAUTION
NOTE
No.:ZZ092-00640
-00

2
CONTENTS
1. Remote Engine Start features................................................................................3
2. Safety precautions..................................................................................................3
3. General information................................................................................................6
4. Operating precautions............................................................................................7
5. Part names .............................................................................................................9
6. Basic functions for Remote Engine Start..............................................................10
7. Low battery warning & replacement directions....................................................12
8. Basic operations...................................................................................................13

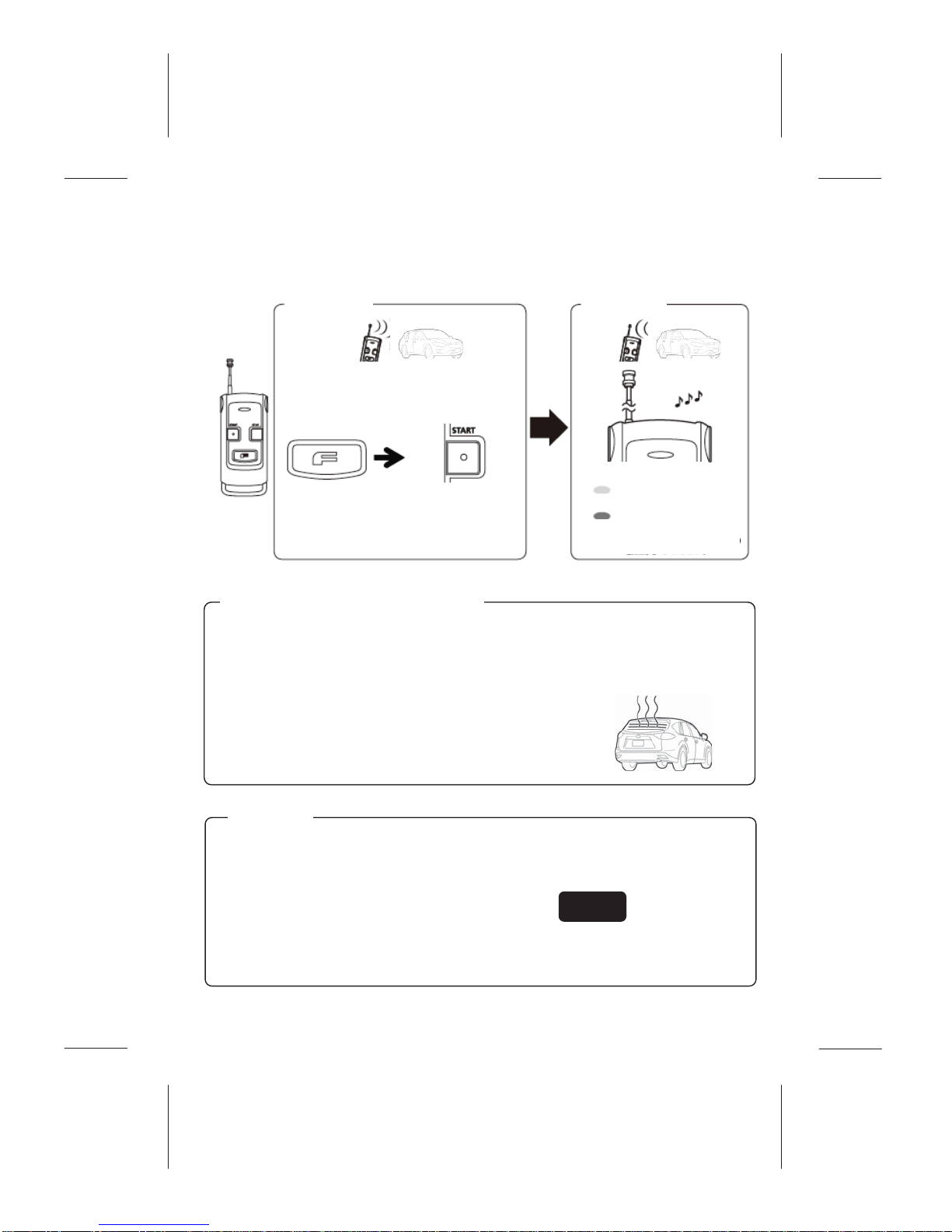

8-1. Engine start operation .................................................................................. 14
8-2. Engine stop operation .................................................................................. 15
8-3. Warm up time check..................................................................................... 17
8-4. Warm up time settings.................................................................................. 18
8-5. Engine start operation with rear defrost start Up ......................................... 19
8-6. Car find function ........................................................................................... 20
9. Troubleshooting....................................................................................................21
10. Servicing.............................................................................................................25
11. Specifications......................................................................................................26

3
1. Remote Engine Start features
zThe Remote Engine Start allows the user to start the engine of a vehicle
from a remote location using a remote control.
zThe user can turn on the air conditioner / heater beforehand so the cabin
of the vehicle can be cooled or heated ahead of time.
zThe user can check the status of the vehicle from a remote location.
2. Safety precautions
㻌㻌㻌㻌WARNING
Do not install this device on a vehicle equipped with a
manual transmission.
ە Only install this device on designated vehicles which
the harness fits.
ە This device can only be installed on vehicles
equipped with AT / CVT. Do not install this product on
a vehicle equipped with a manual transmission
because it is hazardous.
Do not start the engine while inside an enclosed space or
garage.
ە Never start up the engine while inside an enclosed
space where the exhaust fumes can build up, such
as a poorly ventilated garage, an underground
parking garage or a parking tower. The exhaust
fumes are hazardous and can cause poisoning or
intoxication.
Ensure that the periphery of the vehicle is safe.
ە Use this device only where you can thoroughly check
that the periphery of the vehicle is safe. In particular,
using the device while a child or pet is close by can
result in an unexpected accident.
Do not disassemble or modify this device.
ە Never disassemble or modify this device, or install it
in a location not specified in this manual. Otherwise,
it may not operate correctly and/or may result in an
accident or breakdown. In addition, this situation is
not covered under warranty.

4
㻌㻌㻌㻌WARNING
Do not start up the engine using the Remote Engine Start
when parked on an incline.
ە If the vehicle were to move unintentionally due to the
engine vibration, jolt, etc., it could result in a serious
accident.
Performing safe maintenance and inspection.
ە When performing vehicle inspection and
maintenance, remove the (-) terminal on the vehicle
battery. Never start up the engine with the remote
control during inspection or maintenance at a gas or
service station, etc. Otherwise, an accident may
occur, such as getting a hand or clothes caught in
the rotating parts. Do not perform inspection or
maintenance in the engine compartment while the
hood switch is pressed.
Keep the remote control in a safe and secure place.
ە Keep the remote control out of the reach of children.
Otherwise, they may swallow the lithium battery
accidentally and choke.
Do not operate this device while other people are inside
the
vehicle.
ە In order to prevent an unexpected jump start, etc.,
never start the engine while a pet or someone
(especially children) is inside the vehicle. Stopping
the engine automatically using the Remote Engine
Start settings is hazardous (while someone is inside)
because the temperature inside the vehicle may
become too hot. In addition, there is also a risk of
children accidently pressing the climate control
switch and setting the temperature too high or too
low.

5
㻌㻌㻌㻌WARNING
Fire prevention.
ە Do not start the engine when the vehicle is near
something flammable (oil or dry grass). Otherwise,
the high temperature from the exhaust fumes or
exhaust pipe could cause a fire.
ە Do not start the engine while the vehicle is wrapped
with a body cover. Otherwise, the high temperature
from the exhaust fumes or exhaust pipe could cause
a fire.
Do not pour water on the remote control.
ە The remote control is water resistant for exposure
during daily life, but it may break down if submerged
in water or if water gets inside the device.
Do not perform standard inspection and maintenance right
after warming up the engine.
ە Performing inspection or maintenance before
operation and immediately after warming up your
vehicle could result in a burn injury. First, wait 5
minutes once the engine has stopped. Then, after
checking all the parts for heat hazards, proceed with
the inspection and maintenance.
Check points when the vehicle is parked.
ە Perform the following safety checks thoroughly when
the vehicle is parked to prevent potential accidents
when starting the engine.
xEngage the parking brake.
xPut the shift lever in the “P” position.
xBe sure there is no advanced or smart key inside the
vehicle.
xClose all doors and windows.
xLock the doors.
xCheck that the hood is closed.
xTurn off the windshield wipers.
xIf the vehicle is equipped with automatic lights, turn off
the automatic light settings.
xBe sure that the steering lock is engaged.

/DZVLQVRPHFRPPXQLWLHVPD\UHVWULFWWKHXVHRIUHPRWHVWDUWHUV
)RU H[DPSOHVRPHODZVPD\UHTXLUHDSHUVRQXVLQJWKHUHPRWHVWDUW
WRKDYH WKHYHKLFOHLQYLHZZKHQGRLQJVR&KHFNORFDOUHJXODWLRQVIRU
DQ\ UHTXLUHPHQWVRQUHPRWHVWDUWLQJRIYHKLFOHV
7KLVGHYLFHFRPSOLHVZLWKSDUWRI)&&5XOHVDQG,QGXVWU\
&DQDGD¶VOLFHQFHH[HPSW566V
2SHUDWLRQLVVXEMHFW WRWKHIROORZLQJWZRFRQGLWLRQV
WKLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG
WKLVGHYLFHPXVWDFFHSW DQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJ
LQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ
&RQVXOW\RXUDXWKRUL]HG0D]GDGHDOHUIRULQVWDOODWLRQRIWKHUHPRWH
FRQWURO HQJLQHVWDUWHUV\VWHP
)&&&$87,21
&KDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\
UHVSRQVLEOHIRU FRPSOLDQFHFRXOGYRLGWKHXVHU¶VDXWKRULW\WRRSHUDWH
WKHHTXLSPHQW

7
4. Operating precautions
Usage Environment
●The remote control signal (or the response signal from the controller) may not
reach the controller (or the remote control) if there are strong radio waves
transmitting nearby, or if there are obstacles blocking the signal.
●The engine may be slow to start during severe cold weather conditions.
Vehicles with Remote Control Door Lock Function
●Door Lock and Door Unlock Function by the remote control keyless entry or
advanced keyless entry system equipped the vehicle can be performed while the
engine is running by the Remote Engine Start.
However, if Door Lock and Door Unlock Function do not work due to interference
caused by engine noise, etc., perform these Door Lock and Door Unlock
operations on the vehicle remote control, etc. after stop the engine.
Vehicles with Automatic Lights
●When vehicles equipped with automatic lights are set to the “AUTO”
position for the light switch, the lights turn on if the engine is started at night
with the remote control. However, if the engine automatically stops after
warming up, the lights will also turn off at the same time to prevent the
battery from draining. However, to avoid light interference, set the
automatic light switch to the “OFF” position when using the remote control
to turn on the engine at night.
Do Not Perform Unnecessary Idling
●To help protect the environment, conserve energy and avoid inconveniencing
others, do not perform idling when it is unnecessary or longer than necessary.

8
Remote Control Handling Instructions
The remote control is a sensitive electronic device similar to a cellular telephone.
Please follow the handling instructions below to avoid damage to or breakdown of
the remote control.
ە Avoid storing or using the remote control in places that expose it to direct
sunlight, places that have high humidity, places with extremely high
temperatures (on top of the dashboard, etc.) or places with extremely low
temperatures (leaving inside the vehicle while parked at ski resorts, etc.).
ە Do not store or use the remote control in places where it comes into direct
contact with water.
ە Avoid exposure to strong impacts such as dropping it on the floor or hitting it
against something hard.
ە If the remote control gets very dirty, use a cloth soaked in a watered-down, mild
or neutral detergent, ring out the liquid solution and wipe down the remote
control. (Never use benzene, thinner or chemically treated cloth/wipes.)
ە Avoid attaching a lot of keys to the key ring on the remote control, or sitting
down while the remote control is in your pocket, as it can cause the remote
control to deform and may result in damage.
ە While carrying the remote control, if the keys, etc., come into contact with a
vehicle, it can lead to remote control breakdown or malfunction due an
electrostatic discharge. Therefore, be careful of this risk during time periods
when electrostatic discharges occur frequently.
ە Be sure that the battery cover and clasp are securely locked. Otherwise, if water
accidently gets inside the internal part of the transmitter, it can cause
breakdown.
ە Do not use in restricted areas such as on board airplanes or inside hospitals.
ە The remote control can negatively impact electronic and medical devices.
ە Be sure to follow the instructions and rules posted inside medical clinics or
facilities regarding the use of electronic devices.
ە If the remote control is used on board airplanes, where usage is restricted, you
may be subject to punishment due to airline rules and regulations.
xDepending on the surroundings and how the remote control is held, the minimum
distance required for the signal transmission varies. Generally, if the remote control is
directed toward the vehicle when transmitting the signal, it should successfully transmit
from far away.
ADVICE

%\UHPRYLQJWKHEDWWHU\FRYHUWKHXVHUFDQ
HDVLO\FKHFNWKH)&&ODEHODQG,& ODEHO

10
6. Basic functions for Remote Engine Start
Engine Start & Stop Function
The remote control is equipped with
engine start, engine stop and
automatic stop (set with timer)
functions. In addition, the engine
start operation will perform when
conditions outlined on page 14 are
satisfied. The air conditioner /
heater can be turned on beforehand
so the cabin of the vehicle can be
cooled or heated ahead of time.
Rear Defrost Function
The rear defrost turns on in the
following situations.
• When the cabin temperature is 5ºC
(41ºF) or less, 7 seconds after the
engine start operation performed on
the Remote Engine Start.
• When the rear defrost operation is
performed on the remote control.
Engine start →p.14
Engine stop →p.15
Directions for rear defrost operation
on remote control →p.
19
START
࣭
The internal temperature of the vehicle cabin varies slightly depending on the
installed location of the controller.
࣭The rear defrost will automatically stop when the engine stops.
࣭
The rear defrost will automatically stop after 15 minutes of operation on some
vehicle models.
࣭When the cabin temperature falls to 5ºC (41º
F) or less after 7 seconds from the
engine start, the rear defrost will not turn on automatically.
࣭The rear defrost cannot be turned off using the remote control.
࣭
On some vehicle models, dash light does not turn on when the rear defrost is
turned on with the Remote Engine Start.
ADVICE

11
Car Find Function
If the car find operation is
performed on the remote control,
the hazard lights will flash twice and
the horn will sound twice so you
can confirm the vehicle’s location.
This function is convenient when
looking for your vehicle in a large
parking lot, etc.
Answer Back Function
This device conducts bidirectional
communication between the remote
control and the controller (vehicle
side). This device performs
bidirectional communication between
the remote controller and the
controller in the vehicle. The user can
verify operations including engine
starting/stopping, remaining warm-up
time, and car find using the LED on
the remote controller.
Answer back
Send
Remote control
Vehicle side
(Controller)
Car find
Directions for car find
operation →p.
20
1. The reference operating range of the remote control is approx. 300 ft(91m).
However, this range can be reduced by interference caused by any of
conditions as follows.
xThere is any obstruction nearby (Buildings, walls, other vehicles, etc.).
x
There is any radio wave transmission nearby (television, radio, cellular,
another remote controller, etc.)
xThe battery becomes weak.
2.
When there is a signal being transmitted that is close to the
frequency band
used by this device in the surrounding area, transmission between the remote
control and controller shall be restricted. In this situation, the remote control will
display a send error and/or a receive error.
3.
When conducting consecutive oper
ations with the remote control switches, wait
“2 seconds or longer” after the “Send mark” on the LED
has turned off, and
then perform the next operation. The operation signal will not be received if the
second operation is performed within 2 seconds of the first.
4. If a send error is displayed, the radio transmission in the area is restricted. Wait
until the display mark turns off before operating the remote control.
5.
A receive error may display on the remote control
even if the engine has
started, depending on the radio transmission conditions in the area.
Note

12
7. Low battery warning & replacement directions
Keep the batteries out of the reach of
children. In the event that a battery is
accidently swallowed, consult with a
physician right away.
WARNING
If the battery power is depleted, the LED light (red) turns on when a switch is
pressed and battery power depleted is indicated. In this case, as battery
replacement will be re
quired soon, replace the batteries with new ones
according
to the following procedure.

Remove the screw
for removing the
battery cover using a
Phillips screwdriver.
Do not remove any
of the other screws

Slide the
battery cover in
the direction of
the arrow and
remove it.

Lightly tap the
remote
controller in the
palm of your
hand to release
the batteries.

Install the new
batteries with the
(
+)
poles facing upwards
and the battery cover
using the screw.

When replacing the batteries, be sure to
replace both batteries at the same time.
ADVICE

13
8. Basic operations
Engine Start Conditions
When using the Remote Engine Start, be sure to always check the start
conditions listed below beforehand. Even if just one of the conditions has not
been satisfied, the device will interpret this as a hazard and will not operate.
Even if the user tries to operate the remote control, the engine will not start.
The hood is
closed all the way.
The burglar alarm is not
tripped.
There is no advanced key (or
smart key) inside the vehicle.
All doors are closed
all the way.
The accelerator and
foot brake are not
engaged.
The ignition switch
is not set to ACC
or ON, etc.
The shift lever is
in the “P” position.
Check points when the vehicle is parked.
When using the engine start function with this device, follow the instructions below
when parking, in order to avoid vehicle theft or an accident from occurring.
࣭Be sure to always engage the parking brake.
࣭Put the shift lever in the “P” position.
࣭Be sure there is no advanced or smart key inside the vehicle.
࣭Close all doors and windows.
࣭Lock the doors.
࣭Close the hood.
࣭Turn off the windshield wipers.

14
8-1. Engine start operation
࣭ You can force the rear defogger to turn on by pressing the F switch two times
and then the START switch. The rear defogger turns off automatically when the
engine is turned off.
࣭
If the cabin temperature is 5 degrees C or less, the rear defogger turns on
automatically approx. 10 s after the engine is warmed up.
Rear defogger operation function
࣭ After the engine start operation is initiated, the controller will automatically send
an answer back signal 2 –3 times.
࣭

If there is a transmission error, there will not be an answer back signal after the
second time.
࣭
If the engine start conditions are not satisfied,
the engine start operation cannot be performed.
࣭

For vehicles equipped with an automatic wiper function, when the engine start
operation is activated with the remote control, the wipers will not turn on even
when the wiper switch is set to the “AUTO” position and it begins to rain.
ADVICE
э
p.13
Press F switch
Operation
Indication
Press START
switch while LED
light (green) is
flashing (approx.
3 seconds)
࣭Press switches until sound is heard.
࣭
Release F switch when beep sound is
heard
LED light color:
Engine start
Engine not started
࣭
Check engine start conditions
Green
Red

15
8-2. Engine stop operation
.
Press F switch
Operation
Indication
Press STOP
switch while LED
light (green) is
flashing (approx.
3 seconds)
࣭Press switches until sound is heard.
࣭
Release F switch when beep sound is
heard
LED light color:
Engine start
Engine not started
࣭
Radio signal from remote
controller not received.
Operate in reception range.
࣭

On some vehicle models, the engine also stops when the shift lever is pressed.
࣭
The controller buzzer will sound if the engine is stopped for reasons
other than a
normal engine stop or the pre-set engine warm-up time has elapsed.
Note
Green
Red

16
To run the vehicle…
zIf the vehicle engine is started with the remote control, stop the engine
with the remote control or opening the vehicle's door.
zRestart the engine with the push start switch.
●Other Engine Stop Conditions
The engine will stop if one of the following conditions is true.
1) The hood is opened.
2) The shift lever is put in a position other than the “P” position.
3) A door is opened.
4) The push start switch is pressed.
5) The pre-set warm up time has elapsed.
6) The brake pedal is engaged.
7) The accelerator pedal is engaged (the engine stops by the rpm restriction).
8) There is an advanced key or smart key inside the vehicle.
If the engine is started with the push start switch, it cannot be stopped with the
remote control.
Note

17
8-3. Warm up time check
This operation only applies when the engine has been started with the remote
control.
The remaining time until the engine turns off automatically is indicated by
the number of times the LED light flashes.
LED light color
Number of flashes
Remaining time
Green
1 time 0 to 5 minutes
2 times 5 to10 minutes
3 times 10 to 20 minutes
4 times 20 to 30 minutes
Red Communication failure
) 㺛㺐㺍㺟ࢆᢲࡍ

᧯స

⾲♧

/(' 㺵㺻㺪㺽⥳Ⅼ⁛୰
㸦⣙  ⛊㸧࡟ 67$57
㺛㺐㺍㺟ࢆᢲࡍ
࣭㺛㺐㺍㺟ࡣ㡢ࡀ㬆ࡿࡲ࡛ᢲࡋ࡚ࡃࡔࡉ࠸ࠋ
࣭㹄㺛㺐㺍㺟ࡣࠊ㺩㺽㺍࡜㡢ࡀ㬆ࡗࡓࡽ㞳ࡋ࡚ࡃ
ࡔࡉ࠸ࠋ
/(' 㺵㺻㺪㺽ࡢⰍ
Press F switch
Operation
Indication
Press START
switch while LED
light (green) is
flashing (approx.
3 seconds)
࣭Press switches until sound is heard.
࣭
Release F switch when beep sound is
heard
LED light color:
See table below

18
8-4. Warm up time settings
.
30
30
Press START switch
and STOP switch at
same time until LED
light (green) flashes
Press switch while
LED light (green)
flashes (
approx
. 3
seconds)
For
10
-
minute
warm
-
up.
Operation
Indication
࣭Release switches when beep sound is heard.
LED light color
10 minutes
30 minutes
Green
[Beep]
Green
[Beep]
Green
[Beep]
For
30
-
minute
warm
-
up.
Some vehicle models stop the rear
defrost after 15 minutes, even if the
warm up time is set to 30 minutes.
Note
Press the
start and
stop
switches at
the same
time,
To help protect the environment, conserve energy and avoid inconveniencing others,
do not perform idling when it is unnecessary, or longer than necessary.
CAUTION

19
8-5. Engine start operation with rear defrost start Up
When starting the engine using this operation, the rear defogger turns on
automatically
Press F switch
Operation
Indication
Press START
switch while LED
light (green) is
flashing (approx.
3 seconds)
࣭Press switches until sound is heard.
࣭Re
lease F switch when beep sound is
heard.
LED light color
Engine start
Engine not started
࣭
Check engine start conditions
Press F switch while
LED light (green) is
flashing (approx. 3
seconds)
The rear defrost operation cannot be
performed without starting the engine.
ADVICE
x
After the engine start operation is initiated, the controller will automatical
ly send
an answer back.
x
On some vehicle models, dash
light does not turn on when the rear defrost is
turned on with the Remote Engine Start.
x
The rear defrost will automatically stop when the engine stops.
x
The rear defrost will automatically stop after 15 minutes of operation on som
e
vehicle models.
ADVICE
x
The rear defrost will turn on about 7 seconds after the engine starts, when
performing this rear defrost operation.
Note
Green
Red

20
8-6. Car find function
When the engine is turned off or after starting the engine using the remote
controller, perform this operation to activate the hazard warning lights 2
times.
࢝࢖
࢝࢖
Press F switch
Operation
Indication
Press START
switch while LED
light (green) is
flashing (approx.
3 seconds)
࣭
Press switches until sound is heard.
࣭Release F switch when beep sound is heard
LED light color
Car find operates
Car find does not operate
࣭
Radio signal from remote
controller not received.
Operate in reception range.
Press F switch while
LED light (green) is
flashing (
approx.
3
second
s)
When the hazard warning switch has already
been pressed to flash the hazard warning
lights, the flashing of the hazard warning lights using the car find function does not
operate (operation using the hazard warning switch takes precedence). Even
in such
cases
, the remote controller notifies the user that communication with the vehicle was
completed using the same display as indicated above and the beep sound.
Note
Green
Red
