Mazda GENUINE C930 V7 620 User manual


GENUINE REMOTE ENGINE START
USERS INSTRUCTIONS
Vehicle MAZDA CX-5
Parts number C930 V7 620

Thank you for purchasing a genuine Mazda accessory.
Before use, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly use the Remote Engine Start.
Your safety depends on it.
After using this instruction manual, store it in a place where it can be easily located.
Note, consult your authorized Mazda dealer, or a dealer appointed store, for proper
vehicle installation of the Remote Engine Start.
If the vehicle equipped with this product, or the product itself, is sold, transferred or
loaned to another party, be sure to give this instruction manual to the new owner, so he
or she can use this product safely and correctly.

<Safe and correct use of the product>
Various warnings and cautions are displayed in this manual to assist you in the safe and
correct use of the product and as precautions against you or others being injured, or the
product being damaged.
Depending on the degree of possible injury or damage that may be incurred,
precautionary items have been divided into Warnings and Cautions and illustrated with
symbols to depict the nature of the precautionary content.

WARNING A WARNING indicates a situation in which serious injury
or death could result if the warning is ignored.
A CAUTION indicates a situation in which bodily injury or
damage to objects, or both, could result if the caution is
ignored.
Always follow the ADVICE noted to ensure vehicle safety
and performance. Vehicle damage could result, or proper
performance may be compromised if the advice is
ignored.
A NOTE indicates information or a point related to
vehicle usage. Vehicle damage could result, or proper
performance may be compromised if the note is ignored.







GE


No.:ZZ092-00640

2

CONTENTS
1. Remote Engine Start features...............................................................................3
2. Safety precautions ................................................................................................3
3. General information...............................................................................................6
4. Operating precautions...........................................................................................7
5. Part names............................................................................................................9
6. Display ................................................................................................................10
7. Basic functions for Remote Engine Start............................................................. 11

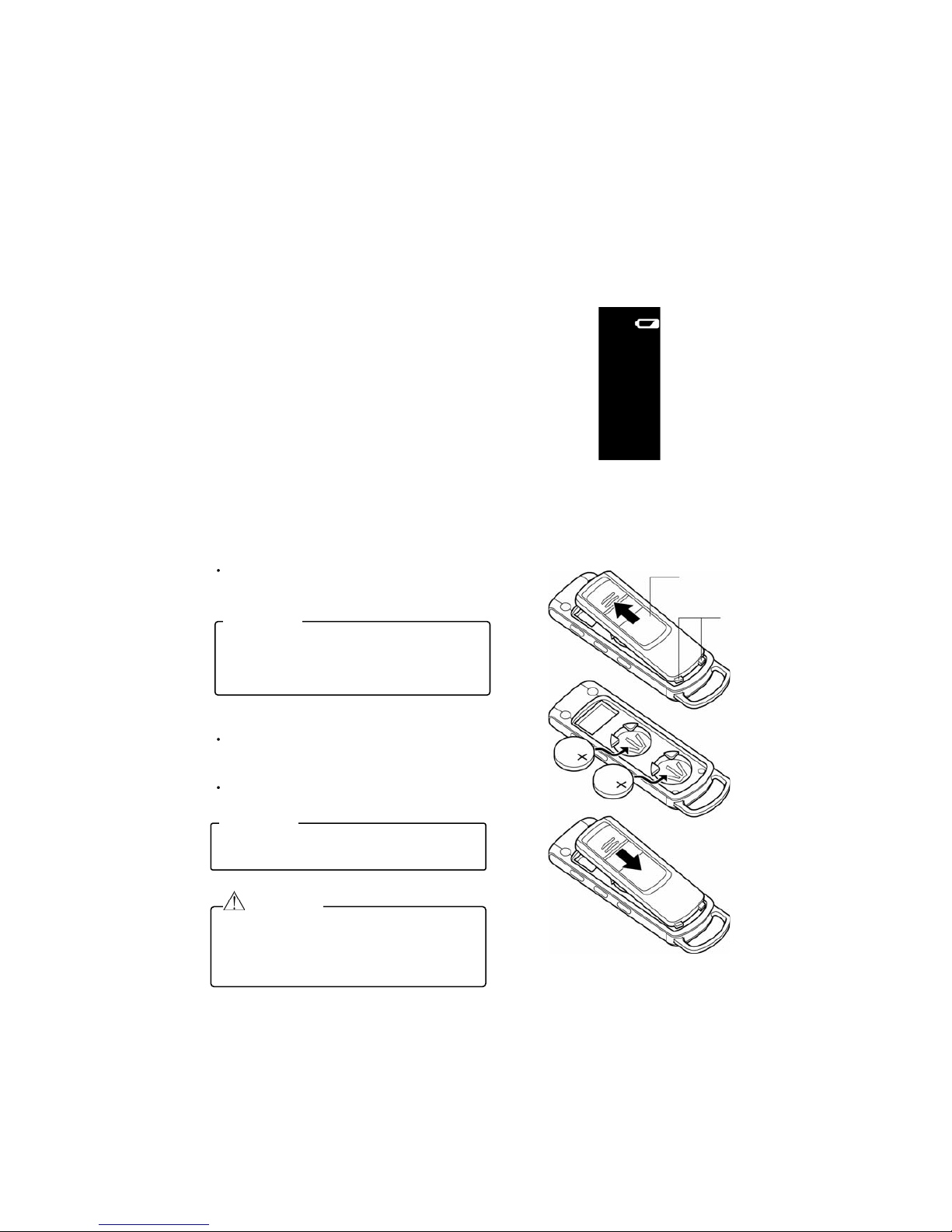

8. Low battery warning & replacement directions....................................................13
9. Basic operations..................................................................................................13
9-1. Engine start operation......................................................................................15
9-2. Engine stop operation......................................................................................18
9-3. Warm up time check ........................................................................................20
9-4. Vehicle status check.........................................................................................21
9-5. Warm up time settings .....................................................................................22
9-6. Engine start operation with rear defrost start Up..............................................23
9-7. Car find function...............................................................................................25
10. Troubleshooting.................................................................................................26
11. Warranty & Servicing.........................................................................................27
12. Specifications....................................................................................................28






3


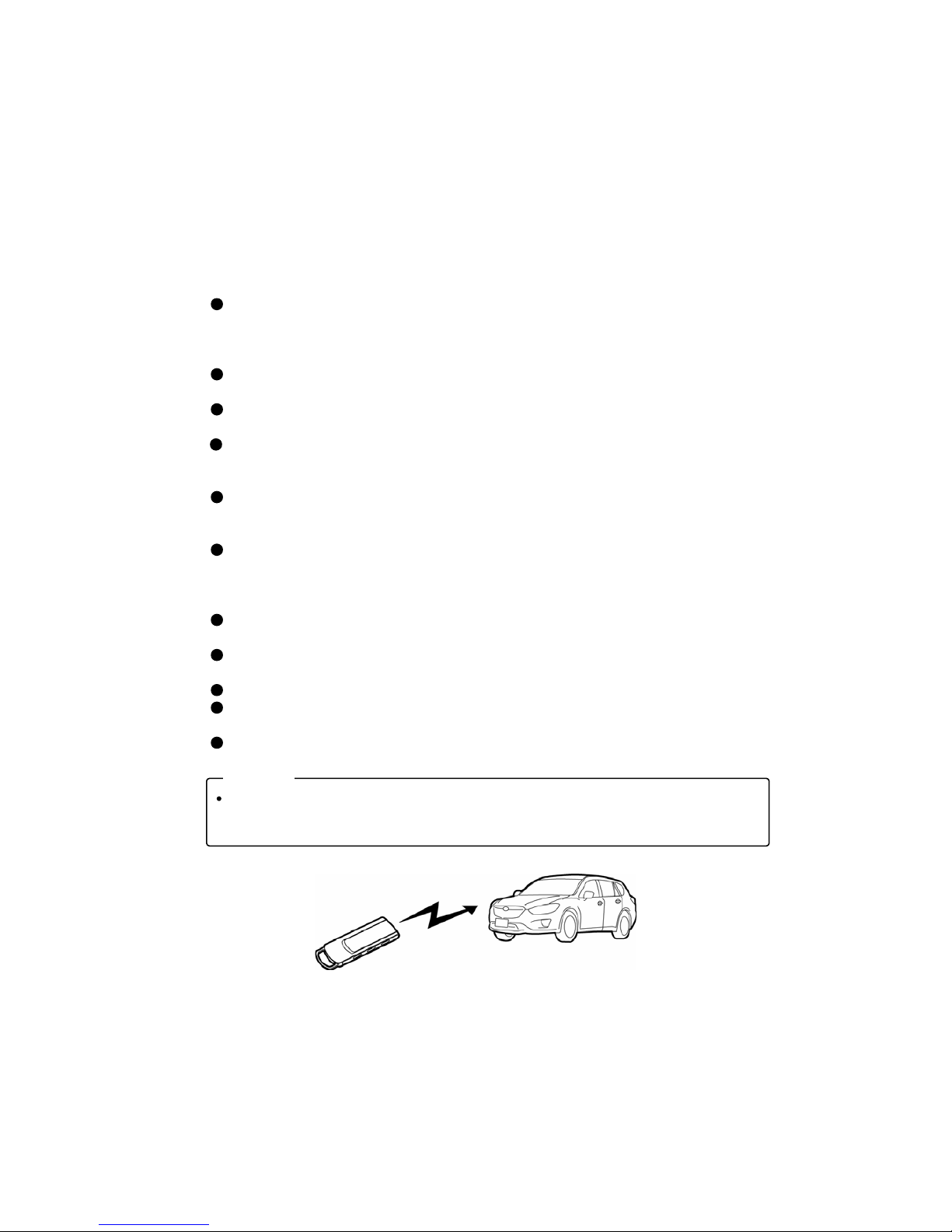

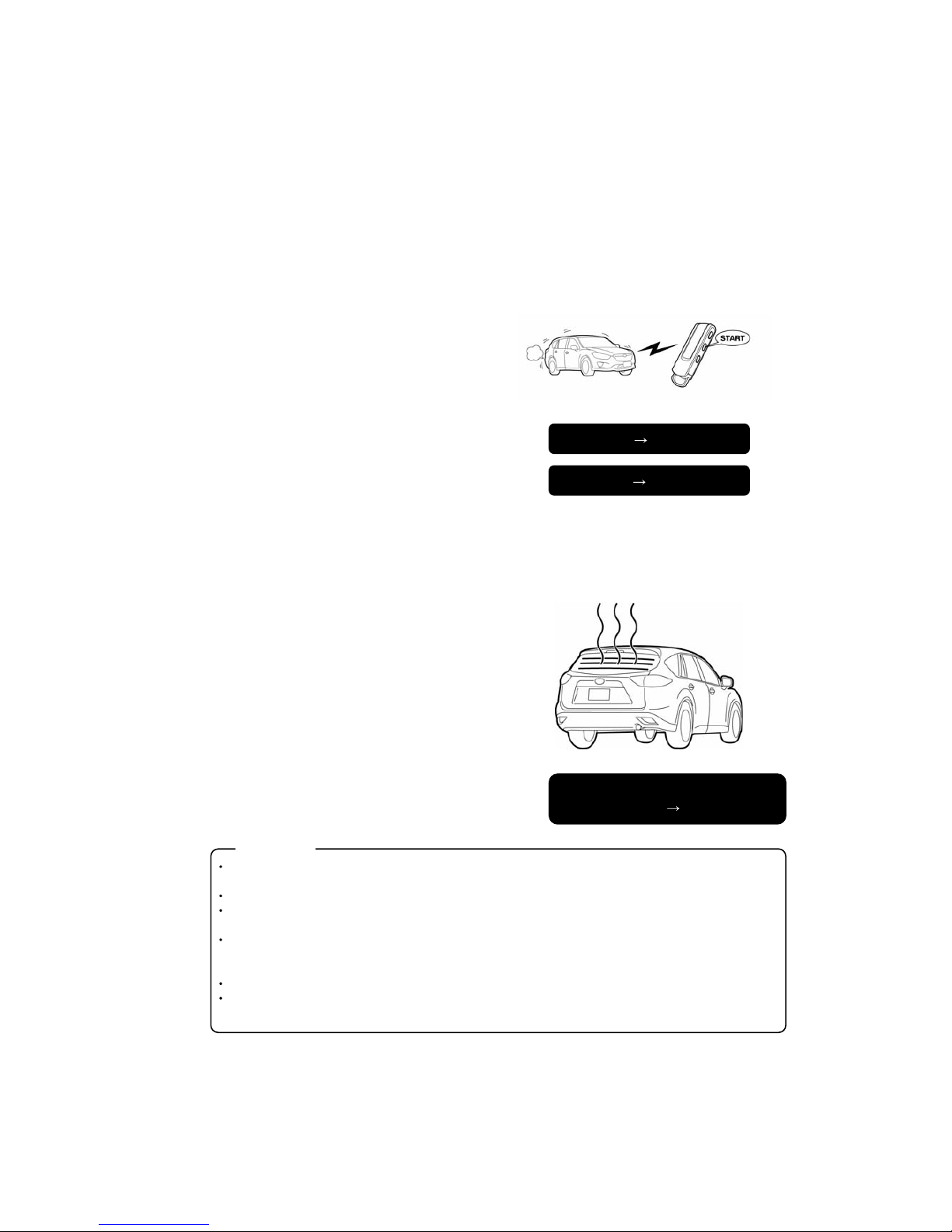

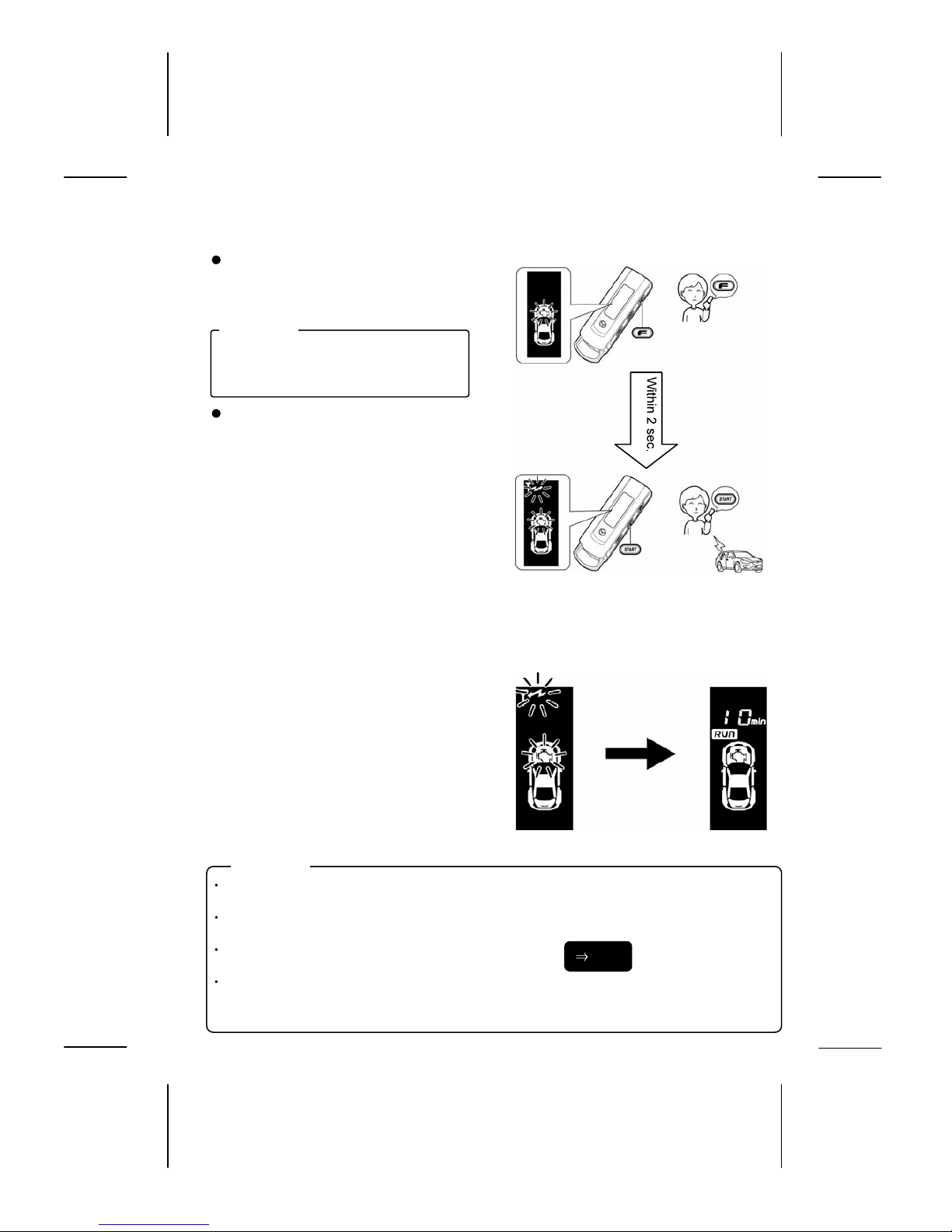

1. Remote Engine Start features
The Remote Engine Start allows the user to start the engine of a vehicle
from a remote location using a remote control.
The user can turn on the air conditioner / heater beforehand so the cabin
of the vehicle can be cooled or heated ahead of time.
The user can check the status of the vehicle from a remote location.

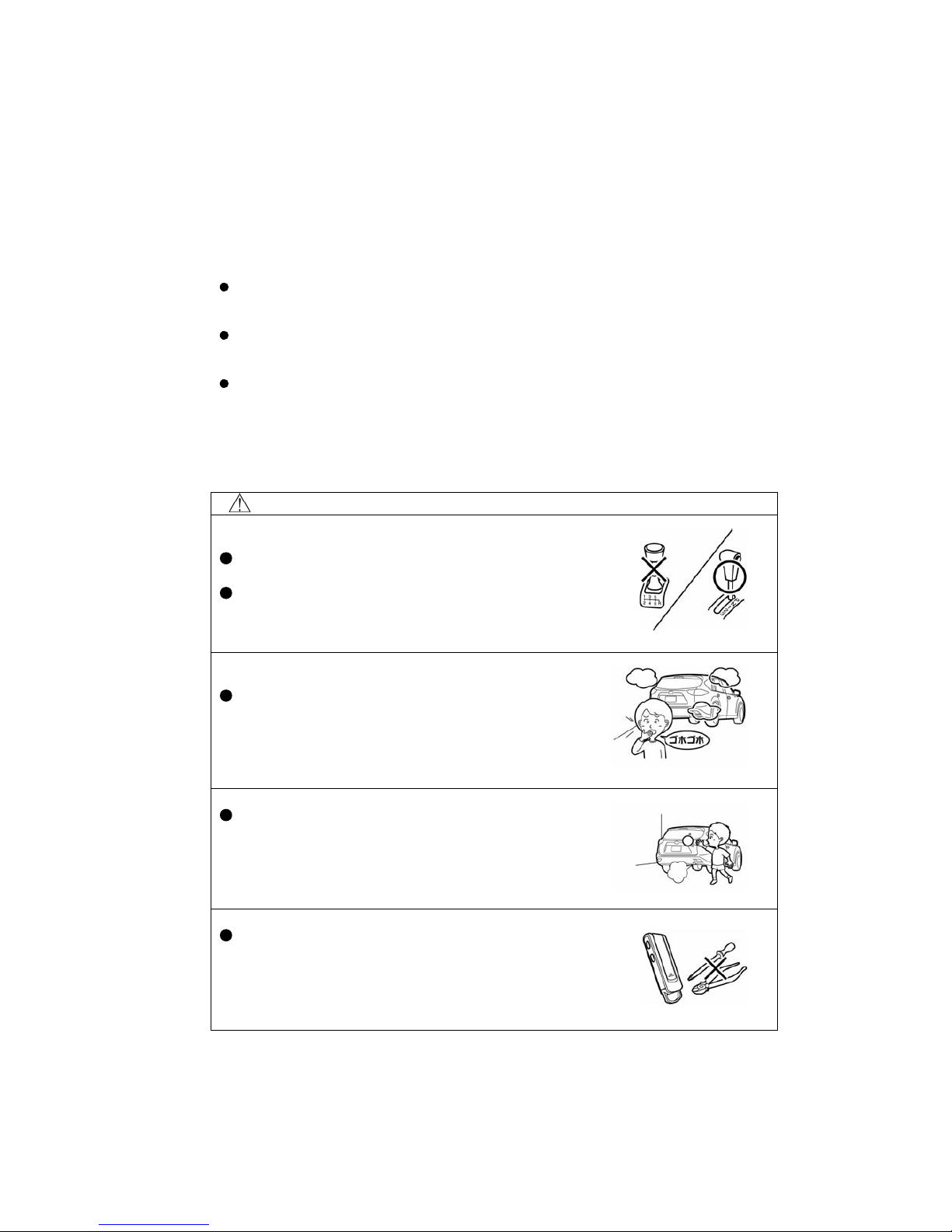

2. Safety precautions
WARNING
Do not install this device on a vehicle equipped with a
manual transmission.
Only install this device on designated vehicles which
the harness fits.
This device can only be installed on vehicles
equipped with AT / CVT. Do no install this product on
a vehicle equipped with a manual transmission
because it is hazardous.
Do not start the engine while inside an enclosed space
or garage.
Never start up the engine while inside an enclosed
space where the exhaust fumes can build up, such
as a poorly ventilated garage, an underground
parking garage or a parking tower. The exhaust
fumes are hazardous and can cause poisoning or
intoxication.
Ensure that the periphery of the vehicle is safe.
Use this device only where you can thoroughly
check that the periphery of the vehicle is safe. In
particular, using the device while a child or pet is
close by can result in an unexpected accident.
Do not disassemble or modify this device.
Never disassemble or modify this device, or install it
in a location not specified in this manual. Otherwise,
it may not operate correctly and/or may result in an
accident or breakdown. In addition, this situation is
not covered under warranty.

4

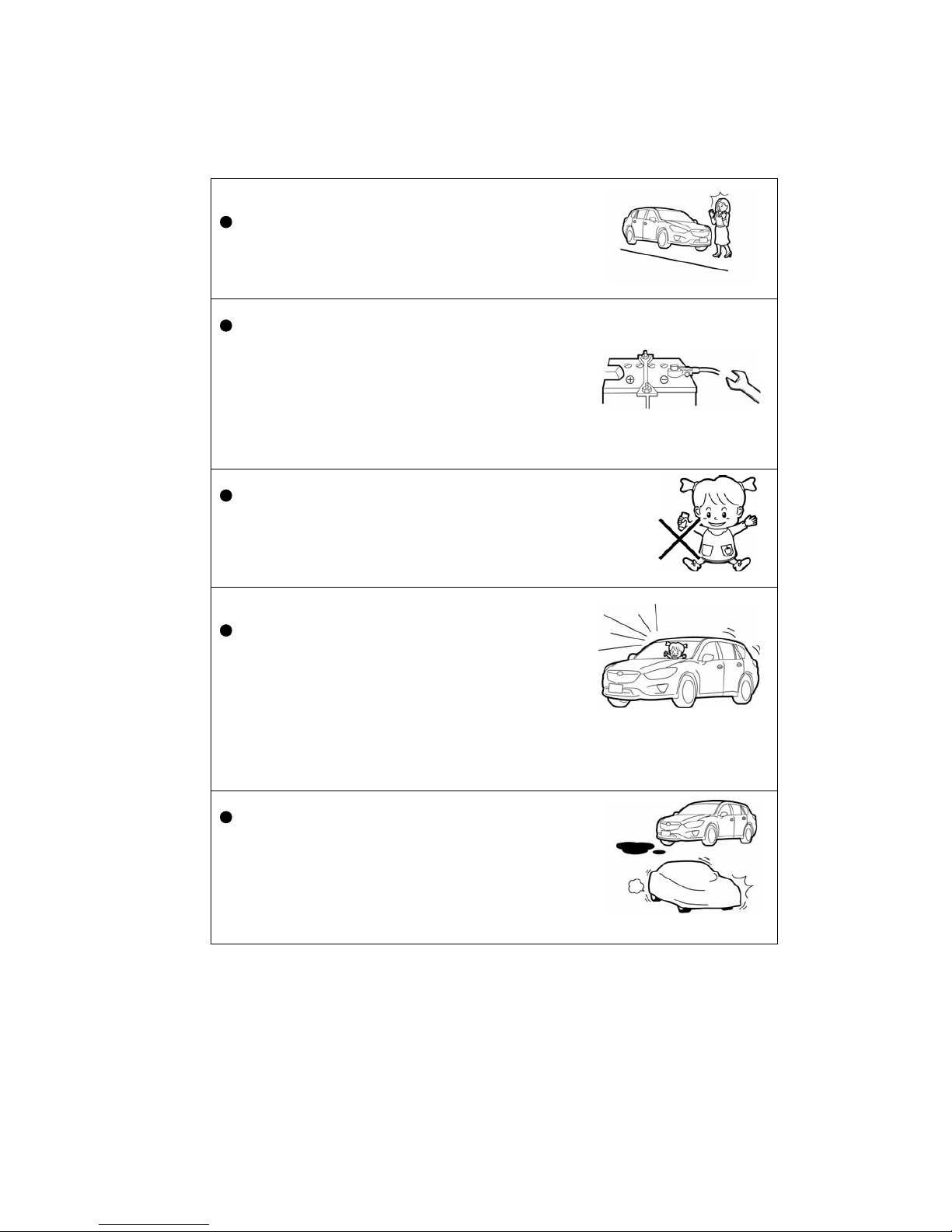

Do not start up the engine using the Remote Engine
Start when parked on an incline.
If the vehicle were to move unintentionally due to the
engine vibration, jolt, etc., it could result in a serious
accident.
Performing safe maintenance and inspection.
When performing vehicle inspection and
maintenance, remove the (-) terminal on the vehicle
battery. Never start up the engine with the remote
control during inspection or maintenance at a gas or
service station, etc. Otherwise, an accident may
occur, such as getting a hand or clothes caught in
the rotating parts. Do not perform inspection or
maintenance in the engine compartment while the
hood switch is pressed.
Keep the remote control in a safe and secure place.
Keep the remote control out of the reach of children.
Otherwise, they may swallow the lithium battery
accidentally and choke.
Do not operate this device while other people are inside
the vehicle.
In order to prevent an unexpected jump start, etc.,
never start the engine while a pet or someone
(especially children) is inside the vehicle. Stopping
the engine automatically using the Remote Engine
Start settings is hazardous (while someone is inside)
because the temperature inside the vehicle may
become too hot. In addition, there is also a risk of
children accidently pressing the remote control
switch and setting the temperature too high or too
low.
Fire prevention.
Do not start the engine when the vehicle is near
something flammable (oil or dry grass). Otherwise,
the high temperature from the exhaust fumes or
exhaust pipe could cause a fire.
Do not start the engine while the vehicle is wrapped
with a body cover. Otherwise, the high temperature
from the exhaust fumes or exhaust pipe could cause
a fire.

5

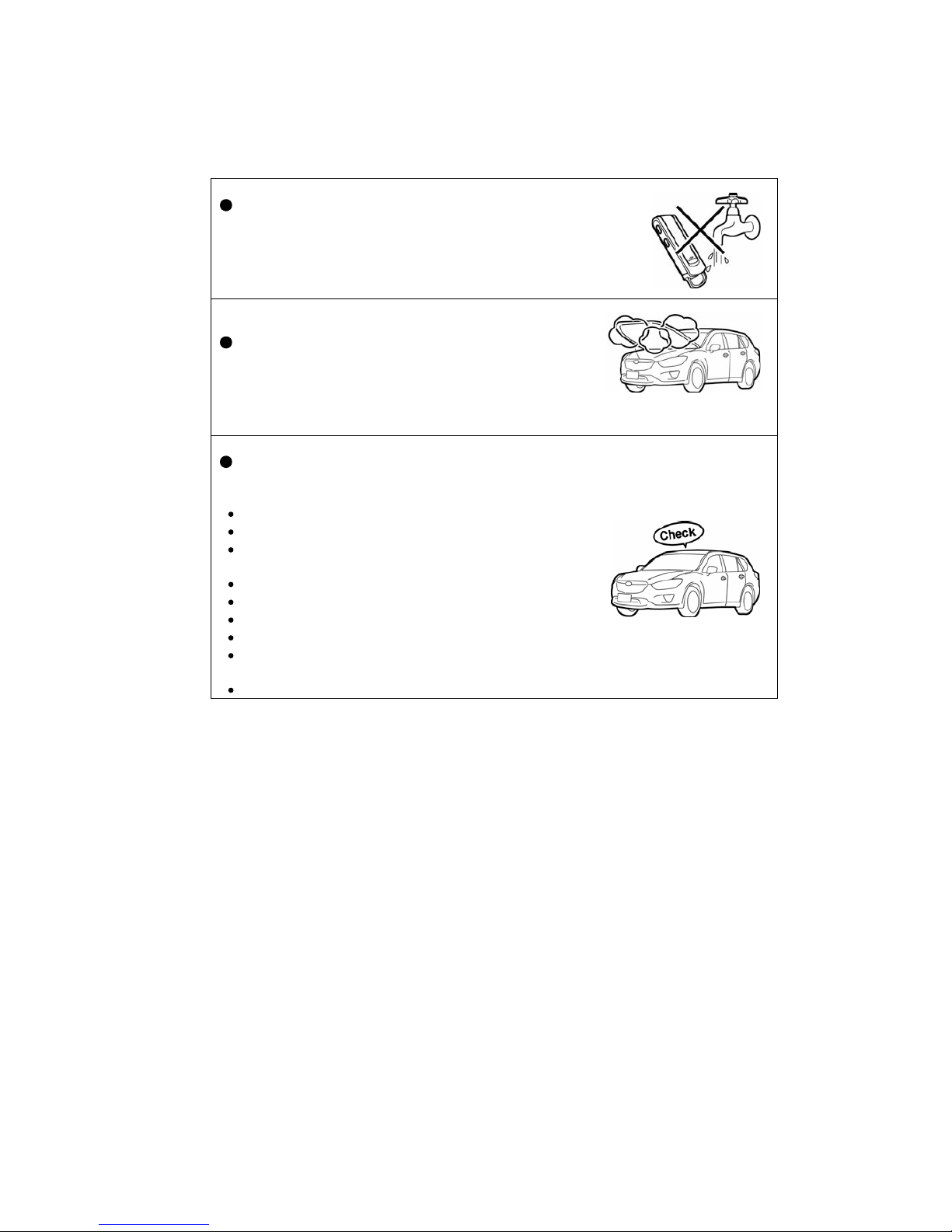

Do not pour water on the remote control.
The remote control is water resistant for exposure
during daily life, but it may break down if submerged
in water or if water gets inside the device.
Do not perform standard inspection and maintenance
right after warming up the engine.
Performing inspection or maintenance before
operation and immediately after warming up your
vehicle could result in a burn injury. First, wait 5
minutes once the engine has stopped. Then, after
checking all the parts for heat hazards, proceed with
the inspection and maintenance.
Check points when the vehicle is parked.
Perform the following safety checks thoroughly when
the vehicle is parked to prevent potential accidents
when starting the engine.
Engage the parking brake.
Put the shift lever in the P position.
Be sure there is no advanced or smart key inside the
vehicle.
Close all doors and windows.
Lock the doors.
Check that the hood is closed.
Turn off the windshield wipers.
If the vehicle is equipped with automatic lights, turn off
the automatic light settings.
Be sure that the steering lock is engaged.


6

3. General information
-Laws in some communities may restrict the use of remote starters. For
example, some laws may require a person using the remote start to have
the vehicle in view when doing so. Check local regulations for any
requirements on remote starting of vehicles.
-This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
-This device complies with industry Canada licence-exempt RSS
standard(s).
Operation is subject to the following tow conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that
may cause undesired operation of this device.
-Consult your authorized Mazda dealer for installation of the remote control
engine starter system.
CAUTION
-FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the usersauthority to operate the equipment.

7






























          




8

Remote Control Handling Instructions
The remote control is a sensitive electronic device similar to a cellular telephone.
Please follow the handling instructions below to avoid damage to or breakdown of the
remote control.
Avoid storing or using the remote control in places that expose it to direct sunlight,
places that have high humidity, places with extremely high temperatures (on top of
the dashboard, etc.) or places with extremely low temperatures (leaving inside the
vehicle while parked at ski resorts, etc.).
Do not store or use the remote control in places where it comes into direct contact
with water.
Avoid exposure to strong impacts such as dropping it on the floor or hitting it
against something hard.
If the remote control gets very dirty, use a cloth soaked in a watered-down, mild or
neutral detergent, ring out the liquid solution and wipe down the remote control.
(Never use benzene, thinner or chemically treated cloth/wipes.)
Avoid attaching a lot of keys to the key ring on the remote control, or sitting down
while the remote control is in your pocket, as it can cause the remote control to
deform and may result in damage.
While carrying the remote control, if the keys, etc., come into contact with a
vehicle, it can lead to remote control breakdown or malfunction due an
electrostatic discharge. Therefore, be careful of this risk during time periods when
electrostatic discharges occur frequently.
Be sure that the battery cover and clasp are securely locked. Otherwise, if water
accidently gets inside the internal part of the transmitter, it can cause breakdown.
In places where the use of electronics is restricted, such as on board airplanes or
inside hospitals, do not take out the batteries and use this device.
The remote control can negatively impact electronic and medical devices.
Be sure to follow the instructions and rules posted inside medical clinics or
facilities regarding the use of electronic devices.
If the remote control is used on board airplanes, where usage is restricted, you
may be subject to punishment due to airline rules and regulations.



Depending on the surroundings and how the remote control is held, the minimum distance
required for the signal transmission varies. Generally, if the remote control is directed toward
the vehicle when transmittin
g
the si
g
nal, it should successfull
y
transmit from far awa
y
.
ADVIC
E

9


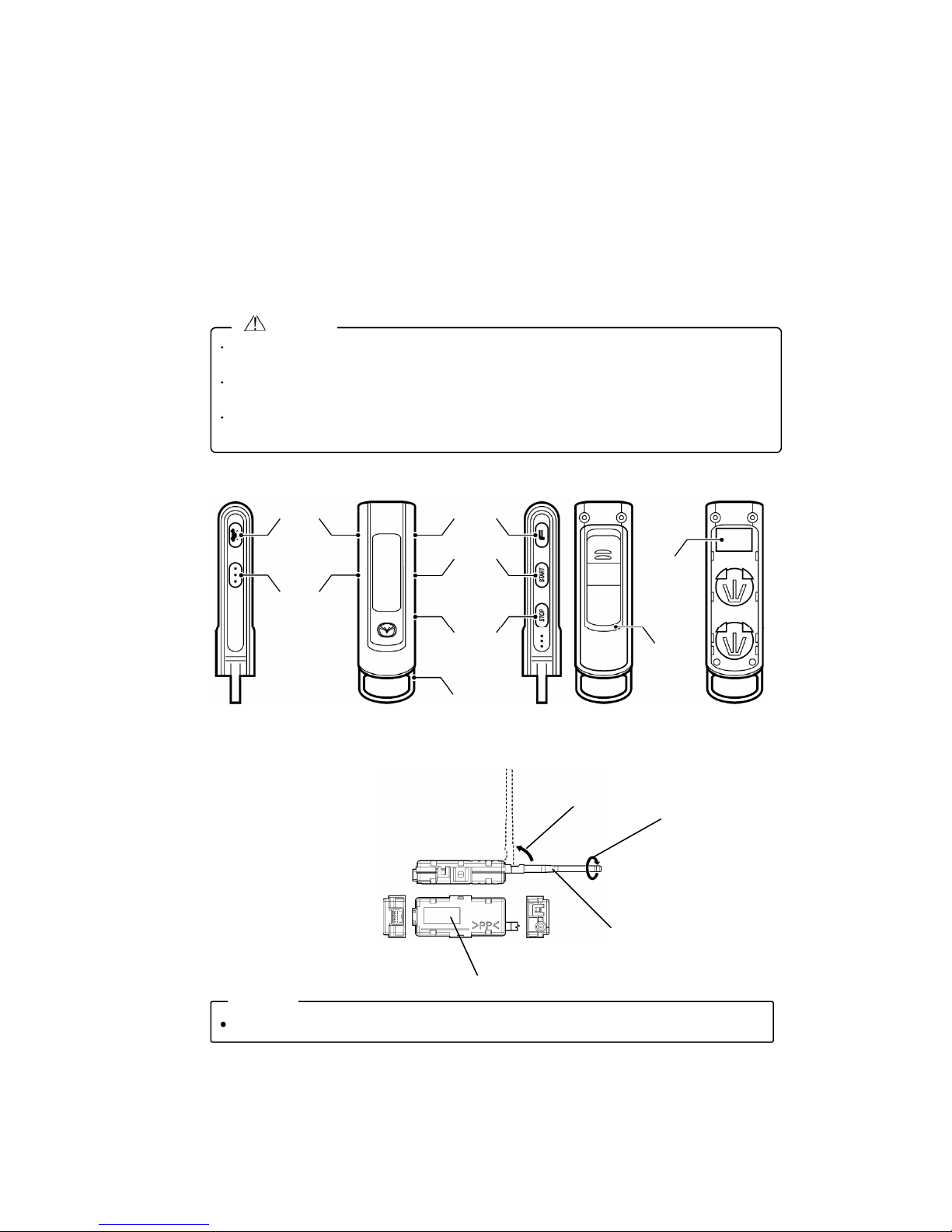

5. Part names
Remote Control
































Keep the remote control out of the reach of children. Otherwise, they may swallow the
lithium battery accidentally and choke.
Do not drop the remote control or hit it against something hard. Otherwise, it can result in
breakdown or malfunction.
Pour watering on the remote control, or submerging it, can cause breakdown or
malfunction.
CAUTION
Car find
switch
Registration
switch
Function
switch
Start switch
Stop switch
Key ring
Battery
cover
FFC/IC
Label*
Side Front BackSide

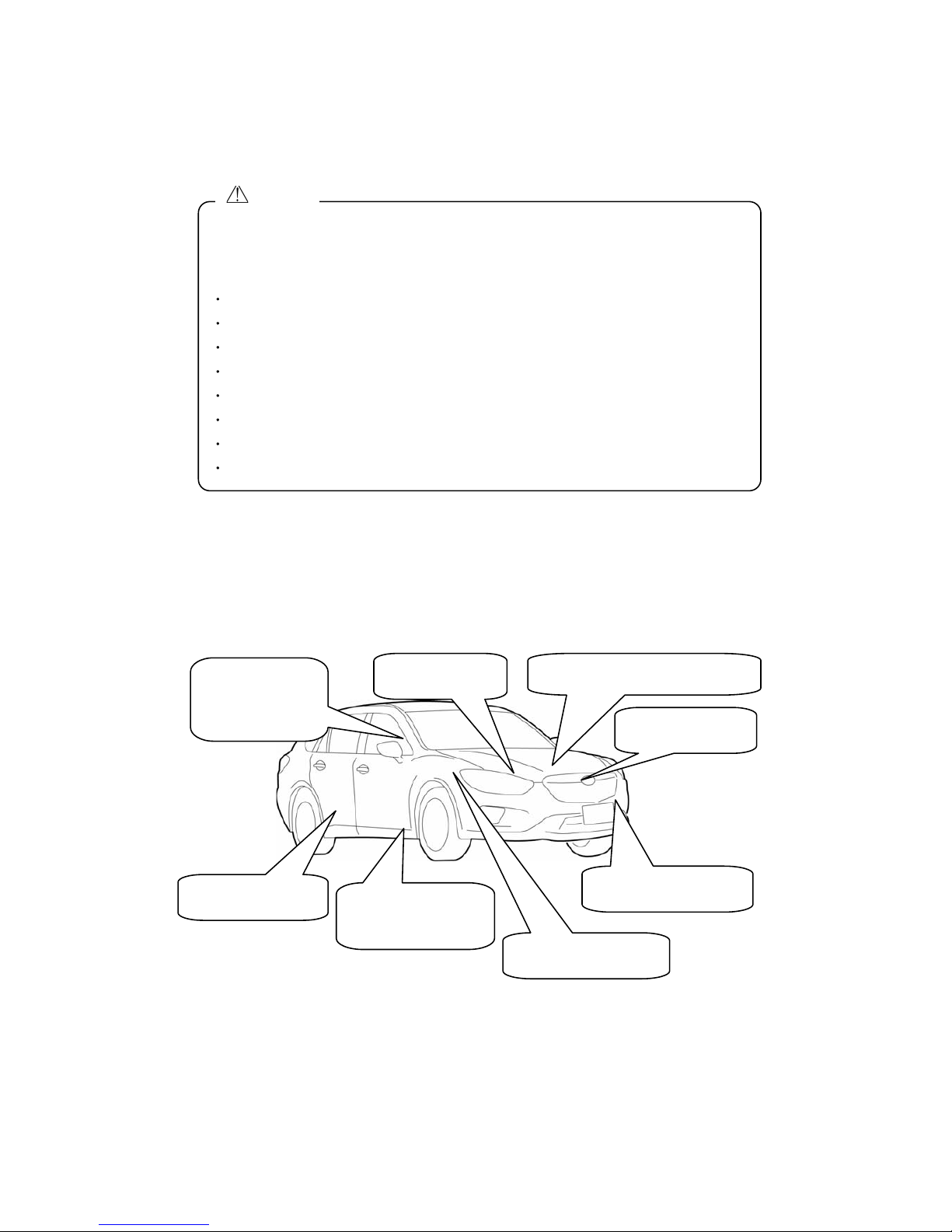

The location for the controller installation varies depending on the vehicle model.
Not
e
*<Confirm method of FCC/IC Label>
The FCC/IC label appears when the
Battery Cover is removed.
Antenna
Sends and receives signal
transmission to and from
the remote control.
Rotates 360º.
Back
Controller Rotates 90º.
Confirm method of FCC/IC Label

10


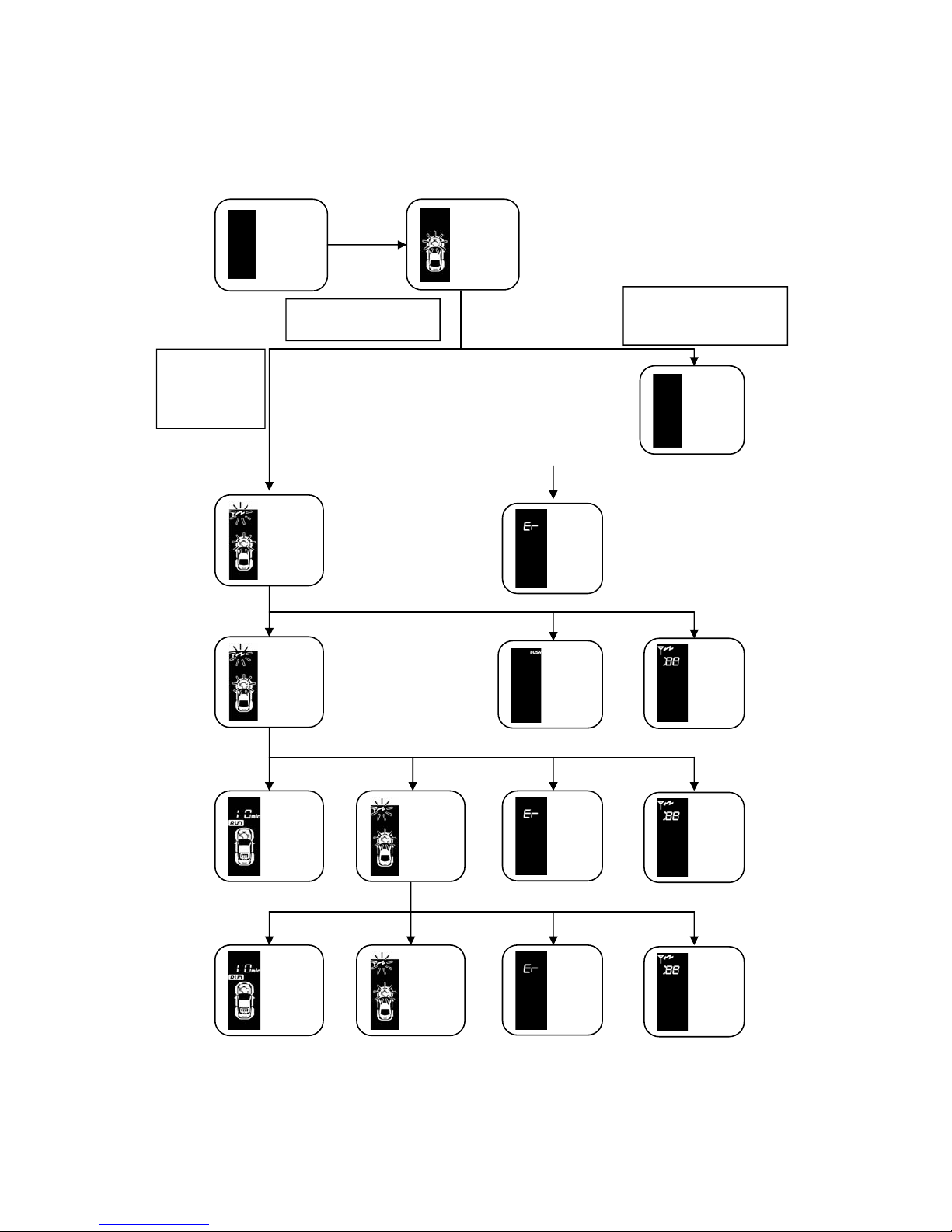

6. Display
Display Name Description
Antenna mark Turns on when sending or
receiving a signal.
Send mark Flashes when sending a
transmission signal.
Receive mark Flashes when receiving a signal.
Send error mark Turns on when a signal for the
same frequency band is being
used.
Battery mark Turns on when the battery life is
low.
Time display Displays the engine warm up
time.
Vehicle find display Turns on when conducting the
vehicle find operation.
Error display An error description will display
when an error occurs.
Engine mark Turns on when the engine starts
up and is running.
RUN mark Turns on when the engine starts
up and is running.
STOP mark Turns on when the engine stops.
Rear defrost mark Turns on when the rear defrost
is running.
Vehicle mark Turns on when performing a
sending operation.
Hood mark Turns on when performing a
sending operation. When the
hood is open, it does not turn on.
Door close mark Turns on when performing a
sending operation. When all
doors are closed, it turns on.
Door open mark If any door is open, it turns on.
*For further details on the display description, refer to the appropriate
section in the manual.





