EAU10050 INTRODUCTION
EAU10110
Welcome to the MBK world of motorcycling!
As the owner of the FLAME X, you are benefiting from MBK’s vast experience and newest technology regarding the design
and manufacture of high-quality products, which have earned MBK a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your FLAME X. The owner’s manual
does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have any
further questions, do not hesitate to contact your MBK dealer.
The MBK team wishes you many safe and pleasant rides. So, remember to put safety first!
5ML-F819U-E0ch0.pmd 2003/12/12, 16:112

1
2
3
4
5
6
7
8
9
EAU10120
IMPORTANT MANUAL INFORMATION
EAU34110
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT!YOUR SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the scooter
operator, a bystander, or a person inspecting or repairing the scooter.
A CAUTION indicates special precautions that must be taken to avoid damage to the scooter.
A NOTE provides key information to make procedures easier or clearer.
NOTE:
8This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is
subsequently sold.
8MBK continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your scooter and
this manual. If you have any questions concerning this manual, please consult your MBK dealer.
EWA12410
w
PLEASE READTHIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATINGTHIS SCOOTER.
w
cC
NOTE:
QQ
QQ
Q
5ML-F819U-E0ch0.pmd 2003/12/12, 16:113

1
2
3
4
5
6
7
8
9
IMPORTANT MANUAL INFORMATION
EAUT1390
FLAME X
OWNER’S MANUAL
©2004 byYamaha Motor Taiwan Co., Ltd.
1st edition, January 2004
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Taiwan Co., Ltd.
is expressly prohibited.
Printed in Taiwan.
5ML-F819U-E0ch0.pmd 2003/12/12, 16:114

1
2
3
4
5
6
7
8
9
EAU10210
TABLE OF CONTENTS
SAFETY INFORMATION ....... 1-1
Further safe-riding points ..... 1-4
DESCRIPTION ....................... 2-1
Left view ............................... 2-1
Right view ............................. 2-2
Controls and instruments ..... 2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................... 3-1
Main switch/steering lock ..... 3-1
Indicator lights ...................... 3-2
Speedometer unit ................. 3-3
Fuel gauge ............................ 3-3
Handlebar switches .............. 3-3
Front brake lever .................. 3-4
Rear brake lever ................... 3-4
Fuel tank cap ........................ 3-5
Fuel ...................................... 3-6
Catalytic converter ............... 3-6
Kickstarter............................ 3-7
Seat ...................................... 3-7
Helmet holder ....................... 3-8
Storage compartment ........... 3-8
Luggage hook ....................... 3-9
Sidestand ........................... 3-10
Sidestand switch operation
check ............................... 3-10
PRE-OPERATION CHECKS . 4-1
Pre-operation check list........ 4-2
OPERATION AND IMPORTANT
RIDING POINTS .................... 5-1
Starting a cold engine ........... 5-1
Starting off ............................ 5-2
Acceleration and
deceleration ....................... 5-2
Braking ................................. 5-2
Tips for reducing fuel consump-
tion ..................................... 5-3
Engine break-in .................... 5-3
Parking ................................. 5-4
PERIODIC MAINTENANCE
AND MINOR REPAIR ............ 6-1
Owner’s tool kit ..................... 6-1
Periodic maintenance and
lubrication chart ................. 6-3
Removing and installing
panels ................................ 6-6
Checking the spark plug....... 6-7
Engine oil and oil strainer...... 6-8
Final transmission oil .......... 6-10
Air filter and V-belt case air filter
elements .......................... 6-11
Adjusting the carburetor ..... 6-13
Adjusting the throttle cable free
play .................................. 6-14
Adjusting the valve
clearance ......................... 6-14
Tires ................................... 6-15
Cast wheels ....................... 6-17
Checking the front brake lever
free play ........................... 6-17
Adjusting the rear brake lever
free play ........................... 6-18
Checking the front brake pads
and rear brake shoes ...... 6-18
Checking the brake fluid
level ................................. 6-19
Changing the brake fluid ..... 6-20
Checking and lubricating the
cables .............................. 6-20
Checking and lubricating the
throttle grip and cable ...... 6-21
Lubricating the front and rear
brake levers ..................... 6-21
5ML-F819U-E0ch0.pmd 2003/12/12, 16:115

1
2
3
4
5
6
7
8
9
TABLE OF CONTENTS
Checking and lubricating the
centerstand and
sidestand ......................... 6-21
Checking the front fork ....... 6-22
Checking the steering ........ 6-22
Checking the wheel
bearings ........................... 6-23
Battery ................................ 6-23
Replacing the fuses ............ 6-25
Replacing a headlight bulb .. 6-26
Replacing the tail/brake light
bulb .................................. 6-27
Replacing a front turn signal light
bulb .................................. 6-28
Rear turn signal light bulb ... 6-28
Troubleshooting .................. 6-29
Troubleshooting chart ......... 6-30
SCOOTER CARE AND STOR-
AGE ........................................ 7-1
Care...................................... 7-1
Storage ................................. 7-3
SPECIFICATIONS ................. 8-1
CONSUMER INFORMATION 9-1
Identification numbers .......... 9-1
5ML-F819U-E0ch0.pmd 2003/12/12, 16:116

1-1
1
2
3
4
5
6
7
8
9
QQ
QQ
QSAFETY INFORMATION
EAU10260
SCOOTERS ARE SINGLE TRACK VE-
HICLES. THEIR SAFE USE AND OP-
ERATION ARE DEPENDENT UPON
THE USE OF PROPER RIDING TECH-
NIQUES AS WELL AS THE EXPER-
TISE OF THE OPERATOR. EVERY OP-
ERATOR SHOULD KNOW THE FOL-
LOWING REQUIREMENTS BEFORE
RIDING THIS SCOOTER.
HE OR SHE SHOULD:
8OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.
8OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
8OBTAIN QUALIFIED TRAINING IN
SAFE AND PROPER RIDING
TECHNIQUES.
8OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL AND/
OR WHEN MADE NECESSARY
BY MECHANICAL CONDITIONS.
Safe riding
8Always make pre-operation checks.
Careful checks may help prevent
an accident.
8This scooter is designed to carry
the operator and passenger.
8The failure of motorists to detect
and recognize scooters in traffic is
the predominating cause of auto-
mobile/scooter accidents. Many
accidents have been caused by an
automobile driver who did not see
the scooter. Making yourself con-
spicuous appears to be very effec-
tive in reducing the chance of this
type of accident.
Therefore:
9Wear a brightly colored jacket.
9Use extra caution when
approaching and passing
through intersections, since
intersections are the most
likely places for scooter
accidents to occur.
9Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.
8Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent driver’s license.
9Make sure that you are quali-
fied and that you only lend your
scooter to other qualified
operators.
9Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
9We recommend that you
practice riding your scooter
where there is no traffic until
you have become thoroughly
familiar with the scooter and all
of its controls.
Many accidents have been caused
by error of the scooter operator. A
typical error made by the operator
is veering wide on a turn due to
EXCESSIVE SPEED or
undercornering (insufficient lean
angle for the speed).
9Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
EAU10220
QQ
QQ
QSAFETY INFORMATION
5ML-F819U-E0ch1re.pmd 2003/12/12, 16:121

1-2
1
2
3
4
5
6
7
8
9
QQ
QQ
QSAFETY INFORMATION
9Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
8The posture of the operator and
passenger is important for proper
control.
9The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
9The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foot-
rests.
9Never carry a passenger unless
he or she can firmly place both
feet on the passenger foot-
rests.
8Never ride under the influence of
alcohol or other drugs.
This scooter is designed for on-road
use only. It is not suitable for off-
road use.
Protective apparel
The majority of fatalities from scooter
accidents are the result of head injuries.
The use of a safety helmet is the single
most critical factor in the prevention or
reduction of head injuries.
8Always wear an approved helmet.
8Wear a face shield or goggles.Wind
in your unprotected eyes could con-
tribute to an impairment of vision
which could delay seeing a hazard.
8The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or reducing
abrasions or lacerations.
8Never wear loose-fitting clothes,
otherwise they could catch on the
control levers or wheels and cause
injury or an accident.
8Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
8Passengers should also observe
the above precautions.
Modifications
Modifications made to this scooter not
approved by MBK, or the removal of
original equipment, may render the
scooter unsafe for use and may cause
severe personal injury. Modifications
may also make your scooter illegal to
use.
Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso-
ries to your scooter. Use extra care when
riding a scooter that has added cargo or
accessories. Here are some general
guidelines to follow if loading cargo or
adding accessories to your scooter:
5ML-F819U-E0ch1re.pmd 2003/12/12, 16:122

1-3
1
2
3
4
5
6
7
8
9
QQ
QQ
QSAFETY INFORMATION
Loading
The total weight of the operator, passen-
ger, accessories and cargo must not ex-
ceed the maximum load limit of 170 kg
(374 lb).When loading within this weight
limit, keep the following in mind:
8Cargo and accessory weight should
be kept as low and close to the
scooter as possible. Make sure to
distribute the weight as evenly as
possible on both sides of the
scooter to minimize imbalance or
instability.
8Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the scooter before riding.
Check accessory mounts and
cargo restraints frequently.
8Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can cre-
ate unstable handling or a slow
steering response.
Accessories
Genuine MBK accessories have been
specifically designed for use on this
scooter. Since MBK cannot test all other
accessories that may be available, you
must personally be responsible for the
proper selection, installation and use of
non-MBK accessories. Use extreme
caution when selecting and installing
any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
8Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before us-
ing it to make sure that it does not
in any way reduce ground clear-
ance or cornering clearance, limit
suspension travel, steering travel
or control operation, or obscure
lights or reflectors.
9Accessories fitted to the
handlebar or the front fork area
can create instability due to
improper weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
9Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to
lift the scooter, or the scooter
may become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.
9Certain accessories can
displace the operator from his
or her normal riding position.
This improper position limits
the freedom of movement of
the operator and may limit
control ability, therefore, such
accessories are not recom-
mended.
8Use caution when adding electrical
accessories. If electrical accesso-
ries exceed the capacity of the
scooter’s electrical system an elec-
5ML-F819U-E0ch1re.pmd 2003/12/12, 16:123

1-4
1
2
3
4
5
6
7
8
9
QQ
QQ
QSAFETY INFORMATION
tric failure could result, which could
cause a dangerous loss of lights or
engine power.
Gasoline and exhaust gas
8GASOLINE IS HIGHLY FLAM-
MABLE:
9Always turn the engine off
when refueling.
9Take care not to spill any
gasoline on the engine or
exhaust system when refueling.
9Never refuel while smoking or
in the vicinity of an open flame.
8Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of con-
sciousness and death within a
short time. Always operate your
scooter in an area that has adequate
ventilation.
8Always turn the engine off before
leaving the scooter unattended and
remove the key from the main
switch. When parking the scooter,
note the following:
9The engine and exhaust
system may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
9Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
9Do not park the scooter near a
flammable source (e.g., a
kerosene heater, or near an
open flame), otherwise it could
catch fire.
8If you should swallow any gasoline,
inhale a lot of gasoline vapor, or
allow gasoline to get into your eyes,
see your doctor immediately. If any
gasoline spills on your skin or cloth-
ing, immediately wash the affected
area with soap and water and
change your clothes.
EAU10371
Further safe-riding points
8Be sure to signal clearly when mak-
ing turns.
ZAUM00**
Turn left
ZAUM00**
Turn right
5ML-F819U-E0ch1re.pmd 2003/12/12, 16:124

1-5
1
2
3
4
5
6
7
8
9
QQ
QQ
QSAFETY INFORMATION
8Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when stop-
ping on a wet surface.
8Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.
8Be careful when passing parked
cars. A driver might not see you and
open a door in your path.
8Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers become
extremely slippery when wet. Slow
down and cross them with caution.
Keep the scooter upright, otherwise
it could slide out from under you.
8The brake pads could get wet when
you wash the scooter. After wash-
ing the scooter, check the brakes
before riding.
8Always wear a helmet, gloves, trou-
sers (tapered around the cuff and
ankle so they do not flap), and a
bright colored jacket.
8Do not carry too much luggage on
the scooter. An overloaded scooter
is unstable.
5ML-F819U-E0ch1re.pmd 2003/12/12, 16:125

1-6
1
2
3
4
5
6
7
8
9
QQ
QQ
QSAFETY INFORMATION
5ML-F819U-E0ch1re.pmd 2003/12/12, 16:126

2-1
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10410

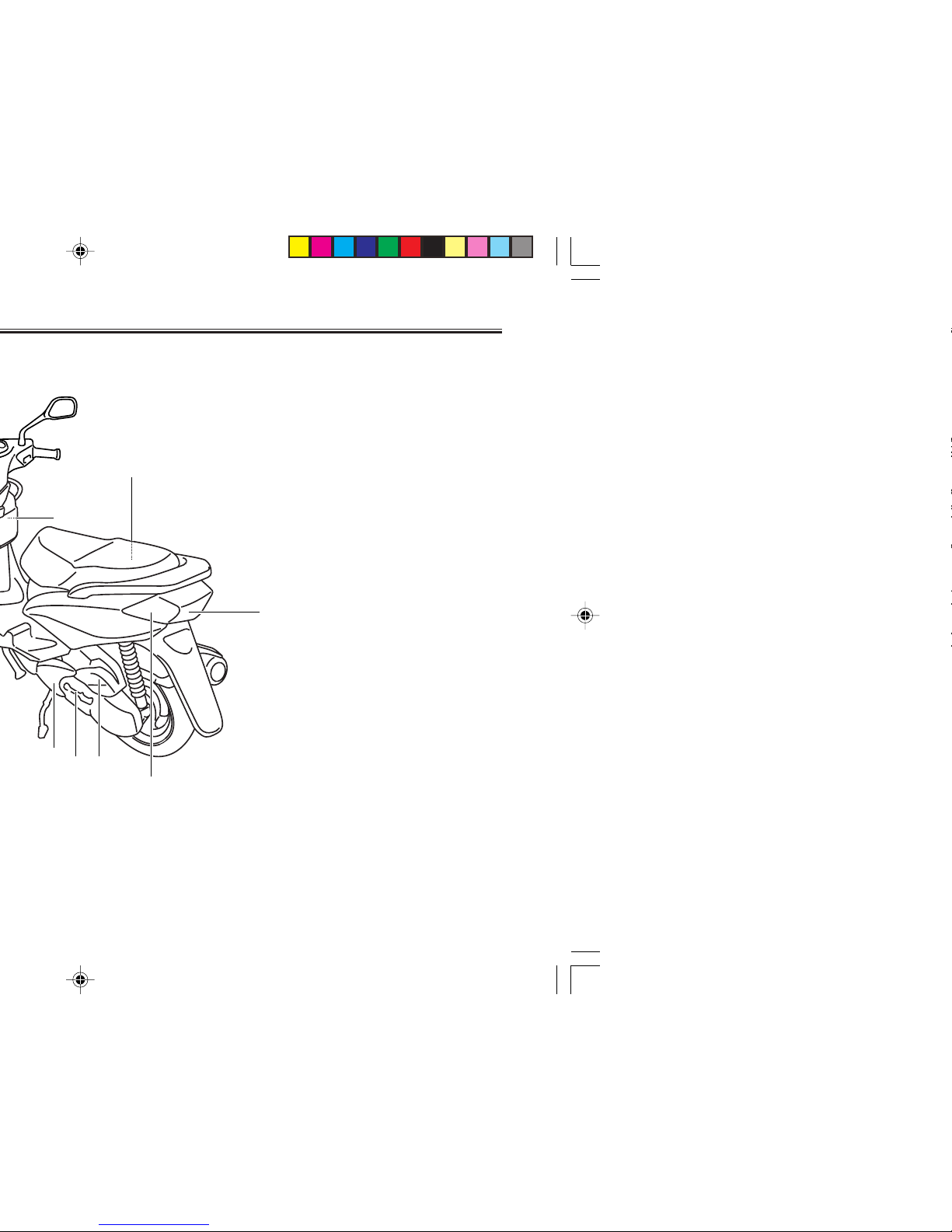

Left view
EAU10400
DESCRIPTION
1. Luggage hook
2. Battery(Page:6-23)
3. Storage compartment(Page:3-8)
4. Tail/brake light(Page:6-27)
5. Rear turn signal light(Page:6-28)
6. Air filter(Page:6-11)
7. Kickstarter(Page:3-7)
8. V-belt case air filter(Page:6-11)
9. Fuel tank cap(Page:3-5)
12
3
4
5
6
7
8
9
5ML-F819U-E0ch2re.pmd 2003/12/12, 16:121

2-2
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10420
Right view
1. Front turn signal light(Page6-28)
2. Main fuse(Page:6-25)
3. Headlight(Page:6-26)
4. Centerstand(Page:6-21)
5. Fuse box(Page:6-25)
1
2
3
4
5
5ML-F819U-E0ch2re.pmd 2003/12/12, 16:122

2-3
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10430
Controls and instruments
1.Rear brake lever (Page3-4)
2.Left handlebar switches(Page:3-3)
3.Indicator lights(Page:3-2)
4.Speedometer unit(Page:3-3)
5.Fuel gauge(Page:3-3)
6.Right handlebar switches(Page:3-3)
7.Front brake lever(Page:3-4)
8.Main switch(Page:3-1)
1
23
4
56
7
8
5ML-F819U-E0ch2re.pmd 2003/12/12, 16:123

3-1
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lock
ZAUM00**
O
F
F
O
N
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10442 INSTRUMENT AND CONTROL FUNCTIONS
EAUT1422
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.
NOTE:
The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
ZAUM00**
O
F
F
O
N
1
1. Push
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
1
2
ZAUM00**
1. Turn
2. Release
Push the key in, and then turn it to “OFF”
while still pushing it.
EWA10060
w
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
5ML-F819U-E0ch3re.pmd 2003/12/12, 16:121

3-2
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU10980
Indicator lights
ZAUM00**
12
ZAUM00**
12
1. High beam indicator light ”&”
2. Turn signal indicator light “5”
EAU11020
Turn signal indicator light “55
55
5”
This indicator light flashes when the turn
signal switch is pushed to the left or right.
EAU11080
High beam indicator light “&&
&&
&”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUT1370
Oil change indicator
This indicator changes from green to red
every 3000 km (1800 mi) to indicate that
the engine oil should be changed.
After changing the engine oil, reset the
oil change indicator switch by pushing
it in.
ZAUM00**
1
2
1. Oil change indicator
2. Reset switch
If the engine oil is changed before the
3000 km (1800 mi) interval, the indica-
tor must be reset after the oil change
for the next periodic oil change to be
indicated at the correct time.
NOTE:
After resetting the oil change indicator
switch, the indicator changes from red
to green.
ECA10280
cC
After 1000 km (600 mi) of operation,
the engine oil must be changed.
5ML-F819U-E0ch3re.pmd 2003/12/12, 16:122

3-3
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU11620
Speedometer unit
ZAUM00**
12
1. Speedometer
2. Fuel gauge
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows riding speed. The
odometer shows the total distance trav-
eled.
EAU12150
Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases.When the needle reaches the
red line, refuel as soon as possible.
NOTE:
Do not allow the fuel tank to empty it-
self completely.
EAU12343
Handlebar switches
ZAUM00**
1
2
3
1. Dimmer switch “%/&“
2. Turn signal switch “4/6”
3. Horn switch “*”
ZAUM00**
1
1. Start switch “,”
5ML-F819U-E0ch3re.pmd 2003/12/12, 16:123

3-4
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU12400
Dimmer switch “%%
%%
%/&&
&&
&”
Set this switch to “&” for the high beam
and to “%” for the low beam.
EAU12460
Turn signal switch “44
44
4/66
66
6”
To signal a right-hand turn, push this
switch to “4”.To signal a left-hand turn,
push this switch to “6”.When released,
the switch returns to the center position.
To cancel the turn signal lights, push the
switch in after it has returned to the cen-
ter position.
EAU12500
Horn switch “**
**
*”
Press this switch to sound the horn.
EAU12720
Start switch “,,
,,
,”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.
ECA10050
cC
See page 5-1 for starting instructions
prior to starting the engine.
EAU12900
Front brake lever
ZAUM00**
1
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake lever
ZAUM00**
1
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
5ML-F819U-E0ch3re.pmd 2003/12/12, 16:124
