VP1000
VIDEOPROCESSORTheCompendium

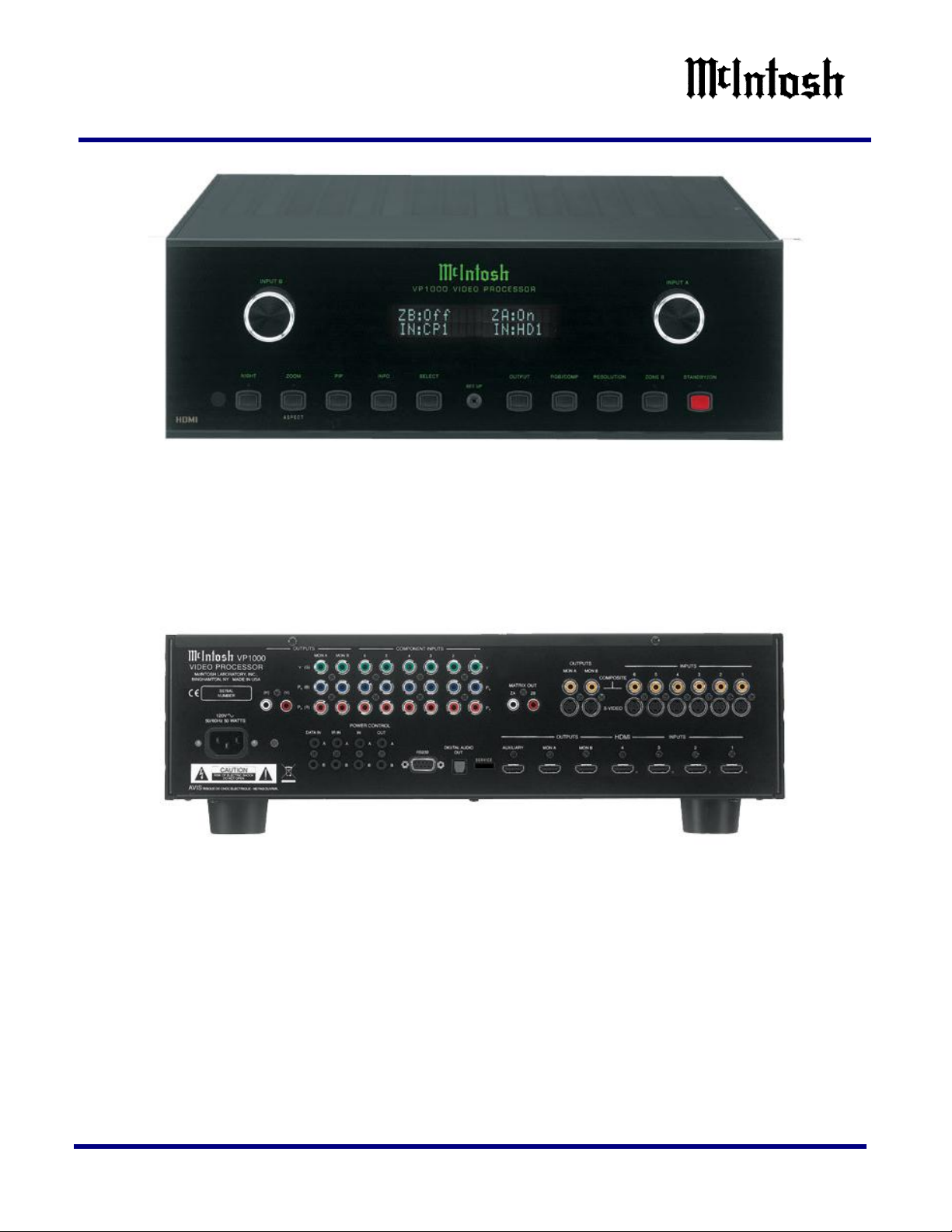

FRONTPANEL: Glass with LED/fiber-opticilluminated green/gold nomenclature. INPUTB
selector.Digitaldisplay.INPUT A selector.7IR remotesensor. Touchbuttons:
NIGHT (withindicator), ZOOM ASPECT (with indicator), PIP,INFO,SELECT.Pushbutton: SET
UP.Touchbuttons: OUTPUT,RGB/COMP,RESOLUTION,ZONE B (withindicator),STANDBY/ON
(with indicator).
REARPANEL: OUTPUTS:H and V;MONitor A -Y/PB/PR,MONitor B -Y/PB/PR.COMPONENT INPUTS:
6-Y/PB/PR,5-Y/PB/PR,4-Y/PB/PR,3-Y/PB/PR,2-Y/PB/PR,1-Y/PB/PR.MATRIXOUT:ZA and ZB.
COMPOSITE and S-VIDEOOUTPUTS:MONitor A and MONitor B.COMPOSITE and S-VIDEOINPUTS:
6-Y/PB/PR,5-Y/PB/PR,4-Y/PB/PR,3-Y/PB/PR,2-Y/PB/PR,1-Y/PB/PR.7Powercord
receptacle. DATA INput: A and B.IRINput A and B.POWER CONTROLINput and OUTputs:
A and B.RS232 connector.Optical DIGITALAUDIO OUTput.SERVICE connector.HDMI
OUTPUTS:AUXILIARY,MONitor A,MONitor B.HDMI INPUTS:4, 3, 2, 1.
©2007-2020 VintageMac– LarryHodson Rev.09/19 Page1 /2

VP1000
VIDEOPROCESSORTheCompendium
SPECIFICATIONS:
Analog VideoSpecifications – Signal System: NTSC. ComponentVideo
Input/OutputLevel:Y– 1.0Vp-p (75 OHM), PB– 0.648Vp-p (75 OHM),
PR–0.7Vp-p(75OHM).ComponentVideo Input/OutputResolution: 720x480i
thru 1920x1080i.ComponentVideoInputProcessingMode: Y,PB,PR.
ComponentVideo OutputProcessing Mode: Y, PB,PRor RGBHV. S-Video
Input/OutputLevel:Y–1Vp-p(75 OHM),C–0.286Vp-p(75 OHM).S-Video
Input/OutputResolution: 720x480i.CompositeVideo Input/OutputLevel:
1.0Vp-p. Composite Video Input/OutputResolution: 720x480i.
DigitalVideoSpecifications – Signal System and Version: HDMI1.1. HDMI
Input/OutputColorProcessing Mode: Y, CB, CR or RGB. HDMI Input
Resolution: 720x480ithru 1920x1080i.HDMI OutputResolution: 720x480ithru
1920x1080i.
DigitalAudio Specifications – DigitalOutput: Optical:-15dbm to-21dbm.
Powerrequirements:120Vat 50 Watts.Hashand remote HR057.
VP 1000 -Sold from2008 -2010. S/N: WP1001~WP???? (????? UNITS)
Size: 6"H, 17"Wand 21” D. Weight: 21.1lb.$9,000.00
