MCZ AKI Hydromatic 16/24 M1 Configuration guide

INSTALLATION GUIDE GB
PELLETSTOVE
AKI Hydromatic 16/24 M1
PART 2 - OPERATION AND CLEANING
Instructions in English

II
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................. II
11PRECAUTIONS BEFORE STARTUP............................................................................3
12SYSTEM REQUIREMENTS.........................................................................................4
13FIRST APP STARTUP AND ASSOCIATION WITH MCZ STOVES ......................................5
14STOVE ACCESSORIES CONFIGURATION .....................................................................8
15EMERGENCY PANEL..............................................................................................10
16EMERGENCY PANEL FUNCTIONS............................................................................11
17MANUAL CONFIGURATION ....................................................................................12
18APP FUNCTIONS...................................................................................................13
19SIDE DROP DOWN MENU ......................................................................................15
20SHORTCUTS SETTINGS / RAPID SETTINGS...............................................................16
21MENU SETTINGS ..................................................................................................20
22OPERATION MENU................................................................................................26
23SETTINGS MENU ..................................................................................................29
24SOFTWARE VERSION ............................................................................................36
25TECHNICAL MENU ................................................................................................37
26INFO MENU..........................................................................................................39
27SAFETY DEVICES AND ALARMS..............................................................................43
28RECOMMENDATIONS FOR SAFE USE.......................................................................49
29CLEANING AND MAINTENANCE..............................................................................50
30TROUBLESHOOTING .............................................................................................57
31CIRCUIT BOARD ...................................................................................................60

3
TechnicalDept.-Allrightsreserved-Reproductionprohibited
11-PRECAUTIONS BEFORE START-UP
WARNINGS BEFORE IGNITION
GENERAL WARNINGS
Removeallpartsthatmayburnfromthebrazierandtheglass(manual,variousadhesivelabelsoranypolystyrene).
Check that the brazier is positioned correctly and rests properly on the base.
The rst start-up may not be successful as the feed screw is empty and does not always manage to load the brazier
with the required amount of pellets in time to light the ame.
CLEAR THE FAILED IGNITION ALARM FROM THE STOVE PANEL OR APP.
REMOVE THE PELLETS LEFT IN THE BRAZIER AND REPEAT IGNITION. (SEE “SAFETY DEVICES/ALARMS” PARAGRAPH)
If,afterrepeatedattempts,theamefailstoignite,despitearegularowofpellets,checkthe correctpositioning ofthebrazier,which
mustrestsnuglyagainsttheslots.Ifnoanomalyisfoundduringthisinspection,theremaybeaproblemwiththeproductcomponents
orinstallationmaynotbecorrect.
REMOVE THE PELLETS FROM THE BRAZIER AND CONTACT AN AUTHORISED TECHNICIAN.
Do not touch the stove during the rst start-up, as it is during this phase that the paint sets. If you touch the paint,
you may expose the steel surface.
It is good practice to ensure eective ventilation in the room during the initial start-up, as the stove will emit some
smoke and smell of paint.
Ifnecessary,touchupthepaintwiththespraycanofthespeciccolour.
Donotstandclosetothestoveand,asmentioned,airouttheroom.Thesmokeandsmellofpaintwilldisappearafteraboutanhourof
operation,however,theyarenotharmfulinanycase.
The product will be subject to expansion and contraction during the start-up and cooling stages, therefore slight
creaking noises may be heard. This is absolutely normal and must not be considered a defect as the structure is made
of laminated steel.
Uponrst ignition, forthe rst pellethopper, it isrecommendedto startthe stoveatmaximum powersothat thestructureandthe
smellofthepaintsettlemorequickly.
Itisrecommendedtoinstalltheceramicorserpentinestonecladdingaftertherstsuccessfulignition.
DO NOT EXPECT HEATING EFFICIENCY IMMEDIATELY!!!

4
12-SYSTEM REQUIREMENTS
APP
TheMCZ Maestro Appisalreadyavailableonthe“Handheldremotecontrol”accessoryorwillbeavailableinvariousplaystores.
STOVE
EquippedwithMAESTROsystem
OPERATION
Forthe utmostversatilityofuse,twoWi-Fi moduleshavebeendesigned,supportingpriority connectionwith yoursmartphone and/or
handheldremotecontrol(optional).
Thestove’soperatingstatus,roomtemperature,operatingparameters(suchasventilation,power,etc.)andanyalarmsmaybechecked
remotely.
Attention!
The App is already available in English on the “Handheld remote control” accessory as the language used on the
telephone is set by default. If the App is downloaded onto a personal smartphone, it similarly adopts the language
already in use on the phone. In either case, it is possible to open the “LANGUAGE” screen in the app and select the
desired language.

5
TechnicalDept.-Allrightsreserved-Reproductionprohibited
13-FIRST APP START-UP AND ASSOCIATION WITH MCZ STOVES
TheappletsyoucommunicatewithMCZstovesusingtwotechnologies:
• homeWi-Fi
• remoteWi-Fi
HOME WI-FI
Point-to-pointconnectionbetweenthe telephoneandthestove,tocommunicatewiththe stovewithoutrelyingonroutersorinternet
connections. This is possible when the telephone and stove are located nearby (we recommend max 5 metres).The range of action
dependsonthecharacteristicsofthewallsandhowthehomeisstructured.
REMOTE WI-FI
Connection between the app and stove using an internet connection. With this technology you can communicate with the stove from
anywhere.NearthestovetheremustbeaWi-Firouterprovidinganinternetconnectionandthemobilephoneinturnmusthaveadata
connection.
Thersttimeyoustarttheappwithouthavingconguredanydevices,theappopensdisplayingthe“device list”screen.
TherearetwowaystoassociateMCZdevices:
• automatically
• manually

6
13-FIRST APP START-UP AND ASSOCIATION WITH MCZ STOVES
IMPORTANT!! Do not lose or remove the QR code from the stove. If the stove is reset and/or the smartphone and/or
handheld remote controlare changed, you must have the QR code and passwords available to congure the system.
AUTOMATIC MODE
TheQRcodeandthepasswordsarelocatedatthebackofthestoveandinthewarranty.
ScantheQRcodeusingthecameraofthedevice(accessoryorsmartphone)andacquireit.
Whenthecodeisacknowledged,theappwillaskyoutoenteranidenticationnumberforthestove(forexample“livingroomstove”)to
easilyidentifythestove/sinthelistofcongureddevices.
ThiswillautomaticallyconguretheapptoworkwithbothhomeWI-FIandremoteWI-FItechnology.

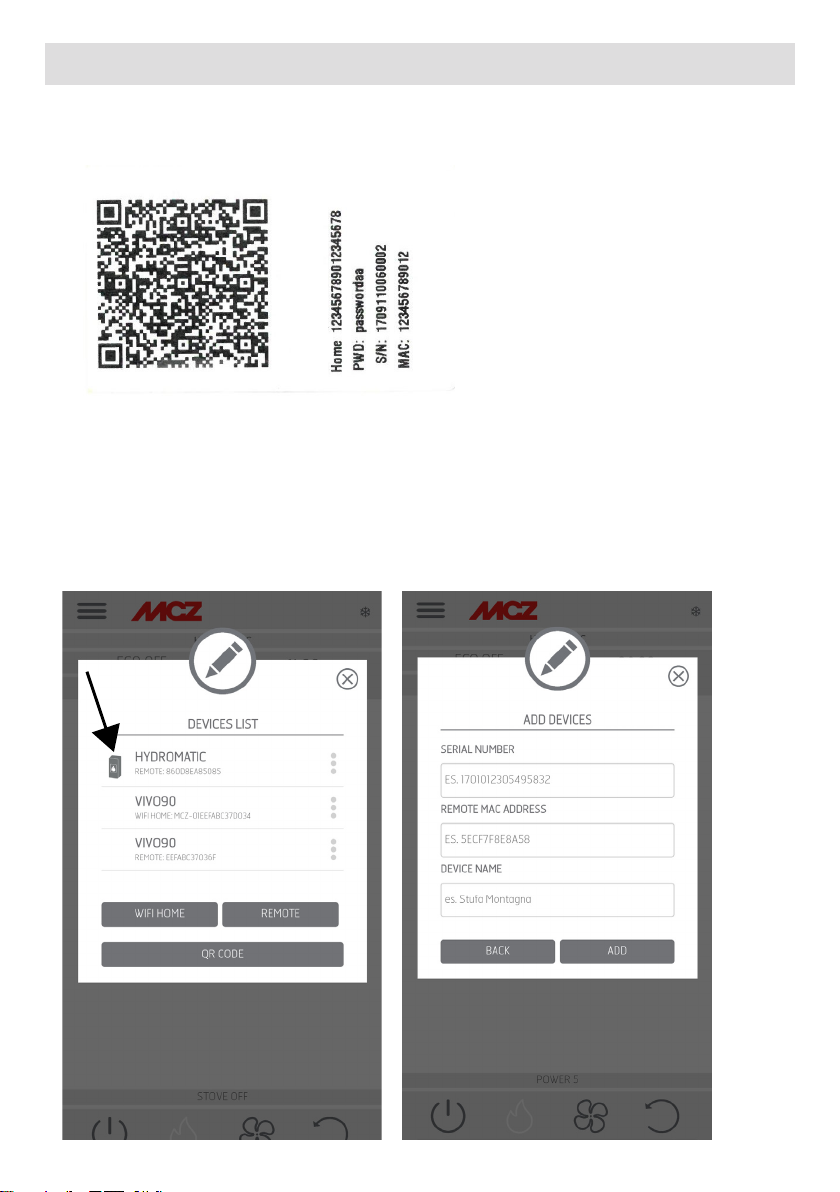

EXAMPLE OF QR AND PASSWORD LABEL

7
TechnicalDept.-Allrightsreserved-Reproductionprohibited
13-FIRST APP START-UP AND ASSOCIATION WITH MCZ STOVES
MANUAL MODE
TheQRcodeandthepasswordsarelocatedatthebackofthestoveandinthewarranty.Inthiscase,thecodesmustbeused.
IfthestovecannotbeconguredusingtheQRcode,itcanbedoneusingtheDIRECTorREMOTEkey.
TocongureoperationinHOMEWI-FImode,clickonthe“DIRECT”keyandthe“selectdevice”screenopens.Thestovesnearbyarescanned;
selectyourstoveandenterthepassword(locatedneartheQRcodeatthetop)andastoveidenticationname(forexample“livingroom
stove”)toeasilyidentifythestove/sinthelistofcongureddevices.
TocongureoperationinREMOTEWI-FImode,clickonthe“REMOTE”keyandthe“SELECTDEVICE”screenopens.Fillinalltheeldswith
thecodesonthelabel(neartheQRcodeatthebottom)andastoveidenticationname(forexample“livingroomstove”)toeasilyidentify
thestove/sinthelistofcongureddevices
EXAMPLE OF QR AND PASSWORD LABEL

8
14-STOVE ACCESSORIES CONFIGURATION
Oncetheapphasbeencongured,youcancommunicatewiththestoveinHomemodeandalsocongurestoveaccessoriesfromtheapp:
• REMOTEWI-FImodule(ifany)
• WI-FItemperatureprobe(notsupplied)
Inordertoconguretheaccessories,themobilephonemustbeneartheaccessories.
CONFIGURATION OF REMOTE WI-FI MODULE FROM MCZ MAESTRO APP
Todothis,connecttothestoveinhomemodethroughtheapp.Fromthe“settings”/“basicsettings”menu,selectthecongureaccessories
item:iftherearestillaccessoriestobecongured,thetwokeyscanbeselected.
clickcongureremote------ascreenopens,displayingnearbyWi-Firouters.Selecttherouterprovidingtheinternetconnectionandenter
therespectivepassword.Fromnowon,iftherouterprovidesastableinternetconnection,itispossibletocommandthestoveremotely.
The access password to the network by the Maestro App must have a maximum of 32 characters. For longer
passwords,forexamplegeneratedautomatically by the routerupon initial installation, the lengthmustbe modied
according to the procedures for your router.
Additional functions
OncetheremotestoveWi-Fimodulehasbeen connectedtothehome router,everytimethe routeris available,theremotestoveWi-Fi
modulewillreconnectautomatically.
Iftherouterisreplacedorthepasswordischanged,theremotestoveWi-Fimodulewillreverttocongurationmodeasitcannolonger
connect.
TheWI-FImoduleshaveanauto-resetmechanism.
CONFIGURE PROBE T°

9
TechnicalDept.-Allrightsreserved-Reproductionprohibited
14-STOVE ACCESSORIES CONFIGURATION

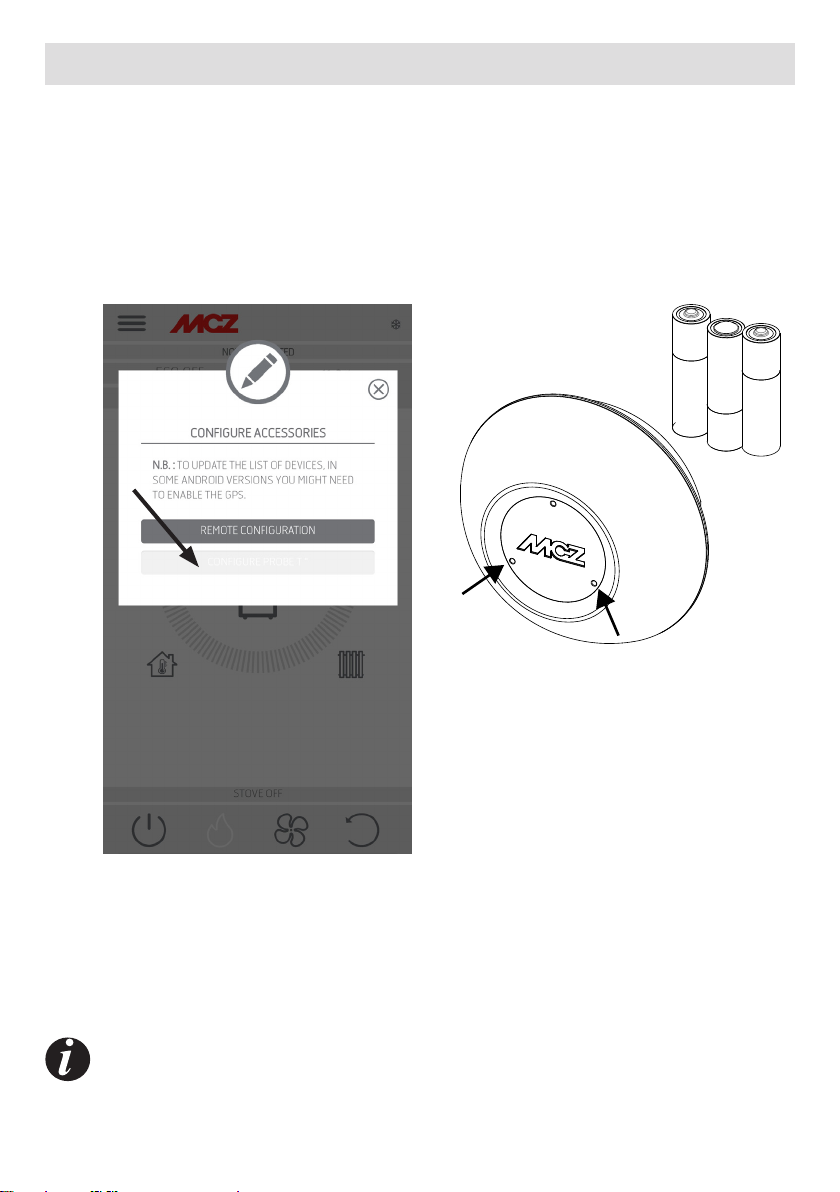

CONFIGURATION OF WI-FI TEMPERATURE PROBE FROM MCZ MAESTRO APP
TheWi-Fitemperatureprobe(ACCESSORY)issuppliedwithoutbatteries.Fromwhenthebatteriesareinserted,theprobecanbecongured
withinthenext8minutes.ThereforeinsertthethreeAAbatteriesshortlybeforeyouarereadytoproceedwiththeconguration.
Then:
• insert twobatteriesimmediately,theninsertthe thirdafterplacingthe sensornext totheWi-Fiemergencypanel(approximately
2cm)
• waitforthebeep-beepindicatingthatpairinghassuccessfullyoccurred(itmustoccurwithin10”)
• connecttothestovethroughtheappinhomemode
• accessthesettings-basicsettings-accessoriesmenu-selectingthecongureaccessoriesitem
IftheWi-Fitemperatureprobeisavailableforconguration,thekeycanbeselected,whileifthekeystaysdisabledcheckthattheprobe
batteriesarecharged,orcheckthatthemaximumavailabletimehasnotelapsed.
Inthiscase,removethebatteriesandputthembackin,orpresstheresetbuttonbyinsertingapaperclipintheholetotherightofthe
sensordome.Fromthistimeon,the8minutesforcongurationstartoveragain.
Iftheprobeisreadyforcongurationclickthekeyintheappscreen,clickT° probe conguration ------thescreenwillshowthestoves
thattheWi-Fiprobecanbeassociatedwith;selectyourstoveandenterthehomeWi-Fipassword(seeQRcodelabel).
OncetheWi-Fi probeisconnected,you cancongurethe stoveto usethe remotesensor; todo thisuse theshortcut byclickingon the
temperatureindicatoratthetoprightoftheappscreenandselectthe“Wi-Fiprobe”asthetemperatureinput.Orfromthesetupmenu
choosetocongureambientinputandselectthe“Wi-Fiprobe”temperatureinput.
Should it be necessary to reset the Wi-Fi probe, because already coupled to another device or congured incorrectly,
use two paper clips. With the rst one, press and hold the key below the bottom left hole and with the other one,
press the key below the right hole once.
Repeat the conguration procedure indicated at the start of the page.
TEMPERATURESENSOR
CONFIGURE PROBE T°

A
B
10
15-EMERGENCY PANEL
Atthebackofthestove,thereistheemergencypanelthatprovidessomeinformationaboutthestovestatus.
KEY
A-MULTICOLOURLED
GreenLEDthatindicates:
• StoveinOPERATION
RedLEDthatindicates:
• StoveOFF
BlueLEDthatindicates:
• StoveSTART-UP
YellowLEDthatindicates:
• StovecoolingforSHUTDOWN
FlashingredLEDthatindicates:
• StoveinALARMconditions
B-BUTTON-functions
TurnstheproductON
TurnstheproductOFF
ChangestheoperatingPOWER:
• 1beep=LOW
• 3beeps=MEDIUM
• 5beeps=HIGH
RESETALARMS

11
TechnicalDept.-Allrightsreserved-Reproductionprohibited
16-EMERGENCY PANEL FUNCTIONS
Theemergencypanelprovidesthefollowinginformation:
• throughamulticolourLED(A)itprovidesinformationaboutthestovestatus(o-starting-up-inoperation-coolingforshutdown-in
errorconditions)
• usingthebutton(B)thefollowingfunctionscanbeactivated:
• iftheproducttriggeredanerror-----resettheerrorbypressingthekeyformorethan3seconds
Attention! Alarms A01, A02, A03, A05 and A21 can only be reset from the panel and not from the app.
• iftheproductiso-------switchiton(pressthekeyformorethan3seconds)
• iftheproducthascompletedtheignitionprocedure(greenLEDon),pressthekey(brieyfor0.5seconds)tochangethepower
accordingtothisdiagram:
• LOWamepower1andventilationlevel1
• MEDIUMamepower3andventilationlevel3
• HIGHamepower5andventilationlevel5
Everytimethepowerischanged,abuzzerwillindicatetheselectedpoweronthestove:
• 1beepLOW
• 3beepsMEDIUM
• 5beepsHIGH
Iftheproductisrunning,switchitobypressingthekeyfor3seconds.
Attention! If the user erroneously presses the button for more than 10 seconds with the stove o, this will
automatically place the stove in download mode to update the rmware (operation restricted to an authorised
technician). This way, the stove remains in standby, with an intermittent buzzer, for a USB ash drive containing the
rmware update. If a USB ash drive is not inserted, the stove exits this mode after 10 seconds.

12
17-MANUAL CONFIGURATION
IftheremoteWi-Fiandtemperatureprobecongurationsdonotworkautomatically,youmustproceedwithmanualconguration.
MANUAL REMOTE WI-FI MODULE CONFIGURATION
Frommobilephone->Wi-Fisettingsmenu,Wi-Fineedstobeenabledonthemobilephone.
Searchfor“MCZ-RemoteService”fromamongtheWi-Finetworksavailableandconnecttoit(nopasswordisrequiredsinceitisanopen
network).
Onceconnectedtothefollowingnetwork,openthephone’sbrowserandenterthefollowingaddress:192.168.1.1.
Ascreenopens,displayingnearbyWi-Firouters.Selecttherouterprovidingthe internetconnectionandentertherespectivepassword.
Fromnowon,iftherouterprovidesastableinternetconnection,itispossibletocontrolthestoveremotely.
Note:whentheremoteWi-Fimoduleisconguredcorrectlyandconnectedtoarouter,the“MCZRemoteService”networkdisappearsfrom
thelistofavailableWi-Finetworks.
MANUAL WI-FI TEMPERATURE PROBE CONFIGURATION
Once the 3 AA batteries are installed, the Wi-Fi temperature probe remains congurable for 8 minutes (ATTENTION! Only insert the
batteriesjustbeforeproceedingwithconguration).
Insertthebatteriesandstarttheprocedure.
Frommobilephone->Wi-Fisettingsmenu,Wi-Fineedstobeenabledonthemobilephone.
Searchfor“MCZ-Sensor”fromamongtheWi-Finetworksavailableandconnecttoit(nopasswordisrequiredsinceitisanopennetwork)
Onceconnectedtothefollowingnetwork,openthephone’sbrowserandenterthefollowingaddress:192.168.1.1.
AwindowopensthatdisplaysthestovesthatcanbeassociatedwiththeWi-Fiprobe.SelectyourstoveandentertheWi-FiHomepassword
(ontheQRcodelabel)
OncetheWi-Fiprobeisconnected,youcancongurethestovetousetheremotesensor;todoso,opentheMCZMAESTROAPP,connect
toyourpreviouslyconguredstove,usetheshortcutbyclickingonthetemperatureindicatoratthetoprightoftheappscreenandselect
the“Wi-Fiprobe”asthetemperatureinput.
Orfromthesetupmenu->congureambientinputandselectthe“Wi-Fiprobe”temperatureinput
Notes:when theWi-Fi temperaturesensorhasbeen conguredcorrectly and connected toyour MCZ stove, the“MCZ-Sensor”network
disappearsfromthelistofavailableWi-Finetworks.

13
TechnicalDept.-Allrightsreserved-Reproductionprohibited
18-APP FUNCTIONS
Oncethedevicesarecongured,theAppwillautomaticallytrytoconnecttothelastdeviceused.Ifconnectionissuccessful,theAppwill
displaythe“I/O”screen.Itispossibletoswitchonanduseallstovefunctionsfromhere.
Ifittriestoconnecttothelastconnecteddeviceandsomethinggoeswrong,theAppwilldisplaythelistofcongureddevices.
Clickthedeviceyouwanttoconnecttoforconnection.
Whenconnected,theiconofastovetogetherwiththenameoftheselectedstovewillappear.
Itisnowpossibletoaccessallstovefunctions.
I/O SCREEN
SWITCHING THE EQUIPMENT OFF
Toswitchtheequipmento,pressandholdtheON-OFFbuttonontheremotecontrolorontheAPP.Theacousticbeepconrmsthisphase
hasstarted.
Alternatively,switchitofromtheemergencypanelbyfollowingtheinstructionsprovidedinthededicatedchapter
Theequipmentwillstarttheshutdownprocesswhichinvolvesconsumingtheresidualpelletsinthebrazier,thelatterbeingcleanedand
theresidualheatinthestructurebeingdissipated.
During the residual heat dissipation phase, the fans operate at about 80% of their output and the speed cannot be varied. This is
determinedbythe needfor allthe accumulatedheatto beevacuatedsafelyand quickly.Theshutdownstage canlast 15- 30minutes
dependingontheheatstoredinthestructure,determinedbythedurationandtheoperatingspeedoftheproductthroughouttheday.
When the internal temperature drops below the set thresholds, the fans for hot air and exhaust smoke extraction will automatically
switcho.
ON/OFF KEY
• START-UP
• SHUTDOWN

14
18-APP FUNCTIONS
FAN SCREEN
Thisscreenmanagesthefanpowerofeachsinglefan.
Thereare5powerlevelsthatcanbeset.
Eachfanhastheoptionofautomaticoperationandtheoptiontoswitchothefan
IftheventilationissetMANUALLY,thefunctionwhichlimitsthemaximumpowerofthestoveaccordingtotheventilationisenabled.
COMFORTAIR(3FANS):maximumpowerlevel=totaloftheventilationlevels/2
AIR:maximumpowerlevel=twicethetotalofthelevelsofventilation

15
TechnicalDept.-Allrightsreserved-Reproductionprohibited
19-SIDE DROP DOWN MENU
SET SCREEN
Themenucanbeselectedonthetopleftofthethreelinesandincludes
SHORTCUTS(shortcutand/orquicksettings)
• LANGUAGE
• LISTOFDEVICES
• CHRONOTHERMOSTAT
• ECOSTOP
SETTINGS
• BASICSETTINGS
• DATEANDTIME
• BOARDINPUTS
• BOARDOUTPUTS
• CONFIGUREWIFIPROBE
• BEEPON/OFF
• ACCESSORIES
• MODE • CHRONOTHERMOSTAT
• ECOSTOP
• SLEEP
• SETTINGS
• FEEDSCREWON
• RECIPES
• SUMMER/WINTER
• PELLETSENSOR
• BRAZIERCLEANING
• ANTI-FREEZE
• SOFTWAREVERSION
• TECHNICALMENU
• INFO

16
20-SHORTCUTS SETTINGS / RAPID SETTINGS
SHORTCUTS (shortcut and / or quick settings)
• LANGUAGE
• LISTOFDEVICES
• CHRONOTHERMOSTAT
• ECOSTOP
LANGUAGE SCREEN
Enteringthesidemenu,selectLANGUAGEandthesystemwilldisplayallthelanguagesavailable.
Selectthedesiredlanguage.
PresstheSAVEbuttontoconrmthechosenlanguage.

17
TechnicalDept.-Allrightsreserved-Reproductionprohibited
20-SHORTCUTS SETTINGS / RAPID SETTINGS
LIST OF DEVICES
Thisscreendisplayswhichdeviceshavebeencongured.Onlythedevicedepictingtheiconofastovenexttoitcanbeselected.
FromthemenunexttothecongureddeviceitispossibletoaccesstheMODIFYorDELETEfunction.

18
20-SHORTCUTS SETTINGS / RAPID SETTINGS
CHRONOTHERMOSTAT
Temperatureselectionoption(T1-T2-T3)
Optiontosettheweeklyprograms.
Optiontosetdierenttemperaturesfordierentdaysoftheweekanddierenttimebands.
Toswitchthechronothermostaton/o,pressCHRONOON/OFFontheHomescreenoftheapplication.

19
TechnicalDept.-Allrightsreserved-Reproductionprohibited
20-SHORTCUTS SETTINGS / RAPID SETTINGS
ECOSTOP
FromtheECO STOP menu,itispossibletosetand/oreditdelayedactivation(min)andReignitionhysteresis(C°).
ECOisanautomaticmode withthe onlydierencethatif theset temperatureisreached
and remains so for the time (in minutes) that was selected from the delayed activation
drop-down menu (value ranging between 5 and 30 minutes), the product switches o
andremainsinstand-byuntiltheroomtemperaturedropsbelowthedesiredtemperature
(hysteresis frequency rangesbetween2 and5 minutes).The product thenswitches back
onagain.
If the room is not suciently insulated, ame modulation does not allow the set
temperaturetostaysatisedforthesettimeandtheproductwillnotswitcho.
NOTE: It is recommended to use the ECO mode only in well-insulated rooms in order to
preventstart-upandshutdownfromoccurringwithinshortperiodsoftime.

20
21-MENU SETTINGS
BASIC SETTINGS
• DATEANDTIME
• BOARDINPUTS
• BOARDOUTPUTS
• CONFIGUREWIFIPROBE
• BEEPON/OFF
• ACCESSORIES

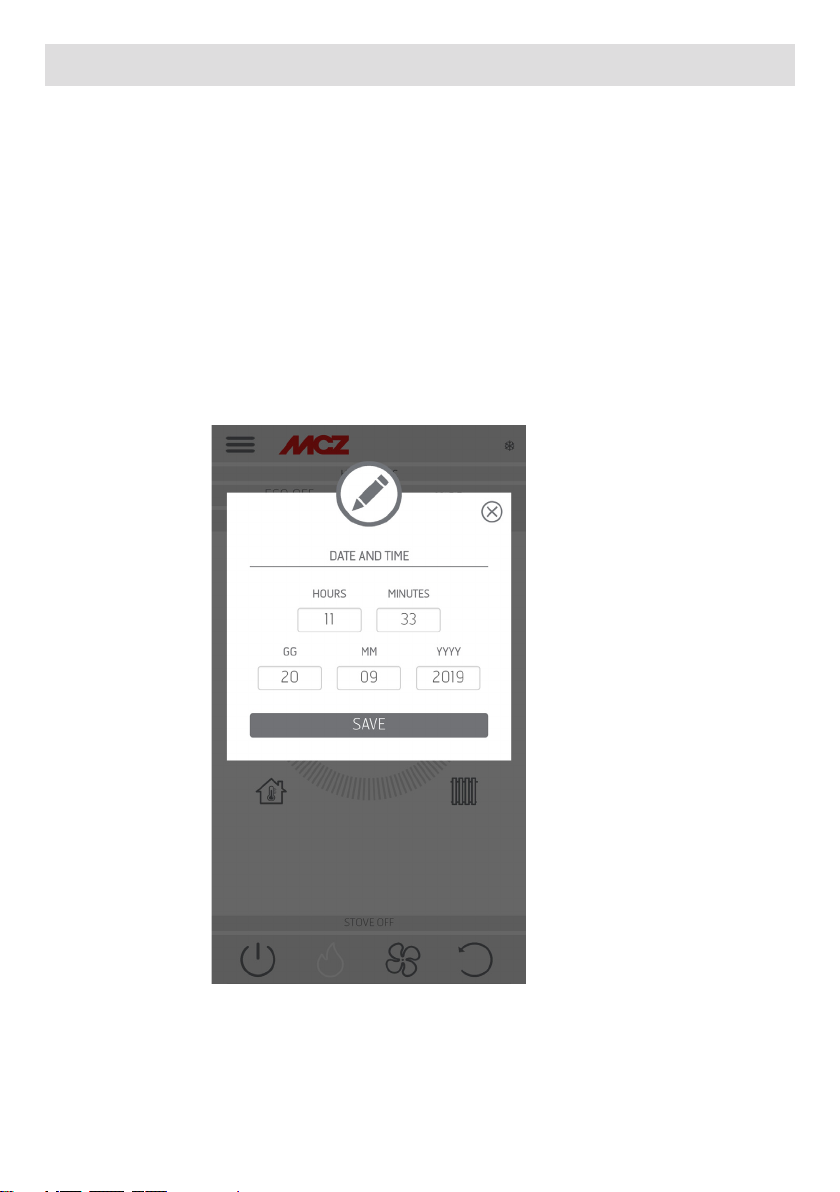

DATE AND TIME
PresstheDATEANDTIMEkeytoaccessthescreentoeditdata.Aftersettingthedata,pressSAVEandexitthescreen.
