Mearth X Pro 2020 User manual

Mearth X
PRO
User Manual
2020-2022

Contents
01
02
03
04
05
05
07
11
12
1Packing List
2Diagram
3Assembling YourMearth Scooter
4Charging
5Learing to Ride
6Warnings
7Folding and Carrying
8Maintenance
9Second Battery
10 Specifications

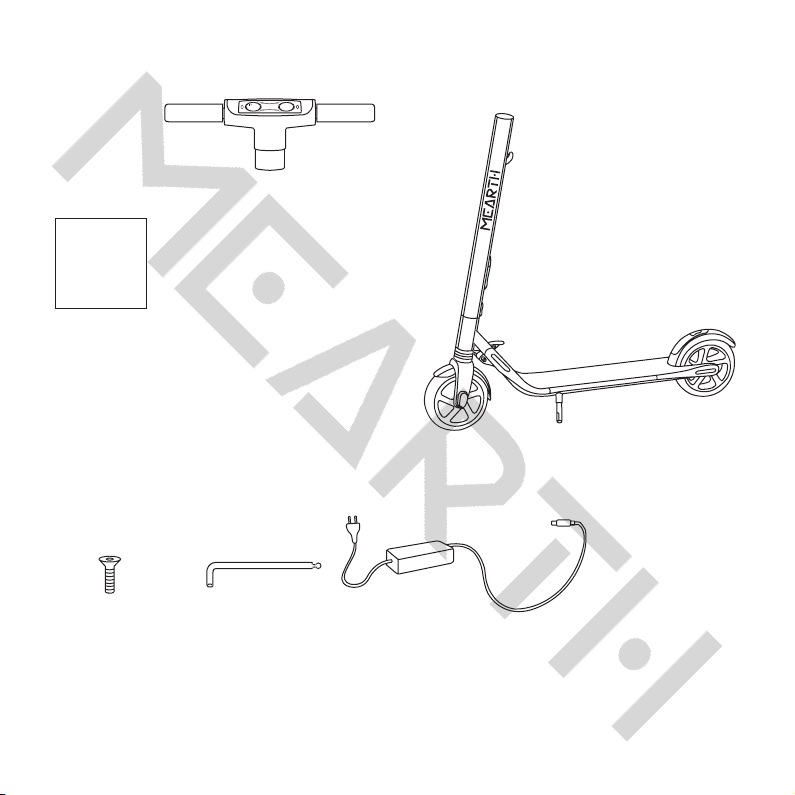

1 Packing List
Handle
User Materials
Accessories
M4 Flathead Screw x5 M4 Hex Wrench Battery Charger
(one extra)
USER MANUAL
Mainframe
01
SPORT
ECO
MPH
88
88:88
KM/H
SPORT+
VODOTIME

2 Diagram
Headlight
Electronic throttle
Electronic brake
Folding latch
Folding pedal
Rear fender/foot brake
Kickstand
Dashboard & Power button
Stem(battery cabin)
Hub motor
Dashboard & Power Button
Speedometer: Indicates the current speed.Also displays error codes when faults are detected.
02
SPORT
ECO
MPH
88
88:88
KM/H
SPORT+
V ODO TIME
Chargeport/Second Battery Cabin
Speedometer
Riding Modes
Powerlevel:Indicatestheremainingbatterylevelwith10 bars.Eachbarequatesto approximately10% powerlevel.
Riding mode:
Right button:Longpressto poweron/off. Short Press to change riding mode.
Left button: Long press to turn light on/off. Short Press to change display mode.(change units, things to display on dasboard)
—Sport+ mode (maximum power/speed and reduced range).
—Sport mode (moderate power/speed and range).
—Eco mode (minimum power/speed and increased range).
Bluetooth:AblinkingBluetoothiconindicatesthatthevehicleis readyto connect.AsolidBluetoothiconindicatesthatthevehicleis
connectedto amooiledevice.

88:88
V ODO TIME

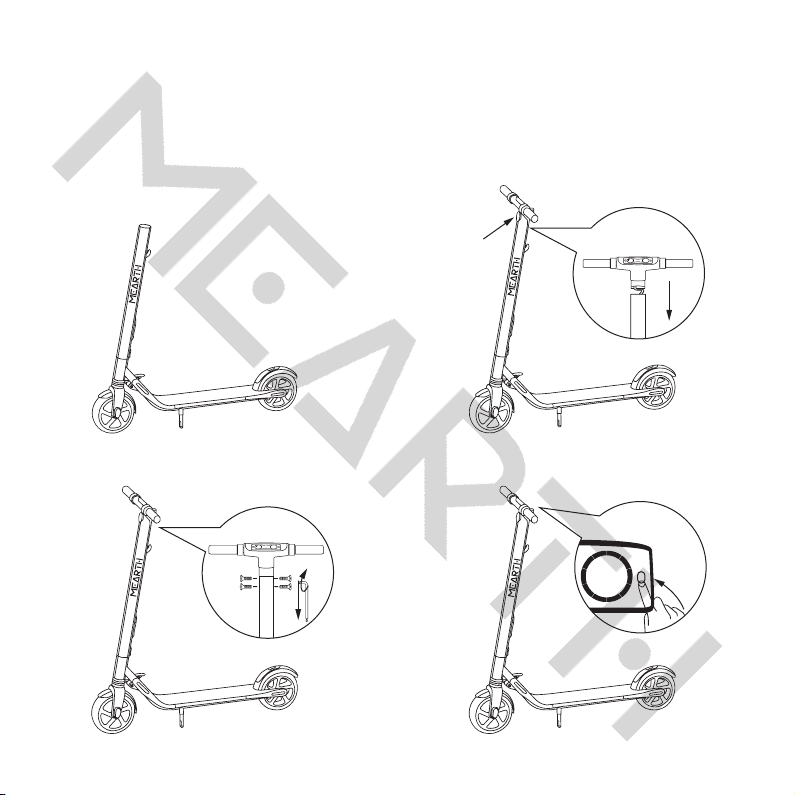

1. Unfold the stem and push it until you hear a
click. Then unfold the kickstand to support
the scooter.
3. Install four screws (two on each side) with
the included hex wrench.
2. Firmiy connect the wires inside the handle and
the stem. Slide the handle onto the stem. Be
aware of the correct orientation.
Head Light
toward front
03
SPORT
ECO
MPH
88
88:88
KM/H
SPORT+
VODOTIME
SPORT
ECO
MPH
88
88:88
KM/H
SPORT+
VODOTIME
AssemblingYourMearth Scooter
4. VerifythatyourMearth Scooter powerson andoff.

04

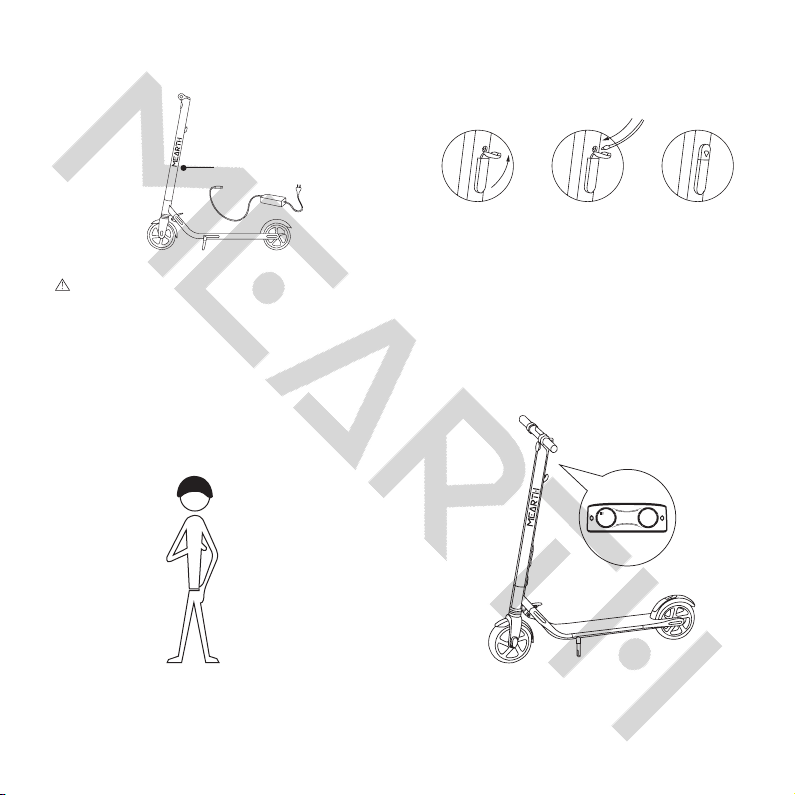

4 Charging
6 Learning to Ride
Charging step tips
Open the charge
port cover.
Insert the
Charge plug.
Close the Charge
port cover when
finished.
Do not connect the charger if the charge port or charge cable is wet.
Wear an approved helmet and other protective gear
to minimize any possible injury.
1. Power on the scooter and check the indicator lamp power
level. Charge the scooter if the battery level is low.
WARNING
SPORT
ECO
MPH
88
88:88
KM/H
SPORT+
V ODO TIME
MEARTH XPro
Chargeport
YourMearth Scooter is fullychargedwhen theLEDon thechargesfromred(charging)to green(trickle
charge).Closethechargeportcoverwhennot charging.

05

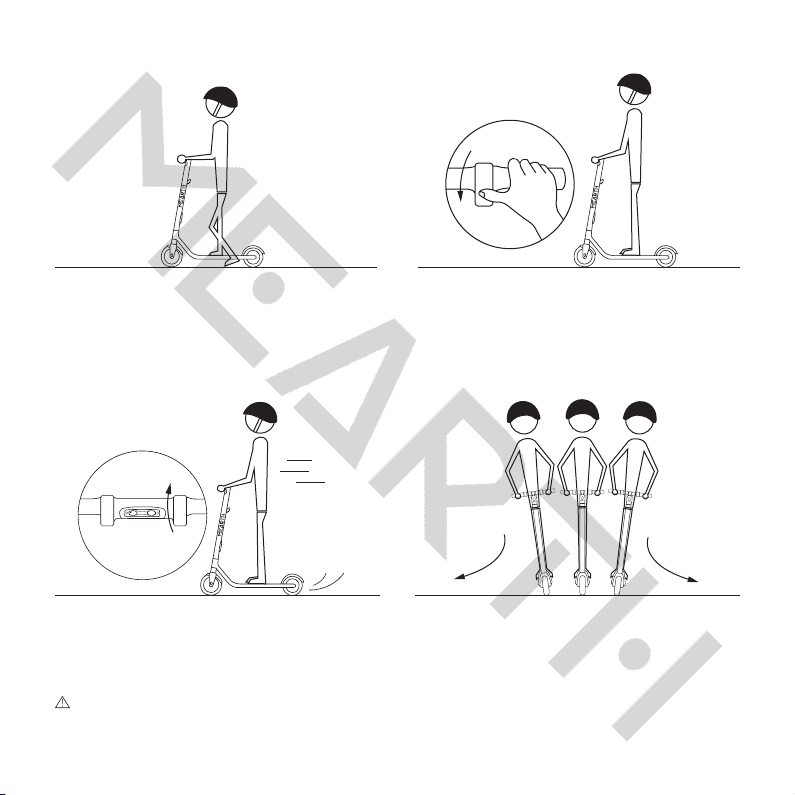

2. Stand on the footrest with one foot and push off with
your foot to start gliding.
3. Put your other foot on the footrest to keep both feet
stable.Press the throttle on right hand to speed up when
you are balanced.
Note,For your safety,the motor will not engage until the
scooter reachs 1.8 mph
(3km/h).
4. Slow down by releasing the throttle；stir the brake
handle thumb shifter quickly and stamp the fender
with foot at the same time to trigger mechanical
braking in order to make a sharp brake.
5.To turn,shift your body weight and turn the handle slightly.
When braking rapidly you risk serious injuty due to loss of traction and falls.
Maintain a moderate speed and look out for potential hazards.
WARNING
SPORT
ECO
MPH
88
88:88
KM/H
SPORT+
VODOTIME

06

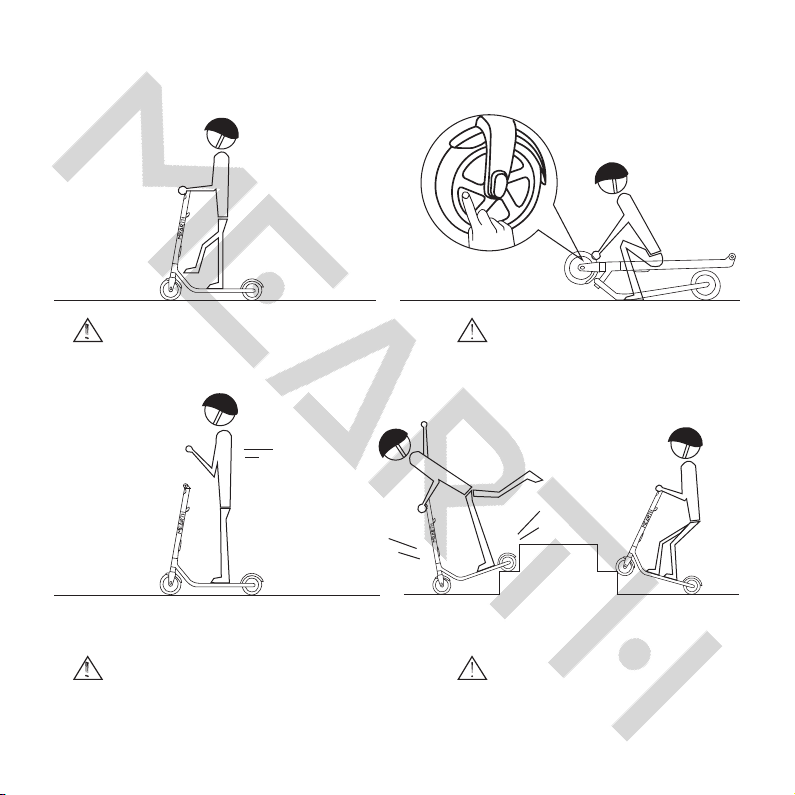

6 Warnings Failure to follow these instructions could lead to serious injury.
DO NOT ride the
scooter in the rain.
WARNING
Watch your head when passing
through doorways.
DO NOT ride over speed bumps.thresholds,or other bumps
at HIGH SPEED.
Watch your speed when traveling downhill.Use both brakes
together when traveling at high speed.

07
DO NOT press the throttle when walking
with the scooter.
DO NOT carry heavy objects on
the handlebar.
Avoid contacting obstacles with the
tire / wheel.
DO NOT ride the scooter with only one
foot.

08
DO NOT ride on public roads, motorways,
or highways.
DO NOT ride through puddles or. other
bodies of water deeper than 1 inch
(2 cm).
DO NOT rotate the handle violently while
driving at high speed.
TheMearth Scooter is foronerideronly. Do
notridedoubleor carryanypassengers.Do
notcarryachild.

09
DO NOT step on the folding pedal
while riding.
DO NOT take your hands off the handlebar
while riding.Do not ride with one hand only.
DO NOT touch the hub motor after riding
because it can get hot.
DO NOT ride up and down stairs or jump
over obstacles.

10

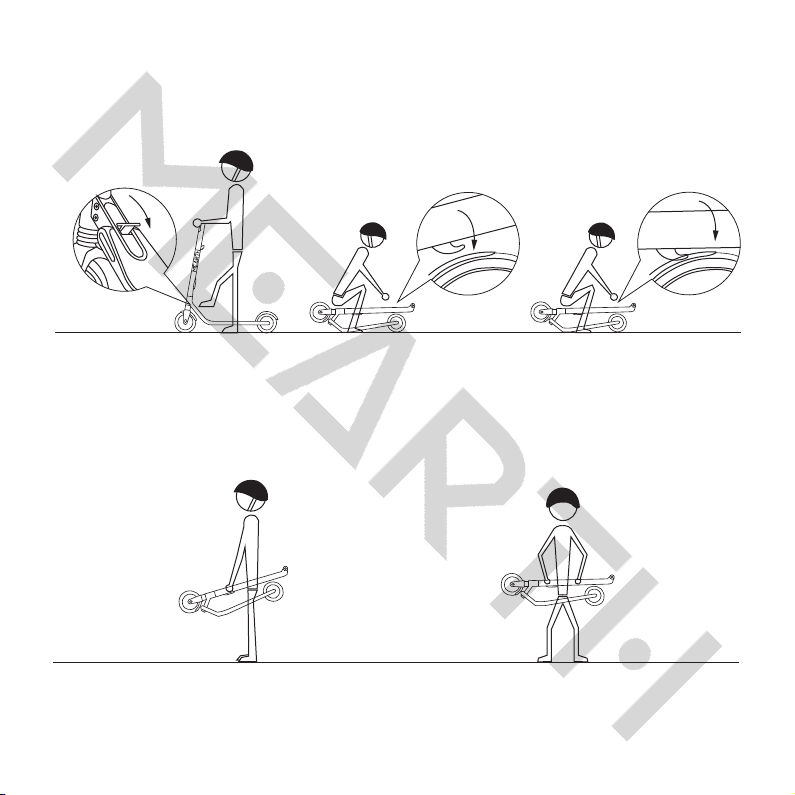

7 Folding and Carrying
Folding
Step on the folding pedal while pushing the handlebar forward slightly. Then fold the handlebar down until it locks into the rear
fender.
Carrying
WhenyourMearth Scooter is foldedup,simplyliftit by thestemto carry.

8 Maintenance
Cleaning and Storage
Use a soft,wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste, then
cleaned with a soft, wet cloth. Scratches on plastic parts can be polished with fine grit abrasive paper.
NOTE
Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not puncture the battery.
Refer to your local laws and regulations regarding battery recycling and / or disposal.
A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining
the battery completely. When used at room temperature (70%F[22°C]) the battery range and performance is at its best；whereas
using it at temperatures below 32°F (0°C) can decrease range and performance. Typically,at -4°F (-20°C) range can be half that
of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App.
Typically, a fully charged battery should retain charge for 120-180 days in Standby Mode. A low-power battery should retain
charge for 30-60days in Standby Mode. Remember to charge the battery after each use. Completely draining the battery may
cause permanent damage to the battery.Electronics inside the battery record the charge-discharge condition of the battery；
damage caused by over-discharge or under-discharge will not be covered by the Limited Warranty.
Do not ride when the ambient temperature is outside the machine poeeation temperature (see Specifications) because low / high
temperture will limit the maximum power / torque. Doing so could cause personal injury or property damage due to slips or falls.
Battery Pack Maintenance
NOTE
WARNING
WARNING
11
Do notwashyourMearth Scooter withalcohol,gasoline,acetone,or othercorrosive/volatilesolvents.Thesesubstancesmay
damagetheappearanceandinternalstructureof yourMearth Scooter. Do notwashyour Mearth Scooter withapowerwasheror
hose.
MakesuretheMearth Scooter is powered OFF, thechargingcableis unplugged,andthe rubbercapon thechargeportis
tightlysealedbeforecleaning；otherwiseyoumaydamagetheelectroniccomponents.
StoreyourMearth Scooter in acool,dryplace.Do notstoreit outdoorsforextendedperiodsof time.Exposureto sunlightand
temperatureextremes(bothhotandcold)willacceleratetheagingprocessof theplasticcomponentsandmayreducebatterylife.

Warning: please use the screws provided with this product only.
Follow these steps when installing a second battery pack:
1. Remove the three screws on the stem, as shown.
Then remove the cover near the charge port.
2. Install the rail with the M4 (10mm) screws (3pcs),
provided with this product. Please make sure it is
properly fixed.
3. Install the external battery on the rail and fix it with the M4 (20mm)
screws (2pcs), provided with this product. After they are properly
installed, block the screw holes with the rubber stopper.
12
Installing aSecond Battery Pack
(may sold seperately)
4. VerifythatyourMearth Scooter powerson andoff.

9 Specifications
Dimensions Unfold:Length x Width x Height
Fold:Length x Width xHeight
Net 27.6lbs(12kg)
Max.Speed 15.5mph (25km /h )
Typical Range [1]
[2]
(20km)
Max.Slope 15%
Traversable Terrain asphalt/flat pavement；obstacles＜0.4in(1cm)；gaps＜1.2in(3cm)
Operating Temperature 14-104°F(-10-40℃)
Storage Temperature -4-122°F(-20-50℃)
IP Rating IP54
Nominal Voltage 36VDC
Max.charging Voltage 42VDC
Charging Temperature 32-104°F (0-40℃)
Nominal Capacity 5.2-7Ah
Battery Management System Over-heating,short circuit,over-current and over-charge protection
Number Of Batteries 1
Output Power 71W
Input Voltage 100-240VAC
Output Voltage 42VDC
Output Current 17A
Duration of Charging 3.5h
Shock Absorber front&rear
Brake Light LED rear light
Atmosphere Light YES
Riding Modes
Payload 55-220 lbs(25-120kg)
Recommended Age
Required Height 3'11''-6'6''（120-200cm)
Item
Weight
Rider
Machine
Parameters
Battery
Charger
Features
[1]Typical Range：tested while riding under full power, 165 lbs (75kg) load, 77°F（25°C）, 60% of max. speed on average on pavement.
13
MearthXPro
Eco mode,Sport mode and Sport+ mode
16+years
40x17x45in(102x45x113cm)
45x17x16in（113x45x40cm)
Nominal Capacity
Nominal Voltage 36V
5.2AH
Second Battery
