MedeaWiz® Sprite
High Definition Video Player
User Manual
FW version 20160509
Manual version 1.04
Note that this manual will change periodically
Please go to www.MedeaWiz.com for the latest version

MedeaWiz® Sprite
Team Kingsley LLC
1 | P a g e
Table of Contents
Introduction .................................................................................................................................................. 2
What’s in the box.......................................................................................................................................... 3
Sprite Quick Start Guide................................................................................................................................ 4
On-Screen Menu for Setup ........................................................................................................................... 5
Menu Language............................................................................................................................................. 6
Screen Saver.................................................................................................................................................. 7
Video Output Mode ...................................................................................................................................... 8
Audio Output Mode...................................................................................................................................... 9
Play Mode ...................................................................................................................................................10
Control Mode.............................................................................................................................................. 11
Baud Rate.................................................................................................................................................... 12
SD/ Start Mode ........................................................................................................................................... 13

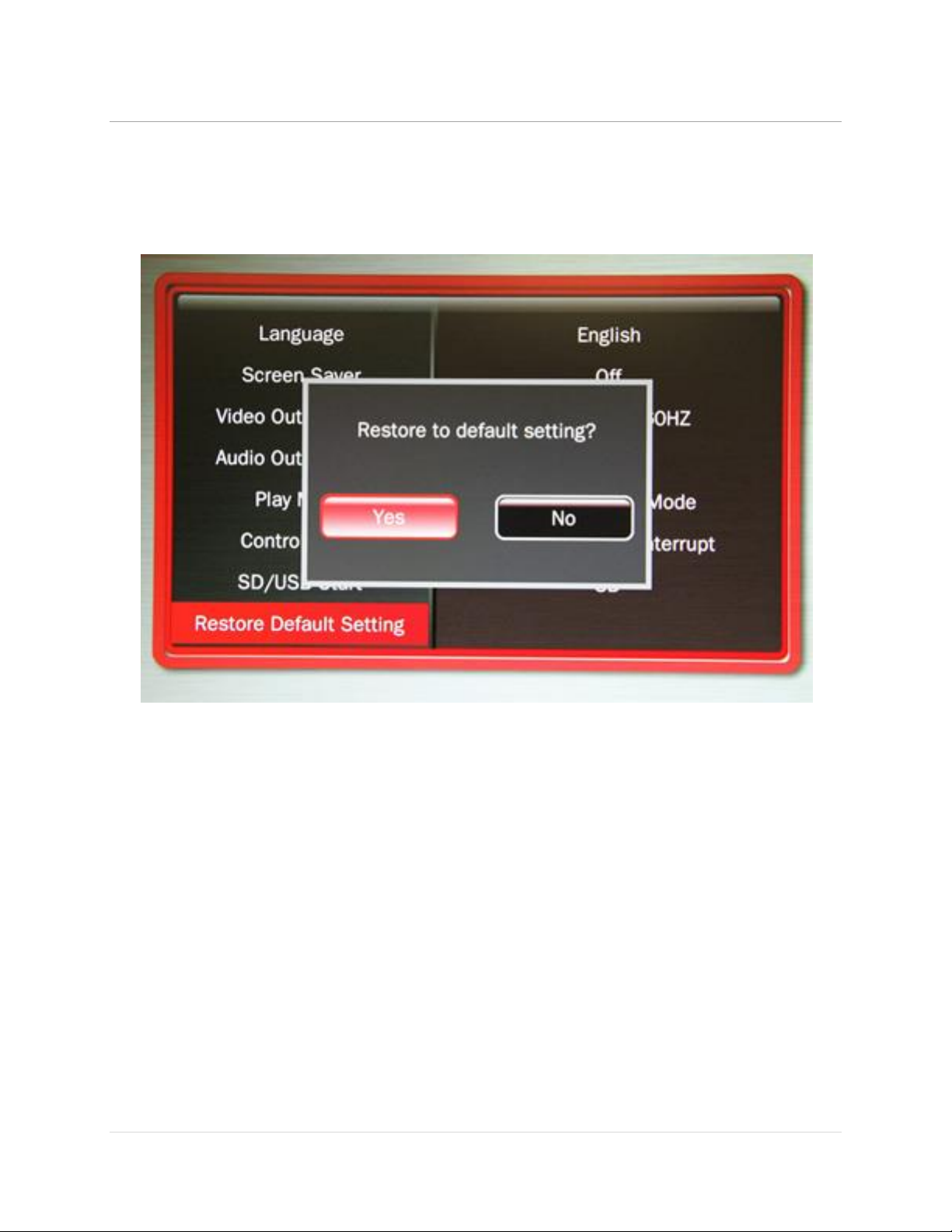

Restore Default Setting...............................................................................................................................14
Firmware Version........................................................................................................................................15
Firmware Upgrade ......................................................................................................................................16
Wiring Connections Rear Panel .................................................................................................................. 17
External Control –Wiring a Pushbutton to the I/O Port.............................................................................18

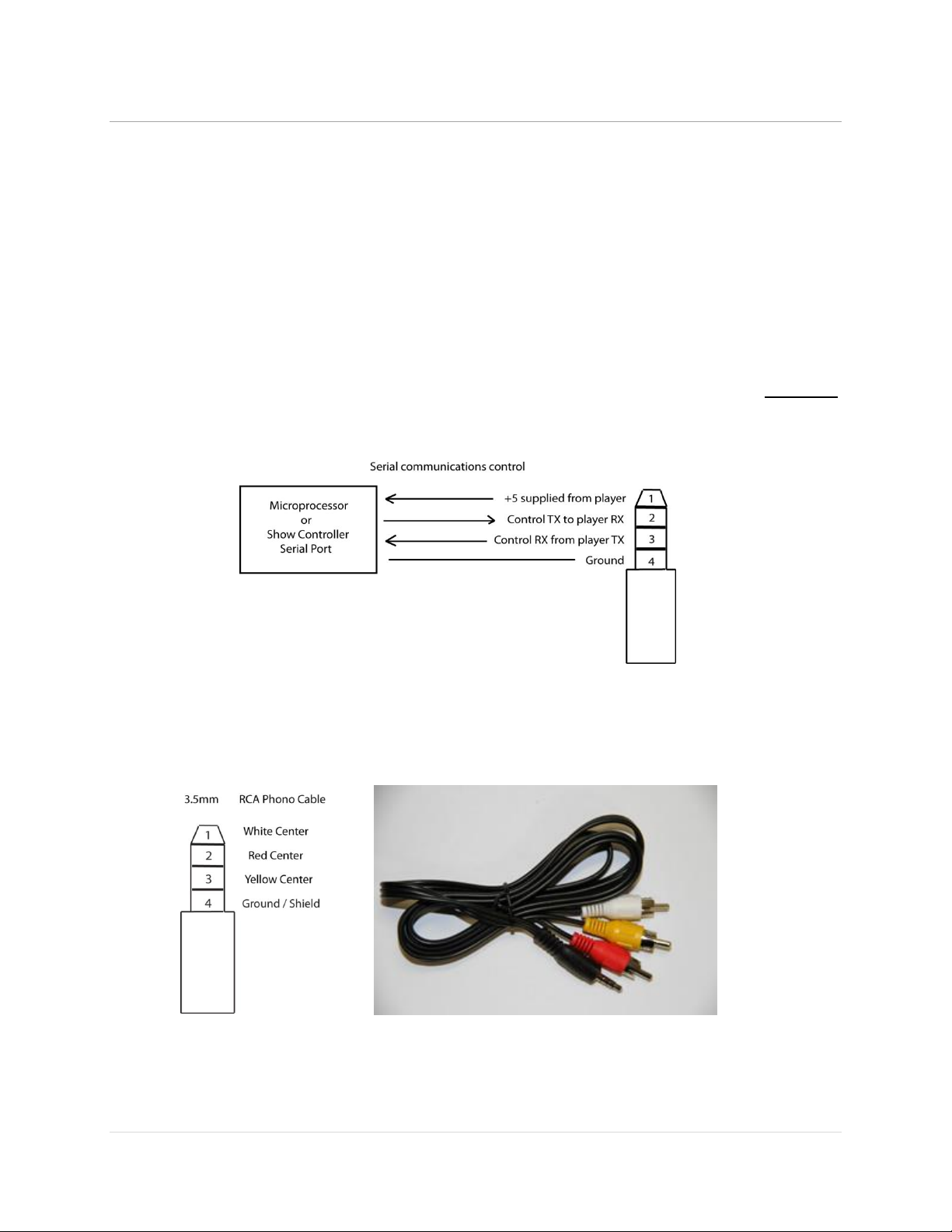

External Control - Wiring for Serial Communications to the I/O Port ........................................................19
PLC Output Interfacing................................................................................................................................ 20
Motion Sensor Wiring.................................................................................................................................21
Schematic of I/O on the Sprite circuit board .............................................................................................. 22
Using legacy DV-68K and TK series interfaces with the Sprite ................................................................... 23
Serial Port Control from your Show Controller or Micro-processor...........................................................24
Serial Port Control Commands.................................................................................................................... 25
IR Remote Control.......................................................................................................................................27
Power Supply ..............................................................................................................................................28
Supported Video Formats...........................................................................................................................29
Support .......................................................................................................................................................30
Custom Orders ............................................................................................................................................31

MedeaWiz® Sprite
Team Kingsley LLC
2 | P a g e
Introduction
The MedeaWiz Sprite is a High Definition digital video repeater capable of HD 1080p HDMI
output. It has a direct trigger input and a 2-way communications serial port. The Sprite will loop
a video when power is applied, play a different video on a trigger or serial command, and then
go back to the looping video.
The Sprite has no black space when looping or changing files. It will hold the last frame of video
until the first frame displays.
In the trigger input mode, you can use a pushbutton, other dry contact, or voltage level change,
with your choice of a High or a Low transition trigger. You can also choose to allow an interrupt
from a new trigger event, or not to allow an interrupt.
In the Serial Control Mode you can have a looping video and control other videos to play on
command. Once the commanded video ends, the looping video will play again until a new
command is received.
The Sprite is one of the most energy efficient “green” video repeaters available today. Using
only 5 Volt DC power at an average of 400 mA, it takes only about 2 Watts to run.

MedeaWiz® Sprite
Team Kingsley LLC
3 | P a g e

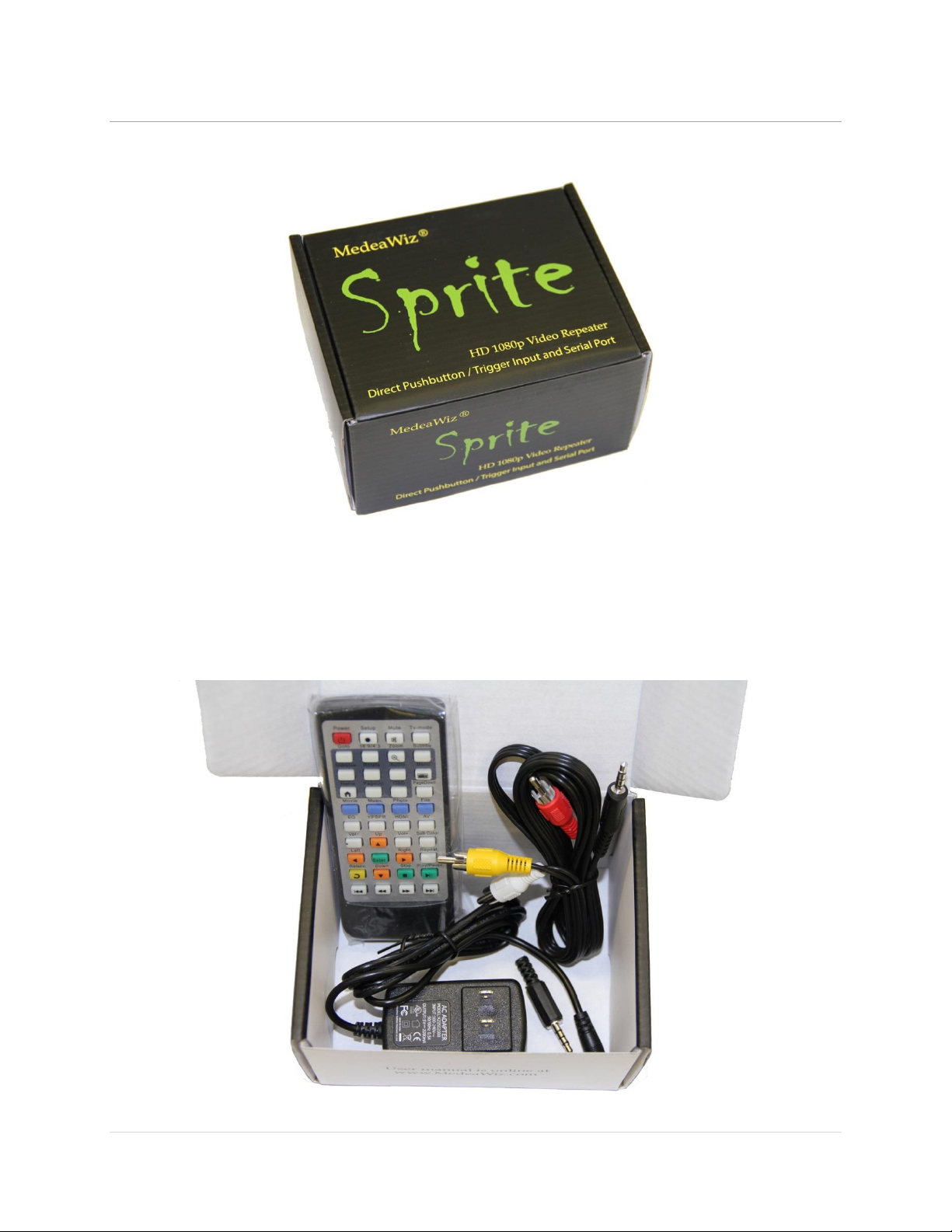

What’s in the box
The Sprite comes with
1) IR remote control
2) AC adaptor, universal 100 to 240 Volt AC input, regulated 5 Volt DC output
3) AV cable, 3.5mm 4 pole to RCA red, white and yellow
4) I/O plug, 3.5mm 4 pole

MedeaWiz® Sprite
Team Kingsley LLC
4 | P a g e
Sprite Quick Start Guide
The MedeaWiz® Sprite ships with the Video Output set to HDMI at 720p and the Control Mode
set to “Trigger Low No Interrupt” Mode to use a pushbutton trigger.
Most users can simply connect their HDMI monitor and install their SD memory card, with files
named in the same way as the older model MedeaWiz players.
Example 1: You have one file that you need to run in a loop when power is turned on:
Name the file 000.xxx (where xxx is the proper file extension such as mpg, wmv, mp4, mt2s or
etc.)
Example 2: You have a looping file and also want to use the Trigger with a push button:
Name the looping file 000.xxx as above. Then name the trigger file 001.xxx
Example 3: You have a looping file and also want to use the Serial Port control:
Name the looping file 000.xxx as above. Then name the other files 001.xxx, 002.xxx, 003.xxx and
etc. in order.
Using the IR remote control, go into the on screen menu and set the Control Mode to Serial
Control, and set the Baud Rate to match your external controller.
You should always have a 000.xxx looping file if using the trigger input or serial control.
It can be a black file if no video is wanted until a trigger or command. We suggest the looping
file be at least 30 seconds long.
Make sure you are using ZEROS and not the letter O in the file name. Do not put the files in a
folder. Only put media files on the SD card.
You can download HD test files at http://www.highdefforum.com/high-definition-movies-
video-clips/6537-official-hd-video-clip-list.html

MedeaWiz® Sprite
Team Kingsley LLC
5 | P a g e
On-Screen Menu for Setup
Press the “Setup” button on the remote control to enter the on-screen menu. Use the orange
“Arrow” keys to navigate, the green “Enter” key to make a selection, and the yellow “Return”
key to go back one level. Pressing the “Return” key twice will exit the menu and begin file play.
Top Menu page showing current settings

MedeaWiz® Sprite
Team Kingsley LLC
6 | P a g e

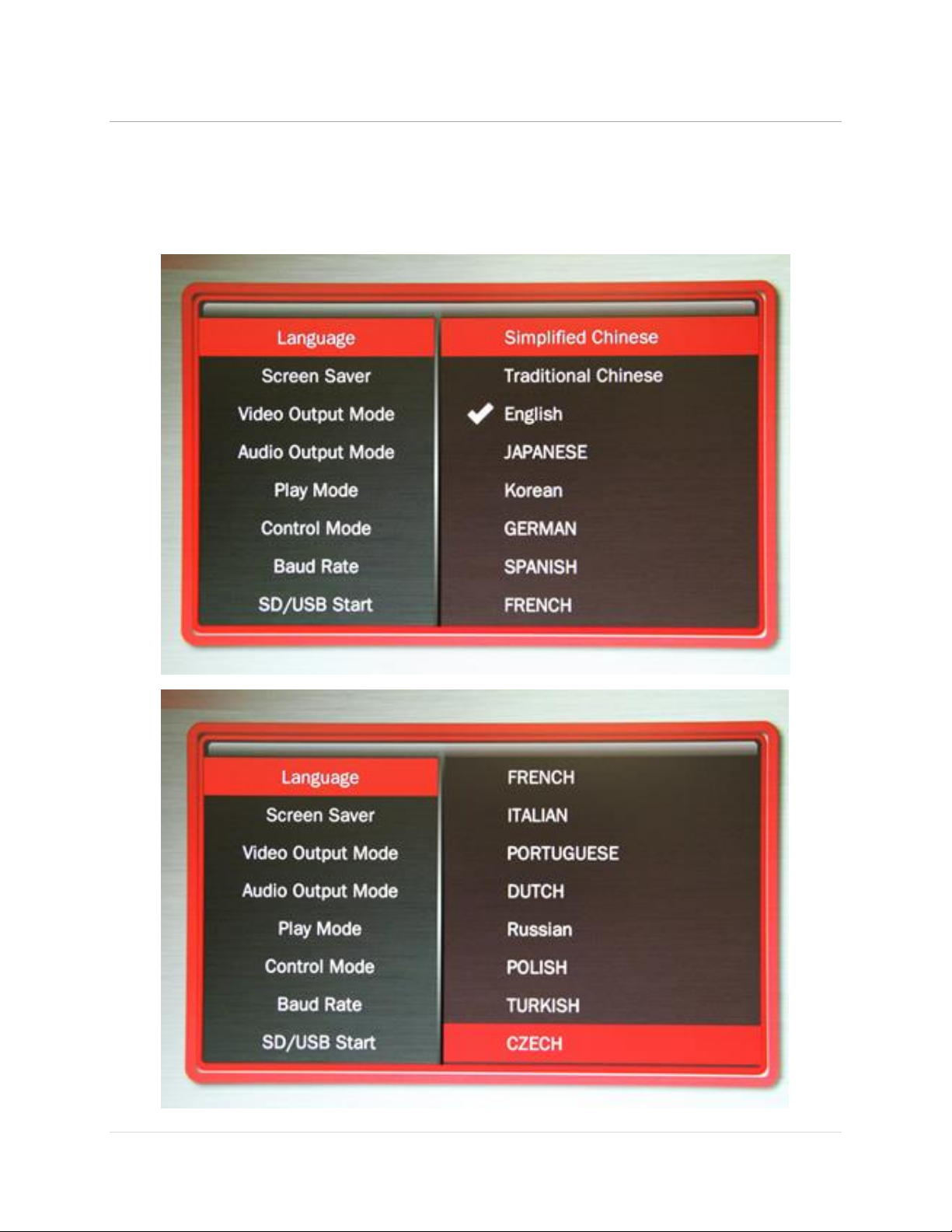

Menu Language
Select the language.

MedeaWiz® Sprite
Team Kingsley LLC
7 | P a g e

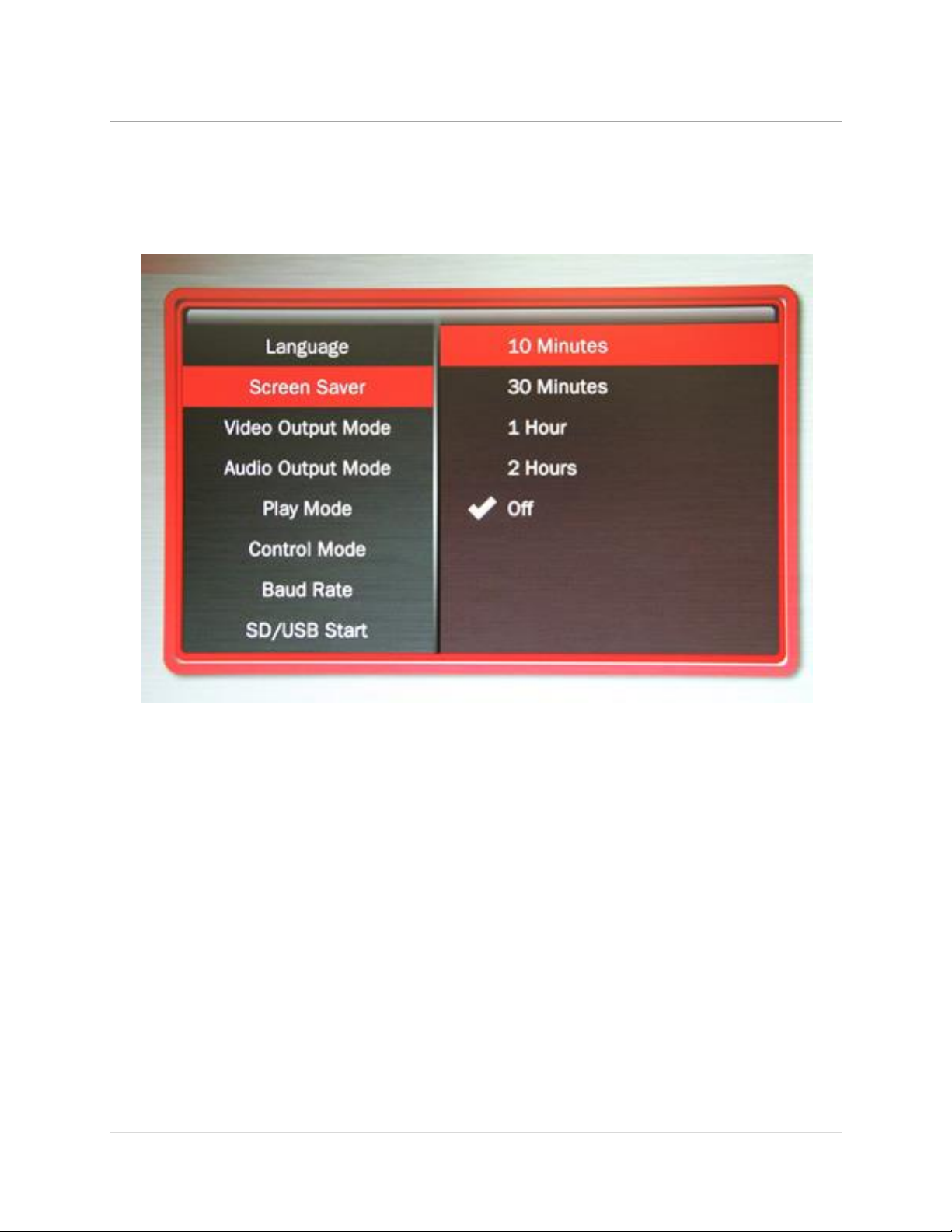

Screen Saver
Select the time delay for the screen saver.
The Screen Saver is only active in the “Off” manual play mode. It is not active in other control
modes.

MedeaWiz® Sprite
Team Kingsley LLC
8 | P a g e

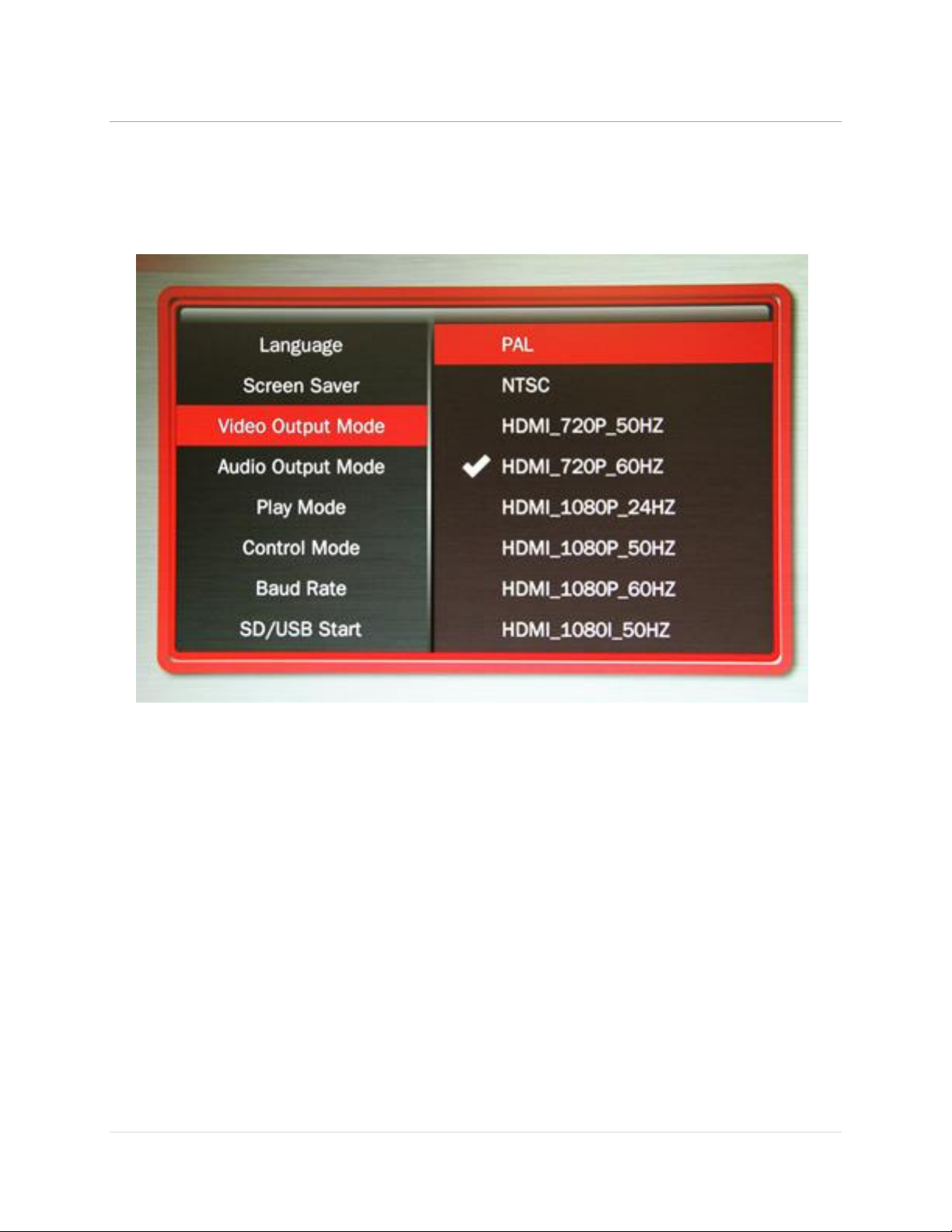

Video Output Mode
Select the video output needed to match your monitor.
Select NTSC to use the Composite video output from the 3.5 mm AV jack using the yellow RCA
plug from the included A/V cable.
Select PAL for Composite video for some areas other than the Americas that use PAL video files
and monitors.
The HDMI selections will route the video to the HDMI connector only.

MedeaWiz® Sprite
Team Kingsley LLC
9 | P a g e
Audio Output Mode
Select the audio output needed.
Select HDMI to route the audio through the HDMI cable to your monitor or amplifier with HDMI
input.
Select A/V to route the audio to the 3.5mm 4 pole A/V jack and use the red and white RCA
plugs from the included A/V cable.
