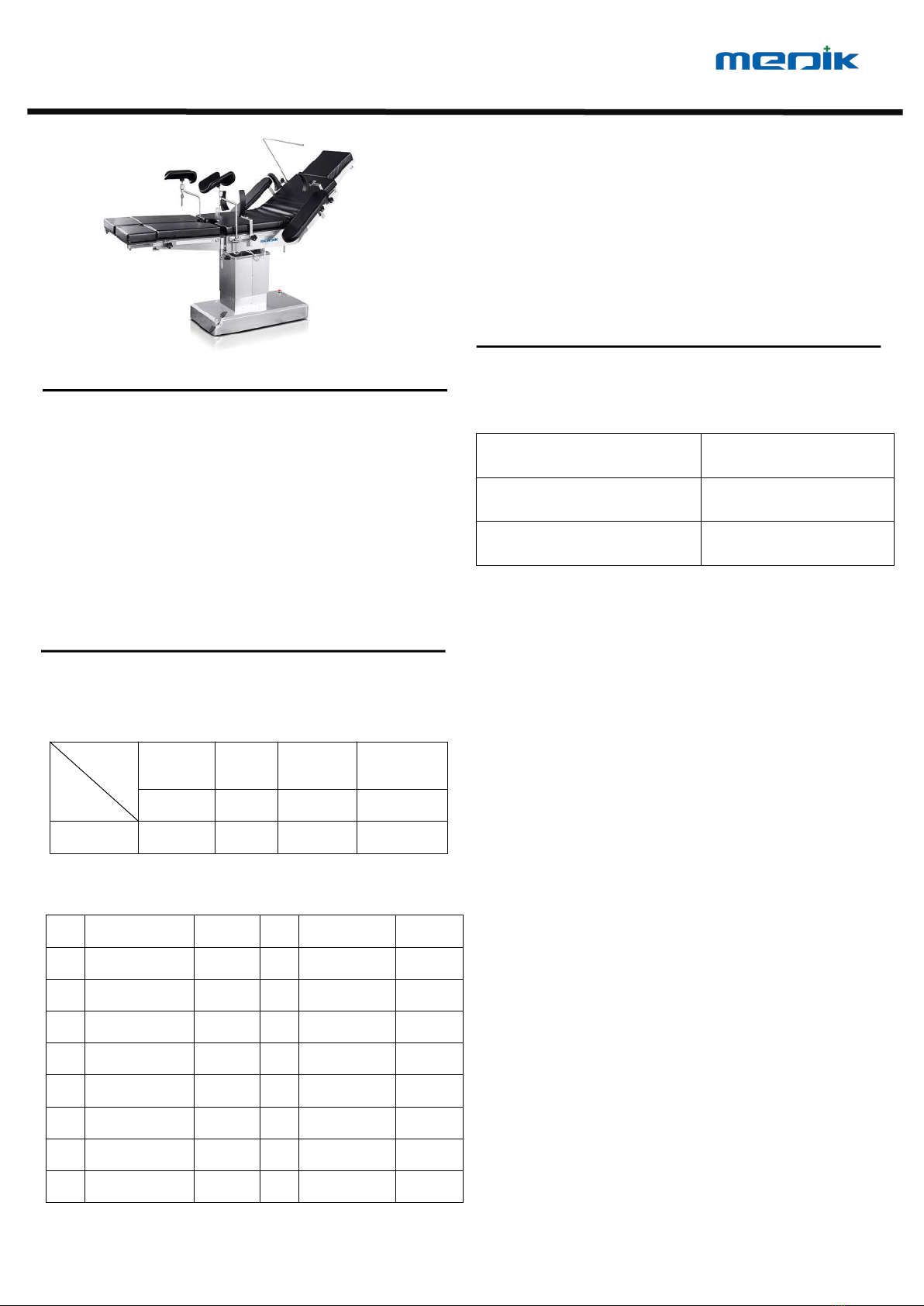

Medik YA-10E User manual

YA-10E
Electric operating table
Description
Use and brief introduction
The product belongs to class I, type B. Non AP or APG
device,continuous device. And possesses application part.
YA-01E is electric operated operating table. It is microprocessor
controlled and it‘s function parameters are programmable with special
program.
The operating table is widely used, easy to operate and adjust with
reliable performance, which is a ideal table for different hospital
General content
Basic data
The technical data should look at Form 1
Form 1: basic data unit:mm
Standard table configuration includes
Gross weight、net weight、volume
Gross weight:270kg，net weight:220kg，Volume（long×width
×height）2100mm×720mm×730mm.
Safe work loading capacity of YA-10E
The safe working load of the table is 200 kg.
Commissioning
keeping
Inside its original packing the operating table may be exposed for
a period of 15 weeks to environmental conditions within the limits of :
The table should be kept in a clean place, never put in the places
where influenced by atmospheric pressure, temperature,
humidity, aeration, sunshine, or dust and sulfur.
The table should be kept separately from chemicals.
stock in a ventilated place.
Transportation
Upon leaving the factory, the operating table are positioned fit for
transportation. In case of further transportation at a later date, we
recommend to adjust the operating table into the same position.
In order to transport the operating table,adjust seat and back
section in to horizontal position.
Remove the head and leg plates,and detach other accessories.
Adjust the table-top into minimum height.
Attention before using
Please Check the switch, and be sure they can work.
Please confirm all the power line are connected right and safely.
Do not pull or push the shields of back and leg section joints.
Check during adjustment that there is no foreign obstacles
between shields.
Using adjust
Adjustment of leg plate
The electric leg plate part is controlled by the hand remote.The
leg plate is gas spring control.Press down the gas spring,then move the
leg plate to the position you need.
Fixing of accessories
There is rail on the both side of the table，you can use the fixing clamp
the set up all the accessories.
Basic
data
Model
length
Width
lowest
height of
tabletop
Distance of
elevation
L
B
h min
S
YA-10E
≥2100mm
550mm
700mm
≥250mm
NO.
Item
quantity
NO.
Item
Quantity
1
Anaesthesia
screen
1 piece
9
Foot plate
2 pieces
2
Shoulder
support
2 pieces
10
Long Fixing
clamp
2 pieces
3
Body support
2 pieces
11
Fixing clamp
7 pieces
4
Arm board
2 pieces
12
Hand Remote
1 piece
5
Leg support
2 pieces
13
Power line
1 piece
6
Head plate
1 piece
14
oilcan（with
oil）
1 piece
7
leg plate
2 pieces
15
User Manual
1 piece
8
Mattress
1 Set
Ambient temperature
10℃~40℃
atmospheric humidify
≤80%
Atmospheric pressure
700 hPa~1060 hPa

Product information
The operating is formed by head plate and back plate, waist plate, buttocks plate and leg plate
1-Leg plate
2-Foot support
3-Leg support
4-Waist plate
5-Arm support
6-Shoulder support
7-Back plate
8-Anesthesia screen
9-Head plate
10-Base
11-Column
12-Remote control
13-Castor

Feartures
Motorized tabletop is constructed of three-sections
and is 2100 mm long. The height can be controlled by
the remote control, and the height can be adjusted
according to the needs of the doctor.
Column supports tabletop and includes electrical
wiring and master computer. These components are
enclosed by three telescoping plastic or optional
stainless-steel column shrouds. The shrouds are of
two-piece construction for service accessibility.
Base structure is stainless steel. Four swivel casters,
located inside the base cover, facilitate table
movement.
Universal Foot pedal Control is ergonomically
designed, and is the primary interface for table
operation. It is more convenient for doctors to
control the operating table .
Universal Foot pedal Control
Foot Control Touch Pads for:
HEIGHT UP/DN
TILT LEFT/RIGHT
BACK UP/DN
LEG UP/DN
SLIDING
TABLE OPERATION
Press the desired position touch pad on the remote
control or use the optional foot control to articulate the
tabletop (refer to Operator Manual).
The following pre-operative actions must be completed
before the table can be used
No objects exist that affect the operations；
Confirm if all the power lines are connected well，the
switch is in“0” condition；
Move the table to the right place you need；
Connect the foot control with the table；
Please check the power supply before turning it on
Lock the base of the table；
Fix up the head plate, leg plate and accessories
according to the picture.
The table adopts short-time work，attention：never
press one button over 2min.
TABLE MOTION
Ranges of table motion are as follows and are illustrated
on the other page
Height 28” to 38”(700-950mm)
Back Section Motion UP: 70°; DOWN:30°
Leg Section Motion DOWN: 90°
Head Section Motion (Manual) UP: 55°; DOWN:
90°
Kidney elevator mechanism 120mm
Slide motion 350mm
Leg section outwards 90°
Loading Capacity 200kg
Trendelenburg 25°
Reverse trendelenburg 30°
Lateral tilt left/right 20°/20°
Kidney elevator mechanism 120mm

Society of Automotive Engineers (SAE) Measurements
are based onthe metric dimensions; and are therefore
approximate.
UTILITY REQUIREMENTS
Power Source:Battery/Electric-Powered Table
Line Power Input:
100/120/220/230-240 V ac (Jumper Selectable),
1 Ø, 50/60 Hz, 4 Amp
Environmental Conditions:
Temperature: 32-122°F (0-50°C)
Relative Humidity (RH): 20-80%
CUSTOMER IS RESPONSIBLE FOR COMPLIANCE WITH
APPLICABLE LOCAL AND NATIONAL CODES AND
REGULATIONS.
WARNING – EXPLOSION HAZARD:
Table must not be used in the presence of
flammable anesthetics.

Function of Hand remote
1up
Raise the table top.
2 Back up
Raise the back plate.
3TREND
Trendelenburg(foot down)
4TILT
Tilt to the left.
5 Forward
Slide the table board
6DOWN
Down the table top.
7 BACK DOWN
Lowers the back plate.
8 REVERSE
Reverse trendelenburg ( head down ).
9 TILT R
Tilt to the right.
10 Back Forward
Slide back the table board

Movements diagram
Tabletop elevation(up/down)
Head plate(up/down)
Back plate(up/down)

Leg plate(up/down)
Trendelenburg/Anti-trendelenburg
Horizontal sliding

Leg plate outward
Kidney bridge(up/down)
Lateral tilt(left/right)
