Medline AEROMIST TREK HCS2GO User manual

AEROMIST
TREK™
NEBULIZER
COMPRESSOR KIT
Read this manual carefully before use
HCS2GO HCS2GONB
Instruction Manual

1
TABLE OF CONTENTS
Introduction
Product Identification
Important Safeguards
General Precautions
Use Instructions
Cleaning and Disinfecting
Storage Cautions
Operating
Inhalation of the Drug
Rechargeable Battery
GreenSmart Recomendations
Trouble Shooting Guide
Specifications
Warranty
1
2
3
3
4
4-5
5-6
6-7
7
9
9
10
10-11
12
THANK YOU
Thank you for purchasing the Aeromist Trek™ Portable Nebulizer
Compressor Kit for aerosol therapy. This medical device is a compact
compressor used with a pneumatic nebulizer to convert inhaled drugs
into aerosol form for treatment of Asthma, Chronic Obstructive
Pulmonary Disease (COPD), and other conditions where inhaled
medications are physician prescribed. This unit includes an air
compressor that provides a source of compressed air for home health
care use. This device can be used by adult or pediatric patients.
Aeromist Trek runs with the help of the following power sources:
AC or DC power adapters or the rechargeable battery.
Before using the Portable Nebulizer Compressor kit, if you have any
questions or do not understand the operating instructions contact the
user’s physician, licensed respiratory therapist or 1-800-MEDLINE.

2

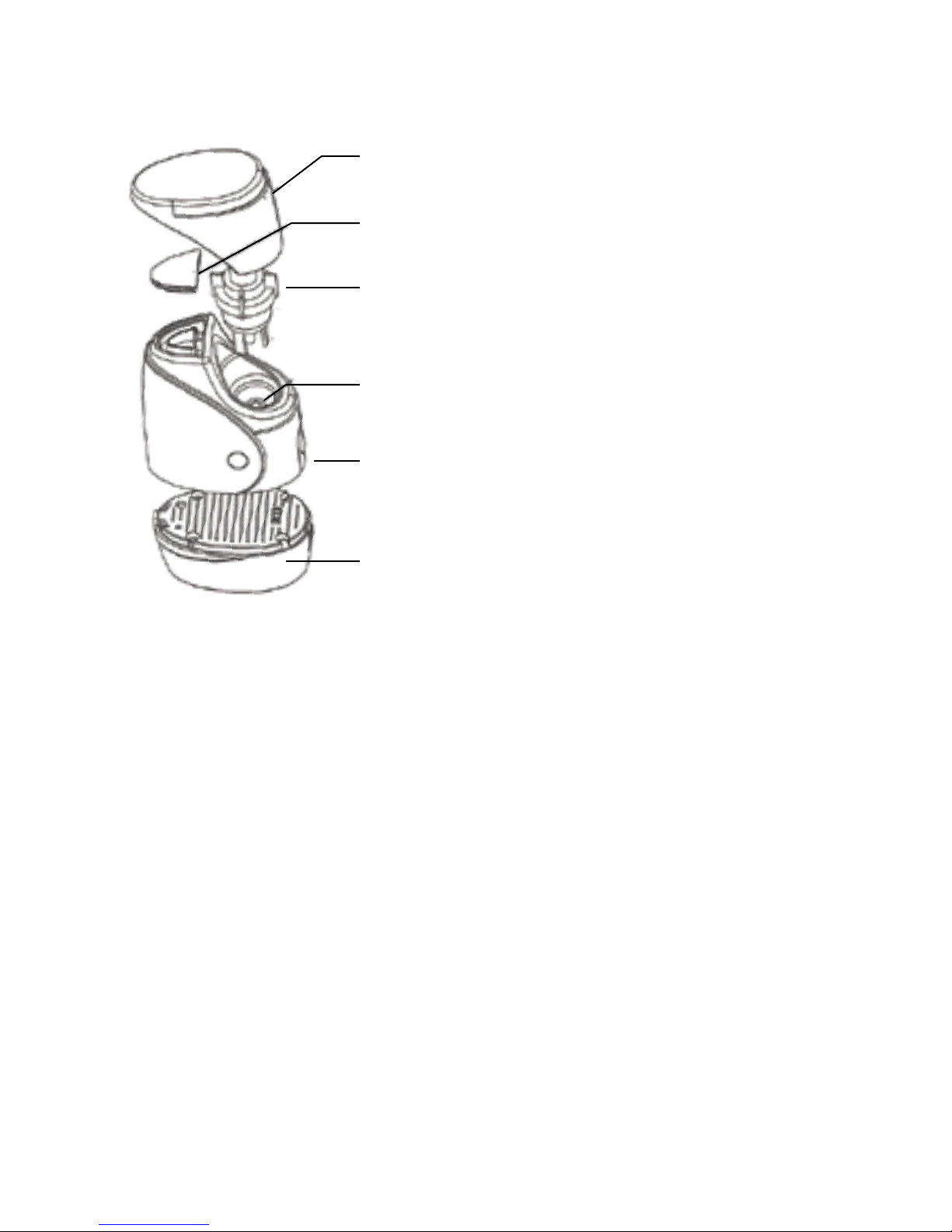

PRODUCT IDENTIFICATION
COVER
FILTER COVER
JET NEBULIZER
(Holds the contents of the prescribed ampoule)
COMPRESSION AIR OUTPUT PORT
POWER SWITCH
(Located on the compressor unit)
BATTERY PACK
The AC/DC adapters plug either into the base of the unit or the base of
the battery pack for recharging.
PROVIDED ACCESSORIES
1 Air Tube
1 Mouthpiece
1 Jet Nebulizer
1 Large Mask
1 Small Mask
1 AC Adapter
1 DC Auto Adapter
5 Air Filters
1 Carrying Case
1 Instruction Manual
REF: HCS2GO & HCS2GONB
Use of unauthorized parts may damage the unit and void the warranty.Use of unauthorized parts may damage the unit and void the warranty.

3
IMPORTANT SAFEGUARDS
Adhere to the following instructions and precautions when using this
electrical device:
CAUTION: Failure to read and observe the following could result in
personal injury or equipment damage.
Always follow the physician and/or healthcare provider’s instructions
regarding the type of drug to be used, the dosage, frequency and
duration of the inhalation when using this medical device.
GENERAL PRECAUTIONS
To avoid electrical shock: Keep the unit away from water.
•Do not use in the shower or bathtub.
• Do not immerse the power cord or the unit in any liquid.
• Do not reach for a unit that has fallen into water – immediately un
plug the unit or turn off the main power source.
Unplug the device from the electrical source before filling and cleaning.
Never operate the device if any of its parts are damaged (including
the power cord) or if it has been dropped or submersed in water.
•Keep the unit and power cord away from heat sources.
•Only use the power adapters designed for this product.Connect this
product to an appropriate voltage outlet.
•Unplug the device after use.
USER PRECAUTIONS
•Close supervision is necessary when the device is used by,
on or near children or compromised individuals.
•While in storage or transport, assure the device does not
contain medication.
Never operate the device while sleepy or in a drowsy state.
Never use the device while driving.
This device is only to be used for aerosol therapy, for which it was
expressly designed. Any use other than that must be considered
as inappropriate and therefore dangerous. The manufacturer will
not be held responsible for damage resulting from improper,

4
wrong or unreasonable use, or if the device has been used on
electrical installations not conforming to the current standards.
The unit should not be used where flammable gas, oxygen or
aerosol spray products are being used.
PREPARING TO USE THE
NEBULIZER COMPRESSOR
1. Charge the battery pack for 24 hours prior to first time use.
2. Before each use, the user should wash his/her hands thoroughly.
3. Important - Prior to initial operation, the nebulizer should be
thoroughly cleaned. See “Cleaning and Disinfecting the Device”
instructions in this manual.
1. Turn the power switch off and unplug the adaptor from the
electric outlet.
2. Do not immerse the unit in water or any liquid as this may
damage the unit.
3. Remove the air tube from both the air inlet and from the
jet nebulizer.
4. Disconnect and disassemble the jet nebulizer, mouthpiece
and/or mask.
5. TO CLEAN:“AFTER EACH USE” - Wash nebulizer, mouthpiece and
mask in warm water with a mild dish washing detergent.
6. TO DISINFECT: “AFTER THE LAST USE OF THE DAY”
A. Mix one part of white distilled vinegar with three parts hot water
in a clean container.
B. Submerge mouthpiece, nebulizer, and mask for thirty minutes.
7. Rinse the pieces thoroughly with water to remove the cleaning
solution and let them air dry.
8. When completely dry, reassemble the nebulizer and put the parts
in a clean, dry, sealed container away from dust.
9. There is no need to clean the tubing. If necessary, wipe the
surface regularly. Replace the tubing when it becomes cloudy
or retains moisture.
CLEANING/DISINFECTING CRITICAL PARTS

5
CLEANING THE COMPRESSOR UNIT
1. Turn the power off and unplug from the power outlet.
2. Remove the tubing from the air inlet.
3. Do not hold the device under running water. Wipe the device
using a clean, water moistened soft cloth after each use or at
least weekly.
Do not lubricate or use cleaners or soap pads, as these may
damage the finish.
Never clean with benzene, thinners or a flammable chemical.
CAUTION: Do not place or dry the device in a microwave oven.
CAUTION: Do not operate unit without the filter. Using a dirty filter or
one not designed for use with this unit may damage the compressor.
FILTER
STORAGE CAUTIONS
1. Check filter weekly and change every 30 days or sooner when the
filter turns gray.
2. Do not wash or clean the filter.
3. Use only AeromistGo™ filters. Additional filters can be purchased
by contacting 1-800-MEDLINE.
4.Filter Change:
A. Remove the filter cover.
B. Replace used filter with a new one.
C. Replace the filter cover.
1. The unit and the adaptors fit into the storage/carrying case.
2. If the device is not stored in the storage/carrying case, the unit
should be kept in a dry dust free area.
3. Do not store the unit in areas of direct sunlight, high temperature or
humidity. Due to temperature fluctuations storing the unit in an
automobile is not recommended.
4. Keep the unit out of reach of small children.
5. Always keep the unit unplugged while not in use.
6. Store the battery pack in a cool place.

6
7. If the battery pack is not going to be used for an extended period
of time, recharge it every six (6) months to maintain its optimal
battery performance.
OPERATING THE COMPRESSOR NEBULIZER
1. Assure the unit can be easily reached from a comfortable upright
position. Place the compressor nebulizer on a flat and stable surface.
2. Open the cover and remove the jet nebulizer.
3. To disassemble the jet nebulizer, gently twist the top part of the jet
nebulizer counter-clockwise.
4. Fill the bottom section of the jet nebulizer (medicine cup) with the
medication prescribed by the physician. Break the ampoule and
pour the medication into the medicine cup. To prevent spillage, do
not overfill the medicine cup of the jet nebulizer. The maximum
capacity is 6ml (cc). (see diagram 1 on pg 7)
5. To reassemble the jet nebulizer, gently twist the top part clockwise.
Be sure the two sections fit well. (see diagram 2 on pg 7)
6. Attach either the mouthpiece or mask to the top outlet of
nebulizer. NOTE: You may also use the air tubing to connect the
nebulizer to the compressor unit. To connect, insert connector end
of air tube into the compressor air output port, and insert the other
end to the bottom of the jet nebulizer. (see diagram 3 & 4 on pg 7)
7. Replace the jet nebulizer onto the compressor making sure it sits
firmly on the compressor air output port by gently pushing down on
it until it fits securely into position. (see diagram 5 on pg 7)
8. Connect the Compressor to a power source:
USING THE AC ADAPTER:
1. Insert the AC adapter plug into the unit.
2. Plug the AC adapter into a standard AC electrical outlet.
USING BATTERY PACK:
When electrical power is not available, the Compressor Nebulizer
can also operate with the rechargeable battery pack.
1. Place the compressor on top of the battery pack and slide
forward to affix.
2. To remove battery pack, press the release button under
power switch. (see diagram 6 on pg 7)

7
3. Reinsert the unit over the back portion of the battery pack and
slide it forward to lock into place.
C. USING THE DC ADAPTER:
1. Insert the DC adapter plug into the unit.
2. Plug the DC adapter into a car electric outlet (12V).
9. Press power switch on to begin the prescribed treatment.
NOTE: The life of the battery is approximately 2 years.
However, battery life will vary depending on usage, storage and
charging conditions.
CHARGING THE BATTERY PACK:
To charge the battery, insert the AC adapter plug into receptacle
of battery pack. Then plug the AC adapter into a standard AC
electrical outlet. (see diagram 7 on pg 8)
BATTERY CHARGING TIME: 4-12 hours
RED AND GREEN INDICATOR LIGHTS:
• The red light indicator will turn on while the battery is charging.
• Green light indicates a fully charged battery.
diagram 1 diagram 2 diagram 3 diagram 4
diagram 5 diagram 6 diagram 7

8
1. When in use, keep the unit in an upright position.
2. The user should be in a relaxed comfortable position.
3. As directed by the physician or licensed therapist, either use the
mouthpiece or an appropriate user mask to deliver the mist for
proper treatment.
A. When using the mouthpiece, place it between the teeth and
close the lips comfortably around mouthpiece.
B. When using the adult mask, assure that it fits securely on the
face so the mist does not get into the user’s eyes.
C. When using the child mask, position the mask lightly on the
user’s face.
4. To begin the misting process, turn the unit on.
5. Inhale the drug as prescribed by a physician or respiratory
therapist. Only the medication prescribed by the physician for
aerosol therapy should be used for this device.
A. The misting will start shortly after turning on the device.
B. Inhale slowly through the mouth for three to five seconds.
C. Hold for ten seconds and then exhale.
6. During the inhalation it is important that the device be kept in the
vertical position; this guarantees correct functioning of the device
and maximum effectiveness of the treatment.
7. As the medication in the jet nebulizer begins to run out, the
generated mist will no longer be constant. However, continue the
therapy until the mist has completely dissipated.
IMPORTANT NOTE:
As with the majority of the devices for aerosol treatment, at the end of
the inhalation, a certain amount of the drug (about 0.95ml) will remain
in the jet nebulizer which is perfectly normal. This portion of the drug,
also called residual volume, cannot be nebulized and should be dis-
carded per your local ordinances.
INHALATION OF DRUG

9
1. Do not operate the unit in the presence of anesthetic gases, which may
be come flammable when in contact with air, oxygen or nitrous oxide.
2. Make sure battery poles do not come in contact with keys, coins or any
other metal objects that can short circuit them.
PROPER USE OF THE RECHARGEABLE BATTERY PACK
1. Use only the battery recommended by the manufacturer and be
careful to insert the battery pack onto the unit properly to avoid
damage to the connector. Refer to product identification page for
reordering information.
2. In case of failure and/ or malfunction, do not attempt to open the
battery pack or replace any components. Contact an authorized
Medline representative for any repairs 1-800-MEDLINE.
3. Only use original AC/DC or car adapter to charge the battery.
4. The life expectancy may be reduced if the battery is exposed to
adverse conditions such as extreme temperatures and overcharging.
5. To prevent excessive discharging, keep the battery detached from the
nebulizer when not in use.
6. When the nebulizer’s power indicator light changes to red, this is
indicative of a low battery. If you are not going to recharge the battery
immediately detach the battery pack from the unit.
RECHARGEABLE BATTERY
GREENSMART RECOMMENDATION
Do not dispose of the unit in fire or expose it to extreme temperatures.
Dispose of the device, components and battery pack according to
applicable local regulations. Unlawful disposal may cause
environmental pollution.

10
TROUBLESHOOTING GUIDE
POSSIBLE
ISSUES POSSIBLE
CAUSES SUGGESTED
SOLUTIONS
The unit does not turn on.
Unit is on:
Nebulization is weak
or is taking too long for
the treatment.
AC or DC adaptor is not
plugged in
Battery is low in charge
The medication is not
properly installed
The unit needs to be
cleaned
The unit needs to be
disinfected
The battery power may
be low
Nebulization rate varies
depending on medication used
Plug the AC or DC
adaptor into the designated
electric power outlet. Turn
power switch on.
Recharge or replace
battery pack
Reposition the jet nebulizer
on the compressor
Follow the cleaning
directions
Follow the disinfecting
directions
Replace or charge the
battery pack per the directions
Treatment time may vary
amount patients, medication
and temp.
SPECIFICATION
Power 100-240VAC, 50/60HZ, 0.4A
12 VDC 1.0A from AC adapter or
battery pack
MMAD 4um
Sound Level 60dBA
Medication Bowl Capacity 6ml (cc)
Average Nebulization Rate 0.18 ml/minute
Compressor Maximum Pressure 30 to 36 Psi (210 to 250 KPa)
Operating Pressure ≥7.25 Psi(0.050 MPa)
Operating Humidity Range 10-90%RH
Storage Temperature Range -13° to 140°F (-25° TO 60°C)

11
SPECIFICATION (continued)
Storage Humidity Range 10 to 95%RH
Dimensions (L x W x H) 4.17 in x 2.60 in x 5.04 in
(without battery pack)
Weight 13.9 oz (without battery pack),
22.4 oz (with battery pack)
Standard Accessories jet nebulizer, mouthpiece, adult
mask, pediatric mask, AC/DC
adapters, air tubing, filters (5pcs)
and storage/carrying bag
Battery type NiMH
Battery capacity 800 mAH
Battery run time at full charge 20 minutes
PROTECTION AGAINST SHOCK
Class II Equipment
Type B applied parts: Mouthpiece, mask, jet nebulizer
Protection against harmful ingress of water (liquid): IPXO (ordinary)
Degree of safety in the presence of flammable anesthetics or
oxygen: No AP/APG (not suitable for use in the presence of
flammable anesthetics or oxygen)
Mode of operation - continuous

12
WARRANTY
Medline Industries, Inc. warrants the nebulizer compressor to be free
from defective workmanship and materials for period of (2) years for the
compressor and (6) months for the battery. This warranty does not cover
failures resulting from misuse, abuse or alteration, use of improper
components or failure to comply with the operating instructions or
disposable nebulizer accessories. This warranty is limited to the original
purchaser of the compressor. Any defective part or assembly will be
repaired or replaced, at the sole discretion and determination of Medline
Industries, Inc., if the unit has been properly operated during the
warranty period. Normal maintenance items and disposable components
are not covered by this warranty. Shipping charges, if any, shall be paid
by the purchaser.
NOTE: There is no other express warranty. Implied warranties,
including those of merchantability and fitness for a particular purpose,
are limited to the duration of the express limited warranty and to the
extent permitted by law and all implied warranties are excluded.
This warranty does not cover providing a loaner compressor,
compensating for costs incurred for compressor rental, or labor costs
incurred in repairing or replacing defective part(s).
www.medline.com
Medline is a registered trademark and
aeromist trek is a trademark of Medline Industries, Inc.
Manufactured for Medline Industries, Inc.
One Medline Place Mundelein, IL 60060
Packaged in China. Products of China and Taiwan. RA16VTI
This manual suits for next models
1
Table of contents
Other Medline Respiratory Product manuals
Popular Respiratory Product manuals by other brands

3M
3M Aura 9922 Technical data sheet

Scott Safety
Scott Safety 2216 ISCBA RESPIRATOR Operating & maintenance instructions

3B
3B RESmart CPAP user manual

Topex
Topex 82S132 instruction manual

Air Liquide
Air Liquide Alnest N1 Silent Instructions for use

Sunset Healthcare
Sunset Healthcare NEB300FISH Series instruction manual

3M
3M 8511 User instructions

PHILIPS Respironics
PHILIPS Respironics BiPAP autoSV Advanced System One user manual

MSA
MSA PremAire Cadet 15M Maintenance procedures

Drive Medical
Drive Medical Power Neb II Indications for Use

Omron
Omron MICROAir NE-U100 instruction manual

Omron
Omron NE-C801S-UK instruction manual
