Mega Catch MCP600 User manual

Mosquito Trap
Operation Manual
Premier Model MCP600

Contents Page
Important Safety Instructions 1
Introduction 2
Features of Mega-Catch PREMIER Mosquito Trap 2
Initial Set p Instructions 3
What Your Mega-Catch Mosquito Trap Will Do 4
Installing and Siting the Mega-Catch Mosquito Trap 5-6
Stand Assembly Instructions 7
Operation of the Programmable Timer 8-9
Mosquito Catching Systems 10
sing the Liquid Catch Container 10
sing the Catch Bag 11
Fitting of External Skirt 12-13
Care of Your Trap 13-14
Replacement of .V. Bulb 14
Mega-Catch Octenol Fragrance Strip 15
Optional Accessories 16
Maintenance and Repair of Your Trap 17-19
Disposal of Nickel-Cadmium Batteries 20
Frequently Asked Questions 21
Problem Solving 22
Specifications 22
Parts List 23

Important Safety Instructions
1
 Keep children and pets away from the Trap.
 When the Trap is not in use disconnect power, store the Trap indoors and out of
reach of children.
 Always disconnect power before cleaning, servicing or inspecting the inside of the
Trap.
 To avoid injury from the High Speed Fan inside the Trap, always disconnect power
before opening the Door. Keep the Door locked and remove the Key while the Trap
is operating.
 Plug the power cord into a properly grounded electrical outlet protected from weather.
 Do not allow the Trap, transformer, power cord or plug to be immersed in water.
 Do not operate the Trap with a damaged transformer, power cord or plug.
 Do not use any extension cord other than the extension cord supplied with the Trap.
 Ensure power cords are placed carefully to avoid causing a tripping hazard.
 Ensure the Trap is properly installed in accordance with this operation manual.
 Read and follow instructions in this operation manual carefully before operating the
Trap.
SAFETY INSTR CTIONS

Introduction
2
Mosquitoes have been described as the most dangerous creatures on Earth.
Aedes mosquitoes may carry yellow fever and dengue fever. Culex mosquitoes may carry several
strains of encephalitis (including St. Louis Encephalitis, Eastern Equine Encephalitis and West Nile
Virus), and Anopheles mosquitoes may carry malaria.
Male mosquitoes do not bite. The real risk is from female mosquitoes which bite when in search
of blood to provide protein for their eggs.
Scientific research over the past 50 years has shown that female mosquitoes find their prey using
a combination of sensory cues including light, shape, color, heat, vibration, sweat and other by-
products of human activity.
sing that research and with the benefit of extensive field testing (including tests by the nited
States Department of Agriculture in Gainesville, Florida), Mega-Catch has developed one of the
worlds most advanced mosquito traps: the Mega-Catch PREMIER Mosquito Trap.
Features of Mega-Catc  PREMIER Mosquito Trap
The Mega-Catch PREMIER Mosquito Trap has been designed for indoor or outdoor use.
(NOTE: when operating the PREMIER Trap indoors, remove the Mega-Catch Octenol Fragrance
Strip.)
The PREMIER can operate unattended for long periods. It can be programmed to start and stop
according to peak mosquito activity in your area. It features an electronically controlled diode
lighting system that produces intermittent light at oscillating frequencies selected to coincide
with spectral sensitivity peaks for many mosquito species. It also features a low-intensity .V.
or black light bulb.
Mosquitoes attracted to the PREMIER by visual and other cues seek to land on and probe specially
designed surfaces and enter the Trap where they are collected in the Catch Bag or Liquid Catch
Container.

Initial Set Up Instructions
3
Before attempting operation of your PREMIER Trap, follow these instructions:
1. Remove the Trap from the carton.
2. Remove the box containing the Stand from the carton.
3. Assemble the Stand (see Page 7 - Stand Assembly Instructions section).
4. Remove the box marked Accessories from the base of the carton.
5. Fit the External Skirt to the outside of the Trap by sliding the skirt on from the top of the
Trap so that the opening is directly in front of the Door (see Page 12 - Fitting of E ternal
Skirt section).
Note: Failure to position the Skirt correctly will result in a NIL mosquito catch.
6. Your PREMIER Trap has two mosquito collection methods: a dry-catch system using a
Catch Bag and a wet catch system using a Catch Container. In most circumstances the
wet-catch system offers superior catch performance to the dry-catch system. The dry-
catch system using the Catch Bag is better for mosquito species identification.
7. If you wish to catch mosquitoes using the Catch Bag, then attach the Catch Bag to the
base of the Fan inside the Trap. The Catch Bag has an elastic top to facilitate attachment
(see Page 10 - Mosquito Catching Systems section).
8. If you wish to catch mosquitoes using the wet-catch system, fill the Liquid Catch Container
two-thirds full with fresh water. Add 2 or 3 drops of liquid detergent / soap to break the
surface tension of the water. Also add 3 or 4 teaspoons of a non-diet (sugar-based) soft
drink. Then place the Liquid Catch Container in the Trap using the locating feet on its base.
9.. Remove the Mega-Catch Octenol Fragrance Strip from its pouch being careful not to
touch the exposed holes on its surface. Place the strip inside the Trap (see Page 15 -
Mega-Catch Octenol Fragrance Strip section).
Wash your hands after this procedure has been completed.

4
W at Your Mega-Catc  Mosquito Trap Will Do
10. Reinstall the Door by locating the base of the Door in the Trap and then pushing firmly
until Door clicks into place. Lock the Door using one of the two Keys provided with the
Trap and then remove the Key. (NOTE: Removing and reinstalling the door is designed to
require a reasonable amount of force to make it difficult for children.)
11. Hang the Trap from the hook on the Stand as shown in the Stand Assembly Instructions.
12. Your PREMIER Trap comes with a low-voltage transformer and a 60-foot (18-meter) low-
voltage extension cord with weatherproof connectors. Plug the extension cord into the
Trap connection turning the connector clockwise until tight. Plug the extension cord into
the transformer cable turning the connector clockwise until tight.
Then plug into the power supply.
(NOTE: The connectors are designed to be a tight fit to ensure that they are weatherproof.)
13. Turn on the power. A display should appear on the face of the Timer. (If it does not, see
Page 8 - Operation of the Programmable Timer section).
Set the Timer to "ON" for continuous running or to "A TO" to program operating times.
See Page 8 - Operation of the Programmable Timer section for programming instructions.
14. When the Trap is operating, the Fan should be running, the four diode lights should be
flashing intermittently and the .V. Bulb light should be on. If the Trap is not operating
correctly then re-read these instructions or refer to Page 22 - Problem Solving section
or email us at [email protected].
Your Mega-Catch Mosquito Trap is designed to reduce mosquito populations. Operate the Mega-
Catch Mosquito Trap daily for several weeks. Over this time you should notice a decline in
mosquito numbers. This means your Trap is doing its job.
You may discontinue operation of the Trap once your mosquito problem is under control. When
mosquitoes enter your area again (probably from a new infestation after rain), begin operating
your Mega-Catch Mosquito Trap again.
The Mega-Catch Mosquito Trap is not designed to compete with humans in close proximity eg:
at a barbecue. If you are planning an outdoor function, operate the Trap for several days before
the function

Installing and Siting t e Mega-Catc  Mosquito Trap
5
Installation of Trap:
Your Mosquito Trap comes fully assembled. To install, first follow the instructions under Page 3
- Initial Set Up Instructions section.
The Initial Set p Instructions assume that you have decided to install your Mega-Catch Mosquito
Trap on the Stand that is supplied with the Trap.
Alternatively you may decide to hang the Trap from a tree or a fixed post using a chain, nylon
rope or wire connected to the attachment hole at the top of the Trap. We recommen a height of
around 3 feet (1 meter) from the ground to the top of the Mega-Catch Mosquito Trap. However,
you may need to adjust the Traps height depending on the type of mosquitoes you are catching.
Your Mega-Catch Mosquito Trap is supplied with a 60-foot (18-meter) low-voltage extension
cord with weatherproof fittings. To avoid the cord posing a tripping hazard or being damaged,
(e.g. by a lawn mower) we recommend that, if possible, it be placed 2-3 inches (50-75 mm)
underground. This can be easily achieved by using a spade which is inserted into the ground and
moved backwards and forwards to create a shallow slit trench into which the cord can be pushed
before the ground is replaced by standing on the top of the slit trench.
Trap
Prevailing
Wind Direction
Mosquito
source
Siting of Trap:
For the best performance from your Mega-Catch Mosquito Trap, first determine the source of
the mosquito nuisance (Mosquitoes breed in wet areas like streams, marshland,
FIG 1 - Trap Positioning

6
wooded areas and gardens). Then use these rules to site the Trap:
Rule 1: Place the Trap between the mosquito source and areas of human activity.
Rule 2: Place the Trap as far away from people and as close to the mosquito source as possible.
(Attract them to the Trap and not to you.)
Rule 3: Place the Trap upwind of the mosquito source but only if you can comply with Rule 1.
(Mosquitoes sometimes use the wind to navigate.)
Rule 4: Place the Trap in a predominantly shaded area. (Most mosquitoes avoid direct sunlight.)
Rule 5: Place the Trap in a location protected from rain and strong wind. (Mosquitoes dont fly
in strong winds.)
Rule 6: If severe weather conditions are predicted then store the Trap out of the weather.
For maximum stability, point the small " " shaped leg at the back of the Stand into the prevailing
wind and pin the base to the ground using the wire staples supplied with the Stand.
While your Mega-Catch Stand is zinc-plated and powder-coated, when not in use, we recommend
that it be stored out of the weather.

Stand Assembly Instructions
7
To assemble the Stand supplied with the Trap, follow the instructions shown in figure 2 below.
NOTE: For optimum performance place the trap in a predominantly shaded area (located between your
dwelling and the source of the mosquitoes) which is protected from rain and wind. (Mosquitoes do not
fly in strong winds or severe weather conditions.)
For maximum stability the ' ' shaped leg at the back of the stand should be pointed in the direction of
prevailing winds. The wire staples supplied with the trap (or a cinder block placed on the back of the
stand) can be used to increase stability.
Fit top section over bottom section of upright - then fit bolt
and tighten firmly
Assemble stand base components as illustrated here - fit all bolts and
washers before tightening bolts firmly. Screw feet into bottom of stand base.
U.S.DesignPatentNo449,091
Attach external skirt and then hang
*
3 x 4" Wire staples are supplied to secure frame to ground.
Wind
direction
FIG 2 - Trap Assembly Instructions

8
Your Mega-Catch Mosquito Trap is equipped with a high tech Programmable Timer. The Timer
enables you to program the Trap to operate at times when mosquitos are most active in your
area.
The timer is equipped with an automatically recharging battery. This battery can operate`for up
to three months when fully charged. Your Mega-Catch Mosquito Trap may need several hours
of running to charge up the battery upon initial use.
NOTE: If no display appears on the Programmable Timer when the power is switched on, the
battery may be discharged. To fully recharge the battery, run the Trap for 24 hours.
You can choose to operate the Mega-Catch Mosquito Trap in 3 ways:
1. ON  The Mega-Catch Mosquito Trap will run 24 hours a day while connected to a power
source.
2. OFF  the Mega-Catch Mosquito Trap will not operate.
3. AUTO  you can program when the Mega-Catch Mosquito Trap will start and stop.
Operation of t e Programmable Timer

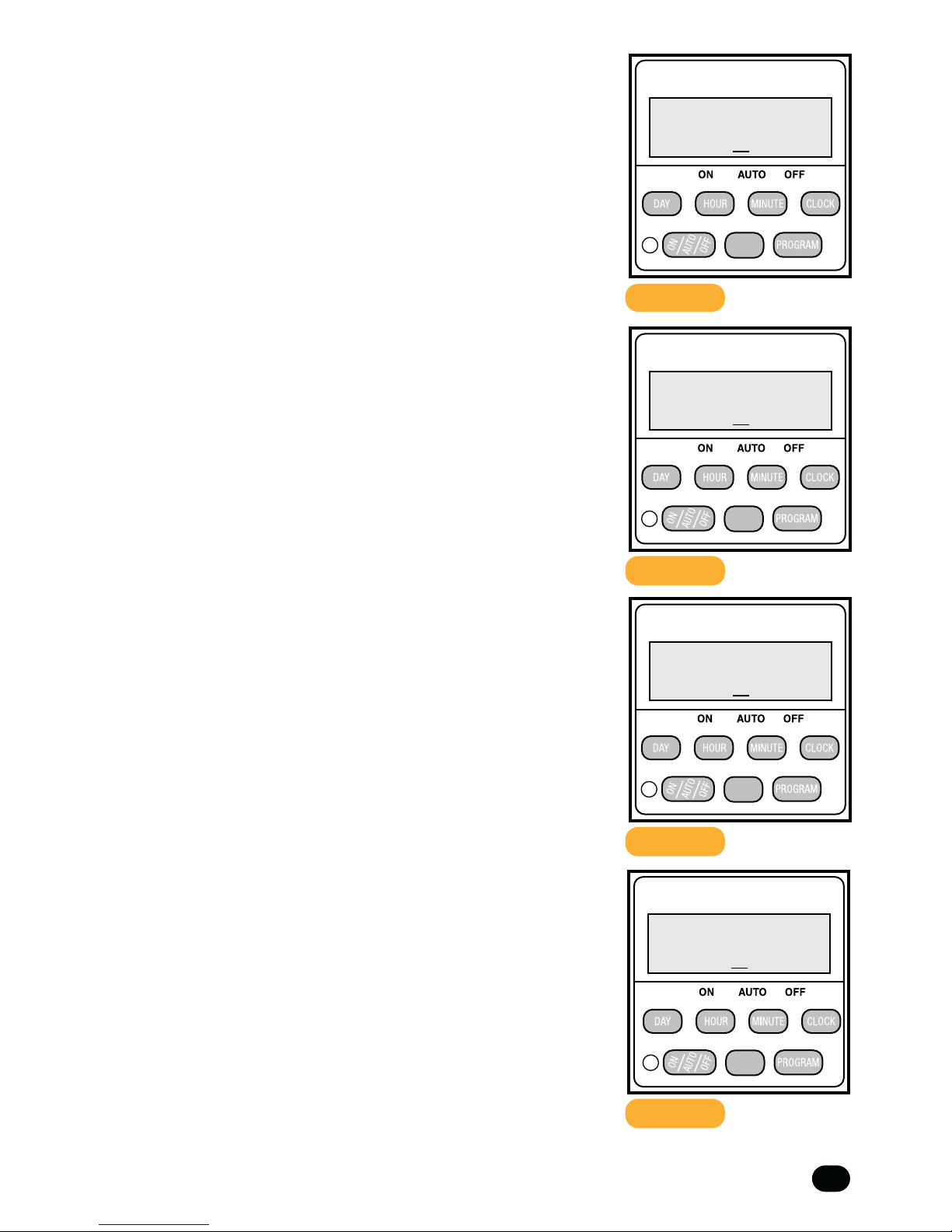

AM
12:33 33
Mega Catc
Fr
R
RESET
RECALL
AM
1
ON
_ _ _ _
Mega Catc
Mo Tu We Th Fr Sa Su
R
RESET
RECALL
FIG 3.1
FIG 3.2
How to Program:
FIRST SET THE TIME.
To set the day and time, press and hold the CLOCK button while
pressing the DAY or HO R or MIN TE button (as the case requires).
This is the only function that requires two buttons to be pressed
at once.
THEN PRESS PROGRAM TO START PROGRAMMING.
Start time program 1. Enter start time with HO R/MIN TE buttons.
For 7 days per week operation select the DAY display, which shows
all 7 days.
For individual day operation select the DAY display desired, e.g.
Su for Sunday.
THEN PRESS PROGRAM.
Stop time program 1. Enter stop time with HO R/MIN TE buttons.
THEN PRESS PROGRAM.

9
Start time program 2. Enter start time with
HO R/MIN TE buttons.
THEN PRESS PROGRAM.
Stop time program 2. Enter stop time with
HO R/MIN TE buttons. To enter more programs (up to 6)
repeat previous steps.
THEN PRESS CLOCK TO RET RN TO NORMAL OPERATION.
Press the ON/A TO/OFF button to change position of the mode
indicator.
ON = system will be operating at all times.
A TO = system will be operating only during programmed
times.
OFF = system will not operate at all
NOTE: If the Trap does not operate when the program mode
is set to A TO it may be in "stop time program." To check,
switch the program mode to ON, which should start the Trap,
before returning the program mode to A TO.
*
AM
2
ON
_ _ _ _
Mega Catc
Mo Tu We Th Fr Sa Su
R
RESET
RECALL
AM
1
OFF
_ _ _ _
Mega Catc
Mo Tu We Th Fr Sa Su
R
RESET
RECALL
AM
2
OFF
_ _ _ _
Mega Catc
Mo Tu We Th Fr Sa Su
R
RESET
RECALL
AM
12:33 33
Fr
Mega Catc
R
RESET
RECALL
FIG 3.3
FIG 3.4
FIG 3.5
FIG 3.6

10
Your Mega-Catch Mosquito Trap comes complete with a Catch Bag and a Liquid Catch Container.
You may choose to collect mosquitoes using either of these systems. Our research has shown the
Liquid Catch Container system to be more effective. This is because when the Mega-Catch
Mosquito Trap is operated using a Liquid Catch Container, the air plume emanating from the
bottom of the Trap is humidity enriched. Depending on local temperatures, evaporation may mean
that it is necessary to replenish water in the Liquid Catch Container weekly or even more frequently.
The Catch Bag system requires less frequent attention and therefore may be your preferred
mosquito catching system. Smaller biting insects (eg: no-see-ums) are best caught using the
Liquid Catch Container because the mesh size on the standard Catch Bag may be too large to
capture them.
Using the Liquid Catch Container
To prepare your Mega-Catch Mosquito Trap, follow these steps:
1. Ensure that the Trap is switched off by disconnecting the power (Attention: High-Speed
Fan inside the Trap may cause injury if the power is not disconnected.)
2. nlock and remove the Lockable Door.
3. Slide the Liquid Catch Container out from beneath the Fan. This container has locating
feet on its base.
4. Fill the container with water until it is approximately two-thirds full. Add 3 or 4 drops of
liquid detergent/soap and stir thoroughly. This breaks the surface tension of the water
ensuring that mosquitoes drown upon capture.
5. Add 3 or 4 teaspoons of a non-diet (sugar-based) soft drink. This duplicates the fructose
content of nectar on which mosquitoes feed.
6. Reinstall the Liquid Catch Container into the Mega-Catch Mosquito Trap. Replace and
lock the Door and remove the Key for child safety. Reconnect power.
7. Before removing the Liquid Catch Container, remember to disconnect the power to your
Mega-Catch Mosquito Trap so that the Fan is not operational. Dispose of the contents
well away from your dwelling so as to not attract ants.
It may be necessary to replenish or replace the water solution in the Liquid Catch Container
at weekly or more frequent intervals to take account of evaporation. This will depend on
relevant climatic conditions.
Mosquito Catc ing Systems

11
Using the Catch Bag
To prepare your Mega-Catch Mosquito Trap, follow these steps:
1. Ensure that the Trap is switched off by disconnecting the power (Attention: High-Speed
Fan inside the Trap may cause injury if the power is not disconnected.)
2. nlock and remove the Lockable Door.
3. Reach inside the Trap and stretch the open neck of the Catch Bag around the corners of
the base of the Fan just above the Fan Safety Guard (see figure 4). The Catch Bag has an
elastic neck to facilitate attachment.
4. Replace and lock the Door and remove the Key for child safety. Reconnect power.
5. Before removing the Catch Bag, remember to disconnect the power to your Mega-Catch
Mosquito Trap off so that the Fan is not operational. Then pull the drawstring tight so that
any mosquitoes that remain alive cannot escape. Crush the top of the Catch Bag down
on its base to kill any mosquitoes that do remain alive. Dispose of the contents well away
from your dwelling so as not to attract ants.
Mosquitoes collected in the Catch Bag will usually die very quickly without access to
moisture. In cooler climates they may live for a longer period. In times of heavy infestations
of mosquitoes, it may be necessary to empty the Catch Bag on a regular basis in order to
ensure optimum operation of the Trap.
Fan Housing
Tr a p

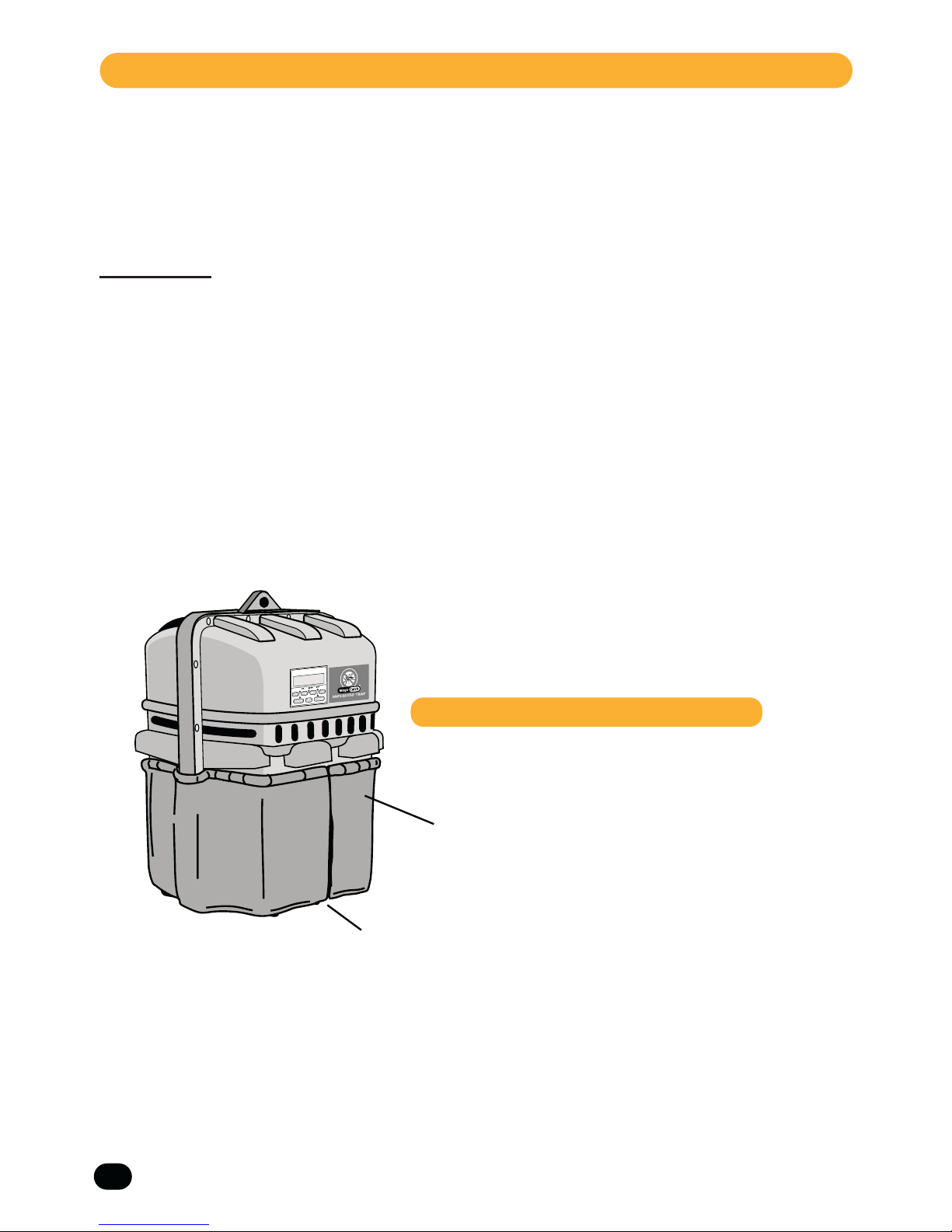

Catch Bag
Stretch open neck of
Catch Bag over corners
of fan housing base.
FIG 4 - Fitting of Catc Bag
Catch Bags should be hand washed in warm soapy water from time to time. Replacement Catch
Bags are a consumable item and are available from your Authorized Distributor.

12
Your Mega-Catch Mosquito Trap comes with an External Skirt which fulfils two important
functions. First its color and texture provides a visual attractant for several species of mosquitoes.
Secondly, it acts as a baffle directing the air plume out of the bottom of the Trap.
There are two methods which you can use to fit the Skirt:
Method One:
1. Place the Mega-Catch Mosquito Trap on a table or other flat surface.
2. Slide the Skirt on from the top of the Trap (over 2 corners initially) with the elastic band
at the top.
3. The Skirt is properly fitted when the elastic band is seated over the lower horizontal rib,
just below the inlet holes (see figure 5). The opening in the Skirt should be located at the
front of the Trap so as to facilitate removal of the Door without having to remove the
Skirt. The hook-and-loop fastening on this opening should be closed when the Trap is
running.
Fitting of External Skirt
.S. Design Patent No 449,091
Hook-and-loop fastening
External Skirt
FIG 5 - Fitting External Skirt

13
Method Two:
1. Hang the Mega-Catch Mosquito Trap from the Stand (see Page 3 - Stand Assembly
Instructions section).
2. Slide the Skirt up from the bottom of the Trap (over 2 corners initially) with the elastic
band at the top.
3. The Skirt is properly fitted when the elastic band is seated over the lower horizontal rib,
just below the inlet holes (see figure 5). The opening in the Skirt should be located at the
front of the Trap so as to facilitate removal of the Door without having to remove the
Skirt. The hook-and-loop fastening on this opening should be closed when the Trap is
running.
The Skirt is not manufactured from a .V.-resistant material but this will not be an issue if the
Trap is operated in shaded conditions as recommended. The Skirt can be reversed should one side
begin to fade from exposure to .V. light. The Skirt is a consumable item and replacements can
be obtained from your Authorized Distributor.
Your Mega-Catch Mosquito Trap requires very little maintenance. The Catch Bag and Liquid
Catch Container should be cleaned and washed when required. Heavy catches of mosquitoes may
result in a build-up of material in the internal casing and blade tips of the Fan. There may also
be a build-up of material on the Fan Safety Guard. If this happens use the following cleaning
technique:
1. Ensure the power to your Mega-Catch Mosquito Trap is disconnected. (Attention: High-
Speed Fan inside the Trap may cause injury if the power is not disconnected.)
2. nlock and remove the Lockable Door. Then lay the Trap on its side with the Door opening
being face up.
3. Reach inside the Trap and remove the Fan Safety Guard (attached to base of Fan) by turning
it counterclockwise (see figure 6).
4. sing a small sponge or toothbrush and warm soapy water, reach into the Trap and carefully
clean the inside casing of the Fan and the Fan Blades.
5. Ensure that water is not allowed to enter into the Fan Motor. Never hose water into the
Fan.
6. Clean and then replace the Fan Safety Guard.
7. Leave the Trap to dry for at least 24 hours before recommencing operation.
Care of Your Trap

14
The casing of your Mega-Catch Mosquito Trap is made from polypropylene, which is extremely
strong and durable. Its appearance is best maintained by a plastic protector of the type used on
plastic car fenders. Do not use wax.
In order to prolong the life of your Mega-Catch Mosquito Trap store it and the Mega-Catch
Stand in a dry place when not in operation. Your Mega-Catch Mosquito Trap should be serviced
at the end of each season (see Page 17 - Maintenance and Repair of Your Trap section).
To remove safety guard,
turn counterclockwise
until lugs release.
To fit, align 4 lugs on
fan housing with 4 slots
on safety guard, then turn
clockwise until tight.
Lug
Lug
Lug
Lug
Slot
Slot
Slot
Slot
Rotate clockwise to fit
and tighten
Rotate counterclockwise
to remove
Bottom plate
FIG 6 - Removal of Fan Safety Guard
Replacement of U.V. Blub
The .V. Bulb is a consumable item and replacements can be obtained from your Authorized
Distributor. To install a new .V. Bulb refer to Page 17 - Maintenance and Repair of Your Trap
section.

15
Mega-Catc  Octenol Fragrance Strip
Some, but not all, mosquito species are attracted to minute quantities of a chemical called octenol
(1-OCTEN-3-OL). Each Mega-Catch Mosquito Trap comes with a Mega-Catch Octenol Fragrance
Strip. NOTE: When operating the PREMIER Trap indoors DO NOT SE a Mega-Catch Octenol
Fragrance Strip.
To install or replace the Octenol Fragrance Strip:
1. Ensure the power to your Mega-Catch Mosquito Trap is disconnected.
2. nlock and remove the Lockable Door.
3. Remove the Mega-Catch Octenol Fragrance Strip from its pouch and be careful not to
touch the exposed holes on its surface. Place the strip inside the Trap in the position shown
in figure 7 below. Replace and lock the Door and remove the Key for child safety. Reconnect
power. Wash your hands after this procedure has been completed.
Mega-Catch Octenol Fragrance Strips should be effective for up to 30 days depending on weather
conditions. Mega-Catch Octenol Fragrance Strips are a consumable item and replacements can
be obtained from your Authorized Distributor.
Note: Octenol can improve the rate of capture of some mosquito species. Other species [e.g. the
Asian Tiger Mosquito], may not be attracted - or even repelled- by octenol. You should determine
what is best in your area by experimenting without the Mega-Catch Octenol Fragrance Strip
in place.
ATTENTION: Keep Mega-Catch Octenol Fragrance Strips out of reach of children. Read
directions and Important Safety Instructions carefully before use.
FIG. 7  Placement Position for Mega-Catc  Octenol Fragrance Strip
Place Mega-Catch Octenol Fragrance Strip in the trap as shown.
Trap
Octenol Fragrance Strip
Slot

16
1. Battery T erminal Power Cable
The Mega-Catch Mosquito Trap can be operated using a 12-volt car battery as a power source.
Your Authorized Distributor can supply a factory-approved Power Supply Cable complete with
positive and negative alligator clips.
NOTE: Failure to connect the red positive + connector to the positive battery terminal and the
black negative  to the negative battery terminal can result in major damage to your Mega-
Catch Mosquito Trap and may void your warranty.
2. Cigarette Lighter/Car Accessory T erminal Cable
The Mega-Catch Mosquito Trap can be operated from your vehicles accessory terminal using
the factory-approved Accessory Cable. Your Authorized Distributor can supply a factory-approved
Accessory Cable.
NOTE: Failure to use only the factory-supplied Cable could result in damage to your Mega-Catch
Mosquito Trap and may void your warranty.
Optional Accessories

17
Maintenance and Repair of Your Trap
Opening the two halves of the Mega-Catch mosquito Trap will be necessary for the following
purposes:
 Replacement of .V. Bulb (The .V. Bulb should last for approximately two mosquito
seasons, but, as with all light bulbs, life expectancy is variable depending on actual usage
and climate.)
 Annual service (At the end of each season, the Internal Plates, heated reflective surface
and Fan should be cleaned using warm soapy water and allowed to dry thoroughly.)
 Battery removal (The Programmable Timer contains a Nickel-Cadmium Battery. This must
be disposed of correctly when the Trap reaches the end of its life.)
Opening the Trap (refer to figure 8.1):
ATTENTION: Always disconnect the power to your Mega-Catch Mosquito Trap before
opening the Trap.
The two halves of the Trap are held together with 12 stainless-steel screws and nuts - six facing
one way and six the other way.
Place the Trap on a table ensuring the Programmable Timer is on the side facing down. Remove
the six screws facing toward you using a hex-head screwdriver.
Then turn the Trap over (so that it is "timer-side" up) and remove the remaining six screws and
nuts.
Then lift the top half of the Trap away from the bottom half as if it was hinged at the top. The
top half should now be "timer-side" down on the table and still connected to the bottom half by
electrical cables.
The Top Plate holds the Mega-Catch Control Box (upperside of Top Plate) and the .V. Bulb and
holders (underside of Top Plate). (NOTE: the Mega-Catch Control Box is a sealed unit and must
not be opened.)
The Bottom Plate holds the heated reflective surface (upperside of Bottom Plate) and the Fan
(underside of Bottom Plate).

18
Replacement of U.V. Bulb (refer to figure 8.2):
Remove the .V. Bulb by twisting the tube gently until it is able to be removed. Then slot a new
.V. Bulb into the connector ends and twist the tube gently until it is firmly in position.
Reinstallation of Plates:
You should not have any reason to remove the plates from the Trap. If however you do, merely
slot the plates back into the ribs so that the Control Box is on the upper-side of the Top Plate and
the Fan is on the under-side of the Bottom Plate. There is an arrow on each plate that points to
the back of the Trap (i.e. the half that does not contain the Timer) when the plates have been
properly installed.
Connection of Wires:
You should not have any reason to remove any of the electrical connections except as part of the
battery disposal process (see Page 20 - Disposal of Timer section). All electrical connections are
by push-in pin connectors. Provided these are not forced it is not possible to plug any connector
into the wrong connector hole.
There are three connector holes on the underside of the Top Plate. The two smaller twopin
connector holes are for the Fan and Heater Cables. These two connections are interchangeable
so it doesnt matter which of these two connector holes the Fan and Heater are plugged into. The
third connection on the underside of the Top Plate is a three-pin hole and fits only the .V. Bulb
Connection Cable. The connection holes into the Control Box on the upperside of the Top Plate
are all different sizes and fit the remaining cables.
Re-assembly of Trap:
With the Top and Bottom Plates in place replace the "timer-side" or top half of the Trap ensuring
that each plate slots into the locating ribs. The 12 screw holes should now be aligned for replacement
of the screws and nuts. Hold the nuts into the pre-formed hexagonal holes and carefully screw
in the screws.
(NOTE: Do not overtighten the screws. This could cause the nuts to rotate and damage the pre-
formed hexagonal fittings in the plastic housing.)
