Mega Technopool pH-Rx User manual

ADSP7000716 rev. 1.0 25/01/2017 1/64
Technopool pH-Rx
Dosing systems for swimming pools
Dosieranlage für Schwimmbecken
Doseersysteem voor zwembaden
For other languages please visit:
http://aqua.quickris.com/adsp7000570-technopool-3/
ENGLISH
Instruction manual
page 2
DEUTSCH
Bedienungsanleitung
Seite 23
NEDERLANDS
Instructiehandleiding
bladzijde 44

TECHNOPOOL3 CONTENTS
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 2/64
CONTENTS
1 INTRODUCTION ................................................................................................................................................3
1.1 Warnings......................................................................................................................................................3
1.2 Conformity....................................................................................................................................................4
1.3 Technical features........................................................................................................................................4
1.4 Electrical features.........................................................................................................................................4
1.5 Packaging content........................................................................................................................................4
2 INSTALLATION...............................................................................................................................................5
2.1 Wall mounting ..............................................................................................................................................5
2.2 Electrical connections ..................................................................................................................................5
2.2.1 Main power supply.................................................................................................................................5
2.2.2 Temperature probe................................................................................................................................5
2.2.3 Flow signal.............................................................................................................................................5
2.2.4 Dosing enabling signal (V1) ..................................................................................................................6
2.2.5 pH pump product level probe ................................................................................................................6
2.2.6 Rx pump product level probe ................................................................................................................6
2.2.7 Alarm output –24V OUT Clamp............................................................................................................6
2.2.8 Solenoid valve output –RELAY Clamp................................................................................................6
2.2.9 Pump switches ......................................................................................................................................6
2.3 Hydraulic connections..................................................................................................................................7
2.3.1 Assembly of the accessories.................................................................................................................8
3 Technopool pH-Rx MENU..................................................................................................................................9
3.1 User Menu..................................................................................................................................................10
3.1.1 Manual activation of pumps and solenoid valve..................................................................................11

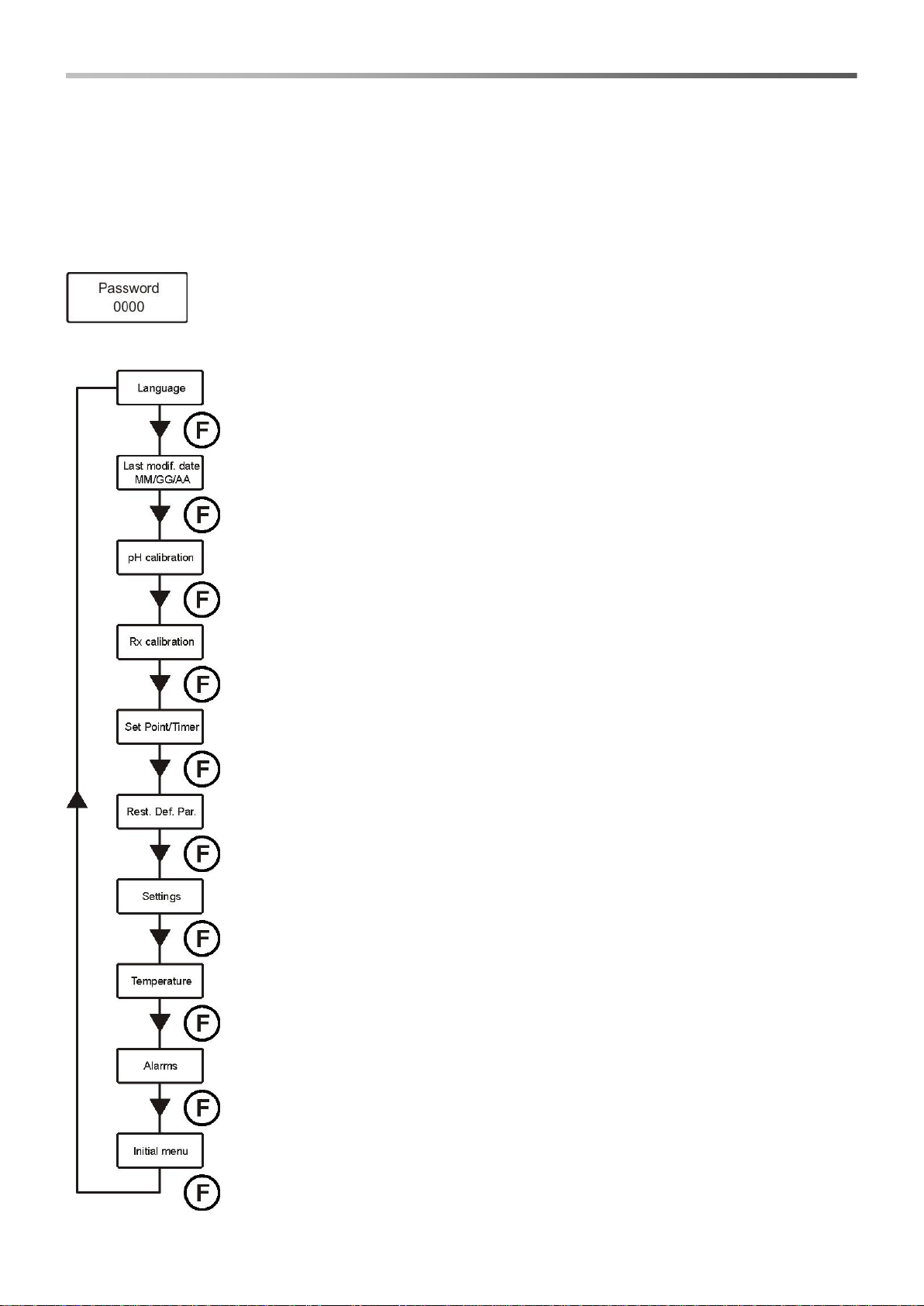

3.2 Installer menu.............................................................................................................................................12
3.2.1 Password insertion..............................................................................................................................12
4 quick programming ...........................................................................................................................................13

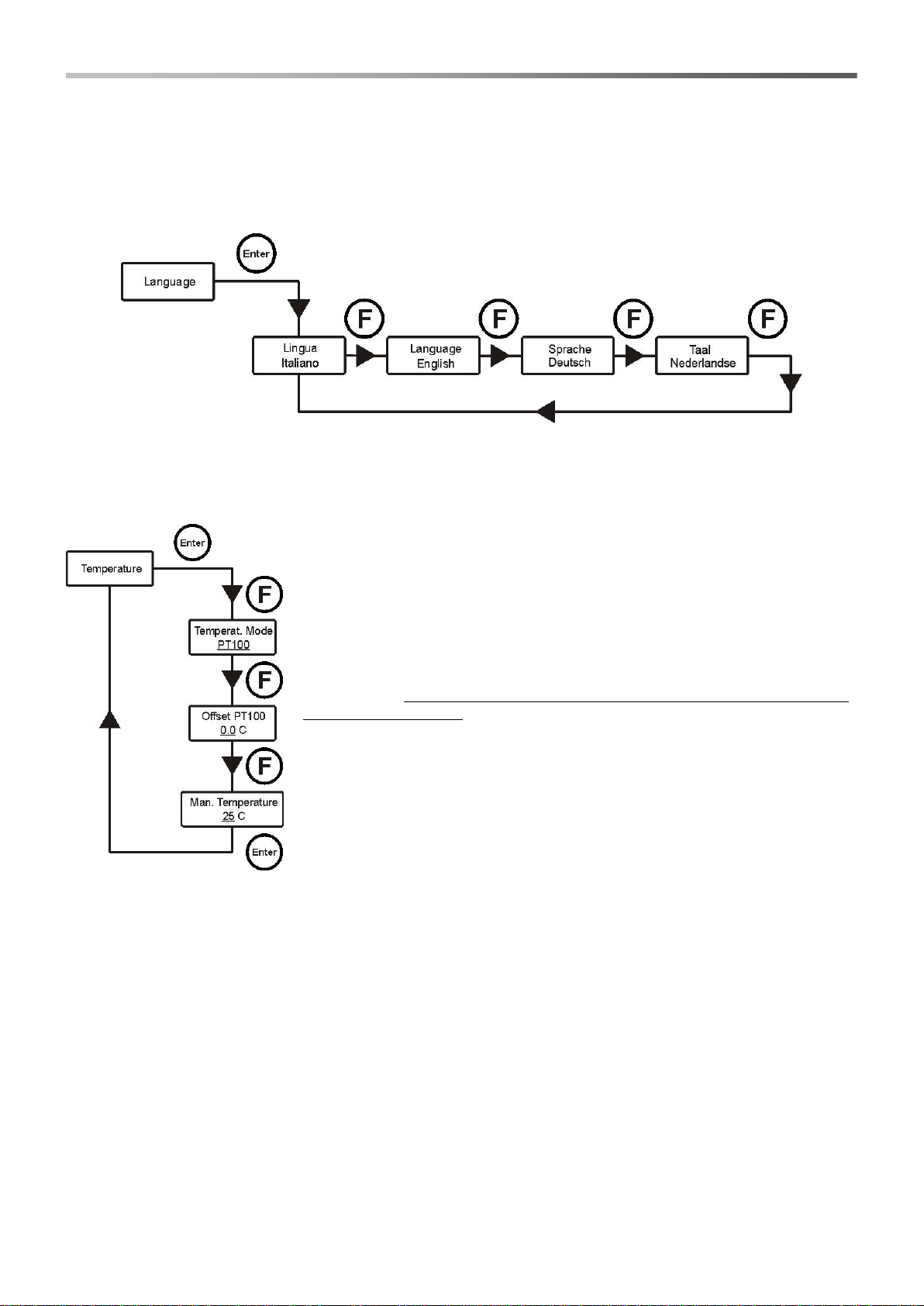

4.1 Selection of the language of the system....................................................................................................13
4.2 Setting the temperature..............................................................................................................................13

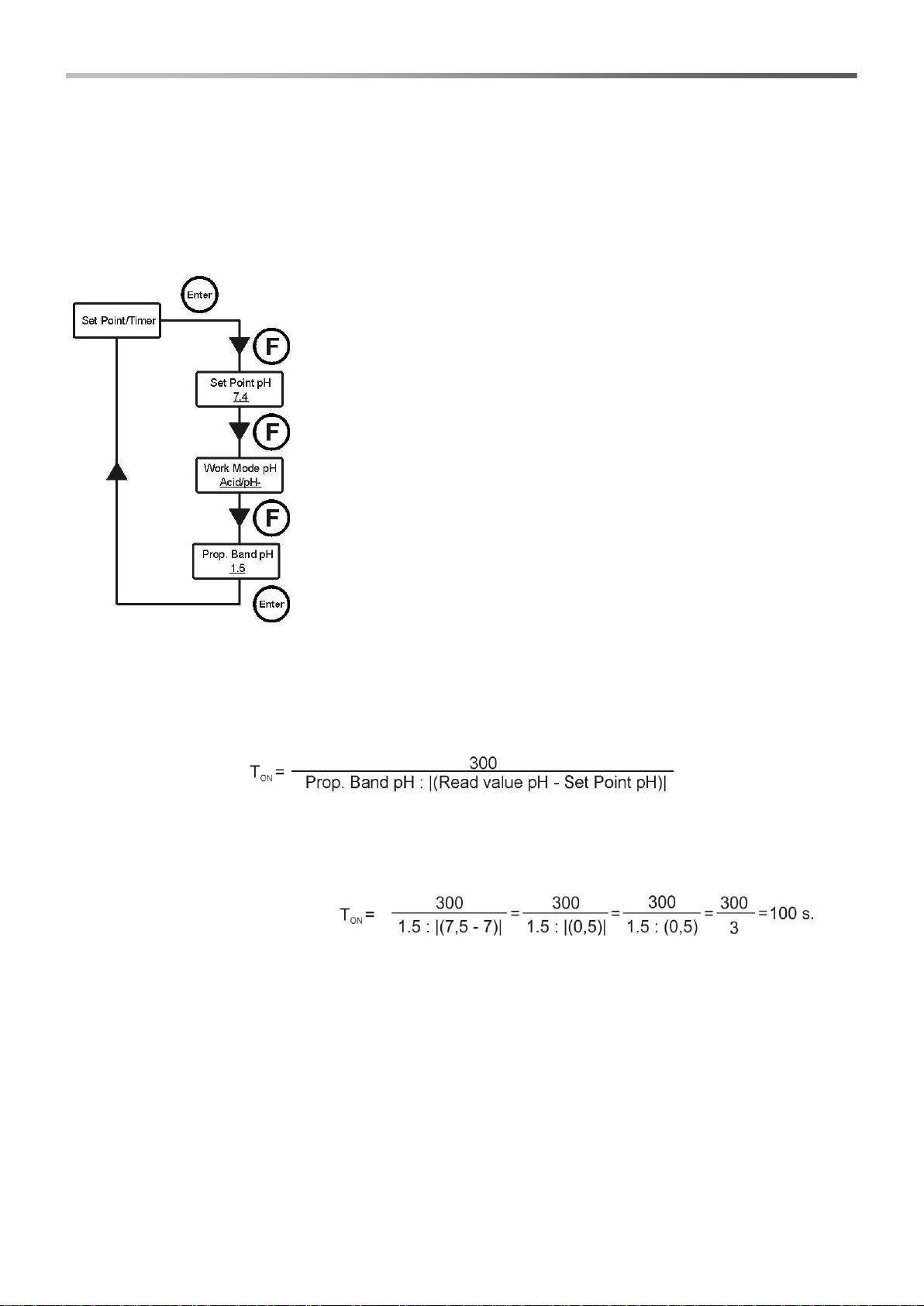

4.3 Setting the pH (pump pH) ..........................................................................................................................14
4.4 Setting the redox (P2 pump)......................................................................................................................15
4.5 Setting the solenoid valve..........................................................................................................................16

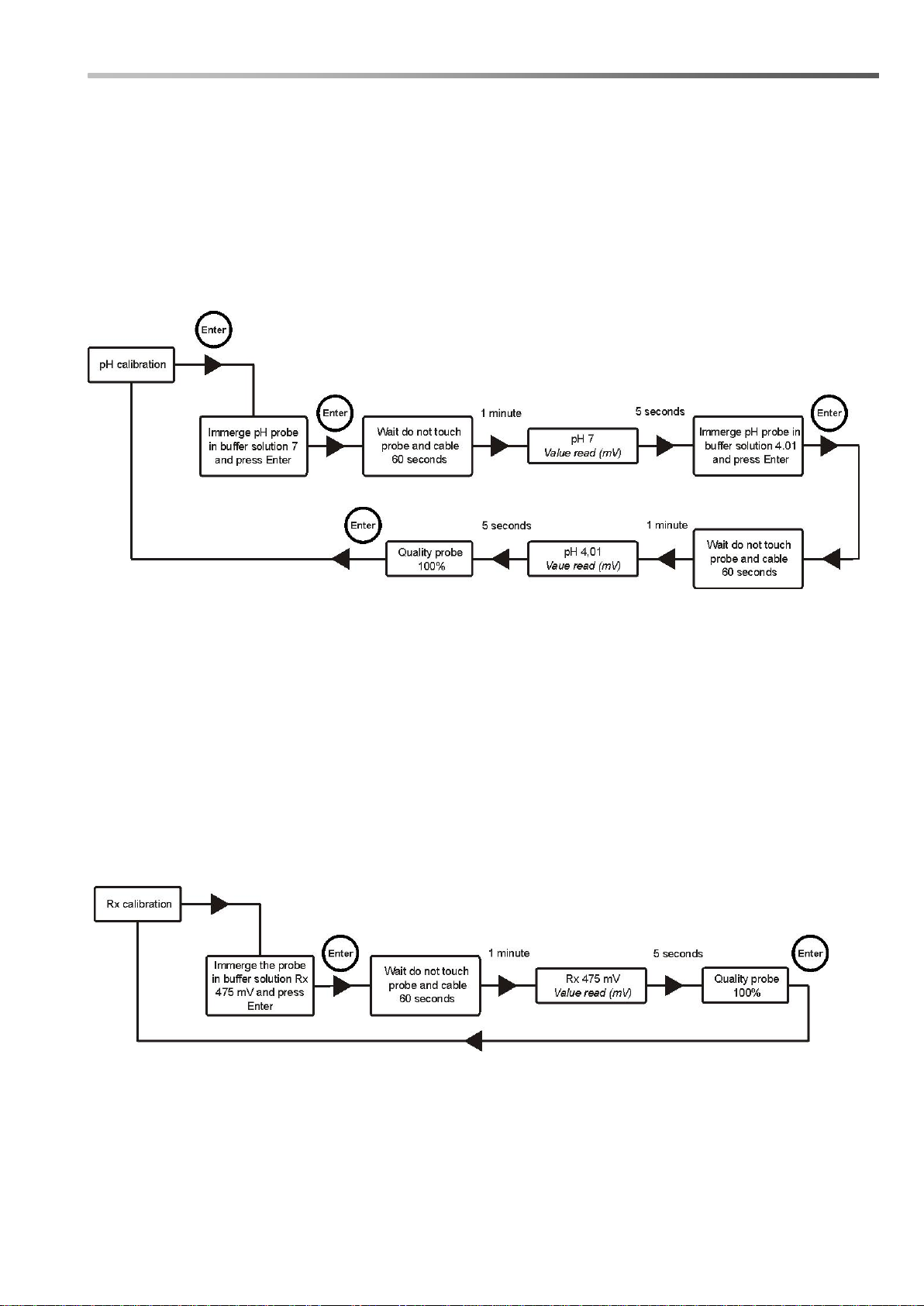

4.6 Calibration of pH electrode.........................................................................................................................18
4.7 Calibrating the redox electrode..................................................................................................................18
5 ADVANCED PROGRAMMING.........................................................................................................................19
5.1 Configuration of the settings ......................................................................................................................19
5.2 Restore the default parameters .................................................................................................................19
6 Alarms...............................................................................................................................................................20
6.1 Setting the alarms ......................................................................................................................................20
6.2 Alarm signal ...............................................................................................................................................20
7 Winter pause.....................................................................................................................................................21
8 Operations to carry out at the beginning of the season....................................................................................21
9 Return to the after-sales service.......................................................................................................................21
10 Guarantee certificate ......................................................................................................................................21
11 APPENDIX 1 –Default parameters................................................................................................................22

TECHNOPOOL3 INTRODUCTION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 3/64
1 INTRODUCTION
Technopool pH-Rx is an integrated system able to control two peristaltic pumps and a solenoid valve control relay,
for the automatic management of water treatment in the swimming pool.
Refer to appendix 2 for Technopool pH-Rx range.
Peristaltic pumps are controlled in the following ways:
pH Pump: for dosing the pH corrector.
The setpoint of the pH value is set to be maintained in the swimming pool.
Rx Pump: for dosing the disinfectant.
The setpoint of the redox value is set to be maintained in the swimming pool.
On the other hand, the solenoid valve of the control relay, used for dosing the chlorine tablets, can be programmed
in two ways:
cyclic
Opening (ON) and closing (OFF) schedule of the relay are fixed or proportional to the temperature of the
water reached during the latest dosing.
ON/OFF
Opening (ON) and closing (OFF) schedule is controlled by the redoxprobe; therefore, it depends on the
setpoint setting with a fixed hysteresis of 10 mV (redox).
1.1 Warnings
This manual has the purpose to provide all information required for a correct installation and maintenance of the
system, to ensure best results during its operation.
For this reason, the instructions described below must be carefully read, as they supply all information required for
the installation, use and maintenance safety.
Store this manual with care so it can be consulted when necessary.
Ensure the integrity of the system at the delivery; in case anomalies are detected, contact specialised
personnel, before carrying out any intervention.
Before proceeding with the installation, ensure the data on the plate correspond to the specifications of the
electric system.
Do not operate with bare feet and/or hands.
Prevent the system from the exposure to atmospheric agents.
Only specialised personnel is allowed to perform any operation on the system.
In case of anomalous operation, immediately switch off the system and contact the After-Sales Service for
the required repair actions.
For a correct operation, use original accessories and spare parts.
The manufacturer declines any responsibility with regard to damage caused by improper use or use of non-
original accessories or spare parts.
The electrical system must be in compliance with the regulations in force of the country where the system
is located.
The room temperature where the system is installed must never exceed 45°C.

TECHNOPOOL3 INTRODUCTION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 4/64
1.2 Conformity
Our pumps are manufactured according to General Standards in force and in compliance with the following
European Directives:
n° 2014/30/CE “e s.m.i.
n° 2014/35/CE “DBT Low Voltage Directive” e s.m.i.
n° 2011/65/UE , 2012/19/UE “direttive RoHs e WEEE” e s.m.i.
To achieve the best and ensure the longest durability of the system, read and follow the rest of the manual
especially the part relative to maintenance.
The manufacturer declines any responsibility for damages on the system caused by non-qualified
personnel.
1.3 Technical features
Back-lit LCD display 2x16.
Red LED (pH) pH alarm signal.
Red LED (Rx) redox alarm signal.
Main ON/OFF switch.
Dose enable switch for each pump.
Solenoid valve output (dry contact, no voltage).
Flow sensor input.
Due inputs for level probes.
An input for temperature probe PT 100.
A BNC input for pH electrode.
A BNC input for redox electrode.
Alarm repetition output 24VDC.
Hereunder are the maximum pump capacities:
4 L/h @ 1 bar, Santoprene® tube. 1 L/h @ 3 bar, Silicone tub
1.4 Electrical features
Power supply: 100÷240 VAC 50/60 Hz and consumption (max): 14 W.
pH Range: 0.00…14.00.
Redox Range: 0…1000 mV.
Temperatura range (PT100): 0…100° C.
1.5 Packaging content
Technopool pH-Rx System.
Instruction manual.
Wall mounting bracket.
Screws and wall plugs for wall fixing.
pH 4 buffer solution.
pH 7 buffer solution.
475mV buffer solution.
pH electrode with 5 m cable.
Redox electrode with 5 m cable.
3-wire temperature probe PT100 with 5 m cable.
DN50 collars (3 pcs).
Suction filter (2 pcs).
Injection valve (2 pcs).
Probe holder (2 pcs).
Suction and delivery tubes.


TECHNOPOOL3 INSTALLATION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 5/64
2 INSTALLATION
In vertical position with an uncertainty not higher than +/-15°.
Away from heat sources and in a dry place, with room temperature ranging between 0°C and 45°C.
In a ventilated place and easily accessible to an operator for ordinary maintenance.
At maximum 1.5 m high from the liquid to be dosed.
Do not install the system above the chemical tank if it emits smoke, unless the container is not hermetically
closed.
2.1 Wall mounting
Place the system on a wall close to the dosing section and follow the instructions described below.
2.2 Electrical connections
Before proceeding with the installation, ensure the presence of a suitable earthing connection and of an
appropriate sensitive differential switch. Observe electrical values indicated on the system label.
ATTENTION: Before carrying out maintenance on the system, always disconnect the power supply.
Always check all electrical connections, by using a multimeter. An incorrect voltage may damage the
system not covered by the guarantee. The following manual must always be kept as reference for
any electrical connection.
All electrical connections must be carried out in compliance with local laws regarding electrical
systems.
CAUTION !!!!!
Verify that the earth system is perfectly functional and complies with the applicable regulations.
Ensure the unit is connected to a circuit protected by a highly sensitive (0.03A) RCCB circuit
breaker. If unsure please consult a competent electrician. Verify that the rated values of the pump
are compatible with those of the mains. Never install the pump directly in parallel with inductive
loads (e.g. motors/solenoid valves) if necessary, use an isolating relay.
There are 2 protection devices inside the pump: a varistor and a fuse.
2.2.1 Main power supply
Connect a voltage between 100 and 240VCA - 50/60Hz on clamp .
2.2.2 Temperature probe
Connection of the temperature probe PT100 to the corresponding clamp; depending on the probe model available,
carry out one of the connections described below:
2.2.3 Flow signal
Connect the flow sensor signal on input PROX.



TECHNOPOOL3 INSTALLATION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 6/64
2.2.4 Dosing enabling signal (V1)
Connect the enablement signal to the dosing (20-230VAC) on input CHARGE.
2.2.5 pH pump product level probe
Connect the level probe (on/off contact, without voltage) to input LEVEL RIN.
2.2.6 Rx pump product level probe
Connect the level probe (on/off contact, without voltage) to input LEVEL SAN.
2.2.7 Alarm output –24V OUT Clamp
It is an alarm repetition output that provides a voltage at 30VCC with a
maximum absorption of 500mA.
2.2.8 Solenoid valve output –RELAY Clamp
RELAY clamp provides a dry contact (not live) and it is used to control
the solenoid valve.
To have a voltage on the RELAY clamp equal to the power voltage, i.e.
230VAC, follow the diagram indicated on the side.
2.2.9 Pump switches
The system can be set with dose enable switches for each pump, which block the dosing of the associated pump.
Switches are connected to the circuit in the following way:
pH Pump on connector J16
Rx Pump on connector J15

TECHNOPOOL3 INSTALLATION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 7/64

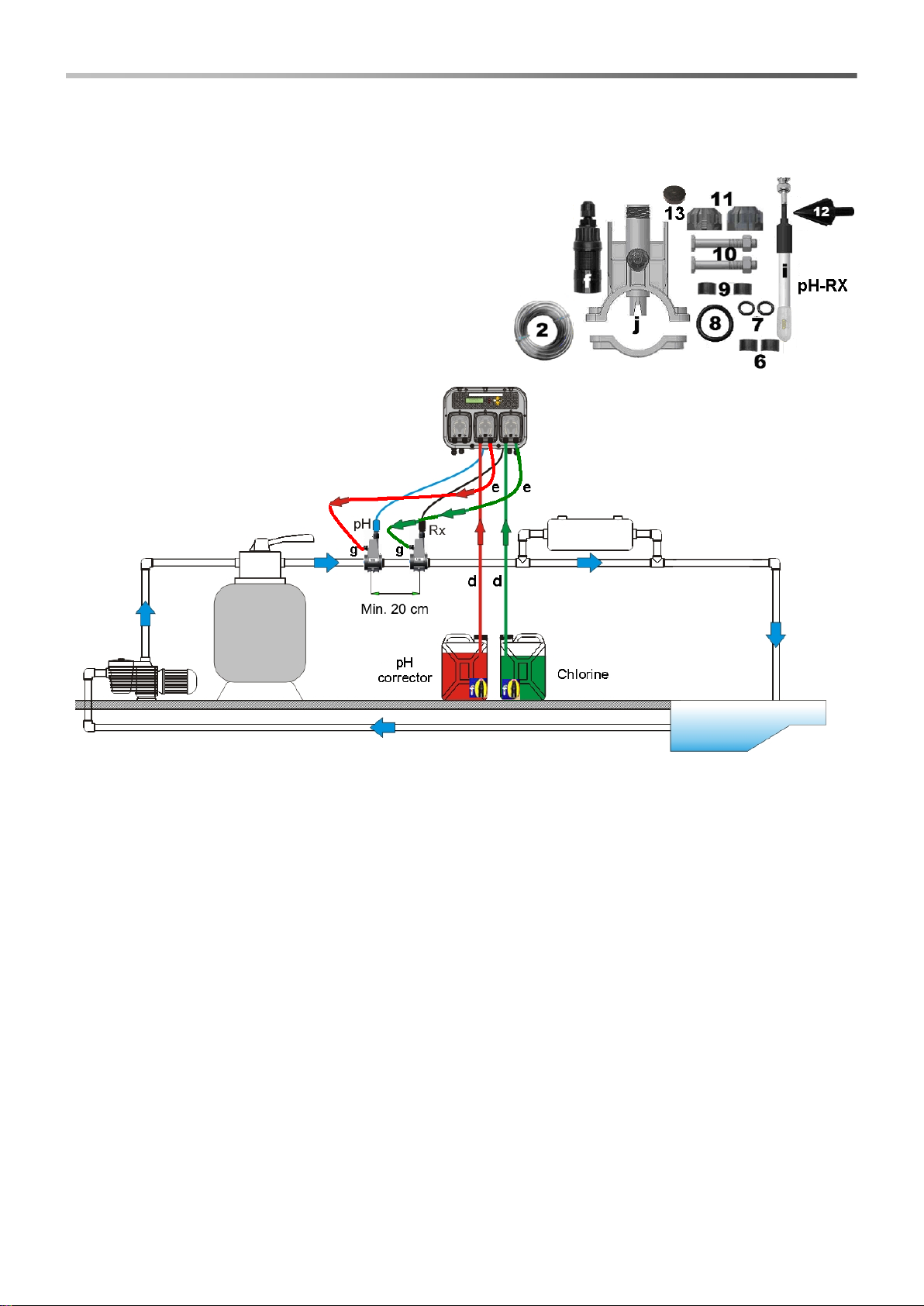

2.3 Hydraulic connections

TECHNOPOOL3 INSTALLATION
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 8/64
2.3.1 Assembly of the accessories
Probe holder assembly
- The injection probe holder (j) can be installed on a DN50 or DN60 PVC tube, after a 24mm hole has been
drilled
- Ensure the injection tube is inserted so that it points in the direction of flow marked by the arrow
- The injection probe holder must be installed within ± 45oof the vertical.
How to make D24mm hole
- Drill a 5 mm pilot hole in the top of the PVC tube
- Enlarge the hole with the special tool D24mm supplied in the kit
- Remove any burrs from the hole
2 in 1 Probe holder installation(ref. j):
- Put the o-ring (ref. 8) on the injection tube
- Insert the injection tube inside the PVC tube, ensuring that the injection is in the same direction as the pool
circulation (indicated by the arrow on the sticker)
- Put the big o-ring in its seat keeping it in its position, place the upper part of the probe holder (ref. j) on the
PVC tube
- Use the screws to join the 2 parts of the probe holder (if the PVC pipe is DN63 use the 2 spacer (ref. 9))
Warning Do not fully tighten one nut before the other.
Installation of 4 x 6 tube (ref. 2) on d
e f g elements
Long probe Installation (120 mm)
- A standard electrode (12x120 mm) can be used, in that case you must use all the
accessories inside the kit
- Put the nut (ref. 11) on the probe body and than, alternatively, one spacer (ref. 6) and one
o-ring (ref. 7), like shown in the picture on the side
- Insert with care the electrode in the probe holder, having care that all the components
reach their seats. Then screw the nut with care (ref. 11).
Warning Do not bend the electrode otherwise it will be damaged. Electrode inner part is
very fragile.

TECHNOPOOL3 TECHNOPOOL3 MENU
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 9/64
3 Technopool pH-Rx MENU
Technopool pH-Rx programming system is divided in 2 menus: User and Installer.

TECHNOPOOL3 TECHNOPOOL3 MENU
Dosing systems for swimming pools ENGLISH
ADSP7000716 rev. 1.0 25/01/2017 10/64
3.1 User Menu
The User Menu is used to verify the status of pumps and solenoid valve and also allows to prime the pumps.
Default screen shows the reading of the pH, Rx and the temperature.
Shows the status and the alarm of the pumps and solenoid valve.
Displays the status of pH pump.
Displays the status of Rx pump.
Displays the status of the solenoid valve.
Status
Description
Active
The pump is active
Inactive
The pump is inactive
Flow alarm
Flow alarm active
Circ. Pump Off
The recirculation pump is not operating
Switch Off
The pump switch is set on OFF
Level alarm
The product tank is empty
Range alarm
Reading of pH out of the allowed range
OFA alarm
Dosing alarm
Stabilisation
Stabilisation of the probe reading
Status
Description
Active
The pump is active
Inactive
The pump is inactive
Flow alarm
Flow alarm active
Circ. Pump Off
The recirculation pump is not operating
Switch Off
The pump switch is set on OFF
Level alarm
The product tank is empty
OFA alarm
Dosing alarm
Stabilisation
Stabilisation of the probe reading
Status
Description
Active
The solenoid valve is active
Inactive
The solenoid valve is inactive
Flow alarm
Flow alarm active
Circ. Pump Off
The recirculation pump is not operating
Stabilisation
Stabilisation of the probe reading
