Mega VIPER User manual

USER MANUAL

CONTENTS
List of contents
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Property rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly (I.M.T.U) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly (Smart Detect - PS 28). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly (Smart Detect - PS 36). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Assembly (Stack Holder). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Panel Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto LRL System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CTRL LRL System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual LRL System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IONIC System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BIONIC System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Smart Detect System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Costumer Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
5
6
8
10
11
12
13
16
17
23
26
30
34
36
38
41
42
2

WARNINGS
Do not assemble and operate the device before reading the user manual.
3
The device may only be dismantled or repaired by MEGA DETECTION Gmbh or its authorized
service centers. Unauthorized disassociation / infiltration of the internal components of the main
monitor or other units for any reason cancels the warranty.
Do not store the device and its components under extremely low or high temperatures for long
periods (the preferred storage temperature is -20 ° C to 60 ° C / -4 ° F to 140 ° F).
Do not use the device indoors. The device may constantly give target signals indoors as there
are many metals. Use the device outdoors, in open fields.
Do not submerge the device or its accessories in water. Do not expose the equipment to excessively
moist environments.
Do not leave another detector or electromagnetic device close to the device (within a distance of
less than 10 meters by 30 feet)
Do not hold any metallic objects while using the device.
Protect the main unit of the device from impacts during normal use. For transportation, place the
detector carefully in the original carton and secure with shock-resistant packaging.
Keep the device out of your shoes while walking. The device may detect minerals on you or inside
your shoes as targets.

PROPERTY RIGHTS
Copyright © Mega Detection (© 2021 All Rights Reserved)
4
No part of this guide may be reproduced, including the products and programs described in it.
Any use of material, reproduction, storage or translation of this information without prior permis-
sion from MEGA DETECTION Gmbh is subject to legal liability of its owner.
MEGA DETECTION invites all users to ensure that the acquisition and use of this type of equipment
complies with the laws and regulations of the countries in use and is not responsible for the legal
consequences if the laws state otherwise.
MEGA DETECTION does not bear in all cases or any of its directors, officials, employees, and
authorized agents indirect, special, incidental, or consequential damages (including damages for
interest loss, business loss, loss of use or data, business interruption and the like), even if the
company was notified of the possibility of such damages arising from any defect or error in this
manual or product.
The specifications and information contained in this guide are published for information use only
and are subject to update periodically at any time without notice to the user.
The products and company names that appear in this guide may be registered trademarks and
copyrights are reserved for the related companies and mentioning them here is used only for
identification and for the benefit of the owner, without intentionally infringing on the property
rights of these companies.
MEGA DETECTION is not responsible for misunderstanding this manual or misusing the device in
violation of the instructions in this guide.

INTRODUCTION
Auto Long Range Locator System
Manual Long Range Locator System
Control Long Range Locator System
IONIC System
BIONIC System
Smart Detect
5
With the engineering, research and development team at Mega Detection, a dream is now a reality with
mega VIPER detector.
A comprehensive metal detector with multiple detection technologies within one device that provides
prospectors with all the necessary tools to detect buried treasures.
The integrated VIPER contains 6 different systems to search for gold, metal and ancient archaeological
burials with advanced technology and easy to use at the same time.
Thank you for choosing the VIPER product from Mega Detection. For more information, you can
visit our website.

PACKAGE CONTENT
A B
C
F
D
E
1
2
3
4
5
67
8
9
10
11
12
13
6

PACKAGE CONTENT
7
Main unit
IMTU Sensor
5 Pin Connector Base (For Coils)
Lithium-Ion Battery
Higher Stick (Shaft)
Medium Stick (Shaft)
Lower Stick (Shaft)
Armrest (Holder)
Long-Range Antennas ( x2 )
Headphones
PS.36 Detector Coil
PS.28 Detector Coil
Accesories Box including:
A. Coils Screw and Nut (x2)
B. Washer for Plastic Stick (Shaft)
C. Armrest (Holder) Screws (Spare Parts)
D. 220V Battery Charger
E. Headphones Cable
F. Universal Power Adapter
1
2
3
4
5
6
7
8
9
10
11
12
13

AUTO LRL SYSTEM
MANUAL LRL SYSTEM
CTRL LRL SYSTEM
IONIC & BIONIC

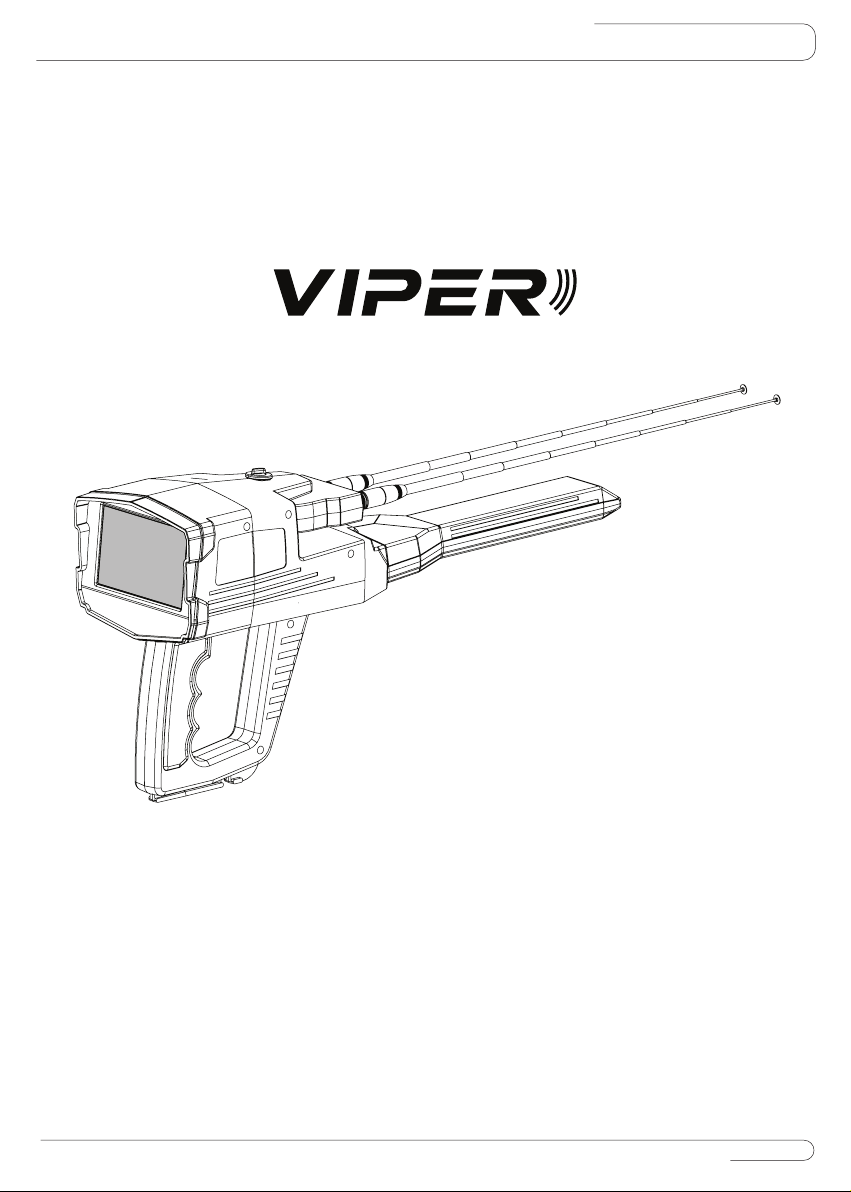

OVERVIEW
8

OVERVIEW
9

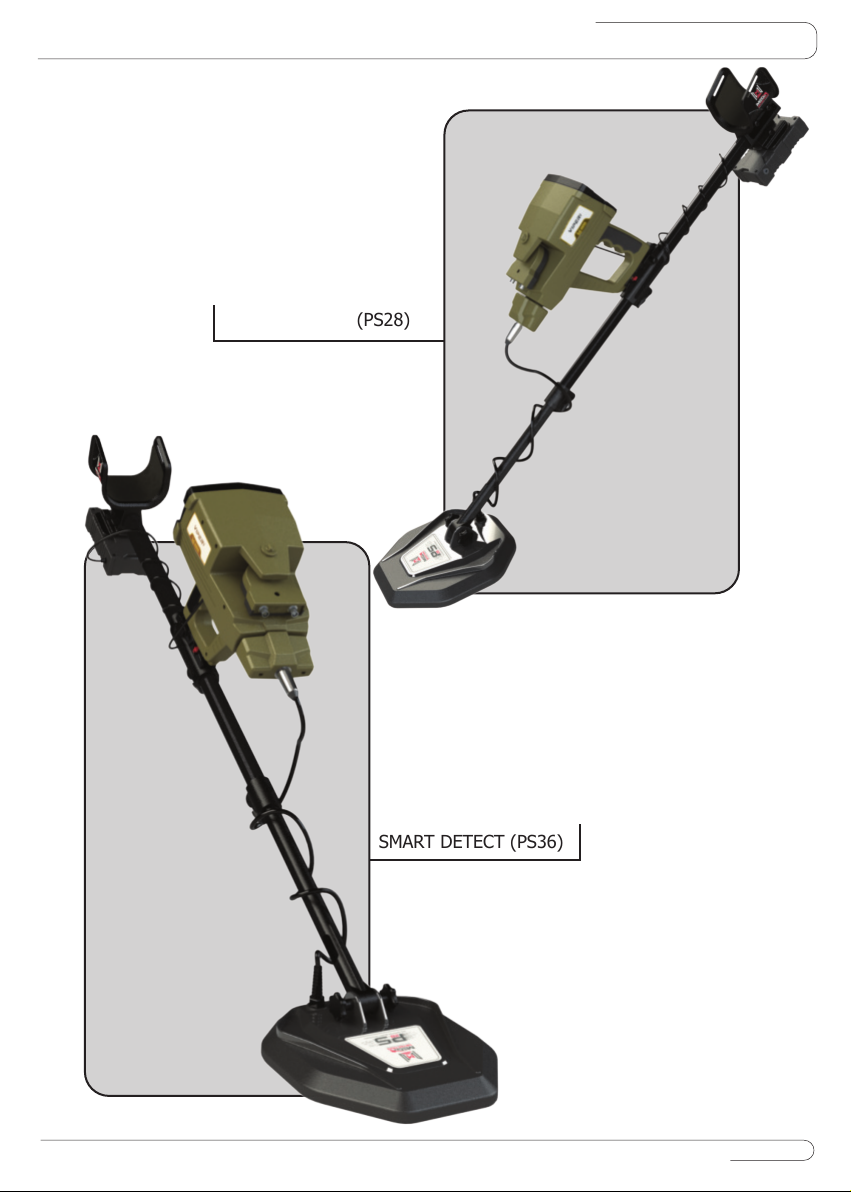

SMART DETECT (PS36)
SMART DETECT (PS28)

10
1
2
1Connect the antenna on the device as it shown at the picture
3Use the power jack to connect the battery
Power Jack
2Connect the I.M.T.U Sensor on the device
Auto LRL
Manual LRL
Ctrl LRL
Ionic System (without No 1)
Bionic System (without No 1)
ASSEMBLY

ASSEMBLY
11
1
2
3
4
6
5
1Attach the medium pipe inside the higher pipe.
2Assemble the PS 28 Coil and the lower pipe using the specific screw and nut.
3Attach the battery to the hand holder so that the battery clip is in its specific place
4Connect the PS 28 Coil cable into the connector base
5Put the device on the holder as it shown in next page
6Connect the battery to the device
Smart Detect - PS 28

ASSEMBLY
12
1
2
3
4
6
5
1Attach the medium pipe inside the higher pipe.
2Assemble the PS 36 Coil and the lower pipe using the specific screw and nut.
3Attach the battery to the hand holder so that the battery clip is in its specific place
4Connect the PS 36 Coil cable into the connector base
5Put the device on the holder as it shown in next page
6Connect the battery to the device
Smart Detect - PS 36

1 2
3
12
Attach the main unit on the holder
De attach the main unit from the holder
Lock pin
1Prepare the main unit and the stack unit
2Fit the main unit and the holder rail as
Parallel position
3Put the main unit into the rail until you hear
a sound come from the lock pin
1Press the Lock pin on the holder
2Pull the main unit to front side
ASSEMBLY
13

ASSEMBLY
14
1
2
1
2
Unscrew the screw on the holder counter clockwise
fit the main unit as the prefared degree and Close the screw again
To fit the view degree of main unit on the holder, there is an option users can
use. This option helps to fit device position on holder that users can see the
display screen as well as possible.

15
System Settings

1. Power Key
3. OK Key
2. Back Key (Backward)
4. Home Key
5. Control Settings Arrow Keys (Right - Left - Up - Down)
OK
OK
5
4
3
2
1
PANEL KEYS
16

SETTINGS
17
Power ON
You can choose other options in the screen using arrows
Go on setting icon and press
OK
To turn off the main unit, just press the power
key , when confirmation message
appears, choose "Yes" to confirm, or "No" to
cancel. after power off the device press on
battery power button to power off the battery.
Power OFF
Adjust Settings
You can set the device setting by selecting
Settings from the main menu
To power on the main unit, connect the battery to the main unit then power on the battery by pressing
one time on battey power button, then press on on the main unit.

SETTINGS
18
1. Use the left/right arrows
To select “date & time” item then press
Date
3. In this window use arrows to select the
Correct date then after setting each one
Press to save
2. Use top/ down arrows to select
“Set Date” then press
OK
OK
OK
4. After adjusting the setting press back
on device controls key
Use this option to save power when using the
device.
With this option, the battery life can be
increased by at least 50% , it depends on the
search system and the type of connected
probe
29
Day
SET DATE
2021
10
Month
29
Day Year

To activate the device's security settings, you
must click on the security lock option
within the security settings.
Time
2. In this window use arrows to select the
correct time then after setting each one
press to save
1. While you are in date and time setting
menu use top/ down arrows to select
“Set Time” then press
OK
OK
After adjusting the setting press back
on device controls key
After activating the previous option, the securi-
ty lock code can be set by the "Set Security
Code" option.
When operating the device for the first time,
the device will ask you to enter the security
code (device password), which you get from
the manufacturer or through the authorized
distributor of the device in your country.
The security lock option can be locked in the
device so that the device does not require the
entry of the code after each operation
SETTINGS
19
SET TIME
13 10
Press OK to save
