MegaLite AR Wash 1W User manual

USER MANUAL
Table of Contents
Safety Information……………………………………………………………………………………………. 3
Specifications……………………………………………………………………………………………………..4
Main Power Connection…………………………………………………………………………………..5
DMX-512 Connection…………………………………………………………………...……………...... 5
Rigging the Fixture............................................................................................................6
Main Control Menu.......................................................................................................... 7
DMX Profile......................................................................................................................... 9
Cleaning & Maintenance............................................................................................ 10
Parts List........................................................................................................................... 10

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 2 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 80ºC.
Protection Against Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
3

4

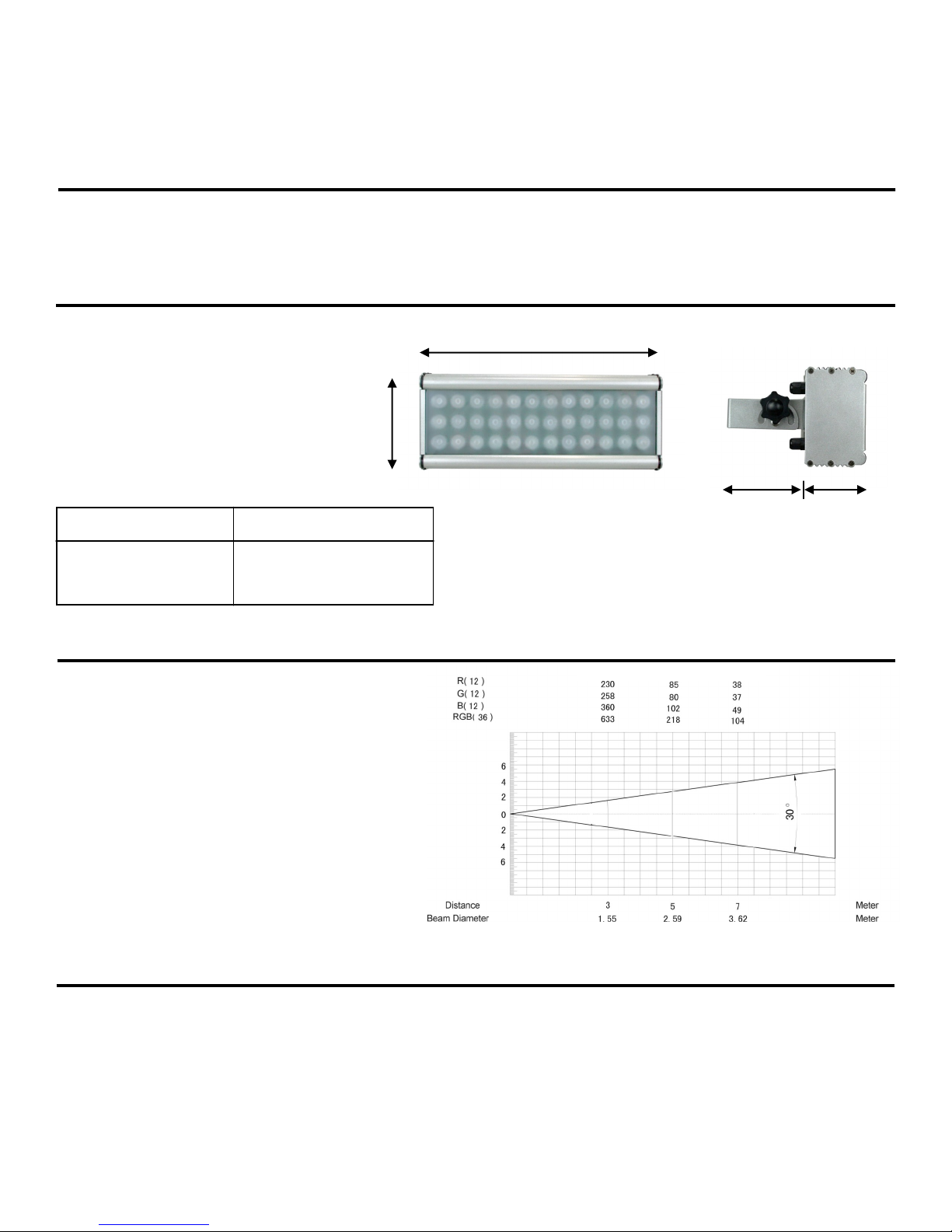

Specifications
Part Numbers
Fixture
4042–Arc Wash 1W
Mechanical Specifications
Fixture Packaged for Shipping
Size: 12.5”L x 7.25”W x 5”H
Weight: 6 lbs
Size: 15.75”L x 8”W x 8”H
Weight: 10.5 lbs
IP Rating: IP 65
DMX Connectors: Cable mounted 3-pin XLR connectors
Fastening System: Mounting Yoke
Display: Digital
Security System: Eye bolt clip
Electrical Specifications
LED Quantity: 36
Red: 12
Green: 12
Blue: 12
Segment Control: 2 segment control
LED Wattage: 1 Watt
LED Lifetime: 60,000 to 100,000 hours
LED Angle: 35° ( ± 5º)
Power Consumption: 100 - 240V 50/60 Hz
Ballast: Electronic
Watts: 44
Amps: .58
Control & Programming
12.5 ”
5”
3”4.25 ”
Protocol: DMX 512
3 DMX Modes: Mode A 8 DMX Channels R,G,B, Dimmer, R,G,B, Dimmer
Mode P 6 DMX Channels R,G,B, R,G,B
Mode F 6 DMX Channel Dimmer, R,G,B, Strobe, Macro
Control options: Audio-trigger
Operating mode: Master/Slave, Stand alone

5
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically
3. This unit must be earthed. (electronically grounded)
4. Replace fuse only with the specified type and rating.
The occupation of the connection-cable is as follows:
1
2
3
1
3
2
DMX-512 Connection
110V Connection
The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded
twisted pair cable designed for RS-485 and 3 pin XLR plugs and connectors in order to connect the controller with the fixture or
the fixture with another.
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120
Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the
last fixture on the signal run. Pre-manufactured terminator plugs are available for
purchase from your Mega-Lite dealer (HOS-DMXT).
Cable (USA) Cable (EU) Pin Connection
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
Cable (USA) Cable (EU) Pin Connection
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Live
Neutral
L
N
220V Connection

Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience includ-
ing but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifica-
tions, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to
be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least
one time a year by a skilled person.
6

7
Main Control Menu
The control board on the fixture base is your interface to
access and control all the functions on the unit. Its digital
display gives you a code view of the options. The following
will explain each function and its options.
DMX Modes
Use the Enter keys to select the required DMX Mode. Repress Enter to scroll to the mode options A,P and F. Use the up/down
keys to select the required DMX channel. Press Menu to confirm.
Red LED Intensity
Use the Enter keys to select the required intensity of the red LED. Use the up/down keys to select options from 1 to 15. Press
Menu to confirm.
Press the Menu button, Use the up/down keys to select the required function Press Enter to select
Green LED Intensity
Use the Enter keys to select the required intensity of the green LED. Use the up/down keys to select options from 1 to 15.
Press Menu to confirm.
Blue LED Intensity
Use the Enter keys to select the required intensity of the blue LED. Use the up/down keys to select options from 1 to 15. Press
Menu to confirm.
Strobe LED Speed
Use the Enter keys to select the required speed of strobe. Use the up/down keys to select options from 1 to 15. Press Menu
to confirm.
Fade Color LED Speed
Use the Enter keys to select the required speed of fade color. Use the up/down keys to select options from 1 to 15. Press
Menu to confirm.
Snap Color LED Speed
Use the Enter keys to select the required speed of snap color. Use the up/down keys to select options from 1 to 15. Press
Menu to confirm.
Menu Up Down Enter
Mode A 8 DMX Channels R,G,B, Dimmer, R,G,B, Dimmer
Mode P 6 DMX Channels R,G,B, R,G,B
Mode F 6 DMX Channels Dimmer, R,G,B, Strobe, Macro

8
Macro Effects
Use the Enter keys to select the required macro effect. Use the up/down keys to select options from 1 to 15. Press Menu to
confirm.
Macro Speed
Use the Enter keys to select the required speed of the macro effect. Use the up/down keys to select options from 1 to 15.
Press Menu to confirm.
Sound Macro Color
Use the Enter keys to select the required sound macro effect. Use the up/down keys to select options from 1 to 15. Press
Menu to confirm.
Sound Macro Flash
Use the Enter keys to select the required sound flash macro effect. Use the up/down keys to select options from 1 to 15.
Press Menu to confirm.
Sound Sensor Sensitivity
Use the Enter keys to select the required sound sensor sensitivity. Use the up/down keys to select options from 1 to 15. Press
Menu to confirm.

9
Arc Wash 1W Mode A (8 Channel)
DMX Chanel Function Description Value
1 LED Color RED LED intensity 0-255
2 LED Color Green LED intensity 0-255
3 LED Color Blue LED intensity 0-255
4 Dimmer Dimmer Segment 1 0-255
5 LED Color RED LED intensity 0-255
6 LED Color Green LED intensity 0-255
7 LED Color Blue LED intensity 0-255
8 Dimmer Dimmer Segment 2 0-255
Arc Wash 1W Mode P (6 Channel)
DMX Chanel Function Description Value
1 LED Color Red LED intensity Segment 1 0-255
2 LED Color Green LED Intensity Segment 1 0-255
3 LED Color Blue LED Intensity Segment 1 0-255
4 LED Color Red LED intensity Segment 2 0-255
5 LED Color Green LED Intensity Segment 2 0-255
6 LED Color Blue LED Intensity Segment 2 0-255
Arc Wash 1W Mode F (6 Channel)
DMX Chanel Function Description Value
1 Dimmer Master Dimmer 0-152
2 LED Color Red LED intensity 153-242
3 LED Color Green LED Intensity 243-255
4 LED Color Blue LED Intensity 0-255
No Function 0-9
Strobe (slow to fast) 10-57
No Function 58-59
5 Strobe Pulse On to Off (slow to fast) 60-108
No Function 109-110
Pulse Off to On (slow to fast) 111-159
No Function 160-161
Random Strobe 162-255
No Function 0-9
Color Fade (slow to fast) 10-50
Color Fade RGB (slow to fast) 51-91
6 Macro Color Fade Chase 92-132
Color Snap 133-173
Color Pulse 174-214
Random Macro 215-255

Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electron-
ics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further
instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems
have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use lint free cloth don’t use rubbing alcohol.
1) The Fixture will require periodic cleaning on usage and environment. Environment with foggers will require more periodic
cleaning as fog fluid tends to build up residues, reducing the light output.
2) The drape fixture should be cleaned using a vacuum hose.
Note: There is no serviceable parts inside the device except for the LED’s. Maintenance and service operations are to be carried
out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized dealers only
In order to avoid hazards.
Should you have further questions , please contact your dealer.
10
Parts List
4043-pc Power Supply
4041-gc Clear Glass
4041-fg Frosted Glass
4041-dmxf DMX female XLR adapter
4043-mpcb Main PCB Card
4000-dis Digital Display
4041-dmxm DMX male XLR adapter

Mega-Lite
5718 Kenwick St
San Antonio, TX 78238
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
