MegaLite XBAR User manual

USER MANUAL
Table of Contents
Safety Information…………………………………………………..…3
Specifications…………………………………………………………..4
Main Power Connection…………………………………………….. 5
DMX-512 Connection……………………………………………...... 5
Main Control Menu.........................................................................6
DMX Profile.................................................................................... 8
Rigging the Fixture……………………………...…………………….10
Cleaning & Maintenance................................................................10
Parts List........................................................................................10

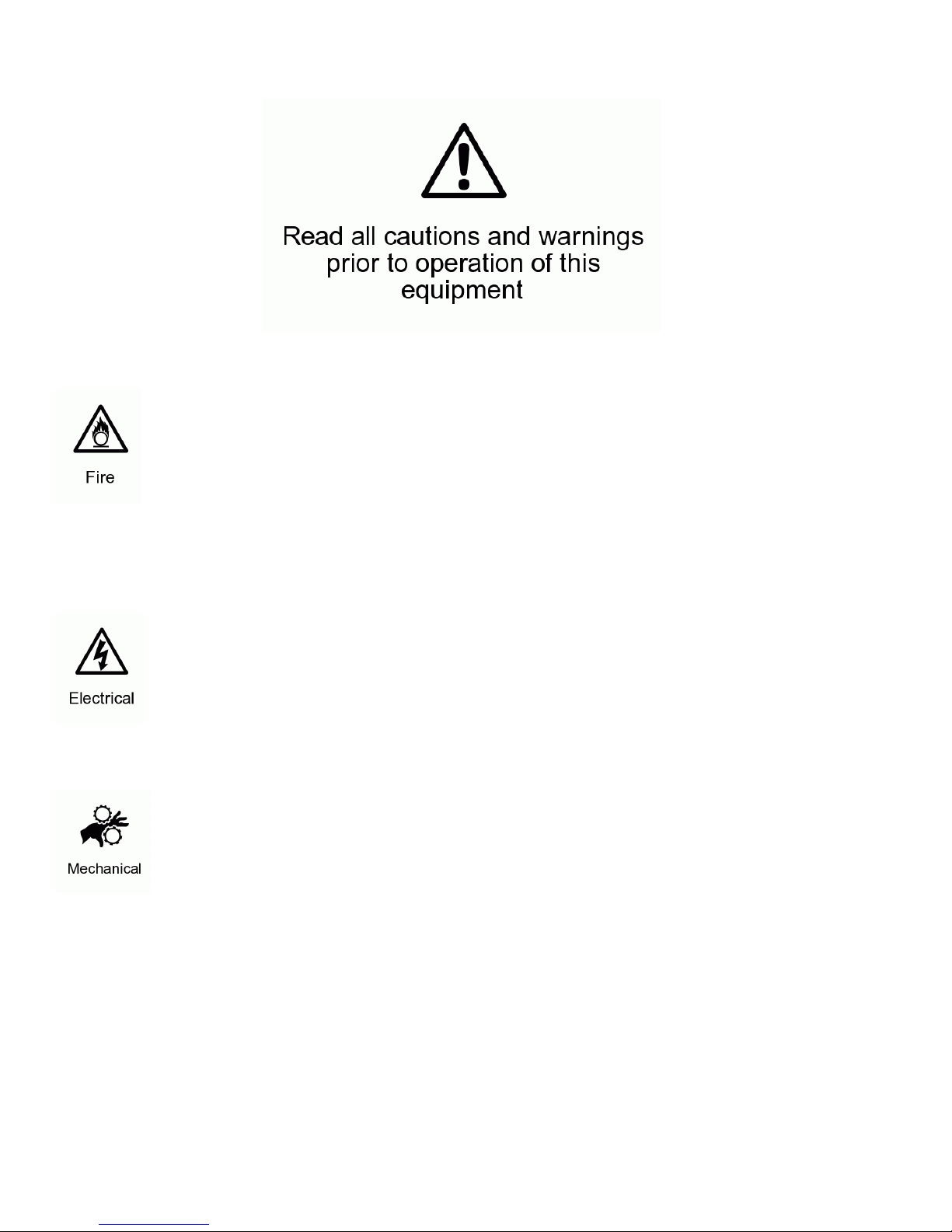

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 80º.
Protection Against Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
5. This unit must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
3

Technical Information
4
3014– XBAR LED Strobe RGB
Mechanical Specifications
Electrical Specifications
DMX 512 Protocol
DMX Modes: Mode A 3 Channels R,G,B
Mode B 4 Channels Dimmer, R, G, B
Mode C 7 Channels Dimmer, R, G, B, Strobe, Macro
Mode D 8 Channels Dimmer, R, G, B, Strobe, Macro, 8 Segment Macro
Mode E 24 Channel R,G,B, X 8
Control Options: Display Control, Master Slave
Control & Programming
DMX Connectors: 3 and 5 pin XLR connectors in and out
Thermal: Maximum ambient temperature 104°
Maximum surface temperature 140°
Fastening System: Double side Mounting Yoke
Display: LED
Power connection: Power Con type in & out
LED Quantity: 144 RGB SMD LEDS LED Angle: 120°
Power Input Voltage: 110V-240 50/60 Hz Fuse: 5x20 F5AL250V
Ballast: Electronic auto switching
Power Consumption Watts: 106
Amps: 1.54
LED Watts: .50
LED Lifetime: 60 to 100 thousand hours
Segments: 8 Segments
Part Numbers
5.5”
4.8”
35.5”
Fixture 5 Unit ATA Road Case
Size: 35.5” x 3” x 5.5”
Weight: 6.5 lb
Size: 37.75” x 21” x 19.5”
Weight: 52 lb (empty)
3”
33.12”

5
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically
3. This unit must be earthed. (electronically grounded)
4. Replace fuse only with the specified type and rating.
The occupation of the connection-cable is as follows:
DMX-512 Connection
This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to
The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only
use a shielded twisted pair cable designed for RS-485 and 5 pin XLR plugs and connectors in order to connect the con-
troller with the fixture or the fixture with another.
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-
ble for purchase from your Mega-Lite dealer (P-DMXT).
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
L
L
220V
L
L
110V
Connec-
220V
Connec-
N
L
DMX—Input DMX—Output
1. Shield
2. Signal (-)
3. Signal (+)
4. N/A
5. N/A
2
3
15
3
4
2
11
2
3
1
2
3
4
5

Display Menu
6
The control board on the fixture base is your interface to access and
control all the functions on the unit. Its digital display gives you a code
view of the options and functions. The following will explain each func-
tion and its options.
ESC DOWN UP ENTER
CONTROL BOARD
Address
001
Work Mod
DMX 512
DMX 512= This mode will allow you to operate the fixture with a DMX controller
Master= This Function Allows you to run the Auto Programs Or Audio Programs
and send DMX signal out to the Slave units
Slave= On Slave Mode the fixture will copy the functions on the Master unit
To Set the Desired operational mode press Enter. Use the Down or Up to se-
lect the desired mode and press Enter to confirm your setting.
—Mega Lite—
XBAR LED
To Set the DMX Start Channel press Enter. Use the Down or Up to select the
desired DMX Start Channel and press Enter to confirm your setting.
(Note: (S) Will flash indicating there is DMX signal present)
Chan Mod
ACH
To set the desired operational channel mode press Enter. Use the Down or Up
to select the desired DMX profile operational mode from A,B,C,D and E press
Enter to confirm your setting.
Note: Operational mode are located on Page 8 of the manual.
Auto
This function will give you access to the Preprogramed Chases Press Enter.
Use the Down or Up to select the programed chase, press Enter to confirm your
setting. Use the Down or Up to select the desired speed of the Chase from 1 to
5 press Enter to confirm your setting
RED
000
Color
Set
This function will give you access to set Intensity of each color via display. Press
Enter. Use the Down or Up to select the desired intensity. Press Enter use the
Down or Up to select intensity from 0 to 255. You can repeat this process to
get any color combination.
(Note) once intensity is set you can power up and the last Intensity setting will
automatically come on.
Green
000
Blue
000

7
Tools
This function will give you access to the Display Control press Enter. Use the
Down or Up to select the desired display operational Mode from Display On that
will leave the display always turned on. Or Display Auto that will make the dis-
play turn off after no usage for 60 seconds., press Enter to confirm your setting.
Display
Mode
Time
This function will give you information of how long the fixture has been turned on.
Temp
This function gives you information of the fixtures current temperature
Key Mode
This function will give you access to lock the menu keys so they are not accident-
ly moved. Press Enter. Use the Down or Up to select the desired Key settings
from Lock Or Unlock press Enter to confirm your setting. You will have to hold
the Enter button for 3 seconds, to unlock the keys.
DMX
Status
Value
Hold
Value
Clear
If DMX signal is lost. The Fixture will hold the last DMX value
sent.
If DMX signal is lost. The fixture will bring dimmer channels to
zero.
Strobe
Set
This function will give you access to set strobe rate via display. Press Enter.
Use the Down or Up to select the desired color. Press Enter use the Down or
Up to select intensity from 0 to 255. You can repeat this process to get any col-
or combination.
(Note) once strobe is set you can power up and the last strobe setting will auto-
matically come on.
RED
000
Strobe
000
Intensity
Set
This function will give you access to set Strobe Intensity via display. Press En-
ter. Use the Down or Up to select the desired strobe intensity. Press Enter use
the Down or Up to select intensity from 0 to 255. You can repeat this process
to get any color combination.
(Note) once intensity is set you can power up and the last Intensity setting will
automatically come on.
Green
000
Blue
000

8
DMX Profile
XBAR LED RGB 3 Ch A Mode
DMX Channel Function Description Value Init
1Dimmer Red intensity 0-255 255
2Dimmer Green intensity 0-255 255
3Dimmer Blue intensity 0-255 255
XBAR LED RGB 4 Ch B Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer 0-255 255
1Intensity Red intensity 0-255 255
2Intensity Green intensity 0-255 255
3Intensity Blue intensity 0-255 255
XBAR LED RGB 7 Ch C Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer 0-255 255
2Intensity Red intensity 0-255 255
3Intensity Green intensity 0-255 255
4Intensity Blue intensity 0-255 255
5Duration Flash Duration 0-255 0
6Strobe No Function 0-50
Strobe Rate 6-255
No Function 0-5
Ramp Up Effect (slow to fast) 6-42
Ramp Down Effect (slow to fast) 43-85
7Macro Ramp Up-Down Effect (slow to fast) 86-128 0
Random Effect (slow to fast) 129-171
Lightning Effect (slow to fast) 172-214
Spike Effect 215-255

9
XBAR LED RGB 8 Ch D Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer 0-255 255
2Intensity Red intensity 0-255 255
3Intensity Green intensity 0-255 255
4Intensity Blue intensity 0-255 255
5Duration Flash Duration 0-255 0
6Strobe No Function 0-50
Strobe Rate 6-255
No Function 0-5
Ramp Up Effect (slow to fast) 6-42
Ramp Down Effect (slow to fast) 43-85
7Macro Ramp Up-Down Effect (slow to fast) 86-128 0
Random Effect (slow to fast) 129-171
Lightning Effect (slow to fast) 172-214
Spike Effect 215-255
No Function 0-1
Macro 1 (slow to fast) 2-25
Macro 2 (slow to fast) 26-50
Macro 3 (slow to fast) 51-75
Macro 4 (slow to fast) 76-100
88 Segment Macro 5 (slow to fast) 101-125 0
Macro Macro 6 (slow to fast) 126-150
Macro 7 (slow to fast) 151-175
Macro 8 (slow to fast) 176-200
Macro 9 (slow to fast) 201-225
Macro 10 (slow to fast) 226-255
XBAR LED RGB 24 Ch E Mode
DMX Channel Function Description Value Init
1Dimmer Red Dimmer Segment 1 0-255 255
2Dimmer Green Dimmer Segment 1 0-255 255
3Dimmer Blue Dimmer Segment 1 0-255 255
4Dimmer Red Dimmer Segment 2 0-255 255
5Dimmer Green Dimmer Segment 2 0-255 255
6Dimmer Blue Dimmer Segment 2 0-255 255
7Dimmer Red Dimmer Segment 3 0-255 255
8Dimmer Green Dimmer Segment 3 0-255 255
9Dimmer Blue Dimmer Segment 3 0-255 255
10 Dimmer Red Dimmer Segment 4 0-255 255
11 Dimmer Green Dimmer Segment 4 0-255 255
12 Dimmer Blue Dimmer Segment 4 0-255 255
13 Dimmer Red Dimmer Segment 5 0-255 255
14 Dimmer Green Dimmer Segment 5 0-255 255
15 Dimmer Blue Dimmer Segment 5 0-255 255
16 Dimmer Red Dimmer Segment 6 0-255 255
17 Dimmer Green Dimmer Segment 6 0-255 255
18 Dimmer Blue Dimmer Segment 6 0-255 255
19 Dimmer Red Dimmer Segment 7 0-255 255
20 Dimmer Green Dimmer Segment 7 0-255 255
21 Dimmer Blue Dimmer Segment 7 0-255 255
22 Dimmer Red Dimmer Segment 8 0-255 255
23 Dimmer Green Dimmer Segment 8 0-255 255
24 Dimmer Blue Dimmer Segment 8 0-255 255

10
Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Note: There is no serviceable parts inside the device. Maintenance and service operations are to be carried out by au-
thorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers or trained professional only.
Should you have further questions , please contact your dealer.
Parts List
3014-KNO Knob Set
3014-PS Power Supply
3010-LED LED Replacement
3010-LEDM LED Module
3014-PCBM Main PCB card
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the fixture has
got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
3014-DIS Display
Accessory
3014-DIF Diffusion Filter
3014-RC 5 Unit Road Case
3014-QR Quick Release Clamp Mount

Mega-Lite
18668 Highway 16N
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
