Meijer Holland Limo Hydra Series User manual

Limo Hydra
Manual
Bale collector
Meijer Holland | bale handling systems | Duinkerkenstraat 11 |NL-9723 BN Groningen | The Netherlands
T [phone] | F [phone] | [e-mail] | www.meijerhol land. com

Bale collector Limo Hydra –EN 3
Content
1. Introduction............................................................................................................................ 4
2. Technical specifications.......................................................................................................... 5
3. Safety precautions.................................................................................................................. 6
4. The functioning of the bale collector ..................................................................................... 7
5. Installation, starting up, adjustment...................................................................................... 9
6. Operation and use................................................................................................................ 11
7. Maintenance ........................................................................................................................ 14
8. Problems and solutions........................................................................................................ 15
9. Environment and disposal.................................................................................................... 16

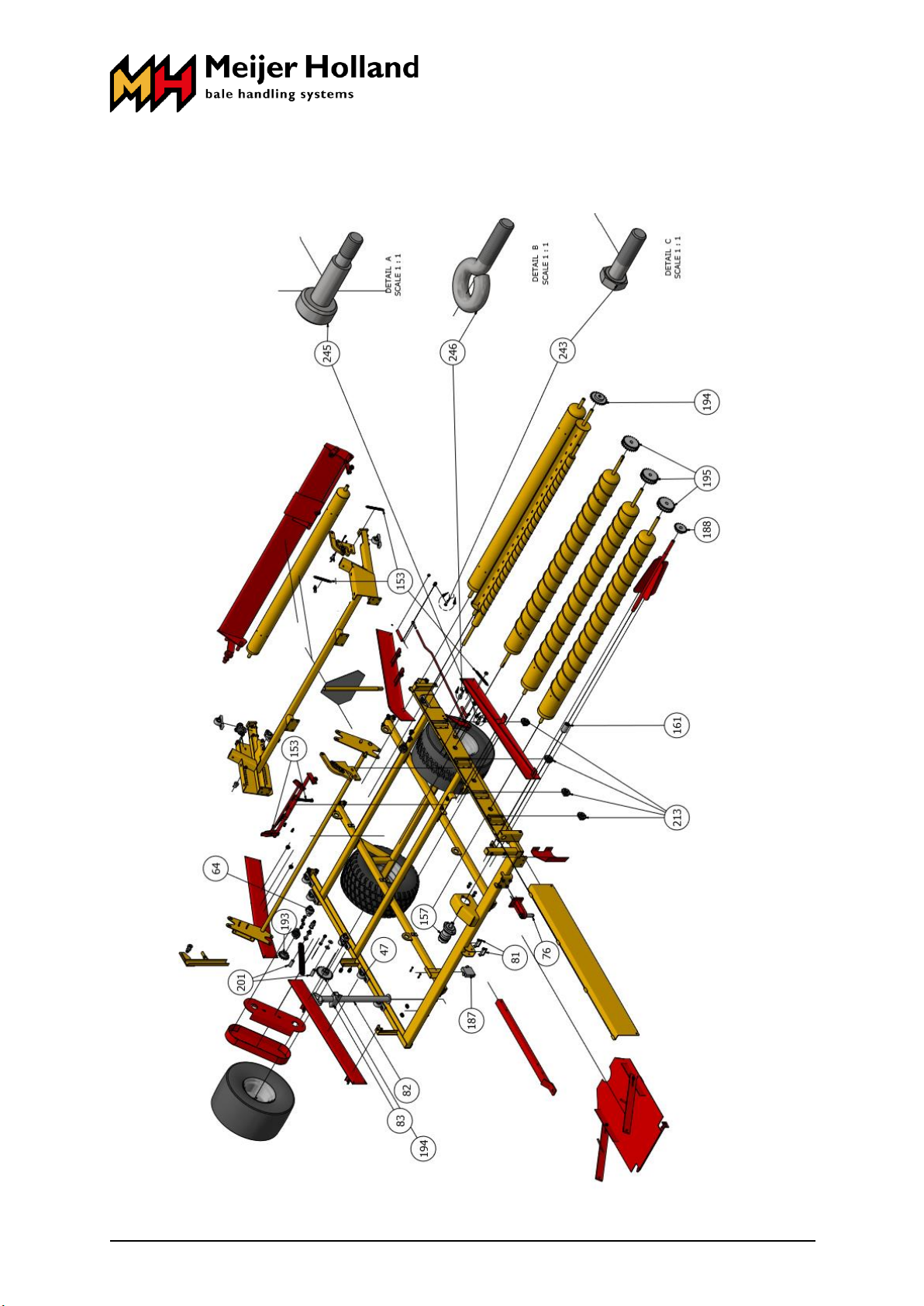

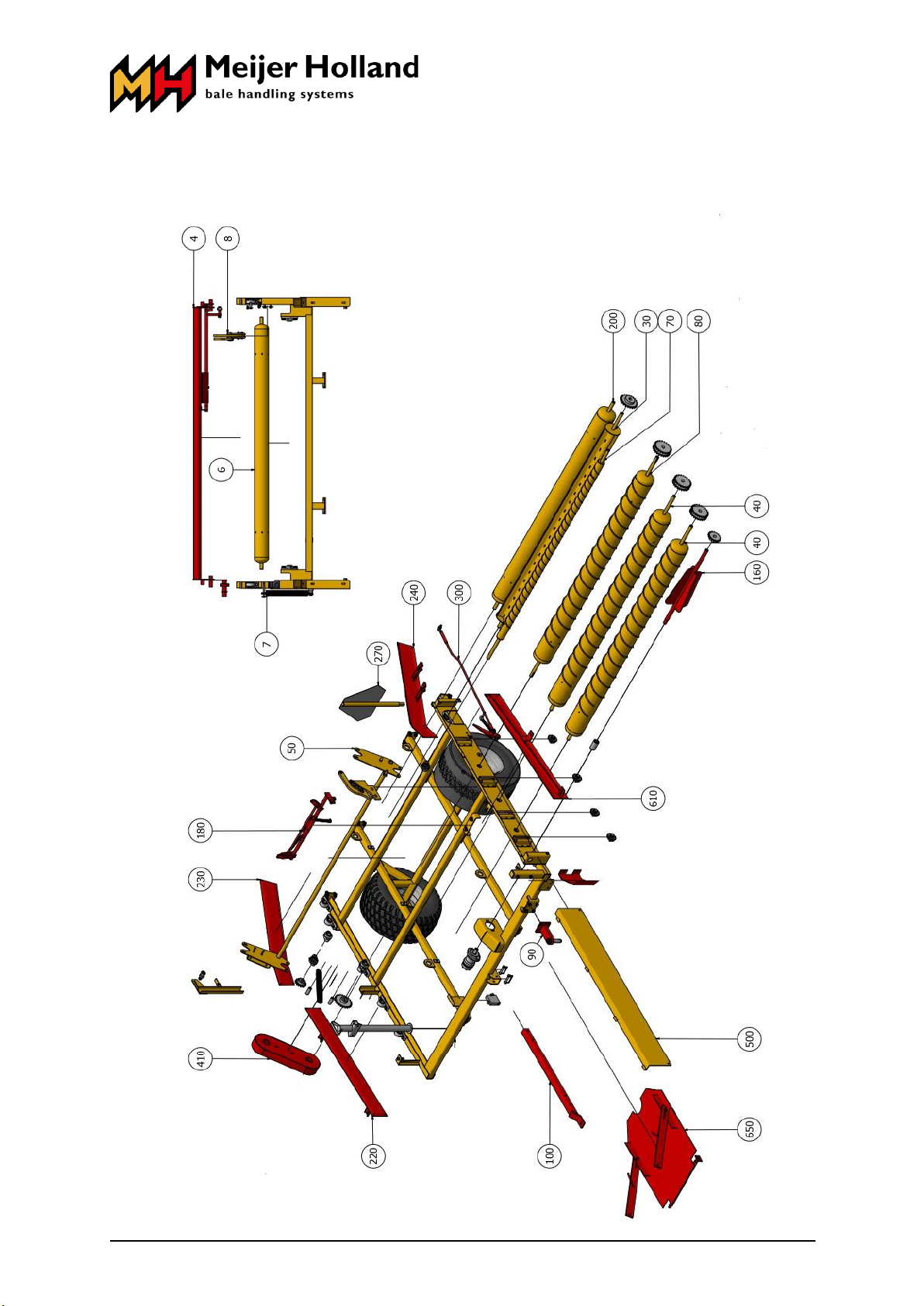

10. Assembly drawings............................................................................................................. 17
11. Parts.................................................................................................................................... 18
12. Extra parts .......................................................................................................................... 20
CE-Declaration of conformity................................................................................................... 22

Bale collector Limo Hydra –EN 4
1. Introduction
The bale collector Meijer Holland Limo Hydra is designed to be attached behind a baler in
order to collect 8 to 15 straw or hay bales. The Limo Hydra is mechanically powered by the
tractor. This manual provides an overview of all the aspects that have to be kept in mind,
before, during and after the use of the machine.
It is important to read the manual carefully before using the machine. Should this not be the case,
there can be the risk of serious injury or death for the user and damages to the environment.
Moreover, there is the risk of damage to the materials or to the machine. Therefore it is essential
that you follow the instructions of this manual.

Bale collector Limo Hydra –EN 5
2. Technical specifications
Limo Hydra 8
Limo Hydra 15M
Lenght cm
315
350
Width cm
255
300
Height cm
100
100
Weight kg
circa 650
circa 900
Volume flow hydraulic circuit liter p/min
circa 30-35
circa 30-35
Max. load
8
15
Dimension bales (lxbxh) cm
105x50x40
85x50x40
Minimum length bale cm
100
80
Minimum weight bale kg
15
15
Max. pressure hydraulic circuit bar
155
155
The Limo Hydra is not optimally working on slopes and on very uneven ground.
With short hay there is a risk of wrapping around the roll.
CE-marking
This machine is certified with the CE-marking. This means that the machine meets the
requirements of the applicable EC directives on safety and health. These directives are
specified in the attached declaration of conformity.
The non-observance of the rules and instructions stated in this manual is to be considered as
serious negligence which leads to the extinguishment of any liability on the part of Meijer
Holland concerning the resulting consequences. In this case, the risk lies exclusively with the
user.
Meijer Holland is constantly improving her products. Therefore she reserves the right to make
any change that is considered necessary. There is no obligation to apply these changes to earlier
delivered machines.

Bale collector Limo Hydra –EN 6
3. Safety precautions
The following precautions are important to prevent injuries and damages.
1.
Read the manual before use.
2.
Only experts should use the collector.
3.
Use the collector only for bales.
4.
It is forbidden to stand on the bale collector or on the roller conveyor at any time.
5.
It is not permitted to stand any closer than five metres to the bale collector while it is being operated.
6.
Check whether the hydraulic system is working well:
right after mounting
before every use
7.
Mind the rules for max. load (chapter 2).
8.
Be aware of oil leakage:
check the hydraulic hoses and cylinders at least once per day.
9.
When the bale collector is attached while driving long distances or on public roads:
mount the warning sign clearly visible to other road users
there should be no bales in the collector!
10.
The vehicle has a permitted maximum speed of 25 km/h with the bale collector (10V engine).
11.
The driver must be aware of the relevant laws and regulations.

Bale collector Limo Hydra –EN 7
4. The functioning of the bale collector
See the assembly drawings in chapter 10 for the order of positioning of the bales.
1. The first three bales of the Limo Hydra 8 are pushed sideways by the spiral rollers.
For the Limo Hydra 15M this applies to the first four bales.
2. The red lever operates the mechanism partially (photo A, position 1).
3. The fourth bale (the fifth bale for the Limo Hydra 15M) triggers the second lever
completely (photo A, position) which unlocks the smaller roller (photo B) that folds down
for the first time. The first set of bales are now transported to the tailgate.
4. At the Limo Hydra 8 the plate on the tailgate will be pushed down by the bales after the
first set of four bales (photo C).
5. At the Limo Hydra 15M the second set of five bales pushes down the flap that is above the
roller (photo D).

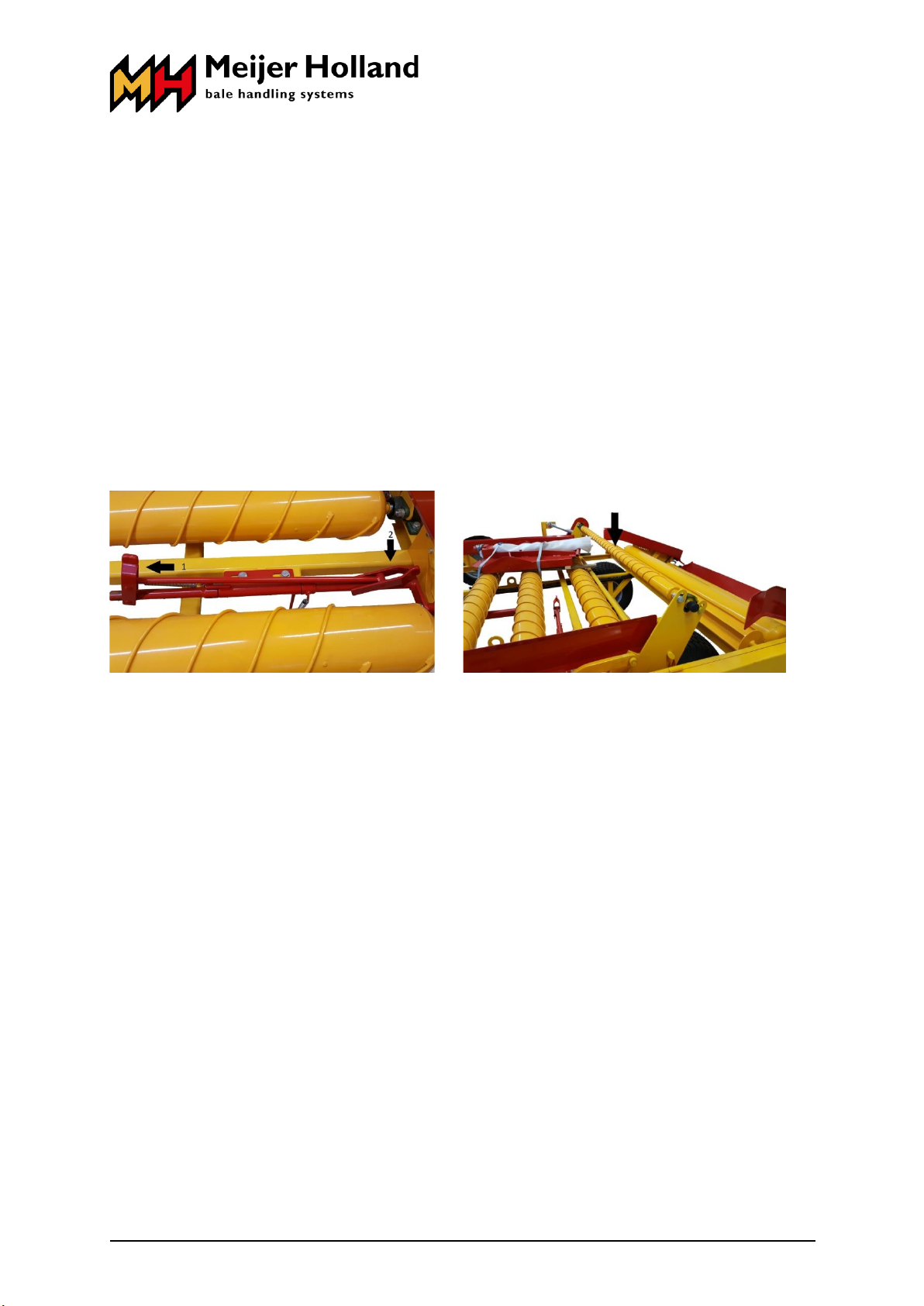

Photo A —red lever operates mechanism
Photo B —Unlocking smaller roller

Bale collector Limo Hydra –EN 8

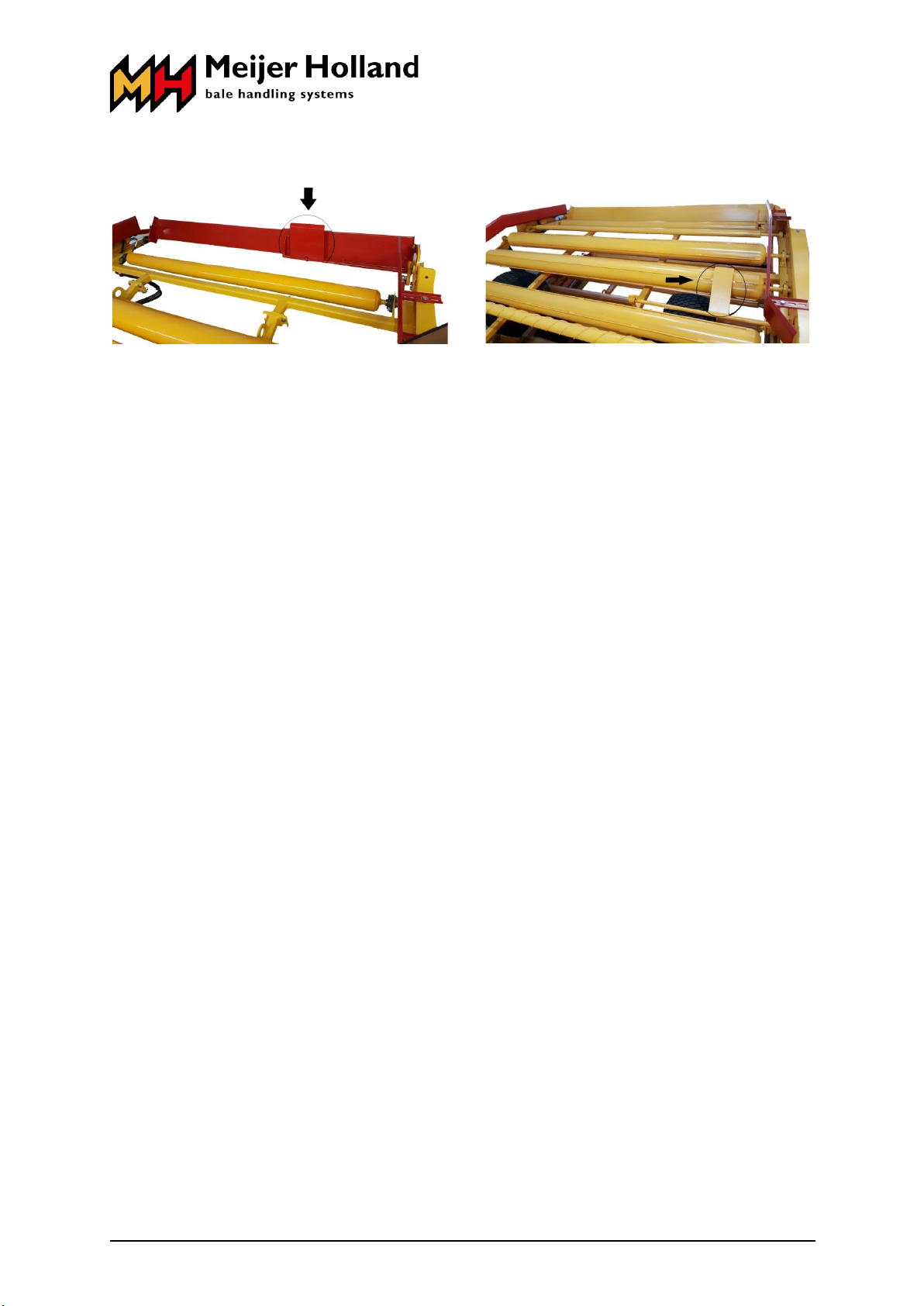

Photo C –tailgate pushed down Limo Hydra 8 Photo D –flap pushed down Limo Hydra 15
The smaller roller will spring back to its idle position. After that, the next set of bales will fill
the forward half of the collector. The last bale on the collector will operate the mechanism
and consequently the smaller roller will be unlocked. As a result it will fold back again. The
smaller roller will now also trigger the tailgate which will tilt backwards. In that moment a
hydraulic motor assures that the rollers are turning around at maximal speed so that the
bales are discharged quickly and close to each other. When the bales have left the collector,
the smaller roller and the tailgate will switch back to their idle position and the process will
start from the beginning.

Bale collector Limo Hydra –EN 9
5. Installation, starting up, adjustment
Check if the bale grab is undamaged and in good condition on delivery. Please contact the supplier
or Meijer Holland if you notice any damages. Only use the bale collector if it is found to be in good
order and after this manual has been read.
Make sure that the baler and the collector stand horizontally.
5.1 Installation
1. Remove the standard platform that is attached to the baler.
2. Drive the tractor up to the collector so that mounting surface of the baler is as close as
possible to the mounting point of the bale collector.
3. Make sure that the machines stand on an even ground during the installation of the
collector.
4. Mount the supplied platform (photo E) to the Limo Hydra.
5. Mount the platform to the baler with the respective pin (photo F) and the shore strips.
The platform with the shore strips works as a kind of funnel. It assures that the bales fall
gradually on the collector and not too close to each other.
6. See the example for a complete assembly (Photo G, page 9).
7. The strips, the platform and pin must always be secured properly.
8. Connect the supply lines and return lines to the baler. The bale collector is supplied with
the lines until the press channel. A single acting valve with a unpressurised return flow is
required.
9. Check that there is no leakage and that the rollers rotate in the correct way (Photo H,
page 9).

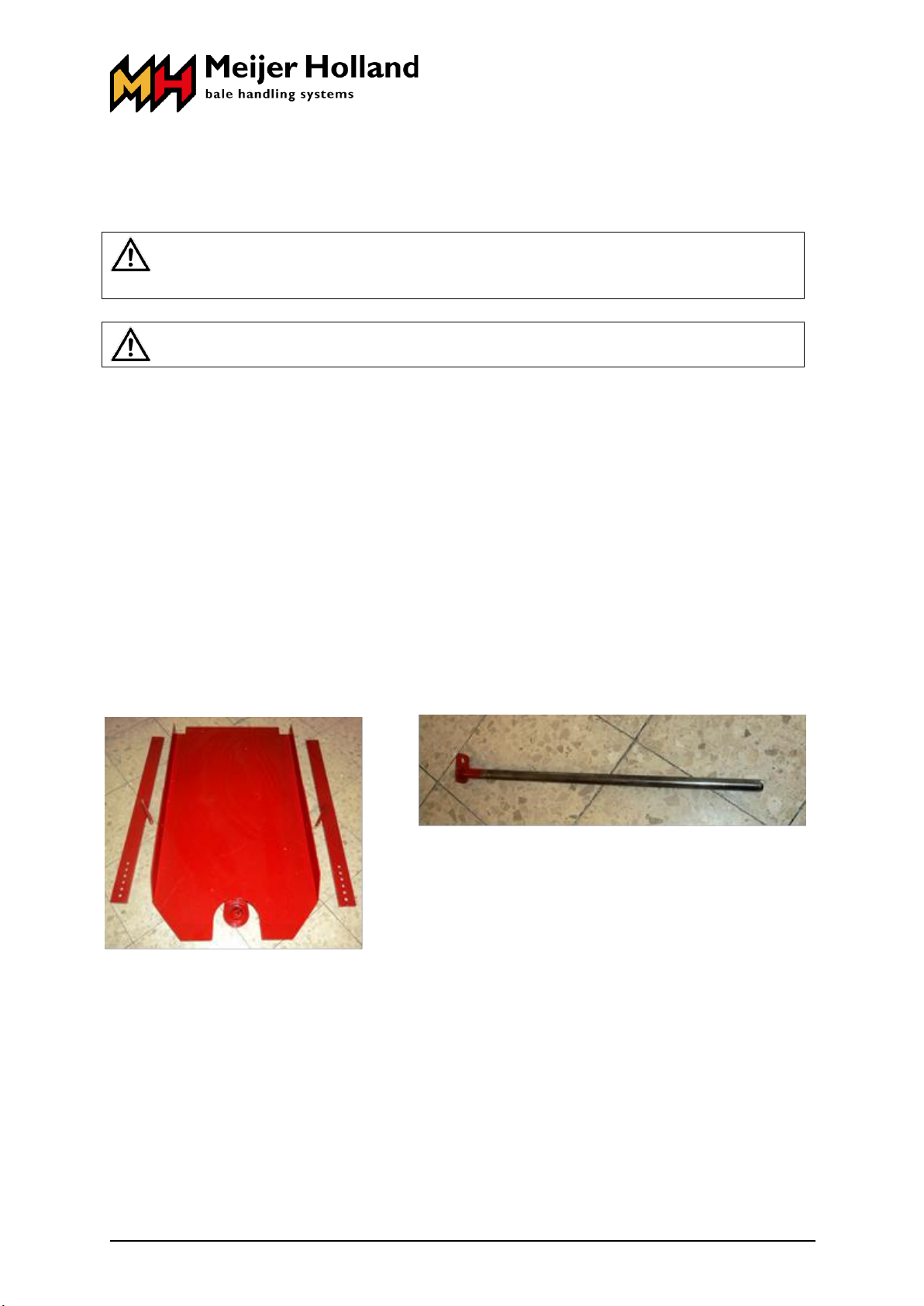

Photo F —pin for platform
Photo E —platform

Bale collector Limo Hydra –EN 10

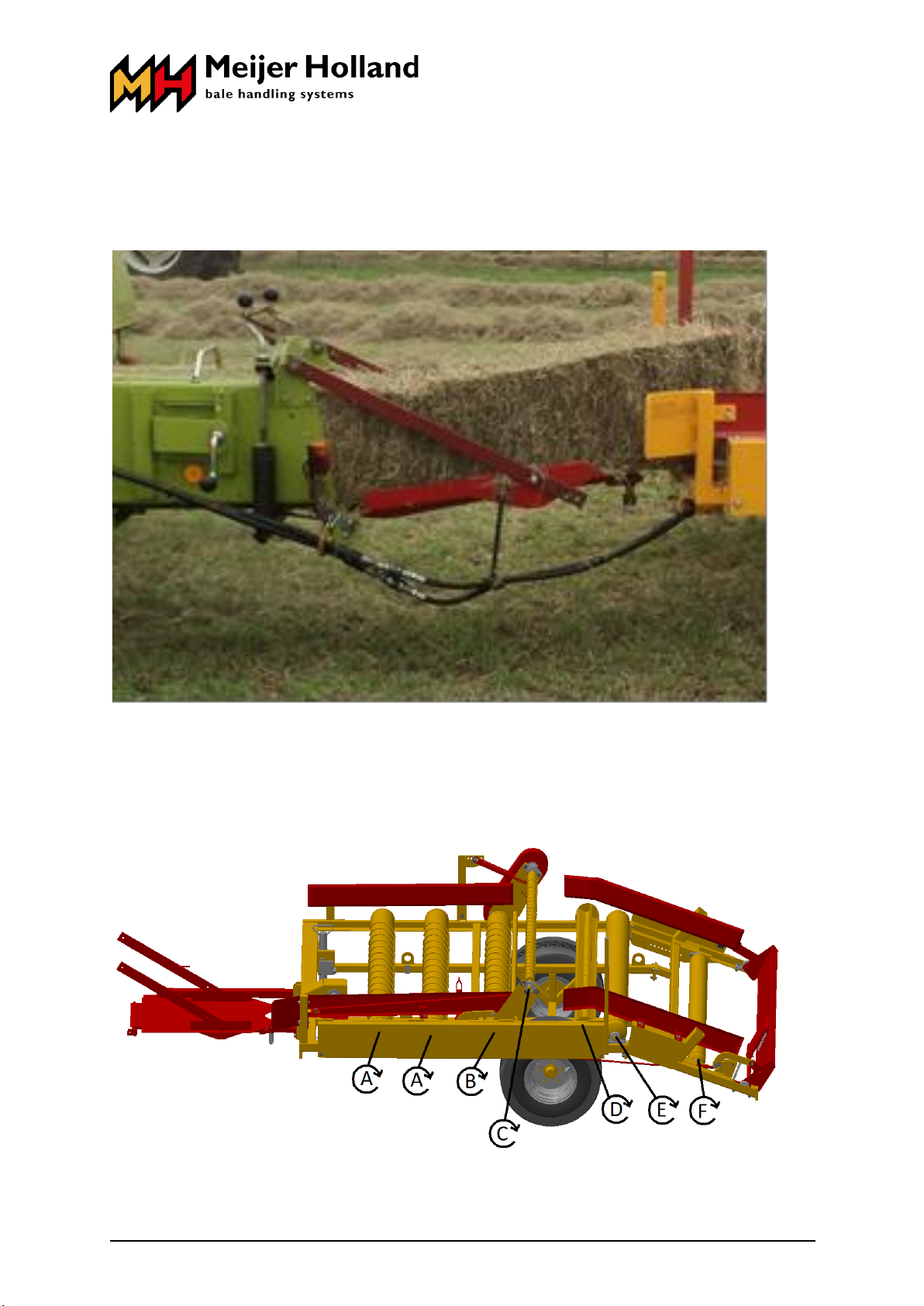

Photo G —complete assembly Limo Hydra
Photo H —rotational movement rollers

Bale collector Limo Hydra –EN 11
6. Operation and use
1. Adjust the bale guides
Before the use, the four red bale guides must be adjusted to the correct width of the
bales. Adjust the bale guides in such a way that the device can be operated optimally and
that the bales are moving smoothly on the machine. The two front bale guides should be
closer to each other than the last ones. This prevents blockage.
2. Adjust flow control valve
The speed of the spiral rollers can be adapted to the capacity of the baler by adjusting the
flow control valve (photo I). Don't open it completely, as the rollers must be able to
rotate faster when the bales are being discharged. This acceleration is powered by the
latching valve that simultaneously opens with the tailgate (photo J).
3. Adjust spring tailgate
Adjust the spring (Photo K) in such a way that the tailgate will spring back to its ideal
position after the bales have been discharged. A spring that is to tight can cause the
tailgate to close to quickly during the release of the bales, because of this the bales won’t
be placed in the right position. This may also result in that the tailgate will be launched
back too hard in it’s initial position, in wich case it isn’t locked properly. Hereby the
tailgate will open with four bales in it already. It may also happen that the tailgate doesn’t
hit the flow control valve, in this case the machine will make the rollers rotate to quickly.
4. Adjust spring smaller roller
Adjust the spring (Photo L) in such a way that the smaller roller, after releasing the bales,
that will launch back in its starting position. To much tension on the spring can cause the
valve to close during the passing of the bales. Because of this the bales won’t be placed in
there optimal position on the back part of the Limo, the bales can get jammed in the
machine. If there is not enough spring tension the roller won’t return in its locked
position after releasing the bales, in this case the roller will release the next batch of bales
to early.

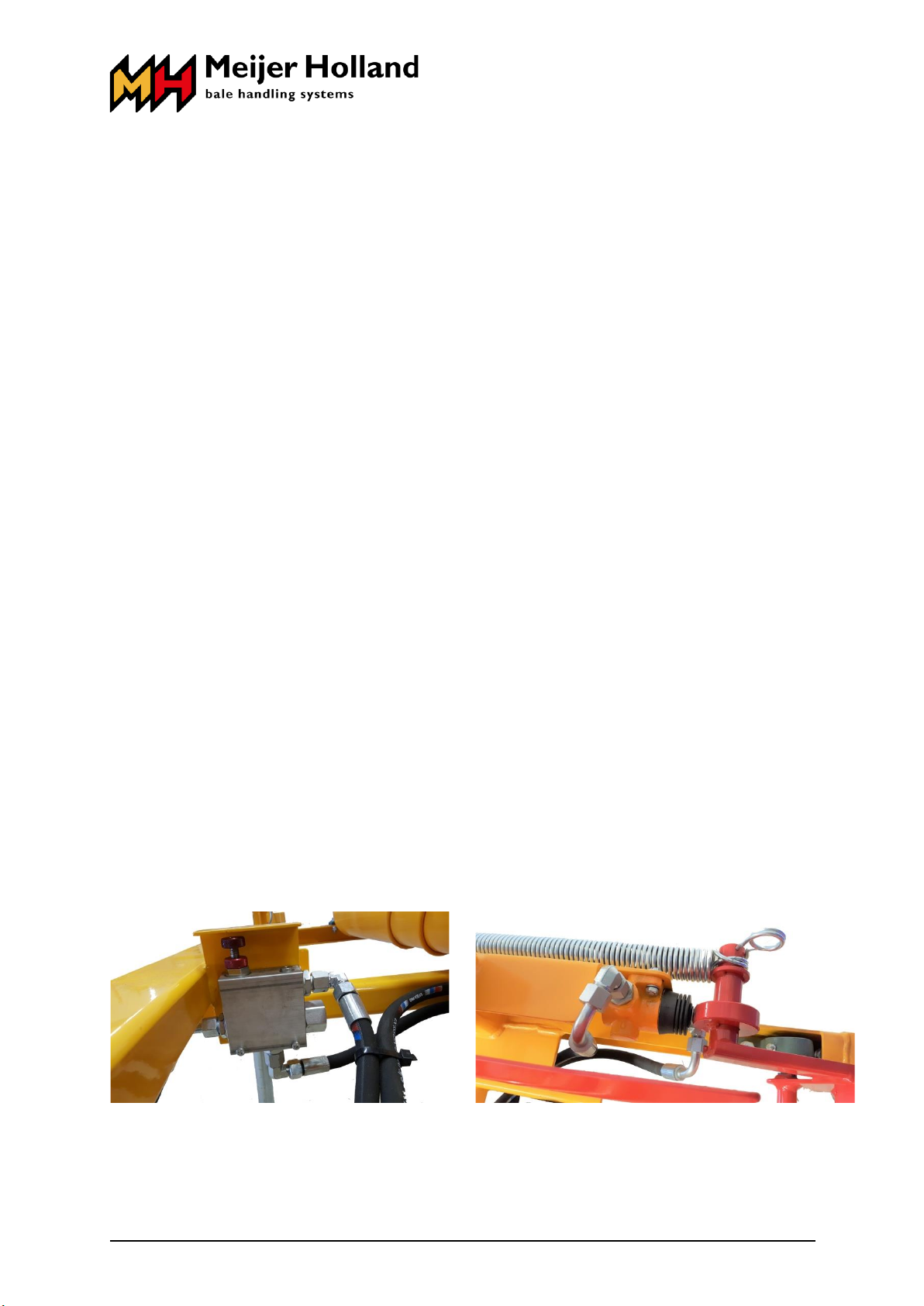

Photo I –flow control valve Photo J –latching valv

Bale collector Limo Hydra –EN 12
Photo K –spring tailgate
Photo L –spring smaller roller

Bale collector Limo Hydra –EN 13
5. After use
1. Place the bale collector with the tractor on a solid and even ground.
2. Disconnect the hydraulic hoses and check them for leakage.
3. Dismount the junction of the tractor/baler from the bale collector and drive the
tractor straight away.
Assure that the bale collector is stored in a dry and clean environment until the next use.

Bale collector Limo Hydra –EN 14
7. Maintenance
Regular maintenance extends the life span and prevents injuries, leakage of hydraulic oil and
damages.
Maintenance schedule
Before every use
Check the bale collector for damages and wear. Replace damaged or worn
parts immediately.
Check the hydraulic clutch, hoses and cylinders for leakage, wear and
damages. Let problems be fixed immediately by a competent mechanic.
At least once a week
Clean the collector of caked dirt and dust. When using a high-pressure
cleaner, avoid the electrical parts.
Put grease on the grease nipples. At extensive use:
after every 8 working hours add a bit of grease (0,86 grams per grease
nipple).

Bale collector Limo Hydra –EN 15
8. Problems and solutions
The bale collector is composed by several moveable parts. Repair or replace damaged or
worn parts immediately. Spare parts are available at Meijer Holland or at suppliers.
Hydraulic fluid is a poisonous liquid that is harmful to the environment. Never
try to shut a leak with your hand. Fluid under high pressure easily penetrates
through skin and clothing and can cause serious injuries.
Assure that the baler and the tractor are turned off and that turning and moving
parts are blocked during repair works. Do this to prevent entrapment.
In case welding works are performed at the bale collector, assure that the bale
collector is completely disconnected from the baler and tractor. If this is not
possible, uncouple the battery of the tractor.
Problem
Possible cause
Solution
The rollers don’t move.
The hydraulic circuit of the bale collector is
not attached correctly to the hydraulic
system of the tractor.
Attach the hoses correctly.
Malfunction in the hydraulic system of the
tractor.
Consult the manual of the tractor.
The rollers are blocked.
Look for the blockade and remove it.
Hydraulic leakage.
Look for the leakage and seal it up.
The chain is broken.
Replace the chain.
The tailgate opens to early.
The spring of the tailgate has not enough
tension on it.
Adjust the spring (see chapter 6).
The tailgate close to soon.
The spring of the tailgate has to much
tension on it.
The rollers keep rolling at
increased speed.
The tailgate won’t reach locked position
after releasing the bales.
The smaller roller tilts back to
soon.
The spring of the smaller roller has to much
tension on it.
The bales are released to early.
The spring of the smaller roller has not
enough tension on it.
The bales get jammed.
The bale guides aren’t in the right position
Adjust the bale guides (see chapter 6)

Bale collector Limo Hydra –EN 16
9. Environment and disposal
The bale collector has a hydraulic circuit that contains hydraulic fluid, a poisonous liquid that
is harmful to the environment. Regularly check the bale collector for leakage and replace
damaged or worn parts immediately.
9.1 Disposal of the bale collector
Drain the hydraulic system and let the fluid be disposed by an authorised company.
The rest of the bale grab is made of coated steel and can be disposed of as scrap.

Bale collector Limo Hydra –EN 17
10. Assembly drawings
Top/side view Limo Hydra 8
Top/side view Limo Hydra 15

Bale collector Limo Hydra –EN 18
11. Parts

Bale collector Limo Hydra –EN 19
Legend parts
nr.
onderdeel
artikelnummer
4
Tailgate
MHLH10-28
6
roller F
MHLH10-16
7
MH spring Hydra
MHVEER04B
8
Tailgate mechanism
MHLH10-21
30
roller D
MHLH10-18
40
roller A
MHLH10-12
70
roller C
MHLH10-13
80
roller B
MHLH10-14
100
Pull bar
MHLH10-11
160
Rotor blade
MHLH10-17
180
Tilting mechanism
MHLH10-05
200
roller E
MHLH10-15
220
Guide plate right front
MHLH10-01
230
Guide plate right back
MHLH10-02
240
Guide plate left back
MHLH10-04
270
Warning sign
MHLH10-61
300
Shifting rod
MHLH10-30
410
Chain cover right side
MHLH10-23
500
Chain cover gears
MHLH10-24
610
Guide plate left front
MHLH10-03
650
Platform
MHLH10-60

Bale collector Limo Hydra –EN 20
12. Extra parts
