Meijer Holland Flintstone User manual

Flintstone
Manual
Bale collector
Meijer Holland | bale handling systems | Duinkerkenstraat 11 |NL-9723 BN Groningen | The Netherlands
T [phone] | F + 3 1 (0)50 3138018 | i n fo@mei j e r holland . com | ww w .meijerh o l land.com

manual Flintstone 3
Content
1. Introduction ....................................................................................................................... 4
2. Technical specifications..................................................................................................... 5
3. Safety................................................................................................................................ 6
4. The functioning of the Flintstone........................................................................................ 7
5. Installation and adjustment................................................................................................ 8
6. Mounting the Flintstone platform to the baler....................................................................10
7. Maintenance.....................................................................................................................12
8. Problems and solutions....................................................................................................13
9. Environment and disposal ................................................................................................14
10. Assembly drawings.........................................................................................................15
CE- Declaration of conformity...............................................................................................16

manual Flintstone 4
1. Introduction
The Meijer Holland Flintstone bale collector is designed to be attached behind a baler in
order to collect two straw or hay bales at a time. The Flintstone is mechanically powered by
the force of the big baler. This manual provides an overview of all the aspects that have to be
kept in mind, before, during and after the use of the machine.
It is important to read the manual carefully before using the machine. There could
be a risk of serious injury or damage to the environment if the bale collector is not
used properly. Moreover, damages to the material or to the machine might occur. It
is therefore important to follow the instructions of this manual.

manual Flintstone 5
2. Technical specifications
Length
360 cm
Width
220 cm
Width rear wheels
270 cm
Height
140 cm
Weight
900 kg
Maximum load
2 bales (lxwxh) 240x120x70-90 cm
The Flintstone does not function optimally on slopes and very rough terrain.
CE-marking
This machine is certified with the CE-marking. This means that the machine meets the
requirements of the applicable EC directives on safety and health. These directives are
specified in the attached declaration of conformity.
The non-observance of the rules and instructions stated in this manual is to be
considered as serious negligence which leads to the extinguishment of any
liability on the part of Meijer Holland concerning the resulting consequences. In
this case, the risk lies exclusively with the user.
Meijer Holland is constantly busy with the improvement of its products. Therefore
it also reserves the right to make any changes that are considered necessary.
There is no obligation to apply these changes to earlier delivered machines.

manual Flintstone 6
3. Safety
To ensure the life span and the safety of the Flintstone, please mind the following
precautions.
1.
Read the manual before use.
2.
Only experts should (dis)mount the collector.
3.
Only experts should operate the collector.
4.
Use the Flintstone only for collecting bales.
5.
Mount the platform according to the instructions (chapter 6).
6.
Follow the instructions for installation and adjustment (chapter 5).
7.
The working area of the machine is 5 meters:
no persons are allowed within that range!
8.
Mind the rules for max. load (chapter 2).
9.
Follow the instructions for maintenance (chapter 7).
10.
When driving a long distance or driving on a public road:
no bales are allowed in the collector!

manual Flintstone 7
4. The functioning of the Flintstone
The collector can only be used when the supplied platform is correctly attached to the baler.
The first bale glides over the platform and tilts into the collector, pushing the spring-loaded
roller conveyor down.
The second bale glides over the first bale, forming a stack of two bales.
The third bale pushes the two stacked bales so that they are released from the collector
and placed on the field.
After the two bales stacked on top of each other are unloaded, the third bale pushes the
roller conveyor down again, starting the process from the beginning.
The functioning of the machine is illustrated below.

manual Flintstone 8
5. Installation and adjustment
Check the Flintstone after receipt. Please contact Meijer Holland if there are any
damages or missing parts. Use the collector only if it is found to be in good order
and after this manual has been read.
5.1 Installation of collector
1. Remove the platform that is attached to the baler by default.
2. Drive the tractor up to the collector so that the mounting surface is as close as possible to
the mounting point of the collector.
3. Make sure that the machines stand horizontally during the installation of the collector.
4. Connect the platform with two bolts to the baler. There is a pin on the other side of the
platform that connects with the ball joint hinge of the collector.
5. Use strong sealant for the strips, the platform and the pin.
6. Check by hand if the roles are turning around correctly. Do this with an even movement
over the roles so that the hand does not become stuck between them.

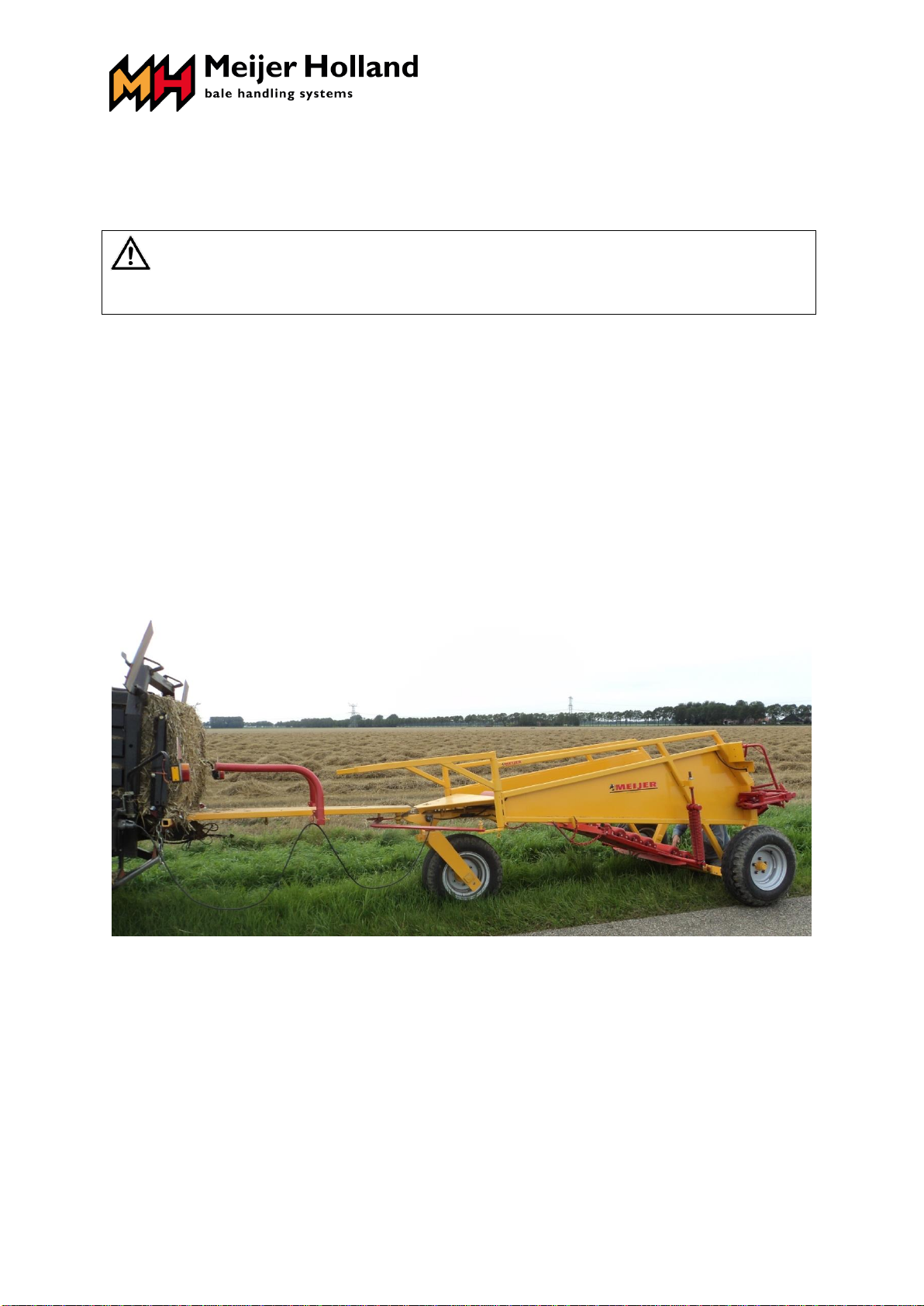

Flintstone attached to the baling press
5.2 Adjustment
5.2.1 Spring-loaded tailgate
Position the spring in such a way that the tailgate goes back to its locked position after the
unloading of the bales. When a spring is adjusted too tightly it might occur that the tailgate
closes too early while the bales are passing. On the other hand it might also happen that the
tailgate bangs hardly in the lock which prevents it from locking properly.
5.2.2 Roller conveyor
The role conveyor has two chains which allow the adjustment of the minimum height of the
conveyor.

manual Flintstone 9
5.3 After the use
Place the bale collector with the tractor on a solid and even ground.
Dismount the junction of the baler at the bale collector and drive the tractor away.
Store the collector in a dry and clean environment.

manual Flintstone 10

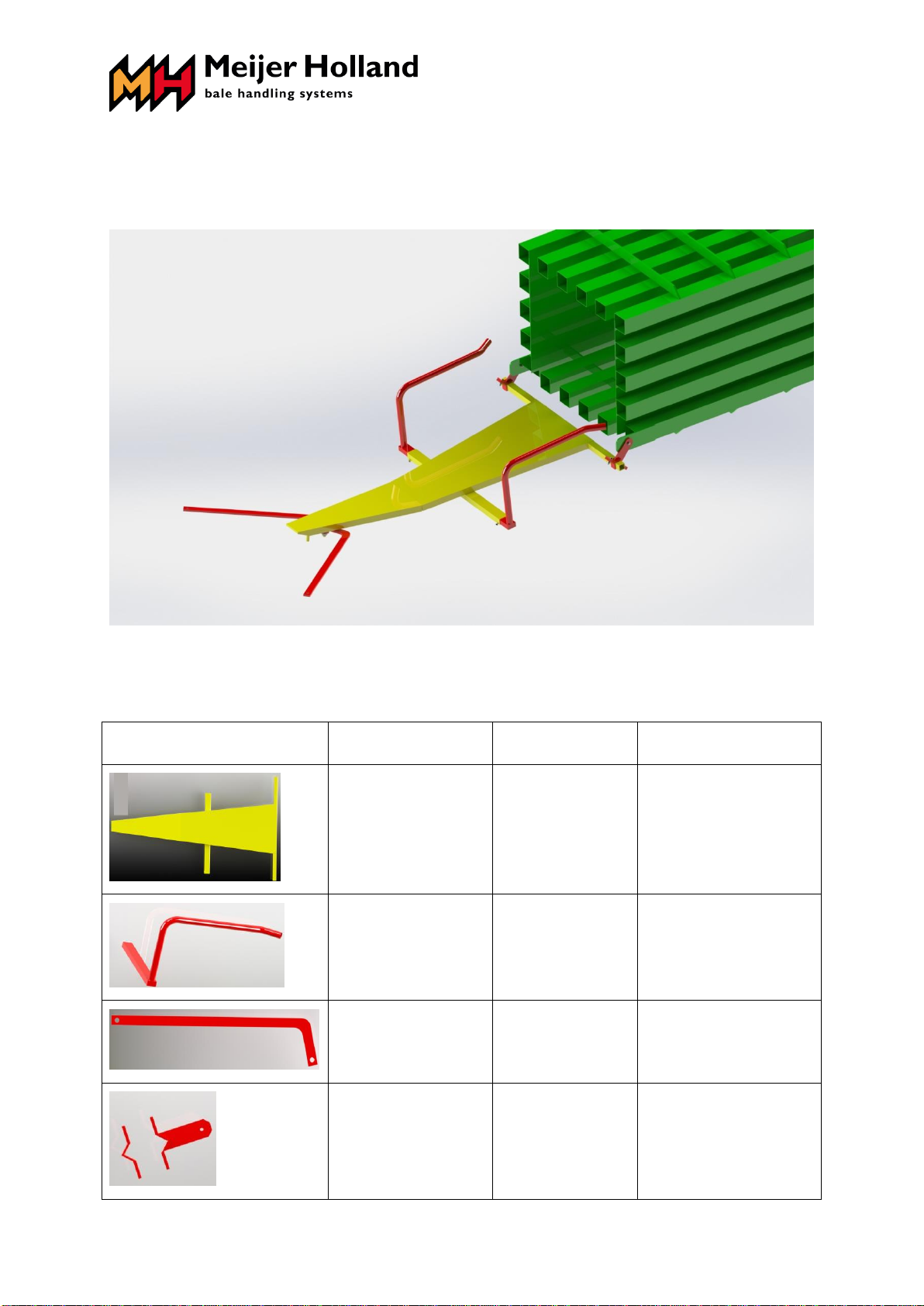

6. Mounting the Flintstone platform to the baler
Figure 1: after complete assembly
6.1 Parts
Illustration
Name
Item no.
Number of pieces
Extended platform
Flintstone
MHFS02-06
1
Guiding bracket
platform red set
MHFS02-07
1 left
1 right
Mounting strip
platform set
MHFS02-08
2
Mounting bracket
Flintstone complete
MHFS02-09
2 sets

manual Flintstone 11
6.2 Mounting in steps
Step 1
Step 2
Step 3
Step 4

manual Flintstone 12
7. Maintenance
Regular maintenance extends the life span of the collector.
Maintenance schedule
Before every use
Check the bale collector for damages and wear. Replace damaged or
worn parts.
At least once a week
Clean the collector of caked dirt and dust. When using a high pressure
washer, avoid the electrical parts.
Fill the grease nipples on the moving parts. At extensive use:
after 8 working hours add a bit of grease (0,86 grams per grease nipple).

manual Flintstone 13
8. Problems and solutions
The bale collector is composed of several moveable parts. Repair or replace the damaged or
worn parts immediately.
Spare parts are available at Meijer Holland.
Turn off the baler and the vehicle and block turning or moving parts when you
are fixing one of the following problems.
Disconnect the collector from the baler and from the tractor during welding.
Problem
Possible cause
Solution
The roles are not
moving anymore.
The roles are blocked.
Look for the blockade and
remove it.
The tailgate is not
moving.
The spring is too much stretched
out or it is too much tightened.
Adjust the spring as described in
chapter 5. Replace the spring
once it is too much stretched
out.
The bales are gliding
into the collector askew
or not at all.
The platform has not been
mounted correctly.
Mount the platform in the correct
way (chapter 6).
The swivel wheel is
loose.
The disc brake is loose.
Turn the disc brake more tightly.

manual Flintstone 14
9. Environment and disposal
The bale collector is made of coated steel that can be disposed of as scrap.

manual Flintstone 15
10. Assembly drawings
Top view
Side view
Isometric view

manual Flintstone 16
CE- Declaration of conformity
We, Meijer Holland
bale handling systems
Duinkerkenstraat 11
NL-9723 BN GRONINGEN
The Netherlands
tel. [phone]
fax [phone]
declare under our sole responsibility that:
1. we are the manufacturer of:
MH Flintstone (model MHFS02)
2. the machine complies with the following applicable directives
Machinery directive 2006/42/EG
EMC-directive 2004/108/EC
LVD-directive 2006/95/EC
3. The machine is designed and constructed according to European standards,
including
EN 349:1993+A1:2008 EN-ISO 4413:2010
EN 614-1:2006 +A1:2009 EN-ISO 12100:2010
EN 614-2:2000 +A1:2008
The electrics and the control section are the responsibility of the customer.
Groningen, 10th May 2016
J.F. Lommerts, director
