TMG TMG-STS35 User manual

MODEL G-STS35
www.tmgindustrial.com TOLL FREE:1-877-761-2819
36" SKID STEER TREE SPADE
(3 BLADES)
TMG-STS35
PRODUCTMANUAL
v.2023.04.28
•Please read and understand the product manual completely before assembly
•Check against the parts list to make sure all parts are received
•Wear proper safety goggles or other protective gears while in assembly
•Do not return the product to dealer, they are not equipped to handle your
requests.
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: [e-mail]

TABLE OF CONTENTS
TO THE OWNER......................................................................................................................................................3/18
SAFETY PRECAUTIONS...........................................................................................................................................4/18
SKID STEER TREE SPADE(3 BLADES) ASSEMBLY....................................................................................................8/18
OPERATION INSTRUCTIONS.................................................................................................................................11/18
MAINTENANCE INSTRUCTIONS............................................................................................................................15/18
STORAGE INSTRUCTIONS.....................................................................................................................................16/18
SPECIFICATIONS..................................................................................................................................................17/18
INSTALLATIN FITURE...........................................................................................................................................18/18
www.tmgindustrial.com 2/18 TOLL FREE:1-877-761-2819

TO THE OWNER
GENERAL COMMENTS
Congratulations for having this skid steer tree spade(3 blades) attachment!
Your skid steer tree spade(3 blades) attachment was carefully designed and manufactured to give you years of
dependable service. Your skid steer tree spade(3 blades) attachment will require some minor maintenance(such as
cleaning and lubricating) to keep it in top working condition.
Be sure to observe all safety precautions and maintenance procedures as described in this manual.
ABOUT THIS MANUAL
This manual has been designed to help you do a better and safer job. Read this manual carefully and become familiar
with its contents. Remember, never let anyone operate this unit without reading the "Safety Precautions" and "Operation
Instructions" sections of this manual. Unless noted otherwise, right and left sides are determined from the position of the
skid steer operator sitting in the seat facing forward.
SERVICE
When service your skid steer tree spade(3 blades) attachment, pls. remember to use only manufacturer replacement
parts. Substitute parts may not meet the standards required for safe, dependable operation. To facilitate parts ordering,
pls. record the model No. and serial No. of the metal plate on your unit.
www.tmgindustrial.com 3/18 TOLL FREE:1-877-761-2819

SAFETY PRECAUTIONS
The skid steer tree spade(3 blades) attachments are designed to be easy to use and maintain. They are operated by the
skid steer auxiliary hydraulics. The skid steer tree spade(3 blades) attachments mount to the toolbar or quick attach
mechanism for easy mounting.
BEFORE OPERATION
1.The operator must read the operation manual carefully before installation,
operation or maintenance. Improper operation will cause the machine damaged or the operator dead.
2.Read all the safe signs and safe declarations. Obey all the professional safe
terms, local laws or the professional directions.
3.Familiar with the skid steer tree spade(3 blades) attachment about functions, specs and operation. Replace the
to-be-damaged parts in time. Make sure all the hydraulic installations and couplings connect firmly, and all the safe
signs stick on the suitable positions clearly.
TO THE OPERATOR
WARNING! PROTECT AGAINST FLYING DEBRIS
1. Always wear proper safety glasses, goggles, or a face shield when driving pins in or out, or when any
operation causes dust, flying debris, or any other hazardous material.
2. Don’t modify the skid steer tree spade(3 blades) attachment casually.
3. Should keep the machine on the flat ground when repair, far away from the transportation and other dangerous places.
4. Should use the right tools to repair.
5. Don’t operate the machine, unless you are professional, have certificates,
and familiar with its functions, specs and safe operation rules.
6. Must not leave the machine when the machine is running. Must stop the engine at first and then remove the key if
want to leave.
www.tmgindustrial.com 4/18 TOLL FREE:1-877-761-2819

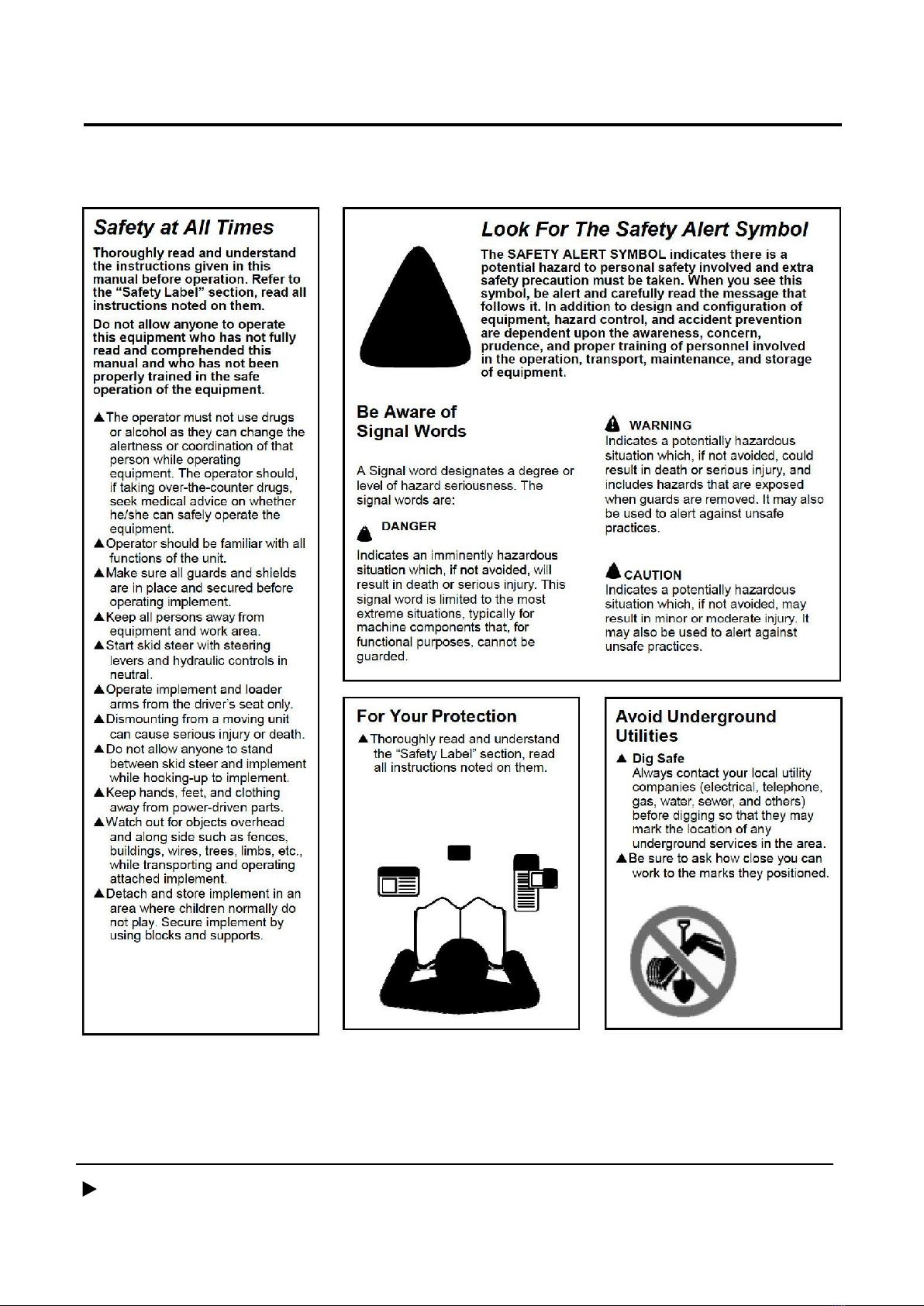

SAFETY PRECAUTIONS
These are common practices that may or may not be applicable to the products described in this manual.
www.tmgindustrial.com 5/18 TOLL FREE:1-877-761-2819

SAFETY PRECAUTIONS
www.tmgindustrial.com 6/18 TOLL FREE:1-877-761-2819

SAFETY PRECAUTIONS
www.tmgindustrial.com 7/18 TOLL FREE:1-877-761-2819

SKID STEER TREE SPADE(3 BLADES) ASSEMBLIES
www.tmgindustrial.com 8/18 TOLL FREE:1-877-761-2819

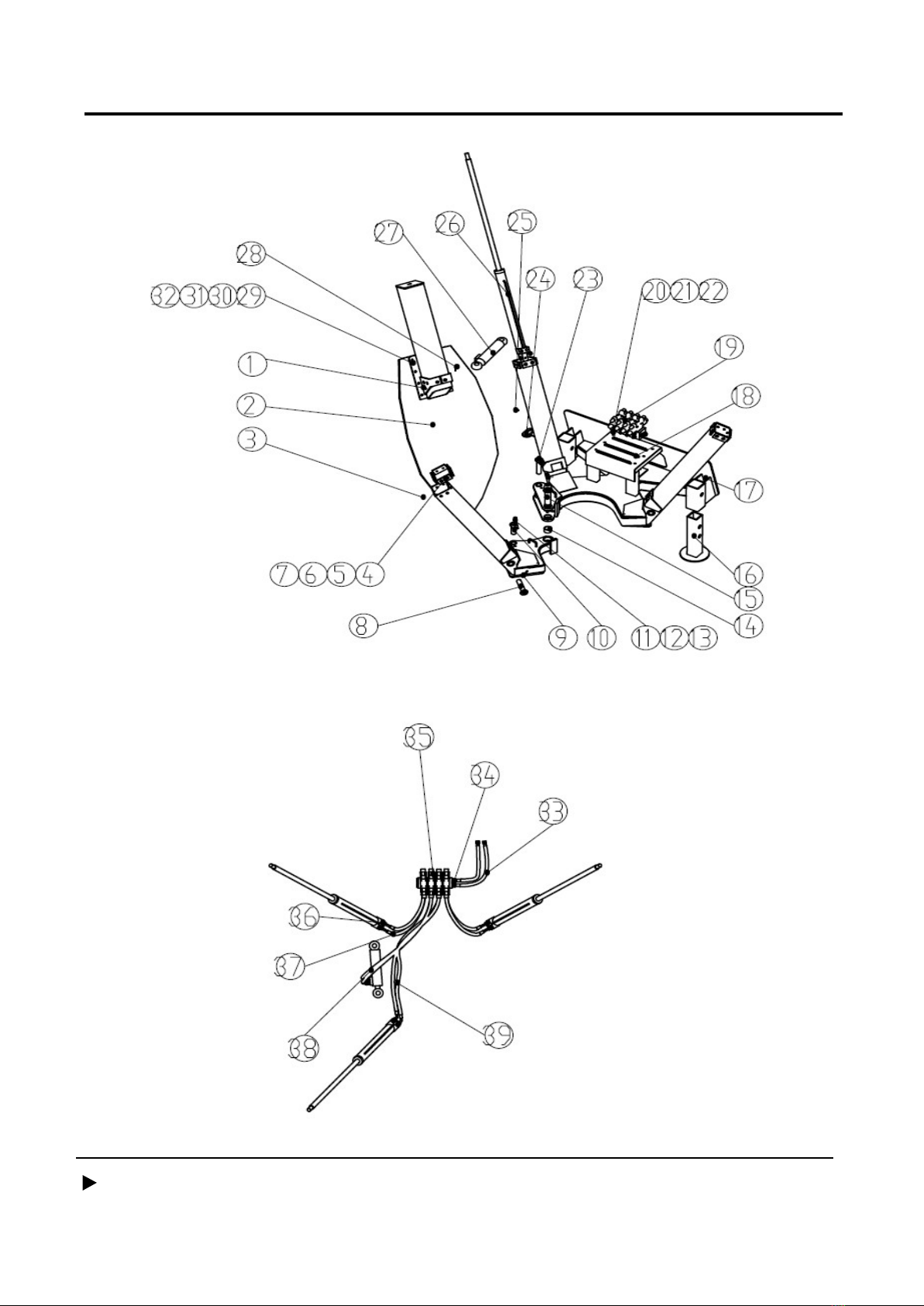

SKID STEER TREE SPADE(3 BLADES) ASSEMBLIES
www.tmgindustrial.com 9/18 TOLL FREE:1-877-761-2819
PART NO. S/N. NUMBER PART DESCRIPTION QTYS NOTE
1 050236.02 BLADE ARM 3
2 050236.03 EDGE BLADE 3
3 GB/T 2673-2000 SOKET HEAD CAP SCREW 24 M8*12
4 050236.00-01 NYLON A 3
5 050236.00-02 NYLON B 3
6 050236.00-03 NYLON C 6
7 050236.00-04 NYLON D 12
8 050236.00-05 PIN 3
9 050236.10 ROTARY PART 1
10 050236.09 PIN 1
11 GB/T 5783-2000 HEX HEAD CAP SCREW 3 M12*25
12 GB/T 97.1-1987 FLAT WASHER 12 3
13 GB/T 93-1985 SPRING WASHER 12 3
14 504030 SELF LUBRICATING BEARING 2
15 050236.08 PIN 1
16 050236.05 SUPPORTING LEG 2
17 050236.01 FRAME 1
18 050236.13 PEDAL 1
19 050236.12-1 MANIFOLD BLOCK 1
20 GB/T 5783-2000 HEX HEAD CAP SCREW 6 M10*25

SKID STEER TREE SPADE(3 BLADES) ASSEMBLIES
www.tmgindustrial.com 10/18 TOLL FREE:1-877-761-2819
PART NO. S/N. NUMBER PART DESCRIPTION QTYS NOTE
21 GB/T97.1-1987 FLAT WASHER D10 6
22 GB/T93-1985 SPRING WASHER D10 6
23 050236.06 PIN 1
24 050236.04 PIN 2
25 GB/T2673-2000 SOKET HEAD CAP SCREW 36 M8*16
26 050236.11 DEPTH ADJUSTABLE CYLINDER 3
cylinder
inner diameter:50mm
rod diameter:30mm
stroke:720mm
shortest distance:980mm
27 050236.07 SWING CYLINDER 1
cylinder
inner diameter:50mm
rod diameter:30mm
stroke:115mm
shortest distance:355mm
28 GB/T97.1-2000 FLAT WASHER D30 3
29 GB/T5783-2000 HEX HEAD CAP SCREW 24 M12*40
30 GB/T97.1-1987 FLAT WASHER D12 24
31 GB/T93-1985 SPRING WASHER D12 24
32 GB/T5783-2000 OUTER HEX NUT M12 24
33 F381CACF151508-2000SG HOSE 2 Length:2m
Fitting:G1/2
34 IE15LM27X2 END STRAIGHT JOINT 2
35 SVH-G02-C2-D12-20 SOLENOID VALVE 4
36 IE10LM18X1.5 END STRAIGHT JOINT 16
37 F381CACD101005-550SG HOSE 4
38 F381CACF101005-850SG HOSE 2
39 F381CACF101005-1200SG HOSE 2

OPERATION INSTRUCTIONS
The tree spade can dig the trees with the Max. tree trunck diameter 150mm,and tree ball diameter
900mm.
Attach the tree spade to the toolbar or quick attach mechanism of your skid steer loader.
(1)Let shovel blade 1 to 3 retract to the top end, and adjust left and right supporting legs up by the
adjustable holes, to their supporting plates, but lower than the bottom surface of the open and close
arms, avoid the supporting legs having the interference when the bottom surface of the open
and close arms come to the bottom.
(2) Let the open and close arms open to the maximum, and then start the skid steer loader, make the
dome-type centre of the tree spade coincide with the centre of the tree trunk, and then operate the skid
steer loader to make the open and close arms of the tree spade parallel and close to the ground.
(3)Press the close button to close the open and close arms towards inside.
(4)Shovel blade 1 moves first, press the "one click" button (all the buttons on the control panel are
clicking control), shovel blade 1 declines, dropping to 1/3 of the full stroke cylinder, from the shovel
blade 1 to 3, the three cylinders’ stroke are 720mm.
www.tmgindustrial.com 11/18 TOLL FREE:1-877-761-2819

OPERATION INSTRUCTIONS
(5)As followed, shovel blade 3 moves, press the "three clicks", shovel blade 3 declines, dropping to 1/3
full stroke cylinder.
(6)As followed, shovel blade 2 moves, press the "two clicks", shovel blade 2 declines, dropping to 1/3
full stroke cylinder.
(7)Repeat the steps from (4),(5),(6) to let the shovel blades decline to 1/3 of the stroke cylinder.
(8)Repeat the steps from (4),(5),(6) to let the shovel blades decline to full of the stroke cylinder.
Operate the arms of the skid steer loader to lift the tree spade, let the tree spade along with the tree
out of the ground, the operator will move the tree to the designated place.
Select the "one up", "two up", "three up", to let the shovel blade rise, and then let the tree separate
from the tree spade, finally, complete the transplanting task.
www.tmgindustrial.com 12/18 TOLL FREE:1-877-761-2819

OPERATION INSTRUCTIONS
About Wiring Harness Connection
Wiring Harness
Step 1: Connect the power wiring of the control box with the power supply of the host machine.
Can distinguish the positive and negative terminals as the different colors shown in the following sketch.
www.tmgindustrial.com 13/18 TOLL FREE:1-877-761-2819

OPERATION INSTRUCTIONS
Step 2: Control Wiring Connection of Control Box
www.tmgindustrial.com 14/18 TOLL FREE:1-877-761-2819

MAINTENANCE INSTRUCTIONS
1. Always keep the clean hydraulic oil, keep the hose joint clean, if the hydraulic oil is mixed with dirt, it
will possibly cause the whole operation system abnormally.
2. Daily check all hydraulic lines, make sure the connection of the hydraulic line good, the pipe without
distortion, wear, cracking, no loose joint to leak.
3. Daily inspect the tree spade oil level, and refuel timely.
4. Daily inspect all parts of the machine, make sure all the parts are connected stably and reliably.
5. If the paint off or damage, repaint timely, to prevent rust.
6. Check all the fasteners whether loose, and tighten them promptly.
www.tmgindustrial.com 15/18 TOLL FREE:1-877-761-2819

STORAGE INSTRUCTIONS
1. Clean all the debris, all mud, dirt and grease.
2. Inspect the unit for bent, loose, cracked, damaged or missing parts, Order any parts required, and
make the necessary repairs to avoid delays when starting next season.
3. Tighten all loose nuts, bolts, screws and hydraulic connections.
4. Touch up all the unpainted and exposed areas with paint to prevent rust.
5. Replace security labels and tags if damaged, or in unreadable condition.
6. Connect the hydraulic couplers together or use the oil nuts to block the hydraulic hoses.
7. Check the motor for proper lubricant level.
8. Coat the digging chain with a thin covering of oil. Operate chain for a short period to work the oil into
the pins.
9. Should put the device in the dry non-corrosive place. If in nude outside, will shorten its life.
9. All three blades should be fully retracted, while pull out of pins of the legs, make the support legs
10. stretch down a height adjustment hole, and then plug the pins, the host and equipment
connections, convenient for the next use when the host machine and the tree spade are connected.
www.tmgindustrial.com 16/18 TOLL FREE:1-877-761-2819

SPECIFICATIONS
MODEL TMG-STS36
TOTAL WIDTH (MM) 1780
TOTAL LENGTH(MM) 1815
TOTAL HEIGHT (MM) 1825
Fit TREE TRUNK DIAMETER (MM) 0-150
TREE BALL DIAMETER AVAILABLE(MM) 0-900
WORKING FLOW(L/MIN) 20-65
DIGGING DEPTH(MM) ≤700
WEIGHT (KG) 680
MAX. PRESSURE (MPA) 12-21
www.tmgindustrial.com 17/18 TOLL FREE:1-877-761-2819

Installation Feature
