Harvest TEC 444T User manual

444T, 445T-451T-450T-15-INST
6/22
Installation Manual
Model 444T, 445T, 450T & 451T
25 & 55 gallon Automatic Preservative Applicator
Forage Harvester

2
Harvest Tec 444T, 445T, 451T & 450T Installation Table of Contents
Page
Introduction
3
Model Reference
3
Tools Needed
3
Installation of Applicator
4-22
Installation of mounting brackets, tank, pump manifold and hose manifold
4-9
Model 444T
4-5
Model 445T
6-7
Model 450T
7-8
Pump Manifold Model 444T, 445T & 450T
8
Model 451T
9
Installation of Drain Fill Kit Models 444T, 450T & 451T
10
Placement of spray nozzle assembly
11-16
Install kit 4409B & 4410B
11
Install kit 4415B
12-13
Install kit 4416B
14
Install kit 4485B & 4502B
15
Install kit 4506B & 4507B
16
Installation of plumbing
17-18
Model 444T, 445T & 450T
17
Model 451T
18
Installation of star wheels and bale rate sensors
19-20
Model 454T, 451T, & 450T (two tie only)
19
Model 450T (three tie only)
20
Power cable and main wiring harness installation
21
Installation of the controls –Bluetooth Receiver & Optional Touch Screen Display
22
Common Questions
23-24
Troubleshooting
24-25
Backup Fuse
25
Pin Outs
26-27
Parts Breakdown
28-42
Model 444T & 450T base kit
28
Model 445T base kit
29
Model 451T base kit
30
Drain fill kit (444T, 450T & 451T only)
30
Pump manifold
31
Star wheel sensor, bale rate sensor, & hoses
32
Control box and harnesses
33
Optional iPad Mini Mounting Kit
34
Baler specific installation kits
35-42
4409B Install kit
35
4410B Install kit
36
4415B Install kit
37
4416B Install kit
38
4485B Install kit
39
4502B Install kit
40
4506B Install kit
41
4507B Install kit
42
Star Wheel Template
43
Notes
44-46
Warranty Statement
47

3
Introduction
Read this manual carefully to ensure correct steps are done to attach the applicator to the baler. This
applicator is designed to apply Harvest Tec buffered propionic acid. The model 445, 450 & 451 base kit
includes the following parts: Tank, Frame, Pumps, Hose, Baler Mounted Processor, Touchscreen Display,
Moisture Sensors, and Miscellaneous Hardware. The applicator can be installed on many square balers with
the proper installation kit. Before installing the unit on the baler, make sure you have the proper installation kit.
(See the chart below.) If you are unsure about your installation kit contact your local authorized dealer for
specifications. For your convenience we have included a parts break down for the applicator.
Left and Right sides are determined by facing in the direction of forward travel.
Model Kit Reference
Baler Make
Baler Model
Model Number
Installation Kit
Tank Size
Case IH
SBX530, SBX540, SBX550,
SB 531 –SB 551 square balers
445T
4415B
25 gallon
John Deere
All small square balers
445T
4410B
25 gallon
New Holland
570, 575, 580 & BC 5060 –BC
5080 square balers
445T
4415B
25 gallon
Case IH & New
Holland & Others
Case IH SBX 520, SB 521
New Holland 200 & 300 series,
565, BC 5050 & all others
445T
4409B
25 gallon
Case IH
SBX530, SBX540, SBX550, SB
531 –SB 551 Square balers
451T
4415B
55 gallon
New Holland
570, 575, 580 & BC 5060 –BC
5080 Square balers
451T
4415B
55 gallon
Case IH
2001 and older small square
Balers (two tie)
450T
4485B
55 gallon
Hesston, Massey,
New Idea, &
Challenger
All small square (two tie)
444T
4416B
55 gallon
Hesston, Massey,
New Idea, &
Challenger
All three tie balers
444T
4416B
55 gallon
Freeman
All three tie balers
450T
4506B
55 gallon
New Holland
BB 900 & 585
450T
4507B
55 gallon
Tools Needed
Standard wrench and socket set
Standard screwdriver set
Side cutter
Hose cutter
Crescent wrench
Hammer
Metal drilling and cutting tools
Tape measure
Center punch
Straight edge
1-1/2” hole saw (4415B only)

4
Installation of Applicator
Installation of Mounting Brackets, Tank, Pump Manifold & Hose Manifold
Model 444T

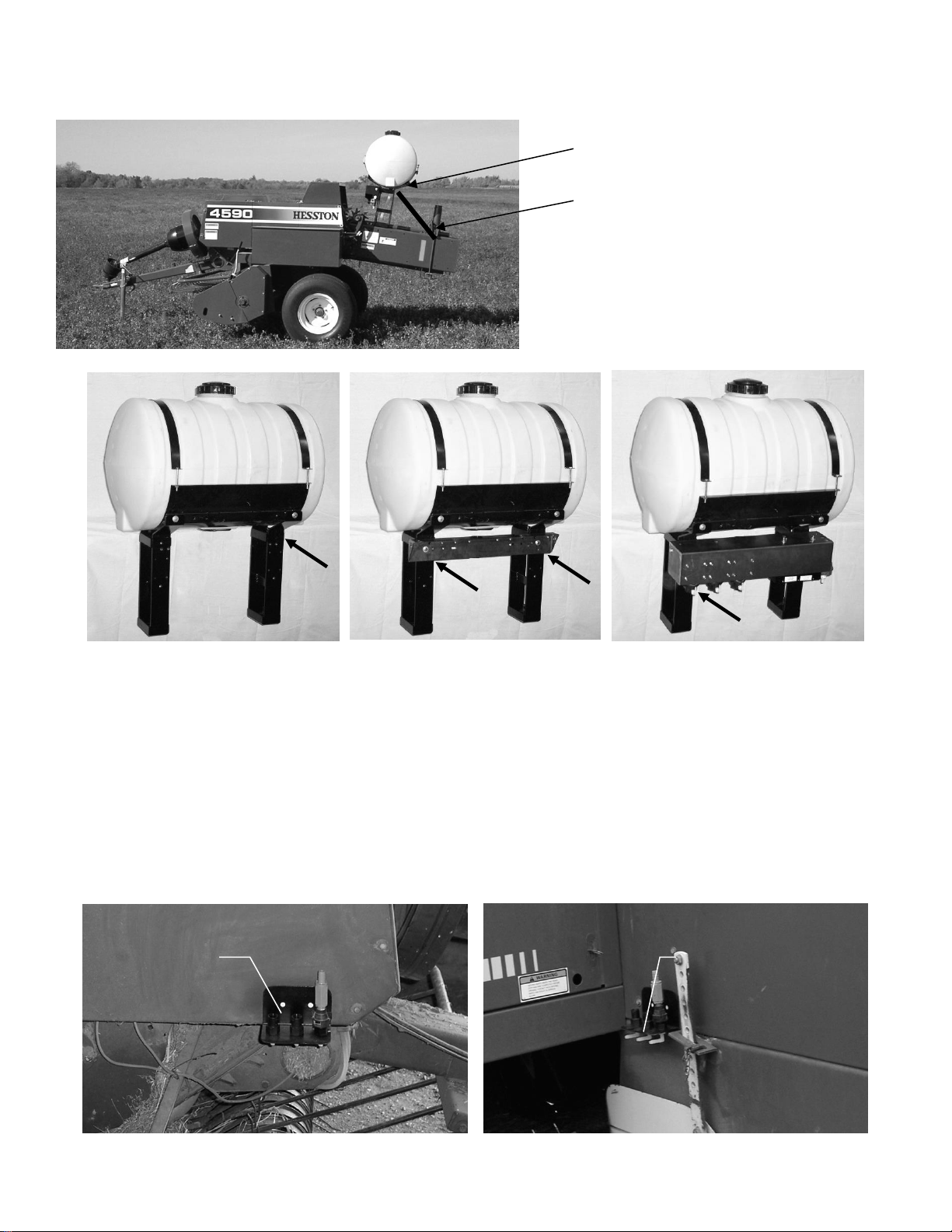

Tank legs will be mounted to the back side of the baler behind knotters and before the bale tensioner (figure1).
Using figure 2 as a reference, mark the two holes on each side of bale chamber that need to be drilled. Line up
saddle leg on each side to verify holes before drilling, show in figure 3. Drill all four holes to 1/2” in size.
Bolt legs to baler with 1/2” x 1 3/4” Allen button head bolts, flat washer, Lock washer, and nuts.
*Note: bolt head is on inside of bale chamber. Level top of leg before completely tightening bolts, figure 4.
Bale Thrower - Additional Bracket
When baler is equipped with a bale thrower, bracket (001-4703QC) will need to be used. First secure the
kicker so it will not rotate when you remove the front pin on the hydraulic cylinder. Remove pin, Install tank leg
over mount. Reinstall pin. Use part 001-4703QC which is a spacer that will go between the leg and side of the
baler to take up the space the throwers front hydraulic mount adds.
Figure 1
Figure 2
Figure 3
Figure 4

5
Model 444T (continued)
Saddle & Tank
Mount tank saddle (001-4703X) onto tank legs as shown in figure 5. Bolts are pre-installed on saddle, secure
with 1/2” locks, washers, and nuts.
Pump Manifold 444T
Locate parts bag 8. Using two 3/8” x 1/4” bolts, locks, washers, and nuts. Mount
the U shaped pump plate mount 001-4647 (right) onto the tank saddle in the
mounting holes located between the strap brackets on back of saddle (figure 7).
Connect the pump plate mounting bracket (001-4646C), shown in figure 8, using
two 3/8 x 1 1/4" bolts, nuts, locks, and flat washers to the mounting bracket. Install
the rest of the pump plate as shown in figure 9. Attach the pump plate holder (001-4646D) to pump plate
mounting bracket (001-4646C) using four 3/8”x 3/4" flange head bolts.
Figure 5
Figure 7
Figure 8
Figure 9

6
Model 445T
Mount the unit on the diagonal frame behind the twine box, as pictured using the base clamp (001-4406) and
u-bolts (001-4406A). Locate the top reach rod (Figure 1) in a position opposing the overhanging tank. Bolt
one end to the top stub pipe on the tank saddle and the other end to a secure location on the baler (figure2).
NOTE: REACH RODS MAY HAVE TO BE BENT ON THE TAB TO ALIGN PROPERLY.
A. Recommended Mount
Locate parts bag 8. The U shaped bracket (001-4647) will already be attached to the saddle and will need
to be inverted to fit on the bottom of the saddle as shown in Figure 3. Reattach the bracket to the bottom of
the saddle using the four 1/4 x 1 bolts, nuts, flats and lock washers. Connect the pump plate mounting
bracket (001-4646C), shown in Figure 4, using two 3/8 x 1 1/4 bolts, nuts, locks, and flat washers to the U
shaped bracket (001-4647). Install the rest of the pump plate as shown in Figure 5. Attach the pump plate
holder (001-4646D) to pump plate mounting bracket (001-4646C) using four 3/8 x 3/4 flange head bolts.
Figure 3
Figure 4
Figure 1
Figure 2
Figure 5

7
Model 445T (continued)
B. Alternate Location for Ground Clearance
Locate parts bag 8. The U shaped bracket (001-4647) will already be attached to the saddle as
shown in Figure 4. Connect the pump plate mounting bracket (001-4646C), shown in Figure 5,
using two 3/8 x 1 1/4 bolts, nuts, locks, and flat washers to the U shaped bracket (001-4647).
Install the rest of the pump plate as shown in Figure 6. Attach the pump plate holder (001-4646D)
to pump plate mounting bracket (001-4646C) using four 3/8 x 3/4 flange head bolts.
Model 450T
Locate parts bag 7. Attach legs part #001-4703B to the tank saddle with 3/8 x 1” bolts, flat and lock washers.
The legs will attach on top of the bale chamber in front of the hydraulic compression area. (Figure 1) You will
need to drill four 1/2 inch (13 mm) holes on top of the chamber to mount the tank and frame. Clamp legs on
top of the bale chamber, mark the holes and drill. The 1/2 x 1-3/4” inch allen head carriage bolts will be
inserted through the bale chamber along with flat washers so that the carriage head will be inside of the
chamber. Secure the allen head carriage bolts with 1/2 nuts, flat and lock washers. Mount the supplied
support bracket to the bottom of the tank saddle and to the baler frame as shown below.
Figure 1
Figure 4
Figure 5
Figure 6

8
Model 450T (continued)
1. Locate parts bag 8.
2. Locate the two mounting holes as shown in Figure 1.
3. Connect the pump plate mounting bracket (001-4646C), shown in Figure 2, using two 3/8 x 1
1/4 bolts, nuts, locks, and flat washers to the saddle.
4. Attach the pump plate holder (001-4646D) to pump plate mounting bracket (001-4646C) using
four 3/8 x 3/4 flange head bolts. Figure 3.
Hose Manifold Model 444T, 445T & 450T
Mount the hose manifold on the front of the baler in the area of the spray shield. Make sure the
bracket will not interfere with any baler operations.
Mount support bracket
(001-4424C) at these
locations. Two tie
models only.
Figure 1
Figure 2
Figure 3
AGCO & CASE INLINE BALERS
NEW HOLLAND & CASE SBX
WITH 4409 INSTALL KIT
Hose
manifold
Hose
manifold

9
Model 451T

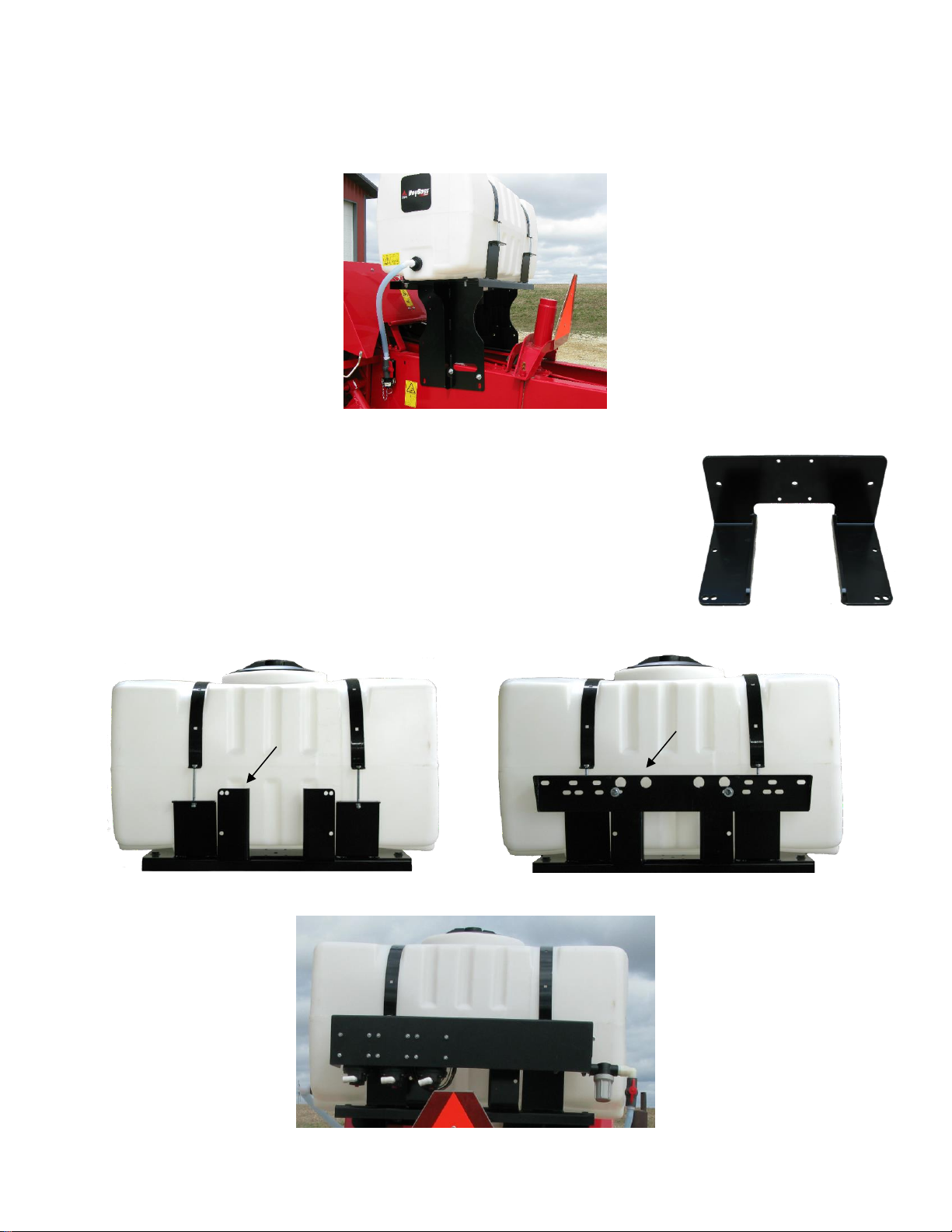

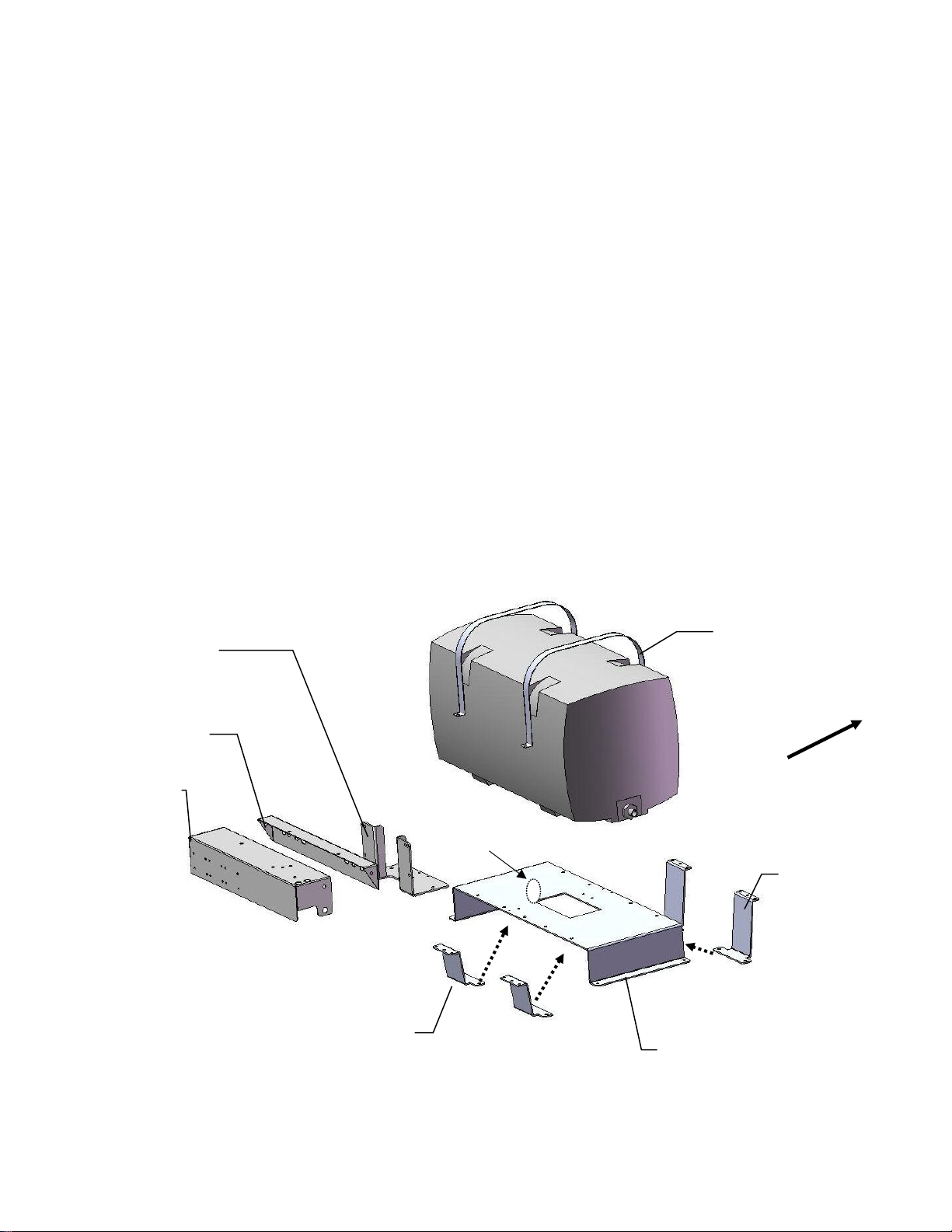

Locate parts bag 12. Mount the two long strap bases (001-4703CD) to the bottom side of the saddle (001-4703C) front
edge. Note: This is the side that has a 2” (5 cm) diameter hole in one of the sides. Use four 3/8” x 1-1/4” bolts, washers,
locks, and nuts to secure. Mount the two short bases (001-4703CC) to the bottom side of the saddle’s back edge. Use
3/8” x 1-1/4” bolts on the outside holes. Leave the inside holes open for the installation of the pump plate mount.
Install the “U” shaped pump plate mount (001-4647) to the top and back edge of the saddle. Secure with two 3/8” x 1-1/2”
bolts on the outside that also go through the short mounting bases as listed above. Place one 3/8” x 1-1/4” bolt in the
middle. Secure with washers, locks and nuts.
Install the tank fitting into the bottom of the tank (003-EL3412) and mount the tank on top of the saddle and between the
strap bases. When facing the front of the tank, make sure the side tank fitting is on the left.
Locate the two straps (001-4402). Position the straps over the top of the tank and secure with four 5/16 x 4-1/2” bolts and
eight nuts. All of the strap bolts need to have double nuts. Mount the door strap (001-4703CL) on a back strap base using
the 1/4 x 1-1/2” bolt, two washers and nylock nut.
Connect the pump plate mounting bracket (001-4646C) using two 3/8 x 1” bolts, nuts, locks, and flat washers to the U
shaped bracket (001-4647). Attach the pump plate holder (001-4646D) to pump plate mounting bracket (001-4646C)
using four 3/8”x 3/4" flange head bolts.
Mount the tank as shown below. The tank will be mounted as far to the right side of the baler as possible. The side tank
fitting (Figure A) will be facing the right side of the baler. The pump plate assembly (Figure B) will be at the back of the
baler. Place the tank on top of the baler and open the front access door. Position the tank so that the front access door
can be lifted open and locked in place. Line up the side of the tank saddle closest to the plunger with the bolts on top of
the hood. Remove the two bolts, line saddle up with existing holes, and secure with new M8 x 30 bolts, flat washers, and
locks. The back access door will be held open with the door strap. Mark and drill two 3/8 inch holes on the top of the baler
for the other open holes in the saddle to attach, secure with two 8 x 30mm bolts, locks, flats, and nuts. Before drilling,
verify that the hole placement will not interfere with any baler operation.
001-4402
001-4703C
001-4703CD
001-4703CC
001-4646D
001-4646C
001-4647
Front of
Baler
Bolt to bottom
side
Bolt to bottom
side
2” (5 cm) dia
hole through
side

10
Installation of Drain Fill Kit (Models 444T, 450T & 451T)
Model 444T

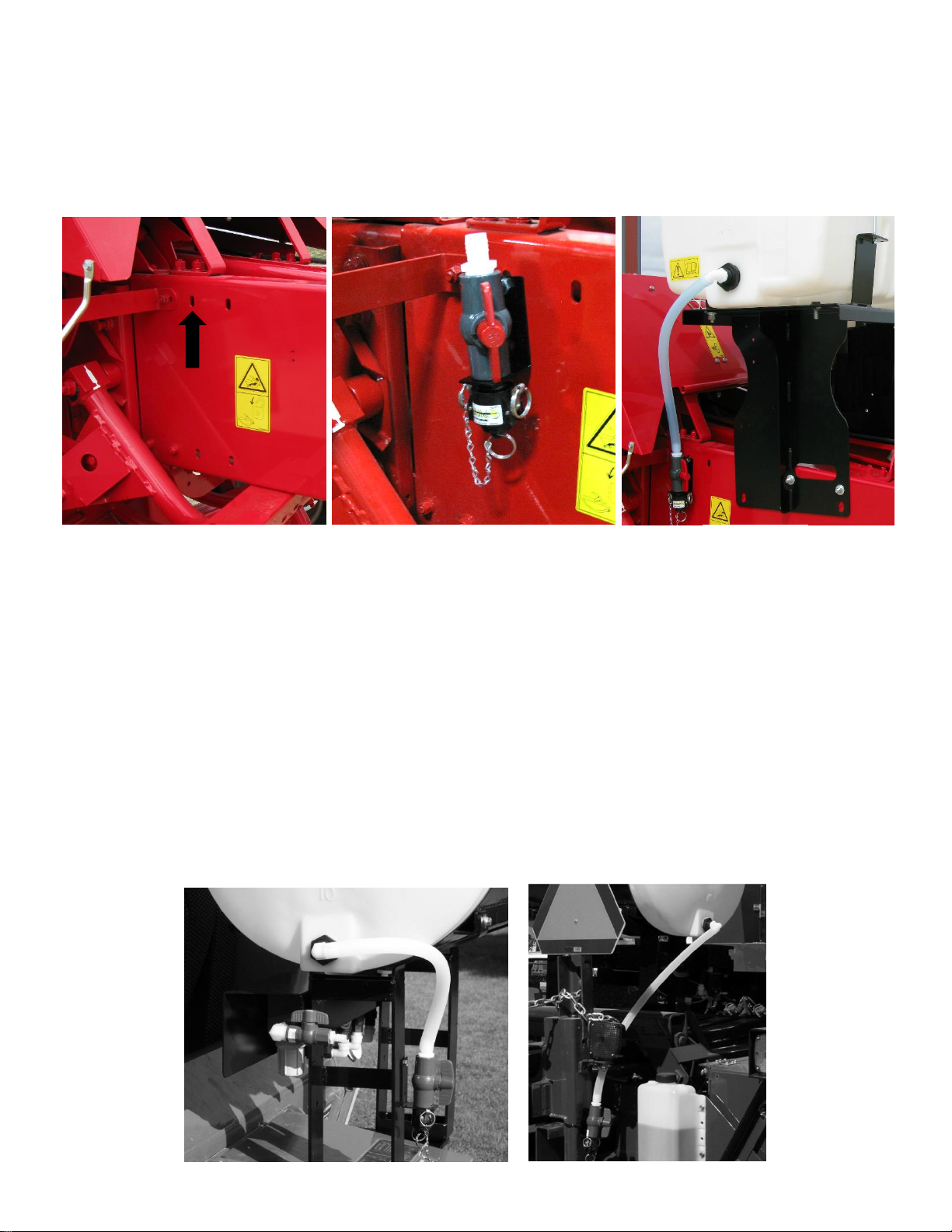

Using parts bag 1, locate the pre-drilled hole at the front of the bale chamber (figure 1). Secure valve assembly
to baler using 5/16” x 3/4” carriage bolts (figure 2). Thread 3/4” elbow fitting into tank, cut hose to correct
length and connect to valve assembly. Secure with hose clamps on both ends (figure 3).
Model 450T
Locate parts bag 1. Install the straight fitting (003-A3434) or elbow fitting (003-EL3434) into the side fitting in
the tank (Figure B). Drill two 5/16” holes using the valve holder (001-6702H) as a template on the right side of
the baler above the tire. Mount the valve holder with two 5/16” x 1” self-tapping bolts and flange nuts. Attach
the 3/4” cam coupler to the 3/4” ball valve through the valve holder. Insert the straight fitting (003-A3434) into
the ball valve. Cut the 3/4” hose to length secure on both sides using hose clamps. Install supplied safety
decals (DCL-8001 & DCL-8005) next to the ball valve assembly.
Model 451T
Locate parts bag 1. Thread 3/4" elbow fitting into end of tank. (003-EL3434) Run 3/4" hose from the elbow
down the frame to the bottom of the baler. Drill 1/4" holes to accept the valve holder bracket and use 5/16” x1”
self-tapping screws and flange nuts. Connect valve assembly to other end of hose. Place hose clamps on both
ends. Secure hose to frame using zip ties.Install supplied safety decals (DCL-8001 & DCL-8005) next to the
ball valve assembly.
Figure 1
Figure 2
Figure 3

11
Placement of Spray Nozzle Assembly
Install Kit 4409B

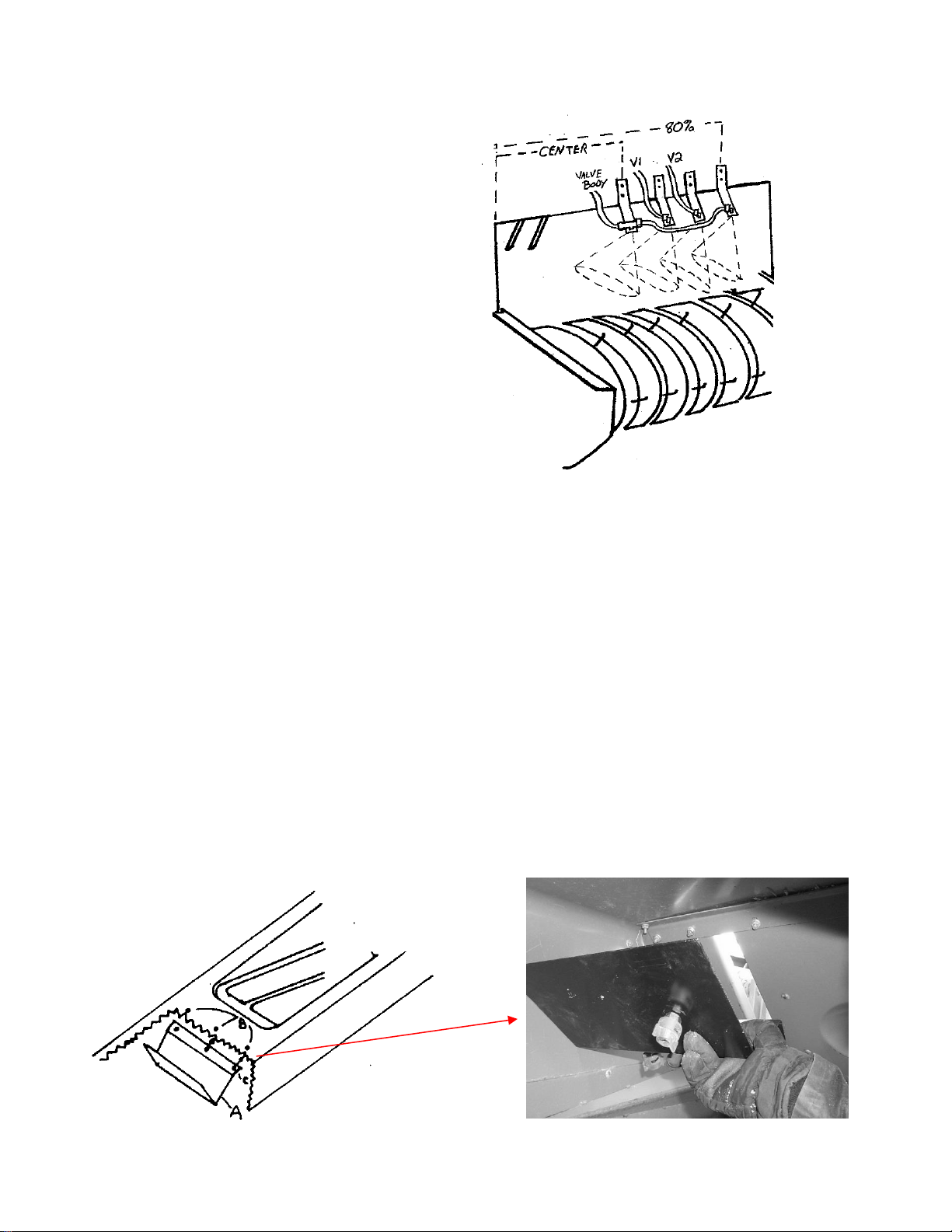

1. Mount the left hand nozzle strap (it has an
elbow fitting and a silver tip) so that it is
approximately 80% across the width of the
pick-up head. Example: if the head is 60”
wide, locate the nozzle 48” from the right
side of the head (60”x80”.)
2. Mount the right hand nozzle strap (it has a
tee fitting and a silver tip) so that it is
approximately centered on the pickup head.
3. Place the two auxiliary nozzle straps in
between the first two straps.
4. Bend the nozzle bar in so that the tip is
pointed in toward the bottom of the gathering
chamber and about 16” above the sheet
metal base of the chamber. Twist the nozzle
so the tip is tilted 45 degrees from
horizontal.
5. Three 1/4 inch lines will need to be run from
the hose manifold to the nozzle straps. Use
the color-coded stickers to attach the correct
hose to the correct tips, and couplers.
Secure the lines to the bracket and spray
shield using the supplied hose clamps.
Install Kit 4410B
Install Hoses before installation of shield. Bolt the nozzle holder (A) up under the baler’s hood.
Remove 3 bolts (B) on the baler and replace with hardware in kit to fasten lip(C) securely in place.
Three 1/4 inch lines will need to be run from the hose manifold to the spray shield. Use the color-
coded stickers to attach the correct hose to the correct tips, and couplers. Secure the lines to the
bracket and spray shield using the supplied hose clamps.

12
Install Kit 4415B
Locate the hay guard directly above the bale chamber. This install can be done with the hay guard in
the baler, but it is recommended removing it for ease of installation. Consult your dealer for
guidance.
Installation of Spray Shield
1. Mark a point 9-1/4” from the knife on the hay guard and draw a squared line across the width.
2. Remove hay guard from baler if possible. Mark the top and bottom of the hay guard for the
correct re-installation.
3. Back out plastic drill guides until they are flush with the bottom of the spray shield. Line up the
spray shield on the hay guard with the KNIFE sticker against the line just marked.
4. Center and clamp the spray shield firmly in place.
5. Using a ½” drill bit, mark the location of the two ½” holes to create a center mark. DO NOT
DRILL THROUGH STEEL.
6. Remove spray shield. On the holes just marked, use a ¼” drill bit and drill through both pieces
of steel as square as possible.
7. Insert two 1/4" x 2” button head cap screws through holes in the bottom of the hay guard. The
head of the screw will need to be down (in the chamber). Secure with nylon lock nut on top
side.
8. Replace spray shield and secure with the hold-down knobs.
9. Drill out the three holes with the drill guides installed with a ¼” drill bit. Drill through both pieces
of steel.
10.Remove the spray shield and using a 1-1/2” hole saw, drill the three holes through the TOP
STEEL ONLY.
11.Drill out the bottom holes with a 9/16” bit. Be careful not to oblong the holes. De-burr any
metal filings left around the three holes on both sides of the hay guard. Use touch-up paint on
bare surfaces to preserve the metal and the baler.
12.Remove plastic drill guides from the shield and thread the elbow completely into the spray
shield.
13.Install the tip strainer followed by the blue tip into the LOW fitting on the shield. The MEDIUM
will be the green tip, followed by brownfort the HIGH fitting. Tighten nuts to secure the strainers
and tips.
14.Back the threaded fittings out as far as possible. Place the shield on the hay guard and secure
by pressing down. Secure the spray shield with the hold-down knobs.
15.Thread all three elbows down until they touch the bottom metal and align as needed for routing
the hoses. NOTE: Tips should protrude slightly out of the bottom of the hay guard with no
space between the tip and the hole.
16.Re-install hay guard onto the baler.
Installation of Hose and Support Bracket
1. If the hay guard was removed for shield installation reinstall at this time.
2. Mark a point 6” from the first rotating tine on the center of the hay guard. Center punch this
mark and drill a 1/4" hole through both top and bottom of the hay guard.
3. Bolt the bottom bracket (001-4425B) using 1/4" x 2” button head cap screw. Secure with a
1/4" flange nut. The head will need to be down (in the chamber).
4. Loosely install the remaining bracket (001-4425B) to the bottom bracket attaching in the
middle. Level the two pieces and extend the top bracket until it reaches the top of the baler.
Secure with a 1/4" flange bolt and nut.
5. Mark and drill the top hole with a 1/4" bit. Secure with a 1/4" flange bolt and nut.

13
Install Kit 4415B (continued)
6. Route the hoses from the pumps down the cross member the tank is mounted on towards the
right side tire. The hose will go up the right side of the baler towards to the top and center of
the baler towards the hole that will be made in the next step.
7. Cut a 1-1/2" hole in the top of the baler for the hose to route through. Install the grommet once
the hole is complete.
8. Attach the hose, to the elbows, securing with hose clamps. Clear hose to low, green to med.,
and blue to high.
9. Secure the low and medium hoses on the end of the spray shield with two jiffy clips (008-9014)
and a 1/4" x 1/2" round head screw.
10.Install the hose from the shield under the hay tine, to the bracket, and out the top.
11.Secure the hose to the bracket with two jiffy clips (008-9009) and 1/4" flange bolts and nuts.
Keep the hose in the center of the bracket.
12.Run the hose through the top of the baler and down towards the tank. Use the supplied jiffy
clips (008-9009) to secure in route to the tank.
13.Install the hoses on to the correct pumps. See plumbing section.
View from behind the twine box with the inspection door open.
Hay Guard
Spray Shield
1-1/2" hole
Brackets
001-4425B
Location of first
rotating tine

14
Install Kit 4416B
On baler tongue above center of the baler (figure 1), install spray shield holders (001-4424B) on both sides of
tongue using pre-drilled holes (figure2). Securing each with one 3/8” bolt. Do not tighten bolts. Place the spray
shield (001-4424A2) on the shield holders using two 3/8” bolts, washers, lock and nuts. Spray shield should
spray toward back of pickup, between augers, in area before crop enters baler (figure 3). When angle of tips is
correct, tighten shield holder bolts. Route hose to hose manifold.
Figure 1
Figure 2
Figure 3

15

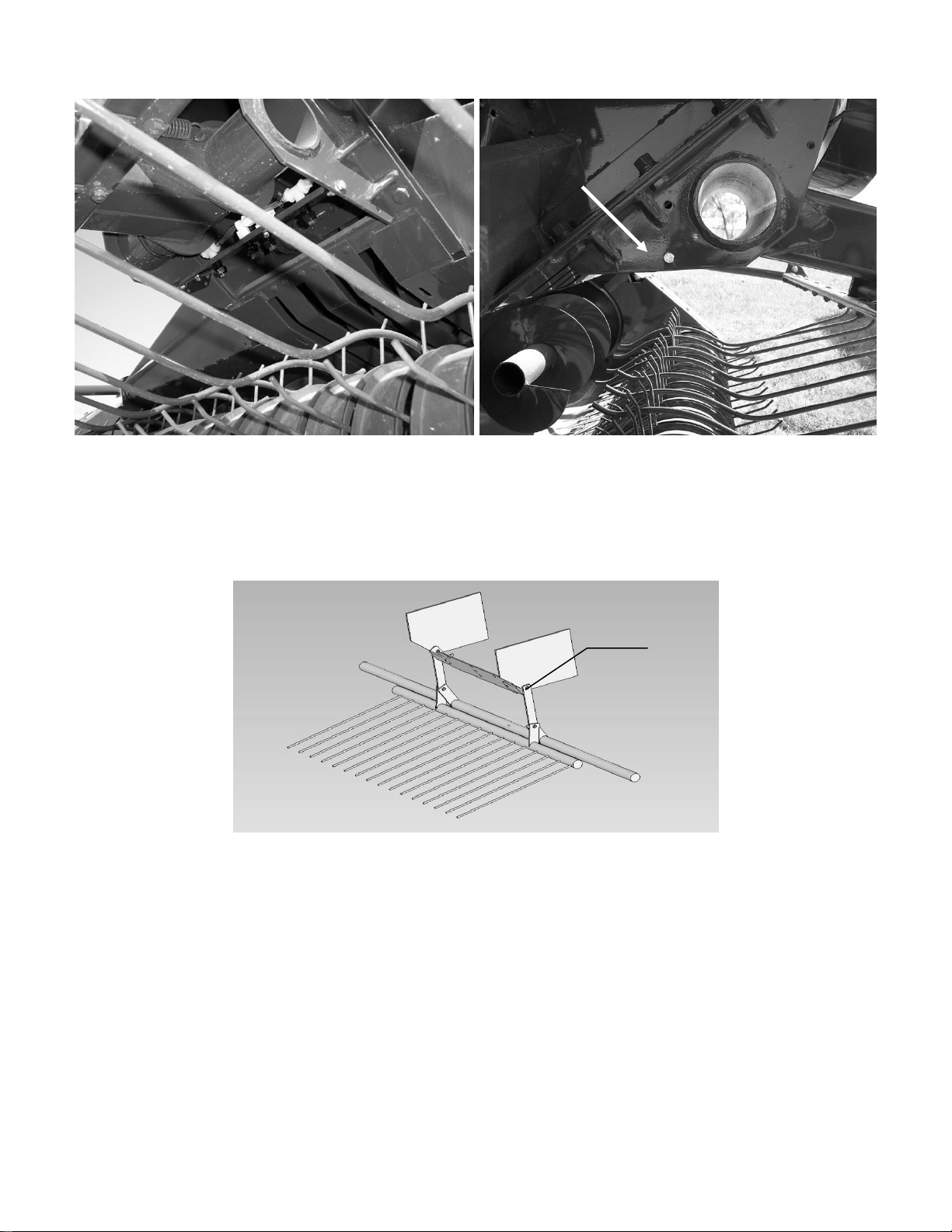

Install Kit 4485B
Install spray shield (001-4424B) on baler as shown in Figure 1 and 2. Use the two existing holes shown in
Figure 1 and one existing hole shown in Figure 2 to attach the spray shield.
Install Kit 4502B
The shield for your baler will mount in the throat of the baler as shown above. Remove nut and bolt on both
sides of baler. (Figure 1). Install shield holders (001-4703I) with 1/2 x 2” bolts, nuts, locks and flat washers.
Do not tighten these bolts until the shield is properly aimed. Aim the shield at bottom of the pickup head at the
point where stuffer fingers connect with hay (between the two augers) and make sure the bushing is not
removed. Once the shield is in place the nuts may be tightened down.
Figure 1
Figure 2
Figure 1

16
Install Kit 4506B
The shield for your baler will mount on top of the sheet metal directly above the pickup head shown in the
picture above. Mount shield holder (001-4703H) on top of metal 6 inches from the front of the baler and 10
inches from the side of the baler. Attach this holder with 1/4 x 1 1/4" self-tapping bolts. Place shield of top of
holder and rotate the shield to a 45-degree angle. Mark the location of the next holder’s position and install.
Four holes will need to be drilled below the tips using a 3/4" hole saw or bit.
Install Kit 4507B
The shield for your baler will mount on the wrap guard as shown in the picture above. Remove the
two outside bolts on each side of the wrapper guard. Place bracket 001-4703G so pins are facing up
and bolt through with 3/8 x 1-1/2" into bracket 001-4703G, through wrap guard, and into threaded
holes on baler frame that the bolts were removed from.
Outside
bolts
001-4703G
10 inches
6 inches
from the
front
001-4703H

17
3. Installation of Plumbing
Model 444T, 445T & 450T
A. Intake
Locate parts bag 15. Use the 003-EL3412 on the bottom of the tank to route 1/2" line (002-
9001) to the 003-A1212 fitting on the ball valve already attached to the pump plate. Attach
hose clamps (003-9003) on both of the fittings.
B. Discharge
The three-1/4" hose assembly will be used to attach the pumps to the hose bracket. Use the
color-coded stickers to attach the clear, green, and blue hoses to the proper pumps and
couplers on the hose manifold. The same color-coded stickers will used to attach the hoses
from the hose bracket to the spray shield. (Pump 1 clear/white, Pump 2 green, Pump 3 blue.)

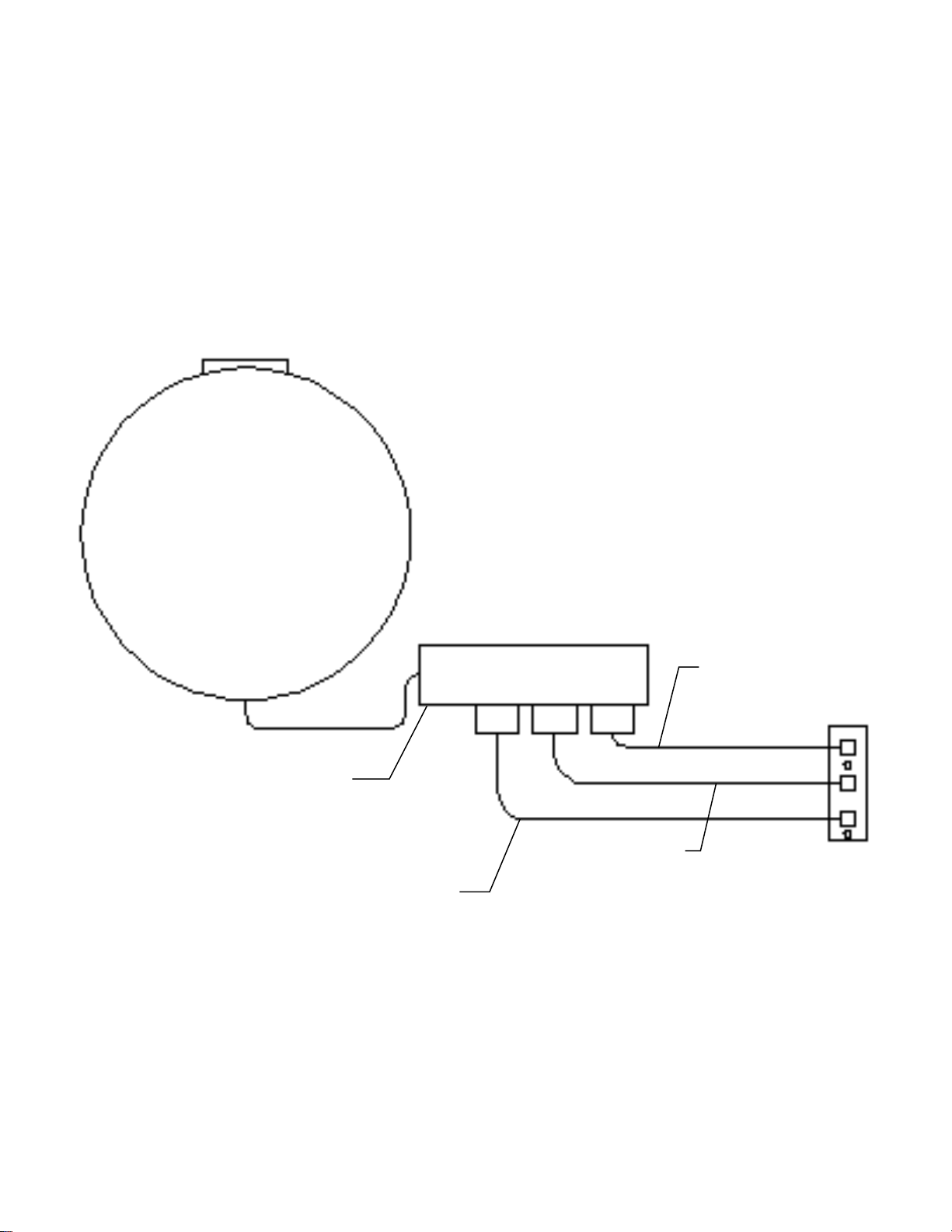

Tank
Pump
manifold
Clear hose
Green hose
Blue hose
Check
valves
Hose
manifold
Clear hose
Green hose
Blue hose

18
Model 451T
A. Intake
Locate parts bag 15. Use the 003-EL3412 on the bottom of the tank to route 1/2" line (002-
9001) to the 003-A1212 fitting on the ball valve already attached to the pump plate. Attach
hose clamps (003-9003) on both of the fittings.
B. Discharge
The three-1/4" hose assembly will be used to attach the pumps to spray shield. Use the color-
coded stickers to attach the clear, green, and blue hoses to the proper pumps and elbows on
the spray shield. (Pump 1 clear/white, Pump 2 green, Pump 3 blue.)
Tank
Pump manifold
Clear hose
Blue tip
Green hose
Green tip
Blue hose
Brown tip

19
Installation of Star Wheels and Bale Rate Sensors
Model 444T, 445T, 450T, 451T (Two-Tie only)
Locate parts bag B. The pair of star wheels will need to mount on the bottom side as close to the front of the
bale chute as possible and at least 10 mm away from any metal. They will need to maintain a safe distance
away from the twine.
The star wheels will require two holes to be drilled per block, when drilling make sure to keep the wheel square
to the bale chamber. Any angle will cause stress on the wheel and will eventually cause the wheel to work
itself out of the block. Some balers may require a notch cut on the bottom of the bale chamber to mount the
star wheels as close to the front of the chamber as possible. Use the template in back of manual to aid in
installation.
Use the supplied bolts and place the carriage head inside of the bale chamber followed by lock and nut. Next
attach the star wheels to the bolts followed by flat washer, lock washer and nut. The right side star wheel will
have the bale rate sensor bolted to the bottom of the block.
First, remove the cover from the star wheel block and use a 1/4” nut driver to remove the nut from the
electronic swivel. Next, run the star wheel sensor wire through the black grommet and place the eye terminal
on the star wheel sensor. Tighten the eye loop with the nut on the sensor and put the star wheel cover back on
the base. Next, tighten the grommet to form a tight seal around the wire. The sensor with the longer sensor
wire should say “FRONT”, which indicates it should be placed in the front sensor hole. The sensor wire with the
shorter wire should say “BACK.” The tip of the sensor should be placed no more than 3mm away from the star
wheel teeth and no less than 1 mm from the star wheel teeth. Each sensor will have an LED light located on
the sensor by the sensor holder. Once the unit is powered up spin the wheel and make sure that both led lights
turn on and off. If they don’t turn on and off, adjustments may need to be made.
Once the star wheel connection is complete, run the harness along the baler frame to the BMP. See wiring
system diagram.
Model 451T & 445T (CNH Only)
Model 444T, 450T

20
Model 450T (Three-Tie only)
Locate parts bag B. The pair of star wheels will need to mount on the top as close to the knotters as possible
and at least 10 mm away from any metal. They will need to maintain a safe distance away from the twine.
The star wheels will require two holes to be drilled per block, when drilling, make sure to keep the wheel
square to the bale chamber. Any angle will cause stress on the wheel and will eventually cause the wheel to
work itself out of the block. A template can be found in the back of the manual to help with the placement of
the star wheel.
Use the supplied 5/16” allen head carriage bolts and place the carriage head inside of the bale chamber
followed by lock and nut. Next attach the star wheels to the bolts followed by the twine diverters 001-4644 and
001-4645. Finally secure the entire block using nuts, locks, and flat washers. The twine diverter with the bale
rate sensors needs to be mounted on the right side of the baler.
Remove the four screws holding the plastic cover and attach one wire eye loop per star wheel through the
grommet and tighten down with the nut attached to the swivel. Reinstall the cover and run the wires up to the
pump plate. You will need to use zip ties to attach the wires so as to not interfere with normal baler use.
Freeman Balers
Hesston and New Holland Balers
