Meiji Techno SZG Series User manual

GMZT/PT/76
GMZT/PT/85
GMZ-5 BF/BD
GMZ-5TR BF/BD
GMZ-8TR BF/BD
GMZ-13 BF/BD
GMZ-13TR BF/BD
GMZ-40 BF/DF
GMZ-41 BF/DF
GMZ-50 BF/DF
GMZ-51 BF/DF
GMT-1 BF/DF
GMT-2 BF/DF
GMT-3 BF/DF

1
Contents SZG Series
Before use
1. Nomenclature …………………………………………………………………………..1
2. Assemblage………………………………………………………………………………3
3.Operation ………………………………………………………………………………4
3-1. Illumination…………………………………………………………………………..4
3-2. Adjust observation tube & base………………………………… ……… ………. .. 4
3-3. Adjust focusing tightness ………………………………………………………….4
3-4. Diopter & focusing ………………………………………………………………..5
3-5. Interpupillary distance……………………………………………………………….5
3-6. Auxiliary lens ………………………………………………………………………..5
3-7. Mount and remove micrometer …………………………………………………….. 6
3-8. Set photo device & TV device …………………………………………………… .. 6
3-9. Select light path…………………………………………………………………….. 6
3-10. Focus TV device ………………………………………………………………….. 6
3-11. Iris diaphragm …………………………………………………………………. 7
3-12. Switch Bright-field & Dark-field ………………………………………………… .7
3-13. Adjust top light ……… …………………………………………………………… 7
3-14. Replace fuse … …………………………………………………………………….7
3-15. Replace bulb for bottom light …………………………………………………….7
3-16. Replace bulb for top light …………………………………………………………. 8
3-17. Polarizer …………………………………………………………………………. 8
4. Technical parameter……………………………………………………………………9
5. Troubleshooting ……………………………………………………………………… 10

2
Before use SZG series
Operation
1. As the microscope is precision instruments, it should be taken carefully and avoid impact during
transportation.
2. The microscope should be set in dry and clean place. Do not expose in the sun directly and avoid high
temperature and violent vibration. The environment temperature should be 0 ℃～40 ℃and the humidity
should be 85%.
3. To keep the image clearly, do not leave finger prints or stains on lens.
4. Make sure the main power supply is suitable within 90-240V before use.
5. Do not adjust the right and left focusing knob to opposite direction simultaneity, otherwise it will with
trouble.
6. Please shut off power supply before replace bulb.
7. Please shut off power supply before remove the microscope.
8. Please holder the microscope from arm and base and put off safety.
★If hold on the stage, focusing knobs or observation tubes during removing, it will damage the
microscope.
Maintenance
1. All lenses should be kept cleanly. Use air or lens cloth to clear dust; Use cotton pledget with 3:7 ethanol
and aether mixed to clear spot and fingerprint.
2. Never use organic solution to clean the surface of microscope, especially the plastic parts. If necessary,
please choose neutral detergent.
3. Do not disassemble or assemble the microscope yourself to avoid damaging the capability.
4. After using, put on dust cover to protect microscope and put in dry place to prevent rust.

1
1. Nomenclature SZG series
Microscope head
Lock screw
Eyepiece
Focusing knob
Microscope stand Gem clamp

2
SZG series
Tri-tube
Light path selection pole
Switch for top light
Zoom knob
Screw to hold top light
Switch for iris diaphragm
Knob for
darkfield/brightfield
Plug
Lock screw for
li
g
ht holde
r
Screw for
rotatable axial
Brightness adjusting knob
Base
Power switch
Stand
Focusing knob
Dio
p
te
r

3
2. Assemblage SZG series
Below is the assemblage scheme for SZN series, the numbers show assemblage order.
★Before assemblage, please make sure that every part is clean. And keep them clean during
assemblage.
135 camera
C type monitor P
K
mount
Photo eyepiece
Photo tube
C mount
TV tube
Eyepiece
Microscope head
Stand
Gem clamp

4
3. Operation SZG series
3-1 Illumination
⑴Connect main power supply and set main switch at “-”.
⑵Use bottom light: Turn brightness adjusting knob to
suitable. The direction showed. (Fig. 1)
⑶7Wfluorescentbulbfortoplightanditcannotadjusted
for brightness. It has separate switch knob, show the
figure below.
3-2 Adjust observation tube & base
⑴Hold the front of the base and arm to turn to suitable
position for observation. (Fig. 2) Then tight the screw
for rotatable axial.
⑵The plastic disc under base can make the whole
microscope for 360° rotatable.
3-3 Adjust focusing tightness
⑴Hold one knob to turn another to achieve adjustment of
tightness. Tightness is base on turn direction. (Fig. 3)
⑵ Adjust the tightness to suitable to make observation more
comfortable and prevent stage slipping down.
Figure 3
Figure 1
Figure 2
Hold Hold
Turn
Loose Hold
Tigh
t
Screw for
rotatable axial

5
SZG series
3-4 Diopter & focusing
⑴Turn the focusing knob to Max. magnification.
⑵Turn the both eyepiece tube at “0” position.
⑶Observe through right tube. If the image is not clear, use
focusing knob to make it clear.
⑷Turn the focusing knob to Min. magnification.
⑸Observe through right tube. If the image is not clear,
adjust diopter to make it clear.(Fig. 4)
⑹Turn the focusing knob to Max. magnification again. If
the image is still not clear, repeat the above step ⑶and
⑸.
⑺Turn the focusing knob to Min. magnification, then
observe through left tube. If the image is not clear,
adjust diopter to make it clear. (Fig. 4)
3-5 Interpupillary distance
Holdbotheyepiecetubetoturnasthedirectionshowed
Fig. 5 to suitable position
3-6 Auxiliary lens
⑴Set on auxiliary lens to the bottom of the microscope head.
⑵ It should use additional tube when use 0.5X auxiliary
lens. (Fig. 6)
⑶When use 1.5X or 2X auxiliary lens, please take off 4pcs
M3 screws on focus arm and set the focus arm into 4pcs
holes and lock. (Fig. 7)
★It need not use additional tube when use 0.75X
auxiliary lens.
Figure 4
Fi
g
ure 5
Figure 6
Left diopter
Microscope
head
Additional tube
Focus ar
m
Figure 7
Right diopter

6
SZG series
3-7 Mount and remove micrometer
⑴ Take off the mounting ring from eyepiece. (Fig. 8)
⑵Clean the micrometer and mount it into mounting ring,
make sure the inscription side up. (Fig. 8)
⑶Mount the mounting ring into eyepiece.
⑷ To remove the micrometer, please take off the mounting
ring first. Then take out the micrometer and wrap it with
clean and soft paper for storage.
3-8 Set photo device & TV device
⑴ Screw video tube ①into M28 hole of tri-tube. (Fig. 9)
⑵ Loose the lock-screw ②on TV tube, and take off the
C-mount ③from tube.
⑶ Screw the C-mount into video camera.
⑷ Connect the video camera with TV tube and lock by
screw ②.
3-9 Select light path
⑴To observe through binocular, please turn the light path
selection lever ①to “OUT”. (Fig. 10)
⑵If turn the light path selection lever ①to “IN”, (Fig 10) ,
you can observe through both binocular and trinocular.
★Whether the light path is to “OUT” or “IN”, please make
sure it is to the end.
3-10 Focus TV device
⑴Turn the light path selection lever to “IN”. (Fig 11)①
Turn the zoom knob to the Max. magnification and⑵
observe through video camera and adjust focusing knob
to make image clear.
⑶Turn the zoom knob to the Mix. Magnification. If the
image is not clear, please adjust the adjusting ring ②on
video tube to make it clear.
Turn the zoom knob to Max. magnification again. If the⑷
image is still not clear, please repeat the step (2), (3) to
make it clear within the whole zoom range.
Figure 8
Figure 9
Figure 11
Figure 10

7
SZG series

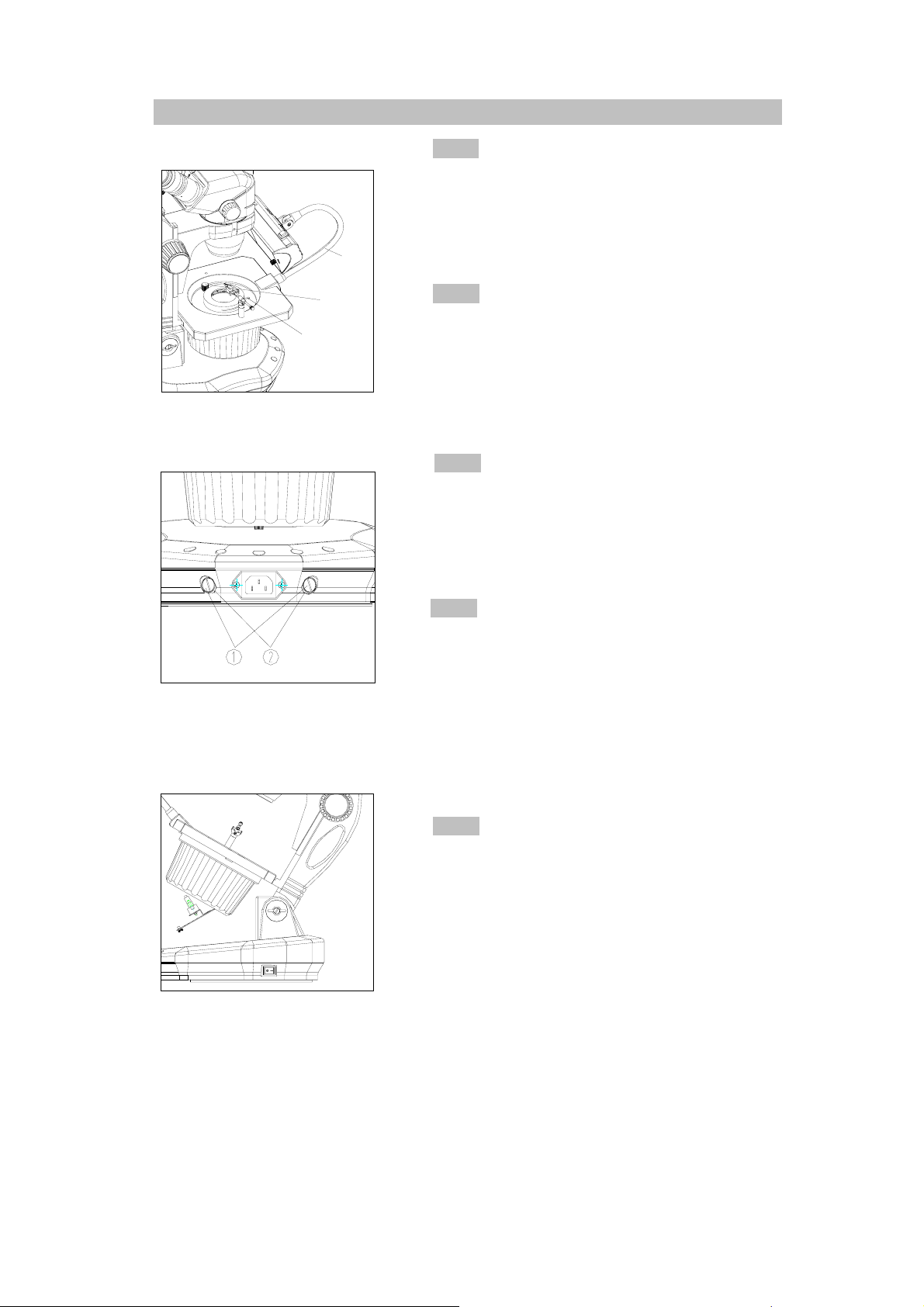

3-11 Iris diaphragm
Turn switch for iris diaphragm to change the aperture of
bottom light. The aperture for iris diaphragm is Φ3mm～
Φ44mm. (Fig. 12)
3-12 Switch Bright-field & Dark-field
Turn the knob for bright-field and dark-field to select
bright-field and dark-field. (Fig. 12)
★Whenever select dark-field or bright-field, the knob
should be turned thoroughly.
3-13 Adjust top light
It is 7W fluorescent bulb for top light and connect by a soft
tube.
(Fig. 12)
3-14 Replace fuse
Please set the power switch at “O” before replace fuse.
Use ”-“ screw driver to take off fuse ①from its base ②
and change a new on, then screw in. (Fig. 13)
★Fuse: 250V3A
3-15 Replace bulb for bottom light
Please shut off power supply before replace bulb. Turn the
microscope stand with 45° and loose the screw under stage.
(Fig. 14)
★Please wait the bulb cool down for replacement.
★Don’t touch the bulb directly by hand.
Figure 12
Soft tube
Knob for
B/D fiel
d
Switch for iris
diaphragm
Figure 13
Figure 14

8
SZG 系列
3-16 Replace bulb for top light
Please shut off power supply before replace bulb. Loose
the screw on cover and turn over it. Pull out the bulb for
replacement. (Fig. 15)
★Please wait the bulb cool down for replacement.
★Don’t touch the bulb directly by hand.
璃外表。
3-17 Polarizer
There are 2 piece of polarizer. One set under the
microscope head (same as auxiliary lens) and the other set
on iris diaphragm.
Figure 15

9
4 、 Technical parameter SZG series
4-1 Optics
Standard objective Objective for selection
WD 100mm Auxiliary lens 1.5X
WD 47mm
Auxiliary lens 2X
WD 26mm
Auxiliary lens 0.75X
WD 120mm
Eyepiece
Mag. Field
mm Mag. Field mm Mag. Field mm Mag. Field mm
6.7X 32.8 10.1X 21.9 13.4X 16.4 5.0X 43.8
7.0X 31.4 10.5X 21.0 14.0X 15.7 5.3X 41.9
8.0X 27.5 12.0X 18.3 16.0X 13.8 6.0X 36.7
10.0X 22.0 15.0X 14.7 20.0X 11.0 7.5X 29.3
15.0X 14.7 22.5X 9.8 30.0X 7.3 11.3X 19.6
20.0X 11.0 30.0X 7.3 40.0X 5.5 15.0X 14.7
30.0X 7.3 45.0X 4.9 60.0X 3.7 22.5X 9.8
40.0X 5.5 60.0X 3.7 80.0X 2.8 30.0X 7.3
10X/22
45.0X 4.9 67.5X 3.3 90.0X 2.4 33.8X 6.5
10.1X 23.9 15.1X 15.9 20.1X 11.9 7.5X 31.8
10.5X 22.9 15.8X 15.2 21.0X 11.4 7.9X 30.5
12.0X 20.0 18.0X 13.3 24.0X 10.0 9.0X 26.7
15.0X 16.0 22.5X 10.7 30.0X 8.0 11.3X 21.3
22.5X 10.7 33.8X 7.1 45.0X 5.3 16.9X 14.2
30.0X 8.0 45.0X 5.3 60.0X 4.0 22.5X 10.7
45.0X 5.3 67.5X 3.6 90.0X 2.7 33.8X 7.1
60.0X 4.0 90.0X 2.7 120.0X 2.0 45.0X 5.3
15X/16
67.5X 3.6 101.3X 2.4 135.0X 1.8 50.6X 4.7
13.4X 17.9 20.1X 11.9 26.8X 9.0 10.1X 23.9
14.0X 17.1 21.0X 11.4 28.0X 8.6 10.5X 22.9
16.0X 15.0 24.0X 10.0 32.0X 7.5 12.0X 20.0
20.0X 12.0 30.0X 8.0 40.0X 6.0 15.0X 16.0
30.0X 8.0 45.0X 5.3 60.0X 4.0 22.5X 10.7
40.0X 6.0 60.0X 4.0 80.0X 3.0 30.0X 8.0
60.0X 4.0 90.0X 2.7 120.0X 2.0 45.0X 5.3
80.0X 3.0 120.0X 2.0 160.0X 1.5 60.0X 4.0
20X/12
90.0X 2.7 135.0X 1.8 180.0X 1.3 67.5X 3.6
4-2 Auxiliary lens (for selection)
Auxiliary lens Mag. WD (mm) Auxiliary lens Mag. WD (mm)
SAO0.5 0.5X 177 SAO1.5 1.5X 47
SAO0.75 0.75X 117 SAO2 2X 26
★The working distance is settled, it will not changed as the magnification changed.
★Total mag.= Zoom mag. X Eyepiece mag. X Auxiliary objective mag.
View field of eyepiece
Field diameter（mm）=
Zoommag.*auxiliaryobjectivemag.
4-3 Photo adaptor mag.= Zoom mag.(* Auxiliary objective mag.) * Photo eyepiece mag.
4-4 TV device mag.=Zoom mag.（* Auxiliary objective mag.）* C-mount TV adaptor

10
5. Troubleshooting SZG series
The performance of the microscope can’t be made fully because of unfamiliar using, this table will give some
advices:
Trouble Cause Remedy
1. Optical parts
⑴Brightness too bright or
too dark
Adjustment of brightness is not
correctly Adjust it correctly
Dirt on specimen Clean specimen
Dirt on surface of eyepiece Clean eyepiece
Dirt on surface of objective Clean objective
⑵Dirt appears inside of
view field
Dirt on stage Clean stage
Interpupillary is not right Re-adjust the interpupillary
Diopter is not right Re-adjust the diopter
⑶Double image
Different magnification of both
eyepiece Use the same eyepiece
⑷Image is not clear Dirt on surface of objective Clean objective
Diopter is not right Re-adjust the diopter
⑸Image blur during
focusing Wrong focusing Focus again
⑹Incision image appears
when observe through
eyepiece or TV device
Light path selection lever is not
at right position Turn it to right position
⑺Image is not clear on
monitor during focusing
Wrong focus depth of video
device
Re-adjust the focus depth by adjusting
ring on TV adapter
2. Electrical parts
Wrong setting of bulb Set the bulb correctly
Bulb has burned out Replace the bulb
Fuse has burned out Replace the fuse
⑴Bulb does not work
Dirt on the stage stopped the
light path Clean the stage
⑵Bulb burned out The bulb is not standard Use standard bulb
Bulb is going to burn out Replace the bulb
⑶Light flickered out
The wires do not connect right Connect it correctly
3. Focusing parts
⑴Focusing knobs work
stiff Too tight of the focusing knobs Loose it to suitable
⑵Image is not clear by
the focusing arm slipping
down during focusing
To loose of the focusing knobs Tight it to suitable
