meitav-tec ETNC24-FC-BAC-PIR-01 User manual

ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
Rev.7

Index
Operating instructions……………………………………..…………………………………….………….4-6
Turning the thermostat ON and OFF
Selecting temperature scale
Adjusting the Set point temperature (for 1 set point and 2 set points configurations)
Selecting system mode
Selecting Fan speeds (for 2 and 3 fan speeds configuration)
Turning Auto fan ON or OFF (fan on demand)
Resetting filter alarm
Locking the thermostat buttons
Sleep mode
Economy mode
Freeze Protection
Installation………………………………………………...…………………………………….………….. 7
Wiring……………………………………………………..…………………………………….…………… 8
Jumpers…………………………………………………..…………………………………….…………… 9
End of line resistor
Temperature display – Set point & Ambient or Set point only
Enable / Disable PIR detector
No valve configuration
Chilled beam configuration
Floor heating configuration

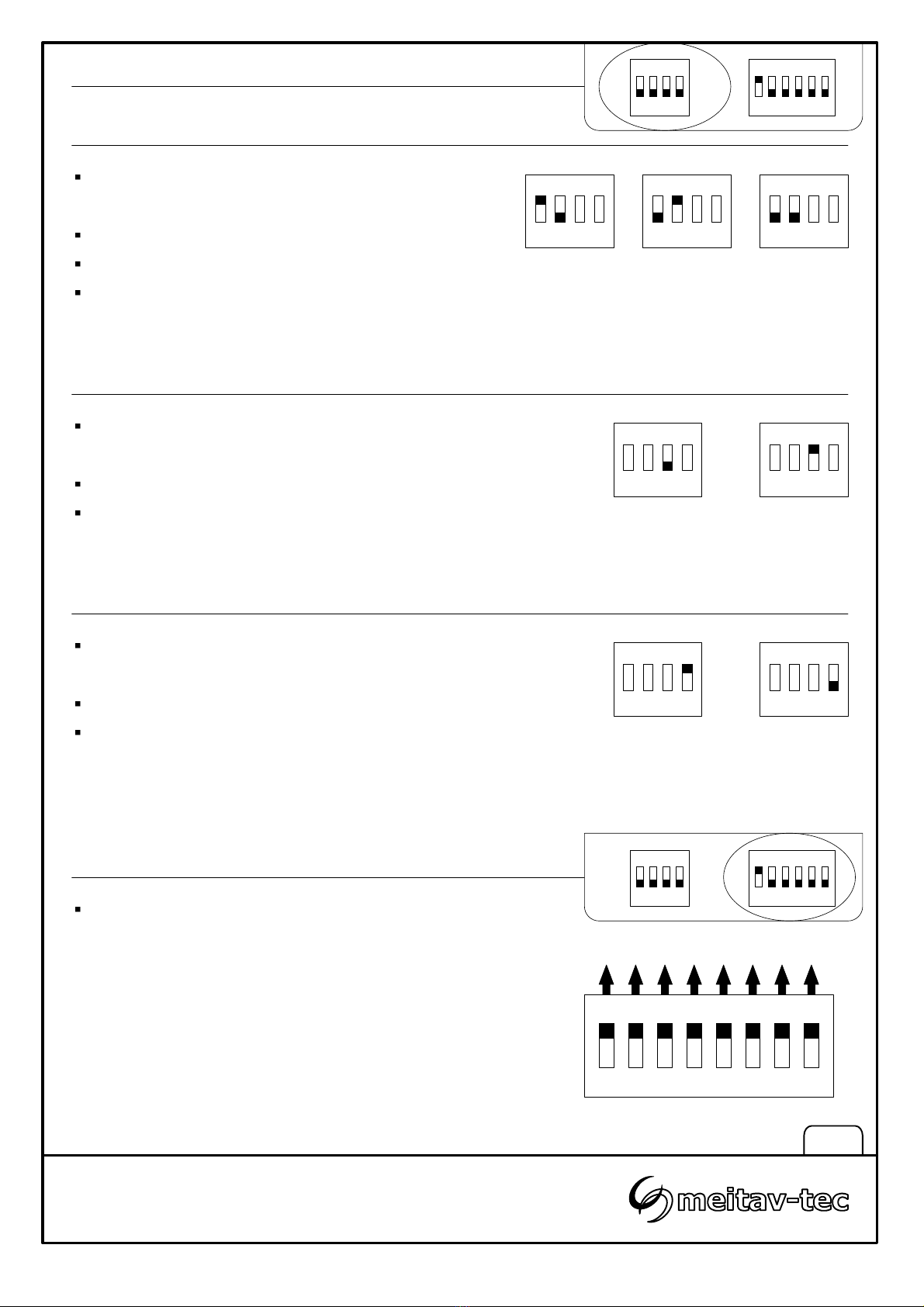

DIP Switch settings……………………………………..……………………………………..………….. 10-12
Number of fan speeds
2-Pipe / 4-Pipe system
Enable/Disable Electric heater on 2nd stage heating

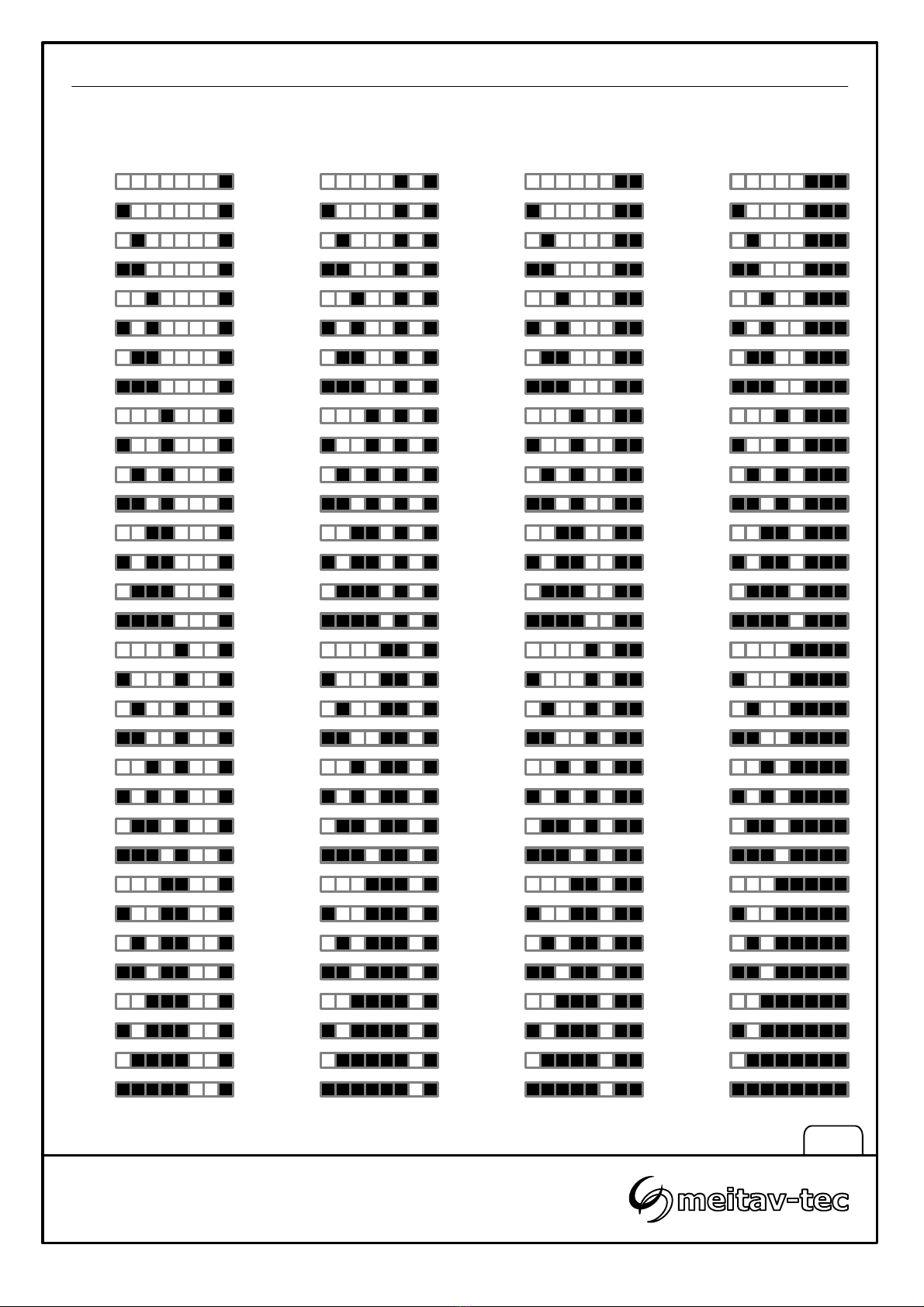

Communication MAC Address / MAC Address table
Pg. 2
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings

Index
Technician settings……………………………………………...…………………………….………….. 13-26
Pg. 3
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P01 – Offset for temperature readings calibration
P02 – Set point limit for cooling
P03 – Set point limit for heating
P04 – Lock the [Fan] button
P05 – Lock the [Mode] button
P06 – Lock the [On/Off] button
P07 – Lock the [+] and [-] buttons (Set buttons)
P08 – Functionality of T1 terminals

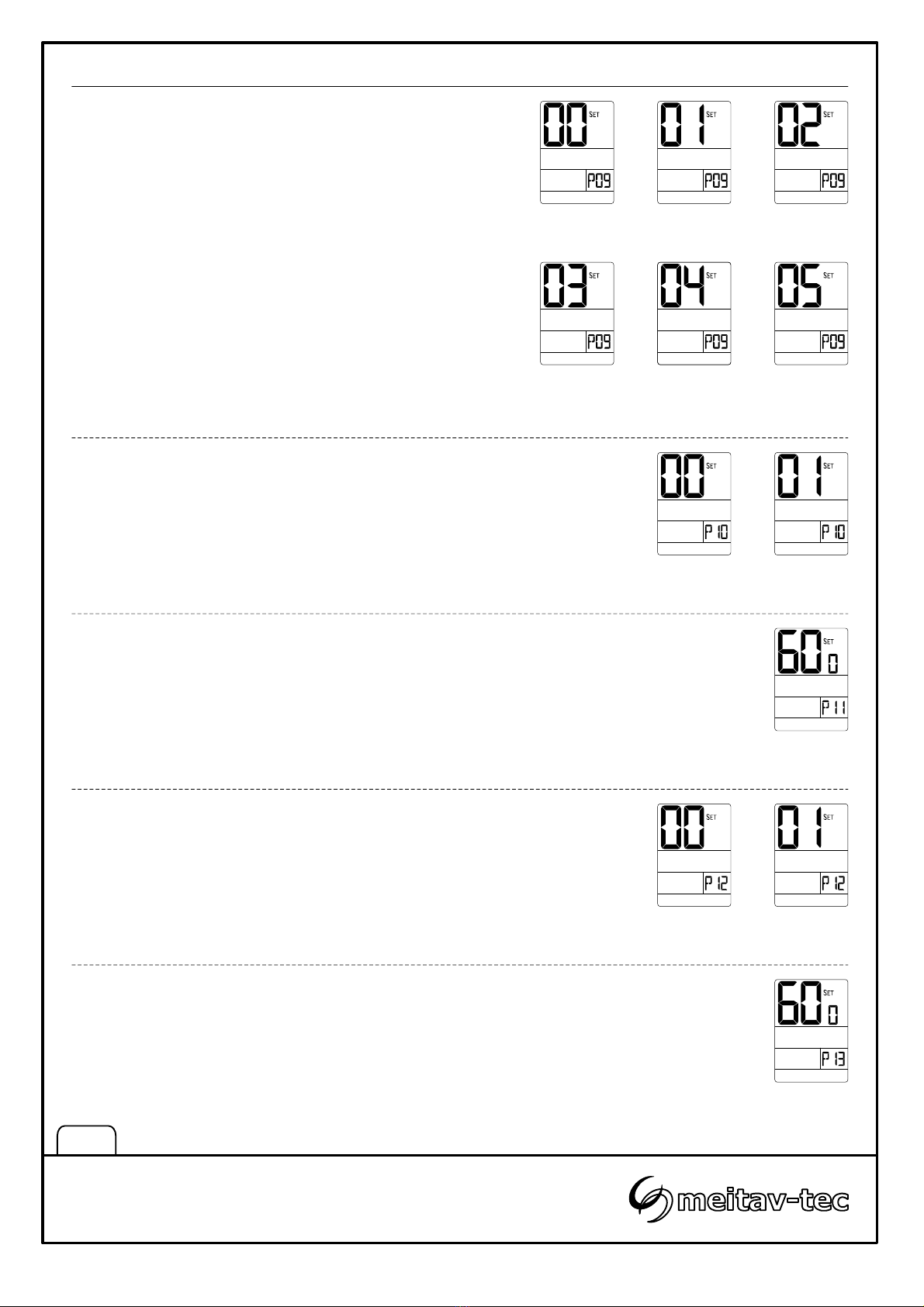

P09 – Functionality of IN1,0 terminals
P10 – Window contact (terminals IN1,0) polarity
P11 – Window contact delay time
P12 – Door switch (terminals T1,0) polarity
P13 – Door switch delay time
P14 – Enable/Disable Auto change over mode
P15 – Occupancy sensor logic (PIR)
P16 – Enable/Disable Occupancy sensor
P17 – PIR (occupancy sensor) delay time
P18 – PIR (Occupancy sensor) polarity
P22 – Sleep mode time delay
P23 – Sleep mode offset in cooling
P24 – Sleep mode offset in heating
P25 – Economy set point for cooling
P26 – Economy set point for heating
P29 – LCD Backlight ON or OFF
P30 – Beeper ON or OFF

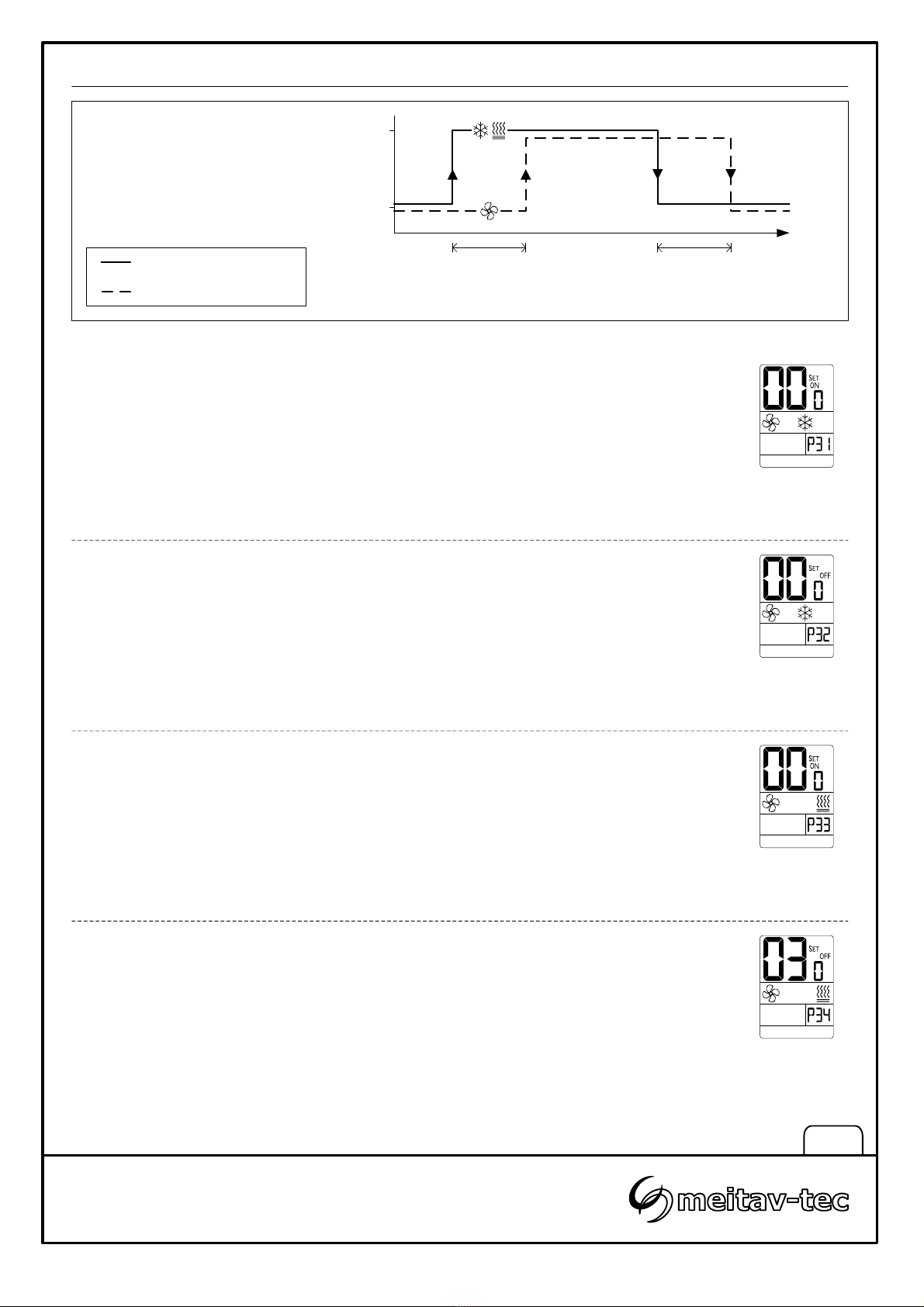

P31 – Fan ON delay in cooling (seconds)
P32 – Fan OFF delay in cooling (seconds)
P33 – Fan ON delay in heating (seconds)
P34 – Fan OFF delay in heating (seconds)
P35 – Enable/Disable Freeze protection
P36 – Freeze protection cut-in set point
P37 – Freeze protection cut-out set point
P40 – View filter counter (hours) – Read only
P41 – Reset filter time
P42 – Adjust filter alarm delay counter (hours)
P43 – Soft start in heat – cut-in temperature
P44 – Soft start in heat – cut-out temperature
P45 – Cool differential band
P46 – Cool differential band offset
P47 – Heat differential band
P48 – Heat differential band offset
P49 – Shift between Cool and Heat in Auto mode
P51 – Shift between Heating stages
P83 – View T2 temperature sensor readings
P84 – View T3 temperature sensor readings
P99 – One or Two set points
RT03 Remote control - option…………………………………...…………………………….………….. 27

Operating instructions
Turning the thermostat ON and OFF
Press the [On/Off] button to turn the thermostat ON or OFF.
Selecting temperature scale
In One set point configuration:
Press the [+] or [-] buttons once to view the set point temperature.
Press again to adjust the set point.
In Two set points configuration:
Press the [+] or [-] buttons once – “CL” and the set point temperature for
cooling will appear on display.
Use the [+] or [-] buttons to adjust the set point for cooling.
Press the [Mode] button or wait 3 seconds – “Ht” and the set point
temperature for heating will appear on display.
Use the [+] or [-] buttons to adjust the set point for heating.
Note: The set point for cooling must be higher than the set point for heating.
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
OFFON
Celsius Fahrenheit
Pg. 4
Adjusting the Set point temperature
Press and hold both [+] and [-] buttons for 5 seconds to switch between
temperature scales.
Set point
Set point
For heating
Set point
For cooling

Operating instructions (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
In 1 speed configuration:
Press the [Fan] button to turn Auto fan ON or OFF.
In 2 and 3 speeds configuration:
Press and hold the [Fan] button for 5 seconds to turn Auto fan ON or OFF.
When ON, the fan will run on demand for cooling or heating,
When OFF, the fan will run continuously.
Note: Auto fan cannot be selected in Fan only mode.
Turning Auto fan ON or OFF (fan on demand)
Auto fan
OFF
Auto fan
ON
Resetting filter alarm
Press and hold the [Fan] button for 15 seconds to reset filter alarm.
Pg. 5
Press the [Fan] button to switch between fan speeds.
Notes:
1. In Auto speed, the active fan speed icon will appear on display.
2. Medium speed available in 3 speeds config.
Selecting Fan speeds (for 2 and 3 fan speeds configuration)
Low Medium
High Auto
Press the [Mode] button to switch between system modes.
Notes:
1. During demand for cooling or heating, the active mode will flash.
2. In Auto mode, the active mode icon (Cool or Heat) will appear on
display.
3. Auto mode is not available in 2-Pipe system configuration.
Selecting system mode
Cool Heat
Auto Fan only

Freeze Protection
The Freeze protection feature will not allow the room
temperature to drop below predefined cut-in
temperature. Depending on which configuration the
system is operating under (W/WO Heat pump) this
feature will force the system to operate in heat mode
and activate the fan. This feature will take effect when
the thermostat is either ON or OFF. When the room
temperature rises above the predefined cut-out
temperature, the thermostat will return to its previous
state.
When freeze protection is activated, the display
alternates between “AL” and room temperature.
Operating instructions (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
Temperature
Time
Normal work Freeze protection
Cut-in
Cut-out
Pg. 6
Sleep mode
Press and hold the [mode] button for 5 seconds to activate sleep mode.
Press the mode button again (short press) to deactivate sleep mode.
When sleep mode is activated, the thermostat will use comfort set point
temperatures offset set by technician.
Please refer to objects “SleepCoolSetpointOffset” and
“SleepHeatSetpointOffset” in the technician setting section of this manual.
Economy mode
Economy mode can be activated by triggering the window contact or the
PIR sensor (passive infrared sensor).
When Economy mode is active, the thermostat will use special economy
set points for cooling and heating set by technician.
Please refer to objects “EconomySetpointinHeat” and
“EconomySetpointinCool” in the technician setting section of this manual.
Economy
by window
contact
Economy
by PIR
Sleep
mode
Locking the thermostat buttons
Press and hold both [Mode] and [On/Off] buttons for 5 seconds to
lock or unlock the thermostat buttons.
When locked, the lock icon will appear on display and the letters
“LC” (lock indication) will flash with any attempt to press the buttons. Lock
mode
Lock
indication

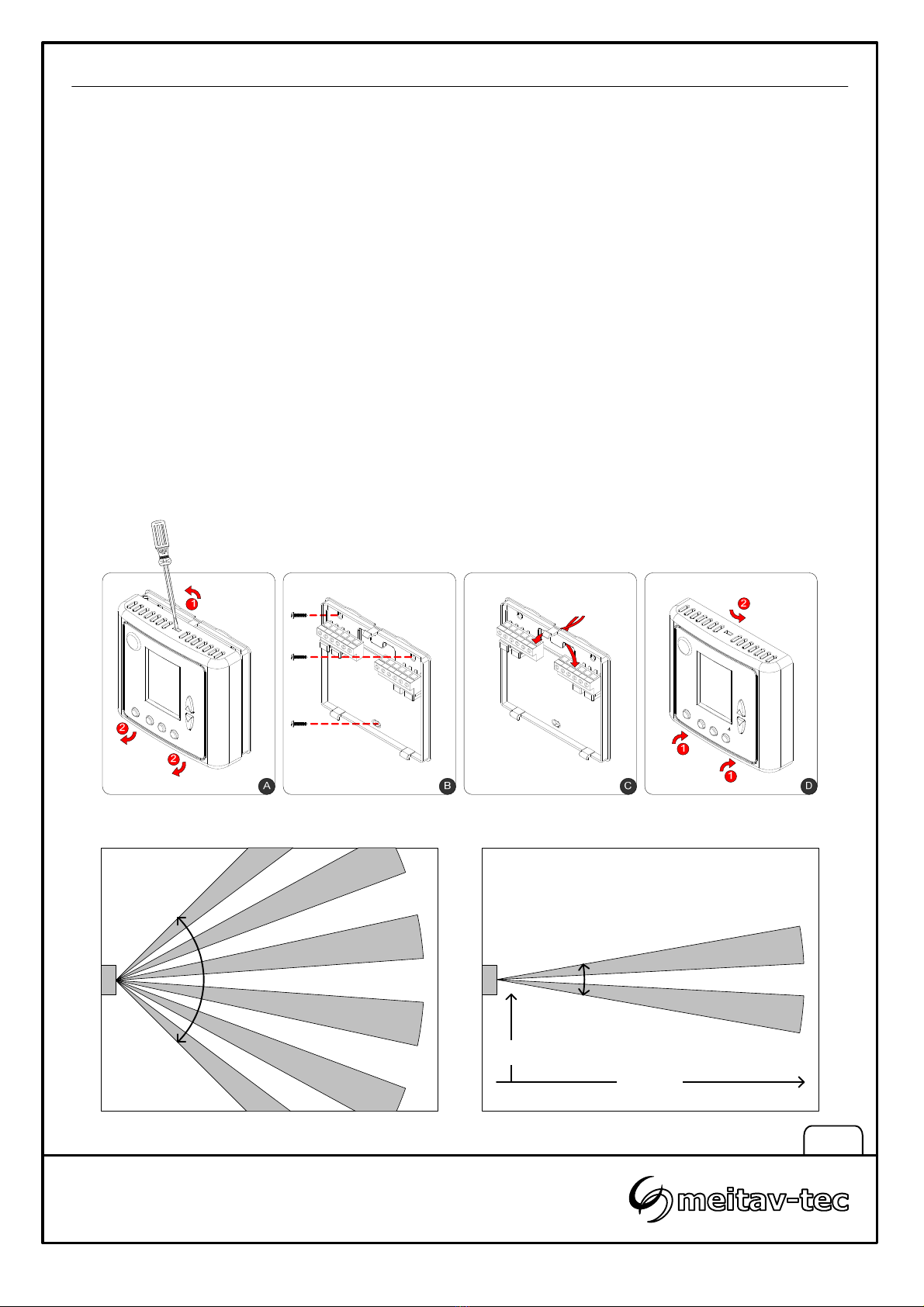

Installation
The ETNC24 is designed for wall mounting in the room to be controlled. It should be located where
the occupant can easily read the LCD display and use the controls and where the built in PIR
occupancy sensor can easily detect any movement in the room (consider PIR detection are below).
If the built in temperature sensor is being used to measure room temperature, the module should
be placed where the temperature is representative of the general room conditions. Cold or warm
air draughts; radiant heat and direct sunlight should be avoided.
General points to follow:
- Disconnect power to the main board before installing the unit.
- The standard height to install this unit is 1.5 meter (5 feet) from the floor.
Installation procedure:
A. Separate the front panel from back panel by pressing the tongue located in the top of the unit
and pull the back panel out.
B. Line the back panel up against the wall or flat surface. Install three screws as required.
C. Make electrical connections as shown on enclosed electrical wiring diagram.
D. Install the cove to the back panel; first the two bottom tabs and then the top tongue.
Push until tight against the wall.
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
Horizontal
(Top view)
Vertical
(Side view)
5m / 16ft
90°
PIR detection area
20°
1.5m / 5ft
Pg. 7

Wiring
11
12
13
14
T1
0
B
A
0
IN1
15
16
C
R
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
High speed
Medium speed
Low speed
Heat element
*External sensor / Soft start sensor
/ Door switch
**Sensor / Remote switch / External PIR
Communication RS485
BACnet protocol
Cool valve
Main supply 24VAC
All outputs 24VAC, 0.5A max.
Selection of 2-Pipe or 4-Pipe system by DIP switch
(See DIP switch SW1 configuration)
Pg. 8
2-Pipe system
(without auto change over mode)
4-Pipe system
(with auto change over mode)
Heat valve
11
12
13
14
T1
0
B
A
0
IN1
15
16
C
R
High speed
Medium speed
Low speed
Heat element
*External sensor / Soft start sensor
/ Door switch
**Sensor / Remote switch / External PIR
Communication RS485
BACnet protocol
Cool/Heat valve
Main supply 24VAC
Not in use
*Options for T1,0 terminals:
-Notinuse
- External sensor
- Soft start in heat sensor
- Door switch (Hotel mode)
(See “P08” section in technician settings)
**Options for IN1,0 terminals:
- Not in use
- T2 (Change over sensor)
- T3 (Soft start in heat sensor)
- Remote On/Off switch
- Remote Economy switch
- External Passive Infrared detector (PIR)
(See “P09” section in technician settings)

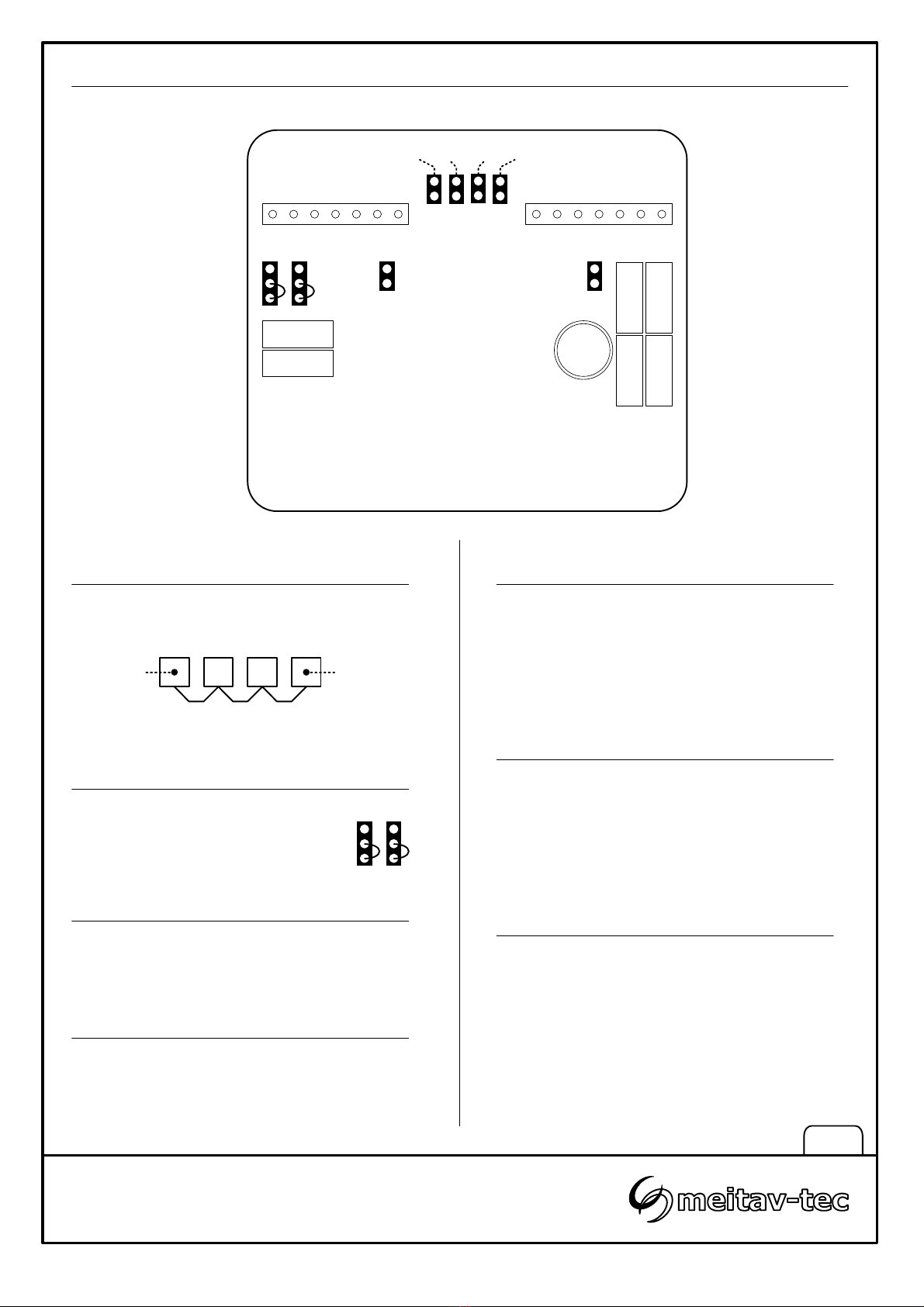

Jumpers
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
Pg. 9
JP4 JP6 JP5 JP1
JP7JP8JP2JP3
JP1 - End of line resistor (120Ω)
Open - Not End of line
Close - End of line
End of lineEnd of line
Communication line
JP2, JP3 – Not in use
Must remain at factory
default position
JP2 JP3
JP4 – Temperature display
Open - Ambient & Set point
Close - Set point only
JP5 – Enable/Disable PIR detector
Open - Enable PIR detector
Close - Disable PIR detector
JP6 – No valve configuration
Open - Disable No valve configuration
Close - Enable No valve configuration
Note: in no valve configuration, the fan will run
only on demand for cooling or heating.
JP7 – Chilled beam configuration
Open - Disable Chilled beam configuration
Close - Enable Chilled beam configuration
Note: in Chilled beam configuration, the fan will
remain OFF in cooling mode.
JP8 – Floor heating configuration
Open - Disable Floor heat configuration
Close - Enable Floor heat configuration
Note: in Floor heat configuration, the fan will
remain OFF in 1st stage heating (floor heating).

DIP switch SW1 - configuration
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
Number of fan speeds
Use DIP Switches SW1.1 and SW1.2 to select number
of fan speeds:
1 speed: SW1.1 – ON SW1.2 – OFF
2 speeds: SW1.1 – OFF SW1.2 – ON
3 speeds: SW1.1 – OFF SW1.2 – OFF
Default = 3 Speeds
2-Pipe (without auto change over mode) or 4-Pipe (with auto change over mode) system
Use DIP Switch SW1.3 to select between 2-Pipe and 4-Pipe
system configuration:
2-Pipe: SW1.3 – OFF
4-Pipe: SW1.3 – ON
Default = 2-Pipe
ON
1234
ON
123456
SW1 SW3
ON
1234
1 Speed
ON
1234
2 Speeds
ON
1234
3 Speeds
ON
1234
2-Pipe
ON
1234
4-Pipe
Enable/Disable Electric heater on 2nd stage heating
Use DIP Switch SW1.4 to enable or disable the operation of
electric heater on 2nd stage heating.
Enable: SW1.4 – ON
Disable: SW1.4 – OFF
Default = Disable
ON
1234
Enable
2nd stage
heat
ON
1234
Disable
2nd stage
heat
DIP switch SW3 – MAC Address ON
1234
ON
123456
SW1 SW3
Use DIP Switches SW3.1...SW3.8 to define unique
communication MAC address for each unit in
communication line (range 1 to 256).
Examples:
MAC Address 1: 1 – ON 2...8 – OFF
MAC Address 2: 2 – ON 1, 3...8 – OFF
MAC Address 3: 1,2 – ON 3...8 – OFF
Use the following MAC address table for all combinations.
1
ON
2345678
1248163264128
Pg. 10

1
2
3
4
5
6
7
8
9
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
MAC Address table (1-127)
1
2
3
4
5
6
7
8
9
01
1
1
1
1
1
1
1
1
1
1
2
3
4
5
6
7
8
9
02
2
2
2
2
2
2
2
2
2
1
03
3
12345678
Switches ON
2
3
4
5
6
7
8
9
3
3
3
3
3
3
3
3
1
04
4
12345678
Switches ON
2
3
4
5
6
7
8
9
4
4
4
4
4
4
4
4
1
05
5
2
3
4
5
6
7
8
9
5
5
5
5
5
5
5
5
1
06
6
26
36
0Notinuse 4
5
6
7
8
9
6
6
6
6
6
6
1
07
7
2
3
4
5
6
7
8
9
7
7
7
7
7
7
7
7
1
08
8
2
3
4
5
6
7
8
9
8
8
8
8
8
8
8
8
1
09
9
29
39
12345678
Switches ON
49
59
6
7
8
9
9
9
9
9
1
00
0
2
3
4
5
6
7
8
9
0
0
0
0
0
0
0
0
1
01
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
02
2
22
32
42
52
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
62
72
12345678
Switches ON
Pg. 11

Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
MAC Address table (128-255)
8
9
2
2
1
03
3
12345678
Switches ON
2
3
4
5
6
7
8
9
3
3
3
3
3
3
3
3
1
04
4
12345678
Switches ON
2
3
4
5
6
7
8
9
4
4
4
4
4
4
4
4
1
05
5
2
3
4
5
6
7
8
9
5
5
5
5
5
5
5
5
1
06
6
26
36
19
29
39
12345678
Switches ON
49
59
22
32
42
52
2
2
62
72
12345678
Switches ON
4
5
6
7
8
9
6
6
6
6
6
6
1
07
7
2
3
4
5
6
7
8
9
7
7
7
7
7
7
7
7
1
08
8
2
3
4
5
6
7
8
9
8
8
8
8
8
8
8
8
09
6
7
8
9
9
9
9
9
1
00
0
2
3
4
5
6
7
8
9
0
0
0
0
0
0
0
0
1
01
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
02
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
8
9
2
2
1
03
3
2
3
4
5
6
7
8
9
3
3
3
3
3
3
3
3
1
04
4
2
3
4
5
6
7
8
9
4
4
4
4
4
4
4
4
1
05
5
2
3
4
5
5
5
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
Pg. 12

Technician Settings
Enter technician settings mode:
Press and hold the [-] button and while holding it, press and hold the [Mode] button for 7 seconds to
enter technician settings mode.
“P01” will appear on display.
View objects and make adjustments:
Use the [Mode] button to step forward between different objects (parameters).
Use the [Fan] button to step backward between different objects (parameters).
Press the [On/Off] button to exit technician settings and return to normal display.
If no button is pressed for 60 seconds, the thermostat will automatically exit technician settings and
return to normal display.
Use the [+] and [-] buttons to make adjustments when required.
P01 – Offset for temperature readings calibration
Range: -6…+6°C / -9…+9°F.
Default: 0°C / 0°F.
P02 – Set point limit for cooling
Range: 5…35°C / 41…90°F.
Default: 5°C / 35°F.
P03 – Set point limit for heating
Range: 5…35°C / 41…90°F.
Default: 35°C / 90°F.
Offset
(°C)
Offset
(°F)
Limit cool
(°C)
Limit cool
(°F)
Limit heat
(°C)
Limit heat
(°F)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
Pg. 13

Technician Settings (Cont’)
P05 – Lock the [Mode] button
“L1” + “ON” [Fan] button Locked
“L1” + “OFF” [Fan] button unlocked
[Mode]
locked
[Mode]
unlocked
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P06 – Lock the [On/Off] button
“L0” + “ON” [On/Off] button Locked
“L0” + “OFF” [On/Off] button unlocked
[On/Off]
locked
[On/Off]
unlocked
P07 – Lock the [+] and [-] buttons (Set buttons)
“LS” + “ON” [+] and [-] buttons Locked
“LS” + “OFF” [+] and [-] buttons unlocked
[+] and [-]
locked
[+] and [-]
unlocked
P04 – Lock the [Fan] button
“LF” + “ON” [Fan] button Locked
“LF” + “OFF” [Fan] button unlocked
[Fan]
locked
[Fan]
unlocked
Pg. 14
P08 – Functionality of T1 terminals
and Office or Hotel configuration
“00”, “01”, “02” - Office config.:
“00” - T1 terminals are not in use
“01” - External sensor
“02” - Soft start in heat sensor
“03” - Hotel config.:
“03” - Door switch
T1 terminals
Not in use
T1 sensor
(External sensor)
Soft start
sensor
Door switch
(hotel config.)

Technician Settings (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
“IN1,0” terminals
Not in use
T2 sensor
(change over)
T3 sensor
(Soft start)
Remote
On/Off
Remote
Economy
External
PIR sensor
P09 – Functionality of IN1,0 terminals
“00” - IN1,0 terminals are not in use
“01” - T2 (Change over sensor)
“02” - *T3 (Soft start in heat sensor)
“03” - Remote On/Off switch
“04” - Remote Economy switch
“05” - External Passive Infrared detector (PIR)
* Where T1 terminals are used for external sensor,
the IN1,0 terminals can be used for T3 sensor.
Pg. 15
P13 – Door switch delay time
Range: 0…999 seconds.
Default: 180 seconds.
Door switch
delay time (sec.)
P10 – Window contact (terminals In1,0) polarity
“01” - Normally open
“00” - Normally close
Win. contact
Normally close
Win. contact
Normally open
P11 – Window contact delay time
Range: 0…999 seconds.
Default: 60 seconds.
Window contact
delay time (sec.)
P12 – Door switch (terminals T1,0) polarity
“01” - Normally open
“00” - Normally close
Door switch
Normally close
Door switch
Normally open

Technician Settings (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P14 – Enable/Disable Auto change over mode
“00” - Disable Auto change over mode
“01” - Enable Auto change over mode
Disable
Auto mode
Enable
Auto mode
P15 – Occupancy sensor logic (PIR)
“00” - Thermostat turns off when unoccupied
and back on when re-occupied.
“01” - Thermostat turns off when unoccupied
and remains off when re-occupied.
“02” - Thermostat uses economy set points.
Unocc. – Off
Re-occ. - On
Unocc. – Off
Re-occ. - Off
Economy
set points
P16 – Enable/Disable Occupancy sensor
“00” - Disable
“01” - Enable
Disable
occ. sensor
Enable
occ. sensor
P17 – PIR (occupancy sensor) delay time
before switching to unoccupied mode (ON delay)
Range: 0…900 minutes.
Default: 20 minutes. PIR ON delay
(sec.)
P19 – PIR (Occupancy sensor) polarity
“00” - Normally open
“01” - Normally close
PIR
Normally open
PIR
Normally close
Pg. 16

Technician Settings (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P22 – Sleep mode time delay
Range: 0…600 minutes
Default: 60 minutes
Sleep mode time
delay (minutes)
P23 – Sleep mode offset in cooling
Range: 0…9°C / 0…18°F
Default: 2°C / 2°F
P24 – Sleep mode offset in heating
Range: -9...0°C / -18…0°F
Default: -2°C / -2°F
Sleep offset in
cooling (°C)
Sleep offset in
cooling (°F)
Sleep offset in
heating (°C)
Sleep offset in
heating (°F)
P26 – Economy set point for heating
Range: 5…35°C / 41…90°F.
Default: 10°C / 50°F.
EC set point
In heating (°C)
EC set point
In heating (°F)
P25 – Economy set point for cooling
Range: 5…35°C / 41…90°F.
Default: 30°C / 86°F.
EC set point
In cooling (°C)
EC set point
In cooling (°F)
Pg. 17

Technician Settings (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P29 – LCD Backlight ON or OFF
“bL” + “ON” LCD Backlight ON
“bL” + “OFF” LCD Backlight OFF
Backlight
ON
Backlight
OFF
P30 – Beeper ON or OFF
“bP” + “ON” Beeper ON
“bP” + “OFF” Beeper OFF
Beeper
ON
Beeper
OFF
Pg. 18

Technician Settings (Cont’)
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P31 – Fan ON delay in cooling (seconds)
Range: 0…120 seconds
Default: 0 seconds (no delay)
P32 – Fan OFF delay in cooling (seconds)
Range: 0…120 seconds
Default: 0 seconds (no delay)
P33 – Fan ON delay in heating (seconds)
Range: 0…120 seconds
Default: 0 seconds (no delay)
P34 – Fan OFF delay in heating (seconds)
Range: 0…120 seconds
Default: 30 seconds
Fan ON delay
in cooling (seconds)
Fan OFF delay
in cooling (seconds)
Fan ON delay
in heating (seconds)
Fan OFF delay
in heating (seconds)
ON
OFF
Fan OFF
delay
Fan ON
delay
Time
(sec.)
Valve
Fan
P31 – P34
Fan on/off delay
with fan on demand
(auto fan) active.
Pg. 19

Technician Settings (Cont’)
P35 – Enable/Disable Freeze protection
“FP” + “ON” Enable Freeze protection
“FP” + “OFF” Disable Freeze protection
Tel: [phone]
Fax: [phone]
[e-mail]
ETNC24-FC-BAC-PIR-01
Owner’s manual & Technician Settings
P36 – Freeze protection cut-in set point
Range: 8...15°C / 46…59°F
Default: 8°C / 46°F
P37 – Freeze protection cut-out set point
Range: 10...17°C / 50…63°F
Default: 10°C / 50°F
FP cut-in
set point (°F)
FP cut-in
set point (°C)
FP cut-out
set point (°F)
FP cut-out
set point (°C)
Disable freeze
protection
Enable freeze
protection
Pg. 20
