meitav-tec FMH-220-FAN-COIL-SUPER 3 User manual

FMH-220
Fan-Coil Super 3
Owne
r
's Manual - Installation
and Operating Instructions
Meitav-tec Ltd (Contel group)
Tel: [phone] Fax: [phone]
www.meitavtec.com - su
pp
ort
@
meitavtec.com
Cat. P048052
Rev. 3 – 10.06

2
Please read this manual carefully before installation and use.
Index
Introduction 1
Options and accessories 2
Installation instructions 3
Wiring Connections 4
DIP switch explanation - different configurations 5
Operating manual 6
RT03 - Hand Held Remote Control - option 7
Technician settings 8
Temperature limits
Security settings
Offset for calibration of ambient temperature
Bimetal sensor / Contact input
Economy mode settings
Connection to remote contact 9
Troubleshooting for the technician 10

3
1. Introduction
The FMH-220-FAN-COIL-SUPER 3 is an attractive and fully functional thermostat that will
provide years of dependable and comfortable control of your home’s heating and air
conditioning system.
It is the best Flush mount, Fan-Coil thermostat solution, All In One™ that fits all fan coil
applications.

4
2. Options and Accessories
•External or internal sensor (Meitav-tec type).
•Hand held remote control (RT-03)
•Manual cool/heat or Auto-change (dead band)
•Manual = 1 valve = one output for cool and heat.
•Auto-change = 2 valve = 2 outputs (one cool/one heat)
•Display for ambient temp. YES or NOT.
•Set point limits with password
•Option NO VALVES - thermostat work ONLY on the fan.
For details on where to purchase accessories, please contact Meitav-tec for you’re
nearest location or visit our web site at www.meitavtec.com
3. Installation Instructions
It is very important to find the right place to install the Flush Mount unit.
Please make sure to follow all the installation instructions in order to get an
accurate reading of the temperature.
General points to follow:
•The unit MUST be fitted into a standard electrical box (Gewiss Box - GW00001481VR)
•The unit should not be installed on an outside wall or where there is an air draft.
•The unit must not be exposed to a direct sunlight.
•The standard height to install this unit is 1.5 meter from the floor (5 feet).

5
Installation procedure:
Connect the wires (see wiring connections #4)
Put the thermostat in the electrical box.
Tighten up the 2 screws.
Adapt the front frame-panel into its place,
by pushing it towards the wall.

6
4. Wiring Connections
4-pipe system – 2 valves
Switch Function Switch Function
L 230 VAC RE Cool Valve
N 230 VAC HE (H1) Heat Valve
1 Fan High T2 Bimetal Sensor
2 Fan Medium T1 External Sensor
3 Fan Low 0 Common for External Sensor and/or Auto-Change
Over Sensor / Contact input
2-pipe system – 1 valves
Switch Function Switch Function
L 230 VAC RE Valve for Cool and Heat
N 230 VAC HE (H1) Valve for Cool and Heat Jumper the outputs
1 Fan High T2 Auto-Change Over Sensor / Contact Input (option)
2 Fan Medium T1 External Sensor
3 Fan Low 0 Common for External Sensor and/or Auto-Change
Over Sensor / Contact input
Fan coil – no valves
Switch Function Switch Function
L 230 VAC RE Not in use
N 230 VAC HE (H1) Not in use
1 Fan High T2 Auto-Change Over Sensor
2 Fan Medium T1 External Sensor
3 Fan Low 0 Common for External Sensor and/or Auto-Change
Over Sensor / Contact input

7
DIP switch
1 2 3 4 5 6
5. DIP Switch Explanations
IMPORTANT! Before making any changes in the DIP switch disconnect electricity in the main
board.
The red DIP switch with 6 switches is situated as shown in the drawing below:
5.1 DIP switch Operation
•The DIP switch has 6 pins.
•Each pin can be ON or OFF. In the picture, pins 1,3,4,5-ON and pins 2,6-OFF
5.2 DIP switch options
•Switch 1 - Auto-Change Over Sensor or Contact Input
•Switches 2,3 – Internal/External sensor.
•Switch 4 – Manual cool/heat or auto change over.
•Switch 5 - Display ambient/set temperature or set temperature only.
•Switch 6 - Thermostat work ONLY on the fan (for no valve application) or normal.
1 2 3 4 5 6
Default switch from factory

8
5.3 DIP switch selection
Switch Function ON OFF Default
Auto-Change Over Sensor X
1 Contact Input X ON
Internal Sensor Control X
2 External sensor control X OFF
Internal Sensor Control X
3 External sensor control X ON
With auto change over mode X
4 Without auto change over mode X ON
Display - user can switch between Tamb and Tset using
the mode button X
5 Display - Tset only X ON
Auto fan or selectable fan X
6 Auto fan only X OFF
5.4 Configuration for NO VALVES application- thermostat work ONLY on the fan or normal.
In order to set the thermostat to work ONLY on the fan (fan will work or not
depending on demand for heating or cooling) move switch 6 to ON position.
For applications with 2 & 4 pipes move Switch 6 to OFF position
(default from factory). Fan ON or AUTO FAN selected by button.
See operating manual #6
When switch 6 in ON position (no valves) the display will not show
fan mode.
1 2 3 4 5 6
1 2 3 4 5 6

9
5.5 External sensor connection - option
Important - the external sensor must be Meitav-tec type
N.TC. Sensor; Temperature ~ Resistance Characteristics
Temp °C7.2 10.0 12.8 15.6 18.3 21.1 23.9 26.7 29.4 32.2
Temp °F 45 50 55 60 65 70 75 80 85 90
Res. k 115.8 100.9 88.1 77.1 67.7 59.6 52.5 46.4 41.2 36.6
The default from factory is INTERNAL SENSOR.
5.5.1 Disconnect the power to the thermostat (220vac).
5.5.2 Move the DIP switch as shown in the picture.
Switch 2 - ON
Switch 3 - OFF
5.5.3 Connect the temperature sensor to T1-0 terminals.
5.5.4 Reconnect the power (220vac).
5.5.5 Adjust the offset for ambient temperature to “0” (see technician settings).
5.5.6 Make sure that the reading on the display is by the external sensor.
The length of the cable for the external sensor is 100 feet (30 meters) with standard cable.
If longer distance is needed then the cable MUST be shielded.
There is a wide range of sensors for different applications, duct, rooms, etc.
There is also an option for averaging the temperature. For details please contact our
technical line or visit our web site, see details at the end of this manual.
The external sensor can be connected in ALL the applications,
The remaining the pins, have to be as per the selection.

10
ON
OFF
MODE
FAN
O
C
SET
ON
ON
OFF
MODE
FAN
O
C
ON
OFF
6. Operating Manual
6.1 Switching the thermostat On/OFF
1. Press the ON/OFF button to activate or deactivate the thermostat.
2. ON or OFF will appear on display.
6.2 Setting the temperature
1. Press the (+) or (-) – the temperature will flash.
2. Change the set temperature using the
3. (+) or (-) buttons.

11
ON
OFF
MODE
FAN
O
C
SET
ON
Fan
Hi
Med
Lo
ON
OFF
O
C
SET
ON
Fan
Cool
Heat
MODE
FAN
6.3 Selecting modes
1. Press the MODE button to switch between:
Cool
Heat
Cool/Heat (auto change)
Fan only
6.4 Selecting Fan Speeds
Changing Fan Speeds can be done only in Fan Mode (see #6.3)
1. Press the FAN button to switch between:
High Speed
Medium Speed
Low Speed
Auto Speed (Fan speed will change according to the difference
between the ambient temperature and the set temperature).

12
ON
OFF
MODE
O
C
ONCool
Fan
FAN
6.5 FAN/AUTO FAN function (not for NO VALVES applications)
1. Press and hold the FAN button, Fan will appear (FAN ON).
2. Press and hold the FAN button, Fan will disappear (AUTO FAN).
In AUTO FAN the fan will only run when calling for heat or cool.
When FAN ONLY mode is selected this function is not in use.
6.6 Setting the timer
The timer switches the thermostat to the opposite mode. If the thermostat is ON, the timer
will switch it OFF. If the thermostat is OFF, the timer will switch it ON.
1. Press and hold (4 seconds) the ON/OFF button.
2. The hours and “SET” will appear on display.
3. Adjust the timer (in hours) using the “+” and “-“ buttons (Hours until timer is activated).
4. Press the MODE button to exit the setting mode.
When the timer is set, ON or OFF will flash on display.
In order to cancel the timer, follow the steps above and set the hours to “00”.
In case of an electrical blackout, the timer will not function as set (hours=”00”) and the
temperature digits will flash.

13

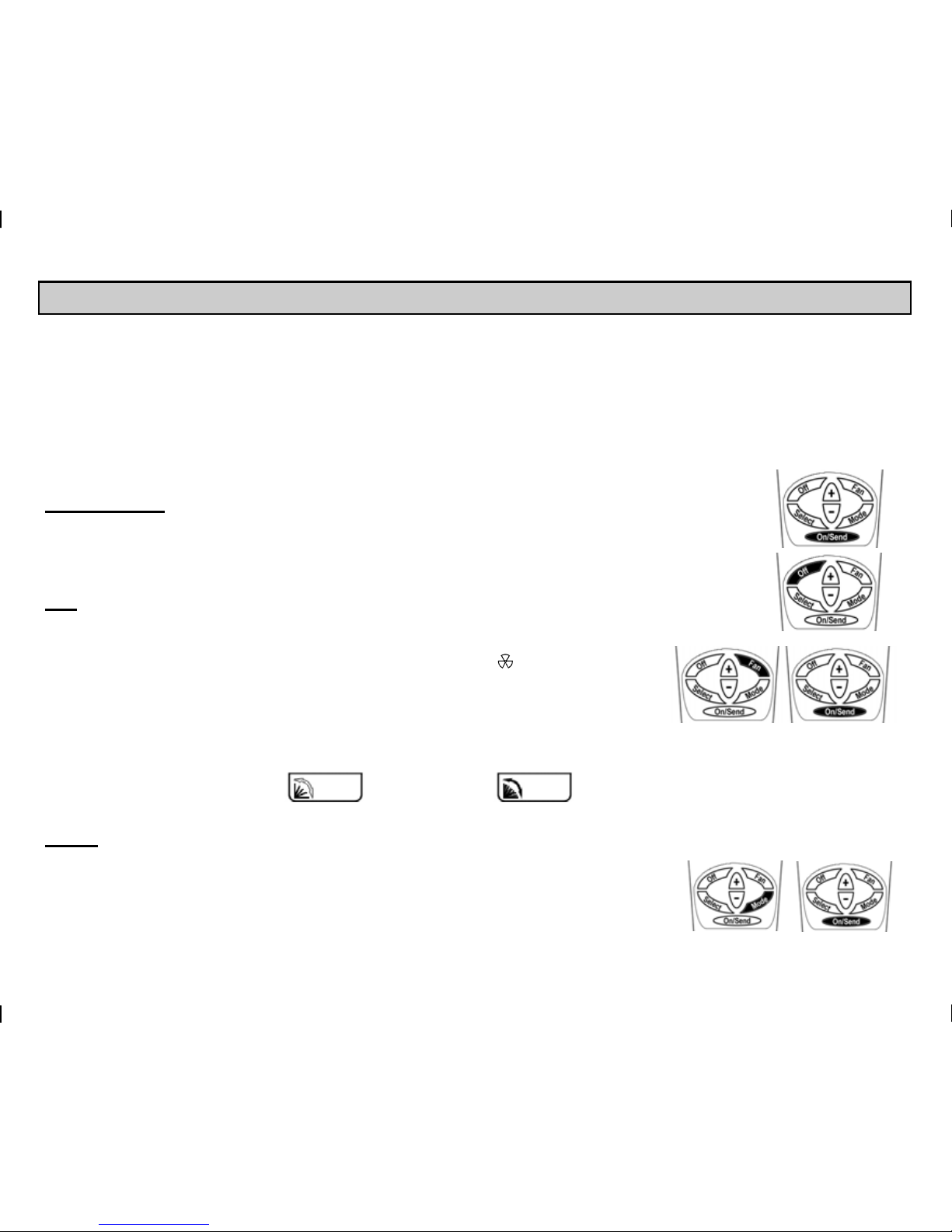

7. RT03 - Hand Held Remote Control - Non-Program - Option
7.1 General
This is an Infrared Remote Control Unit, which means it must be pointed at the thermostat (or extra
receiver) to operate.
Every time you change a parameter in the Remote Control, you must send it to the thermostat by
pressing the "ON/SEND" button.
7.2 RT03 - Operating Manual
On/Send, OFF
•Press the ON/SEND button to activate the air conditioner and/or updating information.
•Press the OFF button to turn the air conditioner off and/or updating information.
Fan
In 1 speed configuration:
•Press the FAN button to change between FAN ON ( ) or AUTO FAN (A).
•Press the ON/SEND button to send information to thermostat.
In 3 speeds configuration:
•Press the FAN button to change speeds between: Low, Medium, High, Auto Speed.
•Press the SELECT button 5 times – swing will flash.
•Switch between Fan On and Auto Fan using the (+) or (-) buttons.
•Press ON/SEND button to send information to thermostat.
Mode:
•Press the MODE button to change between:
COOL, HEAT, AUTO CHANGE and FAN ONLY.
•Press the ON/SEND button to send information to thermostat.

14

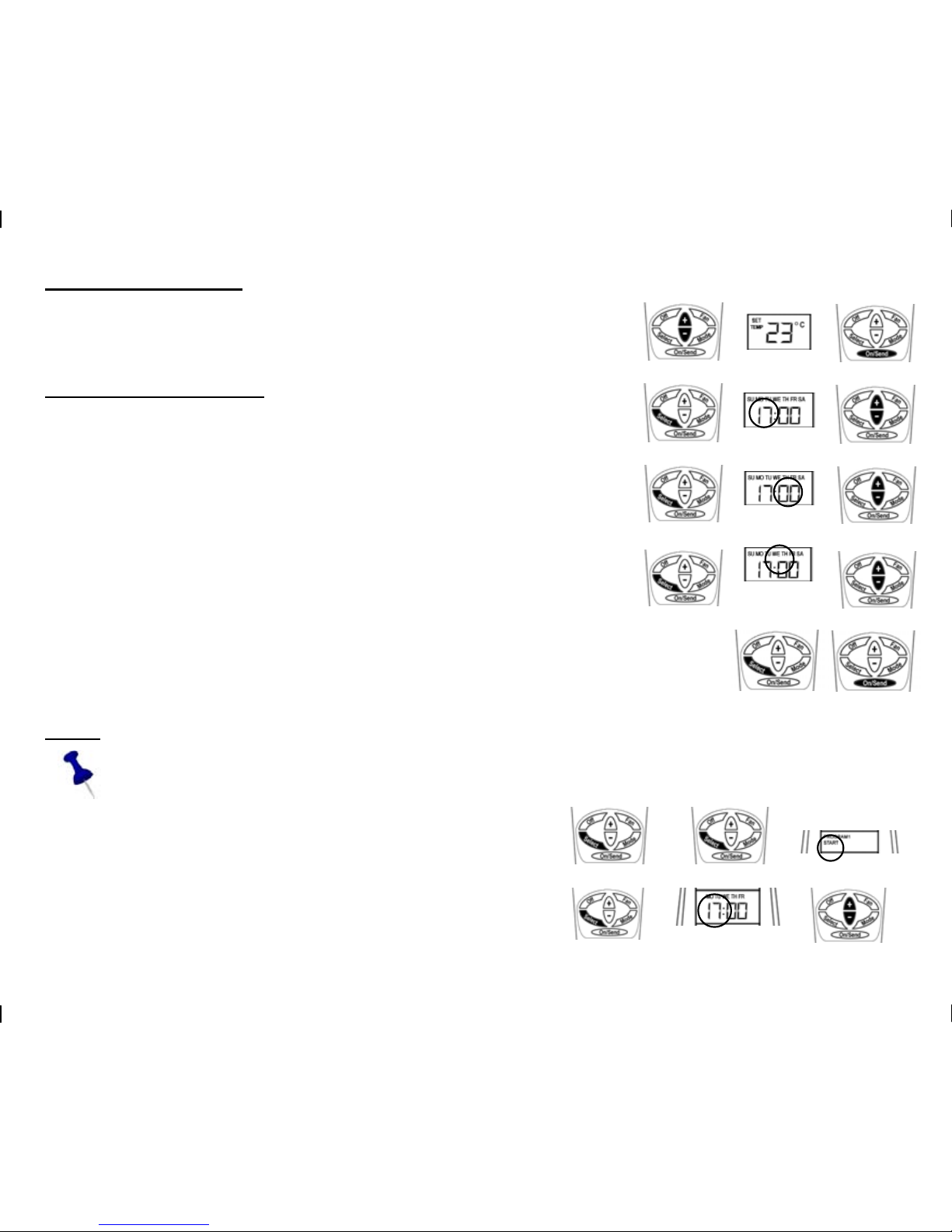

Temperature Set Point:
•Select the desired temperature using the (+) or (-) buttons.
•Press the ON/SEND button to send information to thermostat.
Real Time Clock and Day:
•Press the SELECT button - CLOCK SET will flash.
•Press the (+) or (-) buttons - the hours will flash.
•Adjust the hours using the (+) or (-) buttons.
•Press the SELECT button again – the minutes will flash.
•Adjust the minutes using the (+) or (-) buttons.
•Press the SELECT button again – the weekdays will flash.
•Adjust the day using the (+) or (-) buttons.
•Press the SELECT button again to return to normal display mode.
•Press the ON/SEND button to send information to the thermostat.
Timer:
IMPORTANT: If no button is pressed for 10 seconds the display will return to normal mode.
Start Time:
•Press the SELECT button twice.
•PROGRAM & START (flashing) will appear on display.
•Press the SELECT button - the hours will flash.
•Adjust the hours using the (+) or (-) buttons.

15
•Press the SELECT button - the minutes will flash.
•Adjust the minutes using the (+) or (-) buttons.
Stop Time:
•Press the SELECT button.
•PROGRAM & STOP (flashing) will appear on display.
•Press the SELECT button - the hours will flash.
•Adjust the hours using the (+) or (-) buttons.
•Press the SELECT button - the minutes will flash.
•Adjust the minutes using the (+) or (-) buttons.
•Press the SELECT button - the TIMER will blink
•Using the (+) or (-) buttons, Select TIMER ON or OFF.
•If you changed between TIMER ON or OFF, SEND
will blink.
•Press the ON/SEND button to send the information to the
thermostat.
•If you did not change between TIMER ON or OFF,
press the SELECT button to return to normal display mode.

16
8. Technician Settings
Technician can have access to the following features:
- High temperature limit (8.2)
- Low temperature limit (8.3)
- Lock buttons (8.4)
- Offset for calibration of ambient temperature (8.5)
- Auto change over sensor or contact input selection (8.6)
- Economy mode set-points (8.7)
8.1 Set temperature to 10°C.
8.2 Press and hold the MODE button (7 sec.) until the display flashes.
Using the (+) or (-) buttons adjust the High temperature limit (HEAT) (range 10-30°C).
8.3 Press the MODE button again.
Using the (+) or (-) buttons adjust the Low temperature limit (COOL) (range 10-30°C).
8.4 Press the MODE button again and choose the state of security:
OP = OPEN (enable all buttons).
LO (aux) = Lock buttons except set buttons, aux will appear in display.
Remark: every 20 seconds the system will pass from one position to other without pressing
the MODE button.

17
8.5 Press the MODE button again – a digit between –6 and +6 will appear on display
Using the (+) or (-) buttons adjust the OFFSET for temperature reading.
8.6 Press the MODE button again and choose between activating the Input (T2-0)- (option for Auto-
Change Over Sensor or Contact Input), or not.
bF = Input (T2-0) is not active- thermostat works normally
bO = Auto-Change Over sensor logic (available for 2-pipe system only) or Contact Input logic.
Follow steps below to configure the output application:
Auto-Change Over Sensor (Cool/Heat Logic)
When Auto-Change Over sensor is selected, the system mode (Cool/Heat) is automatically
selected according to the temperature. The MODE button is not active.
•Move DIP switch S1.1 to “ON” position
1 2 3 4 5 6
•Press the MODE button and select the “EF” option.
Contact input (remote switch)
The Contact Input can be set to work in three different modes:
•Move DIP switch S1.1 to “OFF” position
1 2 3 4 5 6
•Press the MODE button and select one of the following options:

18
EF = Mode selection (via the remote switch)
Change the system mode through one remote switch, attached to one or more thermostats. It is
suitable for hotel rooms and offices, when the system mode cannot be defined differently for
each thermostat.
•Remote switch close - HEAT
•Remote switch open – COOL
E1 = Turn system On/Off (via the remote switch)
•Remote switch close – Thermostat work normally (ON)
•Remote switch open – Thermostat OFF and “EC” appears on the display.
E2 = Activate Economy mode (via the remote switch)
•Remote switch close – Thermostat work normally (ON)
•Remote switch open – Thermostat works according to economy set-points (see 8.7).
oThermostat in cool mode Æeconomy set-point for cooling.
oThermostat in heat mode Æeconomy set-point for heating.
8.7 Press the MODE button again – “AUX” and “Cool” will appear on the display.
Using the (+) or (-) buttons adjust the temperature set-point for cooling in economy mode.
Press the MODE button again – “AUX” and “Heat” will appear on the display.
Using the (+) or (-) buttons adjust the temperature set-point for heating in economy mode.
8.8 Press the MODE button to return to normal display.

19
9. Connection of Remote Switch
Installation of remote switch:
Connect the T2 and the “0” terminals of the thermostats as shown in the illustration below.
Connect the T2 and “0” terminals of the last thermostat to the remote switch.
10. Troubleshooting for Technician
Problem: The display is blank.
Solution: The unit is not getting 220 Vac.
Check the wiring connections, Rh (Phase for heat), Rc(Phase for cool), C(common).
If you are using one phase for cool and heat, check that Rc, Rh are shorted and common is tight.
Problem: In heat mode, unit sends cool air.
Solution: The Auto Fan is not ON.
Problem: Ambient temperature with external sensor is not accurate.
Solution: Adjust Offset to 0ºC (see 8.5).
FMH
T2 0
FMH
T2 0
FMH
T2 0
FMH
T2 0
Remote
contact
Open Close

20
Meitav-tec Ltd offers a WIDE range of products for the HVAC industry
These include:
- Flush Mount Thermostats - Programmable and Non-Programmable.
- HVAC Analyzer that can measure BTU’s, for technicians.
- Tamper proof thermostats that can be operated ONLY with the remote control, for public
places.
- Thermostat with phone communication; listen to your thermostat from ANYWHERE and
change settings
To obtain more information or technical support:
E-mail: [e-mail] Web site: www.meitavtec.com
Your suggestions or comments regarding these units would be appreciated.
At our web site, you can find technical details regarding the units, as well as operating
manuals, electrical drawings, etc.
The company reserves the right to change the specifications any time without prior notice.
