InfiniScale®IV 36-Port QSFP

InfiniBand Switch User Manual

P/N: MTS3600Q-1UNC, MTS3600Q-2UNC,

MTS3600R-1UNC, MTS3600R-2UNC

Rev 1.5

Rev 1.5 MellanoxTechnologies

Subject to change without notice.

Mellanox Technologies ConnectX, InfiniBlast, InfiniBridge, InfiniHost, InfiniRISC, InfiniScale, and

InfiniPCI are registered trademarks of Mellanox Technologies, Ltd. Virtual Protocol Interconnect is a trade-

mark of Mellanox Technologies, Ltd. All other trademarks are property of their respective owners.

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

Document Number: 2983

Mellanox Technologies, Inc.

350 Oakmead Parkway

Sunnyvale, CA 94086

U.S.A.

www.mellanox.com

Tel: (408) 970-3400

Fax: (408) 970-3403

Mellanox Technologies Ltd

PO Box 586 Hermon Building

Yokneam 20692

Israel

Tel: +972-4-909-7200

Fax: +972-4-959-3245

NOTE:

THIS INFORMATION IS PROVIDED BY MELLANOX FOR INFORMATIONAL PURPOSES ONLY

AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED. IN NO EVENT SHALL MELLANOX BE LIABLE FOR ANY DIRECT, INDI-

RECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,

BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,

DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THE-

ORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEG-

LIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS HARDWARE,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

Table of Contents

Table of Contents 3

Revision History 4

About this Manual 5

Intended Audience 5

Related Documentation

Additional Documentation available from Mellanox:

Conventions

Throughout this manual, the name MTS3600 and the term switch are used to describe both the 36-port

40Gb/s InfiniBand Switch and the 36-port QSFP 20Gb/s InfiniBand Switch, unless explicitly indicated oth-

erwise.

Switch Products Covered in this User’s Manual

Table 2 - Reference Documents

Mellanox Firmware

Tools (MFT)

User’s Manual

Document # 2329

The MFT (Mellanox Firmware Tools) package is a set of firmware tools. The man-

ual supplied with this package provides an overview of the firmware its installa-

tion and replacement. The MFT can be downloaded with its documentation at:

http://www.mellanox.com/products/management_tools.php

Table 3 - Switch Products Covered by this User Manual

Product Number Description

MTS3600Q-1UNC 36-port Unmanaged QSFP 40Gb/s InfiniBand switch with one power supply

MTS3600Q-2UNC 36-port Unmanaged QSFP 40Gb/s InfiniBand switch with two power supplies

MTS3600R-1UNC 36-port Unmanaged QSFP 20Gb/s InfiniBand switch with one power supply

MTS3600R-2UNC 36-port Unmanaged QSFP 20Gb/s InfiniBand switch with two power supplies

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

1 Overview

Mellanox MTS3600 switch systems provide the highest performing fabric solution by delivering high band-

width and low latency to Enterprise Data Centers, High-Performance Computing and Embedded environ-

ments. Networks built with MTS3600 systems can carry converged traffic with the combination of assured

bandwidth and granular quality of service. Built with Mellanox’s 4th generation InfiniScale® IV InfiniBand

switch device, MTS3600 systems provide up to 40Gb/s full bidirectional bandwidth per port. With 36 ports,

these systems are among the densest switching systems available. These stand-alone switches are an ideal

choice for top of-rack leaf connectivity or for building small to medium size clusters.

The switch comes pre-installed with all necessary firmware and configured for standard operation within an

InfiniBand fabric, and requires an InfiniBand compliant Subnet Manager running from one of the hosts. All

that is required for normal operation is to follow the usual precautions for installation and to connect the

switch to the HCAs. Once connected, the Subnet Management software automatically configures and begins

utilizing the switch.

It is recommended that Mellanox OpenFabrics software package be installed on all nodes connected to the

MTS3600. The software package provides a subnet manager and network management tools as well as con-

nectivity software for servers and storage, and is available on the Mellanox web site. See Chapter 3 for more

information.

Basic installation, hot-swapping components and hardware maintenance is covered in “Installation and

Basic Operation” on page 2.

1.1 Serial Number and Product Version Information

The serial number and product version information are found on the label seen in the figure below.

Figure 1: Generic Product label

Also on this label is the GUID identifier for the switch.

Rev 1.5 MellanoxTechnologies

2 Installation and Basic Operation

2.1 Switch Platform Hardware Overview

Figure 2 shows the front and rear panel views of the QSFP switch. The figure shows port configurations for

the switch systems, including the dual hot-swap power supplies, and hot-swap fan module, I2C connector,

RJ45 connector, USB connectors, VGA port connector, and various status LEDs.

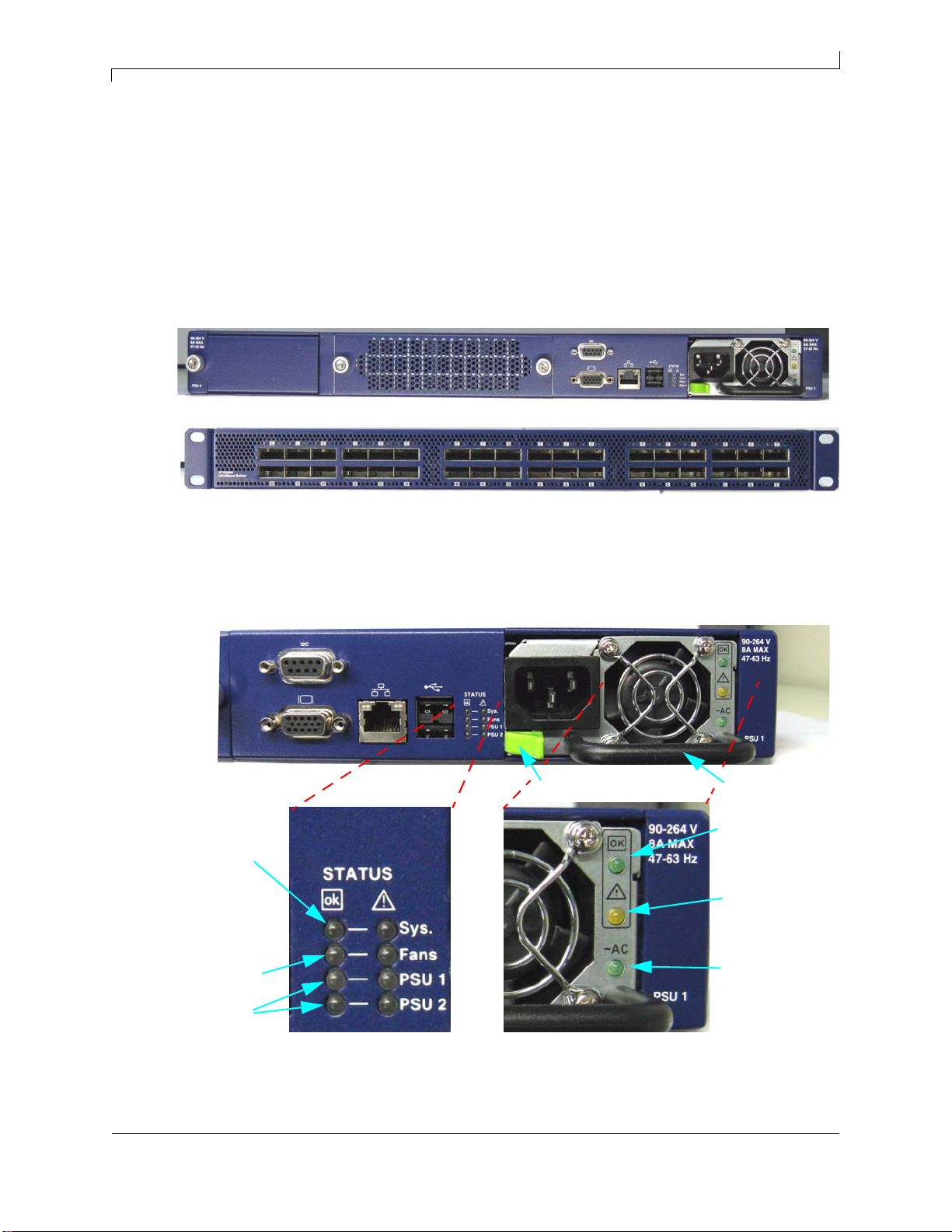

Figure 2: QSFP Switch System Front and Back Panels

All InfiniBand connectivity is via the rear panel. All connectors can support active cables.

2.1.1 Status LEDs

Figure 3: Power and System LEDs

2.1.1.1 System Status Indicators

The System Status Indicators are located just to the left of the primary power supply unit, and labeled “Sys.”.

The following status conditions are possible:

DC output from

the PSU is OK

Latch release mechanism Handle

There is a fault

in the PSU

Input AC voltage

is good

PSU Status

Indicators

Switch Fan

Status

Indicators

System

Status

Indicators

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

Table 4 - System Status LED Configurations

2.1.1.2 Power Supply Status Indicators

The MTS3600 36 Port Switch is available with one or two factory installed Power Supply Units. For

switches with only one unit installed, a second Power Supply Unit can be added to increase security and to

add redundancy.

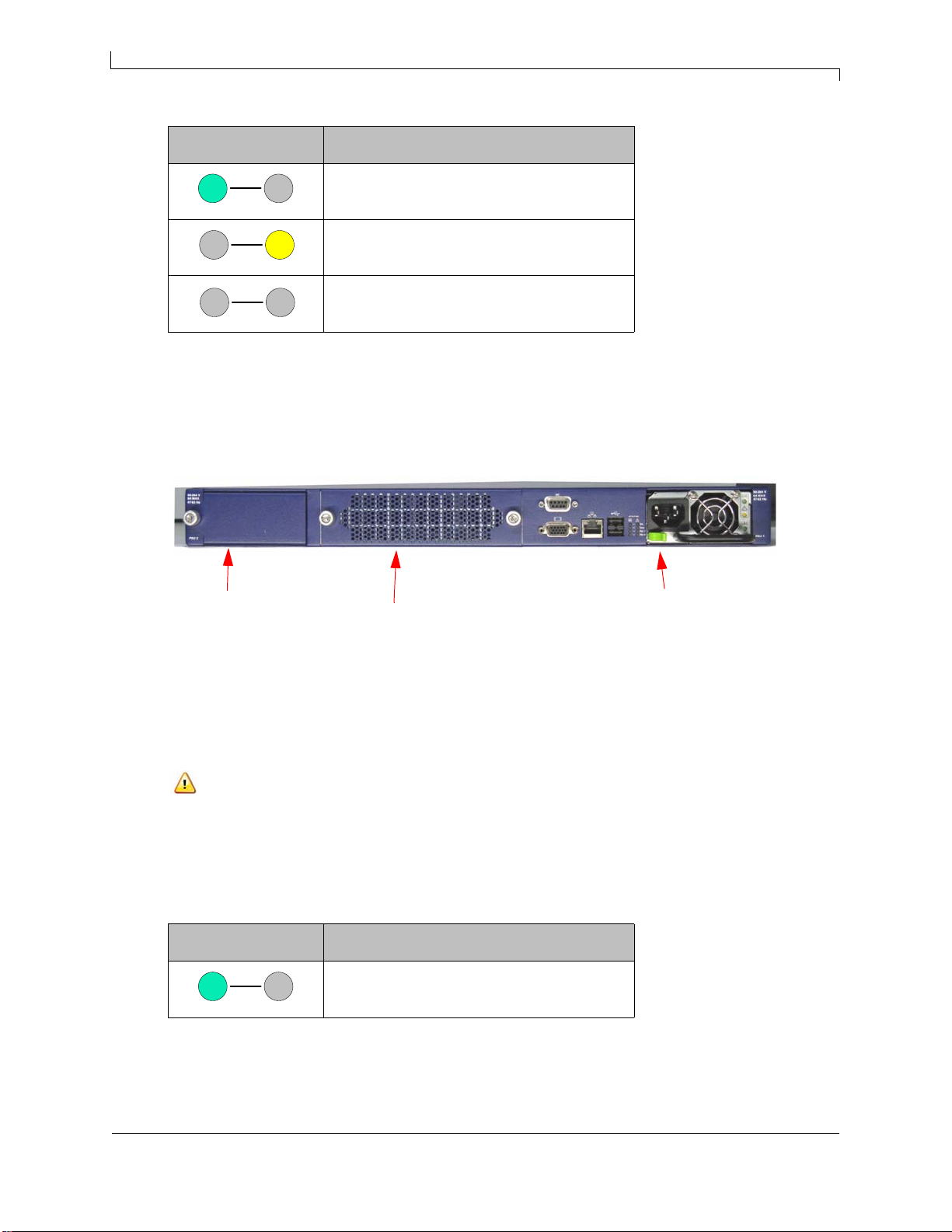

Figure 4: MTS3600 QSFP Front Panel

The primary power supply unit (PSU1) is located on the right side of the front panel, with PSU2 on the left

side. Status indicators are located just to the left of the primary power supply unit. Each PSU also has three

status LEDs, on the right side of the PSU, that indicate the internal status of the unit.

~AC– This LED when lit indicates input voltage between 90 and 264 Volts.

–This LED when lit indicates a fault in the power supply.

OK – This LED when lit indicates that the output from the power supply is +12VDC.

The PSU status indicators are located just to the left of the primary power supply unit, and labeled “PSU1”

and “PSU2”. The following status conditions are possible:

Table 5 - PSU Status LED Configurations

LED Configuration Status

OK – The system is up and running.

Error –A fault in the system, most likely

the firmware did not BOOT properly.

Off – The system has no power.

LED Configuration Status

OK – This power supply unit is delivering the

correct DC supply.

Primary Power

Supply Unit

Place for secondary

Power Supply Unit Fan Unit

Rev 1.5 MellanoxTechnologies

2.1.1.3 Fan Status Indicators

The indicators labeled “Fans” are located just to the left of the primary power supply unit, next to PSU 1.

The following fan status conditions are possible:

Table 6 - Fan Status LED Configurations

2.1.2 I2C Connector

The MTS3600 supports an I2C compatible interface on the front panel.This interface is used to program

firmware into the Flash Memory. Firmware can also be programmed in-band over the InfiniBand network.

See Section 3 for more details.

2.1.3 Optional Management Interfaces (Advanced Management Only)

The following interfaces allow access to the optional management module. These interfaces have no func-

tion in unmanaged systems.

2.1.3.1 VGA Interface

The VGA port is for video output from the management module.

2.1.3.2 RJ-45 Ethernet Connector

The Ethernet connection provides access for remote management. The MTS3600 can be connected to an

Ethernet switch or the Ethernet port of a computer.

2.1.3.3 USB interface

There are two USB ports for connecting a keyboard and mouse for local management operation.

Error – This power supply unit is NOT deliver-

ing the correct DC supply.

Off – This power supply unit is NOT receiving

any input power, or this PSU is not installed.

LED Configuration Status

OK – All fans are operating.

Error – One or more fans is not operating. Repair

or replace the fan unit.

Off – The fan unit is not receiving any power.

Check that the fan unit is properly and com-

pletely inserted.

All fans must be operating while the power supply is plugged in. Power must be

removed within one minute of the fans failing, to prevent damage to the switch.

LED Configuration Status

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

2.2 Switch Platform Installation and Operation

Installation and initialization of the switch platform are straightforward processes, requiring attention to the

normal mechanical, power, and thermal precautions for rack-mounted equipment.

The switch platform does not require any programming or configuration to operate as a basic InfiniBand

switch and includes all of the necessary functionality to operate with external standard InfiniBand Subnet

Management software.

An Advanced Management option is available for the switch platform which includes InfiniBand Subnet

Management software embedded internally in the switch. This section describes the installation process and

basic operation of the switch platform. Please first read the warnings sub-section carefully before carrying

on with installation procedures.

2.2.1 Installation Safety Warnings

For Safety Warnings in French see Appendix E on page 32, and for German see Appendix F on page 34.

For Special Regulations Regarding Finland, Sweden, Denmark, and Norway see Appendix G on page 36.

1. Installation Instructions

2. Over-temperature

3. Stacking the Chassis

4. Redundant Power Supply Connection - Electrical Hazard

5. During Lightning - Electrical Hazard

Read all installation instructions before connecting the equipment to the power

source.

This equipment should not be operated in an area with an ambient temperature

exceeding the maximum recommended: 45°C (113°F). Moreover, to guarantee

proper air flow, allow at least 8cm (3 inches) of clearance around the ventilation

openings.

The chassis should not be stacked on any other equipment. If the chassis falls, it

can cause bodily injury and equipment damage.

This product includes a blank cover over the space for the redundant power sup-

ply. Do not operate the product if the blank cover is not securely fastened or if it

is removed.

During periods of lightning activity, do not work on the equipment or connect or

disconnect cables.

Rev 1.5 MellanoxTechnologies

6. Copper InfiniBand Cable Connecting/Disconnecting

7. Rack Mounting and Servicing

8. Equipment Installation

9. Equipment Disposal

10. Local and National Electrical Codes

11. Battery Replacement

2.2.2 Mechanical Installation

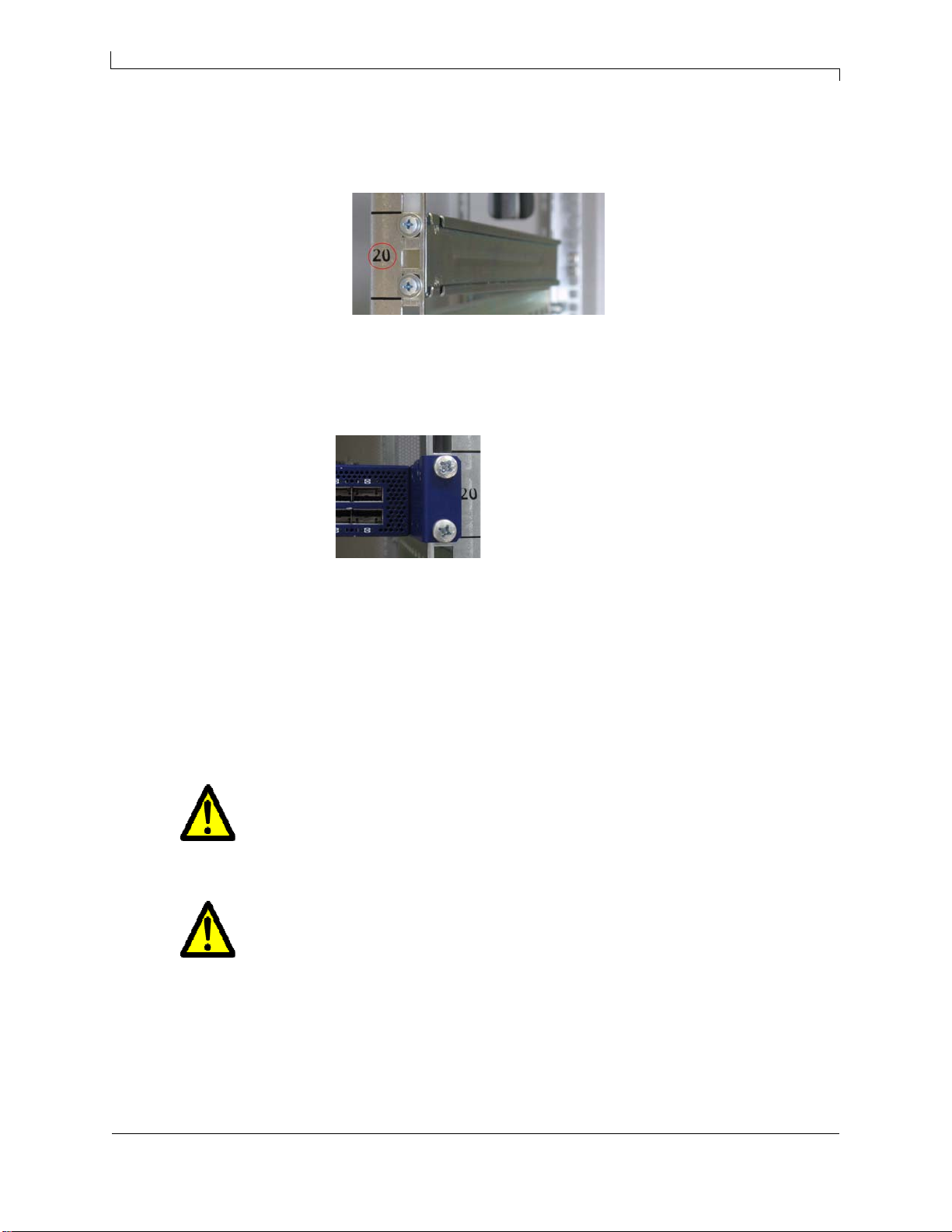

The switch platform uses a rack mounted switch designed for installation in a standard 19” rack with all

ports on the rear of the enclosure. The front of the switch includes a hot-swap power supply module (with an

optional second PSU for redundancy), hot-swap fan tray, and I/O ports for an optional CPU advanced man-

agement board and an I2C I/O port. The hot-swap fan module provides front to back air flow.

The switch platform contains auto-sensing 90 - 264 VAC connections for all possible PSUs.

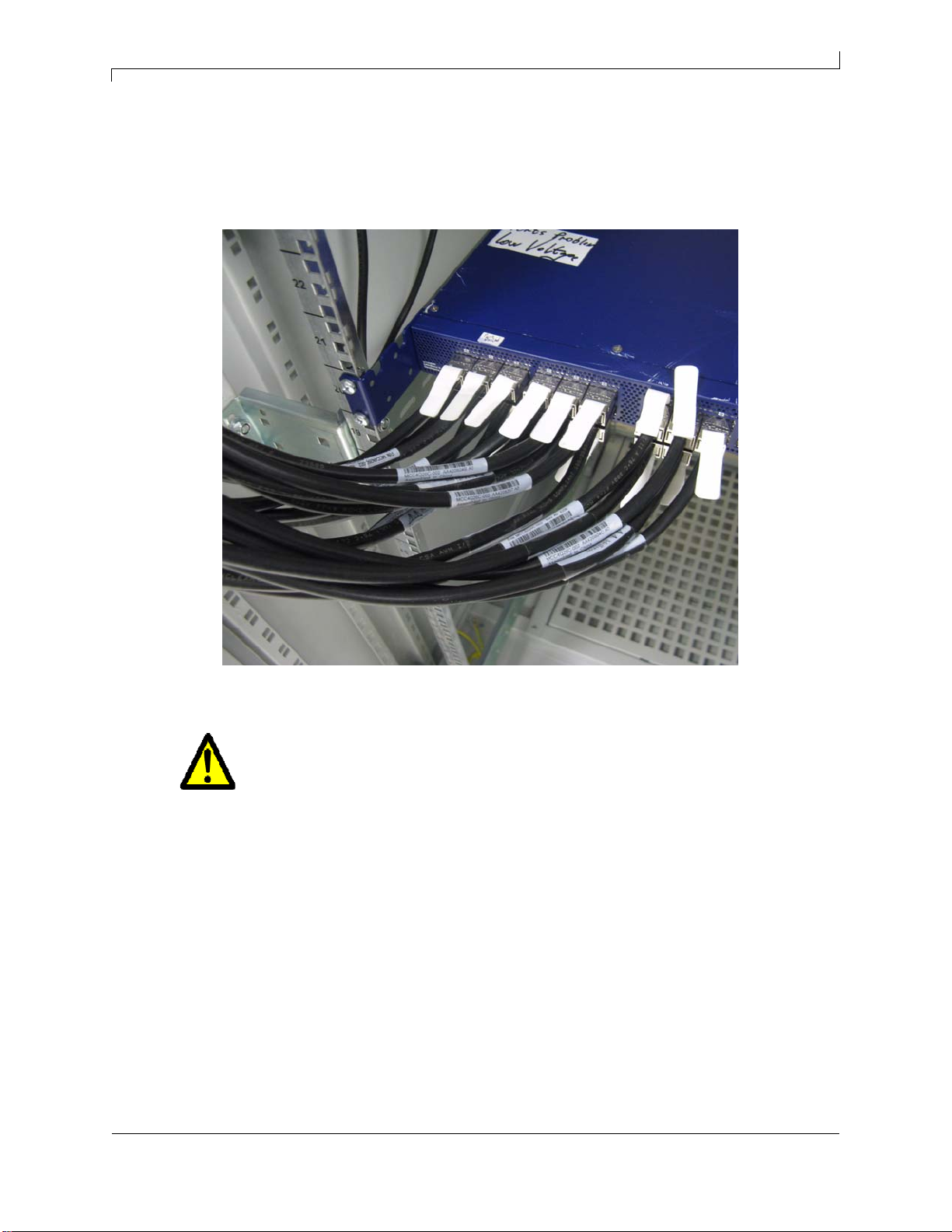

Copper InfiniBand cables are heavy and not flexible, as such they should be

carefully attached to or detached from the connectors. Refer to the cable manu-

facturer for special warnings and instructions.

When this product is mounted or serviced in a rack, special precautions must be

taken to ensure that the system remains stable. In general you should fill the

rack with equipment starting from the bottom to the top.

This equipment should be installed, replaced, or serviced only by trained and

qualified personnel.

Disposal of this equipment should be in accordance to all national laws and reg-

ulations.

This equipment should be installed in compliance with local and national elec-

trical codes.

There is a risk of explosion should the battery be replaced with a battery of an incor-

rect type.

Dispose of used batteries according to the instructions.

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

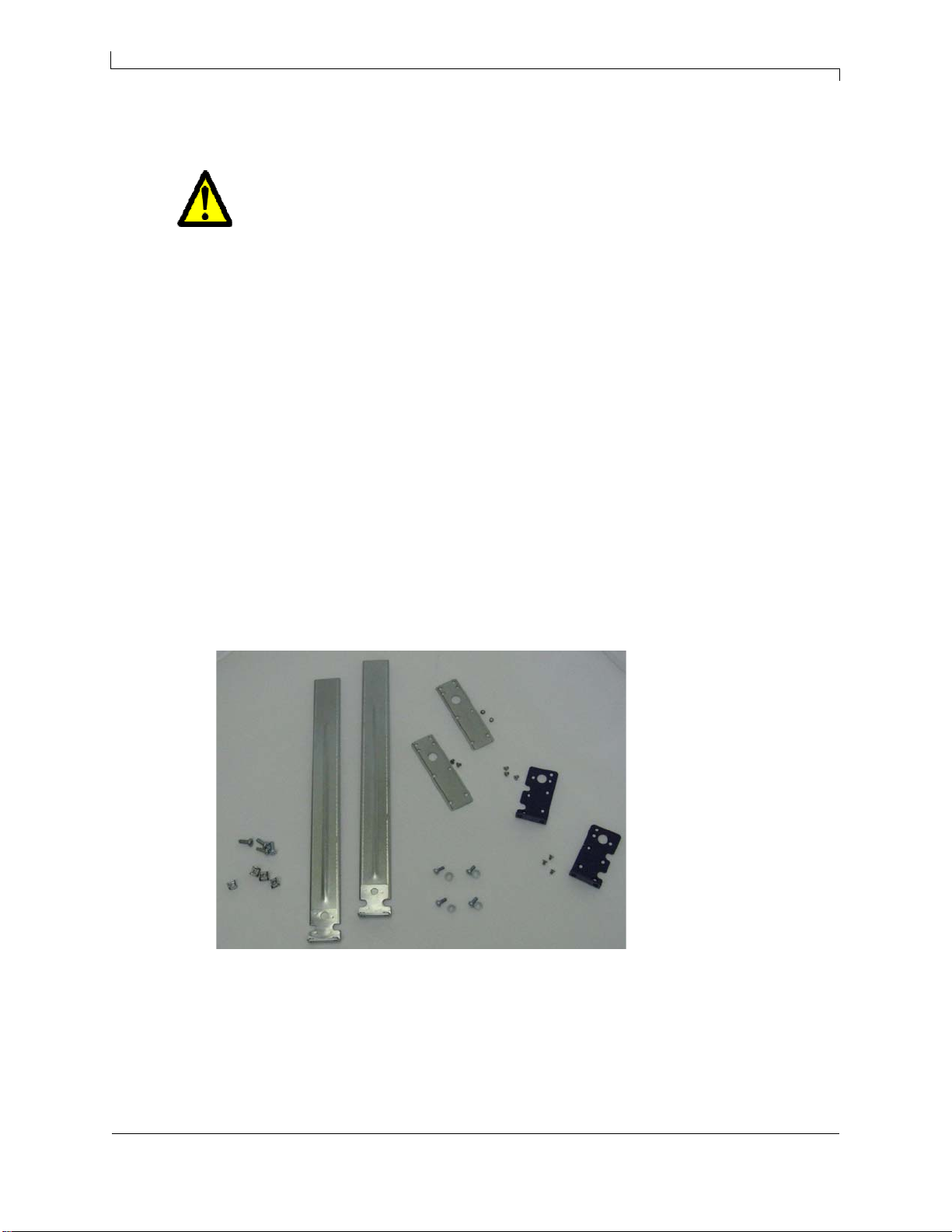

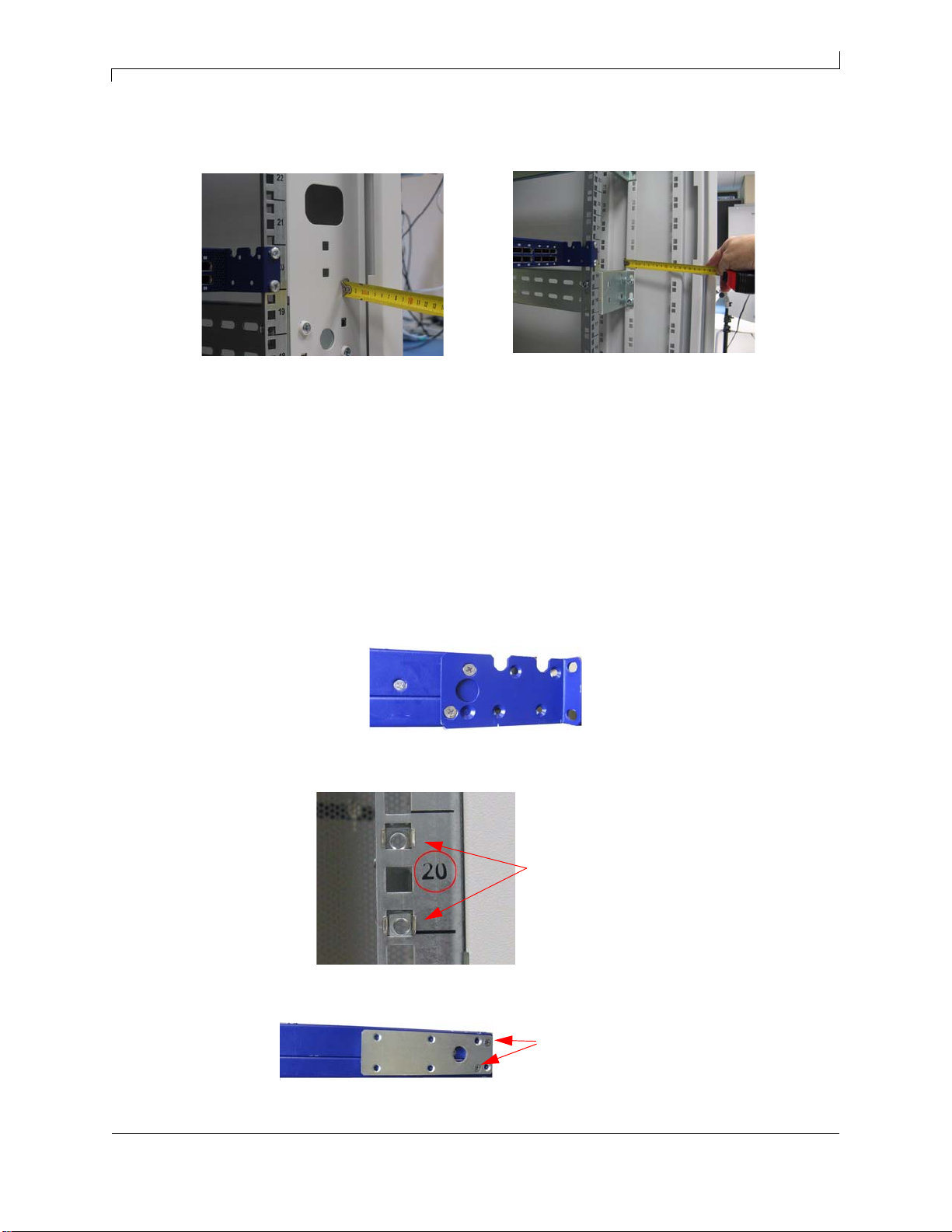

The installer should use a rack capable of supporting the mechanical and environmental characteristics of a

fully populated platform.

Note: The switch platform can be either front or rear mounted. The notion of “front” and “back” is arbi-

trary; however, “rear” is used consistently in this manual to refer to the side of the switch with the

InfiniBand and Ethernet connectors.

2.2.2.1 Installing the Switch in the Rack

Tools needed:

Phillips Screwdriver

ESD Strap

ESD mat

Parts included in the installation kit:

Figure 5: Rack Installation Kit Support Parts

Procedure

1. Place the ESD mat on the Floor where you will be working and put on the ESD strap. Make sure the

ESD strap is touching your skin and that the other end is connected to a verified ground.

2. Choose which way you want the switch to slide out of the rack. Either the side with the power

supply units can slide out or the side with the IB connectors can slide out.

The rack mounting holes conform to the EIA-310 standard for 19-inch racks. Take pre-

cautions to guarantee proper ventilation for air intake at the front of the chassis and

exhaust at the rear in order to maintain good airflow at ambient temperature. Cable

routing in particular should not impede the air exhaust from the chassis.

• 2 rails • 10 recessed flat head screws

There are more flat head screws in the kit than are required for installing

the switch.

• 1 right hand mounting plate • 4 pan head screws

• 1 left hand mounting plate • 4 metal washers

• 2 rail slides • 4 sets of nuts and bolts for the mounting plates

Right hand

mounting plate

rail slide

rail

Left hand

mounting plate

Rev 1.5 MellanoxTechnologies

Things to consider before choosing where to mount the rails and mounting plates.

Figure 6: Which Side of the Rack Do You Want the Connectors?

Do you want the connector side recessed in the rack to allow for larger cable bending radius?

Will the connector side be recessed past other equipment in the rack and will this be problematic?

3. Take the 2 mounting plates and screw them to the switch with the notched side up.

Note: They are right hand and left hand. Place them with the notch at the top.

4. Place them on the end of the switch that you want to slide out. Use two of the flat head screws

for each mounting plate. There are three sets of holes in the mounting plate to choose from.

You can choose any of the pairs, make sure that you pick the same pair for both mounting

plates. This allows you to reduce or increase the distance the switch is recessed into the rack.

5. Clip the nuts into the holes in the rack you will be using to connect the mounting plates.Check

that both sides of the switch are in the same position number on the rack.

6. Take the 2 rail slides and screw them to the switch. Use two of the flat head screws for each

rail slide.

The distance between the rack and the door will be as little as 4 cm on one side of the

rack and as much as 18 cm on the other side of the rack. Keep in mind that there can be

as many as 36 cables connected to the switch.

The caged nuts

are separated by a

single space

Use these holes

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

7. Using two of the pan head screws and two of the washers, for each rail, install the rails to the

end of the rack. Place the rail behind the holes in the rack and screw the screws through the

holes into the rails.

Figure 7: Sc rewing in the Rails

8. Place the two bolts for the caged nuts within reach.

9. Slide the switch into the rails.

10. Put the switch into place and screw the bolts into the nuts from step 5.

Figure 8: Screw in the Mounting Plates

11. You can start connecting all of the cables to the switch.

2.2.3 Power Connections and Initial Power On

The switch platform ships with one or two Power Supply Units. For switches with only one unit installed, a

second PSU may be installed at a later time. Each supply has a separate AC receptacle. The input voltage is

auto-adjusting for 90-264 VAC, 47-63Hz power connections. The power cords should be standard 3-wire

AC power cords including a safety ground and rated for 15A or higher.

Caution: The switch platform will automatically power on when AC power is applied.

There is no power switch. Check all boards, power supplies, and fan tray modules for

proper insertion before plugging in a power cable.

Caution: After inserting a power cable and confirming the green system status LED

light is on; make sure that the Fan Status indicator shows green.

If the fan status indicator is not green then unplug the power connection and check that

the fan module is inserted properly and that the mating connector of the fan unit is free

of any dirt and/or obstacles.

Right hand

mounting plate

Rev 1.5 MellanoxTechnologies

Note: Do not hot swap the power supply if your switch has only one power supply. You must power

down the system to replace the power supply unit when there is only one PSU in the switch.

Figure 9: Two Power Inlets - Electric Caution Notifications

2.2.4 Extracting and Inserting the Power Supply Unit

With both power supplies installed in the redundant configuration, either PSU may be extracted without

bringing down the system.

Note: Make sure that the PSU that you are NOT replacing is showing all green, for both the PSU and

status indicators.

Caution: When turning off the switch, make sure ALL LEDS are off to ensure a pow-

ered down status.

CAUTION

Risk of electric shock and energy

hazard. The two PSUs are inde-

pendent.

Disconnect all power supplies to

ensure a powered down state

inside of the switch platform.

ACHTUNG

Gafahr des elektrischen

Schocks. Entferrnen des

Netzsteckers elnes Netz-

teils spannungsfrei. Um

alle Einhieten spannungs-

frei zu machen sind die

Netzstecker aller Netzteile

zu entfernen

ATTENTION

Risque de choc et de danger

e’lectriques. Le de’branch-

ment d’une seule alimentation

stabilise’e ne de’branch

uniquement qu’un module

“Alimentation Stabilise’e”.

Pour isoler completement le

module en cause, Il faut

de’brancher toutes les ali-

mentations stabilise’es.

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

Figure 10: Power Supply Unit Extraction

To extract a PSU:

1. Remove the power cord from the power supply unit.

2. Grasping the handle with your right hand, push the green latch release with your thumb while

pulling the handle outward. As the PSU unseats, the PSU status indicators will turn off.

3. Remove the PSU.

To insert a PSU:

1. Make sure the mating connector of the new unit is free of any dirt and/or obstacles.

2. Insert the PSU by sliding it into the opening until a slight resistance is felt.

3. Continue pressing the PSU until it seats completely. The latch will snap into place confirming

the proper installation.

4. Insert the power cord into the supply connector.

Note: The green PSU indicator should light and the yellow indicator should remain off. If not, extract

the PSU and re-insert it again.

2.2.5 InfiniBand Cable Installation

All cables can be inserted or removed with the unit powered on. To insert a cable, press the connector into

the port receptacle until the connector is firmly seated. The GREEN LED indicator, below each QSFP port,

will light when the physical connection is established (that is, when the unit is powered on and a cable is

plugged into the port with the other end of the connector plugged into a functioning port). After plugging in

a cable, lock the connector using the latching mechanism particular to the cable vendor. When a logical con-

nection is made the yellow light will come on. When data is being transferred the yellow light will blink.

Cables in the bottom row should be inserted up side down in relation to the how the cables are inserted in

tehtop row.

Rev 1.5 MellanoxTechnologies

To remove, disengage the locks and slowly pull the connector away from the port receptacle. Both LED

indicators will turn off when the cable is unseated.

Care should be taken not to impede the air exhaust flow through the ventilation next to the InfiniBand ports.

Cable lengths should be used which allow for routing horizontally around to the side of the chassis before

bending upward or downward in the rack.

2.2.6 Extracting and Inserting the Fan Unit

To extract a Fan Unit:

1. Loosen the two thumb screws locking the fan tray in place.

One of the fan status indicators (either green or yellow) will remain on.

2. Pull the fan unit out by pulling on the thumbscrews. As the fan unseats, the fan status indicator

will turn off.

To insert a FAN Unit:

1. Make sure the mating connector of the new unit is free of any dirt and/or obstacles.

2. Insert the fan unit by sliding it into the opening until slight resistance is felt. Continue pressing

the fan unit until it seats completely.

3. Turn the two thumb screws to lock the fan unit in place.

Note: The green fan status indicator should light and the yellow fan status should remain off. If not,

extract the fan unit and re-insert it. After two unsuccessful attempts to install the fan unit, power off the

switch before attempting any system debug.

Operation without a fan unit should not exceed one minute.

During fan hot-swap, if both indicators are OFF then the fan unit is disconnected.

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

2.2.7 Replacing the Battery in the Management Module

TBD Need procedure.

Rev 1.5 MellanoxTechnologies

3 Management and Tools Overview

3.1 Network Mangemant and Clustering Software

Download and install on all nodes the Mellanox OpenFabric software package for Linux, Windows, or other

operating systems from the Mellanox software website:

http://www.mellanox.com.> Downloads > InfiniBand SW/Drivers.

This software package provides connectivity for server and storage systems utilizing High Performance

Computing (HPC) or enterprise data center (EDC) applications across an InfiniBand fabric. It also provides

a subnet manager for simple network configuration and network administration and diagnostic tools for net-

work management.

Switches can be either managed or unmanaged.

3.2 Unmanaged Switch Updating Firmware

The switch is delivered with the latest Firmware available at the time of production. New firmware versions

will be posted on the Mellanox firmware download page:

http://www.mellanox.com> Downloads > Firmware.

You will need the Mellanox Firmware Tools package available in the Mellanox OpenFabrics software pack-

age, to update firmware for this switch. It can also be downloaded from:

http://www.mellanox.com.> Downloads > InfiniBand SW/Drivers.

You will also need to download and unzip the firmware binary image. This is provided in the Mellanox Web

site at: http://www.mellanox.com> Downloads > Firmware and go to the InfiniScale IV Switch systems.

Click in the Table for the FW image that you need.

3.2.1 Instructions for Reprogramming Over the InfiniBand Network

To update an MT48436 InfiniScale IVswitch device having a specific GUID (for example,

0x00000006660abcd0) or LID, the following are the recommended steps to update the device firmware.

1. Make sure all subnet ports are in the active state. One way to check this is to run opensm, the Subnet

Manager.

[root@mymach]> /etc/init.d/opensmd start

opensm start [ OK ]

2. Make sure the local ports are active by running ‘ibv_devinfo’.

3. Obtain the device LID. There are two ways to do that:

I. Using the “mst ib add” command:

The “mst ib add”runs the ibdiagnet tool to discover the InfiniBand fabric and then lists the discovered IB

nodes as an mst device under /dev/mst/ directory. These devices can be used for access by other MFT

tools.

[root@mymach]> mst ib add

-I- Running ibdiagnet to discover the fabric ...

Loading IBDIAGNET from: /usr/local/lib/ibdiagnet1.2

-W- Topology file is not specified.

Reports regarding cluster links will use direct routes.

Loading IBDM from: /usr/local/lib/ibdm1.2

InfiniScale® IV 36-Port QSFP InfiniBand Switch User Manual

MellanoxTechnologies Rev 1.5

-I- Using port 1 as the local port.

-I- Discovering ... 3 nodes (2 Switches & 1 CA-s) discovered.
