IS5025/5030/5035 Installation Guide
Document Number
3135
Rev 1.0
Installing the Switch in the Rack
Minimum and Maximum Rack Depth for these switches
Make sure that the Installation kit you have is compatible with your rack.
To use the IS50XX series switch in a rack deeper than 50cm, order the switch with the standard
depth, or order the MIS000083 installation kit. The both of these solutions will allow you to install
the switch in a 19” rack whose vertical supports are between 50cm and 80cm apart.
Table 1 - Switches and Rail Kits for Various Rack Depths
Table 2 - Mellanox Part Numbering Legend
Place Field Decoder
IS System Type InfiniScale Switch
50 Model Family
FF Form factor 25 = 36 Ports Unmanaged
30 = 36 Ports and Chassis Management with limited
Fabric Management
35 = 36 ports and Fabric Management
CInfiniBand Port
Config.
Q= QDR, D= DDR
-Separator
P# of Power
Suplies
0=0, 1=1, 2=2....
MDepth of the
Unit
S = standard depth, B = short depth
YAir Flow direc-
tion
R= Connector side to PSU side airflow
F= PSU side to Connector side airflow
RRoHS C=RoHS5, X=RoHS6
Rack Size Switch Standard/ Short Rail Kit #
50cm to 80cm Short MIS000083
Standard MIS000085
38cm to 50cm Short MIS000079

Rev 1.0
Mellanox Technologies
2
Tools and Parts
Tools required and customer supplied parts
Parts Included in the Installation Kit:

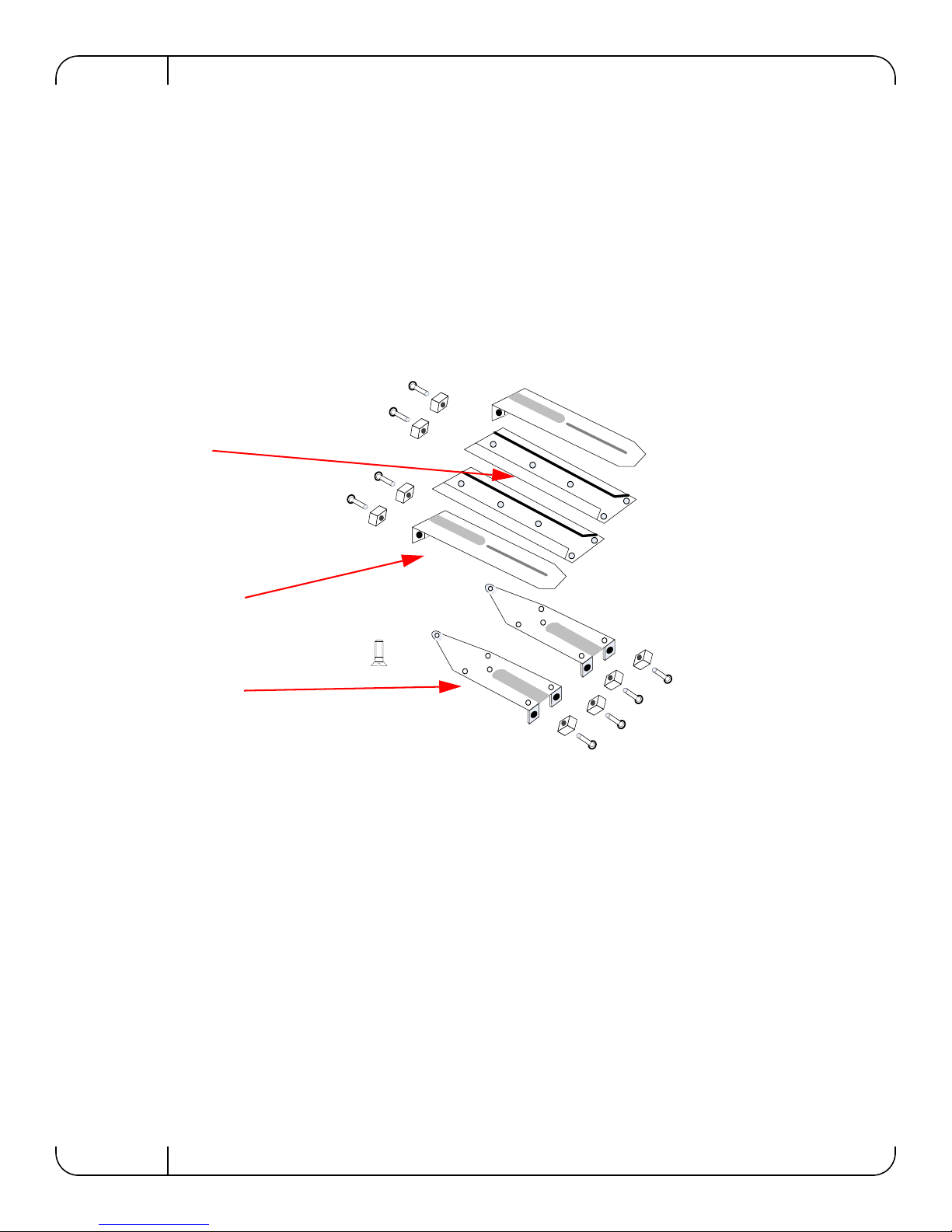

Figure 1: Rack Installation Kit Parts
Before you install your new switch, unpack the system and check to make sure that all the parts have been
sent, check this against the parts list. Check the parts for visible damages that may have occurred during
shipping.
Note: If anything is damaged or missing, contact your customer representative immediately.
Procedure
Step 1. Place the ESD mat on the floor where you will be working and put on the ESD strap. Make
sure the ESD strap is touching your skin and that the other end is connected to a verified
ground.
Step 2. Choose which side of the switch you want even with the vertical rack support. Either
the side with the power supply units or the side with the IB connectors can be even
with the vertical rack support. The other side of the switch will be further inside of the
rack.
Things to consider before choosing where to mount the rails and rail slides.
• Phillips Screwdrivers #1 and #2 • Grounding screw
• ESD Strap • Grounding wire sufficient to reach a valid ground
• ESD mat
• 2 rails • 18 recessed flat head screws
• 2 rail slides • 8 caged nuts
• 2 brackets • 8 pan head screws M6
X18
Rail
Rail slide
Bracket

Rev 1.0
Mellanox Technologies 3
Figure 2: Which Side of the Rack Do You Want the Connectors?
• Do you want the connector side recessed in the rack to allow for larger cable bending radius?
• Will the connector side be recessed past other equipment in the rack and will this be problematic?

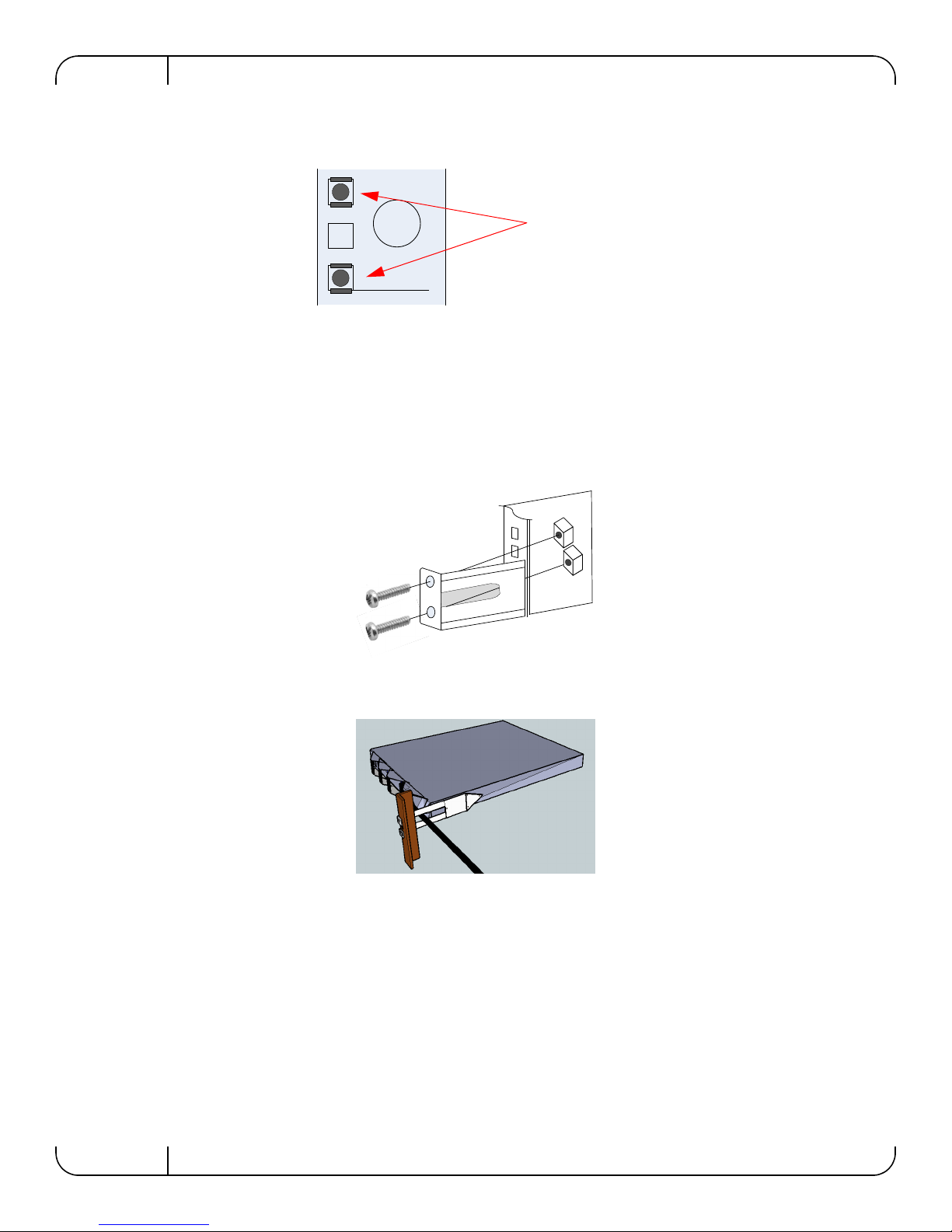

Step 3. Screw the brackets onto the switch. Use the flat head screws to connect the bracket.
There are two options for mounting the bracket. One option will place the switch even
with the vertical support of the rack and the second option will recess the switch fur-
ther into the rack.
Note: The side of the switch with these brackets will be the side that is even with the vertical rack support.
Step 4. Screw the rails onto the switch. Use the 5 flat head screws to connect each rail to the
switch.
The distance between the rack and the door can be as little as 4 cm on one side
of the rack and as much as 18 cm on the other side of the rack. Keep in mind that
there can be as many as 36 cables connected to the switch.
In this position you will use 4 flat
head screws
In this position you will use 3 flat
head screws
Place to
put the
power
cable.
The 5 screws

Rev 1.0
Mellanox Technologies
4
Step 5. Clip the 4 caged nuts into the holes in the rack you will be using to connect the rail
slides. Check that both sides of the switch, left and right, are in the same position num-
ber on the rack.
Step 6. Clip 4 more caged nuts into the holes in the rack you will be using to connect the
brackets. Check that both sides of the switch, front and back, are in the same position
number on the rack.
Note: The rail slides are to be installed on the side of the rack where the switch will be recessed into the
rack.
Step 7. Using two of the bolts for each rail slide, install the rail slides to the rack.
Tighten the bolts to 9.2 Nm or 81.5 pound inches.
Step 8. If the power cable is on this side of the switch feed the power cable into the slot in the
rail slide before screwing it to the vertical support.
Step 9. Place the four bolts for the caged nuts within reach.
Step 10. Slide the switch into the rails.
Step 11. Put the switch into place and screw the bolts into the nuts from step 6. If the power
cable is on this side of the switch feed the power cable into the slot in the bracket
before screwing it to the vertical support.Tighten the bolts to 9.2 Nm or 81.5 pound
inches.
Step 12. Tighten all of the screws to 9.2 Nm or 81.5 pound inches.
Step 13. Plug in the power cables.
Note: When the switch is plugged in, the status LED may be RED for up to three minutes until the system
completes booting up.
The caged nuts
are separated by a
single space
20

Rev 1.0
Mellanox Technologies 5
Step 14. Check the Status LEDs and confirm that all of the LEDs show status lights consistent
with normal operation.
Step 15. You can start connecting all of the cables to the switch.
Grounding the Switch

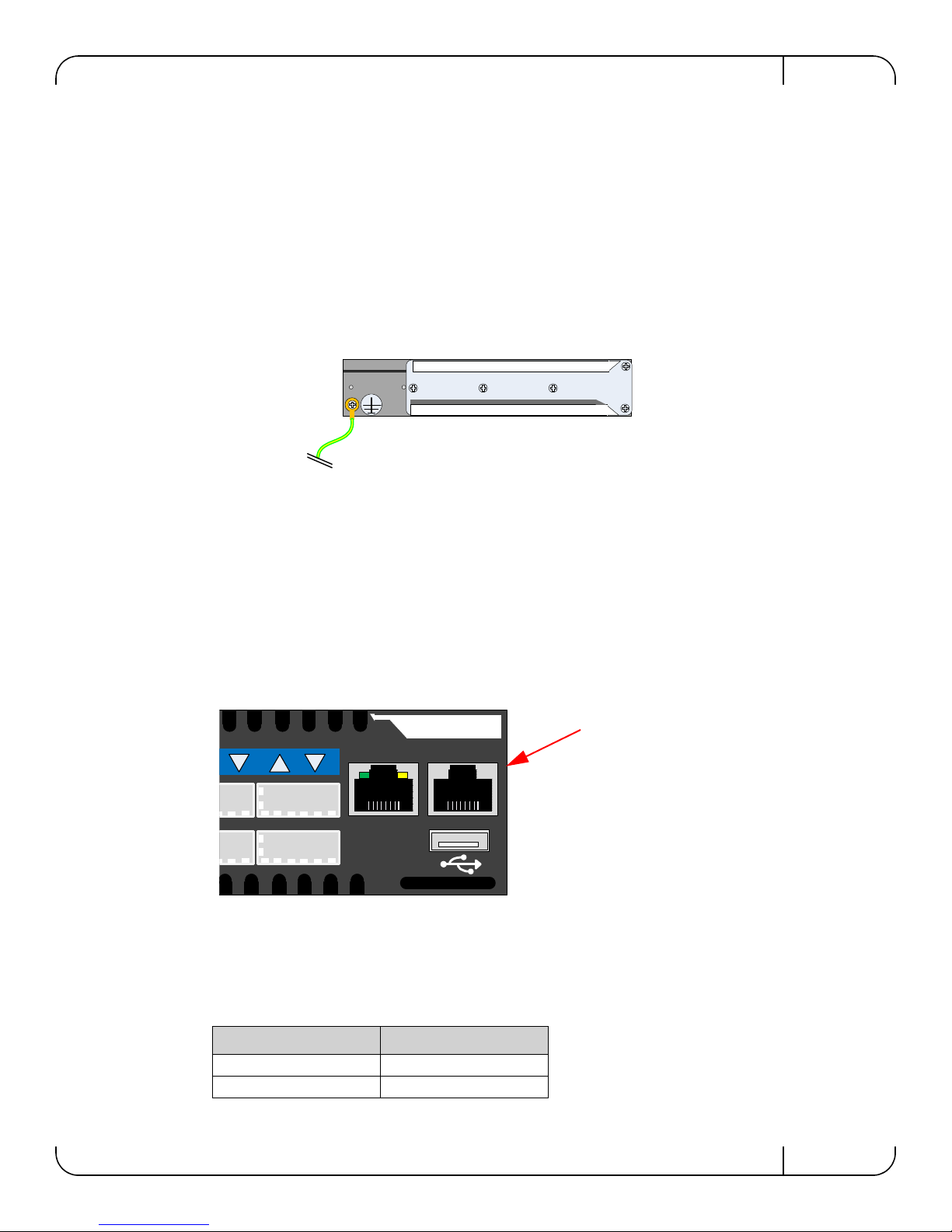

You must install an external ground to all IT components. To this purpose there are two threaded screw
holes marked as grounds. Connect a ground wire to one of these grounds and connect the other end to a
valid ground. Do not rely on the power connection ground. If you choose to not use the ground screw,
make sure that there is a valid ground connection between the chassis of the switch and the grounded rack.
Test the ground using an Ohm meter.
Note: Grounding wires, screws, and connectors for the ground are not supplied by Mellanox.
Configuring the Switch for the First Time
Note: Unmanaged (Externally managed) switches, that is the IS5025 switches, do not get configured. On
unmanaged switches, the CONSOLE, Ethernet, and USB connectors are not found. Instead there is
an I2C connector.
Step 1. Connect the host PC RS232 connector to the CONSOLE port of the switch using the supplied
cable
Note: No remote IP connection is available at this stage.
Step 2. Configure a serial terminal program (for example, HyperTerminal, Minicom, or Tera
Term) on your host PC with the settings described in Table 3.
Table 3 - Serial Terminal Program Configuration
Parameter Setting
Baud Rate 9600
Data bits 8
MGT
IS5030
CONSOLE
Connect the host
PC to here

Rev 1.0
Mellanox Technologies
6
Step 3. Login (from serial terminal program) as admin and use admin as password. This starts
the Mellanox configuration wizard.
Step 1. Go through the Mellanox configuration wizard. Table 4 shows an example of a wizard session.
Stop bits 1
Parity None
Flow Control None
Table 4 - Configuration Wizard Session - IP Configuration by DHCP (Sheet 1 of 2)
Wizard Session Display (Example) Comments
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? yes
You must perform this configura-
tion the first time you operate the
gateway or after resetting the
gateway password. Type ‘y’ and
then press <Enter>.
Step 1: Hostname? [bridge-1] If you wish to accept the default
hostname, then press <Enter>.
Otherwise, type a different host-
name and press <Enter>.
Step 2: Use DHCP on eth0 interface? Yes Perform this step to obtain an IP
address for the gateway. (eth0 is
the management port of the gate-
way.)
If you wish the DHCP server to
assign the IP address, type ‘yes’
and press <Enter>.
If you type ‘no’ (no DHCP), then
you will be asked whether you
wish to use the ‘zeroconf’ config-
uration or not. If you enter ’yes’
(yes Zeroconf), the session will
continue as shown in Table 5.
If you enter ’no’ (no Zeroconf),
then you need to enter a static IP,
and the session will continue as
shown in Table 6.
Step 3: Admin password (Enter to leave unchanged)?
<new_password>
Step 4: Confirm admin password? <new_password>
To avoid illegal access to the
machine, please type a password
and then press <Enter>. Then
confirm the password by re-
entering it.
Note that password characters are
not printed.
Table 3 - Serial Terminal Program Configuration
Parameter Setting

Rev 1.0
Mellanox Technologies 7
You have entered the following information:
1. Hostname: <bridge-1>
2. Use DHCP on eth0 interface? : yes
3. Admin password (Enter to leave
unchanged): (CHANGED)
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice: <Enter>
Configuration changes saved.
To return to the wizard from the CLI, enter the “configuration
jump-start” command from configuration mode. Launching CLI...
bridge-1 >
The wizard displays a summary
of your choices and then asks you
to confirm the choices or to re-
edit them.
Either press <Enter> to save
changes and exit, or enter the
configuration step number (1, 2
or 3) that you wish to return to.
Note:
To run the command "configura-
tion jump-start, you must be in
Config mode.
Table 4 - Configuration Wizard Session - IP Configuration by DHCP (Sheet 2 of 2)
Wizard Session Display (Example) Comments

Rev 1.0
Mellanox Technologies
8
Table 5 - Configuration Wizard Session - IP Zeroconf Configuration
Wizard Session Display - IP Zeroconf Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [bridge-112428]
Step 2: Use DHCP on eth0 interface? [no]
Step 3: Use zeroconf on eth0 interface? [no] yes
Step 4: Default gateway? [192.168.10.1]
Step 5: Primary DNS server?
Step 6: Domain name?
Step 7: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: bridge-112428
2. Use DHCP on eth0 interface: no
3. Use zeroconf on eth0 interface: yes
4. Default gateway: 192.168.10.1
5. Primary DNS server:
6. Domain name:
7. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure mode. Launching CLI...
bridge-1 >

Rev 1.0
Mellanox Technologies 9
Step 2. Before attempting a remote (for example, SSH) connection to the gateway, check the
eth0 interface configuration. Specifically, verify the existence of an IP address. To
check the current eth0 configuration, enter the following commands:
bridge-112428> enable // Enter ‘enable’ mode of
CLI
bridge-112428# show interface eth0 // # indicates ‘enable’
mode
Table 6 - Configuration Wizard Session - Static IP Configuration
Wizard Session Display - Static IP Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [bridge-112428]
Step 2: Use DHCP on eth0 interface? [yes] n
Step 3: Use zeroconf on eth0 interface? [no]
Step 4: Primary IP address? 192.168.10.4
Mask length may not be zero if address is not zero (interface eth0)
Step 5: Netmask? [0.0.0.0] 255.255.255.0
Step 6: Default gateway? 192.168.10.1
Step 7: Primary DNS server?
Step 8: Domain name?
Step 9: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: bridge-112428
2. Use DHCP on eth0 interface: no
3. Use zeroconf on eth0 interface: no
4. Primary IP address: 192.168.10.4
5. Netmask: 255.255.255.0
6. Default gateway: 192.168.10.1
7. Primary DNS server:
8. Domain name:
9. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the "configuration jump-start"
command from configure mode. Launching CLI...
bridge-1 >

Rev 1.0
Mellanox Technologies
10
The following is an example of the output:
Interface eth0 state
Admin up: yes
Link up: yes
IP address: 192.168.10.6
Netmask: 255.255.255.0
Speed: 100Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface source: physical
MTU: 1500
HW address: 00:00:50:3A:8E:80
Comment:
RX bytes: 123102
RX packets: 1271
RX mcast packets: 0
RX discards: 0
RX errors: 0
RX overruns: 0
RX frame: 0
TX bytes: 122850
TX packets: 1119
TX discards: 0
TX errors: 0
TX overruns: 0
TX carrier: 0
TX collisions: 0
bridge-112428#
Step 4. Before attempting a remote (for example, SSH) connection to the switch, check the
eth0 interface configuration. Specifically, verify the existence of an IP address. To
check the current eth0 configuration, enter the following commands:
switch-1 > enable // Enter ‘enable’ mode of CLI
switch-1 # show interface eth0 // # indicates ‘enable’ mode
The following is an example of the output:
Interface eth0 state

Rev 1.0
Mellanox Technologies 11
Admin up: yes
Link up: yes
IP address: 192.168.10.6
Netmask: 255.255.255.0
Speed: 100Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface source: physical
MTU: 1500
HW address: 00:00:50:3A:8E:80
Comment:
RX bytes: 123102
RX packets: 1271
RX mcast packets: 0
RX discards: 0
RX errors: 0
RX overruns: 0
RX frame: 0
TX bytes: 122850
TX packets: 1119
TX discards: 0
TX errors: 0
TX overruns: 0
TX carrier: 0
TX collisions: 0
switch-1 #
FabricIT
FabricIT EFM is a software based management system that can be run with either a command line inter-
face or with a WebUI interface. Chassis management comes with the switch system. An optional license is
required for full use of FabricIT cluster management. See the FabricIT EFM User Manual for instructions
and commands available to manage the chassis, switches, and fabric.
Starting an SSH Connection to the Switch
Note: SSH connection also supports TelNet.
Step 1. Set up an Ethernet connection between the switch and a local network machine (“the remote
machine” henceforth) using a standard RJ-45 connector.
Step 2. Connect to the remote machine.
Step 3. Start a remote shell to the switch using the following command:
ssh –l admin <your ip address>
When prompted for a password enter “admin”.
Note that the IP address used above is the same IP address that was assigned to the Mellanox configura-
tion wizard in the “Configuring the Switch for the First Time” section.
Step 4. You can enter any supported command now.
Note: For a complete reference of commands, please see Mellanox FabricIT Management Software User’s
Manual.

Rev 1.0
Mellanox Technologies
12
Starting a WebUI Connection to the Switch
Step 1. Set up an Ethernet connection between the switch and a local network machine (“the remote
machine” henceforth) using a standard RJ-45 connector.
Step 2. Start a Web browse – Internet Explorer 7.0 or Mozilla Firefox 3.0.
Note: Make sure the screen resolution is set to 1024*768 or higher.
Step 3. Enter as URL the following: http://<switch_IP_address>
where <switch_IP_address> is the IP address of the switch or its DNS name.
Step 4. You will receive the login window for remote management of the switch.
Step 5. Use admin for both the login (Account) and the password.
The MIS50XXSeries User Manual can be found at:
http://www.mellanox.com
=>Products=>Switches=>InfiniBand Switch Systems=>IS5025/IS5030/IS5035
Resetting the Switch
On the connector side panel under the system LEDs is a reset button. This reset button requires a tool to be
pressed, a paper clip will do.
Figure 3: Reset Button
This button resets the switch when the button is pushed. A quick push of this button resets the whole
switch.When the button is held down for 15 seconds the switch is reset and the password is reset to the fac-
tory default password. The LEDs will flicker for a fraction of a second to indicate reset is occuring.
STATUS
PSU 1
PSU 2
FAN
RST
Use an opened paper
clip to press the rest
button.
