Mellanox Spectrum™
1U Switch Systems
Hardware User Manual
Models: SN2700, SN2740, SN2410 and SN2100
Rev 1.9

Mellanox Technologies
350 Oakmead Parkway Suite 100
Sunnyvale, CA 94085
U.S.A.
www.mellanox.com
Tel: [phone]
Fax: [phone]
© Copyright 2017. Mellanox Technologies Ltd . All Rights Reserved .
Mellanox®, Mellanox logo, Accelio®, BridgeX®, CloudX logo, CompustorX®, Connect-IB®, ConnectX®,
CoolBox®, CORE-Direct®, EZchip®, EZchip logo, EZappliance®, EZdesign®, EZdriver®, EZsystem®,
GPUDirect®, InfiniHost®, InfiniBridge®, InfiniScale®, Kotura®, Kotura logo, Mellanox CloudRack® , Mellanox
CloudXMellanox® , Mellanox Federal Systems® , Mellanox HostDirect® , Mellanox Multi-Host® , Mellanox Open
Ethernet®, Mellanox OpenCloud® , Mellanox OpenCloud Logo® , Mellanox PeerDirect® , Mellanox ScalableHPC® ,
Mellanox StorageX® , Mellanox TuneX® , Mellanox Connect Accelerate Outperform logo , Mellanox Virtual Modular
Switch®, MetroDX®, MetroX®, MLNX-OS®, NP-1c®, NP-2®, NP-3®, Open Ethernet logo , PhyX®, PlatformX®,
PSIPHY®, SiPhy®, StoreX®, SwitchX®, Tilera®, Tilera logo, TestX®, TuneX®, The Generation of Open Ethernet
logo, UFM®, Unbreakable Link® , Virtual Protocol Interconnect®, Voltaire® and Voltaire logo are registered
trademarks of Mellanox Technologies , Ltd.
All other trademarks are property of their respective owners .
For the most updated list of Mellanox trademarks, visit http://www.mellanox.com/page/trademarks
NOTE:
THIS HARDWARE, SOFTWARE OR TEST SUITE PRODUCT (“PRODUCT (S)”) AND ITS RELATED
DOCUMENTATION ARE PROVIDED BY MELLANOX TECHNOLOGIES “AS-IS” WITH ALL FAULTS OF ANY
KIND AND SOLELY FOR THE PURPOSE OF AIDING THE CUSTOMER IN TESTING APPLICATIONS THAT
USE THE PRODUCTS IN DESIGNATED SOLUTIONS. THE CUSTOMER'S MANUFACTURING TEST
ENVIRONMENT HAS NOT MET THE STANDARDS SET BY MELLANOX TECHNOLOGIES TO FULLY
QUALIFY THE PRODUCT(S) AND/OR THE SYSTEM USING IT. THEREFORE, MELLANOX TECHNOLOGIES
CANNOT AND DOES NOT GUARANTEE OR WARRANT THAT THE PRODUCTS WILL OPERATE WITH THE
HIGHEST QUALITY. ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT ARE DISCLAIMED. IN NO EVENT SHALL MELLANOX BE LIABLE TO CUSTOMER OR
ANY THIRD PARTIES FOR ANY DIRECT, INDIRECT, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES OF ANY KIND (INCLUDING, BUT NOT LIMITED TO, PAYMENT FOR PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT , STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY FROM THE USE OF THE
PRODUCT (S) AND RELATED DOCUMENTATION EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Doc #: MLNX-15-5439 2Mellanox Technologies

Rev 1.9 3Mellanox Technologies
Table of Contents
Chapter 1 Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Systems 12
1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2 Speed and Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.3 Management Interfaces, PSUs and Fans . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.4 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.5 Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.6 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.1 Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.2 System Installation and Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.3 Air Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.4 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.5 19” Systems Mounting Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.5.1 Static Rail Kit for SN2700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.5.2 Telescopic Rail Kit for SN2700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.5.3 Static Rail Kit for SN2740 and SN2410. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.5.4 Side by Side Mounting for SN2100 Rail Kit . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.6 Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
2.6.1 Breakout Cables and Adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
2.7 Initial Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
2.8 System Bring-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
2.8.1 Configuring Network Attributes Using MLNX-OS . . . . . . . . . . . . . . . . . . . . 51
2.8.2 Configuring Network Attributes Using Cumulus Linux. . . . . . . . . . . . . . . . 56
2.9 FRU Replacements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.9.1 Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.9.2 Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Chapter 3 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.1 Supported Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.1.1 Data Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.1.2 Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.1.3 RS232 (Console). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.1.4 Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.1.5 USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.1.6 Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.1.7 Status and Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.2 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Rev 1.94 Mellanox Technologies
3.2.1 LED Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.3 Inventory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Chapter 4 Software Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.1 Upgrading Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.1.1 MLNX-OS Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.1.2 Switch Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.1.3 Cumulus Linux Software Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Chapter 5 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
5.1 Troubleshooting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Chapter 6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
6.1 SN2700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
6.2 SN2740 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
6.3 SN2410 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
6.4 SN2100 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Rev 1.9 5Mellanox Technologies
List of Tables
Table 1: Revision History Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 2: References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 3: Speed and Switching Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 4: Management Interfaces, PSUs and Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Table 5: Ordering Part Numbers (OPNs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 6: Air Flow Color Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table 7: Installation Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 8: Installation Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Table 9: Installation Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 10: Installation Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Table 11: Serial Terminal Program Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 12: Configuration Wizard Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 13: Configuration Wizard Session - Static IP Configuration . . . . . . . . . . . . . . . . . . . . . 54
Table 14: High Power/LR4 Transceivers Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Table 15: LEDs Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Table 16: System Status LED Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Table 17: Fan Status Front LED Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Table 18: Fan Status Rear LED Assignments (One LED per Fan) . . . . . . . . . . . . . . . . . . . . . . . 66
Table 19: Power Supply Unit Status Front LED Assignments for SN2700, SN2740 and SN241068
Table 20: Power Supply Unit Status Front LED Assignments for SN2100 . . . . . . . . . . . . . . . 68
Table 21: Power Supply Unit Status Rear LED Assignments . . . . . . . . . . . . . . . . . . . . . . . . . .68
Table 22: Bad Port LED Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Table 23: Port LEDs in Ethernet System Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Table 24: Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Table 25: SN2700 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Table 26: SN2740 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Table 27: SN2410 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Table 28: SN2100 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Table 29: OPNs for Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Table 30: QSFP Interface Pins 1-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Table 31: QSFP Interface Pins 24-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Rev 1.96 Mellanox Technologies
List of Figures

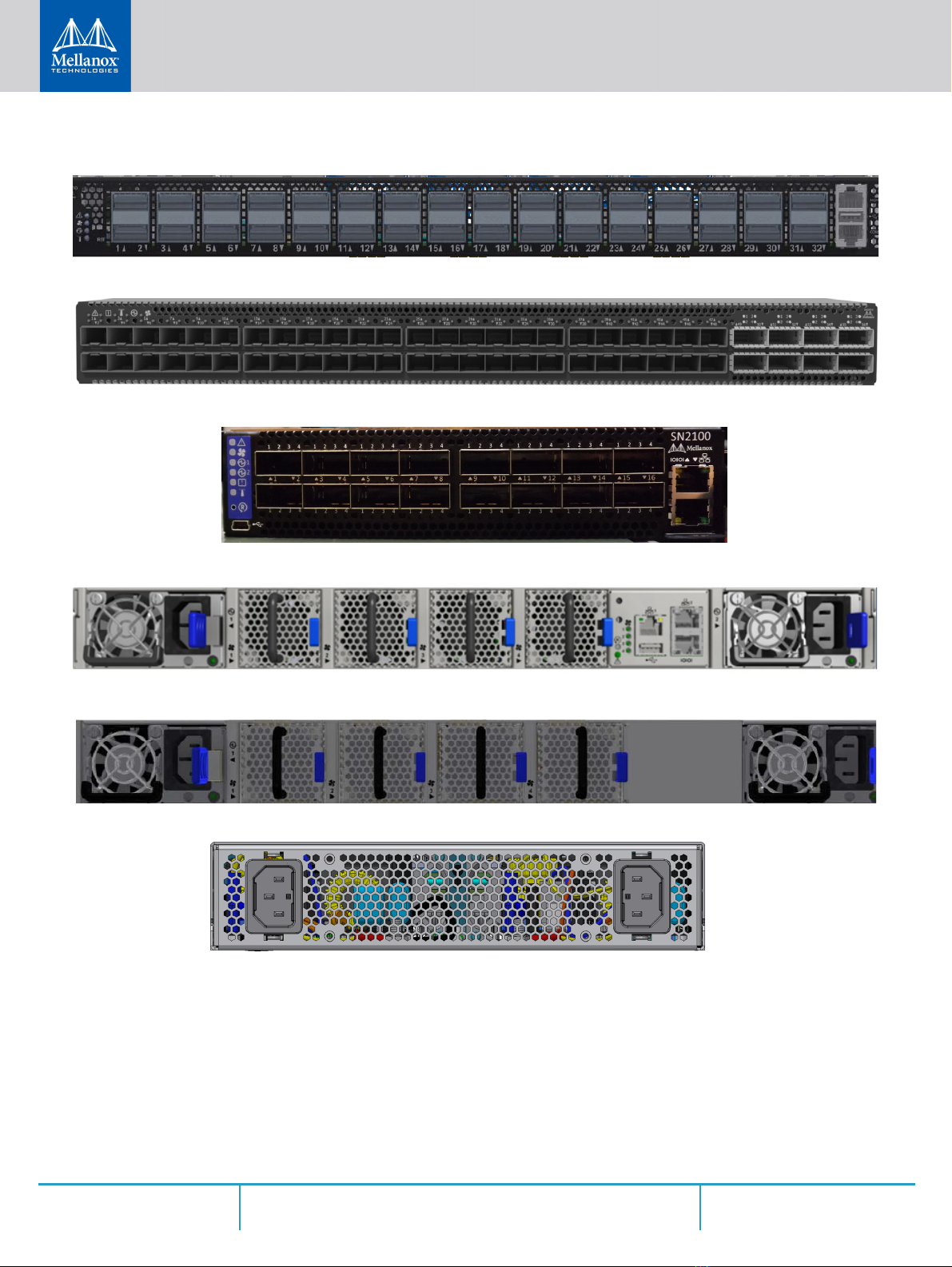

Figure 1: SN2700 Front Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 2: SN2740 Front Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 3: SN2410 Front Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 4: SN2100 Front Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 5: SN2700 and SN2410 Rear Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 6: SN2740 Rear Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 7: SN2100 Rear Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 8: Air Flow Direction Marking - Power Side Inlet to Connector Side Outlet . . . . . . . . . . . . . 21
Figure 9: Air Flow Direction Marking - Connector Side Inlet to Power Side Outlet . . . . . . . . . . . . . 21
Figure 10: Rack Rail Kit Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 11: Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 12: Attaching the Rails to the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 13: Attaching the Brackets to the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Figure 14: Installing the Cage Nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Figure 15: Attaching the Brackets to the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 16: Sliding the Blades in the Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 17: Rack Rail Kit Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 18: Rails Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 19: Installing the Cage Nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Figure 20: Mounting the Outer Rails into the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 21: Attaching the Inner Rails to the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 22: Securing the Chassis in the Inner Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 23: Sliding the Switch into the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 24: Pulling the Unit Outwards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Figure 25: Locking Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Figure 26: Rack Rail Kit Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Figure 27: Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 28: Attaching the Rails to the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Figure 29: Installing the Cage Nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Figure 30: Attaching the Rails to the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Figure 31: Sliding the Blades in the Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Figure 32: Rack Rail Kit Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Figure 33: Coupling the Cables with Cable-ties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 34: Coupled Cables - Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Figure 35: Cables within the Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Rev 1.9 7Mellanox Technologies
Figure 36: Attach the Blades to the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Figure 37: Attached Rail with Threaded Cables - Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Figure 38: Sliding the Frame Sliders into the Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Figure 39: Installing the Cage Nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Figure 40: Attaching the Frame to the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Figure 41: Sliding the System’s Blades in the Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 42: SN2700 and SN2100 Cable Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Figure 43: SN2740 Cable Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Figure 44: SN2410 Cable Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Figure 45: Breakout or Fanout Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Figure 46: SN2700 and S740 Splitting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Figure 47: SN2410 Splitting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Figure 48: SN2100 Splitting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Figure 49: System Status LEDs 5 Minutes After Power On in SN2700 . . . . . . . . . . . . . . . . . . . . . . . . 50
Figure 50: System Status LEDs 5 Minutes After Power On in SN2740 . . . . . . . . . . . . . . . . . . . . . . . . 50
Figure 51: System Status LEDs 5 Minutes After Power On in SN 2410 . . . . . . . . . . . . . . . . . . . . . . . . 50
Figure 52: System Status LEDs 5 Minutes After Power On in SN 2100 . . . . . . . . . . . . . . . . . . . . . . . . 51
Figure 53: Two Power Inlets - Electric Caution Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Figure 54: PS Unit Pulled Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure 55: Fan Module Latches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Figure 56: Using 4.5W Modules on Ports 49, 50, 55, 56 in SN2410 . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Figure 57: System Status LEDs - Front and Rear Sides in SN2700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 58: System Status LEDs - Front Side in SN2740 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 59: System Status LEDs - Front and Rear Sides in SN2410 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 60: System Status LED in SN2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 61: Fan Status LED in SN2700 - Front and Rear Sides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 62: System Status LEDs - Front Side in SN2740 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 63: Fan Status LED in SN2410 - Front and Rear Sides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure 64: Fan Status LED in SN2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Figure 65: Power Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 66: SN2700 and SN2410 Rear Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 67: SN2740 Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 68: SN2700 Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Figure 69: SN2740 Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Figure 70: SN2410 SFP28 Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Figure 71: SN2410 QSFP28 Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Rev 1.98 Mellanox Technologies
Figure 72: SN2100 Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Figure 73: SN2700 Pull-out Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Figure 74: SN2740 Inventory Information Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Figure 75: SN2410 Inventory Information Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Figure 76: SN2100 Pull-out Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Figure 77: Rear View of Module With Pin Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Figure 78: RJ45 to DB9 Harness Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Rev 1.9 9Mellanox Technologies
Revision History
Table 1 - Revision History Table
Date Revision Description
October 2017 1.9 Added SN2740
Updated:
•“System Installation and Initialization”
• “SN2410 Splitting Options”
February 2017 1.8 Updated:
•“Unit Identification LED”
February 2017 1.7 Updated:
•“Data Interfaces”
•“Specifications”
•“RJ45 to DB9 Harness Pinout”
November 2016 1.6 Updated:
•“Specifications”
September 2016 1.5 Updated:
•“Reset Button”
•“Status and Port LEDs”
Added:
• “Noise Level” to “Specifications”
June 2016 1.4 Updated:
•“Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Sys-
tems”
•“Ordering Information”
•“Side by Side Mounting for SN2100 Rail Kit”
May 2016 1.3 Added SX1012 to the following sections:
•“Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Sys-
tems”
•“Installation”
•“Interfaces”
•“Specifications”
•“Accessory and Replacement Parts”
March 2016 1.2 Updated:
•“Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Sys-
tems”
•“Software Management”
•“Troubleshooting Instructions”
•“Specifications”
•“Accessory and Replacement Parts”
Added:
• Taiwan BSMI Class A Statement in Safety Warnings
December 2015 1.1 Added SN2410
August 2015 1.0 Initial revision

Rev 1.910 Mellanox Technologies
About this Manual
This manual describes the installation and basic use of the Mellanox Ethernet systems.
Intended Audience
This manual is intended for IT managers and system administrators.
References
Conventions
The following icons are used throughout this document to indicate information that is important
to the user.
Table 2 - References
Document Description
MLNX-OS® User Man-
ual
This document contains information regarding the configuration and man-
agement of the MLNX-OS software. See http://www.mellanox.com/page/
mlnx_os.
Cumulus Linux User
Guide
This document contains information regarding the configuration and man-
agement of the Cumulus® Linux® software. See https://docs.cumulusnet-
works.com/display/DOCS.
Open Network Install
Environment (ONIE)
Quick Start Guide
See https://github.com/opencomputeproject/onie/wiki/Quick-Start-Guide/.
This icon makes recommendations to the user.
This icon indicates information that is helpful to the user.

Rev 1.9 11Mellanox Technologies
This icon indicates a situation that can potentially cause damage to hardware or
software.
This icon indicates a situation that can potentially cause personal injury.
This icon indicates a situation that can potentially cause personal injury.

Rev 1.912 Mellanox Technologies
1 Introduction to Mellanox SN2000 Spectrum™ Ethernet
Switch Systems
1.1 Overview
Mellanox Spectrum™ based 1U switch systems are an ideal spine and Top of Rack (ToR) solu-
tion, allowing maximum flexibility, with port speeds spanning from 10Gb/s to 100Gb/s per port,
and port density that enables full rack connectivity to any server at any speed. The uplink ports
allow a variety of blocking ratios that suit any application requirement. Powered by the Spectrum
ASIC, the systems carry whopping switching and processing capacities in a compact 1U form
factor.
Keeping with the Mellanox tradition of setting performance record switch systems, the Spectrum
based systems introduce the world’s lowest latency for 100GbE switching and routing elements,
and do so while having the lowest power consumption in the market. They enable the use of 10,
25, 40, 50 and 100GbE in a large scale without changing power infrastructure facilities.
The Spectrum™ based 1U switch systems are a part of Mellanox’s complete end-to-end solution,
which provides 10GbE through 100GbE interconnectivity within the data center. Other devices
in this solution include ConnectX-4 based network interface cards, and LinkX copper or fiber
cabling. This end-to-end solution is topped with NEO, a management application that relieves
some of the major obstacles standing in the way when deploying a network. NEO enables a fully
certified and interoperable design, speeds up time to service and RoI. The systems introduce
hardware capabilities for multiple tunneling protocols that enable increased reachability and scal-
ability for today’s data centers. Implementing MPLS, NVGRE and VXLAN tunneling encapsu-
lations in the network layer of the data center allows more flexibility for terminating a tunnel by
the network, in addition to termination on the server endpoint.
While Spectrum provides the thrust and acceleration that powers the switch systems, they get yet
another angle of capabilities, running with a powerful x86-based processor, which allows them to
not only be the highest performing switch fabric elements, but also grants them the ability to
incorporate a Linux running server into the same device. This opens up multiple application
aspects of utilizing the high CPU processing power and the best switching fabric, to create a
powerful machine with unique appliance capabilities that can improve numerous network imple-
mentation paradigms.
The Spectrum™ based 1U switch systems support the Open Network Install Environment
(ONIE) for zero touch installations of network operating systems. While all Ethernet systems can
be purchased preloaded with MLNX-OS, the SN2000 switches (in both the 100GbE and the
40GbE versions) are offered, in addition, with Cumulus Linux support, as an alternative operat-
ing system. For a full list of all available ordering options, see “Ordering Information”.
Figure 1: SN2700 Front Side View

Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Systems
Rev 1.9 13Mellanox Technologies
Figure 2: SN2740 Front Side View
Figure 3: SN2410 Front Side View
Figure 4: SN2100 Front Side View
Figure 5: SN2700 and SN2410 Rear Side View
Figure 6: SN2740 Rear Side View
Figure 7: SN2100 Rear Side View

Rev 1.914 Mellanox Technologies
1.2 Speed and Switching
Table 3 describes maximum throughput and interface speed per system model.
*The system can support different interfaces and speed rates using QSFP to SFP adapters or
hybrid cables. For further information, see “Breakout Cables and Adapters”.
1.3 Management Interfaces, PSUs and Fans
Table 4 lists the various management interfaces, PSUs and fans per system model.
1.4 Features
For a full feature list, please refer to the system’s product brief. Go to http://www.mellanox.com.
In the main menu, click on Products--> Ethernet Switch Systems, and select the desired product
page.
1.5 Certifications
The list of certifications (such as EMC, Safety and others) per system for different regions of the
world is located on the Mellanox website at:
http://www.mellanox.com/page/environmental_compliance
Table 3 - Speed and Switching Capabilities
System Model 10/25GbE SFP28 Interfaces* 40/50/56/100GbE
QSFP28 Interfaces* Max Throughput
SN2700 64 (using QSFP to SFP breakout
cables)
32 6.4Tb/s
SN2740 64 (using QSFP to SFP breakout
cables)
32 6.4Tb/s
SN2410 Total 64, 48zSFP+ 16 (using
QSFP to SFP breakout cables)
84Tb/s
SN2100 64 (using QSFP to SFP breakout
cables)
16 (or 32 50GbE
interfaces when
using QSFP to
2xQSFP breakout
cables).
3.2Tb/s
Table 4 - Management Interfaces, PSUs and Fans
System Model USB MGT Console PSU Fan
SN2700 Rear Rear (2 ports) Rear 2 units 4 units
SN2740 Front Front (1 port) Front 2 units 4 units
SN2410 Rear Rear (2 ports) Rear 2 units 4 units
SN2100 Front (mini
USB)
Front (1 port) Front 2 units (non-
replaceable)
4 units (non-
replaceable)

Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Systems
Rev 1.9 15Mellanox Technologies
1.6 Ordering Information
The following table lists ordering information for the available systems. Please pay attention to
the airflow direction when ordering your system. For more details, see “Air Flow”.
Table 5 - Ordering Part Numbers (OPNs)
System
Model OPN Description
SN2700 MSN2700-BS2F Spectrum(TM) based 40GbE, 1U Open Ethernet Switch with
MLNX-OS, 32 QSFP28 ports, 2 Power Supplies (AC), x86 CPU,
Standard depth, P2C airflow, Rail Kit, RoHS6
MSN2700-BS2FC Spectrum(TM) 40GbE 1U switch w/Cumulus Linux, 32 QSFP28
ports, 2 AC PSUs, x86 2core, standard depth, P2C airflow, Rail Kit,
RoHS6, (Cumulus License Key is required)
MSN2700-BS2FO Spectrum(TM) based 40GbE 1U Open Switch with ONIE, 32
QSFP28 ports, 2 Power Supplies (AC), Standard depth, x86 CPU,
P2C airflow, Rail Kit, RoHS6
MSN2700-BS2R Spectrum(TM) based 40GbE, 1U Open Ethernet Switch with
MLNX-OS, 32 QSFP28 ports, 2 Power Supplies (AC), x86 CPU,
Standard depth, C2P airflow, Rail Kit, RoHS6
MSN2700-BS2RC Spectrum(TM) 40GbE 1U switch w/Cumulus Linux, 32 QSFP28
ports, 2 AC PSUs, x86 2core, standard depth, C2P airflow, Rail Kit,
RoHS6, (Cumulus License Key is required)
MSN2700-CS2F Spectrum(TM) based 100GbE, 1U Open Ethernet Switch with
MLNX-OS, 32 QSFP28 ports, 2 Power Supplies (AC), x86 CPU,
Standard depth, P2C airflow, Rail Kit, RoHS6
MSN2700-CS2FC Spectrum(TM) 100GbE 1U switch w/Cumulus Linux, 32 QSFP28
ports, 2 AC PSUs, x86 2core, standard depth, P2C airflow, Rail Kit,
RoHS6, (Cumulus License Key is required)
MSN2700-CS2FE Spectrum(TM) based 100GbE 1U Development System with SDK,
32 QSFP28 ports, 2 Power Supplies (AC), Standard depth, x86 CPU,
P2C airflow, Rail Kit, RoHS6
MSN2700-CS2FO Spectrum(TM) based 100GbE 1U Open Switch with ONIE, 32
QSFP28 ports, 2 Power Supplies (AC), Standard depth, x86 CPU,
P2C airflow, Rail Kit, RoHS6
MSN2700-CS2R Spectrum(TM) based 100GbE, 1U Open Ethernet Switch with
MLNX-OS, 32 QSFP28 ports, 2 Power Supplies (AC), x86 CPU,
Standard depth, C2P airflow, Rail Kit, RoHS6
MSN2700-CS2RC Spectrum(TM) 100GbE 1U switch w/Cumulus Linux, 32 QSFP28
ports, 2 AC PSUs, x86 2core, standard depth, C2P airflow, Rail Kit,
RoHS6, (Cumulus License Key is required, provided at no cost with
purchase of support SKU SUP-SN2000-XX)

Rev 1.916 Mellanox Technologies
SN2740 MSN2740-BB2F1 Spectrum(TM) based 40GbE 1U Open Ethernet Switch with MLNX-
OS, 32 QSFP28 ports, 2 Power Supplies (AC), Short depth, x86
CPU, P2C airflow, Rail Kit, RoHS6
MSN2740-
BB2F1O
Spectrum(TM) based 40GbE 1U Open Switch with ONIE, 32
QSFP28 ports, 2 Power Supplies (AC), Short depth, x86 CPU, P2C
airflow, Rail Kit, RoHS6
MSN2740-CB2F1 Spectrum(TM) based 100GbE 1U Open Ethernet Switch with
MLNX-OS, 32 QSFP28 ports, 2 Power Supplies (AC), Short depth,
x86 CPU, P2C airflow, Rail Kit, RoHS6
MSN2740-
CB2F1C
Spectrum(TM) based 100GbE 1U Open Ethernet Switch with Cumu-
lus Linux, 32 QSFP28 ports, 2 Power Supplies (AC), Short depth,
x86 CPU, C2P airflow, Rail Kit, RoHS6?
MSN2740-
CB2F1O
Spectrum(TM) based 100GbE 1U Open Switch with ONIE, 32
QSFP28 ports, 2 Power Supplies (AC), Short depth, x86 CPU, P2C
airflow, Rail Kit, RoHS6
MSN2740-
CB2F1OS
Spectrum(TM) based 100GbE 1U Open Switch with ONIE/SONIC,
32 QSFP28 ports, 2 Power Supplies (AC), Short depth, x86 CPU,
P2C airflow, Rail Kit, RoHS6
Table 5 - Ordering Part Numbers (OPNs)
System
Model OPN Description

Introduction to Mellanox SN2000 Spectrum™ Ethernet Switch Systems
Rev 1.9 17Mellanox Technologies
SN2410 MSN2410-BB2F Spectrum(TM) based 10GbE/100GbE 1U Open Ethernet switch with
MLNX-OS, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC),
x86 dual core, Short depth, P2C airflow, Rail Kit, RoHS6
MSN2410-BB2FC Spectrum(TM) 10GbE/100GbE switch w/Cumulus Linux, 48 SFP28
ports + 8 QSFP28 ports, 2 AC PSUs, x86 2core, short depth, P2C air
flow, Rail Kit, (Cumulus License Key is required)
MSN2410-BB2FO Spectrum(TM) based 10GbE/100GbE 1U Open Ethernet switch with
ONIE, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC), x86
dual core, Short depth, P2C airflow, Rail Kit, RoHS6
MSN2410-BB2R Spectrum(TM) based 10GbE/100GbE 1U Open Ethernet switch with
MLNX-OS, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC),
x86 dual core, Short depth, C2P airflow, Rail Kit, RoHS6
MSN2410-CB2F Spectrum(TM) based 25GbE/100GbE 1U Open Ethernet switch with
MLNX-OS, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC),
x86 dual core, Short depth, P2C airflow, Rail Kit, RoHS6
MSN2410-CB2FC Spectrum(TM) 25GbE/100GbE switch w/Cumulus Linux, 48 SFP28
ports + 8 QSFP28 ports, 2 AC PSUs, x86 2core, short depth, P2C air
flow, Rail Kit, (Cumulus License Key is required)
MSN2410-CB2FE Spectrum(TM) based 25GbE/100GbE 1U Development System with
SDK, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC), x86
dual core, Short depth, P2C airflow, Rail Kit, RoHS6
MSN2410-CB2FO Spectrum(TM) based 25GbE/100GbE 1U Open Ethernet switch with
ONIE, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC), x86
dual core, Short depth, P2C airflow, Rail Kit, RoHS6
MSN2410-CB2R Spectrum(TM) based 25GbE/100GbE 1U Open Ethernet switch with
MLNX-OS, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC),
x86 dual core, Short depth, C2P airflow, Rail Kit, RoHS6
MSN2410-CB2RC Spectrum(TM) 25GbE/100GbE switch w/Cumulus Linux, 48 SFP28
ports + 8 QSFP28 ports, 2 AC PSUs, x86 2core, short depth, C2P air
flow, Rail Kit, (Cumulus License Key is required)
MSN2410-CB2RO Spectrum(TM) based 25GbE/100GbE 1U Open Ethernet switch with
ONIE, 48 SFP28 ports, 8 QSFP28 ports, 2 power supplies (AC), x86
dual core, Short depth, C2P airflow, Rail Kit, RoHS6
Table 5 - Ordering Part Numbers (OPNs)
System
Model OPN Description

Rev 1.918 Mellanox Technologies
SN2100 MSN2100-BB2F Spectrum(TM) based 40GbE, 1U Open Ethernet Switch with
MLNX-OS, 16 QSFP28 ports, 2 AC PSUs,x86 2core, short depth,
P2C airflow, Rail Kit must be purchased separately, RoHS6
MSN2100-BB2FC Spectrum(TM) 40GbE 1U switch w/Cumulus Linux, 16 QSFP28
ports, 2 AC PSUs,x86 2core, short depth, P2C airflow, Rails 2 be
purchased separately, (Cumulus License Key is required)
MSN2100-BB2FO Spectrum(TM) based 40GbE 1U Open Switch with ONIE, 16
QSFP28 ports, 2 AC PSUs,x86 2core, short depth,, P2C airflow, Rail
Kit must be purchased separately, RoHS6
MSN2100-BB2R Spectrum(TM) based 40GbE, 1U Open Ethernet Switch with
MLNX-OS, 16 QSFP28 ports, 2 AC PSUs,x86 2core, short depth,
C2P airflow, Rail Kit must be purchased separately, RoHS6
MSN2100-BB2RC Spectrum(TM) 40GbE 1U switch w/Cumulus Linux, 16 QSFP28
ports, 2 AC PSUs,x86 2core, short depth, C2P airflow, Rails 2 be
purchased separately, (Cumulus License Key is required)
MSN2100-CB2F Spectrum(TM) based 100GbE, 1U Open Ethernet Switch with
MLNX-OS, 16 QSFP28 ports, 2 AC PSUs,x86 2core, short depth,
P2C airflow, Rail Kit must be purchased separately, RoHS6
MSN2100-CB2FC Spectrum(TM) 100GbE 1U switch w/Cumulus Linux, 16 QSFP28
ports,2 AC PSUs,x86 2core, short depth, P2C airflow, Rails 2 be pur-
chased separately, (Cumulus License Key is required)
MSN2100-CB2FE Spectrum(TM) based 100GbE 1U Development System with SDK,
16 QSFP28 ports, 2 Power Supplies (AC), Short depth, Rangeley
CPU, P2C airflow, Rail Kit must be purchased separately, RoHS6
MSN2100-CB2FO Spectrum(TM) based 100GbE 1U Open Switch with ONIE, 16
QSFP28 ports, 2 AC PSUs,x86 2core, short depth, P2C airflow, Rail
Kit must be purchased separately, RoHS6
MSN2100-CB2R Spectrum(TM) based 100GbE, 1U Open Ethernet Switch with
MLNX-OS, 16 QSFP28 ports, 2 AC PSUs,x86 2core, short depth,
C2P airflow, Rail Kit must be purchased separately, RoHS6
MSN2100-CB2RC Spectrum(TM) 100GbE 1U switch w/Cumulus Linux, 16 QSFP28
ports,2 AC PSUs,x86 2core, short depth, C2P airflow, Rails 2 be pur-
chased separately, (Cumulus License Key is required)
Table 5 - Ordering Part Numbers (OPNs)
System
Model OPN Description

Installation
Rev 1.9 19Mellanox Technologies
2 Installation
2.1 Safety Warnings
Prior to the installation, please review the safety warnings as follows:
• For Nordic Countries Notices, see Section E.1, “Nordic Countries Notices,” on page 89.
• For Safety Warnings in English, see Section E.2, “Installation Safety Warnings
(English),” on page 89.
• For Safety Warnings in Hebrew, see Section E.3, “הנקתהב תוחיטב תוארוה (Hebrew),” on
page 92.
• For Safety Warnings in Chinese, see Section 1 on page 96.
• For Safety Warnings in French, see Section E.5, “Avertissements de sécurité pour
l'installation (French),” on page 101.
• For Safety Warnings in German, Section E.6, “Installation Sicherheitshinweise(Ger-
man),” on page 105.
• For Safety Warnings in Spanish, see Section E.7, “Advertencias de seguridad de insta-
lación (Spanish),” on page 108.
• For Safety Warnings in Russian, see Section E.8, “Предупреждения по технике
безопасности при установке (Russian),” on page 112.
• For Safety Warnings in Romanian, see Section E.9, “Avertismente privind siguranţa la
instalare (Romanian),” on page 116.
• For Safety Warnings in Croatian, see Section E.10, “Sigurnosna upozorenja za instali-
ranje (Croatian),” on page 119.
• For Safety Warnings in Italian, see Section E.11, “Avvertenze di sicurezza per
l’installazione (Italian),” on page 123.
• For Safety Warnings in Turkish see Section E.12, “Montaj Güvenlik Uyarıları(Turk-
ish),” on page 127.

Rev 1.920 Mellanox Technologies
2.2 System Installation and Initialization
Installation and initialization of the system require attention to the normal mechanical, power,
and thermal precautions for rack-mounted equipment.
The installation procedure for the system involves the following phases:
1. Follow the safety warnings in Section 2.1.
2. Pay attention to the air flow consideration within the system and rack - refer to “Air Flow” on
page 20.
3. Make sure that none of the package contents is missing or damaged - see “Package Contents”
on page 21.
4. Mount the system into a rack enclosure - see “19” Systems Mounting Options” on page 22.
5. Power on the system - refer to “Initial Power On” on page 49.
6. Perform system bring-up - see “System Bring-Up” on page 51.
7. [Optional]: FRU replacements are described in Section 2.9 on page 57.
2.3 Air Flow
Mellanox systems are offered with two air flow patterns:
• Power (rear) side inlet to connector side outlet - marked with blue power supplies/fans-
FRUs’ handles, as shown in Figure 8.
• Connector (front) side inlet to power side outlet - marked with red power supplies/fans
FRUs’ handles, as shown in Figure 9.
The rack mounting holes conform to the EIA-310 standard for 19-inch racks. Take
precautions to guarantee proper ventilation in order to maintain good airflow at ambi-
ent temperature.
Unless otherwise specified, Mellanox products are designed to work in an environ-
mentally controlled data center with low levels of gaseous and dust (particulate) con-
tamination.
The operation environment should meet severity level G1 as per ISA 71.04 for gas-
eous contamination and ISO 14644-1 class 8 for cleanliness level
The following information does not apply to SN2100. In the SN2100 systems, the fan
units are non-replaceable.
All servers and systems in the same rack should be planned with the same airflow
direction.
All FRU components need to have the same air flow direction. A mismatch in the air
flow will affect the heat dissipation.
