Ubiquiti ES-10X User manual

EdgeSwitch10X WallMountScrews(Qty.2) WallMountAnchors(Qty.2)
GroundScrew PowerAdapter(24V,1A) CableClip
PackageContents
InstallationRequirements
Wall-mounting(optional)
Drillwith6mmdrillbit
Phillipsscrewdriver
Forindoorapplications,useCategory5(orabove)UTPcablingapprovedforindoor
use.
Foroutdoorapplications,shieldedCategory5(orabove)cablingshouldbeusedfor
allwiredEthernetconnectionsandshouldbegroundedthroughtheACgroundofthe
powersupply.
Werecommendthatyouprotectyournetworksfromharmfuloutdoorenvironments
anddestructiveESDeventswithindustrial-grade,shieldedEthernetcablefrom
Ubiquiti.Formoredetails,visit:ui.com/toughcable
Note:Althoughthecablingcanbelocatedoutdoors,theEdgeSwitchitself
shouldbehousedinsideaprotectiveenclosure.

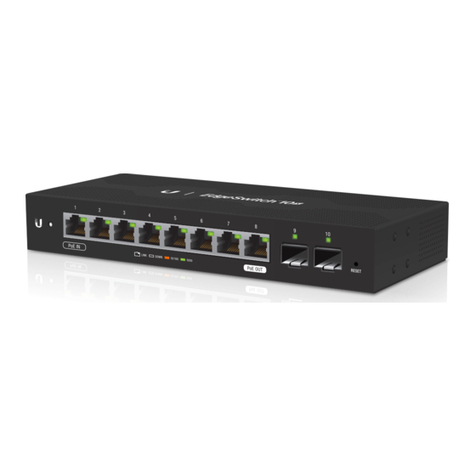

HardwareOverview
ES-10XQuickStartGuide

SystemLED
RJ45Speed/Link/ActivityLED(Ports1-8)
SFPLink/ActivityLED(Ports9-10)
RJ45(Ports1-8)
SFP(Ports9-10)
ResetButton
Power
GroundingPoint
FlashingWhite BootupinProgress
White
ReadyforUse
NotConnectedtoUbiquiti®NetworkManagement
System(UNMS™)
Blue
ReadyforUse
ConnectedtoUNMS
SteadyBluewith
OccasionalFlashing
ReadyforUse
UnabletoConnecttoUNMS
QuicklyFlashingBlue UsedtoLocateaDeviceinUNMS
AlternatingBlue/White FirmwareUpgradeinProgress
Off NoLink
Amber
LinkEstablishedat10/100Mbps
FlashingIndicatesActivity
Green
LinkEstablishedat1000Mbps
FlashingIndicatesActivity
Off NoLink
Green
LinkEstablishedat1Gbps
FlashingIndicatesActivity
RJ45portssupport10/100/1000Ethernetconnections.
PoEIn(Port1)Supports24VPassivePoEinput.
PoEOut(Port8)Supports24VPassivePoEpassthrough.
Hot-swappableSFPportssupport1Gbpsconnections.IfyouuseacopperEthernet
module(example:UF-RJ45-1G),powerofftheEdgeSwitchbeforeinsertion;
otherwisetheremaybeadevicereboot.
Toresettofactorydefaults:
1. DisconnectpowerfromtheEdgeSwitch.
2. ReconnectpowerwhileholdingtheResetbutton.TheportLEDswilllightupin
sequentialorder(thistakesapproximatelyfiveseconds).
3. Whentheport1LEDflashesagain,releasetheResetbutton.
ConnecttheincludedPowerAdaptertothePowerport.
Groundbondingpointforanoptionalgroundwire.

HardwareInstallation
TheoptionalEdgeRouter™RackmountKit,modelER-RMKIT,issoldseparately.
WARNING:TheEdgeSwitchES-10Xmustnotbestacked.Donotplaceiton
topofanotherswitch.DonotplaceanythingontopoftheES-10X.
WallMounting
1.
2.
3.

4.
GroundingtheEdgeSwitch(Recommended)
ThePowerAdaptergroundsthedevice;however,youcanaddoptionalESDgrounding
forenhancedESDprotection(groundwirenotincluded).

Optional
ConnectingPower
Note:Onlyonepowersourcecanbeusedatanyonetime.Withbothpower
sourcesconnected,theinputwiththehighestvoltagewillbeused;theother
powersourcedefaultstobackup.
OR

ConnectingEthernet
1.
2.
WARNING:BeforeenablingPoEpassthrough,ensurethattheconnectedPoE
devicesupports24VPassivePoE.
UsingSFPPorts
1.

2.
3.
ForinformationaboutcompatiblefiberSFPmodules,visit:
ubnt.link/SFP_DAC_Compatibility
AccessingtheConfigurationInterface
ThedeviceissettoDHCPbydefault,soitwilltrytoautomaticallyobtainanIPaddress.
Ifthatfails,thenitwillusethedefaultfallbackIPaddress,192.168.1.20.Proceedtothe
appropriatesection,DHCPor“FallbackIPAddress”:
DHCP
Useoneofthefollowingmethods:
SetuptheDHCPservertoprovideaspecificIPaddresstothedevicebasedonits
MACaddress(onthelabel).

LetthedeviceobtainanIPaddressandthenchecktheDHCPservertoseewhichIP
addresswasassigned.
Tologin,followthesesteps:
1. Launchyourwebbrowser.TypetheappropriateIPaddressintheaddressfield.
Pressenter(PC)orreturn(Mac).
2. EnterubntintheUsernameandPasswordfields.ClickSignIn.
TheEdgeSwitchConfigurationInterfacewillappear.Customizeadditionalsettingsas
needed.For24VPassivePoEconfiguration,referto“ConfiguringPoESettings”.For
moreinformation,refertotheEdgeSwitchdocumentation,whichisavailableat
ui.com/download/edgemax
FallbackIPAddress
1. Ensurethatyourcomputer(orotherhostsystem)isconnectedtothedevice.
2. ConfiguretheEthernetadapteronyourhostsystemwithastaticIPaddressonthe
192.168.1.xsubnet.
3. Launchyourwebbrowser.TypetheappropriateIPaddressintheaddressfield
(192.168.1.20isthedefaultfallbackIPaddress).Pressenter(PC)orreturn(Mac).
4. EnterubntintheUsernameandPasswordfields.ClickSignIn.
5. TheEdgeSwitchConfigurationInterfacewillappear.ClicktheSystemSettingstab.

6. ChangetheIPAddresstoauniqueIPaddress.ClickApply.
Note:IfyouchangetheIPsettings,thenthesessionwillbecutoff,andyouwill
needtoreconnecttothedeviceusingthenewIPaddress.
Customizeadditionalsettingsasneeded.For24VPassivePoEconfiguration,referto
“ConfiguringPoESettings”.Formoreinformation,refertotheEdgeSwitch
documentation,whichisavailableatui.com/download/edgemax
ConfiguringPoESettings
ThePoEsettingforport8issettoOffbydefault.
WARNING:BeforeactivatingPoE,ensurethattheconnecteddevicesupports
passivePoEandthesuppliedvoltage.
OntheDashboardtab,clickthePoEsettingofport8.Thenselect24V.

UNMSManagement
YoucanmanageyourdeviceusingUNMS,whichletsyouconfigure,monitor,upgrade,
andbackupyourdevicesusingasingleapplication.Getstartedatwww.unms.com
Specifications
ES-10X
Dimensions 207x31.1x90mm(8.15x1.22x3.54")
Weight 500g(1.10lb)
TotalNon-BlockingThroughput 10Gbps
SwitchingCapacity 20Gbps
ForwardingRate 14.88Mpps
Max.PowerConsumption
(ExcludingPoEOutput)
8W
PowerMethod 24VDC,1Aor
24VPassivePoE
SupportedVoltageRange 9-30VDC
PowerSupply 24VDC,1APowerAdapter(Included)or
24VPassivePoE
LEDs 
System Status
RJ45DataPorts Link/Speed/Activity
SFPDataPorts Link/Activity
NetworkingInterfaces (8)10/100/1000MbpsRJ45Ports
(2)1GbpsSFPPorts
ManagementInterface EthernetIn-Band
Certifications CE,FCC,IC
ESD/EMPProtection Air:±24kV,Contact:±24kV
OperatingTemperature -10to50°C(14to122°F)
OperatingHumidity 5to95%Noncondensing
ShockandVibration ETSI300-019-1.4Standard
PoE(Port8)
PoEInterface 24VDCPassivePoE(Pins4,5+;7,8-)
Max.PassivePoEWattageperPort 15W
24VPassivePoEVoltageRange 24V

SafetyNotices
1. Read,follow,andkeeptheseinstructions.
2. Heedallwarnings.
3. Onlyuseattachments/accessoriesspecifiedbythemanufacturer.
WARNING:Failuretoprovideproperventilationmaycausefirehazard.Keepatleast20
mmofclearancenexttotheventilationholesforadequateairflow.
WARNING:Toreducetheriskoffireorelectricshock,donotexposethisproducttorainor
moisture.
WARNING:Donotusethisproductinlocationthatcanbesubmergedbywater.
WARNING:Avoidusingthisproductduringanelectricalstorm.Theremaybearemote
riskofelectricshockfromlightning.
ElectricalSafetyInformation
1. Complianceisrequiredwithrespecttovoltage,frequency,andcurrentrequirementsindicated
onthemanufacturer’slabel.Connectiontoadifferentpowersourcethanthosespecifiedmay
resultinimproperoperation,damagetotheequipmentorposeafirehazardifthelimitationsare
notfollowed.
2. Therearenooperatorserviceablepartsinsidethisequipment.Serviceshouldbeprovidedonly
byaqualifiedservicetechnician.
3. Thisequipmentisprovidedwithadetachablepowercordwhichhasanintegralsafetyground
wireintendedforconnectiontoagroundedsafetyoutlet.
a. Donotsubstitutethepowercordwithonethatisnottheprovidedapprovedtype.Neveruse
anadapterplugtoconnecttoa2-wireoutletasthiswilldefeatthecontinuityofthegrounding
wire.
b. Theequipmentrequirestheuseofthegroundwireasapartofthesafetycertification,
modificationormisusecanprovideashockhazardthatcanresultinseriousinjuryordeath.
c. Contactaqualifiedelectricianorthemanufactureriftherearequestionsabouttheinstallation
priortoconnectingtheequipment.
d. ProtectiveearthingisprovidedbyListedACadapter.Buildinginstallationshallprovide
appropriateshort-circuitbackupprotection.
e. Protectivebondingmustbeinstalledinaccordancewithlocalnationalwiringrulesand
regulations.
LimitedWarranty
ui.com/support/warranty
Thelimitedwarrantyrequirestheuseofarbitrationtoresolvedisputesonanindividualbasis,and,
whereapplicable,specifyarbitrationinsteadofjurytrialsorclassactions.
Compliance
FCC
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser’sauthoritytooperatetheequipment.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo
conditions.
1. Thisdevicemaynotcauseharmfulinterference,and
2. Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,
pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection
againstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.This
equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandused
inaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio
communications.Operationsofthisequipmentinaresidentialareaislikelytocauseharmful
interferenceinwhichcasetheuserwillberequiredtocorrecttheinterferenceathisownexpense.
ISEDCanada
CANICES-3(A)/NMB-3(A)

AustraliaandNewZealand
Warning:ThisequipmentiscompliantwithClassAofCISPR32.Inaresidential
environmentthisequipmentmaycauseradiointerference.
CEMarking
CEmarkingonthisproductrepresentstheproductisincompliancewithalldirectivesthatare
applicabletoit.
WEEEComplianceStatement
DeclarationofConformity
OnlineResources
©2020UbiquitiInc.Allrightsreserved.
