Hybrid Grill
Infrared, Gas & Charcoal Cooking System
Model
s
Number:
GR2071001-MM-00
ASSEMBLY & OPERATING INSTRUCTIONS
For Outdoor Use Only
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling/using
the appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for further reference
ATTENTION
Please do not withdraw all parts from the packing boxes immediately!!
Each assembly step in this instruction manual has shown how can you find the
particular part(s) from the packing box quickly. We strongly recommend that you
read through the assembly procedure before proceeding assembly.
Should you encounter any problem,
CALL US FIRST.
DOT NOT return product to the retail store!!
WE CAN HELP.
For assistance, contact customer service at [e-mail]
or at [phone], Mon to Fri, 8:00am – 5:00pm Pacific Standard time

2 of 47 20121224-
Ver1
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately
call your gas supplier or fire department
WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in
the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance
DANGER
(a) Do not store a spare LP-gas cylinder under or near this appliance;
(b) Never fill the cylinder beyond 80 percent full; and
(c) If the information in (a) and (b) is not followed exactly, a fire causing
death or serious injury may occur.
SAFETY LABELS
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury
WARNING: Be alert to the possibility of serious bodily injury if the instructions are not
followed. Be sure to read and carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.

3 of 47 20121224-
Ver1
GAS GRILL GENERAL WARNINGS
WARNING
 This outdoor cooking gas appliance shall be used only outdoors and shall not be
used in a building, garage or any other enclosed area.
This outdoor cooking gas appliance is not intended to be installed in or on boats.
This appliance is not intended to be installed in or on recreational vehicles.

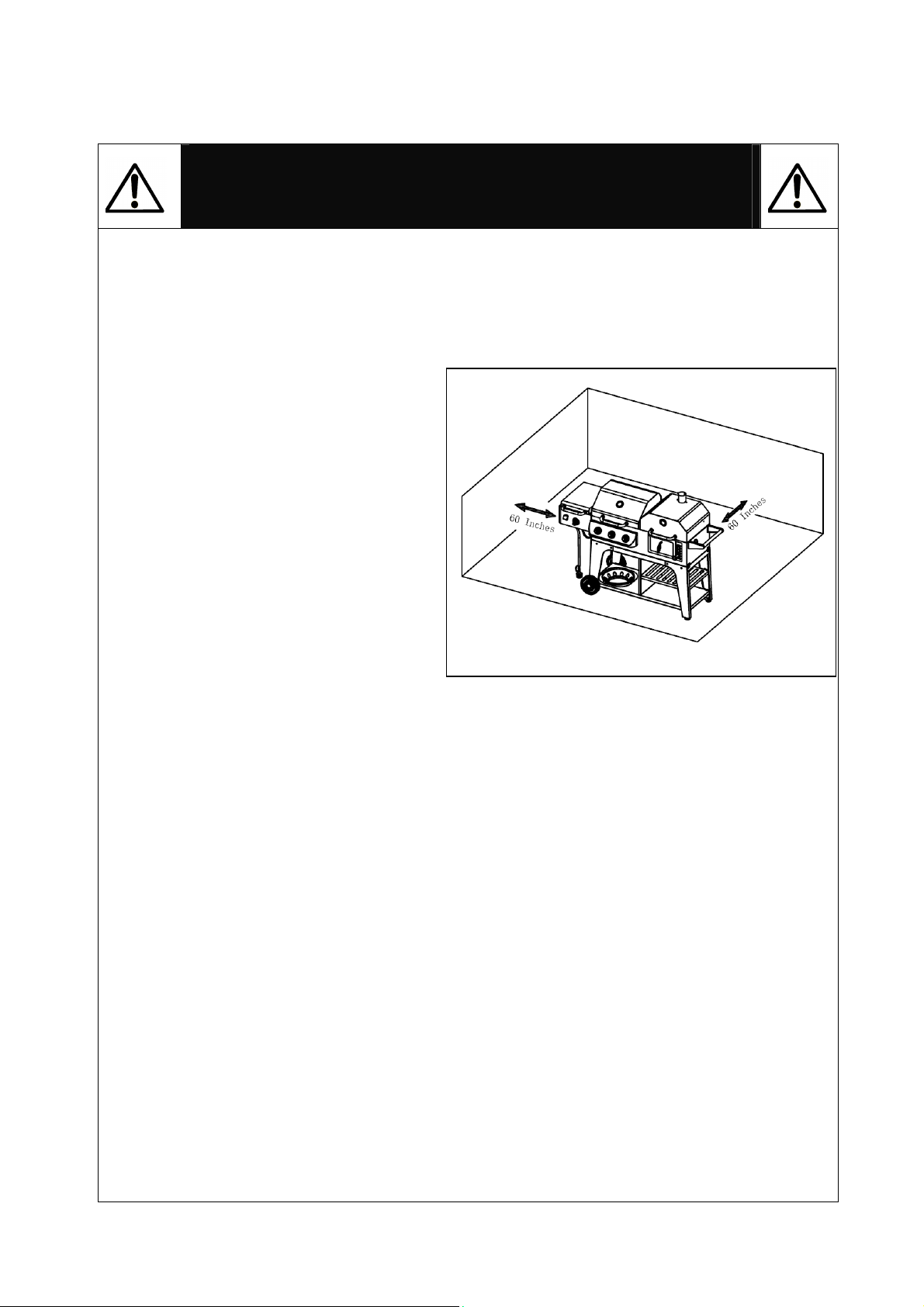

Use your grill OUTDOORS in a well ventilated space away from dwellings or other
buildings to prevent dangers
associated with gas accumulation
and toxic vapors. The grill should
be situated at least 60 inches (153
cm) from buildings. Not adhering
to these clearances will prevent
proper ventilation and may
increase the risk of a fire and/or
property damage, which could also
result in personal injury.
Maintain a minimum clearance of
60 inches (153 cm) between all
sides of grill, deck railings, walls or
other combustible material. DO
NOT use grill under overhead combustible construction.
DO NOT obstruct the flow of combustion/ventilation air.
DO NOT leave the grill unattended while in use.
DO NOT use while under the influence of drugs or alcohol.
Keep the fuel supply hose away from heated surfaces.
DO NOT put grill in storage or move it immediately after use. Allow grill to cool to
touch before moving/storing. Failure to do so could result in fire resulting in property
damage, personal injury or death.
The appliance is for household use only. DO NOT use this grill for other than its
intended purpose.
Never use natural gas in a unit designed for liquid propane gas.
Never use charcoal or wood briquettes in a gas grill. Flavoring chips must be
contained in a metal smoking box to contain ash and prevent fires.
Leak test must be conducted prior to each use.
Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your
local authority to determine proper size and type.
Grill is hot when in use. To avoid burns:
DO NOT attempt to move the grill.
Wear protective gloves or oven mitts.
DO NOT touch any hot grill surfaces.
DO NOT wear loose clothing or allow hair to come in contact with grill.
Never close the SIDE BURNER LID during operation.
Maintain a minimum clearance of
60 in. from combustible material.

4 of 47 20121224-
Ver1
USE OF LP GAS CYLINDER AND INSTALLATION
BEFORE INSTALLING:
The installation must conform with local codes or, in the absence of local codes, with
either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2,or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series,
Recreational Vehicle Code, as applicable.
BEFORE EVERY USAGE:
Be sure to inspect the hose for leaks, cuts, wear, abrasion, or damage of any sort before
using this appliance. If any damage is apparent the hose must be replaced with a
replacement hose specified by the manufacturer before it is put in use.
LP GAS CYLINDER
The LP (liquid propane) cylinder specifically designed to be used with this unit MUST have
a 20 lb. (9.1kg) capacity with a Type 1 cylinder value and an overfilling protection device
(OPD). Only use LP cylinders with this type of valve.
The nominal cylinder: Height = 18 inches (45.7 cm), Diameter = 12 inches (30.5cm) and
bottom ring diameter = 8 inches (20.3 cm)
LP tank valve must have:
Type 1 outlet compatible with regulator or appliance.
Safety relief valve.
UL listed Overfill Protection Device(OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use only
tanks equipped with this type of valve.
LP tank must be arranged for vapor withdrawal.
The LP cylinder must be constructed and marked in
accordance with the Specifications for LP-Gas Cylinders of
the U.S. Department of Transportation (D.O.T.) or the
National Standard of Canada CAN/CSA – B339, Cylinder,
Spheres and Tubes for Transportation of Dangerous Goods;
and Commission of Dangerous Goods; and Commission, as
applicable.
The LP cylinder must include a collar to protect the cylinder
valve.
The LP cylinder must be stored outdoors out of the reach of children and pets. It
SHALL NOT be stored in a building, garage, shed, breezeway, or any other enclosed
space. Cylinders can be stored indoors ONLY if cylinders are disconnected and
removed from the appliance.
The cylinder should ALWAYS be put in an upright position.

5 of 47 20121224-
Ver1
WARNING
Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve.
Other types of caps or plugs may result in leakage of propane.
DANGER
DO NOT connect this grill to an existing #510 POL cylinder valve with Left hand
threads. The Type 1 valve can be indentified with the large external threads on the
valve outlet.
DO NOT connect to a propane cylinder exceeding this capacity.
DO NOT connect to a cylinder that uses any other type of valve connection device.
Never store a spare LP gas cylinder under or near your grill. This could cause
pressure to be expelled through the vapor relief valve resulting in fire, explosion, or
severe personal injury including death.
Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from
obstructions and debris.
DO NOT insert any foreign objects into the valve outlet. Damage to the back-check
could result. A damaged back-check can cause a leak, possibly resulting in
explosions, fire, severe bodily harm, or death.
Place dust cap on cylinder valve outlet whenever cylinder is not in use. Only install
the type of dust cap on the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage of propane.
WARNING
FOR FILLING THE LP GAS CYLINDER
Allow only qualified LP gas dealers to properly fill or repair your LP cylinder.
DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can
create a dangerous condition. Over-filled tanks can build-up pressure and cause the
relief valve to expel propane gas vapors. The vapor is combustible and if it comes in
contact with a spark source or flame an explosion causing severe burns, bodily
harm, or death could occur.
Always use a safety cap when grill is not connected to cylinder.
If you exchange a cylinder with a qualified exchange program, be sure the cylinder
has a Type 1 valve and an over-filling prevention device (OPD).

6 of 47 20121224-
Ver1
INSTALLING GAS CYLINDER
1. Check that cylinder valve is closed by
turning knob clockwise.
2. Place cylinder to cylinder fixture which
is at the bottom cart of the grill per
picture shown.
WARNING
The pressure regulator and hose assembly supplied with your gas grill must be used.
Replacement pressure regulators and hose assemblies must be those specified by
the grill manufacturer.
Do not attempt to connect it to any other fuel supply source.
Do not attempt to adjust or repair the regulator. The regulator is designed to operate
at the maximum output pressure of 11 inches of water column (2.74 kPa).
CONNECTION PROCEDURES
1. Make sure the tank valve is closed (turn valve
clockwise till tight)
2. Check tank valve to insure it has proper external male
threads.
3. Make sure all burner valves are OFF.
4. Inspect valve connections, port, and regulator
assembly. Look for any damage or debris. Remove
any debris. Inspect hose for damage. Never attempt to
use damaged or obstructed equipment. See local L.P
gas dealer for repair.
5. When connecting regulator assembly to the valve, hand tighten the quick coupling nut
clockwise to a complete stop. Do not use a wrench to tighten. Use of a wrench may
damage the quick coupling nut and result in a hazardous condition.
6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all
connections for leaks before attempting to light the grill (see below). If a leak is found,
turn the tank valve off and do not use the grill until a local LP gas dealer can make
repairs.
To disconnect LP gas cylinder:
WARNING
If the grill is not in use, the gas must be turned off at the supply cylinder(s). Storage of
the grill is permissible only if the cylinder is disconnected and removed from the grill.
Cylinders must be stored outdoors out of the reach of children and pets and must not
be stored in a building, garage or any other enclosed area.
WARNING: Keep the fuel supply hose
away from any heated surfaces.
Gas
Cylinder
Cylinder
Fixture

7 of 47 20121224-
Ver1
1. Turn the burner valves off.
2. Turn the tank valve off fully (turn clockwise to stop).
3. Detach the regulator assembly from the tank valve by turning the quick coupling nut
counterclockwise.
LEAK TEST
WARNING
DO NOT SMOKE WHILE CONDUCTING LEAK TEST.
NEVER PERFORM LEAK TEST WITH AN OPEN FLAME.
Perform test OUTDOORS only in a well ventilated area.
If it is evident there is excessive abrasion or wear, or the hose is cut, it must be
replaced prior to the appliance being operational. The replacement hose shall be
specified the by manufacturer.
When to perform a leak test:
After assembling the grill and before lighting for the first time, even if purchased
fully assembled.
Every time the LP gas cylinder is refilled or if any of the gas components are
replaced.
Checking for leaks:
1. Create a mixture of 50% water and 50% liquid dishwashing soap.
2. Open the lid.
3. Ensure all control knobs are set to the “OFF”
position.
4. Turn on the fuel supply at the cylinder valve. Turn
the cylinder valve knob one turn counter-clockwise.
5. Apply the soap water mixture to the following:
a. Supply tank weld.
b. Connection nut to tank valve.
c. Back side of connection nut to brass nipple.
d. Brass nipple connection into regulator.
e. Regulator connections to gas supply hoses.
f. Gas supply hose connection.
g. Side burner valve stem cap
h. Side burner connection to hose.
i. Stainless Steel Flexible Gas Tube .
j. The full length of gas supply hose.
k. Tank valve to cylinder.
6. Check each place (a-k) for growing bubbles which indicates a leak.
7. Turn off gas supply at cylinder valve.
8. Turn on control knobs to release gas pressure in hose.
9. Turn control knobs to “OFF” position.
10.Tighten any leaking connections.
11.Repeat soapy water test until no leaks are detected.
12.Turn off gas supply at cylinder valve until you are ready to use your grill.

8 of 47 20121224-
Ver1
LIGHTING INSTRUCTIONS
BEFORE LIGHTING
WARNING
Inspect the gas supply hose prior to turning the gas “ON”.
If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use.
Do not use the grill if the odor of gas is present.
Only the pressure regulator and hose assembly supplied with the unit should be
used.
Perform the “LEAK TEST” according to instruction before operating the grill.
ALWAYS keep your face and body as far away from the burner as possible while
lighting.
LIGHTING THE MAIN BURNER OF GRILL
1.Read all instructions before lighting.
2.Open lid during lighting.
3.Light the IGNITION BURNER first. Push and turn main burner knob slowly to HI. Burner
should light immediately.
4.Once the IGNITION BURNER is lit, you may light the rest of burners.
5.If ignition does not occur in 5 seconds, turn the knob(s) off, wait 5 minutes, then repeat
the lighting procedure or light by match.
6. To turn burners off, turn the control knobs clockwise until they lock in the OFF
position.Turn gas supply to OFF.
Light this burner first! Turn
counterclockwise to open

9 of 47 20121224-
Ver1
LIGHTING THE SIDE BURNER (Side burner):
DANGER
Never close the SIDE BURNER LID during operation
1. Read all instructions before lighting.
2. Open lid during lighting.
3. Push and turn main burner knob slowly to HI. The
side burner should light immediately.
4. If ignition does not occur in 5 seconds, turn the
knob off, wait 5 minutes, then repeat the lighting
procedure or light by match.
5. To turn burners off, turn the control knob
clockwise until it locks in the OFF position. Turn gas supply to OFF.
MATCH LIGHTING THE MAIN BURNERS:
1. Turn OFF all burner valves.
2. Make sure the lid is open.
3. Place a lighted match between the coils on the
extension rod and hold next to the burner.
4. Turn the control knob(s) to the “HI” position. Burner
should light immediately.
5. If the burner does not light in 4 seconds turn the
knob off, wait 5 minutes and repeat above
procedures.
MATCH LIGHTING THE SIDE BURNER:
1. Turn OFF all burner valves.
2. Make sure the lid is open.
3. Strike and carefully place a long match 1/2” (1 to 2
cm) from the side burner
4. Turn the control knob to the “HI” position. Burner
should light immediately.
5. If the burner does not light in 4 seconds turn the
knob off, wait 5 minutes and repeat above
procedures.

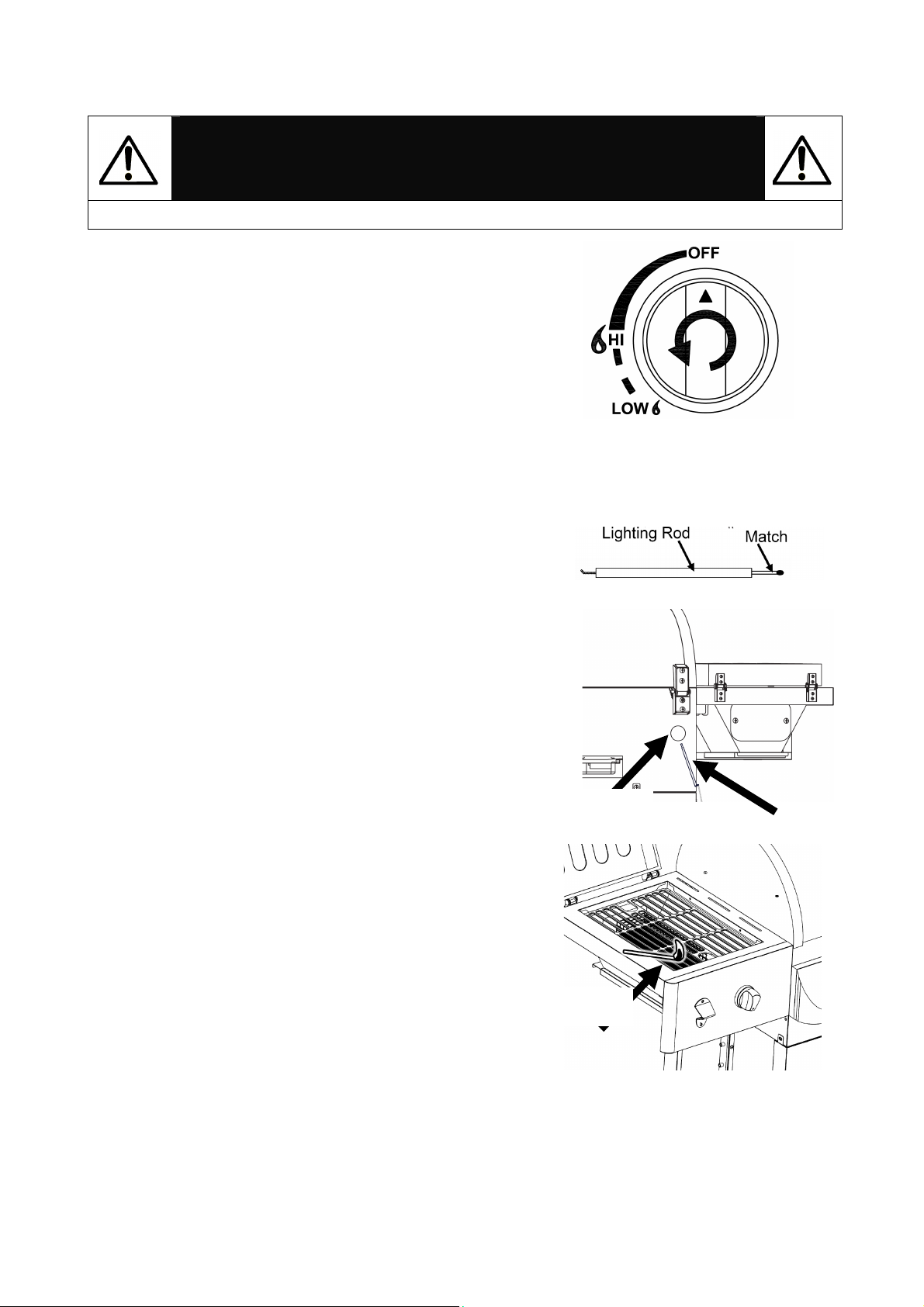

Lighting Hole
Lighting Rod
Match
