Traditional Barrel BBQ Grill
Owner’s Manual
Assembly and Operating Instructions
Model # CG2036001-MM
Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench.
Keep this manual for future reference.

CG2036001-MM Eng Page 2 of 24 20121008 V.1
WARNING
lOnly use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of
supporting the weight of the grill. Never use on wooden or other surfaces that could burn.
lDO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray while coals
are hot.
lWhen grill is in use, keep clearance of 36” between the hot grill and any combustible materials, such as
bushes, trees, wooden decks, wooden fences, buildings, etc. Do not place hot grill under roof overhang or in
any other enclosed area.
lFor outdoor use only. Do not operate grill indoors or in an enclosed area.
lFor household use only. Do not use this grill for other than its intended purpose.
lWe recommend the use of a Charcoal chimney starter to avoid the dangers associated with charcoal lighting
fluid. If you choose to use charcoal lighting fluid, only use lighting fluid approved for lighting charcoal. Carefully
read manufacturer’s warnings and instructions on the charcoal lighting fluid and charcoal prior to the use of
their product. Store charcoal lighting fluid safely away from grill.
lWhen using charcoal lighting fluid, allow charcoal to burn with grill lid and doors open until covered with a light
ash (approximately 20 minutes). This will allow charcoal lighting fluid to burn off. Failure to do this could trap
fumes from charcoal lighting fluid in grill and may result in a flash fire or explosion when lid is opened.
lNever use charcoal that has been pre-treated with lighting fluid. Use only a high grade plain charcoal or
charcoal / wood mixture.
lDo not use gasoline, kerosene or alcohol for lighting charcoal. Use of any of these or similar products could
cause an explosion possibly leading to severe bodily injury.
lNever add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns.
lPlace grill in an area where children and pets cannot come into contact with unit. Close supervision is
necessary when grill is in use.
lDo not leave grill unattended when in use.
lWhen adding charcoal and / or wood, use extreme caution and follow instructions in “Adding Charcoal / Wood
During Cooking” section of this manual.
lDo not store or use grill near gasoline or other flammable liquids, gases or where flammable vapors may be
present.
lDo not store lighter fluid or other flammable liquids or materials under the grill.
lUse caution when adjusting charcoal grate height, use oven mitt. Handle will be hot when in use.
lNever raise or lower charcoal grate when water smoking as hot water may splash on to coals creating a burst
of hot steam and coals.
Grill is hot when in use. To avoid burns:
lDO NOT attempt to move the grill.
lWear protective gloves or oven mitts.
lDO NOT touch any hot grill surfaces.
l DO NOT wear loose clothing or allow hair to come in contact with grill.
!
!

CG2036001-MM Eng Page 3 of 24 20121008 V.1
WARNING
lWhen grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen close
lid to suffocate the flame. Do not use water to extinguish grease fires.
lUse caution when opening the lid, keep hands, face and body a safe distance away. Flash flare ups may occur
when air comes into contact with fire or hot coals.
lNever place more than 6 pounds (2.7 kg) on side and front tables. Do not lean on the side tables. Always
ensure side tables are securely fastened.
lDo not allow charcoal and/or wood to rest on the walls of grill. Doing so will greatly reduce the life if the metal
and finish of your grill.
lUse caution during assembly and while operating your grill to avoid scrapes or cuts from sharp edges of metal
parts. Use caution when reaching into or under grill.
lWhen opening lid, be sure lid is fully opened and secure to prevent lid from closing unexpectedly.
lIn windy weather, place grill in an outdoor area that is protected from the wind.
lClose lid to suffocate flame.
lNever leave coals and ashes in grill unattended, before grill can be left unattended, remaining coals and ashes
must be removed from grill. Use caution to protect yourself and property, carefully place remaining coals and
ashes in a non-combustible metal container and saturate completely with water, allow coals and water to
remain in metal container 24 hours prior to disposing.
lExtinguished coals and ashes should be placed a safe distance from all structure and combustible materials.
lWith a garden hose completely wet the surface beneath and around grill to extinguish any ashes, coals or
embers which may have fallen during the cooking or cleaning process.
lAfter each use, clean the grill thoroughly and apply a light coat of vegetable oil to prevent rusting. Cover the
grill to protect it from excessive rusting.
lUse caution when lifting or moving grill to prevent strains and back injuries.
lWe advise that a fire extinguisher be on hand. Refer to your local authority to determine proper size and type of
fire extinguisher.
lStore the grill out of reach of children and in a dry location when not in use.
lDo not attempt to services grill other than normal maintenance as explained in “After-Use Safety” and “Proper
Care & Maintenance” sections of this manual.
lProperly dispose of all packaging material
Use caution and common sense when operating your grill,
Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or property damage.
Save this manual for future reference.
!
!

CG2036001-MM Eng Page 4 of 24 20121008 V.1
ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING THIS BARREL GRILL
Read all safety warnings & assembly instructions carefully before assembling or operating your grill.
For missing parts, please call customer service at [e-mail] or at 888-837-1380 (U.S. only)
(Proof of purchase will be required.)
Inspect contents of the box to ensure all parts are included and undamaged.
We recommend two people for assembly of this grill.
The following tools are required for assembly and are not included:
lPliers
lPhilips & Flathead Screwdrivers
lAdjustable Wrench

CG2036001-MM Eng Page 5 of 24 20121008 V.1
Product Diagram

CG2036001-MM Eng Page 6 of 24 20121008 V.1
Component List
1. Left rear leg
2. Right rear leg
3. Right front leg
4. Left front leg
1 pc
1 pc
1 pc
1 pc
5. Grill Body
6. Wheel
7. Axle
8. Bottom rack
1 pc
2 pcs
1 pc
1 pc
9. Charcoal Grate Clip
10. Air Vent
11. Lower Hinge
12. Side Shelf
2 pcs
2 pcs
2 pcs
1 pc
13. Front table slate
14. Right front table
support
15. Left front table
support
16. Temperature Gauge
2 pcs
1 pc
1 pc
1 pc

CG2036001-MM Eng Page 7 of 24 20121008 V.1
17. Chimney
18. Chimney Cover
19. Lid
20. Lid Handle
1 pc
1 pc
1 pc
1 pc
21. Lid Hinge
22. Warming Rack
23. Grease cup holder
24. Charcoal Grate
2 pcs
1 pc
1 pc
1 pc
25. Charcoal Grate
Handle
26. Cooking Grid
1 pc
3 pcs
STOP! DO NOT RETURN TO RETAILER.
For assembly assistance, missing or damaged parts, please contact customer service at
[e-mail] or at 1-888-837-1380.

CG2036001-MM Eng Page 8 of 24 20121008 V.1
Hardware List
A
Bolt (M8X15)
4 pcs
B
Bolt (M8X12)
8 pcs
C
Bolt (M6X30)
8 pcs
D
Bolt (M6X12)
30 pcs
E
Lock Nut (M10)
2 pcs
F
Nut (M8)
16 pcs
G
Cap Nut (M8)
1 pc
H
Nut (M6)
10 pcs
I
Lock Nut (M6)
10 pcs
J
Cap Nut (M6)
2 pcs
K
Cap Nut (M5)
2 pcs
L
Flange Nut (M6)
2 pcs
M
Hinge Pin
2 pcs
N
Cotter Pin
2 pcs
O
Lid Handle Insulation
Washer
2 pcs
P
Wheel Washer
2 pcs
Q
Charcoal Grate Handle
Insulation Washer
2 pcs
R
Spring
1 pc

CG2036001-MM Eng Page 9 of 24 20121008 V.1
Assembly Procedures
Step 1. Assemble Left rear leg (1) on grill body (5) by using bolt M8x15(A) , bolt M6x12(D) and nut M8 (F), and also on the
side by bolt M8x12 (B) and nut M8 (F). Then assemble Left front leg (4) on grill body (5) by bolt M8x12(B) and nut M8 (F). On
each leg there is a weld bolt and they will go through the grill body (5) as well. Then tighten them with nut M8 (F).
Assembly of legs on the left hand side of the grill
Step 2. Assemble Right rear leg (2) on grill body (5) by using bolt M8x15(A), bolt M6x12 (D) and nut M8(F), and also on the
side by bolt M8x12 (B) and nut M8(F). Then assemble Right front leg (3) on grill body (5) by bolt M8x12 (B) and nut M8(F). On
each leg there is a weld bolt and they will go through the grill body (5) as well. Then tighten them with nut M8(F).
Assembly of legs on the right hand side of the grill

CG2036001-MM Eng Page 10 of 24 20121008 V.1
Step 3. Place the Axle (7) go through the hole on Right front leg (3) and Right rear leg (2). Then assemble the Wheels (6) to
Axle (7) by insert installing Wheel washer (P) with lock nut M10 (E).
Step 4. Place the Bottom Rack (8) under the Grill Body and tighten it with bolt M6x12 (D) to each leg’s bracket.. Mount the
Charcoal Grate Clip (9) with Bolt M6x12 (D) and Nut M6 (H)

CG2036001-MM Eng Page 11 of 24 20121008 V.1
Step 5. Assemble Air Vent (10) on the left side panel of Grill body (5) by insert bolt M6x12(D) and lock nut M6 (I).
Assemble the Lower Hinges (11) on Grill Body (5) by bolts M6x30 (C) and lock nuts M6 (I). Do not tighten them at this moment .
Step 6. Assemble the Side Shelf (12) to Left legs (1) and (4), and Grill body (5) by bolt M6x12 (D) and nut M6 (H).

CG2036001-MM Eng Page 12 of 24 20121008 V.1
Step 7. Assemble the Left Front Table Support (15) and Right Front Table Support (14) to Front Table Slats (13) with bolt
M6x12 (D) and tighten them.
Step 8. Attach Front Table to Grill Body by using bolt M8x15 (A) - upper, bolt M6x12 (D) – lower and Nut M8 (F), and also
bolt (D) to the front legs as well.

CG2036001-MM Eng Page 13 of 24 20121008 V.1
Step 9. Assemble the Lid Hinge (21) on Lid (19) by bolt M6x30 (C) and lock nut M6 (I). Do not tighten them at this moment.
Step 10. Attach the Chimney (17) onto the Lid (19) with bolt M6x12 (D) and nuts M6 (H). Place Chimney Cover (18) on
Chimney (17) by Spring (R) and cap nut M8 (G). Assemble the Lid handle (20) by bolt M6x12 (D) and place Lid Handle
Insulating washers (O) in between Lid (19) and Handle (20). Unscrew the nut from Temperature Gauge (16) and attach the
Temperature Gauge (16) to middle front of Lid (19) and tighten with the nut. Do not tighten thermometer by turning
thermometer head; tighten rear bolt to moderate tension. DO NOT OVER TIGHTEN DAMAGE MAY OCCUR TO
THERMOMETER.

CG2036001-MM Eng Page 14 of 24 20121008 V.1

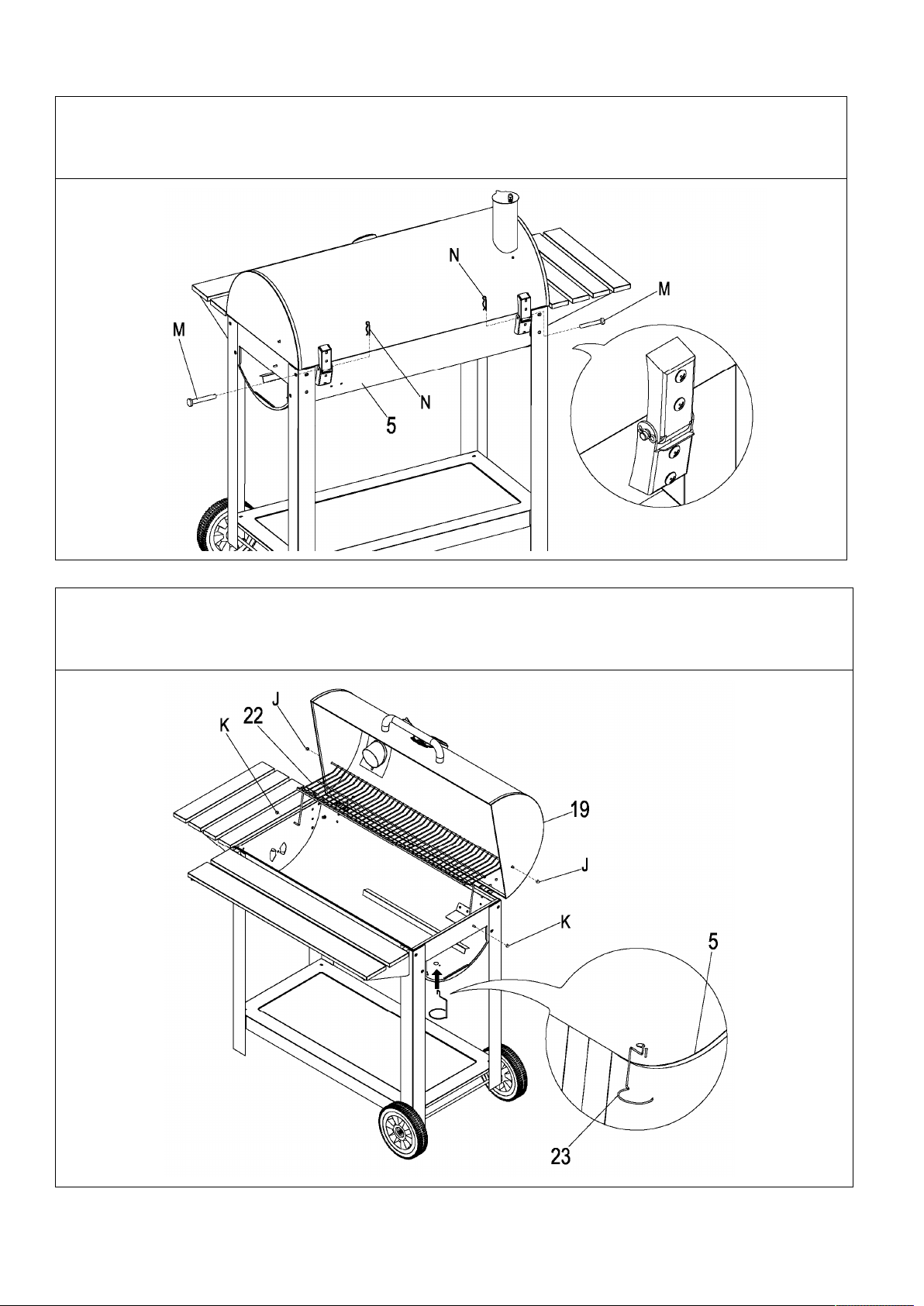

Step 11. Align the Lid to Grill Body (5) and let Hinge pin (M) to go through upper and lower hinges and lock it with Cotter pins
(N). Then tighten the hinge bolts at this moment.
Step 12. Assemble the Warming Rack (22) to the Lid (19) and Grill Body (5), and tighten the wire end with cap nut M6 (J) and
Cap nut M5 (K). Hang the Grease Cup Holder (23) to the right side of Grill Body (5)

CG2036001-MM Eng Page 15 of 24 20121008 V.1
Step 13. Assemble the Air Vent (10) on the door panel of Charcoal Grate (24) with bolt M6x12 (D) and lock nut M6 (I).
Assemble the Charcoal Grate Handle (25) by Flange nut M6 (L) and place Charcoal Grate Insulation washer (Q) in between
Charcoal Grate Handle (25) and door panel of Charcoal Grate (24).
Step 14. PLACE CHARCOAL GRATE INTO GRILL BODY : (I) Slide Charcoal Grate (24) inside the Grill Body (5) a bit. (II) Lift
up the Charcoal Grate slightly to let stopper at the bottom of Charcoal Grate to slide over the latch on the Grill Body. (III) Glide the
Charcoal Grate smoothly towards the Grill Body. (IV) Keep pushing the Charcoal Grate in until the back lock at the bottom of
Charcoal Grate hooks up to the latch on the inside of Grill Body. See below illustration Step 1 – Step 4

CG2036001-MM Eng Page 16 of 24 20121008 V.1
Step 15. ADD CHARCOAL WHEN IN USE : (I) Lift up the Charcoal Grate (24). (II) Pull the whole Charcoal Grate out to let the
back lock at the bottom of Charcoal Grate skip over the latch on the Grill Body. (III) Hold and keep pulling Charcoal Grate out
horizontally until the stopper at the bottom of Charcoal Grate hooks up to the latch on the inside of Grill Body, then add charcoal.
See below illustration Step 1 – Step 3. NOTE: Always close the Air-Vent and wear mittens/gloves before removing the Charcoal
Grate

CG2036001-MM Eng Page 17 of 24 20121008 V.1
Step 16. REMOVE CHARCOAL GRATE FOR CLEANING : MAKE SURE GRILL IS COOL. (I) Lift up the Charcoal Grate (24).
(II) Hold the handle and slide Charcoal Grate out to let back lock at the bottom of Charcoal Grate skip over the latch on the Grill
Body. (III) Keep pulling out the Charcoal Grate slowly, and lift the Charcoal Grate up for the stopper to avoid the latch on the side
of Grill Body. (IV) Remove the Charcoal Grate and proceed with cleaning. See below illustration Step 1 – Step 3. NOTE:
Always close the Air-Vent and wear mittens/gloves before removing the Charcoal Grate

CG2036001-MM Eng Page 18 of 24 20121008 V.1
Step 17. Place cooking grid (26) onto the Grill Body (5).
Step 18. Assembly completed!

CG2036001-MM Eng Page 19 of 24 20121008 V.1
WARNING
DO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray while tray
contains hot coals.
WARNING
Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible
material. Never use on wooden or other surfaces that could burn. Place the grill away from open windows or doors
to prevent smoke from entering your house. In windy weather, place the grill in an outdoor area that is protected
from the wind.
WARNING
Read all safety warnings and instructions carefully before operating your grill.
PREPARATION FOR USE & LIGHTING INSTRUCTIONS
Curing your grill
Prior to your first use of the Grill, follow the instructions below carefully to cure your grill. Curing your grill will minimize
damage to the exterior finish as well as get rid of the grill paint odor that can cause unnatural flavors to the first meal
prepared on the grill.
IMPORTANT: To protect your grill from excessive rust, the unit must be properly cured and covered at all
times when not in use.
Step 1
Lightly coat all interior surfaces of the grill with vegetable oil or vegetable oil spray. Do not coat charcoal grate, grids or
charcoal ash tray.
Step 2
Follow the instructions below carefully to build a fire. You may use charcoal and/or wood as fuel in the grill (see “Adding
Charcoal/Wood During Cooking” section of this manual).
WARNING
Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal or charcoal
/wood mixture.
If using a Charcoal Chimney Starter, follow all manufacturer’s warnings and instructions regarding the use of their
product. Start with 5 pounds (2.3kg) of charcoal. This should be enough charcoal to cook with, once the curing process
has been completed. When charcoal is burning strong, carefully place hot coals on charcoal grate.
!
!
!
!
!
!
!
!

CG2036001-MM Eng Page 20 of 24 20121008 V.1
NOTE: To extend the life of your grill, make sure that hot coals and wood do not touch the walls of grill.
IF USING CHARCOAL CHIMNEY STARTER, PROCEED TO STEP 5.
If you choose to use charcoal lighting fluid, ONLY use charcoal lighting fluid approved for lighting charcoal. Do not use
gasoline, kerosene, alcohol or other flammable material for lighting charcoal. Follow all manufacturer’s warnings and
instructions regarding the use of their product. Start with 8 to 10 pounds (3.6 to 4.5 kg) of charcoal. This should be
enough charcoal to cook with, once the curing process has been completed. Place the charcoal in the center of each
charcoal grate.
Step 3
Saturate charcoal with lighting fluid. With lid open, wait 2 to 3 minutes to allow lighting fluid to soak into charcoal.
Store lighting fluid a safe distance from the grill.
Step 4
With grill lid open and charcoal grate completely placed inside the grill. Stand back and carefully light charcoal. Allow to
burn until covered with a light ash (approximately 20 minutes).
WARNING
Charcoal lighting fluid must be allowed to completely burn off prior to closing grill lid (approximately 20 minutes).
Failure to do this could trap fumes from charcoal lighting fluid in grill and may result in a flash-fire or explosion
when lid is opened.
Step 5
With coals burning strong, close the lid. Allow the temperature to reach 225°F (107°C) on temperature gauge. Maintain
this temperature for 2 hours.
Step 6
Increase the temperature to 400°F (205°C) on temperature gauge. This can be achieved by adding more charcoal
and/or wood (see “Adding Charcoal/Wood During Cooking“ section of this manual). Maintain this temperature for 1
hour then allow unit to cool completely.
NOTE: It is important that the exterior of the grill is not scraped or rubbed during the curing process.
IMPORTANT: to protect your smoker from excessive rust, the unit must be cured periodically and covered at
all times when not in use.
OPERATING INSTRUCTIONS
Step 1
Lightly coat all interior surfaces of the grill with vegetable oil or vegetable oil spray. Do not coat charcoal grate, grids or
charcoal ash tray.
Step 2
Follow the instructions below carefully to build a fire. You may use charcoal and/or wood as fuel in the Barrel Grill (see
“Adding Charcoal/Wood During Cooking” section of this manual).
WARNING
Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal or
charcoal/wood mixture.
!
!
!
!
