1 Introduction
Congratulations on your purchase of the MEND ProfessionalTM (IS02PROs)
device. The MEND ProfessionalTM is the most advanced two channel
programmable transcutaneous electrical nerve stimulator or "TENS" device
currently available. MEND Technology is a leading distributor of state-of-the-
art medical devices.
The MEND ProfessionalTM is a high-end precision medical device used for the
relief of pain. This device generates low intensity current pulses at microampere
levels and frequency of pulses. This unit can hold multiple therapy protocols.
Each protocol includes multiple frequency pairs. Health practitioners can
program each frequency pairs with a variety of parameters including current
intensity, frequencies, time, modulated wave period, wave slope, and polarity.
The microampere level current is applied by electrodes.
The MEND ProfessionalTM is a small, portable device that is designed for use in
a doctor's office, clinic orhospital as well as self-administered treatment at home
under a practitioner’s supervision.
Please read this entire manual thoroughly before using it.

6
1.1 Indications
The MEND ProfessionalTM is intended for the symptomatic relief of chronic
intractable pain. The degree of efficiency will vary with patient selection.
1.2 Warnings and Contraindications
•Microcurrent stimulation should not be used on patients whose pain
syndromes are not diagnosed and etiology is not established. If another
electrode is used as a dispersive electrode, placement of the dispersive
electrode should ensure transthoracic stimulation is not possible.
• Safety of microcurrent stimulation has not been established during
pregnancy or birth. Microcurrent stimulation is not effective for pain of
central origin including headache.
• Microcurrent stimulation should be used only under the continued
supervision of a licensed physician. Microcurrent stimulation has no
curative value. Microcurrent stimulation is a symptomatic treatment and
as such suppresses the sensation of pain which would otherwise serve as
a protective mechanism.
• The stimulation and electrodes should not be applied across or through
the head, directly on the eyes, covering the mouth, on the front of the
neck, especially over the carotid sinus (upper side of neck), or from
electrodes placed on the chest and the upper back or crossing over the
heart. Application of electrodes near the thorax may increase the risk of
cardiac fibrillation.
• Don’t use microcurrent stimulation on patients who have a demand type
pacemaker. A patient with an implanted electronic device (for example a
cardiac pacemaker) should not be subjected to stimulation unless
specialist medical opinion has first been obtained.
• Do not allow children to use or handle this device. Keep the device and
lead wires away from children when not in use. Strangulation could
result from baby or child entanglement in the wire leads.
• Do not operate vehicles or potentially dangerous machinery during
periods of stimulation.

7
•Electronic monitoring equipment such as ECG monitors and ECG
alarms may not operate properly when Inspirstar IS02 PMS is in use.
•Simultaneous connection of a patient to a high frequency surgical
medical equipment may result in burns at the site of the IS02 PMS
electrodes and possible damage to the IS02 PMS.
•Operation in close proximity (e.g. 1 m) to a shortwave or microwave
therapy medical equipment may produce instability in the IS02 PMS
output.
1.3 Adverse Effects
Please consult your doctor about possible adverse effects which may arise
from the therapy protocols your doctor is using. A common issue is about
skin reaction at the electrode sites. Skin irritation and electrode burns are
potential adverse reactions. Cleaning and hydrating the skin are usually valid
methods to reduce the skin irritation or electrode burns. If gloves or cloth or
garment are used as electrodes, these gloves or cloth or garment should be
wet or damp. If electrode pads are used, sometimes conductive gel on pads
can be helpful to increase the conductivity and reduce the skin reaction.
1.4 Precautions and Safety Notices
Isolated cases of skin irritation may occur at the site of conductive materials
following long-term application. The effectiveness of the MEND ProfessionalTM
device is highly dependent upon patient selection by a practitioner qualified in the
management of pain. Electrode placement and stimulation settings should be based
on the guidance of the prescribing practitioner. Patients should not use the device
while under the influence of alcohol, controlled substances or narcotic drugs,
directly on the eyeball, or over a vessel that may contain a blood clot.
Caution should be used for persons with suspected or diagnosed epilepsy.
CAUTION
Federal Law (USA) restricts this device to sale by or
on the order of a licensed health care practitioner.

8
•The device is to be applied with electrodes to the skin of the human
body.
•The device has micro amperage current output. The plugs must be inserted
completely into the jacks. The patient may experience prickling sensation
if the skin contact is too dry. Moisture the skin before use.
•Only use the recommended accessories. It can be unsafe to use
accessories not in the instructions for use.
•Use alkaline batteries only. It cannot be connected to external power
source. Any attempt to do so would cause damage of the device and
possibly cause harm to the patient.
•Water into the device could affect the safety and performance. Do not
use the device when the device has got water inside. Do not let water
flowing on the surface of the device. Do not immerse the device into
water. Do not use the device close to flammable mixtures or
concentrated flammable fumes such as gasoline.
• The device can only be opened and repaired by the manufacturer or
licensed service personnel. Do not modify the device as it can be unsafe.
• The device is for indoor use where a patient would comfortably stay.
Consult your physician for use in unusual environment conditions e.g.
strong magnetic fields or electromagnetic fields, external electrical
influences, electrostatic discharge. Do not exposure the device in a high
dust environment for long period of time.
1.5 Warranty and Service
The MEND ProfessionalTM has a one-year limited warranty. MEND Technology
warrants that the Product is manufactured by Inspirstar Inc in accordance with
the specifications. There is no warranty of merchantability nor of fitness for a
particular use. The Product is marketed under section 510(K) of the Federal
Food, Drug and Cosmetic Act as a device substantially equivalent to a device in
The following are precautions for the safety of the
users and the device.

9
commerce. Inspirstar Inc. and MEND Technology expressly disclaim any claim
that the Product can treat or cure any medical condition or illness. The user
must consult with his or her health care practitioner as to the recommended use.
The Product may only be used under the direct supervision of a licensed health
care provider. There are no other warranties, expressed or implied. MEND
Technology sole liability hereunder is to repair or replace the Product with the
same or a substitute product. In no event shall Inspirstar Inc. and/or MEND
Technology be liable for personal injury or death of any person using or
misusing the Product.
The MEND ProfessionalTM unit may be repaired or replaced with the same or a
substitute product within one year of purchase based on the determination of the
manufacturer. Lead wires have a limited warranty of 3 months. The lead wires
may need to be returned to the manufacturer for replacement. To replace
products or obtain service, first call your doctor or MEND Technology. If
necessary, send the entire unit with the carrying case and accessories, insured,
postage prepaid, and well-packaged, along with the Return Merchandise
Authorization (RMA) number obtained from MEND Technology. Please
remove the batteries before returning your device. The shipping cost to return
the item(s) to the manufacturer is the responsibility of the purchaser.
Contact [e-mail] for RMA and shipping information.

10
2 MEND Professional Device and Accessories
2.1 Top Panel and Keypad

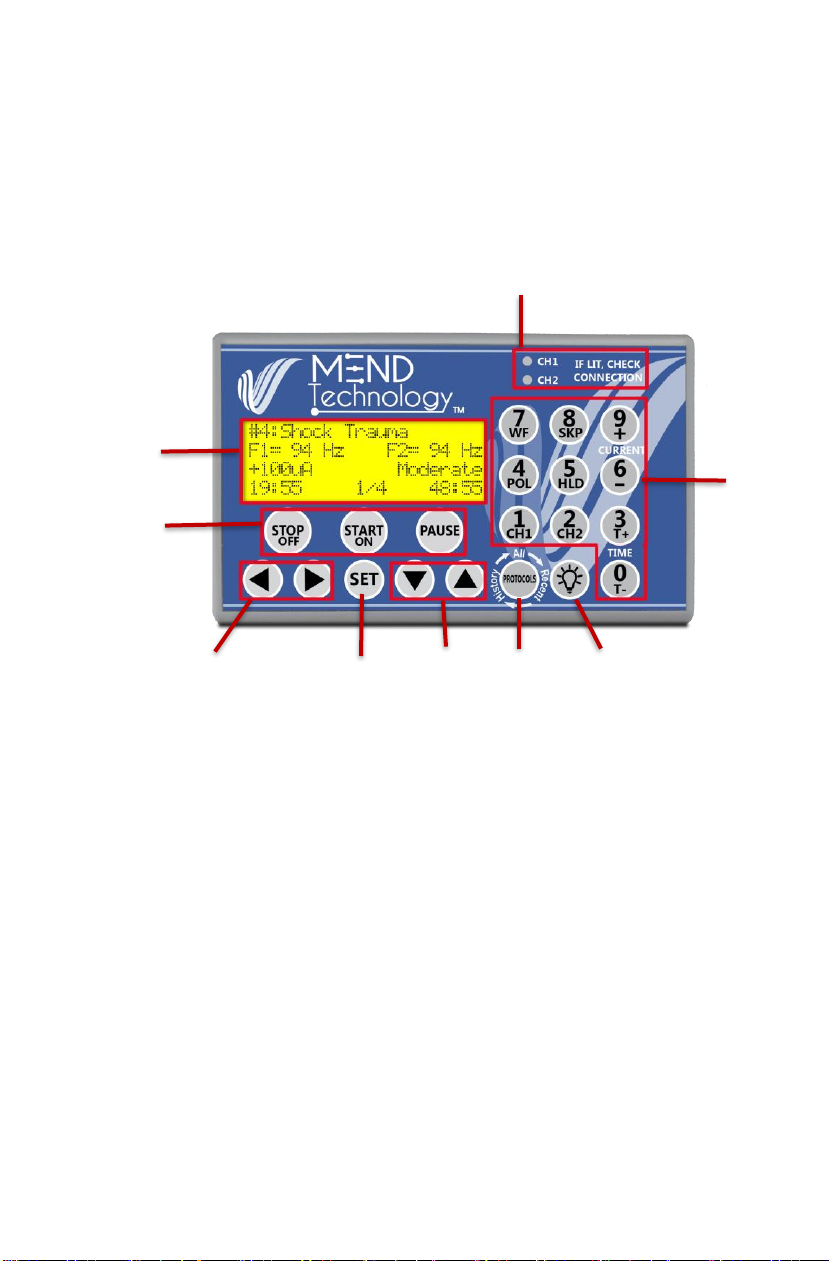

Figure 1 Top Panel
① Display Area: Menu selection, protocol information, running information and
status, etc. are displayed on LCD screen.
② Channel Status Indication: LED CH1 and CH2 indicate if the output current can
reach their peak current value in the protocol for channel 1 and channel 2,
respectively. If the LED is flashing or ON, check the connection of the electrode to
the body.
③ Protocol Running Control:
• Key START/ON to turn on the unit, or to start the selected protocol.
• Key PAUSE to pause the running of the current protocol. Use key START to
resume the treatment.
⑧
②
⑥
④
⑦
③
①
⑤
④

11
• Key STOP to stop the protocol in running, or to turn off MEND IS02PROs.
④ Arrow Keys:
• Left Arrow: Back to previous menu level; or move cursor to left.
• Right Arrow: Enter menu selection; or move cursor to right.
• Up Arrow: Move cursor up; or increase number
• Down Arrow: Move cursor down; or decrease number
⑤ “SET” key: Press this key to go into and finish the number entering
mode. In SET mode, use arrow keys or numeric keys to change the digits of the
number. Press this key again to move to next number or to finish entering
numbers.
⑥ Protocols: Press this key to cycle between “All Protocols”, “Recent
Protocols”, “History Protocols” and “Batch Protocols”.
⑦ Back Light: turn on or off the back light of the LCD display.
⑧ Function and Number Keypad
• 0~9: Number Keypad to input number or select a numbered menu item.
• Channel 1 “CH1”, Channel 2 “CH2”, Current “+”, Current “-“, Time “T+”,
Time “T-“, Waveform “WF”, Polarity “POL”: During manual operation or run
time control, use these keys to change respective parameters.
• HOLD “HLD”, SKIP “SKP”: During protocol running, use HOLD to
hold/release the timer and use SKIP to advance to next frequency pair.

12
2.2 Rear Panel
Figure 2 MEND ProfessionalTM Output Jacks and USB port
USB Port
The micro-USB port is for communication with the computer only, not to supply
power to the MEND IS02 main device. The MEND IS02 device only operates with
battery power supply.
Equipment that is connected to the Micro USB port interfaces must be
certified according to the respective EN/IEC/UL standards. Certified
computer has one or more of the following markings on the power
supply unit:
Micro USB
connection
to PC
Combined Channel Jacks: Refer to user’s manual for safety cautions.
Positive Jack +: Positive leads of CH1 and CH2
Negative Jack -: Negative leads of CH1 and CH2
Separated Channel Jacks: (Use with probes)
CH1 Jack: positive and negative of CH1
CH2 Jack: positive and negative of CH2
IEC 60950-1
IEC 60950-22
CAN/CSA-C22.2 No. 60950-1
CAN/CSA-C22.2 No. 60950-22
UL 60950-1
UL 60950-22
Information Technology
Equipment Power Supply
I.T.E. Power Supply
I.T.E. Power Supply
QQGQ7 Power Supply

13
Microcurrent Output Ports
Output Ports
Plugs
Connection
Connector
Combined Channel Output Ports
Positive
Jack (+)
Tip
CH2+
Red
Ring
CH1+
Yellow
Negative
Jack(-)
Tip
CH2-
Blue
Ring
CH1-
Green
Separated Channel Output Jacks
CH1
Jack
Tip
CH1+
Red
Ring
CH1-
Yellow
CH2
Jack
Tip
CH2+
Blue
Ring
CH2-
Green
Table 1 Color Mapping of Output Ports to Wire Connectors
Plugging into POS and/or NEG jacks will not cut off signals on CH1 and
CH2 jacks. Signals will always present on all jacks. Consult with your
treatment protocol for special wiring.
2.3 Accessories
The MEND device can be used with various accessories that can be purchased
individually. To purchase additional accessories visit www.mendtechnology.com

14
Combinable Leadwires Carrying Case
Sticky pads
Conductive Strip
Alligator Clips

15
3 Operations
3.1 Prepare for Running
The MEND ProfessionalTM device can be used inside or outside the soft back
carrying case. There are two Velcro strips attached inside the soft back carrying case.
Install Batteries
The MEND ProfessionalTM device
uses two alkaline batteries in size
“AA”. Remove the batteries when the
device is not going to be used for more
than one month.

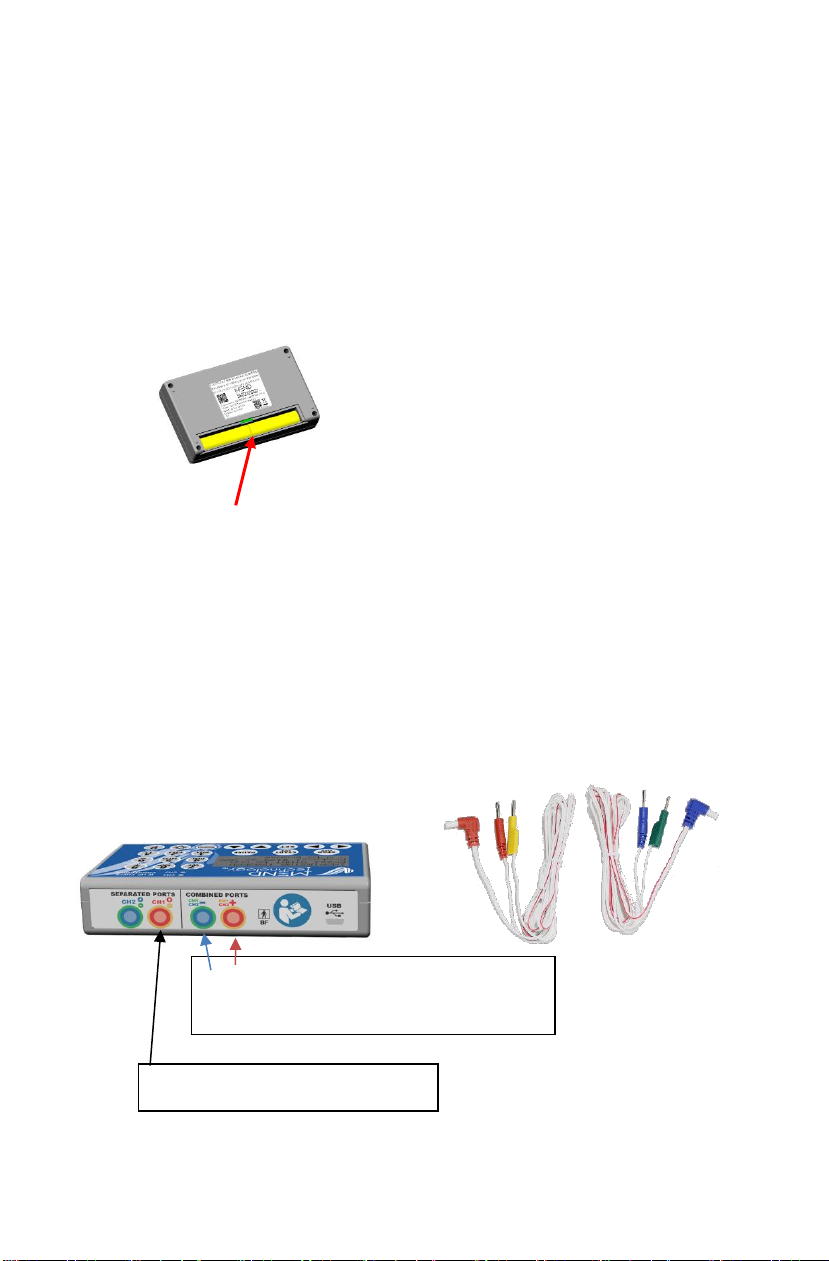

Connect Wires to the MEND ProfessionalTM device
Insert the plugs into the jacks on the rear panel of the MEND ProfessionalTM
device. Match the color of the plug with the color on the rear panel.
Insert batteries here
Use the Combined Ports for standard microcurrent
(ie. gloves, towels and sticky pads)
Use the Separated Ports for Probes

16
Connect Wires to Gloves, Strips or Electrodes
Insert the push pins on gloves, strips, alligator clips or electrodes.
Refer to your Frequency Specific Microcurrent (FSM) training instructions on
where to place the electrodes, gloves, towels or strips on the body. Gloves,
towels, and strips need to be wet to provide conduction.
It is recommended to leave the snap pigtail connected to the gloves. Also leave
the leadwires in the MEND ProfessionalTM after use. If you want to unbutton
the electrode wires from the gloves, hold the button base on the gloves instead
of holding the fiber part of the gloves to avoid damage to the gloves.
DO NOT WEAR THE GLOVES ON BARE HANDS UNLESS
YOU ARE TREATING YOUR OWN HANDS.
To isolate the conductive gloves from bare hands, wear latex or nitrile gloves
first then put on the conductive Electrode Gloves. The gloves must be wet during
treatment.
The electrodes and leadwires may wear and lose conductivity
over time. Check to endure the Ch1/Ch2 LEDS are not flashing
for any connectivity issue when a protocol is running.

17
3.2 Basic Operations
Power ON

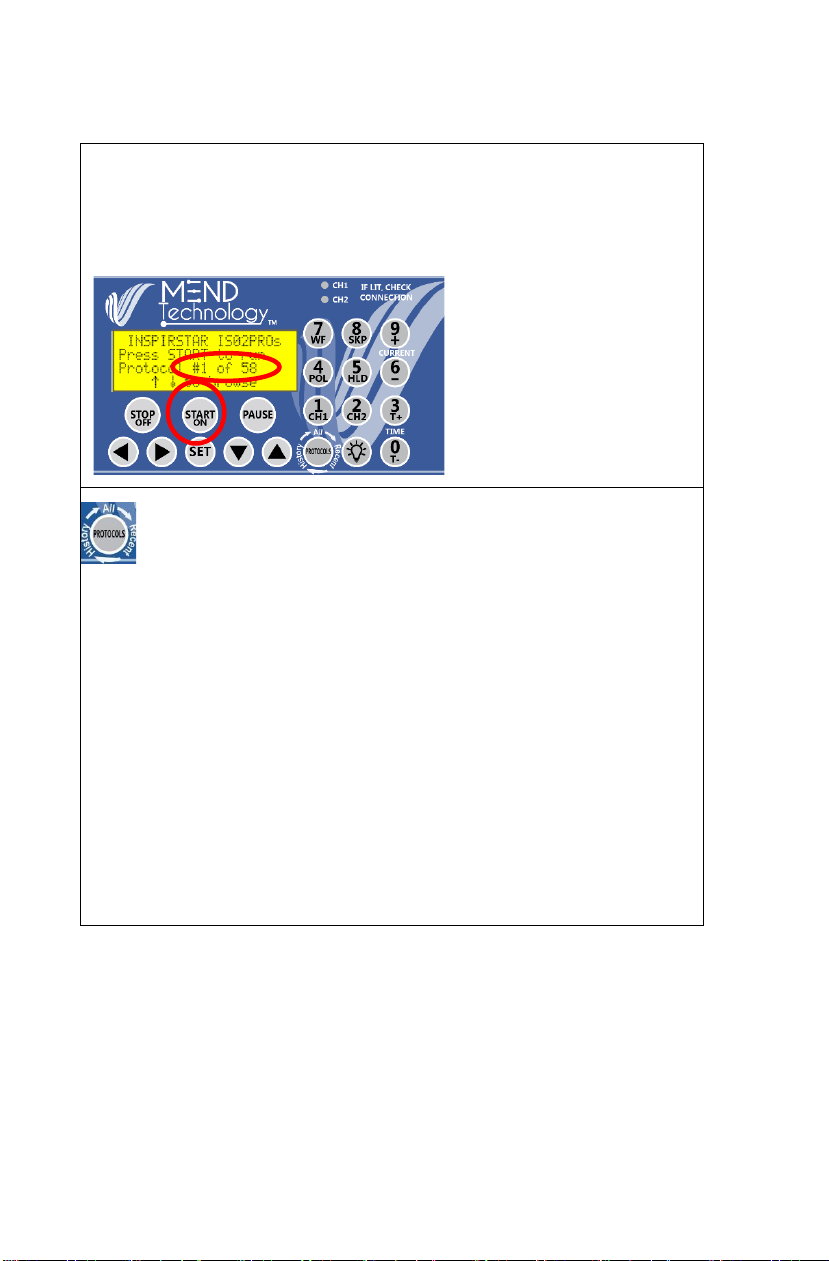

Press START/ON to power on the unit. The Power-On Initial Screen
displays the protocol number of last run protocol. Press START to run this
last used protocol.
All, Recent, History or Batch Protocols
All Protocols lists all protocols in user programmed profile.
Recent Protocols lists the protocols that were recently used. Use Recent
Protocols to quickly select your most frequently used protocols.
History Protocols lists the actual protocol running history. The latest used
protocol is displayed on the top of the list. Use History Protocols to check
the therapy history and also select a protocol to run again. Note: the history
will show the exact usage, so you may see the same protocol multiple times
in the history.
Batch Protocols allows you to daisy-chain up to 9 protocols. To run a set
of frequently used protocols, simply put them in the Batch list and run.

18
To switch between All Protocols, Recent Protocols, History and Batch
Protocols: press the Protocols key to cycle between the four protocol list
screens.
Select a Protocol
There are a number of preloaded therapy protocols in the MEND
ProfessionalTM device.
Select by protocol number: from Power-On Screen, or from All Protocols
screen, press the protocol number with the numeric keys. For example, to
select protocol number #215 of the 345 protocols, press key 2, key 1 and
key 5, protocol 215 will be selected.
Browse to select protocol: Use arrow UP/DOWN keys to browse through
the protocol list. You can hold the up/down arrows to scroll continuously.

19
Protocol details: Press the RIGHT arrow key to see the details of the
protocol. Use the UP/DOWN keys to scroll the screen to view the full details
of the protocol.
Run a Therapy Protocol
Press the START key to run a protocol. The protocol will start and
microcurrent will flow from the output jacks. The protocol will stop after
the programmed run time. The CH1/CH2 LEDs will flash to indicate poor
connection from the device to the body.
Pause the Therapy Protocol
While a protocol is running, press the PAUSE key if you need to
temporarily pause a protocol. Press START to resume treatment.
Protocol details include:
•Name
•Description
•Time
•# of frequency pairs
•Frequency combinations
•Microamperage
If you do not start another
protocol, the unit will
automatically turn off.
The maximum time for a
PAUSE is 30 minutes.

20
Stop the Therapy Protocol
You can press the STOP key to stop running a protocol at any time.
Turn on the Back Light
To turn on the back light: press the lightbulb key to turn on the LCD back
light. The back light will turn off when there is no keypad activity after 10
seconds.
To turn off the LCD back light: press the back light key to turn off the
back light immediately.
To turn on the LCD back light for 30 seconds: press and hold the back
light key for 3 seconds, the light will stay on for 30 seconds. To keep the
backlight on for 8 hours, press
and hold the Back Light key
again until the LCD backlight
flashes once.
Turn power off
Press the STOP/OFF key to
turn off the MEND Pro. The
unit will power off
automatically if the unit is not
in use for 60 seconds.
If you accidently press STOP,
you can restart the protocol
and skip to the last frequency
pair you were running.
