Mercia Garden Products 02PATINCSWA Instruction manual
02PATINCSWA
N/A

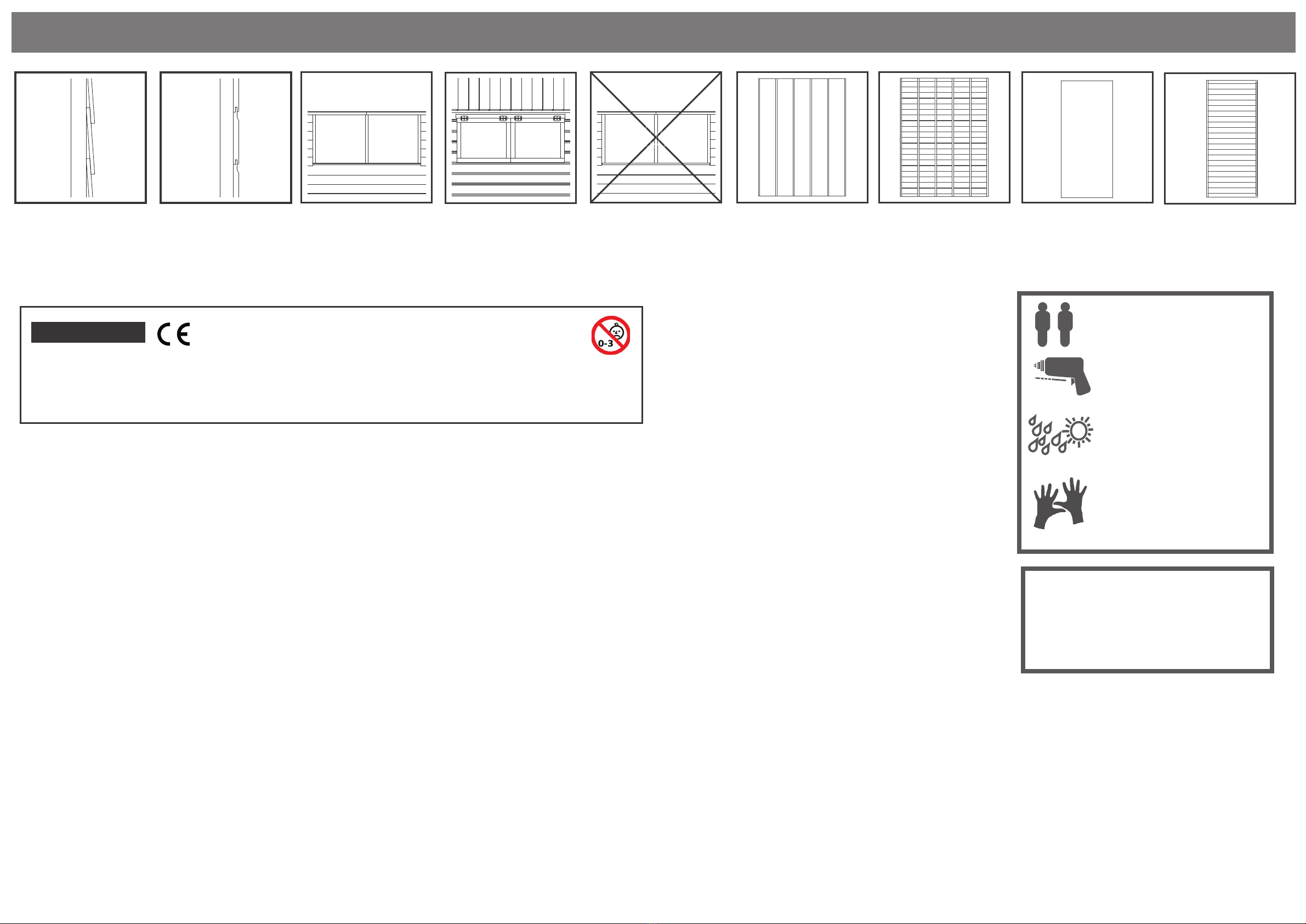

Overlap
Cladding
Shiplap
Cladding
Solid Sheet
Roof
T&G Roof
Solid Sheet
Floor
T&G Floor
Fixed
Windows
Opening
Windows
No
Windows
Swing for Activity Tower
For Assistance Please
Contact Customer Care on
01636 880514
2mm Drill bit
x2
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be erected by two
adults
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are coated with a water based high quality colorant; this only
helps to protect the product during transit and for up to 3 months against
mould. To validate your guarantee and ensure longevity of the product, it is
ESSENTIAL the building is treated with a wood preserver within the rst three
months of assembly and thereafter in accordance with the manufactures
recommendations. Care must be taken to ensure the product is placed on a
suitable base
BUILDING A BASE/SAFE PLAY ADVICE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment and safe play.
This activity centre should be situated at least 2M away from any structures or
obstructions (for example fences, buildings and trees etc.), and should be
orientated so that the ladders are not facing direct sunlight.
If the ground is too hard and stakes do not secure the building we recommend
concreting the stakes into the ground.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens products
independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or using this product.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces
of the timber. You are strongly advised
to wear gloves when working with or
handling rough sawn timer.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Please retain product label and instructions for future reference
P 1
General Instructions
Refer to the instructions pages for your specic product code
The images used throughout the instruction manual are generic and for
illustration purposes only; they may vary dependant on your actual product. It is
strongly advised they are read and understood before attempting installation.
For family domestic use only
WARNING. Not suitable for children under 36 months
TO BE USED UNDER THE DIRECT SUPERVISION OF AN ADULT
Maintenance
- Check at the beginning of each season and at regular
intervals.
- Check all nuts, bolts and screws for tightness, tighten when
required.
- Check swing seat, clamps, ropes and other means of
attachment for evidence of deterioration.
- Replace defective parts in accordance with the manufactuer-
ers instruction.
We recommend applying an impact reducing surface around the base and
slide, also a 2mtr safety perimeter should set up around the building free
from obstacles and potential hazards.
P 2
02PATINCSWA
Overall Dimensions:
Length = 2742mm
Width = 1750mm
Height = 2293mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Content
2
1
3
5
6
7
8
Legs - 2600mm Qty 2
Upright - 2200mm Qty 1
Top Bar - 1750mm Qty 1
4
Leg Bracket Qty 1
T Bracket Qty 1
Ground Stake Qty 1
Swing Hook Qty 1
Swing Seat Qty 1
70mm Hex Screw x 2
60mm Screw x 8
150mm Screw x 4
Nail Bag
40mm Screw x 4
Step 1
Slide both swing hooks onto the top
bar, do not fix in place yet.
3
77
60mm
screw 2 x 60mm screws
Step 2
Slide the T bracket onto the top bar,
measure 20mm from the end of the
top bar to the end of the T bracket
and secure in place with 60mm
screws.
5
60mm
screw 2 x 60mm screws
P 3
Please retain product label and instructions for future reference
Step 3
Position the leg barcket 20mm from
the end opposite the T bracket.
Secure in place using 4x40mm
screws.
40mm
screw
4 x 40mm screws
4
4
Step 4
Before fixing the swing hooks in place
ensure that the hooks are between
500mm and 475mm apart from each
other. Equally space the swing hooks into
the centre of the top bar. Use the
measeurments below as a guide.
Once the swing hooks are in the correct
place fix using 60mm screws.
60mm
screw
2 x 60mm screws
500mm
350mm 350mm
7
7
Step 5
It is easier to attach the legs while the
swing arm is on the ground as shown.
Place the legs into the bracket and secure
using in place using 2x60mm screws.
60mm
screw
2 x 60mm screws
1
1
Step 6
Lower the swing arm down onto the
upright until there is a connection
between the upright and the top bar.
Secure the upright to the T bracket using
2x60mm screw.
60mm
screw
2 x 60mm screws
2
P 4
Please retain product label and instructions for future reference
Step 7
When attaching the swing arm to your
playhouse pre-drill the holes with an
8mm wood drill bit before inserting the
screws.This will prevent the wood from
splitting. Drill through the swing arm
upright and into the framing of the
playhouse you want the swing to be
attached to.
When positioning the screws we advise
the top screw is fixed as close to the top
of the frame on the playhouse you are
attaching the swing arm to. Similarly fix
the bottom screw as close to the end as
possible. Ensure the middle two screws
are equally spaced.
4x150mm screws
150mm
screw
*Playhouse used for illustration purposes only*
Step 8
To attach the swing seat to the swing arm
simply push the ring at the upper most
part of the swing rope through the hook
as shown. Repeat this for both clips.
Ensure that both catches are closed prior
to use.
The swing seat must be adjusted so that
it is at least 350mm from the ground.
350mm
8
*Playhouse used for illustration purposes only*
P 5
Please retain product label and instructions for future reference
Step 9
When staking down the swing arm make
sure that it is positioned correctly (see
safe play advice). Insert the stake into the
ground using the side of the leg as a
guide. Make sure the stakes are as far into
the ground as on the diagram to prevent
tipping.The stake should be
approximately 90 degrees to the leg (as
shown). 1 stake per leg attached with
1x70mm hexagonal headed wood screw.
A washer is supplied with the hew screw
to stop the stake coming loose. Place the
washer between the screw and the stake
before attaching to the legs.
*Playhouse used for illustration purposes only*
90
6
2x70mm Hex Screws
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
