Mercia Garden Products 05PTPALLOG0306-V1 User manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
05PTPALLOG0306-V1
PRESSURE TREATED PALISADE LOG STORE, 3X6.
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
Pressure Treated Timber
Your building has been pressure treated.
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a landll.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
05PTPALLOG0306-V1
Overall Dimensions:
Width = 1053mm
Depth = 818mm
Height = 1262mm
Base Dimensions:
Width = 943mm
Depth = 740mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Contents:
Floor QTY 2
AI-R11PALF740X915-V1
Plain Panel QTY 2
AI-R11PALPPBF889X1198-V1
Left Gable QTY 1
AI-05R11PALPGL740X1205-V1
Right Gable QTY 1
AI-05R11PALPGR740X1205-V1
Roof QTY 1
AI-R11OVPR828X1929-V1
Roof Support - 27x44x970mm QTY 1
F2744-970mm
1 2 34
56
7
8
Fascia - 7x50x828mm QTY 2
OVLP750-828mm
Fascia - 7x50x1929mm QTY 1
OVLP750-1929mm
9
Corner Brace QTY 3
PI-07-0012
Nail Bag
There may be extra screws present in the nail bag
50mm Screw x 31
30mm Screw x 10
20mm Screw x 12
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.

P 3
Please retain product label and instructions for future reference
Pre drill
hole
Step 1
Part needed - No. 1 QTY 1
Place the Floors (No.1) on a rm and
level base, ensure base has suitable
drainage free from areas where
standing water can collect. (See front
page on base requirements).
Locate the Floor Panels (No.1) ush
together, ensuring the framing is level
and ush.
Secure in place using 4x50mm screws
diagonally through the cladding into
the bearers in an alternating pattern, as
shown.
4x50mm Screws
50mm
screw
1
1
Pre drill
hole
Step 2
Parts needed - No. 2 QTY 1
No. 3 QTY 1
Locate one Plain Panel (No.2) and the
Left Gable (No.3) on top of the Floor
Panel (No.1) as shown.
Secure in place using 3x50mm screws
through the framing at the corners, as
shown in the diagram.
Position the panels so there are equal
gaps between the oor and cladding.
**DO NOT secure your building to the
oor until the roof has been tted.
3x50mm Screws
50mm
screw
32
a
a
a
a
Pre drill
hole
Step 3
Parts needed - No. 2 QTY 1
No. 4 QTY 1
Locate the remaining Plain Panel (No.2)
and the Right Gable (No.4) on top of
the Floor Panel (No.1) as shown.
Secure in place using 3x50mm screws
per panel, through the framing, as
shown in the diagram.
Position the panels so there are equal
gaps between the oor and cladding.
**DO NOT secure your building to the
oor until the roof has been tted.
6x50mm Screws
50mm
screw
4
2
a
a
a
a
Pre drill
hole
Step 4
Parts needed - No. 5 QTY 1
Locate the Roof (No.5) on top of the
building.
Ensure the framing is at the front and
sides of the building, that the back of
the roof panel is in-line with the back of
the Plain Panel and that there is equal
spacing on either side.
Secure in place by screwing through
the side of the Roof (No.5) into the
gable boards behind (No.3 & 4), using
6x50mm screws.
6x50mm Screws
50mm
screw
5

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Pre drill
hole

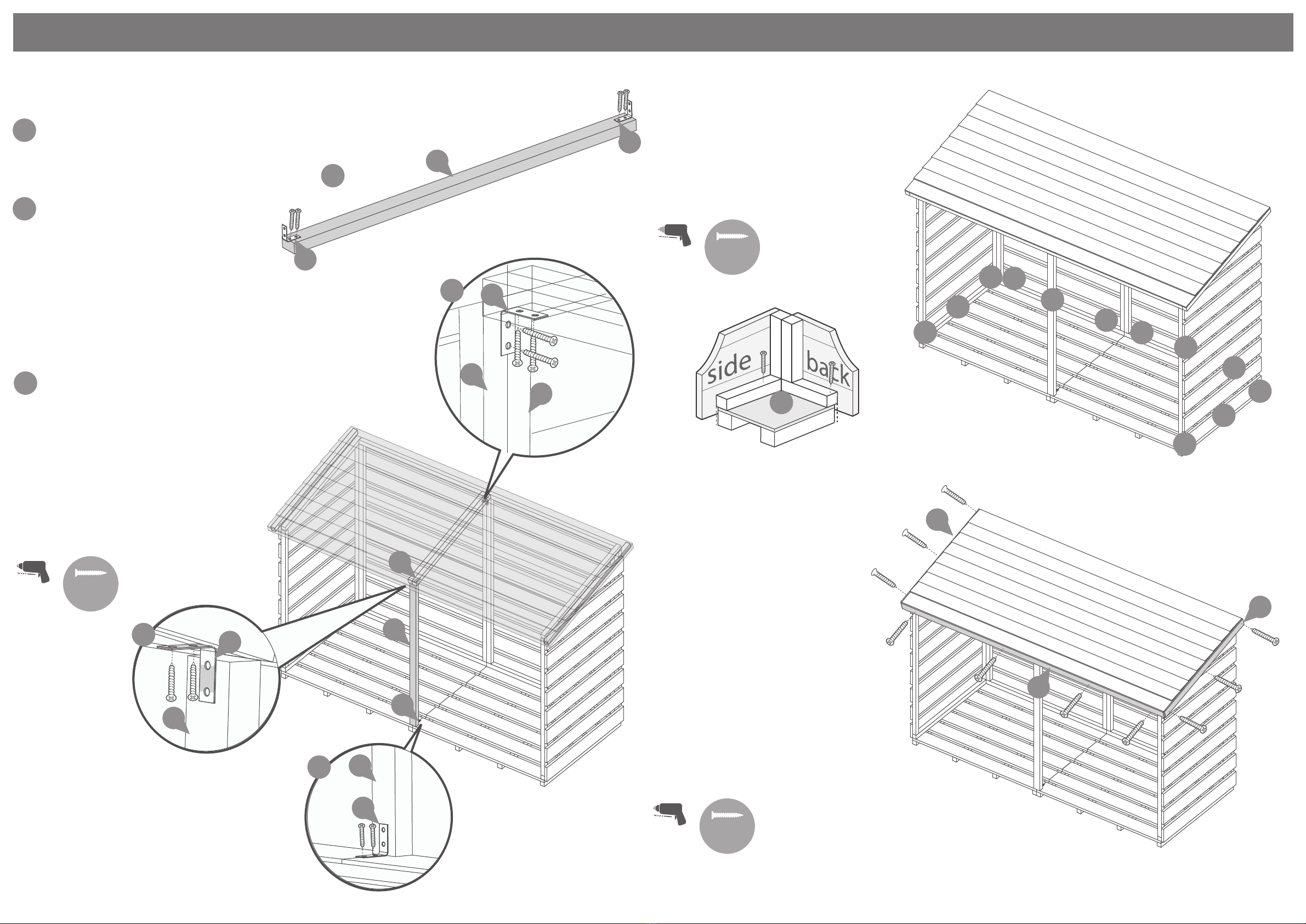

Step 5
Parts needed - No. 6 QTY 1
No. 9 QTY 3
20mm
screw
Locate a Corner Brace (No.9) to either
end of the Roof Support (No.6) and
secure in place using 2x20mm screws
per brace.
Locate the Roof Support (No.6)
centrally in the opening of the building,
ensuring it aligns with the central
framing on the Roof (No.5), as shown.
Secure to the Floor (No.1) and the
central framing of the Roof (No.5)
through the Corner Braces previously
attached , using 2x20mm screws per
brace.
Further secure the Roof to the Plain
Panels using the third Corner Brace.
Locate the Corner Brace (No.9) to the
back of the central framing of the Roof
panel, and the central upright framing
of the Plain Panels (No.2) as shown.
Secure in place using 4x20mm screws.
12x20mm Screws
a
b
c
a
6
9
9
9
9
6
9
2
2
c
9
6
9
6
b
b
Pre drill
hole
Step 6
Once the Roof (No.5) has been tted,
secure the building to the oor by
screwing through the panels into the
Floor bearers using 3x50mm screws per
panel , as shown.
12x50mm Screws
50mm
screw
b
b
b
bb
b
b
b
b
bb
b
b
Pre drill
hole
Step 7
Parts needed - No. 7 QTY 2
No. 8 QTY 1
Locate the Fascia (No.8) onto the front
of the Roof, as shown.
Secure in place using 4x30mm screws.
Locate the Fascias (No.7) onto the sides
of the Roof, as shown.
Secure in place using 3x30mm screws
per Fascia.
Ensure to stagger the screws to avoid
collision.
10x30mm Screws
30mm
screw
7
7
8

P5
Please retain product label and instructions for future reference
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.

P 6




















































