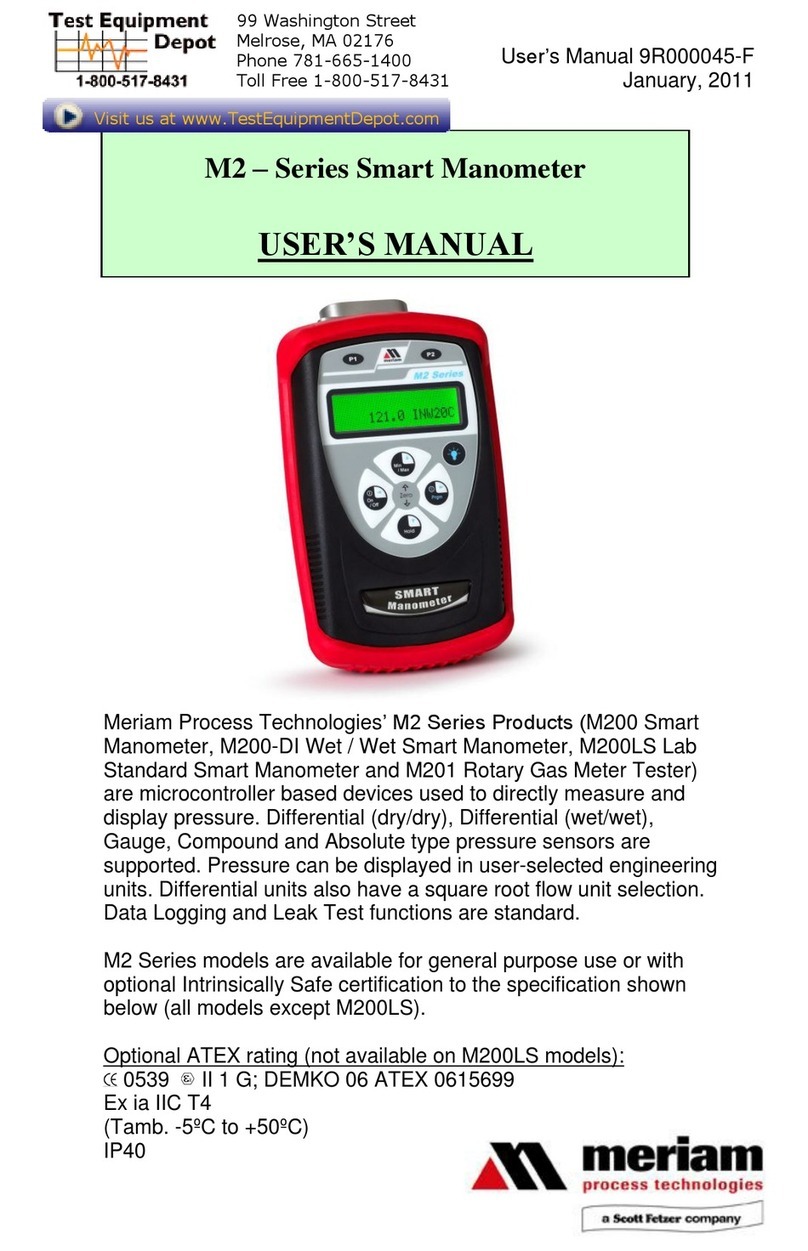

M2 – SERIES USER MANUAL
SMART MANOMETER
ROOTS METER TESTER
Meriam Process Technologies’ M2 Series Products (Smart
Manometer and Roots Meter Tester products) are
microcontroller based pressure sensing devices used to
directly measure pressure. Di erential, Gauge, Absolute and
Wet/Wet pressure sensors are supported (see Speci ication
section or supported type and pressure ranges). Pressure can
be displayed in selectable engineering units o measure.
ATEX rating:
0539 II 1 G
Ex ia IIC T4
(Tamb. -5ºC to +50ºC)
DE KO 06 ATEX 0615699
IP40

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 2 o 31
Table o Contents
User Inter ace ................................................................................ 3
1. Keypad Functions ............................................................... 3
ON/OFF & BACKSPACE KEY .................................... 3
MIN/MAX & UP ARROW KEY................................... 3
HOLD & DOWN ARROW KEY................................... 3
PRGM & ENTER KEY ................................................. 4
BACKLIGHT KEY........................................................ 4
2. Zeroing the Manometer....................................................... 5
3. Program Mode .................................................................... 5
Units Select.................................................................... 6
User Unit Select......................................................... 7
Flow Unit Select........................................................ 8
Damp Rate Select........................................................... 9
User In o Select ........................................................... 10
Auto Shut-O .......................................................... 11
Lockout Select......................................................... 12
Header Name........................................................... 13
Contrast Select ............................................................. 14
Data Logging ............................................................... 15
Leak Test ..................................................................... 16
Re-Calibration ............................................................................. 17
RE-CALIBRATION – 1 Point EDIT and START ................. 19
RE-CALIBRATION – 5 Point EDIT ..................................... 20
RE-CALIBRATION – 5 Point START.................................. 21
RE-CALIBRATION – Restore Factory De aults ................... 22
Speci ications .............................................................................. 23
Certi ication/Sa ety/Warnings ..................................................... 25
Changing the Batteries................................................................. 26
User Connections ........................................................................ 28
Contact In ormation..................................................................... 30
Roots Meter Tester Instructions................................................... 31

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 3 o 31
User Interface
1. Keypad Functions
ON/OFF & BACKSPACE KE
Turns the manometer on and enters the unit into the Measure
Mode. Pressing the key while in the Measure Mode turns the unit
o . It also serves as a backspace key when editing in the Program
Mode. The  key takes the user out o a programmable register
without changing the previous setting. Pressing this key repeatedly
will return the user to the Measure Mode and then shut o the
manometer.
MIN/MAX & UP ARROW KE
In the Measure Mode activates the Min/Max unction o the
manometer. When activated the minimum value is displayed on the
upper le t o the display and the maximum value on the upper right.
This key also deactivates and resets this unction. The  key is
used to scroll through the programmable registers when the unit is
in the Program Mode. Once a programmable register is selected
the  key can be used to edit that register.
HOLD & DOWN ARROW KE
In the Measure Mode toggles on/o the display Hold unction.
This reezes the value displayed. I the MIN/MAX unction is
activated, those values are also rozen. With HOLD activated, the
letter “H” appears in the lower le t o the display. The  key is
used to scroll through programmable registers with the unit in the
Program Mode. Once a programmable register is selected the 
key can be used to edit that register.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 4 o 31
PRGM & ENTER KE
Puts the manometer into the Program Mode rom the Measure
Mode. When in the Program Mode, pressing this key selects the
programmable register to be edited (with prompt or password i
Lockout is set). A ter the register has been edited, pressing the
PRGM key enters the new setting into the manometer’s non-
volatile memory. This key also acts as a  key when editing user
input such as the header name and user units.
BACKLIGHT KE
The BACKLIGHT key, represented by the standard light bulb
symbol, toggles the display backlight between red, green and o .

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 5 o 31
2. Zeroing the Manometer
To zero the manometer, irst turn o pressure sources and vent
pressure ports to atmosphere. The display should read close to zero.
Press the MIN/MAX and HOLD keys at the same time and then
release. This begins the zeroing process. The top line o the display
reads “ZERO IN PROGRESS” while the bottom line counts down
rom 9. The process is complete when the unit returns to Measure
Mode. The lockout unction, i enabled, does not inter ere with the
zeroing o the manometer.
Note: The smart manometer can only be zeroed i the new zero
value is within +/-5% (o FS) o the original actory calibrated zero.
I the zero procedure generates a new zero value outside this limit
a “ZERO RANGE ERROR” message appears indicating that the
procedure ailed.
3. Program Mode
The program mode is used to con igure the manometer or
Measure Mode operation. A ter the PRGM key is pressed in
Measure Mode, the top line o the display reads “PROGRAM
MODE”. The bottom line reads “UNITS SELECT”. Press the  or
 arrow keys to scroll through the Program Mode to the desired
register. The con igurable registers that are ound in Program
Mode are Units Select, Damp Rate Select, User Info Select,
Contrast Select, Data Logging, Leak Test and Exit. Two sub-
modes under “Units Select” are provided: User Unit Select and
Flow Unit Select. Press the PRGM key to select either o these
sub-modes and set up their respective unction. The manometer
can be put into Program Mode at any time during Measure Mode
operation by pressing the PRGM key. I Lockout is set, the correct
code must be entered when prompted.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 6 o 31
Units Select
The standard engineering units available on the Smart Manometer
are:
PSI
inH
2
0 (@20°C, 60°F and 4°C)
Kg/cm
2
kPa
mbars
Bars
cmH
2
O (@ 20°C)
inHg (@ 0°C)
mmHg (@ 0°C)
User Units
Flow Units
To change the engineering units the manometer should be “ON”
and in Measure Mode. Then ollow these steps:
Keystroke Display
1. Press the PRGM key. Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the PRGM key. Top line reads “UNITS
SELECT” and bottom line shows
current engineering units.
3. Press the up or down
arrow key until desired
engineering unit is
displayed.
Engineering units on bottom line
o display change.
4. Press the PRGM key to
select the engineering unit.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
5. Press the down arrow
key.
Bottom line reads “EXIT”.
6. Press the PRGM key. Display returns to Measure Mode
in new engineering units.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 7 o 31
User Unit Select
Engineering units not included in the standard selection can be
programmed into the manometer using the Units Select register in
the program mode. The value programmed into this register is
used to calculate the desired unit o measure. An example o
converting to “Feet o H2O” will be shown in the ollowing steps,
using the conversation actor o 1 PSI = 2.30894 FT H2O.
Keystroke Display
1. Press the PRGM key. Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the PRGM key. Top line reads “UNITS
SELECT” and bottom line shows
current engineering units.
3. Press the up or down
arrow key until “USER
UNIT SELECT” is
displayed.
Top line reads “UNITS
SELECT”
Bottom line reads “USER UNIT
SELECT”.
4. Press the PRGM key.
See note 1 at bottom of
this table.
Top line reads “VALUE=”.
Bottom line reads “CHANGE?:
YES”.
5. Press the PRGM key to
change the value.
Top line reads “USER UNIT
VALUE”.
6. Start entering the
conversion actor by
pressing the up arrow key
until the irst digit reads 2.
Top line reads “USER UNIT
VALUE”.
Bottom line reads “20000000”.
7. Press the right arrow
key to enter the value “2”
and advance the cursor to
the next digit.
Cursor lashes to the right o the
“2”. Now numbers, decimal
point or blank space can be
entered.
8. Repeat step 6 and 7
until bottom line reads
2.30894
Bottom line reads “2.30894”.
Last digit “4” is blinking.
9. I an error is made use
the le t arrow key to move
the cursor back to the
incorrect digit. Then press
up or down arrow keys to
The digit that is corrected is
blinking.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 8 o 31
display the correct value.
10. Press the PRGM key
until the display changes.
See note 1 at bottom of
this table.
Top line reads “VALUE=”.
Bottom line reads “CHANGE?:
YES”.
11. Press the PRGM key. Top line reads “USER UNIT
NAME”.
12. Follow steps 6-8
above to enter “FT H2O”.
Bottom line reads “FT H2O”.
Last letter “O” is blinking.
13. Press the PRGM key. Top line reads “PROGRAM
MODE”.
Bottom line reads “UNITS
SELECT”.
14. Press the down arrow
key.
Bottom line reads “EXIT”.
15. Press the PRGM key. Manometer returns to Measure
Mode. Units Display shows “FT
H2O”.
Note 1: I at steps 4 or 10 the “VALUE=” is the desired value,
press the up or down arrow key. This will toggle the bottom line
rom the de ault “CHANGE?: YES” to “CHANGE?: NO”. Step 5
would then jump to step 10. Step 11 would then jump to step 13.
Flow Unit Select
Smart Manometers that use di erential pressure sensors can be
programmed to read out low measurement units such as CFM or
L/min. The primary element must be a di erential pressure
producing, square root type o device, such as a pitot tube, ori ice
plate or venturi.
The low constant and low units description are programmed into
the manometer using the same keystrokes used in the User Unit
Select programming. At step 3 choose “FLOW UNIT SELECT”
instead o “USER UNIT SELECT”.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 9 o 31
Damp Rate Select
Adjustable exponential type damping is available to steady the
display when measuring pulsating pressure or low. The Smart
Manometer has a range o damping rates; 0.1, 0.2, 0.5, 1, 2, 5, 10,
or 25 seconds. Exponential damping shows approximately 70% o
a step change in pressure upon the next display update. When set
or 5 second time constant, it takes 5 seconds rom the time o the
step change until the manometer displays the ull value o the new
pressure.
To set the damp rate:
Keystroke Display
1. Follow the steps on
page 4 to put the unit in
Program Mode
Top line reads
PROGRAM MODE” and
bottom line reads “UNITS
SELECT”.
2. Press the up arrow
key.
Bottom line reads “DAMP
RATE SELECT”.
3. Press the PRGM key. Top line reads “DAMP
RATE SELECT”.
4. Press the up or down
arrow key until the
desire desired damp rate
is displayed on the
bottom line.
Bottom line shows damp
rate in seconds.
5. Press the PRGM key. Top line reads
“PROGRAM MODE” and
bottom line reads “UNITS
SELECT”.
6. Press the down arrow
key.
Bottom line reads
“EXIT”.
7. Press the PRGM key. Returns to Measure Mode.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 10 o 31
User Info Select
The User In o Select registers are designed to provide the user with
in ormation on the hardware and so tware in the manometer. This
register provides read only in ormation on the sensor’s serial
number, so tware version and date o manu acture. It also allows
the user to edit the Auto Shut-O , Lockout and Start-Up Header
Name eatures.
To con igure the User In o Select registers ollow the steps shown
on the ollowing page.
Keystroke Display
1. From the Measure Mode
press the PRGM key.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the up arrow key
twice
Bottom line changes to “USER
INFO SELECT”.
3. Press the PRGM key. Bottom line shows serial
number.
4. Press the up arrow key. So tware version number
shown.
5. Press the up arrow key. Manu acture date shown.
6. Press the up arrow key.
Instructions to set AUTO
SHUT-OFF are in this
manual.
Top line reads “AUTO SHUT
OFF” and bottom line reads
“ENTER TO SELECT”.
7. Press the up arrow key.
Instructions or using
LOCKOUT are on page 12.
Top line reads “LOCKOUT
CODE” and bottom line reads
“ENTER TO SELECT”.
8. Press the up arrow key.
Instructions or editing the
Header are on page 13.
Top line reads “HEADER
NAME” and bottom line reads
“MERIAM”. The cursor lashes
at bottom le t.
9. Press the le t arrow key
to go back to “USER INFO
SELECT” screen.
Top line reads “PROGRAM
MODE” and bottom line reads
“USER INFO SELECT”.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 11 o 31
Auto Shut-Off
Enabling the Auto Shut-O eature allows the manometer to turn
itsel o a ter a user selected period o keypad inactivity.
Selectable options include DISABLED, 10 Minutes (which is the
actory shipped de ault), 20 Minutes, 30 Minutes, 45 Minutes and
60 Minutes. Disabling this eature limits the manometer to being
turned o by using the ON/OFF key only.
To con igure auto shut-o ollow these steps:
Keystroke Display
1. Follow steps 1-6 in the
User In o Select table.
Top line reads “AUTO SHUT-
OFF” and bottom line reads
“ENTER TO SELECT”.
2. Press the PRGM key,
then the up or down
arrow keys until the
desired shut-o time is
shown.
Top line reads “AUTO SHUT-
OFF” and bottom line toggles to
“DISABLED”, “10”, “20”, “30”,
“45” and “60” minutes .
3. Press the PRGM key. Desired Auto Shut-O time is
selected, top line reads “AUTO
SHUT-OFF” and bottom line
reads “ENTER TO SELECT”.
4. Press the le t arrow key
twice.
Returns to Measure Mode.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 12 o 31
Lockout Select
Enabling the Lockout eature prevents unauthorized users rom
making changes to the con iguration o the manometer. To enter
the Program Mode, the user must irst enter the “password” (two-
digit Lockout Code) within approximately 40 seconds when
prompted. Failure to enter the correct two digit code within
approximately 40 seconds will return the unit to Measure Mode.
Any two-digit numeric code can be programmed. The actory
Lockout Code o 00 (which is the de ault as shipped rom the
actory) disables the Lockout.
To set the Lockout Code ollow these steps:
Keystroke Display
1. From the Measure
Mode press the PRGM
key. I the Lockout is set,
enter the correct
“password” when
prompted.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the up arrow key
twice.
Bottom line reads “USER INFO
SELECT”.
3. Press the right arrow
key then the up arrow key
our times.
Top line reads “LOCKOUT
CODE” and bottom line reads
“ENTER TO SELECT”.
4. Press the right arrow
key, then press the up or
down arrow keys to
change the irst digit.
Press the right arrow key
to proceed.
Bottom line shows the old
Lockout Code. The cursor lashes
at the irst position while the
value is changed, the cursor
moves to the right position once
the right arrow key is pressed.
5. Press the right arrow
key when the desired code
is set. Lockout is
activated.
Top line reads “LOCKOUT
CODE” and bottom line reads
“ENTER TO SELECT”.
6. Press the le t arrow key
twice.
Returns to Measure Mode.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 13 o 31
Header Name
Follow the steps below to edit the Header Name.
Keystroke Display
1. From the Measure Mode
press the PRGM key.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the up arrow key
twice.
Bottom line changes to “USER
INFO SELECT”.
3. Press the PRGM key. Bottom line shows serial
number.
4. Press the up arrow key
ive times.
Top line reads “HEADER
NAME” and bottom line reads
“MERIAM”. The cursor lashes
at bottom le t.
5. I header is correct press
backspace key. I editing is
desired proceed to step 7.
Top line reads “PROGRAM
MODE” and bottom line reads
“USER INFO SELECT”.
6. Press the le t arrow key. Returns to Measure Mode.
7. Press the up or down
arrow keys to set the
correct alpha-numeric
value.
Displays a number between 0
and 9, a letter rom A to Z, / or a
blank space.
8. Press the right arrow key
to accept entry.
Cursor advances one space to
right.
9. Repeat steps 8 and 9
until the desired Header is
shown.
10. I an error is made press
the back arrow key until the
cursor is over the incorrect
value. Follow step 8 to
correct. Press the right
arrow key to advance the
cursor without changing
values.
11. When the Header is
complete press the PRGM
key until header accepted.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
12. Press the le t arrow key. Returns to Measure Mode.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 14 o 31
Contrast Select
The Contrast Select register allows the user to adjust the character
contrast o the LCD display to provide the best visibility or the
ambient light conditions.
To adjust the contrast, ollow these steps:
Keystroke Display
1. From the Measure Mode
press the PRGM key.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the up arrow key
three times.
Bottom line reads
“CONTRAST SELECT”.
3. Press the PRGM key. Top line reads “CONTRAST
SELECT” and bottom line
shows a numerical value.
4. Press the up or down
arrow keys to increase or
decrease the contrast value.
A low number gives
maximum contrast and a
high number gives
minimum contrast.
LCD lightens or darkens
depending on the value set.
5. Press the PRGM key. Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
6. Press the le t arrow key. Returns to Measure Mode.
I an error is made during the contrast adjustment, pressing the  key
returns the display to the previous contrast setting.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 15 o 31
Data Logging
Data Logging can be used to record pressure measurements. Two
record modes are supported: automatic and manual. In automatic
mode, a pressure value is captured every 5 seconds or 20 minutes,
resulting in 240 stored values. In manual mode, a pressure value is
captured each time the PRGM key is pressed up to 240 values. The
data collected during a logging session can be viewed upon
completion.
Keystroke Display
1. From the Measure Mode
press the PRGM key.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the up arrow key
our times.
Bottom line reads “DATA
LOGGING”.
3. Press the PRGM key. Top line reads “DATA
LOGGING” and bottom line
reads “RECORD”.
4. Press the PRGM key. Top line reads “RECORD
MODE” and bottom line reads
“AUTO” or “MANUAL”.
5. Press the PRGM key at
AUTO to start automatic
logging or at MANUAL to
start manual logging mode.
Top line reads
“RECORDING X” and
bottom line reads “XX.XX
UNITS”. AUTO records value
every 5 seconds. Manual
records value each time PRGM
key is pressed.
6. To stop recording values
at any time, press the key.
Top line reads “DATA
LOGGING” and bottom line
reads “RECORD”.
7. To access recorded
values, press the  key.
Top line reads “DATA
LOGGING” and bottom line
reads “VIEW”.
8. To view recorded values,
press the PRGM key.
Top line reads “DATA LOG:
1” and bottom line displays
the value. Continue pressing
the  key to view all values.
9. Press the 

key 3 times. Returns to Measure Mode.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 16 o 31
Leak Test
The Leak Test eature allows the user to determine the leak rate in
the pneumatic system being monitored. Once con igured, Leak
Test monitors the measured pressure over time and displays the
leak rate in the pressure units per minute at the conclusion o the
test. The maximum con igurable leak test period is 1440 min (1
day). Pressing any key during the leak test will abort the test.
To enable Leak Test ollow these steps:
Keystroke Display
1. From the Measure Mode
press the PRGM key.
Top line reads “PROGRAM
MODE” and bottom line reads
“UNITS SELECT”.
2. Press the down arrow key
twice.
Bottom line reads “LEAK
TEST”.
3. Press the PRGM key. Top line reads “LEAK TEST”
and bottom line reads
“CONFIGURE”.
4. Press the PRGM key. Top line reads “Leak Test
Period” & bottom “X.X MIN”.
5. Use the up, down and
right keys to input test
period
Bottom line reads desired
period; Ex. “ 20.0 MIN”.
6. Press the PRGM key. Top line reads “LEAK TEST”
and bottom line reads
“CONFIGURE”.
7. Press the up arrow key
once.
Top line reads “LEAK TEST”
and bottom line reads “PRGM
TO START”.
8. Press the PRGM key. Top line displays MIN/MAX
pressure values at le t/right.
Bottom line reads the current
pressure value and units.
At end o test period, top line
displays the leak rate in units
per minute. Bottom line shows
the current pressure reading.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 17 o 31
Re-Calibration
The Manometer can be re-calibrated in the ield or zero, span, and
linearity. The proper primary standards must be available prior to
calibrating the Manometer. These standards should meet the
accuracy requirements or your company or industry. Meriam
Process Technologies ollows the guidelines established by ANSI /
NCSL Z540-1-1994 which requires that the primary standard be 4
times more accurate than the unit under test.
The re-calibration is not intended to replace the Factory Lab
Calibration Procedure. It is intended to correct the curve it i the
actual sensor characteristics change slightly over time.
For sensors up to 200 PSI, Meriam recommends a ±0.0015% o
reading deadweight tester. For sensors 200 PSI and above, a
±0.0030% o reading deadweight tester is recommended. I
calibrating using inches o water units, be sure to match the
re erence temperature o water in both the unit under test and the
M2.
1-point (within upper 50% o Full Scale), 5-point (nominal values
o 0%, 25%, 50%, 75% & 100% o Full Scale), and restore actory
de ault re-calibration options are o ered. For the 5-Point re-
calibration, points 2, 3 and 4 can be adjusted within ±1% o
reading around the nominal values. Point #5 can be adjusted within
-1% o reading around nominal. Point #1 is ixed.
For example: or a 2000 inH2O sensor, Point # 2 (25%) can be
edited orm 495 to 505 inH2O. Point #5 (100%) can be edited
rom 1980 to 2000 inH2O.
The unit can only be re-calibrated i the calibration points are
within 5 times the accuracy o the original actory calibration (e.g.
@ 0.05% accuracy, the point limit is ±0.25% o Full Scale). I the
re-calibration procedure generates a new value outside this limit
the procedure will ail. In this case the unit would need to be
returned to the actory or service.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 18 o 31
Once a re-calibration has been per ormed (either 1-point or 5-
point) the unit will continue to allow uture re-calibrations only
with that type o re-calibration. In order to enable the other re-
calibration type, the user must irst restore the re-calibration data to
the actory de aults.

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 19 o 31
RE-CALIBRATION – 1 Point EDIT and START
To per orm a 1-point re-calibration, apply a pressure between 50%
and 100% o Full Scale and then ollow these steps:
Keystroke Display
1. With unit OFF, press and
hold the MIN/MAX key,
turn the unit on by pressing
the ON/OFF key, then
release MIN/MAX.
Top line reads “RE-CAL”.
Bottom line reads “EDIT”.
2. Press the up arrow key
until “START” is displayed
on the bottom line.
Top line reads “RE-CAL”.
Bottom line reads “START”.
3. Press the PRGM key. Top line reads “RE-CAL
START”.
Bottom line reads “1-POINT”.
4. Press the PRGM key. Top line reads “CAL POINT”
and bottom line displays the
cal point value.
5. Press the up/down arrow
keys to edit the selected
digit. Use the le t/right arrow
keys to change the cursor
position. Value entered must
be 50-100% o FS.
Bottom line displays the cal
point value. The cursor lashes
at the irst position while the
value is changed, then moves
to the right position when the
right arrow key is pressed.
6. Press the right arrow key
while on the right most digit
to proceed.
Top line reads “APPLY:”
Bottom line displays the “CAL
POINT” value.
7. Apply the input pressure
indicated using an
appropriate re erence
standard; press PRGM key.
Top line reads “RE-CAL”.
Bottom line reads “START”,
Manometer has been
recalibrated.
8. Press the le t arrow key. Returns to Measure Mode

M2 Series Instruction Manual 9R000045-A
APR2007
www.meriam.com
page 20 o 31
RE-CALIBRATION – 5 Point EDIT
To edit the calibration points or a 5 Point re-calibration ollow the
steps below.
NOTE: I the actory de ault values are acceptable, skip this
section and proceed to the re-calibration 5-Point START procedure.
Keystroke Display
1. With unit OFF, press and
hold the MIN/MAX key,
turn the unit on using the
ON/OFF key, then release
Top line reads “RE-CAL”.
Bottom line reads “EDIT”.
2. Press the PRGM key. Top line reads “CAL POINT
1”. Bottom line displays the
cal point value.
3. Press the up/down arrow
keys to edit the selected
digit. Use the le t/right
arrow keys to change the
cursor position. Note: For
0% go directly to step 4.
Bottom line displays the cal
point value. The cursor lashes
at the irst position while the
value is changed, then moves
to the right position when the
right arrow key is pressed.
4. Press the right arrow key
while on the right most digit
to proceed.
Top line reads “CAL POINT
2”. Bottom line displays the
cal point value.
5. Repeat steps 3 and 4 or
CAL POINTS 2, 3, 4 and 5.
Top line reads “CAL POINT
2/3/4/5”. Bottom line displays
the cal point value.
6. A ter editing CAL
POINT 5 press the right
arrow key while on the right
most digit to proceed.
Top line reads “RE-CAL”.
Bottom line reads “EDIT”.
7. To per orm the 5-point
re-cal, press the up arrow
key until START is
displayed on the bottom
line.
OR
To exit without per orming
the 5-point re-cal press the
le t arrow key
Top line reads “RE-CAL”.
Bottom line, “START”.
Continue with 5-Point Re-
calibration procedure at step 3
on next page.
OR
Returns to Measure Mode.
