Messoa PTZ900 User manual

Network Camera
Quick Start
Guide
201407 900 A1
PTZ900

1
English
1 Product Overview
1.1 Physical Characteristics
Figure 1 - 1: Physical Dimensions – without Ceiling Bracket
Figure 1 - 2: Physical Dimensions – with Ceiling Bracket

2
English
Figure 1 - 3: Pictorial Index

3
English
Table 1 - 1: Pictorial Index Denition
Index # Name Descriptions
1Default Button Press via paperclip or thin object to restore to the factory defaults by pressing and holding
the button for 5 seconds.
2 SD Card Slot Insert SDHC/SDXC card for le storage. (SD card sold separately)
3 Reset Button Press via paperclip or thin object to reboot the unit.
4 Rear Lid Remove rear lid for more I/O connectors on the back of camera.
5 Power Indicator Lights on when powering on the camera.
6Power Terminal DC12V/AC24V, red port: power +/ white port: power –/ black port: GND. Make sure to
connect the power connector to correct ports (+ and –) when the power supply is DC12V.
7Safety Wire Hook Connect one end of safety wire here for preventing from falling o.
8
RJ-45 Ethernet
Connector/PoE
To insert the RJ-45 cable for network connection along with PoE (Power over Ethernet)
capability.
Ethernet Activity LED Amber ashing indicates data is being transmitted / received
by the unit.
Ethernet Link LED Solid green light stands for a live connection is established.
9 Video Out To connect monitor out cable for video output signal.
10 Audio Input Connecting to an auxiliary microphone to record ambient audio from the camera.
Audio Output Connecting to a speaker that transmits voice from control end.
11 Alarm Output Connecting to a device that responds to alarm signals.
Alarm Input Connecting to a device that triggers alarm signals.
Caution
Note
To avoid damage to the unit, never connect more than one type of power supply (PoE IEEE802.3 Ethernet
Class 0 or DC 12V/ AC24V power plug) at the same time. If using PoE, this camera is to be connecting only
to PoE networks without routing to heterogeneous devices.
Power supply terminal/adaptor for IO connectors and eld wiring should comply with the Class 2 Circuit
standard for ensuring safety from electrical res and providing acceptable protection against electrical
shock.
Table 1 - 2: I/O Connectors Denition
AUDIO IN
Audio in
GND
AUDIO OUT
Audio out
GND
COM
Alarm out
AL. OUT
AL. IN
Alarm in
GND

4
English
2Installation
2.1 Package Content
Check everything in the packing box matches to the order form and the packing slip. In addition to this manual, items below
are included in the packing box.
 One Network Dome PTZ Camera
 One printed Quick Start Guide
 One mounting template
 One ceiling bracket kit
 Three bracket screws
 Three bracket screw anchors
 One 4-pin terminal block for audio input/output
 One monitor out cable
Please contact your dealer if any item is missing.
2.2 Installation
Following tools might help you complete the installation:
 a drill
 screwdrivers
 wire cutters
2.2.1 Checking Appearance
When rst unboxing, please check whether if there is any visible damage to appearance of the unit and its accessories. The
protective materials used for the packaging should be able to protect the unit from most of accidents during transportation.
Please remove the protective lm of the unit when every item is checked in accordance with the list in“2.1 Package Content”.
2.2.2 Mounting the Camera
The camera can be mounted on a ceiling or a wall (other equipment required). One bracket and 3 mounting screws are
provided for ceiling mounting. The following mounting procedure will be demo under ceiling type.

5
English
Step 1. Mark Mounting Area
 Use the mounting template to mark out and prepare a mounting area.
1. Place the supplied mounting template on a mounting surface. Drill 7 mm holes x 3 at the mounting
surface corresponding to the 3 indicated positions for plastic anchors (supplied).
2. Please then insert the 3 plastic anchors (supplied) into the 3 drilled holes on the mounting surface.
3. The Cable Channel indicated is an area preserved for cables entry and should be placed at the rear
side of the camera. Also, Front indicated clearly shows the forward side of the camera.
The holes (x3) for
plastic anchors
Figure 2 - 1: Mounting Template

6
English
Step 2. Mounting Scheme
 Fasten the unit to the mounting ceiling surface with safety wire.
1. Directly use 3 screws to attach the bracket to the ceiling until the bracket is tightened safely.
Caution Be sure to tighten the screw nuts rmly as the following gure shown.
Figure 2 - 2: Attach Bracket to Ceiling
Figure 2 - 3: Fasten the Screws rmly with Ceiling
The screw holes (x3)
for ceiling attachment

7
English
2. Attach the safety wire to the hook of the camera to ensure the camera won’t fall down.
3. Push the hooks (x4) of the ceiling bracket into the hook holes (x4) of the camera bottom.
Figure 2 - 4: Attach Safety Wire with Camera and Bracket
Figure 2 - 5: Align Hooks of Bracket with Camera Bottom

8
English
The rear lid
2. Push upward to attach
camera with bracket
1. Push camera forward
to firmly combine with
bracket
4. Push the camera upward to attach the bottom of the camera to the ceiling bracket tightly and then
push the camera body forward. Finally, the camera is assembled to the ceiling bracket rmly.
5. Finally, connect to the power supply and the network cable to the connectors on the back of camera.
Figure 2 - 6: Firmly assemble Bracket with Camera
2.2.3 Dismantle the Camera from the Ceiling Bracket
The camera can be detached from the ceiling bracket with ease.
1. Pull out the rear lid.
Figure 2 - 7: Detach Rear Lid

9
English
Press the hook to
release it first
Pull camera backward to
dismantle from bracket
2. Press up the circle marked hook with one hand, and pull the camera body backward by the other
hand to fully dismantle the camera from the ceiling bracket.

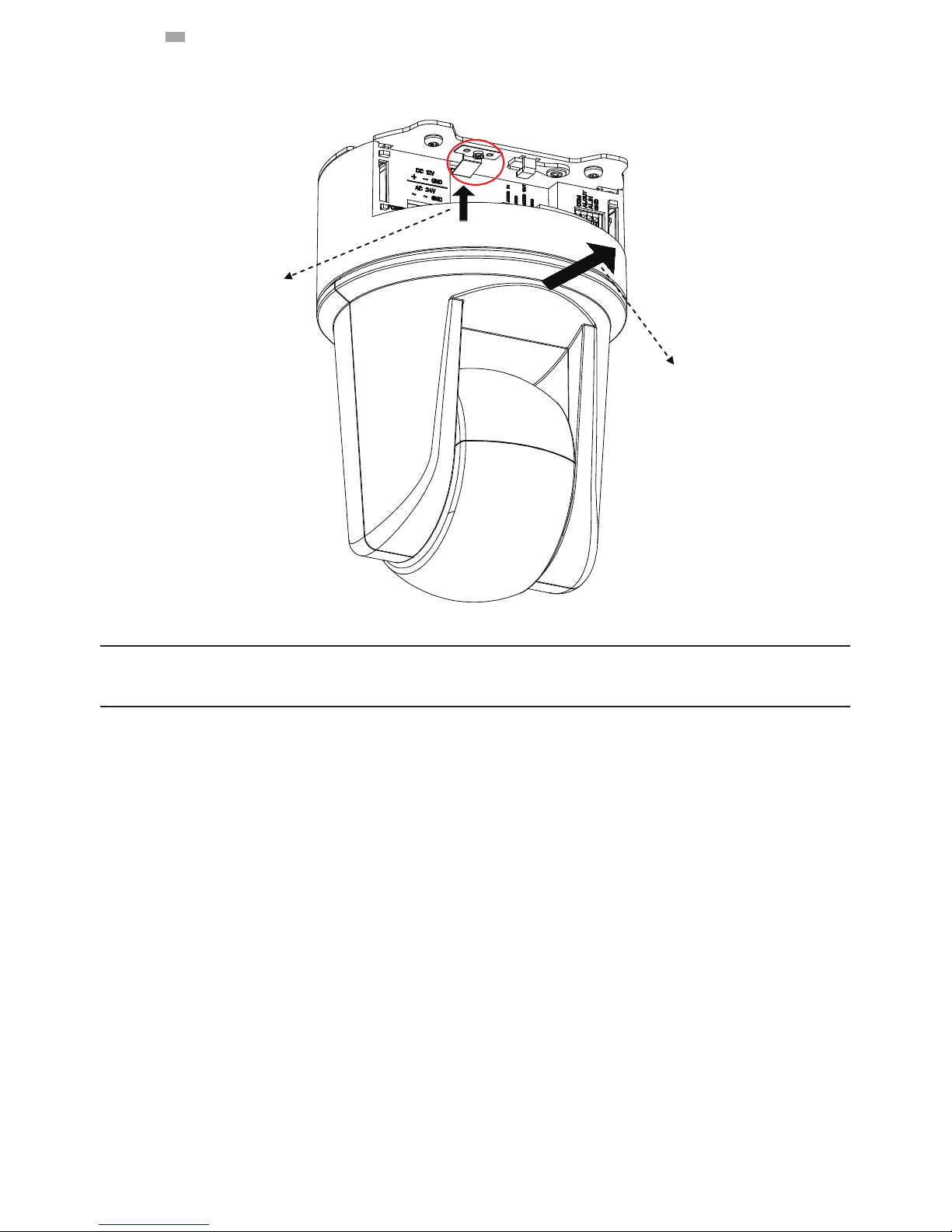

Figure 2 - 8: Push Hook to detach Camera from Bracket
Warning Depending on the mounting surface, you may require dierent screws and anchors from those supplied, e.g.,
wall mounting. Please purchase required equipment depending on your desired applications.

10
English
2.2. Connecting the Wires
After opening the rear lid of the camera, you will see various connectors for dierent usages. Please refer to the following
parts for more details.
Power
AC 24V
Connect the power terminal with AC 24V power source.
DC 12V
Connect 12V (-) to terminal =DC 12V-, and connect 12V (+) to terminal =DC 12V+
PoE
Connect the RJ-45 jack to a PoE compatible network device that supplies power and internet
connection capability through the Ethernet cable.
Caution • Never connect more than one type of power supplies at the same time to avoid
damage to the unit.
• If using DC supply, make sure the polarity is correct. Incorrect connection may
cause malfunction and/or damage to the unit.
Control
Network
Insert audio in/out cables and alarm in/out cables to the corresponding connectors of the unit if required.
Using an Ethernet cable, connect one end to the RJ-45 connector of the unit and the other end to a LAN port of a network device,
such as a hub, a switch, or a router, on your local network to obtain network connectivity.

11
English
3Connection
3.1 Network Topology
The unit, which is equipped with Ethernet RJ-45 network interface, can deliver video images and audio in real time via either
Internet or Intranet. Please refer to the skeleton drawings shown below for understanding.
Figure 2 - 9: Network Topology Type 1
Below table lists the minimum requirement to implement and operate the unit. No hardware/software component inferior to
the requirements is recommended.
Table 2 - 1: System Requirements
System Hardware
CPU Intel Pentium 4 2.4GHz or equivalent
RAM 1 GB
Display NVIDIA GeForce 6 Series or ATI Mobility Radeon 9500
System Software
Operating System Microsoft Windows Vista, or Windows 7
Browser Microsoft Internet Explorer 9 or above
Unit
Power Supply DC 12V / AC 24V / PoE
Networking
Wired* 10/100BASE-T Ethernet (RJ-45 connector)
*a switch is required for surveillance on multiple units
Caution
Note All the installation and operations should comply with your local electricity safety rules.
To avoid damage to the unit, never connect more than one type of power supplies (PoE IEEE802.3 Ethernet
Class 0 or DC 12V / AC 24V power plug) at the same time. If using PoE, this unit must be connecting only to
PoE networks without routing to heterogeneous devices.

12
English
3.3 Connecting Process
3.3.1 Default IP address
Since this is a network-based unit, an IP address must be assigned at the very first. The unit’s default IP address is
192.168.1.30. However, if you have a DHCP server in your network, the unit would obtain an IP address automatically from
the DHCP server so that you don’t need to change the camera’s IP address. Please be sure to enable DHCP in "Network/Basic
settings" in advance.
3.3.2 Connecting from a computer & Viewing Preparation
Connecting from a computer
1. Make sure the unit and your computer are in the same subnet.
2. Check whether if the networking available between the unit and the computer by executing ping the default
IP address. To do this, simply start a command prompt (Windows: from the Start Menu, select Program.
Then select Accessories and choose Command Prompt.), and type“Ping 192.168.1.30”. If the message
“Reply from…”appears, it means the connection is available.
3. Start Internet Explorer and enter IP address: 192.168.1.30. A login window should pop up. In the window,
enter the default user name: admin and password: 1234 to log in.
Further administration on the unit can be found in “User Manual” available on MESSOA website.

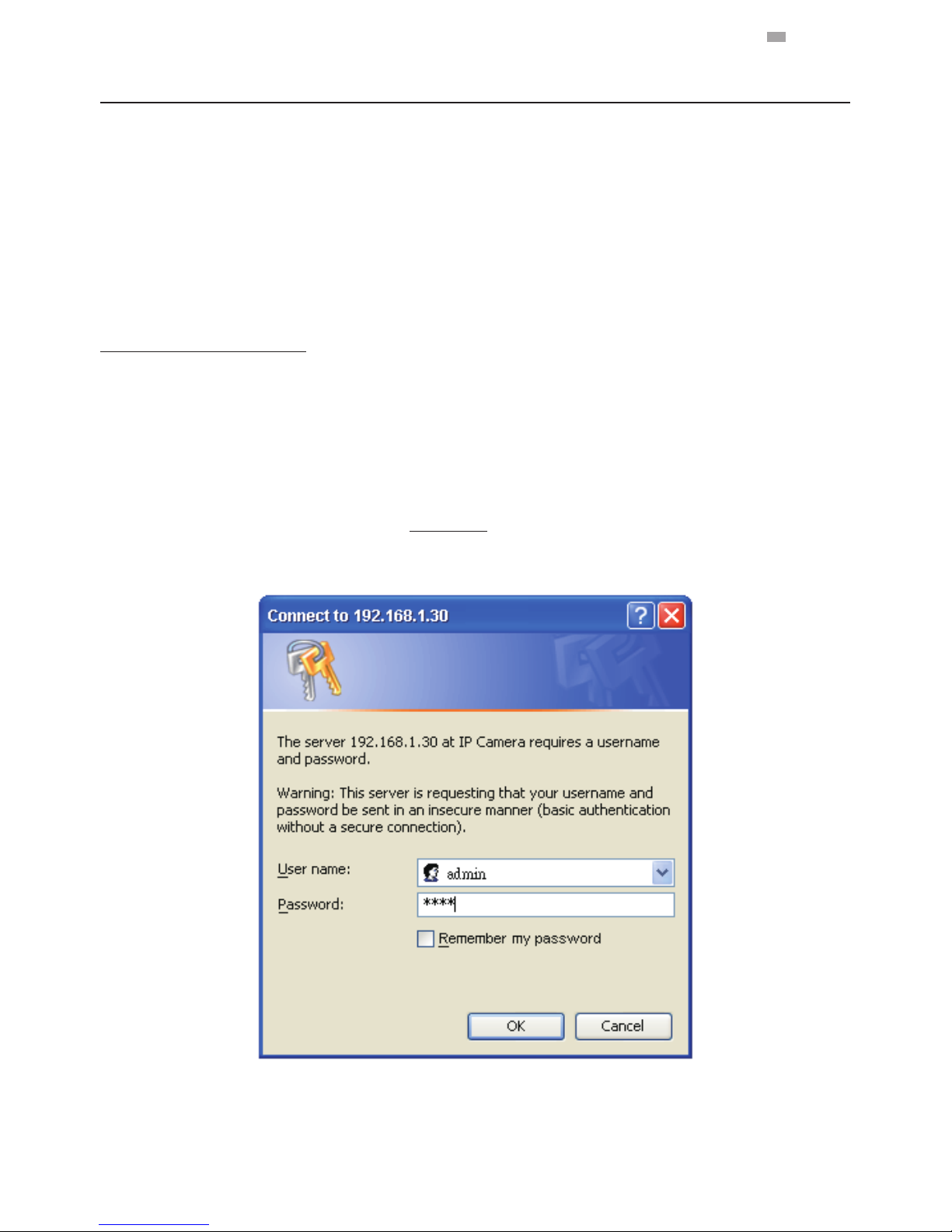

Figure 2 - 10: Login Window

13
English
Viewing Preparation
Images of the unit can be viewed through Microsoft Internet Explorer 8 or above. Before viewing, follow these steps to
enable the display.
1. Enable Cookies as instructions below
 In Internet Explorer, click Internet Options on the Tools menu.
 On the Privacy tab, move the settings slider to Low or Accept All Cookies.
 Click OK.
2. When a proxy server is used, click Internet Options on the Tools menus of Internet Explorer, select Connect
tab, click LAN button, and set proxy server.
3. Change Security in Internet options as instructions below
 On tool menu, click Internet Option.
 Press the Security tab.
 If the camera operates inside of the intranet, click the Intranet icon.
 If the camera operates outside of the intranet, click the Internet icon.
 Click Custom Level. This will open the Security Settings – Internet Zone screen.
Figure 2 - 11: Security Setting 1/4

14
English
Scroll down to the ActiveX controls and plug-ins radio buttons and set as follows:
【Download signed ActiveX controls】 Prompt (recommended)
【Download unsigned ActiveX controls】 Prompt
【Initialize and script ActiveX not marked as safe for scripting】 Prompt
Figure 2 - 12: Security Setting 2/4
【Automatic prompting for ActiveX controls】Enable
Figure 2 - 13: Security Setting 3/4

15
English
【Run ActiveX controls and plug-ins】Enable
【Script ActiveX controls marked safe for scripting*】Enable
Figure 2 - 14: Security Setting 4/4
Press OK to save the settings.
Close all Microsoft Internet Explorer Windows and restart a new window. This will allow the new settings taking eect.
Type your setting IP address into the browser.
Then you should be able to see the camera image screen.

16
English
3.4 IP Finder
IP Finder is a utility program that helps users locate the unit in the local area network which the computer is connected to.
Please note that IP Finder works only on Microsoft Windows XP, Microsoft Windows Vista, and Microsoft Windows 7. Steps to
get the utility program running are listed below.
1. Download IP Finder from MESSOA Website to the computer.
2. Double click on IPFinder.exe in the IP Finder folder, and the IP Finder window should pop out.
3 The window would list information of units in operation at present. Press FIND CAMERA to nd more units.
4. Locate and double-click one of the cameras in the list you want to congure the network settings. If you have multiple
cameras connected to your local network, locate the MAC address on the camera to distinguish the target camera from
others.
5. Congure the following settings as needed.
NAME: Enter a descriptive name for the camera.
NETWORK SETTINGS: If you have a DHCP server on your network to assign IP addresses to network devices, enable the
DHCP option. Otherwise, manually enter the IP ADDRESS, NET MASK and GATEWAY values.
USERNAME & PASSWORD: Manually setup preferred username and password.
SET: Whenever you make revision of camera settings, click“SET” to take eect.
SW DEFAULT: To perform the factory defaults excluding network settings of the selected camera.
HW DEFAULT: To perform the factory defaults of the selected camera.
RESET: To reboot the selected camera.
Click Save to enable the settings and click Exit to exit the utility.
Figure 2 - 15: IP Camera Finder
