Metalform Tow and Farm Tow and Collect 1500 Pro User manual

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 1 of 30
Tow and Collect
1500 Pro
Owner’s Guide
&
User Manual

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 2 of 30
DISCLAIMER!
Read this Manual from start to finish before attempting to assemble, use or maintain the Equipment to
which it refers. Do not attempt assembly, use or maintenance unless you know what you are doing. We
accept no responsibility if you fail to follow the instructions in this Manual.
If you do not understand a point in this Manual, don’t guess. Don’t take short cuts. If in doubt, stop!
Contact us or our authorised representatives for advice. We are here to help.
The Equipment is designed for easy assembly and use by persons who are reasonably familiar with farm
implements and machinery. However, some of the maintenance procedures may require special tools or
consumables or a level of experience with farm implements and machinery than you may not possess. If
you encounter any difficulties, contact us or your own mechanic or technician for assistance.
To reduce packaging and freight costs, the drawbar is not attached to the Equipment. Assembly of the
drawbar to the Equipment is your responsibility.
For each customer, operating conditions will vary, sometimes greatly. Such variations may affect the
Equipment’s performance. We have no control over your unique operating environment. Hence, we make
no representations or warranties concerning the Equipment’s performance under your actual operating
conditions.
We made every effort to explain the assembly, operating, maintenance and safety procedures as clearly
and completely as possible. Nonetheless, it is not possible to anticipate, nor address, every conceivable
problem that may arise. This problem is compounded by the fact that no two operating environments are
exactly the same. Therefore, we are not able to guarantee that this Manual will address every issue or
problem that might arise concerning the assembly, operation, maintenance or safety of the Equipment to
which it relates.
This Manual is intended to provide you with general guidance. For specific guidance and support, contact
us or our authorised representative.
If you do not follow the assembly, use, maintenance and safety procedures in this Manual, the Equipment
may not function as expected. More seriously, it may cause property damage, personal injury or other
losses.
Use the Equipment at your own risk. We accept no liability for direct, indirect, incidental, special, or
consequential damages resulting from your failure to follow the assembly, use, maintenance and safety
procedures in this Manual. The foregoing limitation extends to damages for personal injury, damages to
your vehicle and other property damage, whether suffered by you or by a third party.
We used all due care in preparing this Manual. However, we accept no liability for errors or omissions.
We reserve the right to change the design or specifications of the Equipment, or the information in this
Manual, without notice.
Assembly, use and maintenance of the Equipment is entirely your risk and responsibility.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 3 of 30
INTRODUCTION
Welcome
Metalform Tow and Farm takes this opportunity to welcome you as the new owner of a
Tow and Collect. We want you to get the best results from your new Collector and this user manual will
help you achieve this objective.
The safe operation and maintenance of your Tow and Collect is very important to prevent personal injury,
damage to the machine, other property and the environment.
We suggest you read and fully understand its coverage and your responsibilities of ownership prior to
operating the machine or carrying out maintenance.
Best wishes and kind regards,
New Zealand
Metalform Tow and Farm
74 Miller Street
Dannevirke, 4930
New Zealand
Phone: [phone]
Email: [e-mail]
Web: www.towandfarm.co.nz
Australia
Tow and Farm
105-117 Boundary Road
Laverton North, VIC 3026
Australia
Phone: [phone]
Email: [e-mail]
Web: www.towandfarm.com.au
UK / Europe
Tow and Farm
Wood End
Prospect Road
New Farm Road Industrial Estate
Alresford
Hampshire, SO24 9QF
England
Phone: [phone]
Email: [e-mail]
Web: www.towandfarm.co.uk
USA / Canada
Tow and Farm, Inc.
105 Kendall Park Lane S,
Atlanta GA 30336
USA
Phone: [phone]
Email: [e-mail]
Web: www.towandfarm.com

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 4 of 30
INTRODUCTION
Notes about Safety
Your safety and the safety of others are very important. Using this machine safely is an important
responsibility.
To help you make informed decisions about safety, we have provided operating procedures and other
information in this manual. This information alerts you to potential dangers and hazards that could injure
yourself or others.
You will find safety information in the following forms;
•Safety Labels –displayed on the machine.
•Safety Messages –proceeded by a safety alert symbol and one of these three signal words;
DANGER, WARNING and CAUTION.
•Safety Headings –such as IMPORTANT SAFETY INFORMATION
•Instructions –how to use the machine correctly and safely.
This book is filled with safety information –please read it carefully!
WARNING!
Do not start, operate or service machine until
you have read and understand the Owners
Guide and User Manual.
Failure to do so could result in serious injury.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 5 of 30
CONTENTS
SAFETY...........................................................................................................................................................6
WARRANTY....................................................................................................................................................7
OPERATION ...................................................................................................................................................8
Safe Operation Precautions........................................................................................................................8
Before Operation.........................................................................................................................................8
Location of Features and Controls..............................................................................................................9

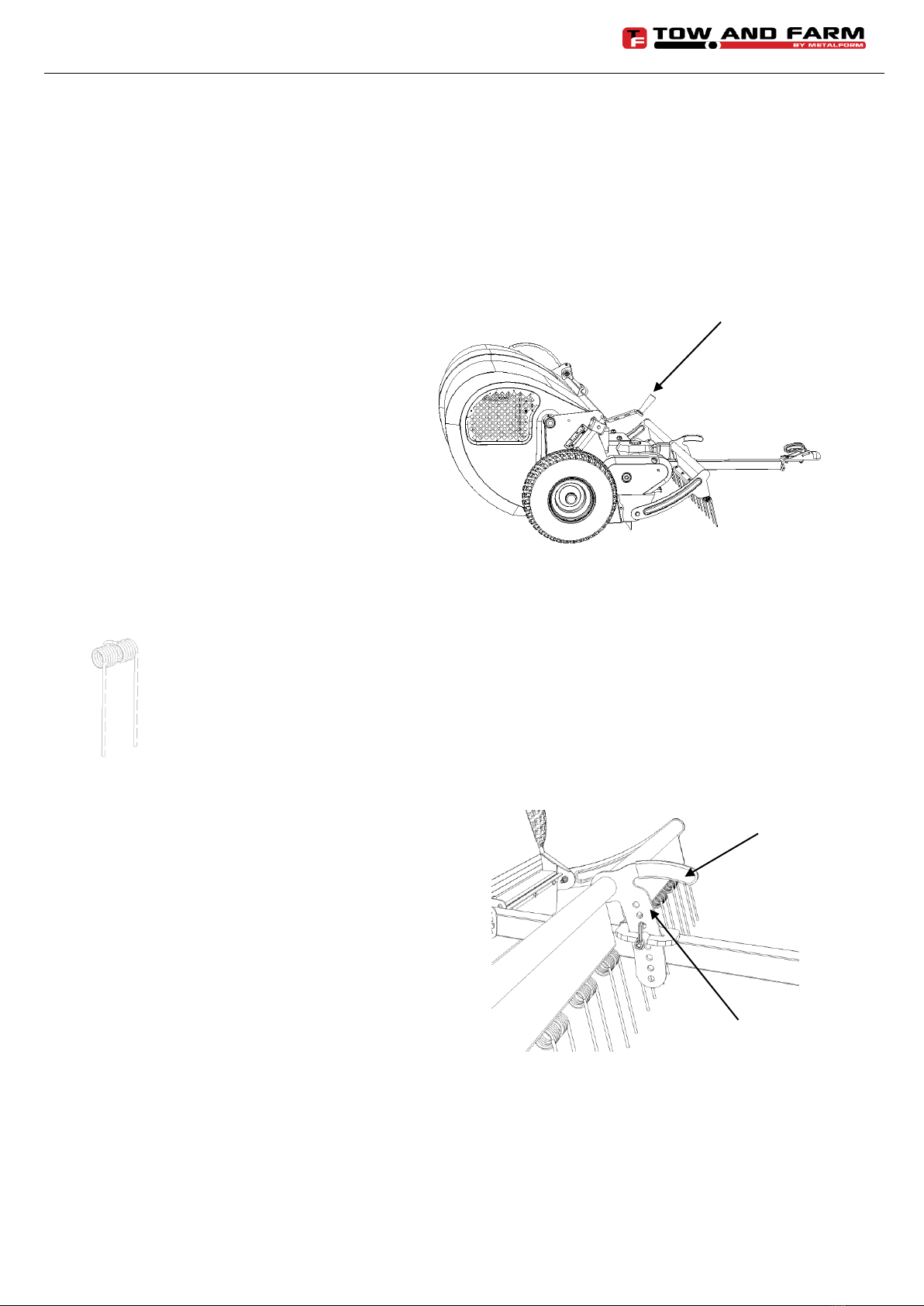

Machine Height Adjustment ......................................................................................................................10
Tine Height Adjustment.............................................................................................................................10
Catcher Opening .......................................................................................................................................11
Catcher Closing.........................................................................................................................................11
Using the Tow and Collect ........................................................................................................................12
Hints for Operation ....................................................................................................................................13
Troubleshooting.........................................................................................................................................13
SERVICING...................................................................................................................................................14
The Importance of Maintenance ...............................................................................................................14
Maintenance Safety...................................................................................................................................14
Maintenance Schedule..............................................................................................................................15
Tyre Pressure............................................................................................................................................15
Gearbox Oil ...............................................................................................................................................15
Engine Oil..................................................................................................................................................16
Air Filter.....................................................................................................................................................16
Air Cooling Intake......................................................................................................................................16
Lubrication.................................................................................................................................................17

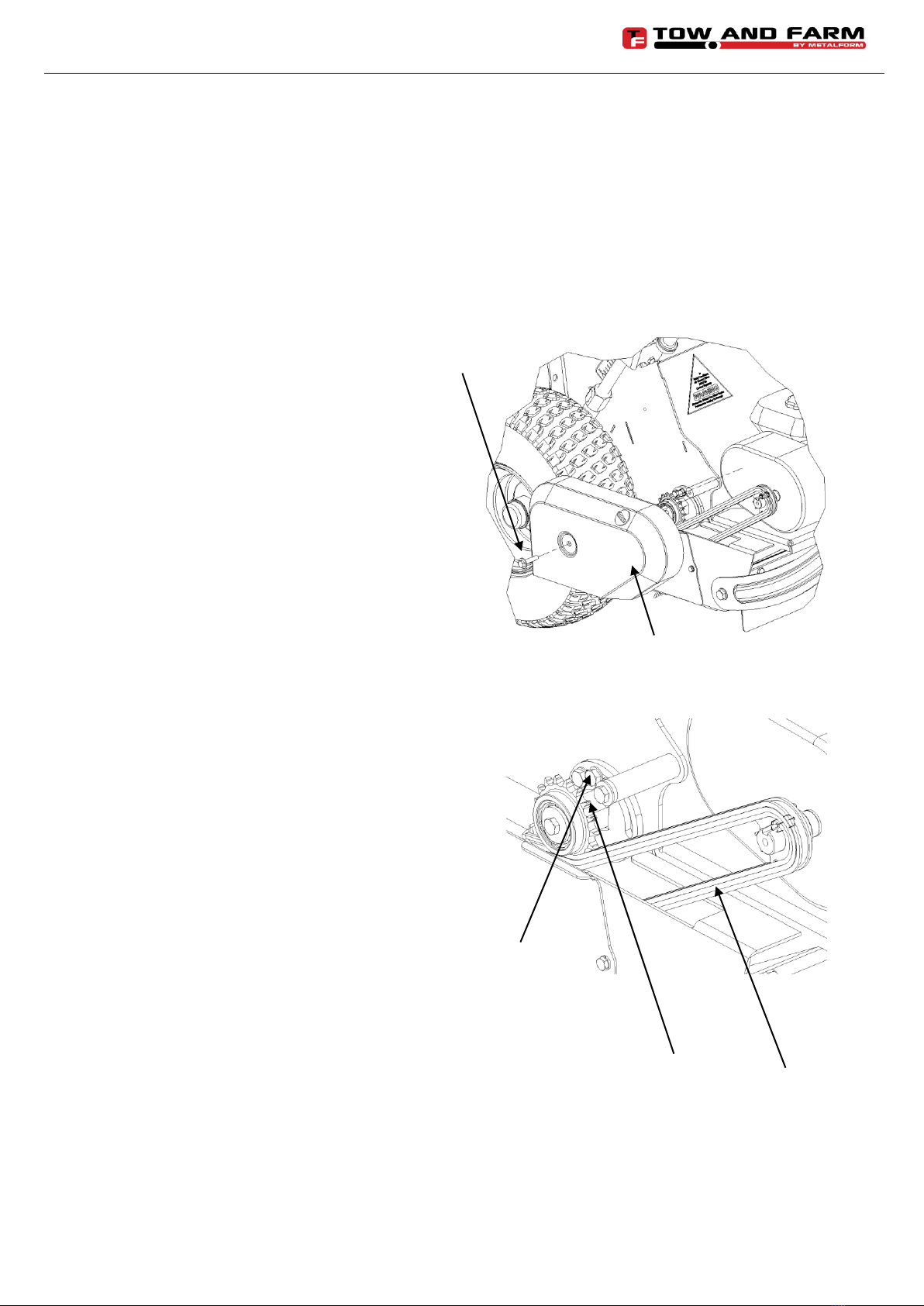

Chain Tensioning ......................................................................................................................................18
Replacing the Rubber Skirt .......................................................................................................................19
Replacing the Brushes..............................................................................................................................20
Replacing the Tines...................................................................................................................................22
CONSUMER INFORMATION .......................................................................................................................23
Technical Information................................................................................................................................23
Serial Number Location.............................................................................................................................23
Spare Parts List.........................................................................................................................................24
Spare Parts Exploded View.......................................................................................................................28
Consumer Help and Information ...............................................................................................................29

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 6 of 30
SAFETY
Read and understand this owner’s manual before operating this machine. Failure to do so could result
in personal injury or equipment damage.
Know and understand the operation of all the controls. Never permit anyone to operate the machine
without proper instructions.
WARNING!
•NEVER allow any person to ride on the Tow and Collect.

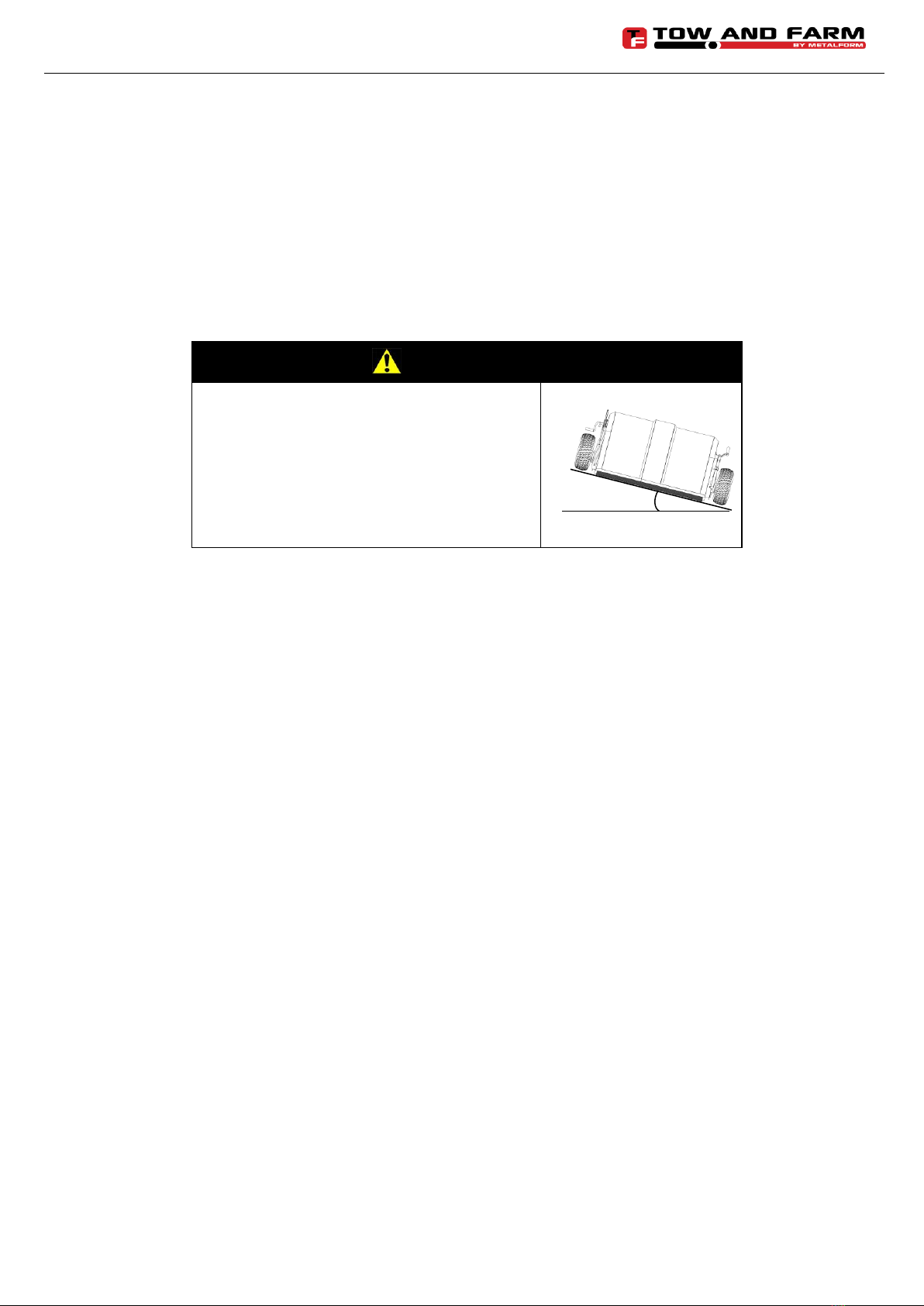

•NEVER use on slopes with an incline greater than 9º (1:5 gradient).
•ENSURE you read and understand the owner’s manual for the tow vehicle before operation.
•KEEP children and pets away from area of operation.
•ENSURE the tow hitch is in good repair and fit for towing. Ensure the tow ball on the tow vehicle is
the correct size for the Tow and Collect.
•Never allow any person to stand close to the machine when it is operating.
•Where possible avoid operating in areas with rocks and loose debris as these can be flung out at
speed and may also jam the brush spindle.
•Eye protection and ear protection must be worn at all times.
•Do not open catcher while moving or while engine is running
•Do not place hands or feet under the collector.
•Never allow a person under the age of 18 years to operate the Tow and Collect.
•Never use the Tow and Collect under the influence of alcohol or drugs.
•In dusty conditions, air cleaner filters must be cleaned regularly. A blocked air cleaner can affect
engine performance leading to damage.
•Always keep machine clean from any grass. If grass deposits on the machine while operating,
switch engine off, let stand for 30 minutes and clear.
•DO NOT overfill the engine with fuel.
•DO NOT spill fuel during re-filling. If spillage occurs, clean thoroughly and let stand for 30 minutes
before attempting to start the engine.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 7 of 30
WARRANTY
We warrant the Tow and Collect against defects in materials and workmanship. The term of this warranty
is one year from date of purchase.
This is a parts only warranty. You are responsible for disassembling the defective part and reassembling
the new part. We shall not be responsible or liable for the cost of field labour or other charges incurred by
you in removing and/or reassembling any part.
This warranty is void in circumstances where: (a) The Tow and Collect has been misused, abused,
neglected or damaged; (b) The Tow and Collect has been improperly assembled, repaired, serviced or
maintained; (c) The Tow and Collect has been modified; (d) The Tow and Collect has been connected to
other equipment with which it is not compatible; or (e) The Tow and Collect has been used for purposes
other than for which it was designed.
To make a warranty claim, contact us at the address below. Describe the problem to us. We will tell you
what to do next.
If we need to inspect, test or repair the part that is the subject of your claim, it is your responsibility to ship
the part to us at your cost. If we accept your warranty claim, we shall either repair or replace the defective
part in our discretion. We shall then ship the part back to you at our cost.
If the Tow and Collect is off-warranty or otherwise not subject to a valid warranty claim, we will repair or
replace the Tow and Collect, or part thereof, at your cost
Our sole responsibility is to repair or replace a part that is subject to a valid warranty claim. Under no
circumstance will we be liable for direct, indirect, incidental, special or consequential costs or damages to
the maximum extent permitted by law. The foregoing disclaimer extends to damages for personal injury,
damages to other equipment, other property damage, whether suffered by you or by a third party.
We accept no liability resulting from your failure to heed the assembly, use, maintenance and safety
instructions in our Owner’s Guide & User Manual.
This is an express warranty. We disclaim any other express or implied warranties, including warranties of
merchant-ability or fitness for purpose, to the maximum extent permitted by law.
Some jurisdictions do not allow limitations or disclaimers of implied or statutory warranties. Some
jurisdictions do not allow disclaimers or exclusions of consequential or incidental damages. Therefore, the
above disclaimers, limitations and exclusions may not apply in all jurisdictions in which we sell the Tow and
Collect.
This warranty gives you specific legal rights. You may have other rights or remedies pursuant to the laws
in your territory. Nothing in this limited warranty should be construed as limiting or restricting any other
statutory right or remedy that is available to you, except for such limitations or restrictions herein as may be
allowed by the law of the territory.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 8 of 30
OPERATION
Safe Operation Precautions
Before operating machine for the first time, please review the important SAFETY information on page 6.
Before operating machine, read and understand the Owner’s Manual and safety precautions of the tow
vehicle.
Before Operation
•Ensure you read and understand the Engine Owner’s Manual for the supplied engine.
•Ensure that there is oil in the gearbox and filled to the correct marked level (see Maintenance
Schedule on page 17).
•Ensure there is oil in the engine and filled to the correct marked level (see Maintenance Schedule
on page 17).
•Ensure chain is lubricated (see Maintenance Schedule on page 17).
•Ensure the tow bar height is correctly set so that the body of the collector sits level to the ground
(different tow vehicles have different tow ball heights, so it’s important to set the Tow and Collect to
the correct height.)
•Check that tyre pressure is in the range 5 –7 psi (34 –48 kPa). Check the condition of the tyres,
look for signs of wear, cuts and impact damage. Ensure that the tyre pressure is the same in each
wheel.
DO NOT over inflate tyres: If the pressure is too high the Tow and Collect will bounce on rough
terrain, however if the pressure is too low, as the catcher fills the extra weight will compress the
tyres and lower the effective brush height.
DANGER!
DO NOT use on slopes with an incline greater
than 9° (1:5gradient)
Exceeding this slope angle will cause the Tow
and Collect and the tow vehicle to be
unbalanced and may tip over causing death or
serious injury.
9º MAX

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 9 of 30
OPERATION
Location of Features and Controls
Tow Coupling
Tine Assembly
Height Adjuster
Chain Oil
Access Plug
Chain Guard
Cover
Rubber Skirt
Height Adjuster
Handle
Catcher Vent
and Sight Holes
Engine
Polyurethane
Catcher
Electric Key Start
Battery Box
Catcher
Opening Handle
Tine Bar
Assembly
Fig. 3

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 10 of 30
OPERATION
Machine Height Adjustment
Height adjustment should only be done once the machine has been attached to the tow vehicle. This is
because tow hitches vary in height.
- To raise the machine height, wind the
height adjuster handle (1) in a clockwise
direction. This will lift the brushes up.
- To lower the machine working height, wind
the adjuster handle (1) in an anti-clockwise
direction. This will lower the brushes down.
Tine Height Adjustment
The scouring tines on the front of the collector can be used when required, then adjusted out of
the way when not required.
Tines are useful for when picking up hard manure or if the grass is long. It breaks up the
manure and makes it easier to pick up.
NOTE: Tine adjustment should only be done once the machine has been attached to the tow
vehicle and the machine height has been set.
1. Support weight of tine bar by holding the handle
(2) and rotate lock pin (3) to release.
2. Position the tine assembly at desired height and
rotate lock pin (3) to secure the assembly at
desired height.
(1)
(2)
(3)
Fig. 4
Fig. 5

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 11 of 30
OPERATION
Catcher Opening
NOTE: Do not over-fill the catcher!
If the catcher is over-filled it will be difficult to empty.
WARNING: The catcher opening is assisted with a pressurised gas strut. Ensure the catcher handle (4) is
held securely during entire opening process!
1. Hold catcher handle securely (4)
2. Rotate and pull lock pin (5) to release.
3. Carefully wind catcher opening handle (4) to lift
open catcher.
Note: Use the lock pin (5) to hold the catcher open if
necessary.
Suggested emptying procedure:
1. Reverse the Collector to a suitable dump site.
2. Open the catcher as described above
3. Move tow vehicle forward 1 metre (3 feet)
4. Close the catcher
Catcher Closing
WARNING: The catcher is assisted with a pressurised
gas strut. Ensure the catcher handle (4) is held
securely during entire closing process!
1. Securely hold the catcher handle (4), and
rotate lock pin (5) to release.
2. Wind catcher handle (4) to close.
3. While still holding the catcher handle (3),
rotate lock pin (5) to lock catcher closed.
(4)
(5)
(5)
(4)
Fig. 6
Fig. 7

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 12 of 30
OPERATION
Using the Tow and Collect
The Tow and Collect has been designed to reduce time collecting manure and provide healthier pastures
for your horses.
NOTE: Ensure you read and understand the Engine Owner’s Manual prior to starting engine.
1. Hitch the Tow and Collect onto your ATV, 4-wheeler or any other similar stable vehicle.
2. Start the engine
a. Move the throttle lever to the Idle position
b. Slide the choke lever to the on position
c. Turn the key to the right, until the engine starts.
d. Once engine has started slide the choke to the off position and let the engine warm up for 2-3
minutes.
e. NOTE: After warm up, the throttle must be placed at full revs. If the machine is
operated at low revs, there is a chance the centrifugal clutch will only partially engage which may
cause it to wear excessively and burn out
3. Set the height of the Tow and Collect - dependent on grass length and ground conditions.
NOTE: Ensure the brushes are not lowered hard onto the ground which causes extra load onto the
engine and gearbox and potentially cause damage.
4. Drive around the paddock/field focusing on the areas requiring manure/debris pickup.
5. Turn off the engine (or lower revs to idle).
6. Reverse the Tow and Collect to a suitable dumping site. Empty the catcher easily, with the gas
strut assisted opening mechanism (as described in Catcher Opening on page 13)
See www.towandfarm.com for videos and more information.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 13 of 30
OPERATION
Hints for Operation
NOTE: Recommended tow vehicle capacity is 300cc or higher.
•Finding the perfect settings for your Tow and Collect largely depends on the current conditions of
your pasture. So if you don’t get it right the first time, don’t be concerned.
•Using the Tow and Collect regularly improves the health of your pasture and animals. Regular
pickups will also make the process easier by slowly removing all thatch and debris from the
pasture.

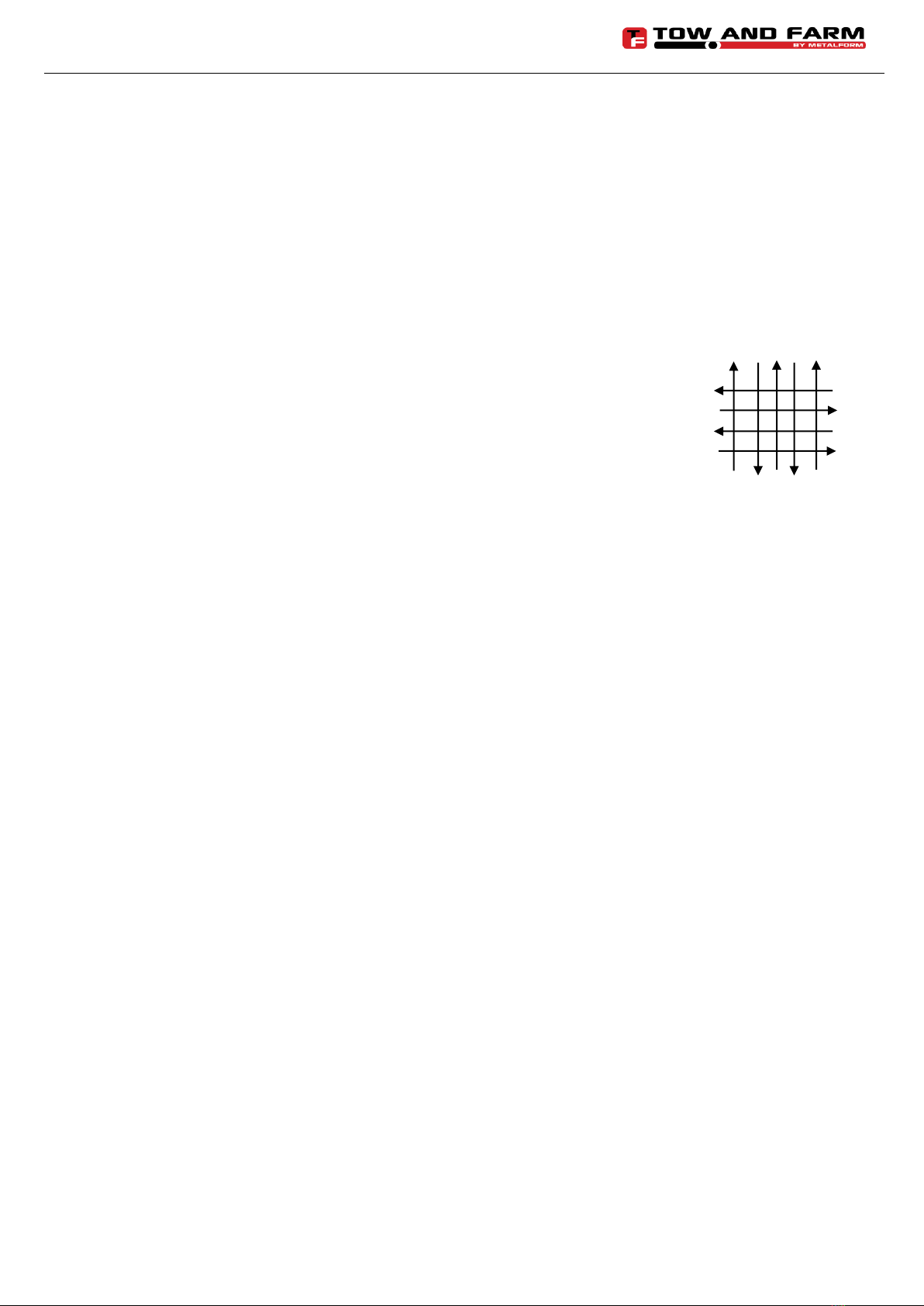

•The first time you use your Tow and Collect, try driving in a ‘grid’ fashion (see
image on right). This is so the approach on the pasture comes from all directions.
Troubleshooting
My Tow and Collect does not pick up the manure or debris!
- Ensure the brush height is set so the brushes are ‘only just’touching the ground.
- If the grass length is greater than 125mm (5”), cut grass first (suggested product is the Tow and
Mow. see www.towandfarm.com)
- Recommended travelling speed is 8-12 kph (5-8 mph).
- Check for brush wear. When the brushes slowly wear down, they become less efficient. Replace
brushes when bristles get too short (see page 20).
- Check that the inside of the Tow and Collect is not jammed. Open catcher and clean chute.
The catcher is hard to empty!
- Don’t overfill catcher. If machine begins to perform badly, it may mean the catcher is full.
- If catcher is overfilled, the manure/debris will be too compacted, making it hard to empty.
The manure is too hard and dry to pick up!
- When the manure is very dry, use the tines to lift the manure and break the seal on the ground.
The manure is too wet to pick up!
- Lift tine assembly up and out of the way.
- Try driving slower over the concentrated area’s.
My Tow and Collect pulls out grass or picks up too much dead grass!
- Because it uses a rotating brush, it will pick up everything it can. The more you use it, the less
dead grass there will be for it to collect.
Fig. 8

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 14 of 30
SERVICING
The Importance of Maintenance
Good maintenance is essential for safe, economical and trouble-free operation.
To help you properly care for your Tow and Collect, the following pages include a maintenance schedule,
routine inspection procedures, and simple maintenance procedures using basic hand tools. Other service
tasks that are more difficult, or that require specific tools, should be carried out by a qualified service
technician or qualified mechanic.
The maintenance schedule applies to normal operating conditions.
Maintenance Safety
•Ensure the engine is switched off, fuel is switched off and engine is cool before attempting any
maintenance tasks. This will eliminate several potential hazards;
- Carbon Monoxide poisoning from the exhaust
Be sure there is adequate ventilation wherever you operate the engine
- Burns from hot parts
Let the engine and exhaust system cool before touching
- Injury from moving parts
Do not run the engine unless instructed to do so
•Read the instructions before you begin and make sure you have the tools and the skills required.
•To reduce possibility of fire or explosion, be careful when working around gasoline. Use only a non-
flammable solvent, NOT gasoline, to clean parts. Keep cigarettes, sparks and flames away from
all fuel-related parts.
To ensure the best quality and reliability, use only new genuine Tow and Farm parts or their equivalent for
repair and replacement.
WARNING!
Always follow procedures and precautions in
the owner’s manual.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 15 of 30
SERVICING
Maintenance Schedule
Item
Each Use
Every
month or
10 hrs
Every
3 months
or 25 hrs
Every
6 months
or 50 hrs
Every
12 months
or 100 hrs
Refer to
Page
Check Tyre Pressure
√
17
Check Gearbox Oil
√
17
Change Gearbox Oil
√
17
Check Engine Oil*
√
17
Change Engine Oil*
√
18
Check Air Filter*
√
18
Check Cooling System*
√
18
Lubrication
√
19
Check Chain Tension
√
20
Rubber Skirt Replacement
√
21
Brush Replacement
√
22
Tine Replacement
√
24
Perform at every indicated month or operating hour interval, whichever comes first.
*NOTE: See Engine User Manual for detailed information about servicing and maintaining the engine.
Tyre Pressure
Check that tyre pressure is in the range 10 –20 psi (69 –138 kPa). The factory setting is 20 psi (138 kPa).
Check the condition of the tyres, look for signs of wear, cuts and impact damage. Ensure that the tyre
pressure is the same in each wheel.
DO NOT over inflate tyres: If the pressure is too high the Tow and Collect will bounce on rough terrain,
however if the pressure is too low, as the catcher fills the extra weight will compress the tyres and lower the
effective brush height.
Gearbox Oil
NOTE: The gearbox is a 2:1 reduction ratio with a centrifugal clutch. This means it is designed so when
the engine is at idle, the brushes do not turn. As soon as you increase the revs on the engine, the brushes
will begin to turn.
To change the oil in the gearbox, you will require 400mL of synthetic oil of grade 20W-50 or similar. It is a
wet clutch and requires similar oil to that of a 4-stroke engine.
WARNING!
If brushes become jammed with any foreign objects restricting them to turn freely,
please ensure you shut engine down immediately. If the engine continues to run –
the clutch on the gearbox will slip and cause damage to the clutch plates.

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 16 of 30
SERVICING
Engine Oil
Read the Engine User Manual for details on how to check and replace engine oil.
Air Filter
NOTE: Read the Engine User Manual for details on how to check and clean the air filter element.
Air Cooling Intake
NOTE: Read the Engine User Manual for details on how to check and clean the cooling system.
The engine is cooled by air being forced around the engine. The air intake is generated by a rotating
impeller under the recoil start guard.
Ensure this is checked regularly to ensure that it hasn’t sucked debris or grass which can reduce the
cooling of the engine.
WARNING!
A poorly maintained air cleaner increases risk
of fire caused by engine backfire.
Ensure air cleaner is correctly maintained and
kept clean
WARNING!
Debris and blockages around the cooling fins
of the engine causes overheating.
Ensure the cooling system is correctly
maintained and kept clean

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 17 of 30
SERVICING
Lubrication
Grease Nipples
The Tow and Collect has 4 grease nipples.
- 1 is located at both ends of the catcher pivot (6)
- 2 are located on the height adjuster assembly (7)
Ensure they are lubricated (with Multi-Purpose grease or similar) each interval as per Maintenance
Schedule to provide smooth operation and eliminate unnecessary wear on the moving parts.
Chain
The rotating brushes are driven from the engine which is connected by a chain on the right hand side of the
Tow and Collect.
Ensure the chain is lubricated at each interval as per Maintenance Schedule on page 17.
CAUTION: Make sure the Tow and Collect is disconnected from the tow vehicle and engine is switched off
before attempting to remove chain access plug (step 1).
1. Remove the chain access plug by pulling toward you.
2. Hold chain lube can 200mm (8”) away from chain and
spray onto chain where visible.
NOTE: Use chain lube spray or equivalent.
3. Move Tow and Collect FORWARD 600mm (25”) and
repeat step 2.
CAUTION: Ensure no loose clothing or other persons
are near the Tow and Collect whilst moving forward.
4. Replace chain access plug firmly.
(Chain access plug)
(6)
(7)
Fig. 9
Fig. 10

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 18 of 30
SERVICING
Chain Tensioning
NOTE: The following task requires is recommended to be carried out by a qualified service technician or
qualified mechanic.
Ensure chain tension is checked each at interval as per Maintenance Schedule on
page 17.
1. Loosen M8 Bolt on side of chain cover
and remove.
2. Remove Chain Cover by pulling away
from machine.
3. Loosen both M8 Lock Bolts on tensioner
with spanner (loosen only –do not
remove!)
4. Using a 32mm spanner, fit to top of Hex
Shaft on chain tensioner and apply force
anti-clockwise.
5. While maintaining force on tensioner
assembly, tighten up one M8 Bolt.
6. Tighten other M8 Bolt.
7. Replace cover and tighten M8 Bolt to fasten.
M8 Bolt
Chain Cover
Hex Shaft
2 x M8
Lock Bolts
Chain
Fig. 11
Fig. 12

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 19 of 30
Rubber Skirt
M8 x 20 Bolt
M8 Nyloc Nut
Stiffening Bar
Rubber Skirt
Cross-section view
of Rubber Skirt and
mounting position.
SERVICING
Replacing the Rubber Skirt
NOTE: The following task requires special tools and is recommended to be carried out by a qualified
service technician or qualified mechanic.
The rubber skirt is to stop debris being ‘flung’ forward during the pickup process.
Ensure rubber skirt is changed at each interval as per Maintenance Schedule on
page 17.
NOTE: This task requires special tools.
The Rubber Skirt is shown on the machine in the diagram
on the right.
1. Remove Rubber Skirt by loosening and removing
6 x M8 Bolts and Nuts.
2. Replace Rubber Skirt
3. When assembling, ensure the Stiffening Bar is
inserted the correct orientation (see Fig. 14).
4. Tighten all bolts.
Fig. 13
Fig. 14

Owner’s Guide & User Manual
Tow and Collect 1500 Pro
Page 20 of 30
SERVICING
Replacing the Brushes
Ensure brushes are changed at each interval as per Maintenance Schedule on page 17.
NOTE: The following task requires special tools and is recommended to be carried out by a qualified
service technician or qualified mechanic.
To gain easy work access to the underneath of the machine, remove the Draw Bar and Tine Bar as
described in the following steps.
•Remove the Tine Bar and Drawbar
1. Disengage height adjuster pin on tine bar and remove
tine bar from locator slot.
2. Loosen and remove bolt and nut from each side of the
tine bar mount.
3. Remove tine bar from machine and place aside.
4. Loosen and remove bolt and nut from front of drawbar
mount.
5. Loosen and remove bolt and nut from rear of drawbar
mount.
6. Remove draw bar and place aside.
Fig. 15
Fig. 16
Fig. 17
