METALU S-3800 User manual

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
2
Contents
. Manufacturer information. .................................................................................................................... 3
2. Functional characteristics. .................................................................................................................... 3
3. Main product standards. ....................................................................................................................... 5
4. CE declaration of conformity. ............................................................................................................... 6
5. Identification plate. ............................................................................................................................... 7
6. Warranty certificate. ............................................................................................................................. 7
7. Commissioning certificate. ................................................................................................................... 8
8. Installation certificate. ........................................................................................................................... 9
9. Components in the standard package. ............................................................................................... 0
0. Components in the delivery. ..........................................................................................................
. Dimensions of the lift. .................................................................................................................... 2
2. Proper use of the product and maintenance. ................................................................................. 4

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
3
. Manufacturer information.
Company name: Manufacturas Metálicas Luisianeras, S.L.
Address: Polígono industrial Los Motillos, C/ Madrid n.º naves A, C, D, G, H, 4 430.
Town/city: La Luisiana (Seville).
Tax ID: B – 4 ,834,508
Main telephone: [phone]
Website: www.poollift.com.es
Email: [email protected]

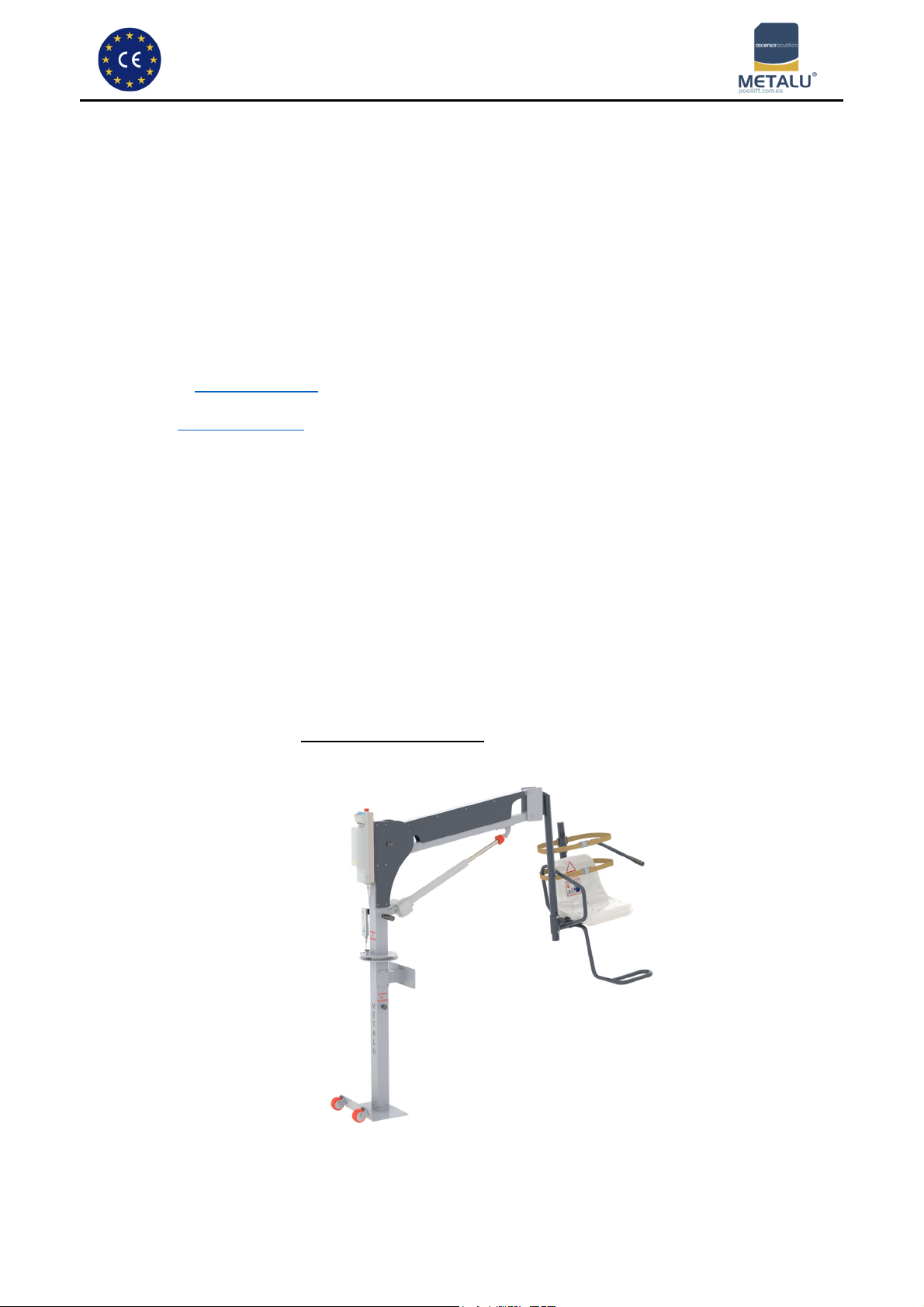

2. Functional characteristics.
The METALU S-3800 pool lift is designed to help people with reduced mobility access swimming pools,
either with assistance (S-3800) or independently (S-3800/ ). It is battery powered. There is no need to
connect to the mains. The design is custom to each pool. Placed on the ground, it can help user enter the
pool and/or reach the raised platform. Made of AISI 316 stainless steel with powder coating to protect the
paint and a load capacity up to 120 kg. The turning range is 360º in both directions (this range can be
limited) moving at less than 0 1 metres per second. Therefore, the ramp-up and slow-down acceleration
speeds are low. The vertical movement of the seat depends on the profile of the swimming pool. It has
an upper limit of .6 m. Different arm options and chair positions are possible to adapt to the profile of
the pool.
It is necessary to fill in the swimming pool profile form provided by METALU’s customer service office
in order to design the lift and analyse whether the product is compatible with the pool.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
4
This product has the following stand-out features:
 It is battery powered. There is no need to connect to the mains.
 Fully customised design for every customer.
 The pool lift moves in 3 stages:
. Lifting the user.
2. Turning until the user is above the water.
3. Lowering until the desired immersion level.
 Standard 360º turning range in both directions (can be limited).
 The user is fully independent with the S-3800/ automatic model.
 Removable seat to prevent improper use.
 Adaptability:
o Different anchoring options depending on whether the lift is to be anchored to the
wall, floor, or both.
o Different arm lengths according to how much reach is needed.
o Positioning of the seat (right, left, or front) as needed.
o Ability to limit the turning range of the lift.
The technical characteristics of the METALU S-3800 model are listed below.
Technical characteristics S
-
3800
Material AISI 3 6 stainless steel -
Maximum load capacity 20 kilograms
Turning range* 360 (can be limited) degrees
Net weight* (approximate) 90 kilograms
Packaged weight* (approximate) 76 kilograms
Speed of movement Less than 0. m/s
Vertical travel of the seat* Depends on the profile of the pool
[up to .60 m] metres
Lifting time when empty* (approximate) 44 seconds
Lifting time carrying an 85-kg person* (approximate) 5 seconds
Lowering time without load* (approximate) 42 seconds
Lowering time carrying an 85-kg person* (approximate) 42 seconds
* Depends on the profile of the pool.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
5
3. Main product standards.
 The manufacturing and finish of the lift have the following characteristics:
o The entire structure and accessories are made of 316 stainless steel.
o The finish of the metal avoids sharp edges that could cause injuries.
o The nuts and bolts do not pose any kind of risks. Everything is put together with
rounded bolts that will not scratch the user.
o Moving parts have enough space to avoid trapping any body parts.
 A warning sign is included indicating the maximum lifting weight ( 20 kg).
 The static coefficient has been considered, doubled to calculate the mechanical strength and
risk of overturning.
 Moving parts move slowly, at less than 0 1 m/s, avoiding the risk of falling off the seat.
 The lift has a red emergency stop button on the control box, in a visible and accessible place.
 The control box has LEDs showing the battery charge level.
 The linear lift raising/lowering actuator has a built-in red emergency socket that allows for the lift
to be lowered manually if needed.
 The actioning control has an override key that bypasses the electrical system.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
6
4. CE declaration of conformity.
CE DECLARATION OF CONFORMITY
The undersigned, representing the company:
- Company name: Manufacturas Metálicas Luisianeras, S.L
- Tax ID: B - 4 ,834,508
- Address: Polígono industrial Los Motillos, C/ Madrid n.º naves A, C, D, G, H, 4 430.
- Town/city: La Luisiana (Seville).
Description of the product:
- Model: METALU S-3800 and METALU S-3800/
- Type: Battery-powered pool lift with hydraulic lifting and turning movements to
enable people with reduced mobility to enter and exit pools.
- Capacity: Lifting capacity 20 kg.
Provisions that the machine complies with.
The machine complies with the provisions set out in Directive 2006/42/EC of the European Parliament
and of the Council of 7 May 2006 on machinery.
Harmonised rules and technical specifications used.
- UNE-EN 61310-1-2008 Safety of machinery. Indication, marking, and manoeuvring.
Part : Requirements for visual, acoustic and tactile signals.
- UNE-EN 61310-2-2008 Safety of machinery. Indication, marking, and manoeuvring.
Part 2: Requirements for marking.
- UNE-EN ISO 12100-2012 Safety of machinery. General principles for design.
Risk assessment and risk reduction.
- UNE-EN 547-3-1997+A1:2008 Safety of machinery. Human body measurements.
Part 3: Anthropometric data.
La Luisiana, 4 November 20 4
Signed Manuel Escalera Soler.
Administrator

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
7
5. Identification plate.
The product shall bear a legible and indelible identification plate displaying the following information:
 Name and address of the manufacturer.
 CE conformity marking.
 Year of manufacture.
 Serial no.
6. Warranty certificate.
Manufacturer: Manufacturas Metálicas Luisianeras, S.L
Product: “METALU S-3800” pool lift:
Manual assistant “METALU S-3800” Automatic assistant “METALU S-3800/ ”
Serial no :
Delivery date:
General conditions:
 Duration and scope of the warranty: The product is guaranteed for three years against
operational defects and five years against material faults (except for the batteries, which are
guaranteed for 2 years).
Client information:
Client:
Address:
Contact person:
Telephone:
Company signature:

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
8
7. Commissioning certificate.
Manufacturer information:
- Company name: Manufacturas Metálicas Luisianeras, S.L.
- Tax ID: B – 4 834508.
- Address: Polígono Industrial Los Motillos, C/ Madrid n.º naves A, C, D, G, H, 4 430.
- Town/city: La Luisiana (Seville).
Description of the product:
- Model: METALU S-3800 and S-3800/ .
- Type: Battery-powered pool lift with electric movements to
enable people with reduced mobility to enter and exit pools.
- Capacity: Lifting capacity 20 kg.
Technical construction file approved by the Association of Technical Experts and Engineers of Seville.
This document certifies that:
. The competent technician (Jesús León Delis, licence no. 006 ) certifies the assembly and
commissioning and service of the product described above.
2. The lift has been manufactured and assembled according to the technical design and
manufacturing plan.
3. The design and manufacture have been carried out in line with current Spanish regulations on
machine safety, considering the following standards: UNE-EN 6 3 0- -2008, UNE-EN 6 3 0-2-
2008, UNE-EN ISO 2 00-20 2, UNE-EN 547-3- 997+A :2008.
4. The pool lift has CE marking, which means its design and manufacture complies with European
Economic Community standards.
La Luisiana, 4 November 20 4
The competent technician: Manufacturer:
Jesús León Delis Manuel Escalera Soler
Licence no. 006

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
9
8. Installation certificate.
Installer company:
Declaration: The lift has been installed in compliance with the manufacturer’s instructions.
Product: “METALU S-3800” pool lift:
Manual assistant “METALU S-3800” Automatic assistant “METALU S-3800/ ”
Serial no :
Installation date:
Place of assembly:
Name of installer:
ID of installer:
Signature of installer:

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
0
9. Components in the standard package.
The standard package for the models METALU S-3800 and METALU S-3800/ includes the following
components:

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/

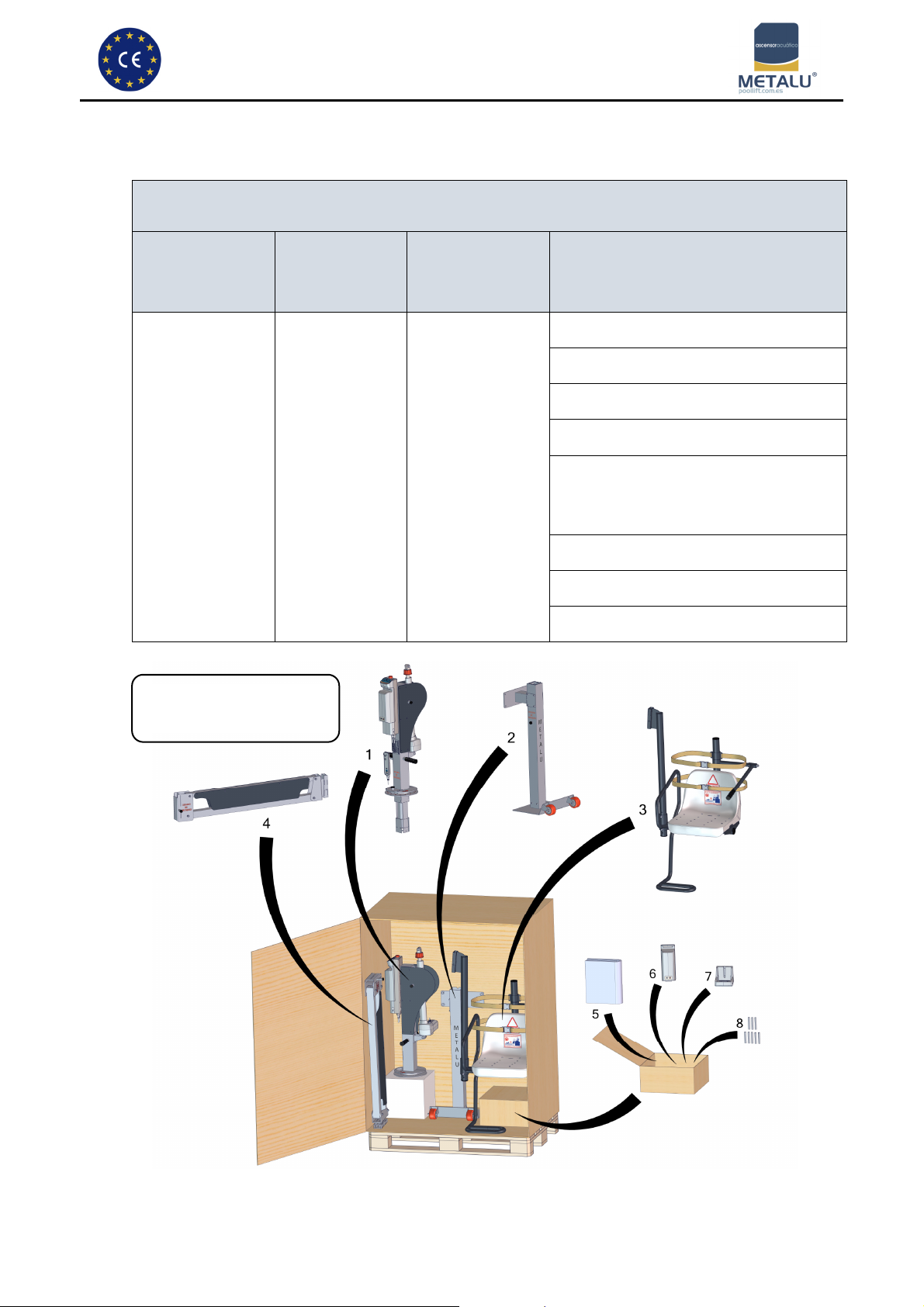

0. Components in the delivery.
Components in the standard order delivery
Type of order
Weight of the
equipment
[kg]
Dimensions
(width, length) [mm]
Content
Standard order 76
European pallet:
200 x 800
Height depends on
lift design.
. Mast and electronic components.
2. Lift base.
3. Seat.
4. Arm.
5. Documentation:
 Manual and certificates.
 Installation and assembly.
6. Extra battery.
7. Battery charger.
8. Anchor blocks (8 units)
Parts protected by
expanded polystyrene

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
2
. Dimensions of the lift.
The METALU S-3800 and S-3800/ models are made with a custom design according to the pool where
the lift will be installed. Therefore, the dimensions of the lift arm and seat tube may change.
The image below shows the lift dimensions for a standard model (974 arm), units in millimetres [mm].
* There are larger and smaller arms that can fit different pools. For more information about the other lift arms, consult the
document “Adaptability to the pool” for the METALU S-3800 model.
** Custom dimensions to fit the pool profile.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
3
The lift must be installed far from any obstacles within its working area. The area that the lift needs in 3D
space is shown in the image below:
Working area in 3D space for a standard lift.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
4
2. Proper use of the product and maintenance.
 Preliminary considerations.
o To use the pool lift correctly, follow the instructions in this manual and be mindful of the
precautions and warnings, as well as the maintenance instructions. It is the lift owner’s
responsibility to follow the instructions in this manual.
o If some users need help from other people, it is important to consider how many people are
needed to help them get on the seat to enter the pool. In any case, at least one helper is
needed for the manual turning model to turn the lift.
o If the pool lift is to be used independently by one person, without assistance, there should be
a communication device nearby to allow them to ask for assistance if needed.
o During movement or before starting the movement, all body parts of both the user and any
helpers should be kept far from the lift's moving parts.
 Position of the user in the lift.
o The user will occupy the seat, from where they can easily reach and use the controller.
o The S-3800/ model (independent user) has a safety hook next to the seat. This hook makes
sure that the controller is always near the user.
o During lifting and lowering, the person’s limbs will not come into contact with parts of the lift or
the edge of the pool, provided their arms are resting on the armrests and their feet are on the
footrests.

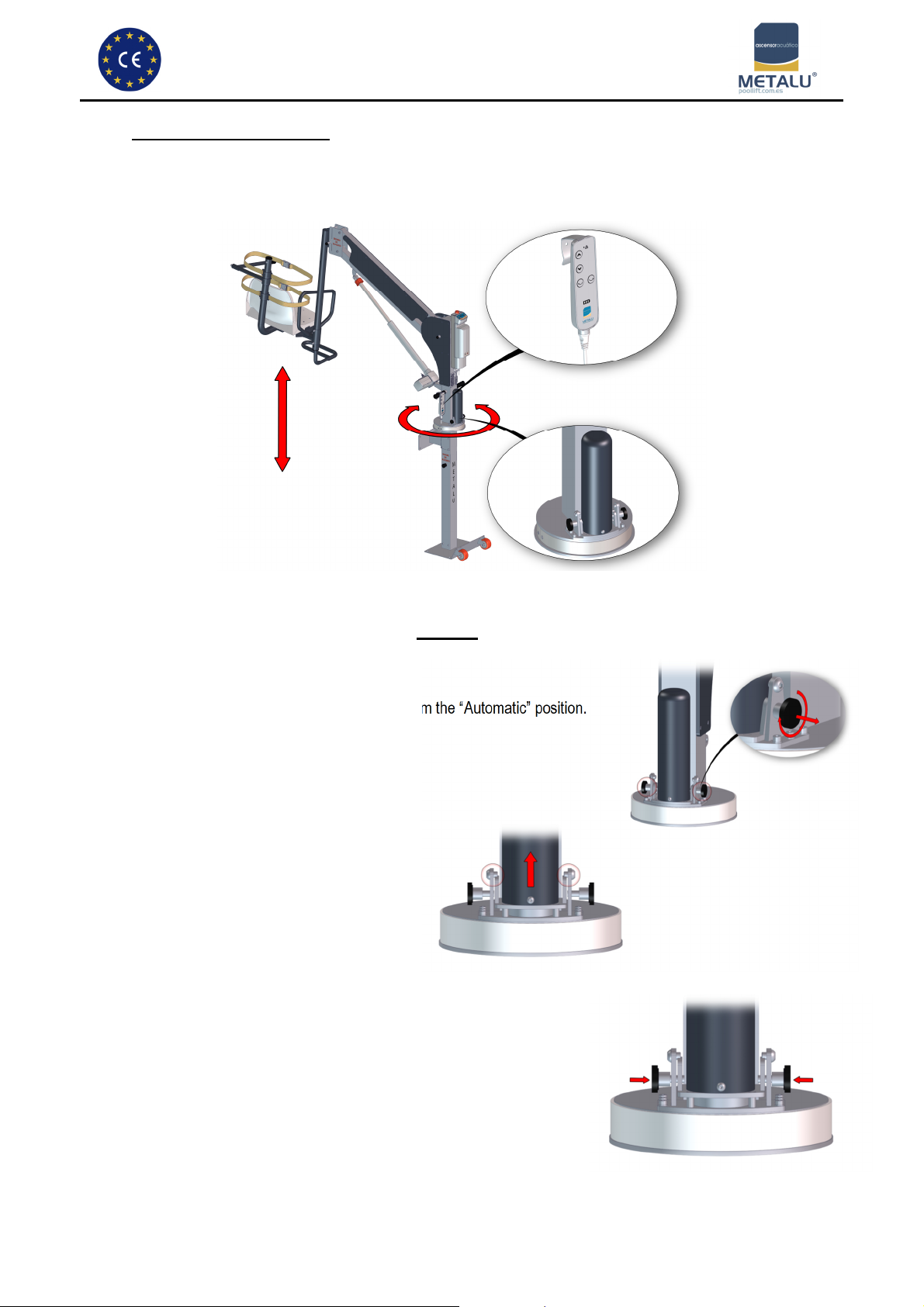

 Proper use of the lift:
o Use the lift responsibly. Make sure you are familiar with its functions and purpose before
using it.
o The lift must not be used without first following the set-up steps. Check the assembly and
installation instructions in the manual.
o The lift must only be used by authorised members of the establishment.
o Before using the lift, the user must make sure that no person or obstacle is in the path of the
moving parts of the lift.
o Once the user is in the pool, the seat should be returned to its initial position, so that it is not
an obstacle to other users in the pool.
o The lifting weight of the lift, and therefore maximum user weight, is 20kg.
o It is forbidden for more than one person to use the lift at once, even if they weight less than
20 kg together.
o It is forbidden to use the lift as a toy for jumping off of, etc.
o The seat is adapted to anthropometric measurements according to European Standards.
o Follow the visual instructions on the product.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
5
 Maintenance:
o Clean the structure with fresh water. Take care not to spray water on the 24V electrical
components. Then, dry it off with a cotton cloth.
o Dry off any water that may have splashed on the 24V components.
o Check the battery charge level. If necessary, charge the batteries before they die
(approx. 20 cycles).
o Check that all the pins are correctly inserted in the control box.
o Check that the lift works correctly.
o Regularly perform a visual check that all parts of the lift are in good condition and that all
nuts and bolts are tight. If one of the pieces is worn out, do not use the lift until the part
has been replaced. Perform additional inspections for indoor pools.
o Regularly clean the metal connectors of the battery, charger, and control box with a
nylon scourer.
o At the start of the season, apply lithium grease on the gears of model S-3800/ .
o If there are weeks during which the lift isn’t used, we recommend operating it with a
medium load (approx. 75 kg), raising and lowering it several times. This will keep the
lift’s components in good condition.
o During seasons of no use, store the lift in a covered area where it will not be subject to
any impacts, and it can be kept clean, dry, and far from any chemical products.
o During the off season or if the lift is rarely or never used, charge the batteries at least
once a month, even if they are not used.
INDOOR POOLS: maintenance and especially cleaning of indoor pools must be much stricter
due to the atmospheric conditions and temperatures generated.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
6
Correct use of the pool lift model METLAU S-3800 with manual rotation:
The process starts by lifting the user into the pool:
. Access to the seat is possible from whichever side is more comfortable for the user.
2. Release the emergency stop in the control box.
3. Before getting on the seat, the user should check that turning is locked. There is a positioner that
can lock the turning movement.
4. Sit on the seat, place feet on footrests, and fasten seat belt.
5. The assistant can then unlock the turning motion and take the controller. This controller controls
the lifting and lowering movement.
6. From the lowered position (allowing the user to get on), start going up until a height where the
footrest is above the height of the wall.
7. Working with the user, the assistant can turn the machine until they are over the surface of the
water.
IMPORTANT: make sure nobody is swimming under the water who could end up under the pool
lift at any point during the lowering process. It is important to pay attention nobody is accidentally
hit by the lift.
8. Start the descent using the controller until the desired immersion has been achieved without
endangering the user.
9. Release the seat belt to allow the user to get off the seat.
IMPORTANT: when getting off the seat, the user should not rest their weight on the footrest,
even while submerged.
0. Return the seat to the starting position: outside of the pool, ready to pick up another user. This
way the seat and accessories will not get in the way of other pool users. It is advisable to press
the emergency stop button on the control box and lock the turning movement of the lift in order to
avoid undesired movements from anyone who may be in the pool.
To exit the pool, follow the same steps in reverse order, being mindful of the same precautions and
warnings.
Movement of the S-3800 lift:
 The lift is turned manually with help
from another person.
 The lift is raised and lowered using
the controller or with the control box
buttons.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
7
Correct use of the METLAU S-3800/ pool lift with manual rotation:
The process starts by lifting the user into the pool:
. Access to the seat is possible from whichever side is more comfortable for the user.
2. Release the emergency stop in the control box and take the controller or actuation keypad.
IMPORTANT If the lift is going to be used independently by one person, the control cable must be
passed through the safety hook near the seat.
3. Sit on the seat, place feet on footrests, and fasten seat belt.
4. Press the button or use the controller to lift the chair until the footrest is above the height of pool
wall (the controller controls the height and turning motor).
IMPORTANT: The controller has a 2-seconds delay for turning.
5. Once the button has been pressed, turn the lift until the user is above the surface of the pool.
IMPORTANT: make sure nobody is swimming under the water who could end up under the pool
lift at any point during the lowering process. It is important to pay attention nobody is accidentally
hit by the lift.
6. Start the descent until the desired immersion has been achieved without endangering the user.
7. Release the seat belt to allow the user to get off the seat.
IMPORTANT: when getting off the seat, the user should not rest their weight on the footrest,
even while submerged.
8. Lift the seat and turn it away from the pool. This way the seat and accessories will not get in the
way of other pool users. It is advisable for the controller to be in a place that is accessible to the
next user of the pool lift.
To exit the pool, follow the same steps in reverse order, being mindful of the same precautions and
warnings.

Manual and certificates – METALU battery-powered pool lift S-3800 and S-3800/
8
Movement of the S-3800/1 lift:
 Both the turning and raising and lowering of the lift is controlled using the controller. The user can do
this completely independently. The control box also has buttons to control the movement.
The S-3800/ model has the option of turning manually. This is very simple to do:
. Remove the two motor positioners from the “Automatic” position.
2. Raise the rotation motor as high as
it goes (screws).
3. Put back the positioners but set them to the “manual” position.
This will allow users to turn the lift manually.

9 basic rules
METALU equipment should be installed according to the manufacturer’s instructions, making all
necessary queries. The installer should test the equipment after completing the installation, making sure
that everything is correct.
According to art. 2 of Law / 997 on Containers,
the final owner is responsible for packaging. Re-use as
much as possible and dispose of the rest where
appropriate for recycling.
Looking after the environment is everyone’s
responsibility.
METALU equipment should only be used by designated people at centres and by the users of the
equipment.
Those responsible at centres should know the equipment and have read the instructions. If any
questions remain after reading the instructions, contact the manufacturer at the addresses provided below.
Those responsible at centres shall instruct the users on how to operate the equipment.
Before starting up the lift, it should be ensured that
the radius of action is free. While the lift is working, do not
place hands or other objects on the moving parts of the
lift.
Cleaning the exterior is mandatory to preserve the
warranty. Follow the instructions that come with the lift.
According to ITC-BT-3 of the REBT, the machine must be connected to the equipotential connection
conductor that the pool must have.
If the holder of this document is not the end client, the holder must forward it to the end client.

MANUFACTURAS METÁLICAS LUISIANERAS, S L
METALU S-3800 and S-3800/1 battery-powered pool lift
Manual and certificates
Address: Polígono industrial Los Motillos, C/ Madrid n.º naves A, C, D, G, H, 4 430.
Town/city: La Luisiana (Seville).
Tax ID: B – 4 ,834,508
Main telephone: [phone]
Website: www.poollift.com .es
Email: [email protected] .es
