METALU S-400 User manual

Manual and certificates – METALU S-400 pool lift
2
Contents
1. Manufacturer information .....................................................................................................................
2. Functional characteristics. ....................................................................................................................
. Main product standards. ....................................................................................................................... 5
4. CE declaration of conformity. ............................................................................................................... 6
5. Identification plate. ............................................................................................................................... 7
6. Warranty certificate. ............................................................................................................................. 7
7. Commissioning certificate. ................................................................................................................... 8
8. Components in the standard package. ................................................................................................. 9
9. Components in the delivery. ............................................................................................................... 10
10. Dimensions of the lift ..................................................................................................................... 12
11. Use of the lift. ................................................................................................................................. 15
12. Proper use of the product and maintenance. ................................................................................. 16

Manual and certificates – METALU S-400 pool lift
1. Manufacturer information
Company name: Manufacturas Metálicas Luisianeras. S.L.
Address: Polígono industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 414 0.
Town/city: La Luisiana (Seville).
Tax ID: B – 41,8 4,508
Main telephone: + 4 955 907 784
Website: www.ascensoracuatico.com
Email: [e-mail]
2. Functional characteristics.
The METALU S-400 pool lift is designed to help people with reduced mobility access swimming pools
independently. It is a pool lift that does not need to be anchored to the ground, avoiding the need for
drilling near the pool. Made of AISI 316 stainless steel with protective powder coating. Loading capacity
of 120 kg or 150 kg, as needed by the user. The vertical travel of the seat is appro imately 1 metre.

Manual and certificates – METALU S-400 pool lift
4
This product has the following stand-out features:
•The movement of the lift involves a single movement that lifts the user in or out of the water.
•The user is fully independent.
•The lift does not need to be anchored to the ground, avoiding the need to drill near the pool.
•Allows several pools to be serviced easily and quickly.
•It incorporates a security system to stop the lift from being used it is not resting on its rear supports.
•The lift leaves the factory fully assembled and ready for use.
•Removable seat to prevent improper use.
•Accessories (available to order):
oSeat belt.
oProtective cover.
The technical characteristics of the METALU S-400 model are listed below.
Technical characteristics S
-
400
Material AISI 16 stainless steel -
Ma imum load capacity 120 or 150 kilograms
Net weight (appro imate) 200 kilograms
Packaged weight (appro imate) 00 kilograms
Speed of movement Less than 0.1 m/s
Ma imum vertical travel of the seat 1 metre approx.
Depth of the pool in lift area 0.90 metres
Lifting time when empty 40 seconds
Lowering time carrying a 75-kg load 45 seconds
Lowering time in seconds 8 seconds
Lowering time carrying a 75-kg load 40 seconds

Manual and certificates – METALU S-400 pool lift
5
. Main product standards.
The manufacturing and finish of the lift have the following characteristics:
oThe entire structure and accessories are made of 316 stainless steel.
oThe finish of the metal avoids sharp edges that could cause injuries.
oThe nuts and bolts do not pose any kind of risks. Everything is put together with
rounded bolts that will not scratch the user.
oMoving parts have enough space to avoid trapping any body parts.
A warning sign is included indicating the ma imum bearing weight (120 kg or 150kg)
The static coefficient has been considered, doubled to calculate the mechanical strength and
risk of overturning.
Moving parts move slowly, at less than 0.1 m/s, avoiding the risk of falling off the seat.
The lift has a red emergency stop button on the control box, in a visible and accessible place.
The control box has LEDs showing the battery charge level.
The linear lift raising/lowering actuator has a built-in red emergency pull cord that allows for the
lift to be lowered manually if needed.

Manual and certificates – METALU S-400 pool lift
6
4. CE declaration of conformity.
CE DECLARATION OF CONFORMITY
The undersigned, representing the company:
- Company name: Manufacturas Metálicas Luisianeras. S.L
- Ta ID: B - 41,8 4,508
- Address: Polígono industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 414 0.
- Town/city: La Luisiana (Seville).
Description of the product:
- Model: METALU S-400
- Type: Pool lift with electric lifting (24V) motion to enable
people with reduced mobility to enter and exit pools.
- Capacity: Lifting capacity of 120 kg or 150 kg.
Provisions that the machine complies with.
The machine complies with the provisions set out in Directive 2006/42/EC of the European Parliament and
of the Council of 17 May 2006 on machinery.
Harmonised rules and technical specifications used.
- UNE-EN 61310-1:2008. Safety of machinery. Indication, marking, and manoeuvring.
Part 1: Requirements for visual, acoustic and tactile signals.
- UNE-EN 61310-2:2008. Safety of machinery. Indication, marking, and manoeuvring.
Part 2: Requirements for marking.
- UNE-EN ISO 12100:2012. Safety of machinery. General principles for design.
Risk assessment and risk reduction.
- UNE-EN 547-3:1997+A1:2008. Safety of machinery. Human body measurements.
Part : Anthropometric data.
La Luisiana, 05 February 201
Signed Manuel Escalera Soler.
Administrator.

Manual and certificates – METALU S-400 pool lift
7

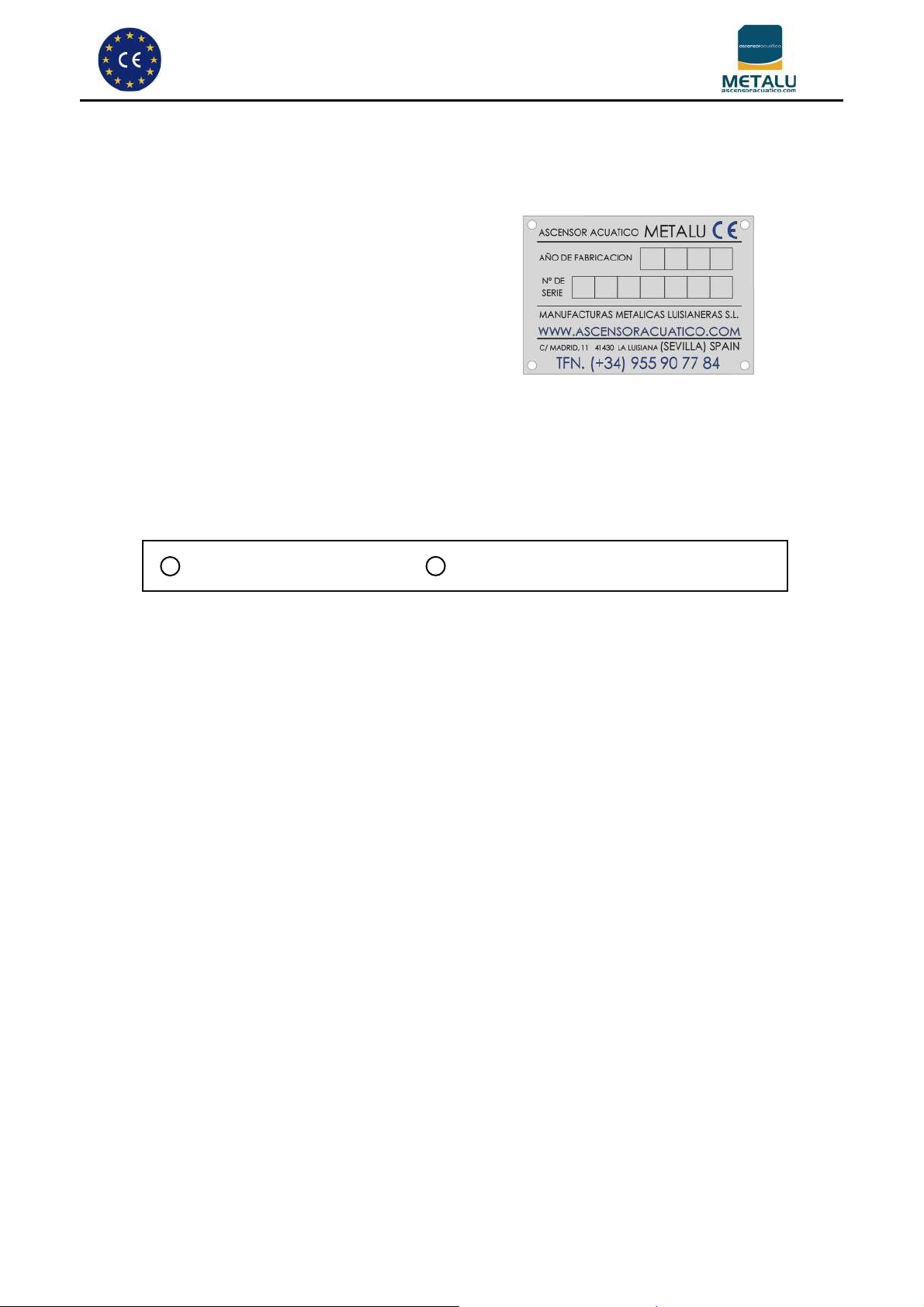

5. Identification plate.
The product shall bear a legible and indelible identification plate displaying the following information:
•Name and address of the manufacturer.
•CE conformity marking.
•Year of manufacture.
•Serial no.
6. Warranty certificate.
Manufacturer: Manufacturas Metálicas Luisianeras. S.L
Product: “METALU S-400” pool lift:
Lifting capacity 120kg Lifting capacity 150kg
Serial no :
Delivery date:
General conditions:
•Duration and scope of the warranty: The product is guaranteed for three years against
operational defects and five years against material faults (except for the batteries, which are
guaranteed for 2 years)
Client information:
Client:
Address:
Contact person:
Telephone:
Company signature:

Manual and certificates – METALU S-400 pool lift
8
7. Commissioning certificate.
Manufacturer information:
- Company name: Manufacturas Metálicas Luisianeras, S.L.
- Ta ID: B – 418 4508.
- Address: Polígono Industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 414 0.
- Town/city: La Luisiana (Seville).
Description of the product:
- Model: METALU S-400.
- Type: Pool lift with electric lifting (24V) motion to enable
people with reduced mobility to enter and exit pools.
- Capacity: Lifting capacity of 120 kg or 150 kg.
Technical construction file approved by the Association of Technical Experts and Engineers of Seville.
This document certifies that:
1. The competent technician (Jesús León Delis, licence no. 10061) certifies the assembly and
commissioning and service of the product described above.
2. The lift has been manufactured and assembled according to the technical design and
manufacturing plan.
. The design and manufacture has been carried out in line with current Spanish regulations on
machine safety, considering the following standards: UNE-EN 61 10-1-2008, UNE-EN 61 10-2-
2008, UNE-EN ISO 12100-2012, UNE-EN 547- -1997+A1:2008.
4. The pool lift has CE marking, which means its design and manufacture complies with European
Economic Community standards.
La Luisiana, 05 February 201 .
The competent technician: Manufacturer:
Jesús León Delis Manuel Escalera Soler
Licence no. 10061

Manual and certificates – METALU S-400 pool lift
9
8. Components in the standard package.
The standard package for the METALU S-400 model includes the following components:
Foldable arm
Linear actuator
Seat
Footrest
Base platform
Actuation controller
Battery
Control sy
stem

Manual and certificates – METALU S-400 pool lift
10

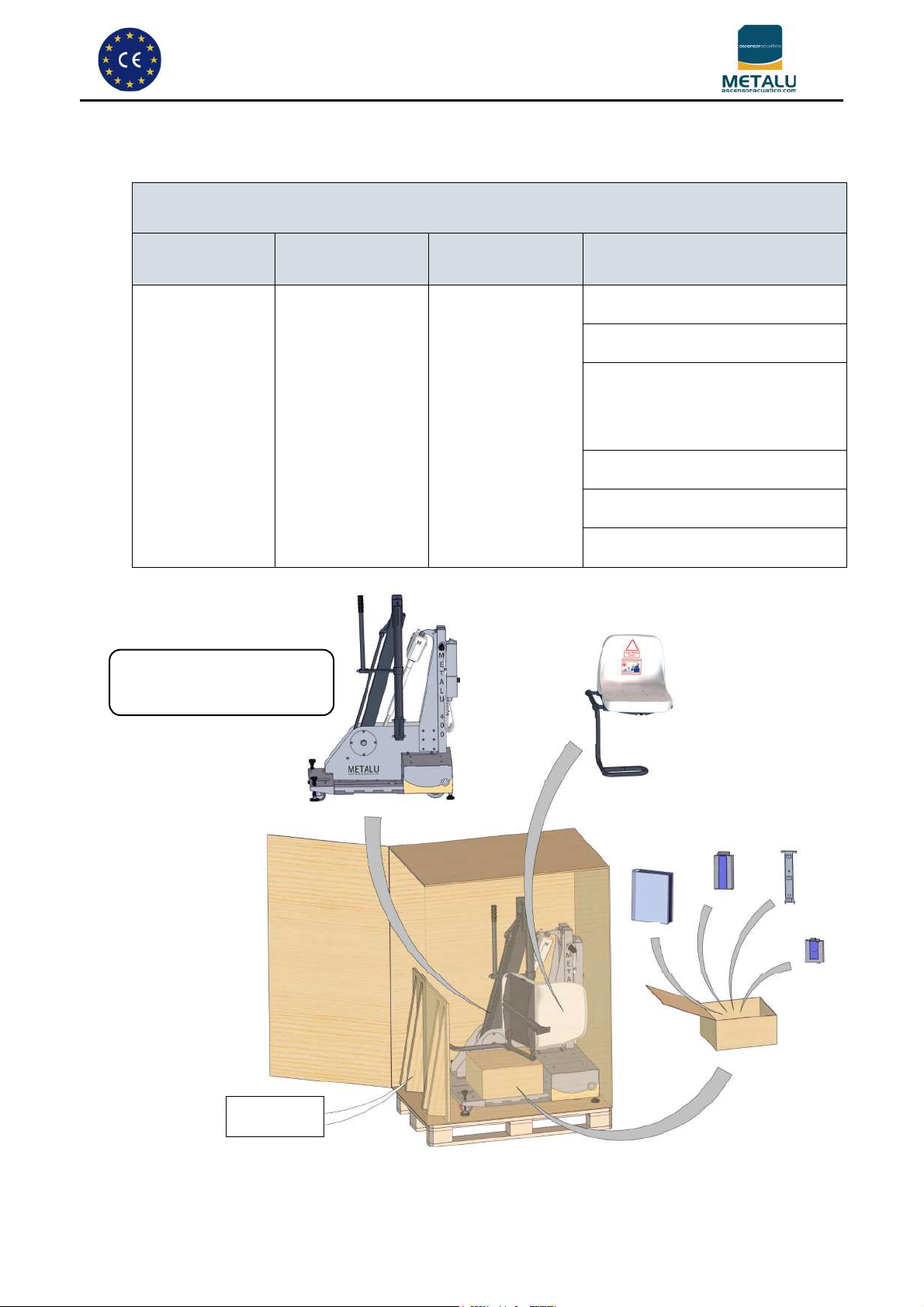

9. Components in the delivery.
Components in the delivery
Type of order
Assembled weight
[kg]
Dimensions
(width length) [mm]
Content
Standard order
00 kg
approximately
European pallet:
1200 x 800
Height: 1455
1. Lift body
2. Seat
. Documentation:
• Manual and certificates.
• Installation of the lift.
4. Extra battery
5. Battery charger support
6. Battery charger
Parts protected by expanded
polystyrene
1
2
3
4 5
6
Ramp

Manual and certificates – METALU S-400 pool lift
11
In addition, delivery includes a ramp to facilitate getting the lift out of the box in which it is packaged.
Before moving the lift along the ramp, we recommend removing the seat and the packaging
documentation box.
Ramp

Manual and certificates – METALU S-400 pool lift
12
10. Dimensions of the lift

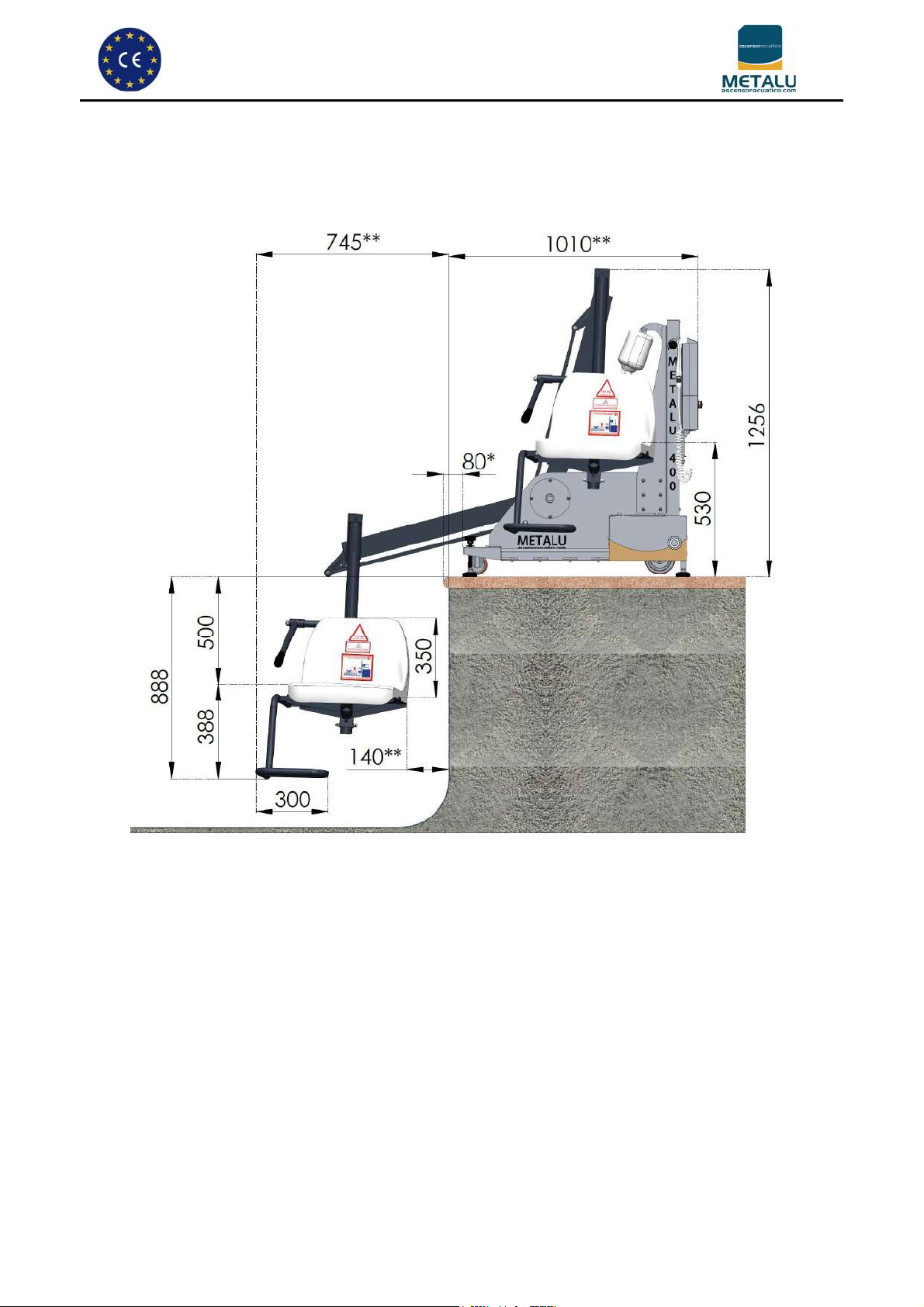

The image below shows the dimensions of the METALU S-400 lift from the profile of a standard pool with
units in millimetres [mm].
S-400 lift side view dimensions.
* The distance from the lift to the edge of the pool can range from 50 mm to 120 mm, and therefore an average of 80 mm is
shown. imensions marked with ** depend on this value.
** The dimensions depend on the value of the dimension highlighted in the above comment (80 mm).

Manual and certificates – METALU S-400 pool lift
1

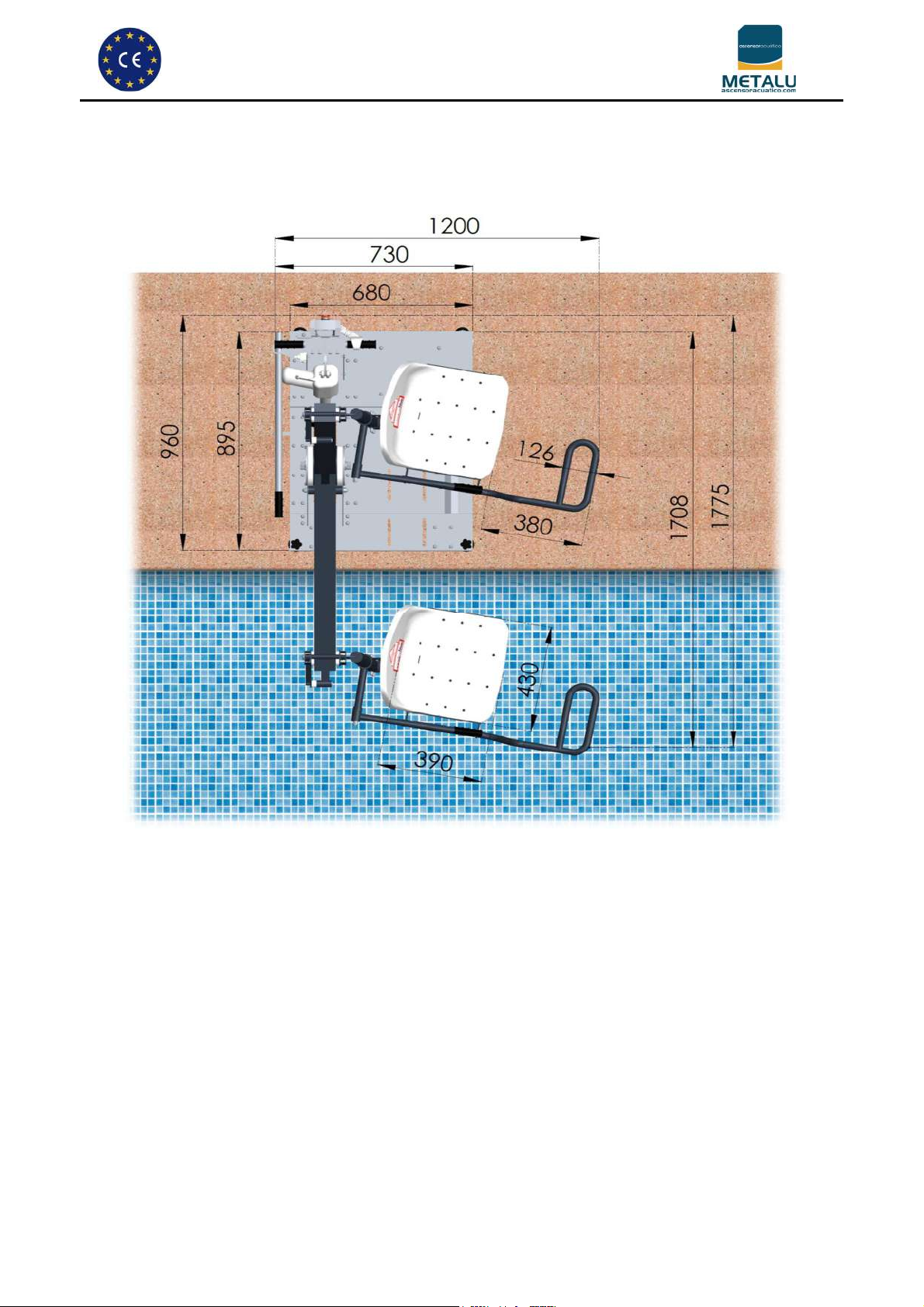

The image below shows the dimensions of the METALU S-400 lift in plan view for a standard pool with
units in millimetres [mm].
S-400 lift plan view dimensions.
The lift is designed to be easily transported and stored. To this end, the base dimensions are 7 0 mm, so
that it can pass through a standard door (easily removing the seat).

Manual and certificates – METALU S-400 pool lift
14
In three-dimensional space, the critical positions of the lift are shown in the image below.
imensions in three-dimensional space of the S-400 lift.

Manual and certificates – METALU S-400 pool lift
15
11. Use of the lift.
Follow these steps to use the pool lift:
1. Unblock the emergency stop of the control system (24V electrical mechanism).
2. Sit on the seat and place feet on footrests.
. Use the lift controller on your left.
4. Press the lower button on the controller for the machine to make the movement to enter the pool.
IMPORTANT: make sure nobody is swimming under the water who could end up under the pool
lift at any point during the lowering process. It is important to pay attention nobody is accidentally
hit by the lift.
5. Return the seat to the starting position by pressing the up button on the controller. This way, the
lift will be outside of the pool, ready for another use. This way the seat and accessories will not
get in the way of other pool users.
To exit the pool, follow steps 5 to 1 in reverse order, being mindful of the same precautions and warnings.

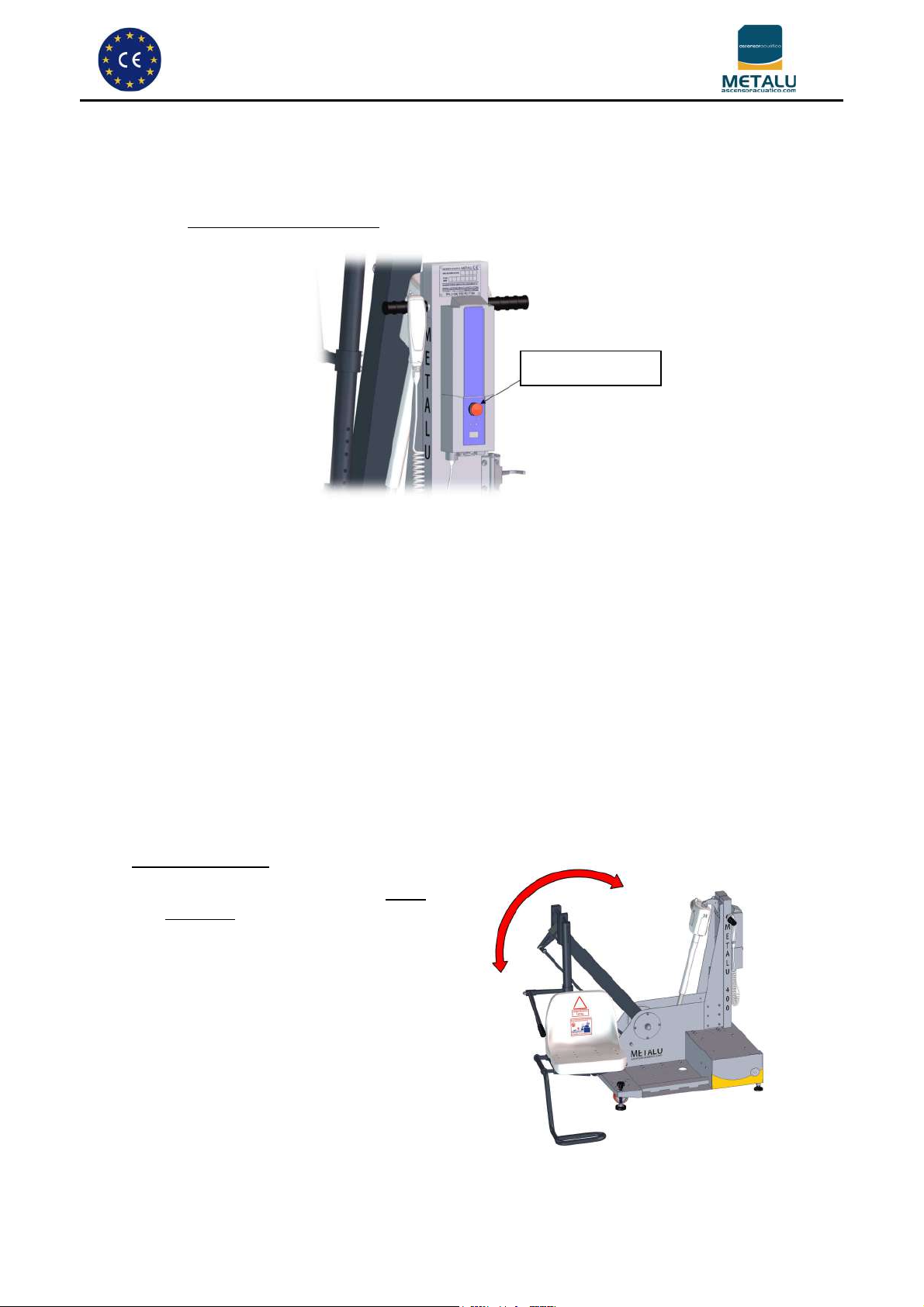

Movement of the lift:
•The movement of the lift involves a single
movement that lifts the user in or out of the
water.
Emergency stop

Manual and certificates – METALU S-400 pool lift
16
12. Proper use of the product and maintenance.
•Preliminary considerations.
oTo use the METALU S-400 pool lift correctly, follow the instructions in this manual and be
mindful of the precautions and warnings, as well as the maintenance instructions. It is the lift
owner’s responsibility to follow the instructions in this manual.
oIf some users need help from other people, it is important to consider how many people are
needed to help them get on the seat to enter the pool.
oIf the pool lift is to be used independently by one person, without assistance, there should be
a communication device nearby to allow them to ask for assistance if needed.
oDuring movement or before starting the movement, all body parts of both the user and any
helpers should be kept far from the lift's moving parts.
•Position of the user in the lift.
oThe user will occupy the seat, from where they can easily reach and use the controller.
oDuring lifting and lowering, the person’s limbs will not come into contact with parts of the lift or
the edge of the pool, provided their arms are resting on the armrests and their feet are on the
footrests.
oThe seat is adapted to anthropometric measurements according to European Standards.
•Proper use of the lift:
oUse the lift responsibly. Make sure you are familiar with its functions and purpose before
using it.
oThe lift must not be used without first following the set-up steps. Check the assembly and
installation of the lift in the manual.
oThe lift must only be used by authorised members of the establishment.
oWhen moving the lift, make sure the front supports (screw pins) are fully raised.
oBefore using the lift, the user must make sure that no person or obstacle is in the path of the
moving parts of the lift.
oOnce the user is in the pool, the seat should be returned to its initial position, so that it is not
an obstacle to other users in the pool.
oThe maximum carrying weight of the lift is 120kg or 150kg, as indicated on the included
warning sign.
oIt is forbidden for more than one person to use the lift at once, even if they weigh less than
120 kg or 150kg together, as applicable.
oIt is forbidden to use the lift as a toy for jumping off of, etc.
oFollow the visual instructions on the product.
oBlock the control system emergency stop as long as the lift is not in use.
•Maintenance:
oClean the structure with fresh water. Take care not to spray water on the 24V electrical
components. Then, dry it off with a cotton cloth.
oDry off any water that may have splashed on the 24V components.
oCheck the battery charge level. If necessary, charge the batteries before they die
(approximately 20 cycles).

Manual and certificates – METALU S-400 pool lift
17
oCheck that all the pins are correctly inserted in the control box.
oCheck that the lift works correctly.
oRegularly perform a visual check that all parts of the lift are in good condition and that all
nuts and bolts are tight. If one of the pieces is worn out, do not use the lift until the part
has been replaced. Perform additional inspections for indoor pools.
oRegularly clean the metal connectors of the battery, charger, and control box with a
nylon scourer.
oIf the lift is outside, we recommend covering it to extend the life of its components. One
accessory offered by METALU is a protective cover, which we recommend using.
oIf there are weeks during which the lift isn’t used, we recommend operating it with a
medium load (approximately 75 kg), raising and lowering it several times. This will keep
the lift’s components in good condition.
oDuring seasons of no use, store the lift in a covered area where it will not be subject to
any impacts and it can be kept clean, dry, and far from any chemical products.
oDuring the off season or if the lift is rarely or never used, charge the batteries at least
once a month, even if they are not used.
INDOOR POOLS: maintenance and especially cleaning of indoor pools must be much stricter
due to the atmospheric conditions and temperatures generated.
For more information on maintenance
visit the following link

9 basic rules
METALU equipment should be installed according to the manufacturer’s instructions, making all
necessary queries. The installer should test the equipment after completing the installation, making sure
that everything is correct.
According to art. 12 of Law 11/1997 on Containers,
the final owner is responsible for packaging. Re-use as
much as possible and dispose of the rest where
appropriate for recycling.
Looking after the environment is everyone’s
responsibility.
METALU equipment should only be used by designated people at centres and by the users of the
equipment.
Those responsible at centres should know the equipment and have read the instructions. If any
questions remain after reading the instructions, contact the manufacturer at the addresses provided below.
Those responsible at centres shall instruct the users on how to operate the equipment.
Before starting up the lift, it should be ensured that
the radius of action is free. While the lift is working, do not
place hands or other objects on the moving parts of the
lift.
Cleaning the exterior is mandatory to preserve the
warranty. Follow the instructions that come with the lift.
According to ITC-BT- 1 of the REBT, the machine must be connected to the equipotential connection
conductor that the pool must have.
If the holder of this document is not the end client, the holder must forward it to the end client.
Do not place any body part
in the way of the lift.
DO NOT STAND IN THE
RADIUS OF ACTION.
Rinse the lift daily with
pressurised tap water.
Clean the lift every two or
three days with a damp
cloth.

MANUFACTURAS METÁLICAS LUISIANERAS, S.L.
Batery Pool Lift model METALU S-400
Manual and certificates
Adress: Polígono Industrial Los Motillos, C/ Madrid n.º 11 naves A, C, D, G, H, 414 0. La Luisiana (Sevilla)
Spain
CIF: B – 418 4508
Phone: + 4 955 907 784
Web: www.poollift.com.es
Mail: info@poollift com es
