Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and eciency, a high degree of responsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the BILL OF LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock for
this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of any
concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock result
in additional freight charges. Residential delivery fees, inside
delivery fees, re-delivery charges, and lift gate services will be
added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for TWO YEARS when used properly
within its rated capacity. Warranty does not cover wear from
normal use or damage from accident or abuse. Motors and
other purchased parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
any modications, unauthorized repairs or parts substitution.
Operator’s Manual
for Morse
Heavy-Duty Hydra-Lift Drum Karrier
with Spark Resistant Parts
Model 410M-124
Serial Number 1210 to ____ (MMYY)

The Specialist In Drum Handling Equipment
Model 410M-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt,
with Spark Resistant Parts
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier with Spark Resistant Parts - Model 410M-124
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc. Form OM410M-124 (1210-____) (Updated 6 Jul, 2021) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or
death. This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious
injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the
machine.
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The
unit can become unstable when transporting with a raised load.
DANGER - Stay Clear of Power Lines
KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line
may arc some distance from the wire to the steel framed, grounded machine.
WARNING
The Heavy-Duty Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page
3, under 2. Machine Description. DO NOT attempt to handle any other type of drum or object. DO
NOT exceed the weight capacity.
WARNING - Level Floors Only
For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces,
ramps, irregular or debris strewn oors.
WARNING - Do Not Modify the Unit
Under no circumstances should any modications be made to the Morse machinery without factory
authorization. Any modications may void the warranty. This machine was designed to perform a
specic job and alterations may result in injury to operator or machine.
WARNING - No Loose Fitting Clothing
Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may
become caught on the machinery and cause severe personal injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the
hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from
pinholes and nozzles, which eject uid under high pressure. Use a piece of cardboard to search for
leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes - Wear safety shoes with non-slip soles and hard toe protection.
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium
dioxide, and 2-methylimidazole, which are known to the State of California to cause cancer, and
bisphenol-A, which is known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

The Specialist In Drum Handling Equipment
Model 410M-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt,
with Spark Resistant Parts
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier with Spark Resistant Parts - Model 410M-124
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc. Form OM410M-124 (1210-____) (Updated 6 Jul, 2021) 3
Machine Description
The Model 410M-124 Heavy-Duty Hydra-Lift Karrier will pour a drum up
to 72” (183 cm) high, measured from the oor to the lowest point of a
horizontal drum. It is designed to lift, transport, and dispense a 55-gallon
(210 liter) steel or ber drum 22” to 23.5” (56 to 59.7 cm) in diameter.
The maximum full-drum capacity is 1200 Lb. (544 kg). The capacity
is derated to 600 Lb. (272 kg) for a half-full drum. The half-full rating
is based on the tilt mechanism’s capacity for handling an unbalanced
bottom-heavy drum.
Options
A smaller diameter drum can be handled with the correct size 55/30M •
Series Diameter Adapter installed (see Diameter Adapter literature).
The adjustable Bracket Assembly (Kit # 4556M-P) is • required to
handle a plastic drum without a top rim (see gure 2.1). The Bracket
Assembly is also recommended when handling a ber drum. You
can also use the Bracket Assembly when handling a rimmed drum. It
adjusts for a drum 31” to 39” (79 to 99 cm) tall.
To handle a 55-gallon (210 liter) plastic drum with suitable top rim, •
you must install either the Bracket Assembly or the Top Rim Clamp
(Kit # 4560M-P) (see gure 2.2). You can use the Top Rim Clamp to
handle a 55-gallon (210 liter) plastic, steel or ber drum with suitable
top rim.
Controls
The Morse Heavy-Duty Hydra-Lift Karrier is manually propelled and steered. The drum
lift is powered by an air motor with an on/o valve. There are two functions for the
operator to control (Figure 2.3):
1. LIFT and Lower Function to raise and lower the drum
Plug your air line into the on/o air valve.•
Turn the motor on by holding the valve handle in the on position. The drum will •
lift.
Release the valve handle when the drum is at the desired height.•
To lower the drum: With the motor o, push in the LOWER handle.•
2. TILT Function to control the degree of rotation of the drum.
Pull down on one side of chain, rotating drum to angle required for pouring.•
The drum handler is equipped with the MORStop Tilt-Brake, there is no need •
to hold tension on both sides of the chain loop. Braking is immediate and self-
actuating, without additional steps by the operator.

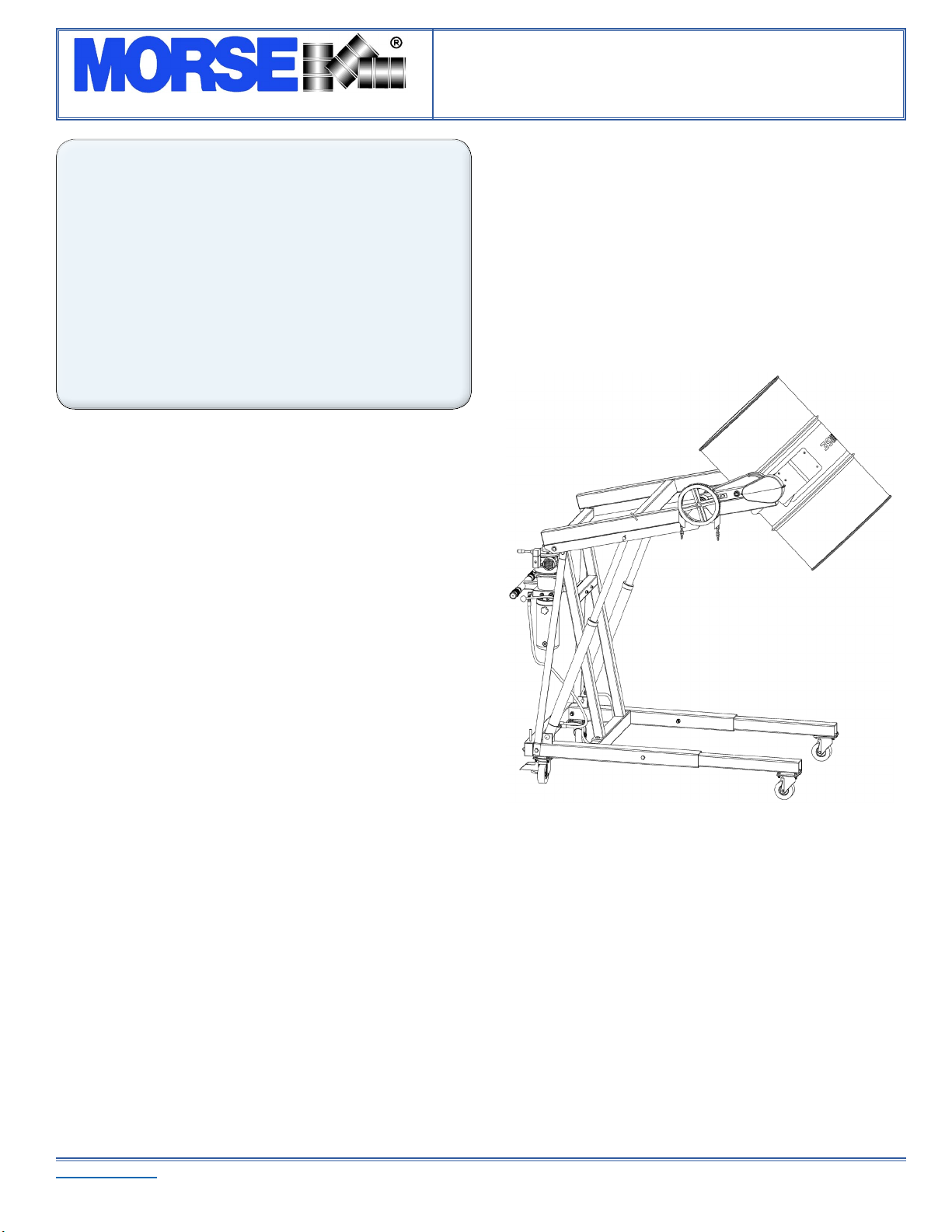

Figure 2.3
Figure 2.2
Plastic drum being lifted
with Kit # 4560M-P Top
Rim Clamp Assembly
installed.
Figure 2.1
Plastic drum being lifted
with Kit # 4556M-P Bracket
Assembly installed.

The Specialist In Drum Handling Equipment
Model 410M-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt,
with Spark Resistant Parts
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier with Spark Resistant Parts - Model 410M-124
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc. Form OM410M-124 (1210-____) (Updated 6 Jul, 2021) 4
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.

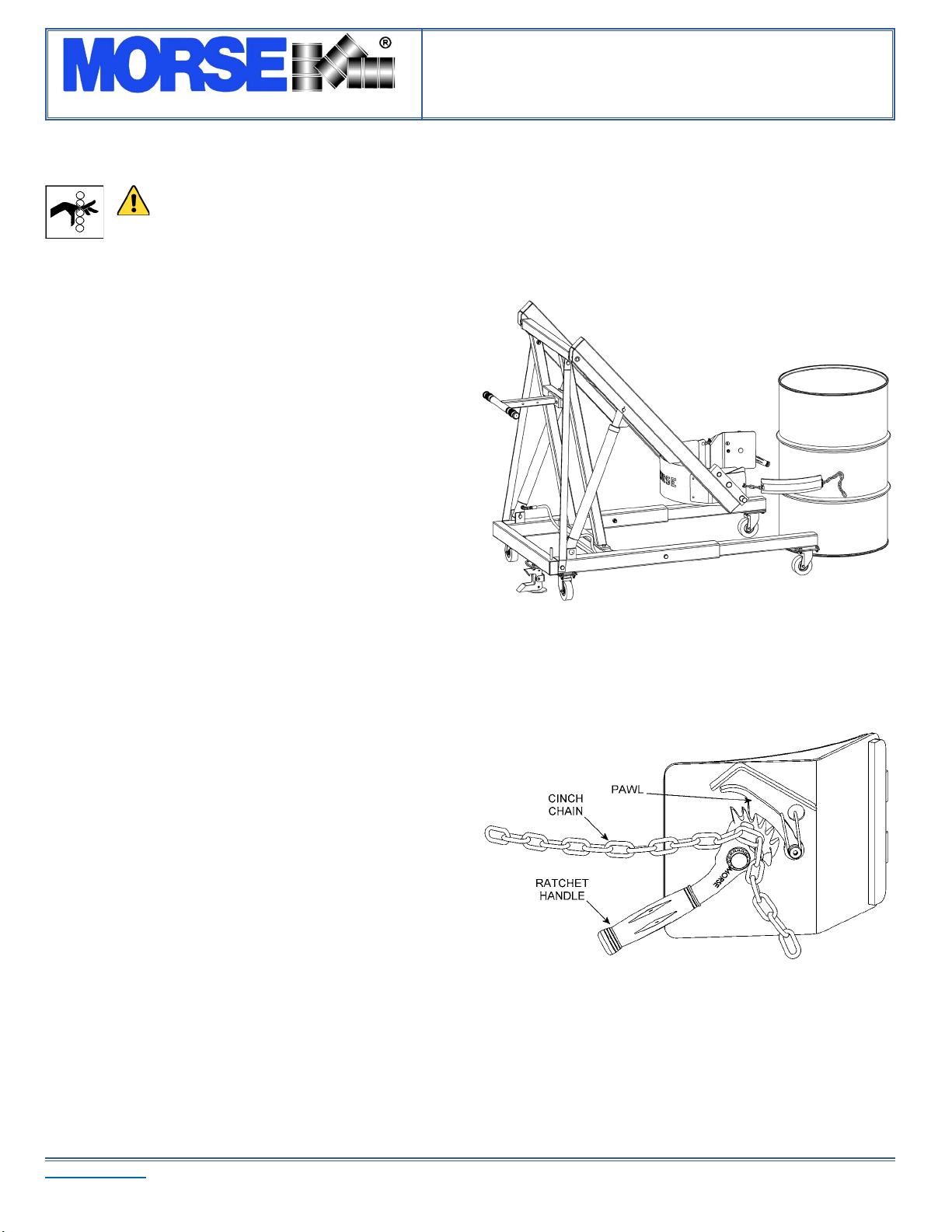

Figure 3.2
Floor Lock
The step-down oor lock is located behind the base (gure 3.1).
To activate, step down on the oor lock until it locks in the down
position. When the oor lock is activated it prevents unwanted free
wheeling of the unit. Floor conditions determine the eectiveness
of the oor lock. The operator should verify its holding action
before depending on it to hold.
MORCINCHTM Drum Holder Assembly
The drum holder assembly (or “saddle assembly”) is the
component on the Heavy-Duty Hydra-Lift Karrier that is intended
to hold the drum. The MORCINCHTM drum holder assembly is
designed to secure a standard ribbed 55-gallon (210 liter) steel
drum around it’s middle using a cinch chain and ratchet tightening
system. The MORCINCHTM drum holder accepts accessories for
handling a plastic drum, a ber drum, or smaller diameter drums
(see Options on pg. 3).
Operating Instructions
1.) Push the Heavy-Duty Hydra-Lift Karrier to the drum.
2.) Using the “LIFT” control as described in “Machine Description
- Controls” (page 3), position the drum holder assembly with
the back band at the middle of the drum. (Figure 3.1). With
the ratchet plate swung open and the cinch chain hanging
from the chain hook, push the unit until the back band rests
rmly against the drum. Some adjustment to the tilt angle of
the saddle may be necessary to ensure band ts ush on the
drum.
3.) Attaching the drum:
Drape the chain across the front of the drum and engage a
link into the slot in the ratchet (Figure 3.2). Turn the ratchet
clockwise to tighten chain. If ratchet turns until the pawl is
beyond the last ratchet tooth, turn the ratchet back and slide the
next link into the ratchet slot and try tightening again. The chain
must be held tightly against the drum with the pawl engaged
securely in the ratchet teeth.
4.) Operate the lift function to lift drum clear of oor. Roll to
dispensing location. NOTE: Do not allow the drum to impact on
oor, pouring station, etc. or a spill or damage could occur.
Figure 3.1

The Specialist In Drum Handling Equipment
Model 410M-124
Heavy-Duty Hydra-Lift, 72”, Air Power Lift, Manual Tilt,
with Spark Resistant Parts
Operator’s Manual for Morse Heavy-Duty Hydra-Lift Karrier with Spark Resistant Parts - Model 410M-124
Serial Number 1210 to ____ (MMYY)
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc. Form OM410M-124 (1210-____) (Updated 6 Jul, 2021) 5
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The
unit can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 3)
to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged while
dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to transport-
ing height; about 6” (15 cm) o the oor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the
push handle while handling a drum.
WARNING – Do NOT Disengage the Cinch Chain When Drum is o the Ground
When the drum is in the upright position, lower the drum to the oor before releasing the cinch
chain.
7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the
ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free
the ratchet with the other hand. Remove the cinch chain link from the ratchet.
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and ecient
operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust,
or replace parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic
uid. Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the clevis pins and the surfaces of the boom which
contact the inside of the mast cap, the gears and sprockets in the tilt drive, and the ratchet and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Hydraulic pump is shipped lled with Noco Premium plus automatic transmission uid d/m. Material safety data sheet
(MSDS) is available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil
dte 24 or equivalent for indoor use (Mobil dte 13 for outdoor use).
Table of contents
Other morse Lifting System manuals

morse
morse 905 User manual

morse
morse 82A-GT Series Operator's manual

morse
morse 82H-SS-125 User manual

morse
morse MORStak 289F User manual

morse
morse MORStak 611 Series User manual

morse
morse 82H-120 User manual

morse
morse 400A-96-117 User manual

morse
morse 510M-124 User manual

morse
morse 400A-96SS User manual

morse
morse 525-N User manual

morse
morse 515-N-110 User manual

morse
morse 81-SS User manual

morse
morse 510-125 User manual

morse
morse 400A-96SS-117 User manual

morse
morse 515SS-N-110 User manual

morse
morse 520-120 User manual

morse
morse 520-115 User manual

morse
morse 185A-HDSS User manual

morse
morse 40 User manual

morse
morse 510 User manual
