Metos FUTURA RP4 User manual

Installation and Operation Manual
Translation of the original documentation
Rev. 5.2
(12.1.2023)
3751993, 3751994, 3751995, 3751997, 3751999, 3752001, 3752002, 3752004, 3752005, 3752008, 3752009, 3752012, 3752014, 3755006, 3755026, 4210464,
4210465, 4210466, 4210470, 4210472, 4210474, 4210476
RANGE-OVEN COMBINATION
FUTURA RP4, RP6
Accessories
CHEF 200
CHEF 220
CHEF 240
FUTURA RP4 / CHEF220

2|
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
1. General.......................................................................................................................................................3
1.1. Symbols used in the manual ........................................................................................................................................................... 3
1.2. Symbols used on the appliance....................................................................................................................................................... 3
1.3. Checking the relationship of the appliance and the manual............................................................................................................ 3
2. Safety..........................................................................................................................................................4
2.1. Safe use of the appliance................................................................................................................................................................ 4
2.1.1. Disposal of the appliance ................................................................................................................................................................ 4
3. Functional description..............................................................................................................................4
3.1. Intended use of the appliance ......................................................................................................................................................... 4
3.1.1. Use for other purposes.................................................................................................................................................................... 4
3.2. Operating principle and construction............................................................................................................................................... 4
4. Operation instructions..............................................................................................................................5
4.1. Before using the appliance.............................................................................................................................................................. 5
4.1.1. Selecting cookware ......................................................................................................................................................................... 5
4.2. Using the range ............................................................................................................................................................................... 5
4.3. After use .......................................................................................................................................................................................... 6
4.3.1. Cleaning .......................................................................................................................................................................................... 6
4.3.2. Other service measures .................................................................................................................................................................. 7
5. Installation .................................................................................................................................................7
5.1. General............................................................................................................................................................................................ 7
5.2. Transporting and unpacking the appliance...................................................................................................................................... 7
5.3. Positioning the range....................................................................................................................................................................... 7
5.4. Electrical connections...................................................................................................................................................................... 7
5.5. Test-run............................................................................................................................................................................................ 8
6. Troubleshooting ........................................................................................................................................8
7. Technicalspecications ...........................................................................................................................9

|3
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
1. General
Carefully read the instructions in this manual as they contain important information regarding proper, ef-
cient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufacturer’s instructions
and following local regulations. The connection of the appliance to the electric and water supply must be
carried out by qualied persons only.
Persons using this appliance should be specically trained in its operation.
Switch o󰀨 the appliance in case of failure or malfunction. Have the appliance serviced by a technically
qualied person authorized by the manufacturer and using original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1.1. Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand. Given instructions are manda-
tory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad results, appliance damage or
hazardous situations.
This symbol informs about recommendations and hints that help to get the best performance out of the
appliance.
1.2. Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The removal of the part must be
carried out by qualied persons only.
1.3. Checking the relationship of the appliance and the manual
The rating plate of the appliance indicates the serial number of the appliance. If the manuals are missing,
it is possible to order new ones from the manufacturer or the local representative. When ordering new
manuals it is essential to quote the serial number shown on the rating plate.
STOP

4|
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
2. Safety
2.1. Safe use of the appliance
Because the range is a heated appliance that has hot surfaces during normal use, the following warnings
and instructions must be followed in order to avoid burns.
During long-time operation even the frame surrounding the cooking plates gets hot.
The capability of the cooking plates to store and even out the heat also keeps them hot for a long time
after switching them o󰀨.
For safe handling of cookware on the cooking top, always use heat protective gloves.
Do not leave the range on for long periods totally without supervision.
2.1.1. Disposal of the appliance
Once the appliance has reached the end of its useful life, it must be disposed of in compliance with lo-
cal rules and regulations. The appliance may contain substances/materials which potentially have an
adverse impact on the environment as well as recyclable materials. The best way of dealing with such
substances is to dispose of them through a proper waste company
3. Functional description
3.1. Intended use of the appliance
The Futura -range is intended for preparing di󰀨erent kinds of foodstu󰀨s using cookware.
3.1.1. Use for other purposes
Use of the appliance for any other purposes than that mentioned above is prohibited.
Preparing food directly on the cooking plate without cookware is prohibited.
Covering the gaps between the range cooking plates and the upper frame with folio is prohibited
The manufacturer shall not be held liable for any situations which may arise from failure to comply with
the warnings and instructions given in this manual.
3.2. Operating principle and construction
Depending on the model, the range is equipped with two, four or six cooking plates.
Each cooking plate is equipped with a 7-position power regulator which allows power regulation in sev-
eral steps. A green pilot light for every cooking plate indicates that the plate is on.
In order to ease daily cleaning the cooking plates are hinged and can be swinged up in an upright posi-
tion. In addition, the range is equipped with a removable spillage tray.
STOP

|5
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
4. Operation instructions
4.1. Before using the appliance
Using the appliance for the rst time or when heating elements or cooking plates have been
changed, turn on plates and ovens at MINIMUM temperature for SEVERAL hours or until the insulation
resistance is OK. This allows remaining humidity in the heating elements and cooking plates to dry up. In
fact, on rst connection, the earth insulation can be relatively inadequate, but after the above-mentioned ini-
tialization run the insulation level will normally be re-established according to CEI 18-6 part 307 regulations.
Setting the power or temperature to maximum right away at rst run may damage the heating elements
or the cooking plates.
In unclear cases contact our technical support:
[email protected]
The cooking plates of the range are protected with a thin layer of oil for the duration of storage and trans-
portation. When heating up the range for the rst time the oil may create some smoke and unpleasant
smell. This is quite normal and disappears quickly when using the range.
4.1.1. Selectingcookware
Always use at-based cookware in order to achieve good heat transfer and to increase the service life
of the cooking plate. Placing a cold and wet pan on a red-hot cooking plate should be avoided as the
thermal tensions created considerably decrease the service life of the plate.
You get the best benet from the range as well as from the cookware by observing the following:
• Use good quality at-based cookware.
• Wait for pans to cool before putting them in cold water.
• Always ensure pans have clean, dry bases before use.
• Ensure pan handles are positioned safely and away from heat sources.
• Always use pan lids except when frying.
• Remember good quality pans retain heat well, so generally only low or medium heat is necessary.
4.2. Using the range
Switch the appliance o󰀨 if it is damaged or is malfunctioning. Contact authorised service personnel using
original spare parts for service of the appliance.
Ranges intended for use aboard ships are equipped with a potrack. Using a range aboard a ship without
the potrack is prohibited.
During the installation, a mains switch have been tted near the range, often on a wall nearby. Check that
the mains switch is in the ON position.
The range is controlled with power regulators and pilot lights.
STOP

6|
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

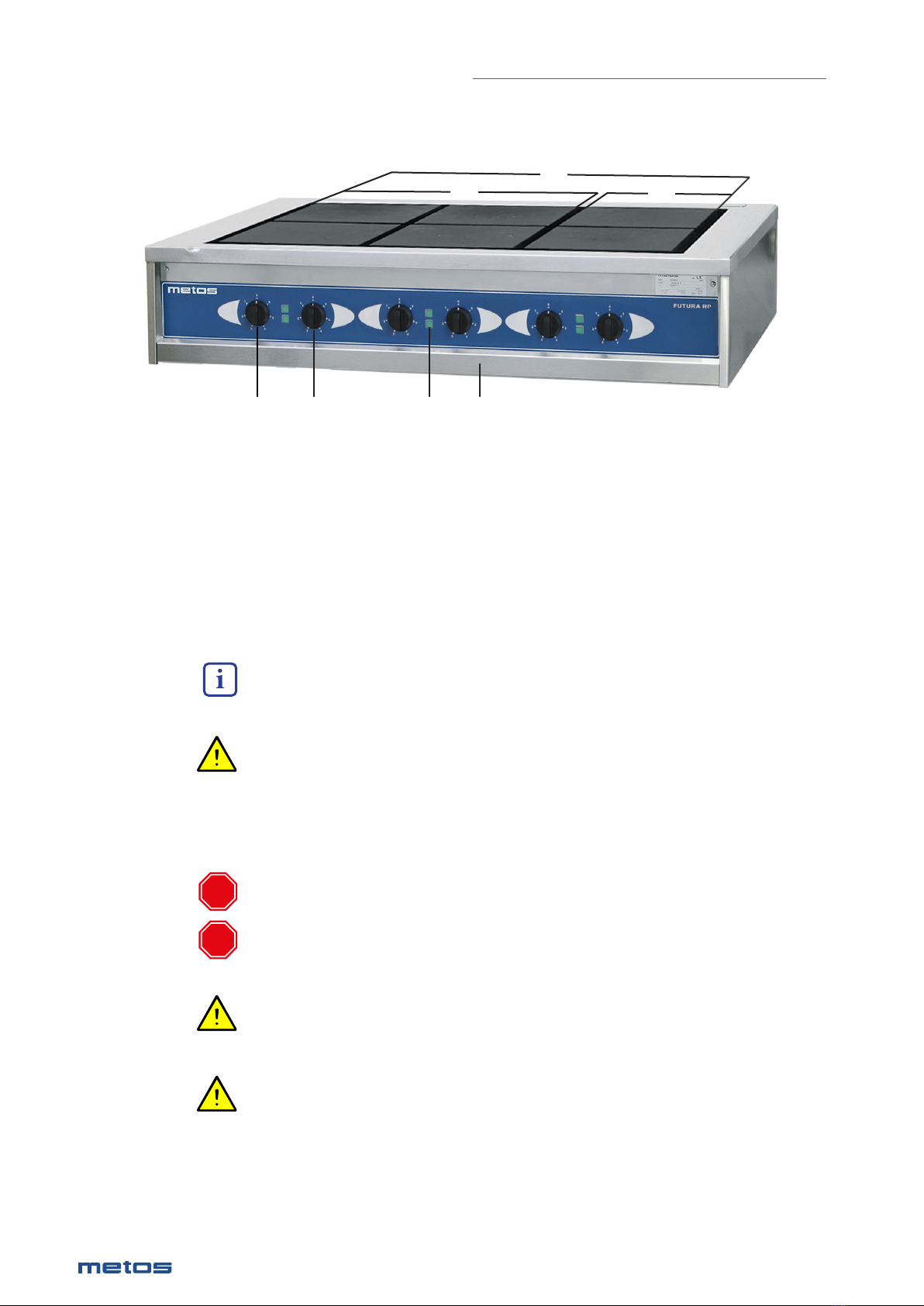

Operating panel
1. Spillage tray
2. Pilot light cooking plate
3. Power regulator front plate
4. Power regulator, rear plate
Each cooking plate is equipped with a 7-position power regulator which allows powerregulation in several
steps. A green pilot light for every cooking plate indicates that the plate is on.
Cooking is started by turning the power regulator to position 6. When boiling starts, the power is de-
creased as needed. Usually it is possible to use a small or medium power setting.
Do not leave the cooking plate on without any load, because it then overheats, which considerably de-
creases the service life of the plate. By turning the cooking plate o󰀨 when not needed, energy is saved
and a cooler working environment is achieved.
If there are interruptions in the electricity distribution, all power regulators of therange should be set to the
0 position. This should be done in order to prevent unexpectedstart-up of the range when the electricity
distribution is restored.
4.3. After use
4.3.1. Cleaning
Use of a water hose or pressure cleaning jet is strictly forbidden.
It is not allowed to wipe the undersides of cooking plates swung up to a cleaning position with a wet
sponge, cloth etc., because water owing down the plate is absorbed into the insulating material thus
causing earth leakage.
When cleaning the cooking plates, observe that they are hot a long time after they have been switched
o󰀨. When the cooking plates are swinged up for cleaning, it is advisable to support the plate in the up-
per position with one hand thus preventing the possibility that they unexpectedly return to their working
position.
Be careful when removing the spillage tray, as it may contain spillages that are still hot.
Cleaning is very easy, if possible spillovers are removed immediately with a damp cloth. Sugar and mixes
containing much sugar must be removed immediately, because later removing is laborious.
In all cleaning, prefer chemical cleaning methods rather than mechanical rubbing. Use a slightly alkaline
detergent (pH 8-10) diluted in water according to instructions when cleaning the surfaces of the range.
RP6
RP4 RP2
1234
STOP
STOP

|7
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
Always dry the cooking plates after cleaning by heating them up.
Clean cooking plates give an e󰀩cient heat transfer to the cookware. Cooking is then fastand the service
life of the cooking plates is extended.
The spillage tray is pulled out and cleaned. Outer surfaces are wiped o󰀨 with a damp clothand then wiped
dry.
4.3.2. Otherservicemeasures
The appliance does not include any user serviceable parts inside. Service must be left toauthorised
service personnel.
STOP
5. Installation
5.1. General
The installation of this appliance must be carried out in accordance with the manufacturer’s instructions
and in compliance with local rules and regulations. These instructions must be used together with the
installation drawing.
The connection of the appliance to the electric supply must be carried out by qualied persons only.
5.2. Transporting and unpacking the appliance
The best way to move the range is to keep it in its package as long as possible while it also protects the
range from outer damage. If it is necessary to unpack the range, possible lifting must be done from the
bottom frame using suitable spacers of wood. In order to avoid damages it is not allowed to use the cook-
ing top as a workbench during installation.
5.3. Positioning the range
Because the temperature of a cooking plate accidentally forgotten on without a pan may reach even
550°C, it is mandatory to follow local re safety regulations when installing the range.
The range is positioned in the installation place and adjusted in a horizontal position from the adjustable
legs.
When the range is on the correct location and in a horizontal position, it must be bolted to the oor, the
land models by the anges in the rear adjusting legs and the marine models from all four leg anges.
5.4. Electrical connections
Besides the live electrical parts, also look out for possible moving mechanisms inside the appliance, if
there is a need for testing during installation and the guards or cover plates are detached.
In order to make eventual future service easier and increase safety, a mains switch must be installed near
the appliance. This switch must disconnect the appliance completely from the electrical supply network.
The input of the power cable is at the bottom of the stove, in the right front corner. The connection point
for the input cable can be found behind the right side panel. The right side panel must be removed.
Take into account the adjustment movement of the stove (200 mm) when installing the supply cable if the
stove is equipped with height adjustment.
STOP
STOP

8|
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
5.5. Test-run
Please read the safety and operation instructions as well as the functional description before testing the
range The appliances under the cooking top are provided with their own manuals.
Test the range once it has been connected to the mains electricity.
Check that
• every cooking plate heats up and the corresponding pilot light turns on when theplate is switched on
with the power regulator
• no wires inside the appliance get jammed before retting the side panel.
Ret the side panel.
6. Troubleshooting
If the appliance fails to work, check to ensure that:
• the plug is connected to the outlet
• it has been used according to instructions
• all removable parts are in place
• the disconnection switch (usually on a wall or in the immediate vicinity of the oven) is in the ON position
• That the circuit breakers (fuses) of the appliance in the electricity distribution board are working order.
Ask an authorised person to check the circuit breakers.
Should the range still not work, contact an authorised agent. Before making the call, make sure you have
at hand the appliance type and serial number to be found on the name plate.
This appliance does not contain parts which can be serviced by the user. Maintenance must be carried
out by qualied persons only.
STOP

|9
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
7. Technicalspecications
RP + Chef 200
T02131C3 Wiring diagram RP4-RP6 + Chef 200 3/N/PE 380-415V/220-240V
T02130C3 Wiring diagram RP4-RP6 + Chef 200 3/PE 220-230V
T02132C3 Wiring diagram RP4-RP6 + Chef 200 3/PE 380-440 V
RP + Chef 220
T02120C3 Wiring diagram RP4-RP6 + Chef 220 3/N/PE 380-415V/220-240V
T02119C3 Wiring diagram RP4-RP6 + Chef 220 3/PE 220-230V
T02121E3 Wiring diagram RP4-RP6 + Chef 220 3/PE 380-440V
T03420E3 Wiring diagram RP4-RP6 4kW + Chef 220 3/PE 380-440V
T03396B3 Wiring diagram RP4-RP6 2,5kW + Chef 220 3/PE 480V
RP + Chef 240
T04823B3 Wiring diagram RP4-RP6 +Chef 240 3/N/PE 220-240V/380V/415V
T02122C3 Wiring diagram RP4-RP6 + Chef 240 3/PE 220-230V
T04824B3 Wiring diagram RP4-RP6 + Chef 240 3/PE 380-440V
T05438B3 Wiring diagram RP4-RP6 4kW + Chef 240 3/PE 380-440V
T02194C3InstallationdrawingRP4/Chef220
T02195C3InstallationdrawingRP6/Chef220
T02196C3InstallationdrawingRP4/Chef240
T02197C3InstallationdrawingRP6/Chef240
T02198B3InstallationdrawingRP4/Chef200
T02199B3InstallationdrawingRP6/Chef200

10 |
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

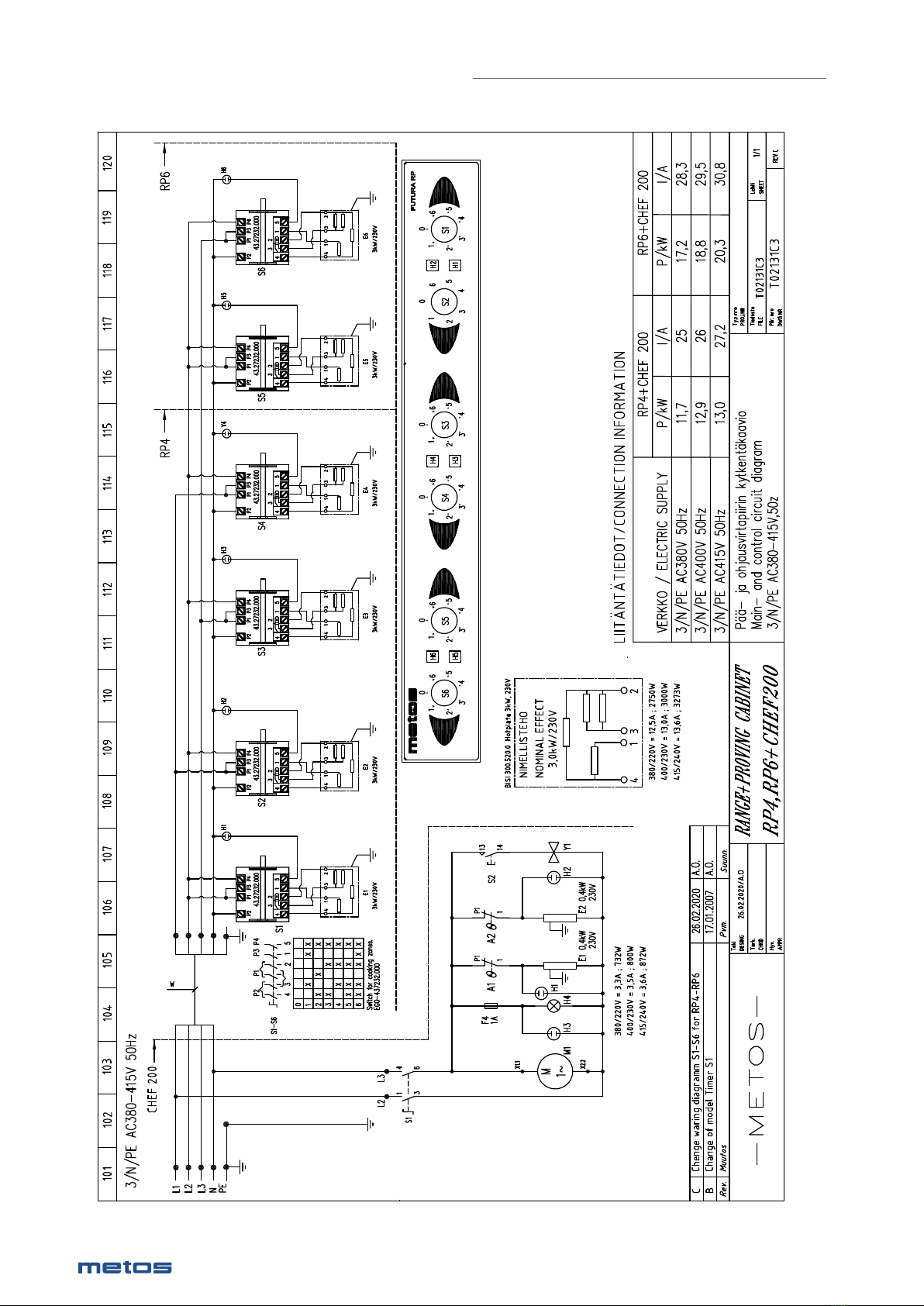

T02131C3 Wiring diagram RP4-RP6 + Chef 200 3/N/PE 380-415V/220-240V

|11
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

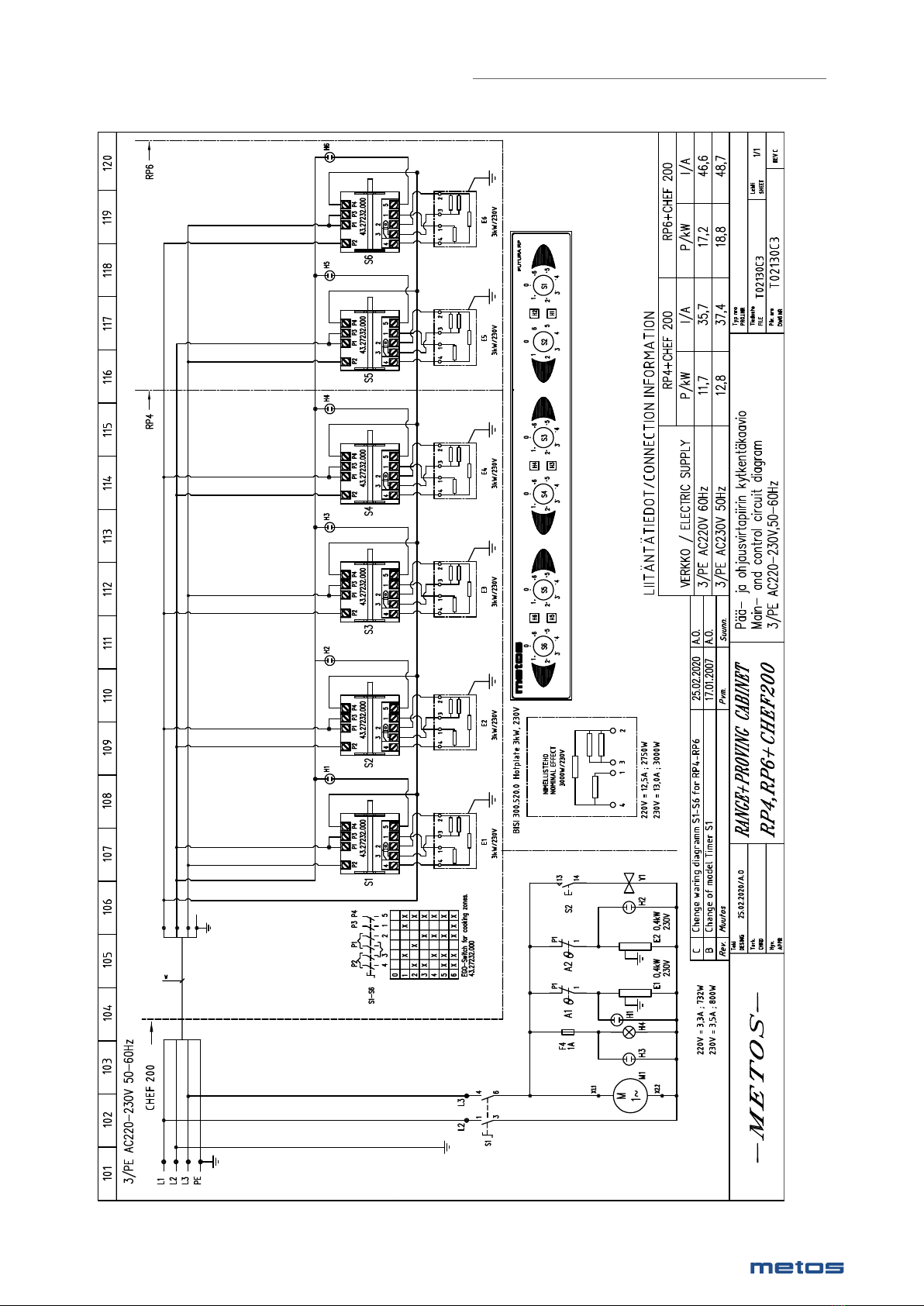

T02130C3 Wiring diagram RP4-RP6 + Chef 200 3/PE 220-230V

12 |
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
T02132C3 Wiring diagram RP4-RP6 + Chef 200 3/PE 380-440 V

|13
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

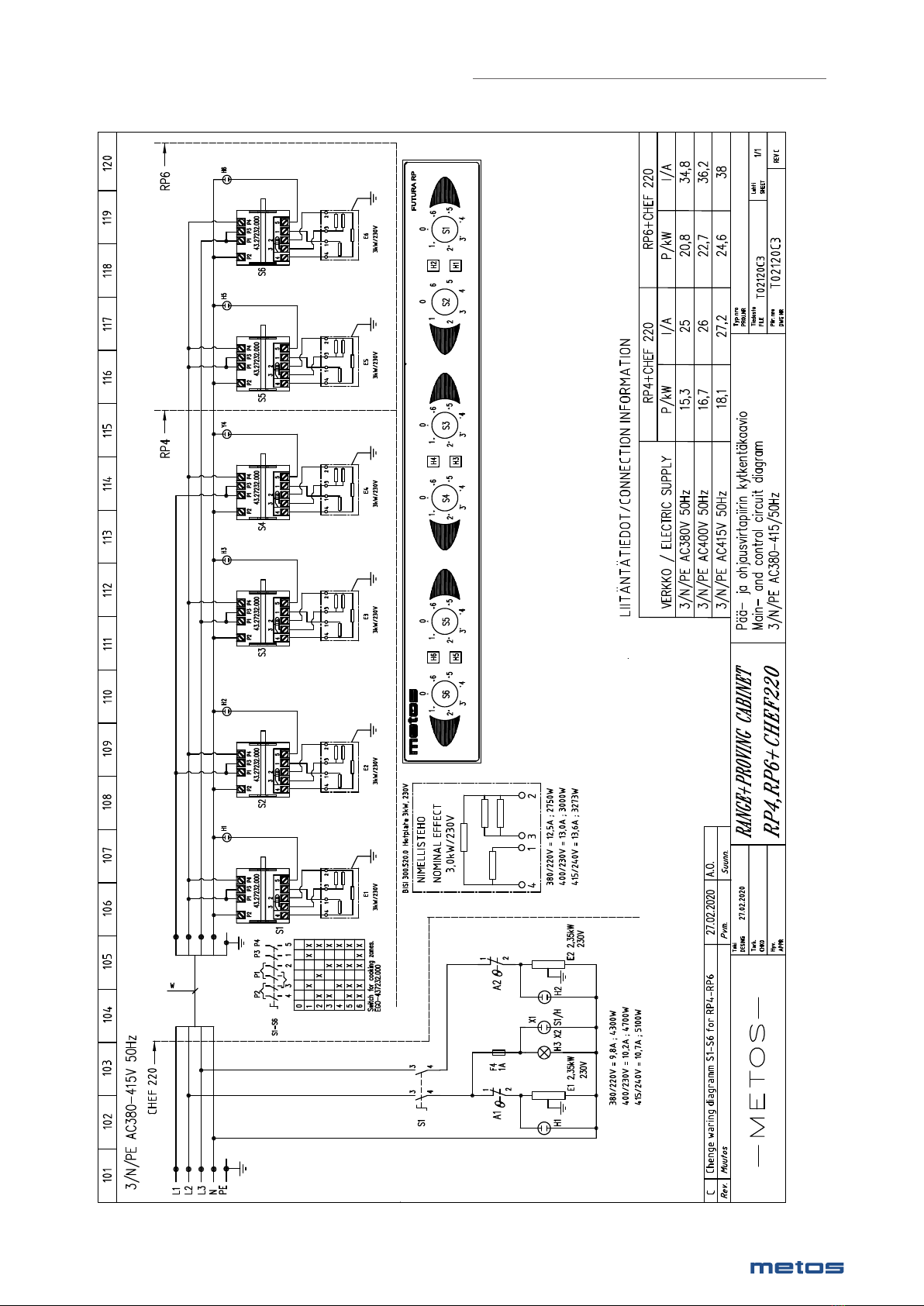

T02120C3 Wiring diagram RP4-RP6 + Chef 220 3/N/PE 380-415V/220-240V

14 |
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
T02119C3 Wiring diagram RP4-RP6 + Chef 220 3/PE 220-230V

|15
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

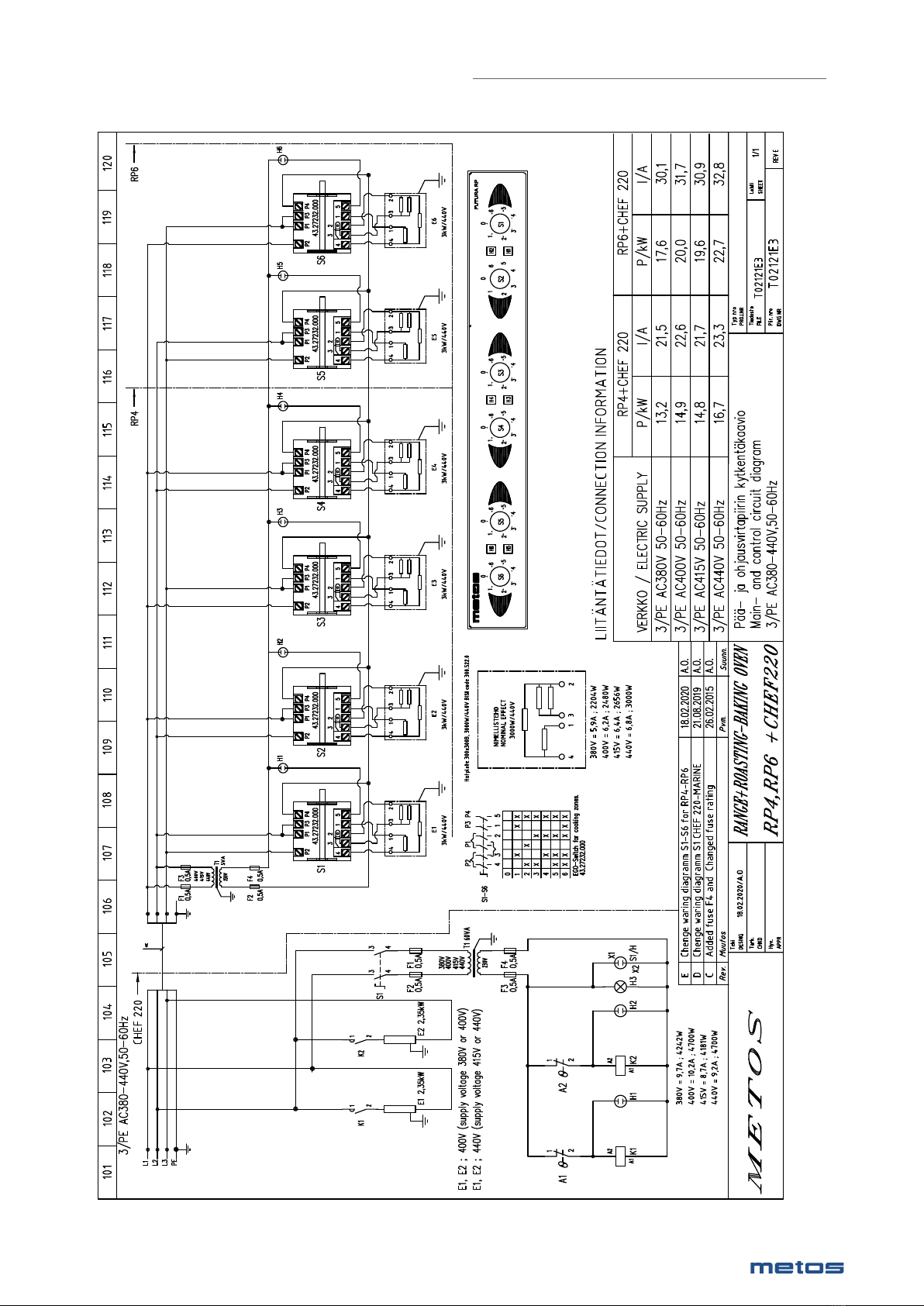

T02121E3 Wiring diagram RP4-RP6 + Chef 220 3/PE 380-440V

16 |
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
T03420E3 Wiring diagram RP4-RP6 4kW + Chef 220 3/PE 380-440V

|17
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

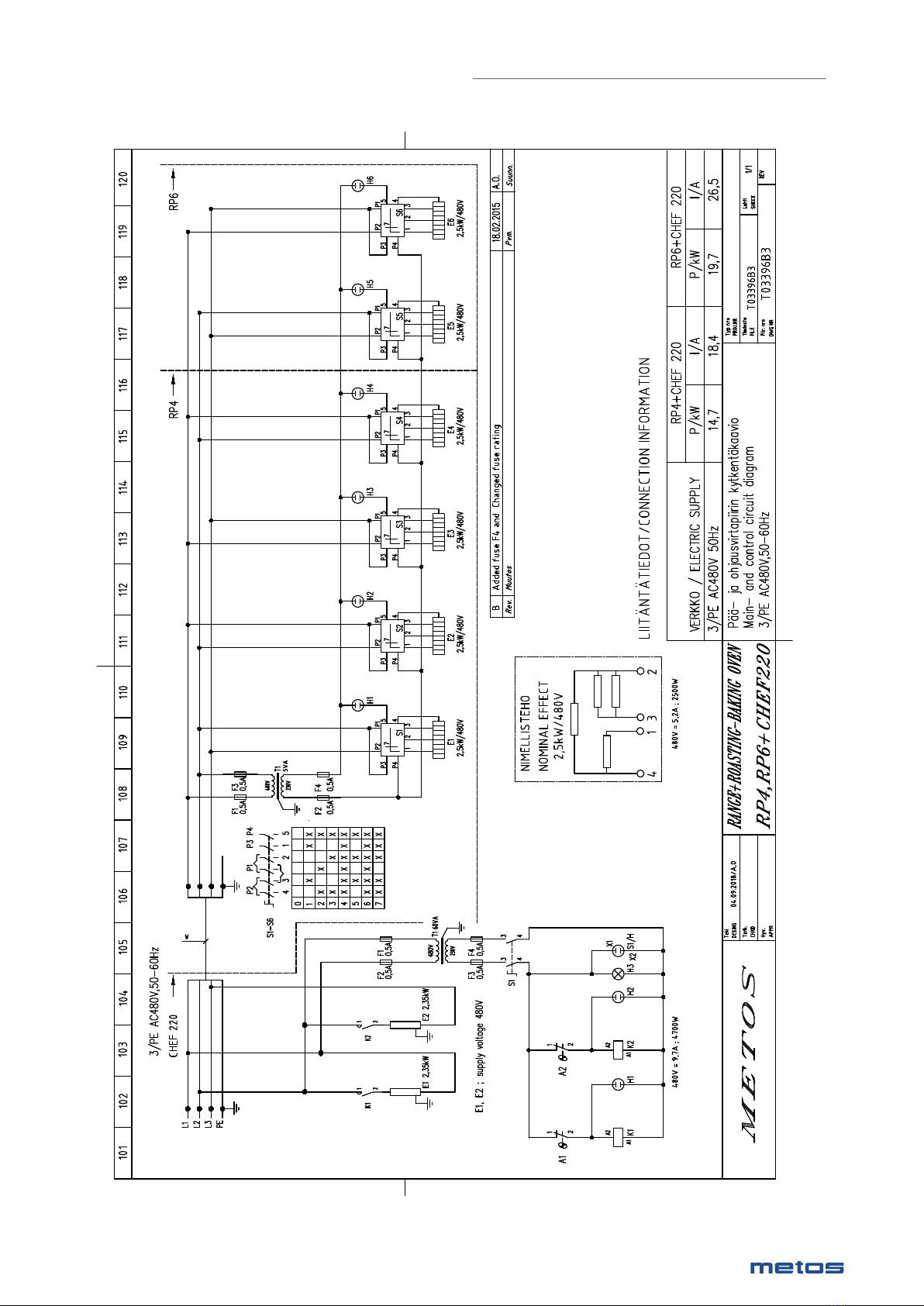

T03396B3 Wiring diagram RP4-RP6 2,5kW + Chef 220 3/PE 480V

18 |
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240
T04823B3 Wiring diagram RP4-RP6 +Chef 240 3/N/PE 220-240V/380V/415V
FUTURA RP

|19
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

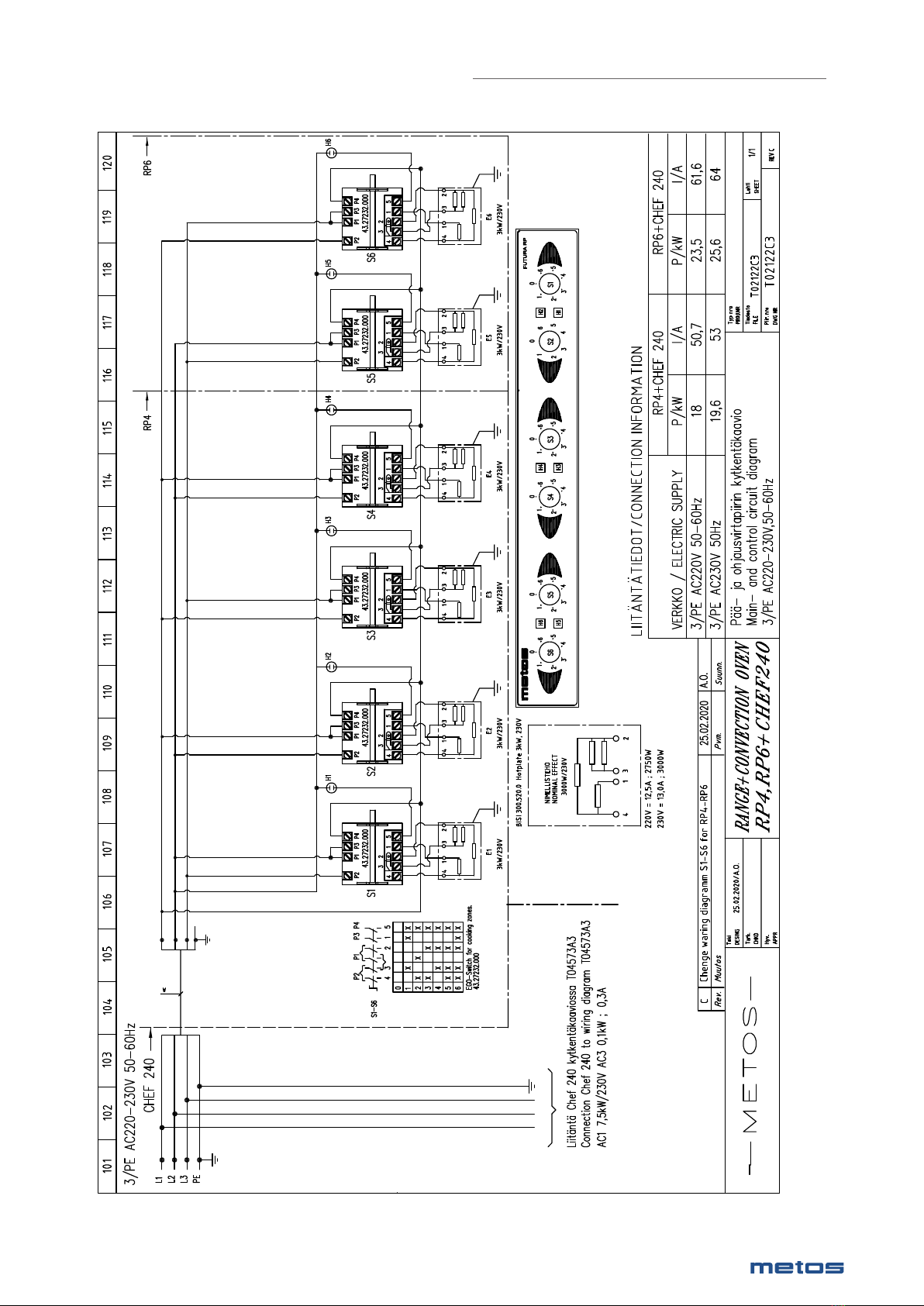

T02122C3 Wiring diagram RP4-RP6 + Chef 240 3/PE 220-230V

20 |
12.1.2023 Rev. 5.2
METOS FUTURA RANGE-OVEN COMBINATION, RP4, RP6
Accessories: Chef 200, Chef 220, Chef 240

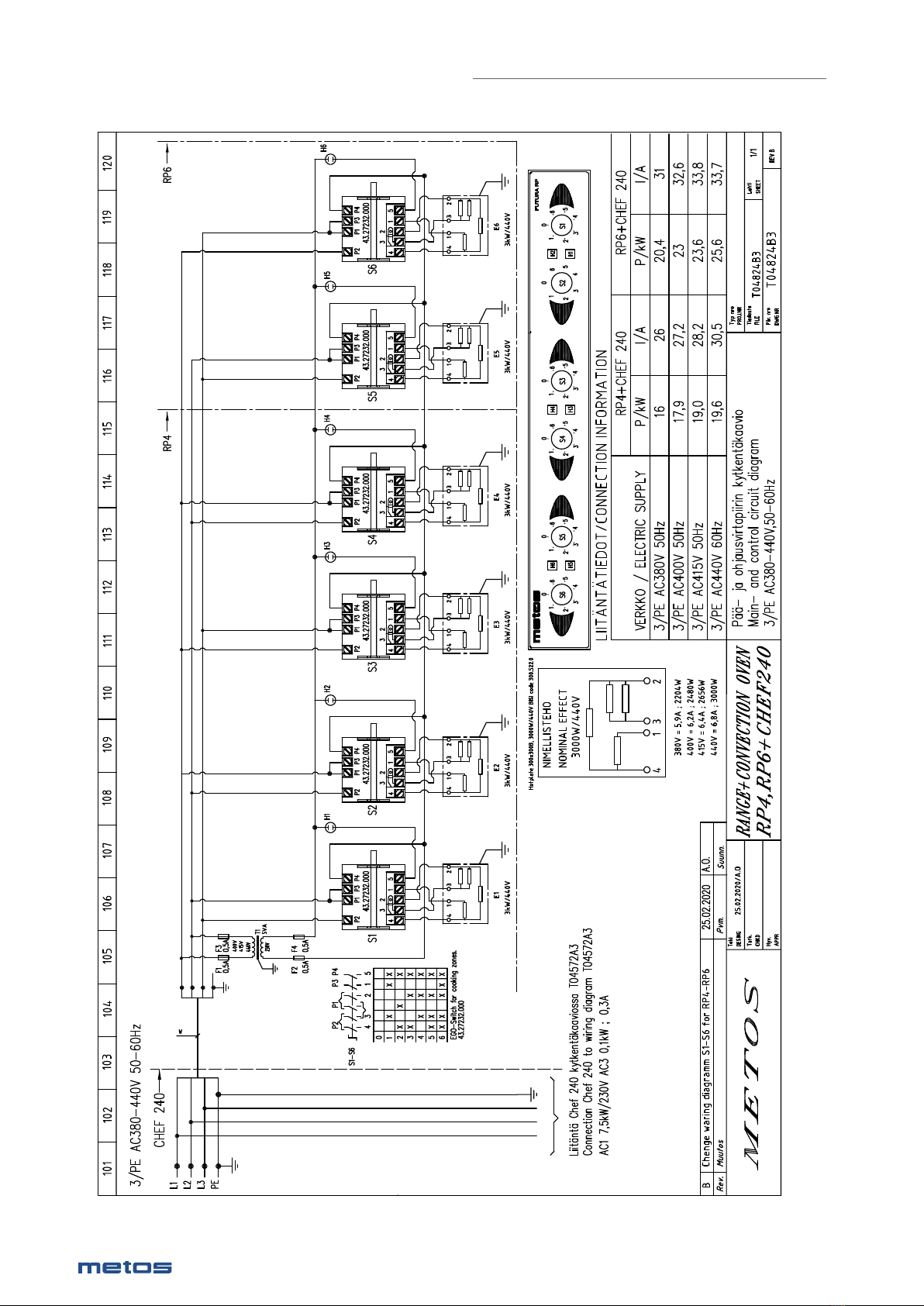

T04824B3 Wiring diagram RP4-RP6 + Chef 240 3/PE 380-440V
