METROLOGIC INSTRUMENTS, INC.

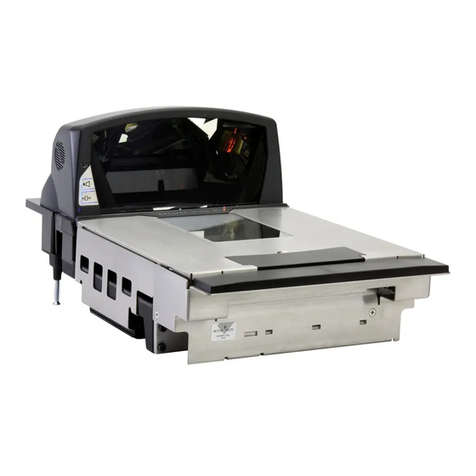

MS2xxx Stratos®Series
Configuration Addendum

Copyright
© 2008 by Metrologic Instruments, Inc. All rights reserved. No part of this
work may be reproduced, transmitted, or stored in any form or by any means
without prior written consent, except by reviewer, who may quote brief
passages in a review, or provided for in the Copyright Act of 1976.
Trademarks
Metrologic is a registered trademark of Metrologic Instruments, Inc.
Products identified in this document are hereby acknowledged as
trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their
respective companies.

ii
TABLE OF CONTENTS
Important Notes - Before You Start ...................................................................... 1
Scale Program Mode............................................................................................ 2
Scale/Load Cell Configuration Bar Codes
Single or Dual Cable Scale Configuration Bar Codes
Unit Configuration (Pounds or Kilograms).............................................. 5
Pole Display Configuration..................................................................... 6
Scale Settling Filter Configuration .......................................................... 7
Scroll Weight Configuration.................................................................... 9
Dual Cable Scale Configuration Bar Codes
Price Computing Configuration ............................................................ 10
Scale Protocols .................................................................................... 11
Scale COM Port Settings (Baud Rate) ................................................. 14
Scale COM Port Settings (Data Bits & Parity)...................................... 16
Single Cable Scale Configuration Bar Codes
Set Scale for Single Cable Communication ......................................... 19
Scanner Configuration Bar Codes
Dual Cable Scanner Configuration Bar Codes
Dual Cable Scanner Mode ................................................................... 20
Dual Cable Scanner OPOS Mode........................................................ 20
Various Dual Cable Scanner Mode ...................................................... 21
IBM 3rd Generation 46xx ...................................................................... 22
IBM OEM Full Speed USB ................................................................... 22
Single Cable Scanner Protocols for P.O.S. Compatibility
MSS Global.......................................................................................... 23
ISS45 ................................................................................................... 24
OPOS................................................................................................... 25
Retailix / NCR....................................................................................... 26
Retailix / OPOS .................................................................................... 27
IT Retail................................................................................................ 28

iii
TABLE OF CONTENTS
IBM Self Checkout System .................................................................. 29
Various RS232 Single Cable Codes .................................................... 30
IBM 3rd Generation 46xx ...................................................................... 31
IBM OEM Full Speed USB ................................................................... 32
Additional POS Data Formatting
Full Speed USB Table Top/Handheld .................................................. 33
Special Function ACK .......................................................................... 35
Prefix/Suffix.......................................................................................... 36
3x-30 Acknowledge Responses ........................................................... 37
Special Function Command Responses .............................................. 38
BCC in POS communications .............................................................. 42
3 Scale Status Bytes ............................................................................ 43
Scale Options....................................................................................... 44
Remote Display.................................................................................... 45
StratosSTATS ...................................................................................... 46
Additional POS Related Functions
Scanner Beep on Weight Sent............................................................. 49
Restrict In-Store Codes........................................................................ 50
Scale Shadow Mode ............................................................................ 51
Scanner Razz on Not-On-File .............................................................. 52
Additional Scanner Configuration Bar Codes
Horizontal Depth of Field...................................................................... 53
Vertical Depth of Field.......................................................................... 55
Auxiliary Port
Stratos School...................................................................................... 57
Quick Start for a Secondary Metrologic Scanner ................................. 58
EAS Bar Codes
EAS Device Types ............................................................................... 60
EAS Timeout ........................................................................................ 63
EAS Connection................................................................................... 68

iv
TABLE OF CONTENTS
Continuous Mode ................................................................................. 71
EAS Deactivation ................................................................................. 72
Sensormatic ScanMax Pro................................................................... 75
Scanner Test Bar Codes
Supplemental Tests..................................................................................... 77
Display Software Numbers................................................................... 77
Contact Information and Office Locations........................................................... 78

1
IMPORTANT NOTES -BEFORE YOU START
It is important to carefully read the notes marked with a symbol on the pages
contained in this manual. Not all configuration codes are designed to be used for
both a single and dual cable scanner/scale system. Many of the configuration
bar codes require additional steps before the unit can be configured and placed
into service. Most of the bar codes in this addendum were designed to be used
with a Stratos model that includes a scale. The text marked with a symbol will
provide important additional information about the restrictions and uses of the bar
codes shown.
All of the bar codes in this manual require:
•The scanner/scale to have a firmware number of 14996 or higher
•All configuration bar codes must be scanned with the vertical window
The bar codes (starting with 996) located on pages 5 - 19 also
require the scanner/scale to:
•Be in scale program mode (see page 2)
•Be calibrated, sealed and certified by local Weights and Measures
authorities after the scale configuration process has been completed.
The scanner/scale can not be placed in service until it is sealed and
certified by the proper authorities.
For further details on calibration procedures for Weights and Measures
certification, refer to the Scale Operation: Calibration section of the
Stratos Installation and User’s Guide.
The certification of the weighing mechanism of the scale version of
this scanner is subject to federal, state and local Weights and
Measures statutes and regulations and can only be performed by
authorized government agencies and/or their duly registered
agents. Each time the scale or weighing mechanism is calibrated,
it should be properly sealed with a paper seal or a wire seal prior to
being placed into service in commerce.
It is the responsibility of the owner of the scale to confirm
compliance with the relevant Weights and Measures statutes and
regulations applicable in your area by checking with the appropriate
government agency before placing a newly calibrated unit into
service or removing any official seals.

2
SCALE PROGRAM MODE
The following steps are only required for the scale configuration bar
codes located on pages 5 - 19 (bar codes beginning with 996.)
1. Power down the scanner/scale.
Then, temporarily remove the
scale platter and place it in a safe
location.
Figure 1.
2. Cut and remove the security seal over the program/calibration switch cover.
See Figure 2 below for seal location on the StratosE and the StratosH
models. See Figure 3 on page 3 for the seal location on the StratosS.
Once the security seal is cut the unit cannot be place in service until
it is calibrated, sealed and certified by local Weights and Measures
authority.
3. Remove the M3 screw securing the switch cover in place. Store the cover
and screw in a safe location. They will be needed again after the scale is
configured and calibrated.
Always follow all Electro-Static Discharge (ESD) procedures when
exposing the internal scanner/scale components.
4. Enter the scale program mode by sliding the switch to the program
position. See Figure 2 below for the switch location on the StratosE and
StratosH. See Figure 3 on page 3 for the switch location on the StratosS.
Figure 2. StratosE and StratosH Calibration Seal and Switch Location

3
SCALE PROGRAM MODE
Figure 3. StratosS Calibration Seal and Switch Location
5. Disconnect the scale-to-host RS232 cable from the unit (dual cable
interface only.)
Figure 4. Disconnect scale-to-host RS232 Cable
6. Reinstall the platter and connect AC power to the scanner.
Check the AC input requirements of the power supply to make sure the voltage matches
the AC outlet. The outlet should be located near the equipment and be easily
accessible.
Metrologic recommends using a switched AC outlet. The switch should be located on
the operator’s side of the checkout counter in close proximity to the scanner/scale to
facilitate calibration and service of the unit.
To maintain compliance with applicable standards, all circuits connected to the scanner
must meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC
60950-1.
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm
EN/IEC 60950-1, the power source should meet applicable performance requirements
for a limited power source.

4
SCALE PROGRAM MODE
7. If the system is equipped with a remote scale display, it will read H - - -.
8. Use the vertical window to scan the desired scale configuration bar
codes, located on pages 5 - 19.
Figure 5.
9. Reconnect the scale-to-host RS232 cable to the scanner (dual cable
interface only.)
Figure 6.
10. The scale must now be calibrated, tested and certified by local Weights
and Measures authorities before it can be placed in service.
For further details on calibration procedures for Weights and Measures
certification, refer to the Scale Operation: Calibration section of the Stratos
Installation and User’s Guide.
The certification of the weighing mechanism of the scale version of
this scanner is subject to federal, state and local Weights and
Measures statutes and regulations and can only be performed by
authorized government agencies and/or their duly registered agents.
Each time the scale or weighing mechanism is calibrated, it should
be properly sealed with a paper seal or a wire seal prior to being
placed into service in commerce.
It is the responsibility of the owner of the scale to confirm compliance
with the relevant Weights and Measures statutes and regulations
applicable in your area by checking with the appropriate government
agency before placing a newly calibrated unit into service or
removing any official seals.
Type of seal to be used will depend on the guidelines specified by
the local Weights and Measures authorities.

5
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Unit Configuration (Pounds or Kilograms)
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = Pounds
³996001
Set the scale measuring range from
0.00 to 30.00 pounds.
Scale =Kilograms
³996002
Set the scale measuring range from
0.000 to 15.000 kilograms.

6
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Pole Display Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale Has Display
³996003
Set the scale to use a remote display to
show all scale activity.
A remote display must be plugged into the
Scale RS485 to Display connector on the
MS2xx0 (see Figure 7) for this feature to
function properly.
Figure 7. Location of Scale RS485 to Display Connector
Scale Has No Display
³996004
Set the scale to not use a remote display.
All weights are expected on a POS terminal
display.
A remote display can not be plugged into
the Scale RS485 to Display connector on
the scanner/scale (see Figure 7) or this
feature will not function properly.

7
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Scale Settling Filter Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
The MS2xx0 must be in scale program mode to use these bar codes.
The scale’s filter setting allows the unit to withstand a certain amount of vibration
from the checkout counter. A stronger filter allows for more vibration to be
absorbed but the weight may take a little longer to settle. Scales are normally
shipped with a loose filter.
* Scale = Loose Filter
³996005
Loose filter setting for low vibration
environments.
* Factory Default Setting

8
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Scale Settling Filter Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = Medium Filter
³996006
Medium filter setting for moderate vibration
environments.
Scale = Strong Filter
³996007
Strong filter setting for high vibration
environments.

9
SCALE/LOAD CELL CONFIGURATION BAR CODES
Single or Dual Cable Scale Configuration Bar Codes
Scroll Weight Configuration
The following bar codes can be used to configure a Single or
Dual Cable MS2xx0.
The MS2xx0 must be in scale program mode to use these bar codes.
These bar codes only affect the pole display.
Scale = Scroll Settling Weight
³996010
Scroll the weight on the display showing the
weight as it changes.
Scale = Blank Non-Steady
³996011
Blank the display weight as it changes.
Display stable weights only.

10
SCALE/LOAD CELL CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Price Computing Configuration
The following bar codes are only used when the scale is in Dual Cable
mode.
The MS2xx0 must be in scale program mode to use these bar codes.
* Scale = No Price Computing
³996008
Scale is not the price computing type.
* Factory Default Setting
Scale = Price Computing
³996009
Scale is the price computing type.

11
SCALE/LOAD CELL CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 20.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = EPOS Protocol
³996013
Set the scale RS232 protocol to
Serial EPOS.
Communication Port Settings:
•2400 Baud
•7 Data Bits
•1 Stop Bit
•Even Parity
Scale = EPOS2 Protocol
³996014
Set the scale RS232 protocol to
Modified Serial EPOS.
This Protocol does not require the POS
terminal to send the weight back to the scale
for validation.
Communication Port Settings:
•2400 Baud
•7 Data Bits
•1 Stop Bit
•Even Parity

12
SCALE/LOAD CELL CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 20.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = NCI-ECR Protocol
³996015
Set the scale RS232 protocol to NCI-ECR.
Communication Port Settings:
•9600 Baud
•8 Data Bits
•1 Stop Bit
•No Parity
Scale = NCI Protocol
³996016
Reserved for Future NCI Protocol Variation

13
SCALE/LOAD CELL CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
Scale Protocols
The following bar codes will change scale parameters intended for a
Dual Cable environment. To place the scanner in Dual Cable mode,
please refer to page 20.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = EMEA
Special Configuration
³996041
Set the scale to Avery EPOS protocol,
kilograms, with a remote display, loose filter,
no price computing, and scroll weight.
Communication Port Settings:
•2400 Baud
•7 Data Bits
•1 Stop Bit
•Even Parity

14
SCALE/LOAD CELL CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Baud Rate)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 11 or 13 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = 2400 Baud Rate
³996017
Set the scale baud rate for dual cable
applications to 2400 baud.
Scale = 9600 Baud Rate
³996018
Set the scale baud rate for dual cable
applications to 9600 baud.

15
SCALE/LOAD CELL CONFIGURATION BAR CODES
Dual Cable Scale Configuration Bar Codes
COM Port Settings (Baud Rate)
The following bar codes will change scale parameters intended for a
Dual Cable environment.
If a Scale Protocol bar code from page 11 or 13 is used, the bar codes
below must be scanned after the Scale Protocol bar code in order to be
effective.
The MS2xx0 must be in scale program mode to use these bar codes.
Scale = 19200 Baud Rate
³996019
Set the scale baud rate for dual cable
applications to 19200 baud.
Scale = 38400 Baud Rate
³996020
Set the scale baud rate for dual cable
applications to 38400 baud.
