METRON Duo User manual

www.eauto.si [email protected] [phone]
USER MANUAL
STANDARD(+), DUO(+), TOWER STANDARD(+), TOWER DUO(+)
Simple & SMART wall-mounted and floor-mounted EV Charging Stations
INTRODUCTION
METRON wall-mounted STANDARD/DUO and floor-mounted TOWER STANDARD/DUO are heavy duty all-metal modular EV charging stations designed for long life
operation with maximum user safety features. They also offer smart charging via Metron proprietary Hardwired or Wireless Dynamic Power Control system, OCPP
module with RFID reader for connecting to any cloud backend platform for payment and energy monitoring, ISO 15118 high level communication module for simple
charging authorization and V2G capability, OTA software updates and more.
STANDARD models offer charging power up to 22 kW (3x32A) and DUO models offer charging power up to 2 x 22 kW (3x32A). All models come with oversized main
charging power contactor with 63A current rating for long life operation (20 years+), modular RCCB device (Type B or Type A with 6mA DC) with 10.000A short circuit
breaking capacity and modular automatic circuit breaker with 10.000A short circuit breaking capacity what ensures not only safest domestic use but also allows the
stations to be installed in industrial areas for commercial use. Modular design ensures on-site repairability in max. 15 minutes. The stations with built-in charging cables
can also be equipped with TESLA remote charge port opener & plug unlocker.
Any other use is not allowed and is regarded as improper use.
Before using the EV charging station, please thoroughly read this manual and follow the instructions provided therein. Please keep the manual for future use. If you
are unsure about the proper usage, please contact the manufacturer or your dealer before usage.
Improper use can lead to property damage or personal injury. In such cases, the manufacturer and retailer accept no liability. Warranty will be voided in case of
improper use. You must not:
• modify / manipulate the EV charging station!
• drive over plugs and cables of the EV charging station!
• draw more than maximum specified charging current from the EV charging station!
• connect unsuitable plugs and cables!
• use the EV charging station if damaged!
IMPROPER USE
GENERAL SAFETY INSTRUCTIONS
• Carefully read this security instructions before using the product!
• Never draw more than maximum specified charging current from the EV charging station!
• Children are not allowed to use the EV charging station.
• Keep animals away while using the EV charging station.
• Avoid liquids entering the EV charging station. Never use the EV charging station if the sockets or plugs are wet.
• Only connect undamaged, designated and labelled plugs & cables to the EV charging station.
Podnart 33, SI-4244 Podnart

SETTING THE DESIRED CHARGING CURRENT / POWER without WiFi connection
METRON EV charging stations allow users to set desired charging current / power before being plugged in the electric vehicle. Procedure is simple:
• Press and hold the push button: STATUS LED O-ring switches off immediately.
• After 5 seconds STATUS LED O-ring starts blinking slowly.
• Releasing the push button after a certain number of LED O-ring blinks determines charging current / power as follows:
New charging current / power setting is stored in the memory and it stays the same (even after the power supply is not present anymore)
until the next setting change is performed.
GET STARTED
When no electric vehicle is connected the blue LED STATUS O-ring around station’s black push button(s) glows constantly indicating standby / ready status. When
you plug in the vehicle the STATUS LED O-ring starts blinking slowly what means the vehicle is charging. When your electric vehicle is fully charged the LED O-ring
glows constantly again.
If hardwired or wireless Metron Dynamic Power Control system that offers smart charging is installed the charging power is dynamically controlled in order to not
blow main house fuses; this system is also smartly taking into account the solar / wind / hydro power plant if house has it installed (see chapter “METRON Hardwired
or Wireless Dynamic Power Control” for more info). Users can also via WiFi connect to built-in Metron Charge Control application which offers possibility to change
charging power, delay charging start, monitor real-time charging&house&solar power & energy, activate solar SURPLUS charging and much more (see chapter
“USING THE WiFi METRON Charge Control application” for more info).
If the station is configured in the way authorization is needed for charging start the STATUS LED O-ring shortly blinks every 2 seconds but after successful authorization
(RFID, AutoCharge, OCPP backend, Metron Charge Control app, etc) the STATUS LED O-ring behaves normally.
• Check the EV charging station before use. Do not use the EV charging station if damaged!
• Socket will provide a high voltage (230 / 400 V)!
• Never draw more than maximum specified charging current from the EV charging station!
• Do not use the EV charging station if the socket and plug are wet.
• Only connect undamaged, designated and labelled plugs & cables to the EV charging station.
• Avoid using multiple adapter / power strips as they can lead to overload.
• Don’t unplug during charging process.
• Always operate in the specified order of steps.
Push Button
LED O-ring
Applies to all station versions!
* 1-phase 7,4 kW and 3-phase 22 kW stations only.
1 x 6 A / 1,4 kW
1 x 8 A / 1,8 kW
1 x 10 A / 2,3 kW
1 x 13 A / 3,0 kW
1 x 16 A / 3,7 kW
1 x 20 A / 4,6 kW
1 x 25 A / 5,8 kW
1 x 32 A / 7,4 kW
1 - phase stations 3 - phase stations
Charging current / powerNumber of LED blinks
1
2
3
4
5
6*
7*
8*
3 x 6 A / 4,1 kW
3 x 8 A / 5,5 kW
3 x 10 A / 6,9 kW
3 x 13 A / 9,0 kW
3 x 16 A / 11,0 kW
3 x 20 A / 13,9 kW
3 x 25 A / 17,3 kW
3 x 32 A / 22,0 kW
1 x 6 A / 1,4 kW
1 x 8 A / 1,8 kW
1 x 10 A / 2,3 kW
1 x 13 A / 3,0 kW
1 x 16 A / 3,7 kW
1 x 20 A / 4,6 kW
1 x 25 A / 5,8 kW
1 x 32 A / 7,4 kW

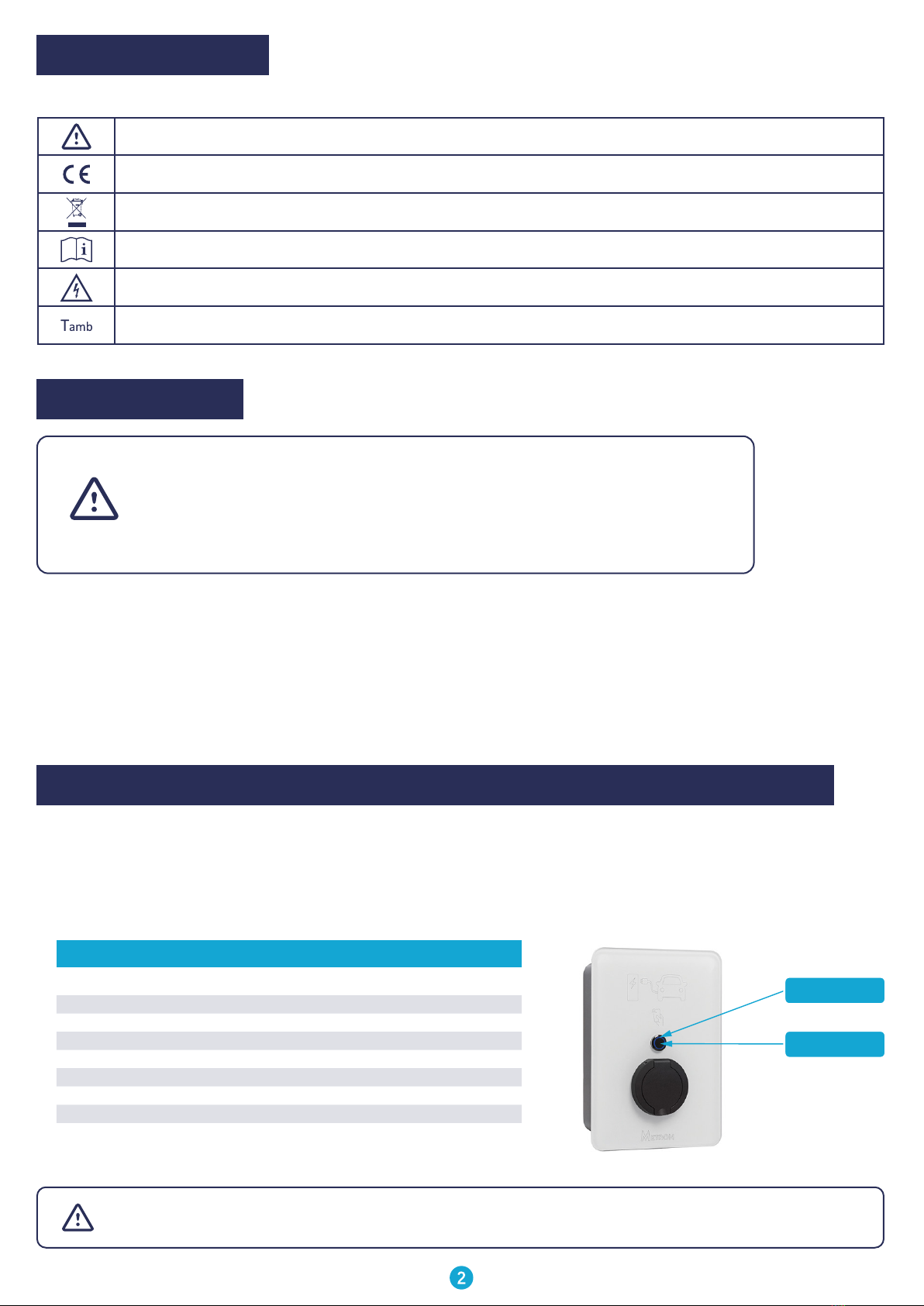

SYMBOLS USED
The following symbols are used in this manual and on the product:
This symbol indicates a danger with a risk of coursing serious injury or death or damage if not avoided.
CE symbol is a mark of conformity indicating that a product complies with European Union directives and regulations.
This symbol signifies the requirement for separate disposal of electrical and electronic waste. See chapter disposal.
Please read the manual before using the EV charging station.
Risk of electric shock due to dangerous voltage when used incorrectly.
Do not use and store the adapter below or above the specified temperature.

REMOTE CHARGE PORT OPEN & PLUG UNLOCK for TESLA electric vehicles
Metron charging stations with built-in charging cables can be equipped with TESLA remote charge port open & plug unlock electronics. Pressing a “2-function” button
on the vehicle Type 2 plug sends a remote-control signal to your TESLA vehicle charge port which then opens. Signal range is usually between 3 and 15 meters. This
feature eliminates user “touching” the smart phone or Tesla central screen in order to open the charge port. Remote-control signal also wakes-up the Tesla vehicle
from sleep - sometimes the button needs to be pressed several times to wake-up the vehicle.
To unplug while still charging or when charging completed press and hold the “2-function” button for a second. The car will unlock the vehicle plug (only if car is
unlocked / owner nearby!) and then you can unplug it. Plug unlock function works even if the charging station is not powered (manually turned off, grid power
outage, etc).
This feature once again eliminates the need for user “touching” the smart phone or Tesla central screen in order to unlock the charging plug from Tesla charge port.
“2-function” Button
USING THE WiFi METRON Charge Control application (SMART »+« charging stations only)
Smart EV charging stations marked with “+” have a built-in WiFi access point with web server what enables users to connect to it wirelessly by any smart phone, tablet
or laptop PC. As there is a web server inside with preloaded METRON Charge Control application you don’t need to install any additional program / application on
your device because the METRON Charge Control simply runs in your favorite web browser (Google Chrome, Microsoft Edge, Mozilla Firefox…) on any operating
system (Google Android, Apple iOS, Microsoft Windows, Huawei HarmonyOS, Linux…) you have on your smart phone, tablet or laptop PC.
Using the web-based METRON Charge Control application user can:
•Disconnect the station from power, press the “Push Button” and keep it pressed.
•Connect the station to power.
•The blue STATUS LED O-ring starts blinking 2 times.
• After 30 seconds the STATUS LED O-ring will turn-on for 3 seconds and then turn-of.
•Release the “Push Button” and WiFi name (ssid) & password are reset to default values.
To connect to the WiFi METRON Charge Control application you need to do the following:
•
•
•
•
•
Make sure the charging station is energized (connected to power).
Go to WiFi menu in your smart phone, tablet or laptop PC and search for WiFi networks.
Find “METRON Station 1” (default) network and connect to it; enter the WiFi password 12345678 (this is default - it is
recommended that you change it in the METRON Charge Control application).
Scan QR code you find on the station and follow the link (it will open your default web browser and launch the
Metron Charge Control automatically); OR open your favorite web browser and type in the following IP address:
http://192.168.4.4
The METRON Charge Control application will be loaded immediately. Up to 5 users (devices) at a time can be
wirelessly connected to the station and all connected devices will automatically receive all the latest data; for
example, if one user changes the charging current with the slider all others will see that on their screens.
•
•
•
•
•
•
•
•
•
•
Set the desired charging current and delay charging start.
Turn on / off solar SURPLUS charging if solar power plant is installed.
See all the real time measurements of charging power, charging current and charging energy.
Change WiFi password and WiFi name (ssid).
Connect the charging station to local WiFi network and also set the charging station internet access in the WiFi router (advanced users).
OTA (over-the-air) install UPDATES for application firmware via WiFi.
If METRON Dynamic EV Charging Unit for SMART charging with house main fuse protection is installed the user can also see house load, house energy
consumption, solar power and solar energy production.
Establish station internet connection via OCPP protocol to backend systems (Metron or others) for station control, payment for charging, energy monitoring,
etc via internet (OCPP module needed)
Locally authorize RFID cards (OCPP module needed)
Locally authorize electric vehicles via supported AutoCharge function (ISO 15118 module and OCPP module needed)
If you forget the WiFi password you’ve set, you need to do the following:
The METRON Charge Control application is intuitive and usually doesn’t need more instructions to be used; just browse and explore the functions. Where the
additional user info is required important user instructions are explained under “notes”. If you don’t understand something please feel free to contact Metron.

METRON Hardwired and Wireless Dynamic Power Control
(SMART »+« charging stations only)
Smart “+” marked EV charging stations can be equipped with Hardwired (1 station per main fuse) or Wireless Dynamic Power Control system (up to 150 charging
stations fer main fuse) that is always monitoring the load at house main fuse with electric current sensors and dynamically adjusting (lowering or rising) the charging
current/power of your electric vehicle in the way the main house fuse never gets overloaded (never blows-up). If the house has a solar (or wind/hydro) power plant
installed this system allows higher current/power charging than would be allowed by the main fuse and it also enables the possibility of user activated solar SURPLUS
charging what means the vehicle will be charged only with excess solar power without taking any energy from the grid. METRON Wireless Dynamic Power Control
system is designed to work with 1-phase and 3-phase power systems. To be short, METRON Dynamic Power Control system enables users to charge their electric
vehicle without worrying about the load other household appliances might draw from the in-house grid.
For 1-station Hardwired Dynamic Power Control the installer needs only to place clamp-on current sensors to main house power inlet and solar power plant (if
present). In case of dynamically controlling 2 or more charging stations this can be done wirelessly only as this greatly reduces laying cables and thus cost. For
METRON Wireless Dynamic Power Control all you need is 1 pcs METRON Dynamic EV Charging Unit (model 3FD-3) with clamp-on current sensors. This way up to 150
Metron wall-mounted, floor mounted or even METRON smart portable EV charging stations can be controlled and main fuses with rated currents up to 1000A are
supported.
Note: Wireless signal has an open-air space range of 500m with built-in antenna and up to 2000m with additional antennas on the METRON Dynamic EV Charging
Unit (model 3FD-3). If the system is installed within one house usually no additional antenna is needed.
STATUS NOTIFICATION BY LED O-ring
Charging terminated due to overcurrent (unplug to reset, vehicle service may be needed)Slow blinking 9 times
Rapid blinking (plugged in or not plugged in) Station or vehicle fault
STATUS LED O-ring state NOTIFICATION
Slow blinking when power supply is applied
Constantly on when not plugged in
Slow blinking when plugged in
Constantly on when plugged in
Indicating previous saved current setting
Stand-by / Ready to charge
Charging
Electric vehicle fully charged
Electric vehicle requests room ventilation (no charging)
Slow blinking 2 times when plugged in
Charging temporary terminated by Dynamic Power Control system, no wireless signal or
charging terminated by user
Slow blinking 4 times (plugged in or not plugged in)
Detailed schematics for installing METRON Dynamic Power Control system are located in a separate installation manual, intended for
qualified installers only.

TECHNICAL SPECIFICATIONS
Charging station plug / socket type
Max. charging power
Max. charging current
Possible charging current settings
(by user)
Locking mechanism for Type 2
charging socket
Main charging contactor rated
current-carrying capacity
Analog input for controlling charging
current/power (0-5V or 0-10V or 0-20mA)
Digital input for charging
authorization/activation by external device
WiFi Metron Charge Control app.
(web based)
METRON proprietary Hardwired or
Wireless Dynamic Power Control system
Differential protection - Residual
Current Circuit Breaker (RCCB)
Overcurrent protection
Tesla remote for opening charge port
and unlocking the plug – integrated in
Type 2 plug
Charging cable (applicable for stations
with cable and charging plug)
Rated Voltage
Operating voltage / frequency
Overvoltage category
MID certified Energy meter
4G/5G Router
Network/ethernet switch
Supported WiFi standards
WiFi speed
WiFi security
WiFi signal range
Type 2 or Type 1 plug holder
OCPP 1.6J module with integrated WiFi
and Ethernet internet connectivity for
remote monitoring and payment, also
supports OCPP load management
Enclosure material
RFID reader for ISO/IEC 14443A
compatible MIFARE cards/tags, internal
storage for 100 cards with energy meter
for each card
ISO 15118 High-level communication
module with AutoCharge and future
V2G capability, internal storage for 100
vehicles with energy meter for each
vehicle (AutoCharge)
YES, Smart “+” models only
STANDARD(+) &
TOWER STANDARD(+)
3,7 kW or 7,4 kW (1-phase)
11 kW or 22 W (3-phase)
16 A or 32 A (1-phase),
3x16 A or 3x32 A (3-phase)
6/8/10/13/16/20**/25**/ 32**A via front button,
“+” models from 6A in 1A steps to 16A or 32A via
WiFi Metron Charge Control app.
** 32 A rated stations only
Straight (any length) or SPIRAL
Black or Orange color
Premium quality according to EV charge cable
standard EN 50620
Type 2 / Type 1 (IEC 62196 / SAE J1772) female plug
or Type 2 Female charging socket
63 A (all models without exceptions to ensure
safe and long-lasting operation)
YES, all models
YES, all models
YES, Smart “+” models only
YES, Smart “+” models only
1 x Type B or Type A 30 mA AC with 6mA DC;
10.000 A short circuit breaking capacity
1 x circuit breaker C20A or C40A for charging + 1 x
circuit breaker C2A for electronics;
10.000 A short circuit breaking capacity
STANDARD(+): 2-3mm thick steel + ultra clear
tempered glass with white ceramic back coat
TOWER STANDARD(+): 1,5mm thick stainless steel +
ultra clear tempered glass with white ceramic
back coat
230 Vac (1-phase), 400 Vac (3-phase)
from 180 V up to 270 V (phase voltage) / 50 Hz
III (IEC/EN 60664)
optional for all models
optional for Smart “+” models only
optional for Smart “+” models only
IEEE 802.11b/g/n (Smart “+” models only)
up to 150 Mbit/s (Smart “+” models only)
WPA2 (Smart “+” models only)
up to 20 m (Smart “+” models only)
optional for all models with charging cable
optional for all models with Type 2 plug
optional for Smart “+” models only
optional for Smart “+” models only
optional for Smart “+” models only
optional for all models with Type 2 socket
5 WPower consumption
DUO(+) &
TOWER DUO(+)
Type 2 / Type 1 (IEC 62196 / SAE J1772) female plug
or Type 2 Female charging socket
2 x 3,7 kW or 2 x 7,4 kW (1-phase), 2 x 11 kW or
2 x 22 kW (3-phase)
Straight (any length) or SPIRAL
Black or Orange color
Premium quality according to EV charge cable
standard EN 50620
2 x 16 A or 2 x 32 A (1-phase), 2 x 3x16 A or
2 x 3x32 A (3-phase)
6/8/10/13/16/20**/25**/ 32**A via front button, “+” models
from 6A in 1A steps to 16A or 32A via WiFi Metron Charge
Control app. (for each socket/plug independently)
** 32 A rated stations only
63 A (all models without exceptions to ensure
safe and long-lasting operation)
YES, all models
YES, all models
YES, Smart “+” models only
YES, Smart “+” models only
2 x Type B or Type A 30 mA AC with 6mA DC;
10.000 A short circuit breaking capacity
2 x circuit breaker C20A or C40A for charging + 2 x
circuit breaker C2A for electronics;
10.000 A short circuit breaking capacity
DUO(+): 2-3mm thick steel + ultra clear tempered glass
with white ceramic back coat
TOWER DUO(+): 1,5mm thick stainless steel + ultra clear
tempered glass with white ceramic back coat
230 Vac (1-phase), 400 Vac (3-phase)
from 180 V up to 270 V (phase voltage) / 50 Hz
III (IEC/EN 60664)
optional for all models
optional for Smart “+” models only
optional for Smart “+” models only
IEEE 802.11b/g/n (Smart “+” models only)
up to 150 Mbit/s (Smart “+” models only)
WPA2 (Smart “+” models only)
up to 20 m (Smart “+” models only)
optional for all models with charging cable
optional for all models with Type 2 plug
optional for Smart “+” models only
optional for Smart “+” models only
optional for Smart “+” models only
optional for all models with Type 2 socket
YES, Smart “+” models only
10 W
Additional independent numerical
(software) overcurrent protection
(acts on charging contactor)

STANDARD(+), DUO(+), TOWER STANDARD(+), TOWER DUO(+)
Simple & SMART wall-mounted and floor-mounted EV Charging Stations
Rev. 6 2/2024
RCCB is an acronym for Residual Current Circuit Breaker - sometimes it can be called also Earth Leakage Circuit Breaker or Safety Switch. Its purpose is to prevent you
from getting a fatal electric shock if you touch live part, such as a bare copper wire under high voltage. RCCBs offer a level of personal protection that ordinary fuses/-
circuit-breakers cannot provide. RCCB constantly monitors the electric current flowing through one or more circuits which it protects. If it detects electricity flowing
down an unintended path, such as through a person who has touched a live part, the RCCB will switch the circuit off very quickly, significantly reducing the risk of
death or serious injury. Every charging station has integrated Type A 30mA AC + 6mA DC or Type B RCCB what ensures maximum possible level of personal protection
as it protects users from AC, pulsating DC and pure DC leakage currents.
WHAT IS RCCB AND HOW DOES IT WORK?
LIMITED WARRANTY
METRON warrants its product to the original consumer purchaser that it will repair, or replace, any product that is determined to be defective for the following terms:
Two (2) years from date of purchase on all components. To be eligible for repair or replacement under this warranty, the product in question must be sent back to
METRON within the warranty period and the original consumer purchaser must comply with the following conditions: The product thereof must not have been
modified or altered in any way by an unauthorized source; The product thereof must have been used in accordance with the user manual.
This limited warranty does not cover: Damage due to improper use; Accidental or intentional damage; Misuse, abuse, corrosion, or neglect; Product impaired by
severe natural conditions, such as excessive hail storms, lightning strikes, tornados, flooding, ice or other natural occurrences; Damage due to improper packaging
on return shipment. Any and all labor charges for troubleshooting, removal or replacement of the product are not covered by this warranty and will not be honored
by METRON. All shipping costs regarding repair or replacement of the product is to be pre-paid by the original consumer purchaser.
All our products are produced in a carbon neutral way by using "Sustainable energy cycle" method. Production plant where we make charging cables and portable
charging stations is the first fully sustainable production facility for EV charging cables. All energy needed for the heating and cooling of the building, production
process and for transportation of goods and employees (except deliveries of heavy materials by trucks), is produced by 2 photovoltaic power plants and stored in
4 storage batteries. Almost all of the raw materials we use (cables, plugs) are produced in EU, to shorten supply routes and support local economy.
Buying our products helps developing sustainable economy.
GREEN PRODUCTION
Use only a dry or damp cloth for cleaning the switched off EV charging station. Do not use cleaning detergents.
CLEANING
The symbol "crossed-out trash can" signifies the requirement for separate disposal of electrical and electronic waste. These devices may contain
hazardous and environmentally harmful substances. Please take such devices to a designated collection point for the recycling of electrical and electronic
equipment and do not dispose of them in regular household waste. You can obtain further information from local waste disposal services or the company
from which you purchased the product.
DISPOSAL
• EV charging station must be switched off before cleaning!
• Avoid water getting to contact parts!
STANDARD(+) &
TOWER STANDARD(+)
DUO(+) &
TOWER DUO(+)
UV resistance
Operating ambient air temperature range
Storage temperature
Yes (all parts)
from -30°C to +50°C
from -40 °C to +70 °C
Yes (all parts)
from -30°C to +50°C
from -40 °C to +70 °C
Relative ambient humidity
(operation and storage)
Maximum operating altitude
max 95 % (without condensation)
2000 m
max 95 % (without condensation)
2000 m
IP Rating
IK Rating
IP54 (rain proof)
IK10 (impact/shock proof)
IP54 (rain proof)
IK10 (impact/shock proof)
Minimum required power supply cable
cross section
Access for maintenance and repair
3G2,5 mm2 for 3,7 kW
3G6 mm2 for 7,4 kW
5G2,5 mm2 for 11 kW
5G6 mm2 for 22 kW
3G6 mm2 for 2 x 3,7 kW
3G16 mm2 for 2 x 7,4 kW
5G6 mm2 for 2 x 11 kW
5G16 mm2 for 2 x 22 kW
Doors with key lock Doors with key lock
Dimensions (HxWxD) STANDARD(+): 340 x 240 x 100 mm
TOWER STANDARD(+): 1400 x 200 x 150 mm
DUO(+): 500 x 370 x 100 mm
TOWER DUO(+): 1400 x 300 x 200 mm
Weight STANDARD(+): Approx. 8-10 kg
TOWER STANDARD(+): Approx. 20-22 kg
DUO(+): Approx. 16-20 kg
TOWER DUO(+): Approx. 30-34 kg
Paint/anti-corrosion protection Structural powder coat
Color Anthracite grey, other colors on request Anthracite grey, other colors on request
Structural powder coat
