METRON PC03 User manual

www.eauto.si [email protected] [phone]
PC03, PC04 AND PC05
GET STARTED

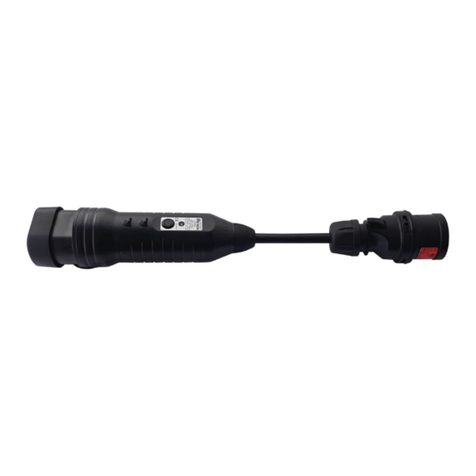

METRON EV portable chargers PC03, PC04 and PC05
are designed to charge electric vehicles equipped
with Type 2 charging sockets (European standard)
from any standard household outlet (e.g. Schuko) or
industrial socket (e.g. 1 or 3-phase CEE sockets).
Where’s the in-line “bulky box”? Metron portable
chargers are truly unique because all the charging
station electronics is placed inside Type 2 charging
plug itself!
First plug the portable charger in the wall outlet.
Immediately signal LED starts blinking: number of
blinks tells you what is the saved power setting (see
the next page). Afterwards LED glows constantly till
AC power is present indicating standby/ready status.
The biggest advantage of this design is the fact that
METRON portable chargers don’t have that heavy
in-line “bulky box” as others do, what makes them
lighter, easier to install/connect and also easier to
store in a carrier case. METRON portable chargers
also offer the possibility to set desired charging
current/power by simply pressing a button.
When you plug it into the vehicle Type 2 socket it
starts blinking slowly which means the vehicle is
charging. When your electric vehicle is fully charged
the LED glows constantly again.
1
USER MANUAL EV PORTABLE CHARGERS

2
NASTAVITEV ŽELENEGA POLNILNEGA TOKA/MOČI
Number of
LED blinks
1 6 A / 1,4 kW
2 8 A / 1,8 kW
3 10 A / 2,3 kW
4 13A / 3,0 kW
5 16A / 3,7 kW
Number of
LED blinks
1 6 A / 1,4 kW
2 8 A / 1,8 kW
3 10 A / 2,3 kW
4 13A / 3,0 kW
5 16A / 3,7 kW
6 20A / 4,6 kW
7 25A / 5,8 kW
8 32A / 7,4 kW
Number of
LED blinks
1 3 x 6 A / 4,1 kW
2 3 x 8 A / 5,5 kW
3 3 x 10 A / 6,9 kW
4 3 x 13A / 9,0 kW
5 3 x 16A / 11,0 kW
PC05
PC04
PC03
Push Button
LED light
New charging current/power setting is stored in the memory and it stays the same (even
after the power supply is not present anymore) until the next setting change is performed.
SETTING THE DESIRED CHARGING CURRENT/POWER
METRON portable chargers allow user to set desired charging current/power, before being plugged in the
electric vehicle Type 2 socket, or even while the vehicle is charging! Procedure is simple:
• press and hold the push button: LED switches off immediately
• after 5 seconds LED starts blinking slowly
• Releasing the push button after a certain number of blinks determines charging
current/power as follows:
Charging
current/power
Charging
current/power
Charging
current/power
STATUS NOTIFICATION BY LED BLINKS
LED STATUS NOTIFICATION
Slow blinking when power supply is applied
Constantly on when not plugged in
Slow blinking when plugged in
Constantly on when plugged in
Indicating previous saved current setting
Stand-by / Ready to charge
Charging
Electric vehicle fully charged

3
3-phase portable charger PC05 can also charge from domestic 1-phase wall socket (Schuko)
or 1-phase 16A CEE “camper” socket if proper adaptor is used. In such case PC05 behaves like
PC03 portable charger (same current/power).
1-phase portable charger PC04 can also charge from domestic 1-phase wall socket (Schuko) or
1-phase 16A CEE “camper” socket if proper adaptor is used. In such case be sure to set charging
current to 16A or less, otherwise you risk damage to the socket or even blown fuse!
The use of portable charger versions without RCD protection is allowed exclusively on the
installations, protected by RCD. Household 16A Schuko wall sockets must be designed for
constant 16A current! In the event the cable has been damaged the product should be
removed from use immediately!
Type 2 (IEC 62196)
Female Plug
Type 2 (IEC 62196)
Female Plug
Type 2 (IEC 62196)
Female Plug
Schuko – Type F/E, CEE,
Type G, Type H, …
CEE 32A (3-phase/3P+N+E),
CEE 32A (1-phase/2P+E), …
CEE 16A (3-phase/3P+N+E),
CEE 32A (3-phase/3P+N+E)
16A (1-phase) 32A (1-phase)
3x16A (3-phase) or
1x16A (1-phase)
6/8/10/13/16 A 6/8/10/13/16/20/25/32 A 6/8/10/13/16 A
3,7 kW 7,4 kW
3,7 kW (1-phase)
11 kW (3-phase)
230 Vac (1-phase) 230 Vac (1-phase)
230 Vac (1-phase)
400 Vac (3-phase)
from 90 V to 270 V
(50/60 Hz)
from 90 V to 270 V
(50/60 Hz)
90 V to 270 V (1- phase)
155 V to 470 V (3-phase)
(50/60 Hz)
optional (Schuko only) no no
yes yes yes
5m to 12m (or on request) 5m to 12m (or on request)
5m to 12m (or on request)
optional no no
no optional optional
yes (all parts) yes (all parts) yes (all parts)
from -30°C to +50°C from -30°C to +50°C from -30°C to +50°C
IP54 (rain water resistant) IP54 (rain water resistant) IP54 (rain water resistant)
1.6 kg (5m cable) + 0.16 kg
per each additional meter
of cable
2.3 kg (5m cable) + 0.3 kg
per each additional meter
of cable
1.9 kg (5m cable) + 0.22 kg
per each additional meter
of cable
PC04 PC05
PC03
Electric vehicle requests room ventilation
(no charging)
Portable charger overheated (no charging); restarts
charging automatically when it cools down
Wall plug overheated (no charging); restarts
charging automatically when it cools down; applies
only to versions with wall plug integrated over-tem
perature protection
Slow blinking 3 times (plugged in or not plugged in)
Slow blinking 5 times (plugged in or not plugged in)
Rapid blinking (plugged in or not plugged in) Fault
Slow blinking 2 times when plugged in
TECHNICAL SPECIFICATIONS
EV Side Plug Type
Wall socket/grid side Standard
Plug Types
Max. Charging Current
Possible charging current settings
Max. Charging Power
Rated Voltage
Operating voltage/
frequency range
Wall plug integrated
OVER-TEMPERATURE PROTECTION
with automatic reset
PREMIUM quality cable
(German Technology)
Cable length
Type A ground fault protection
device (RCD)
Type B ground fault protection
device (RCD)
UV resistance
Operating Ambient Air
Temperature Range
IP Rating
Weight

Portable charger models PC03, PC04 and PC05 can have some additional designation next to the number such
as PC03xyz, PC04xyz and PC05xyz, where “x” and “y” and “z” may be any alphanumeric character or blank,
representing a color or wall plug type, or lower than standard charging current limit or factory version, or any
possible future product differentiations, which do not have an impact on general technical specifications.
RCD is an acronym for Residual Current Device - sometimes it can be called also Earth Leakage Circuit Breaker or
Safety Switch. Its purpose is to prevent you from getting a fatal electric shock if you touch live part, such as a bare
copper wire under high voltage. RCDs offer a level of personal protection that ordinary fuses/circuit-breakers
cannot provide. RCD constantly monitors the electric current flowing through one or more circuits which it
protects. If it detects electricity flowing down an unintended path, such as through a person who has touched a
live part, the RCD will switch the circuit off very quickly, significantly reducing the risk of death or serious injury.
To start charging press “RESET” button on RCD. Green LED should turn on.
Rev. 4 4/2019
4
LED light
WHAT IS RCD AND HOW DOES IT WORK?
LIMITED WARRANTY
METRON warrants its product to the original consumer purchaser that it will repair, or replace, any product that is
determined to be defective for the following terms: One (1) year from date of purchase on all components.
To be eligible for repair or replacement under this warranty, the product in question must be sent back to
METRON within the warranty period and the original consumer purchaser must comply with the following
conditions:
• The product thereof must not have been modified or altered in any way by an unauthorized source.
• The product thereof must have been used in accordance with the user manual.
This limited warranty does not cover:
• Damage due to improper use;
• Accidental or intentional damage;
• Misuse, abuse, corrosion, or neglect;
• Product impaired by severe natural conditions, such as excessive hail storms, lightning strikes,
tornados, flooding, ice or other natural occurrences;
• Damage due to improper packaging on return shipment.
Any and all labor charges for troubleshooting, removal or replacement of the product are not covered by this
warranty and will not be honored by METRON.
All shipping costs regarding repair or replacement of the product is to be pre-paid by the original consumer
purchaser.
