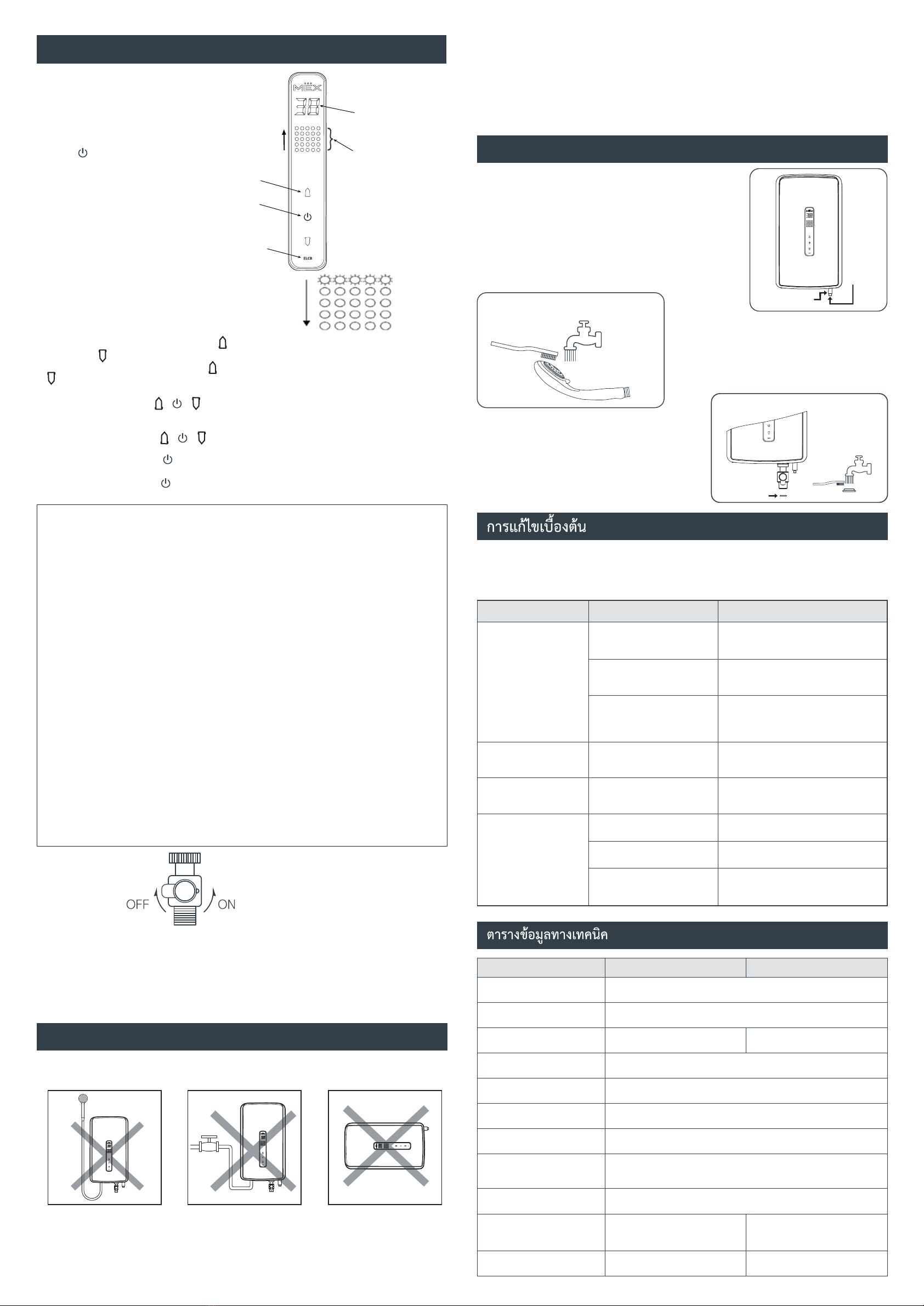

4. เมื่อตองการปรับเพิ่มอุณหภูมิที่ตองการเพียงสัมผัสปุม (ปรับเพิ่มไดสูงสุด 48 C°) และเมื่อตองการปรับลดอุณหภูมิที่ตองการ
เพียงสัมผัสปุม (ปรับลดไดต่ำสุด 32 C°)
Adjust the temperature increase by touch button (Max 48 C°) and adjust the temperature decrease by
button (min 32 C°)
5. ถาปดวาลน้ำเขามายังเครื่องแลว แถบหลอด LED จะดับลง หรือถาปดวาลน้ำเขามายังเครื่องแลวเกิน 5 นาที แถบหลอด LED
จะดับลง โดยไฟสีขาวที่ตําแหนง และตัวเลขที่แสดงคาอุณหภูมิจะลดความสวางเปนสีขาวลงมา และเมื่อไมมีการ
ใชงานเกิน 30 นาที ไฟที่ตําแหนงตางๆจะดับหมด เหลือเพียงตําแหนง ELCB จะสวางกลายเปนสีเขียว
If close the water inlet valve. The LED Level will off or If close the water inlet valve over long time 5 min, The
LED Level will off LED position and the number show temperature will light down and when not
operate long time over 30 minutes. LED at various positions will be off, leaving only the position ELCB lights green.
6. เมื่อตองการปดเครื่องเพียงสัมผัสปุม จะมีเสียงดังติ๊ดๆ (จํานวน 2 ครั้ง) เครื่องจะหยุดทํางาน
โดยไฟที่ตําแหนงตางๆจะดับหมดเหลือเพียงตําแหนง ELCB จะสวางกลายเปนสีเขียว
To turn off the EWH by touch button. There will be Beep (2 times) the EWH will stop operate Which LED
at various positions will be off, leaving only the position ELCB lights green.
SPECIFICATION
TROBLE SHOOTING
MAINTENANCE AND CARE
เครื่องทำน้ำอุน MEX ผานการตรวจสอบคุณภาพอยางพิถีพิถันจากโรงงานผูผลิตใหมีประสิทธิภาพในการใชงานตามมาตรฐานใน
บางกรณีอาจมีขอขัดของเล็กนอย ซึ่งทานสามารถตรวจสอบไดโดยงายกอนที่จะติดตอตัวแทนจำหนายเพื่อทำการซอม
MEX Electric Water Heater are passed Q.C. testing and manufactured to the highest quality standards. If you
find the following symptoms appear, please check it before calling the technician.
ระบบจายน้ำ ควบคุมดวยวาลวน้ำตามจุดจายน้ำ
WATER SYSTEM Single point
แรงดันน้ำต่ำสุด 20 กิโลพาสคัล / 0.2 กิโลกรัมตอตารางเซนติเมตร
MIN.Water Pressure 20 kPa / 0.2 kg/cm2
กำลังไฟ (กิโลวัตต/โวลต/แอมป) 3.5 / 220 / 16 5.1 / 220 / 20
Power (KW/Volt/Amp)
ระบบความปลอดภัย ELCB, THERMISTOR, HALL EFFECT SENSOR
Safety System THERMO CUT-OFF AND FUNCTION CHECK LNG
ไฟสัญญาณ
SEVEN SEGMENT LED DISPLAY
Indicator
ขนาด (สูง × กวาง × ลึก ) มม. 360 × 207 × 87
Dimension (HxWxD mm.)
น้ำหนัก (กก.) 1.9
Weight (Kg)
อุปกรณพิเศษ
Accessories
ปริมาณน้ำ (ลิตร/นาที) 3.5
Water Flow (L/m)
อุณหภูมิของน้ำเพิ่มขึ้น
โดยประมาณ (˚C) 6-15˚C 6-21˚C
Incnease Temperature (˚C)
ขนาดสายไฟ
2.5 mm
2
4.0 mm
2
WIRE SIZE
2
. การทำความสะอาดตัวเครื่อง ควรปดสวิตชตัดกระแสไฟกอนทุกครั้ง
ทำความสะอาดดวยผาชุบน้ำสบูบิดแหง อยาใชน้ำมันเบนซิน,
ทินเนอร ฯลฯ ในการทำความสะอาด
To clean the water heater body, Please make sure to
switch off the power current first. Clean the body of
shower heater by wiping with a cloth dampened in mild
soap water. Don’t use solvent.
• ใชแปรงทำความสะอาดภายในหัวฝกบัวเปนประจำทุกเดือน
Monthly Clean by brush
3. การทำความสะอาดหัวฝกบัว
และตะแกรงกรองสิ่งสกปรก
Water volumm knob
and filter cleaning
ตัวกรองถอดออกลางน้ำดวย
แปรงขนออน หรือแปรงสีฟน
Take off the filter and
clean by brush
ปุมทดสอบ
สวิตชนิรภัย
ELCB Test
Button
Push up
ดันขึ้น
1. ตรวจสอบการทำงานของสวิตชตัดไฟอัตโนมัติ ELCB เดือนละครั้งโดยกดปุมทดสอบ
ELCB TEST ในขณะที่เครื่องทำน้ำอุน มีการตอกระแสไฟฟาเขาเครื่อง ถาปกติแกน
ของ ELCB จะเลื่อนลงมา (ถาแกนไมเลื่อนลงใหติดตอผูจำหนายเพื่อทำการแกไข)
ดันแกน ELCB TEST ใหกลับขึ้นไปตามปกติเพื่อตั้งการทำงานของ ELCB TEST ให
ทำงานตามปกติ
Check the operation of earth leakage circuit breaker (ELCB) once a month
by push the ELCB reset switch while the power supply is still inside
the machine if it’s normal, the ELCB lever will be drop down. (If it not,
please inform the dealer to repair the machine) Push up the ELCB
reset lever to the default position the reset the operation of ELCB.
ตัวเลขจะแสดงคา default
กระพริบแลวจะนิ่งจนกวาไฟ
ที่แถบหลอด LED ดับลง
The Number will show
Default
แถบหลอด LED จะวิ่งจาก
ดานลางขึ้น ขางบน
จํานวน 1 รอบ
The LED level will run from
lower to upper is 1 time
สัญญาณไฟแสดงผล เมื่อเครื่องเกิดสัณญาณ ERROR
Notification to cause the error by show on LED display
1. ชองตัวเลขแสดง "E1" อาการที่ผิดปกติคือ น้ำในหมอตมมีอุณหภูมิสูงเกินไปและเครื่องแสดงการทํางาน
LED display show “E1” It’s mean water inside the tank has over temperature and EWH operated
2. ชองตัวเลขแสดง "E2" อาการที่ผิดปกติคือ น้ำในหมอตมที่อุณหภูมิสูงเกินไปและเครื่องไมทํางาน
LED display show “E2” It’s mean water inside the tank has over temperature and EWH not operated
3. ชองตัวเลขแสดง "E3" เครื่องตรวจจับอุณหภูมิไมได อุปกรณตรวจจับอุณหภูมิ (Thermistor) ชํารุดเสียหายหรือช็อต กรณีที่
เครื่องเกิดความผิดปกติทั้ง 3 อาการ เครื่องจะปดการทํางานลงอัตโนมัติ และแสดงสัญญาณของความผิดปกติดังกลาวควรปด
เบรกเกอรทันที และติดตอฝายบริการของบริษัทเพื่อใหชางเทคนิคมาตรวจสอบแกไข
LED display show “E3” It’s mean the thermistor operate fault. In the event that the Water Heater has
malfunctions in all 3 cases, The water Heater will automatic shutdown and show error code, Therefore
the circuit breaker should be turned off immediafely and have a techniciam fix it.
4. ชองตัวเลขแสดง "E4" และ "E5" เครื่องตรวจสอบระบบฟงกชันการตอสาย L , N และสายดินผิดปกติ
LED display show “E4” It’s mean the EWH check function system connect L,N and Ground not correct
• ถาตัวเลขแสดง "E4" กระพริบชาๆ 5 ครั้ง พรอมเสียงแจงเตือนภายใน 5 วินาที แลวหยุดกระพริบแสดง "E4" เครื่องจะกลับ
มาทำงานปกติ
The number show “E4” flashes slowly 5 times with a sound notification within 5 seconds then flashes
stop and show “E4” the EWH will return to normal operation.
4.1 ตอสายไฟเขาเครื่อง L , N ถูกตองแตไมตอสายดิน (กรณีที่ยังไมไดเปดน้ำเขาเครื่อง)
Wiring to the EWH L,N connect but not grounded (In case turn off control valve)
4.2 ตอสายไฟเขาเครื่อง L , N สลับกันและตอสายดิน
Wiring to the EWH L,N revesed and grounded
4.3 ตอสายไฟเขาเครื่อง L , N สลับกันแตไมตอสายดิน
Wiring to the EWH L,N revesed but not grounded
• ถาตัวเลขแสดง "E5" กระพริบมากกวา 10 ครั้ง พรอมเสียงแจงเตือนภายใน 10 วินาที แลวหยุดกระพริบแสดง "E5" เครื่อง
จะกลับมาทำงานตามปกติ คือตอสายไฟเขาเครื่อง L , N และสายดินถูกตอง แตมีไฟรั่วหรือยอนมาที่สายดิน
The number show “E5” flashes more tham 10 times with a sound notification within 10 second then
flashes stop and show “E5” the EWH will return to normal operation. It’s wiring to the EWH L,N and
Ground correct but there is a lealeage current or back to the ground
การบำรุงรักษา
การใชงาน HOW TO USE
ทอทางน้ำเขา inlet
ถอดทำความสะอาดตะแกรงรองสิ่งสกปรกเปนประจำทุกเดือน
Monthly clean filter
รุน MODEL CRYSTAL 35E CRYSTAL 5E
CAUTION
1. หามติดตั้งฝกบัวสูงกวาตัวเครื่อง
Do not install the shower
head above the water heater.
2. หามตอวาลวทางดานน้ำออก
Do not connect the valve at
the water outlet.
7. ลูกบิดปรับปริมาณน้ำ
Water Volume knob
8. ฝกบัวชนิดพิเศษในรุน CRYSTAL 35E, CRYSTAL 5E สามารถปรับแรงดันน้ำได 5 ระดับมีดังตอไปนี้
Special shower head for model CRYSTAL 35E and CRYSTAL 5E
can be adjust water 5 level.
- ปรับเปนสายน้ำกระจายกวางออกดานขาง
Shower flow out from side.
- ปรับเปนสายน้ำกระจายแคบออกตรงกลาง
Shower flow out from center.
- ปรับเปนระบบสายน้ำชวยนวดผิวตัว
Massage system.
- ปรับเปนสายน้ำออกตรงกลางและดานขาง
Shower flow out from center and side.
- ปรับเปนสายน้ำออกดานขางพรอมระบบชวยนวดผิว
Shower flow out from side with massage system.
3. หามติดตั้งเครื่องทำน้ำอุนในแนวนอน
Do not install the water heater
on horizontal position
คำเตือน
4. เครื่องใชไฟฟานี้ไมมีเจตนาใหใชโดยบุคคล (รวมถึงเด็ก) ที่ดอยความสามารถทางรางกาย ทางประสาทสัมผัสหรือจิตใจ หรือขาด
ประสบการณและความรู เวนแตวาจะไดรับการควบคุมดูแลหรือการสอนเกี่ยวกับการใชเครื่องใชไฟฟาโดยบุคคลที่รับผิดชอบตอ
ความปลอดภัยของบุคคลเหลานั้น
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
ฝกบัวปรับสายน้ำ 5 ระดับ พรอมชุดวางฝกบัว
5 Stream levels for the shower head with in Slide bar set.
ขั้นตอนการใชงาน
1. เมื่อไฟฟาเขาเครื่อง สัญญาณไฟ LED แสดง "ELCB" สวางติดเปนสีเขียว
ON ELCB LED Display show “ELCB” light on Green
2. เปดวาลวน้ำเขาเครื่อง
Open the water inlet valve
3. สัมผัสปุม เครื่องจะมีเสียงดังติ๊ดๆ 2 ครั้ง โดย
จะมีการแสดงของสัญญาณไฟตําแหนงตางๆ
ดังสัญลักษณดานลางดังนี้ (เครื่องพรอมทํางาน)
Touching there will be Beep (2 times).
There will be a display of various position
lights as shown below (EWH operate)
จากนั้นแถบ LED จะสวางเปนสีขาว โดยวิ่งจากบนลงลางไปเรื่อยๆ เพื่อแสดง
"การไหลของน้ำที่เขามายังเครื่อง"
The LED level light white. By light on from upper to beginning
lower for Show “The Flow of water entering the EWH”
สวางเปนสี "ขาว"
Light on “white”
ELCB สวางจากสี "เขียว"
กลายเปนสี "ขาว"
The LED light on
from “Green” to
“white”
สวางเปนสี "ขาว"
Light on “white”
เด็กควรไดรับการควบคุมดูแลเพื่อใหแนใจวาจะไมเลนเครื่องใชไฟฟา
Children should be supervised to ensure that they do not play with the appliance.
5. เพื่อหลีกเลี่ยงความเสี่ยงอันตรายเนื่องจากการตั้งกลับโดยบังเอิญของคัตเอาตความรอนตองไมจายไฟฟาแกเครื่องใชไฟฟานี้ผาน
อุปกรณสวิตชภายนอก เชน ตัวตั้งเวลา เปนตน หรือตอกับวงจรไฟฟาที่ปกติเปดไฟ (on) และปดไฟ (off) โดยแหลงจายไฟฟา
สาธารณูปโภค (Utility)
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
ขอขัดของ TROUBLE สาเหตุ CAUSE การแกไข TROUBLE SHOOTING
1. เครื่องไมทำงาน ไฟฟาไมเขาเครื่อง ตรวจสอบขั้วไฟฟาวาติดตั้งถูกขั้วหรือไม
The machine does not No electric current flow Check the connection of the wire
operate. through the machine. to the correct terminals or not.
สวิตชตัดไฟอัตโนมัติตัดการทำงาน สวิตชตกมาในตำแหนง OFF ใหดันกานสวิตซขึ้น
The circuit breaker or fuses The circuit breaker has drop down to
are cut off. "OFF" position. Push it to "ON" position.
• แรงดันน้ำไมพอ • แกไขระบบแรงดันน้ำ
There is not sufficient water Fix the water pressure system.
pressure. • ถอดลางตะแกรงกรองสิ่งสกปรก
Cleaning the filter.
2. น้ำอุนไมพอ น้ำแรงเกินไป ลดปริมาณน้ำโดยปรับลดที่วาลวปรับแรงดันน้ำ
The water is not heated There is too much water Decrease the water amount by
as desired. flowing into the machine. adjusting at the water inlet valve.
3. อุณหภูมิน้ำไมสม่ำเสมอ แรงดันน้ำไมสม่ำเสมอตลอดเวลา แกไขระบบแรงดันน้ำ
The water temperature The water pressure remains Fix the water pressure system.
remains unstable. unstable.
4. น้ำไหลนอย จุดอื่นๆ ไหลแรง ตะแกรงกรองสิ่งสกปรกอุดตัน ถอดลางทำความสะอาด
The water doesn't flow The filter is obstructed by dust. Clean the filter.
well while the water
from the other tap are ฝกบัวอุดตัน ถอดลางทำความสะอาด
strong. The shower head is clogged. Clean the Shower Head.
ปรับสายน้ำที่ฝกบัวไมถูกตอง หมุนปรับสายน้ำที่หัวฝกบัว
The stream on the shower Clean the shower head.
head is adjusted improperly.
