Vaillant Arostor vwl b 200/5 uk User manual

Operating instructions

aroSTOR

VWL B 200/5 UK

VWL B 270/5 UK

GB, IE

Publisher/manufacturer

Vaillant GmbH

Berghauser Str. 40 D-42859 Remscheid

Tel. +492191 18 0 Fax +492191 18 2810

[email protected] www.vaillant.de

Contents

2Operating instructions aroSTOR 0020285064_00

Contents

1 Safety ............................................ 4

1.1 Intended use .................................. 4

1.2 Danger caused by improper

operation........................................ 4

1.3 Risk of death caused by

escaping refrigerant ....................... 4

1.4 Risk of death due to changes

to the product or the product

environment ................................... 5

1.5 Risk of burns caused by touching

hot surfaces ................................... 5

1.6 Risk of being scalded by hot

drinking water ................................ 5

1.7 Preventing the risk of injury from

freezing as a result of touching

refrigerant ...................................... 5

1.8 Risk of injury and material

damage due to maintenance and

repairs carried out incorrectly or

not carried out at all ....................... 6

1.9 Risk of damage from corrosion

caused by unsuitable room air....... 6

1.10 Dangers of modifying product

surroundings .................................. 6

1.11 Frost damage due to insufficient

room temperature .......................... 6

1.12 Avoid environmental damage

caused by escaping refrigerant...... 7

2 Notes on the documentation ...... 8

2.1 Observing other applicable

documents ..................................... 8

2.2 Storing documents......................... 8

2.3 Validity of the instructions .............. 8

3 Product description..................... 8

3.1 Product design............................... 8

3.2 Overview of the control

elements ........................................ 8

3.3 Displayed symbols......................... 9

3.4 Type designation and serial

number........................................... 9

3.5 Information on the data plate ......... 9

3.6 CE marking .................................. 10

3.7 Hot Water Association ................. 10

4 Function...................................... 10

4.1 Operating concept ....................... 10

4.2 Switching on the product ............. 10

4.3 Setting the language.................... 11

4.4 Setting the time............................ 11

4.5 Domestic hot water temperature

setting .......................................... 11

4.6 Additional domestic hot water

temperature setting when a

photovoltaic installation is

connected .................................... 11

4.7 Programming operating times...... 12

4.8 Setting the holiday mode ............. 13

4.9 Setting the boost mode................ 13

4.10 Setting limp home mode .............. 13

4.11 Activating the anti-legionella

function ........................................ 13

4.12 Frost protection function .............. 13

5 Troubleshooting ........................ 14

5.1 Detecting and rectifying faults...... 14

6 Maintenance and care ............... 14

6.1 Maintenance ................................ 14

6.2 Caring for the product .................. 14

6.3 Checking the condensate

discharge pipe and tundish.......... 14

7 Decommissioning...................... 14

7.1 Temporarily decommissioning

the product................................... 14

7.2 Permanently decommissioning

the product................................... 14

8 Recycling and disposal............. 14

8.1 Arranging disposal of

refrigerant .................................... 15

9 Guarantee and customer

service ........................................ 15

9.1 Guarantee.................................... 15

Appendix ............................................... 16

A Troubleshooting ........................ 16

Contents

0020285064_00 aroSTOR Operating instructions 3

B Optimising energy

consumption .............................. 17

B.1 Using a low tariff and a control

cable connection.......................... 17

B.2 Using a low tariff without a

control cable connection .............. 18

B.3 Operating with a fixed electricity

tariff.............................................. 19

C End user level –overview ......... 20

1 Safety

4Operating instructions aroSTOR 0020285064_00

1 Safety

1.1 Intended use

There is a risk of injury or death

to the user or others, or of dam-

age to the product and other

property in the event of im-

proper use or use for which it

is not intended.

The product is intended for hot

water generation.

Intended use includes the fol-

lowing:

–observance of the operating

instructions included for the

product and any other install-

ation components

–compliance with all inspection

and maintenance conditions

listed in the instructions.

This product can be used by

children aged from 8 years

and above and persons with

reduced physical, sensory or

mental capabilities or lack of

experience and knowledge if

they have been given supervi-

sion or instruction concerning

use of the product in a safe way

and understand the hazards in-

volved. Children must not play

with the product. Cleaning and

user maintenance work must

not be carried out by children

unless they are supervised.

Any other use that is not spe-

cified in these instructions, or

use beyond that specified in this

document, shall be considered

improper use. Any direct com-

mercial or industrial use is also

deemed to be improper.

Caution.

Improper use of any kind is

prohibited.

1.2 Danger caused by

improper operation

Improper operation may present

a danger to you and others, and

cause material damage.

▶Carefully read the enclosed

instructions and all other ap-

plicable documents, particu-

larly the "Safety" section and

the warnings.

▶Only carry out the activities

for which instructions are

provided in these operating

instructions.

1.3 Risk of death caused by

escaping refrigerant

The product contains R 290

refrigerant.

R 290 is an inflammable refri-

gerant.

When refrigerant escapes, there

is a risk of explosion.

Safety 1

0020285064_00 aroSTOR Operating instructions 5

▶If possible, open doors and

windows fully and ensure

adequate ventilation.

▶Do not use naked flames (e.g.

lighters, matches).

▶Do not smoke.

▶Do not use any electrical

switches, mains plugs, door-

bells, telephones or other

communication systems in

the building.

▶Leave the building immedi-

ately and ensure that others

do not enter the building.

1.4 Risk of death due to

changes to the product or

the product environment

▶Never remove, bridge or

block the safety devices.

▶Do not tamper with any of the

safety devices.

▶Do not damage or remove

any tamper-proof seals on

components.

▶Do not make any changes:

–The product itself

–The water and electricity

supply lines

–to the expansion relief valve

–to the drain pipework

–to constructional condi-

tions that may affect the

operational reliability of the

product

1.5 Risk of burns caused by

touching hot surfaces

The outgoing lines and hy-

draulic connections are hot dur-

ing operation.

▶Do not touch any hydraulic

connections.

▶Do not touch any air inlets or

outlets.

1.6 Risk of being scalded by

hot drinking water

There is a risk of scalding at

the hot water draw-off points

if the hot water temperatures

are greater than 60 °C. Young

children and elderly persons are

particularly at risk, even at lower

temperatures.

▶Select the temperature so

that nobody is at risk.

1.7 Preventing the risk of

injury from freezing

as a result of touching

refrigerant

The product is delivered with an

operational filling of R 290 re-

frigerant. This is a chlorine-free

refrigerant which does not affect

the Earth's ozone layer. Escap-

ing refrigerant may cause freez-

ing if the exit point is touched.

▶If refrigerant escapes, do not

touch any components of the

product.

1 Safety

6Operating instructions aroSTOR 0020285064_00

▶Do not inhale any steam or

gases that escape from the

refrigerant circuit as a result

of leaks.

▶Avoid skin or eye contact with

the refrigerant.

▶In the event of skin or eye

contact with the refrigerant,

seek medical advice.

1.8 Risk of injury and

material damage due to

maintenance and repairs

carried out incorrectly or

not carried out at all

▶Never attempt to carry out

maintenance work or repairs

on your product yourself.

▶Faults and damage should

be immediately rectified by a

competent person.

▶Adhere to the maintenance

intervals specified.

1.9 Risk of damage from

corrosion caused by

unsuitable room air

Sprays, solvents, chlorinated

cleaning agents, paint, adhes-

ives, ammonia compounds,

dust or similar substances

may lead to corrosion on the

product.

▶Ensure that the air supply is

always free of fluorine, chlor-

ine, sulphur, dust, etc.

▶Ensure that no chemical sub-

stances are stored at the in-

stallation site.

1.10 Dangers of modifying

product surroundings

Some types of installation and

conversion work in your home

can impair the way your product

operates.

▶Consult your installer before

undertaking the work in ques-

tion.

1.11 Frost damage due to

insufficient room

temperature

If the room temperature is set

too low in individual rooms, it

cannot be ruled out that sec-

tions of the heating installation

might be damaged by frost.

The product may release cold

air into the room. This means

the room temperature can fall

below 0 °C.

▶If you are going to be away

while the outside temperature

is low, ensure that the heating

installation remains in oper-

ation and that the rooms are

sufficiently heated.

▶You must observe the frost

protection instructions.

Safety 1

0020285064_00 aroSTOR Operating instructions 7

1.12 Avoid environmental

damage caused by

escaping refrigerant

The product contains R 290

refrigerant. The refrigerant must

not be allowed to escape into

the atmosphere.

Before the product is disposed

of, the refrigerant that is con-

tained in it must be completely

drained into a suitable vessel so

that it can then be recycled or

disposed of in accordance with

regulations.

▶Ensure that only officially cer-

tified competent persons with

appropriate protective equip-

ment carry out maintenance

work on the refrigerant circuit

or access it.

▶Arrange for the refrigerant

contained in the product to

be recycled or disposed of by

certified competent persons in

accordance with regulations.

2 Notes on the documentation

8Operating instructions aroSTOR 0020285064_00

2 Notes on the

documentation

2.1 Observing other applicable

documents

▶You must observe all operating instruc-

tions enclosed with the system compon-

ents.

2.2 Storing documents

▶Keep this manual and all other applic-

able documents safe for future use.

2.3 Validity of the instructions

Validity: Great Britain

These instructions apply only to:

Unit –article number

aroSTOR VWL B 200/5 UK 0010024440

aroSTOR VWL B 270/5 UK 0010028218

3 Product description

The product operates at air temperatures

between -7 °C and +35 °C. Outside of this

temperature range, domestic hot water

generation is only possible when using an

additional power infeed (heating coil).

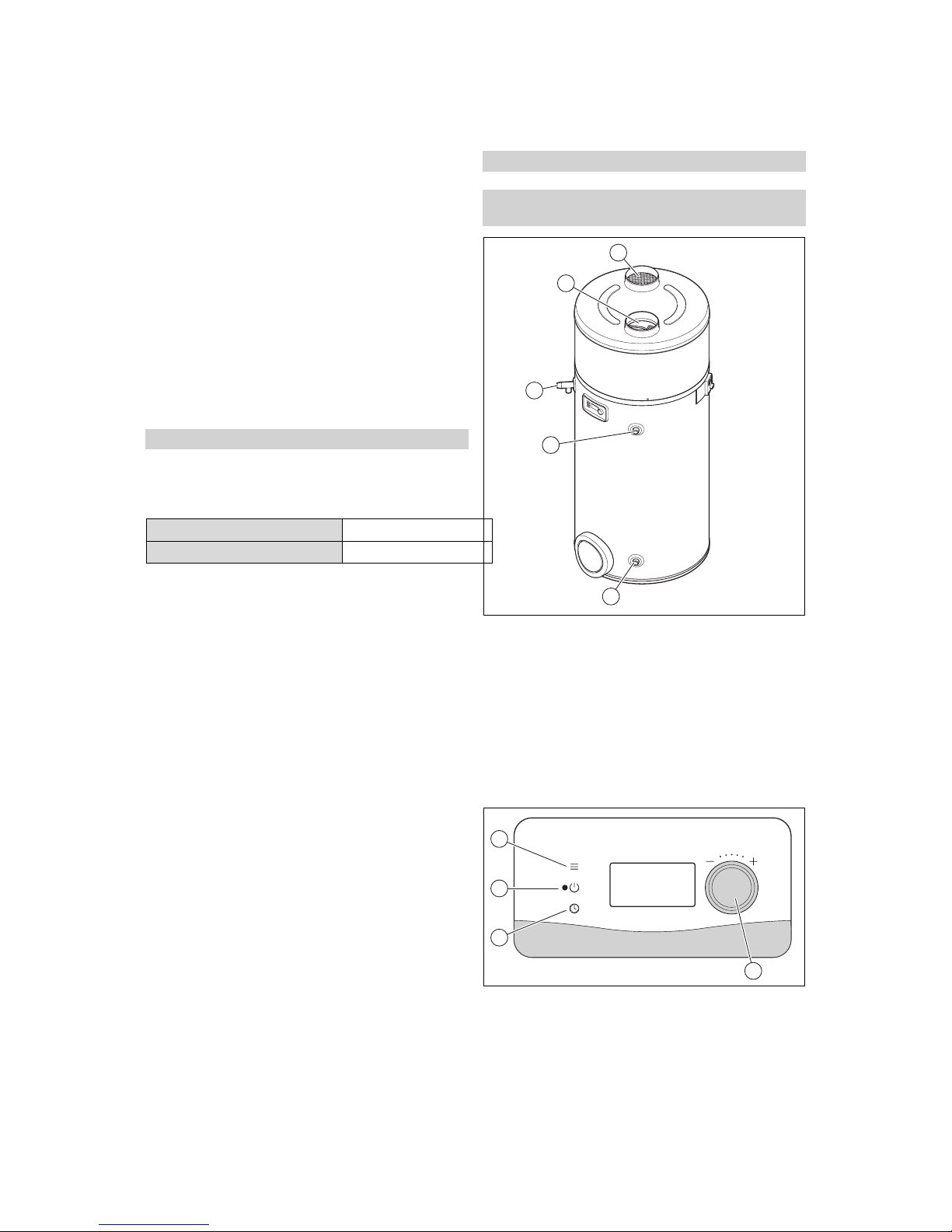

3.1 Product design

Validity: Great Britain

Validity: aroSTOR VWL B 200/5,

aroSTOR VWL B 270/5

1 Cold water inlet

2 Domestic hot

water outlet

3 Temperature

and pressure

expansion relief

valve

4 Air supply

5 Air removal

3.2 Overview of the control

elements

1 Menu button

2 On and off but-

ton

3 Button for setting

the time

4 Rotary knob

Product description 3

0020285064_00 aroSTOR Operating instructions 9

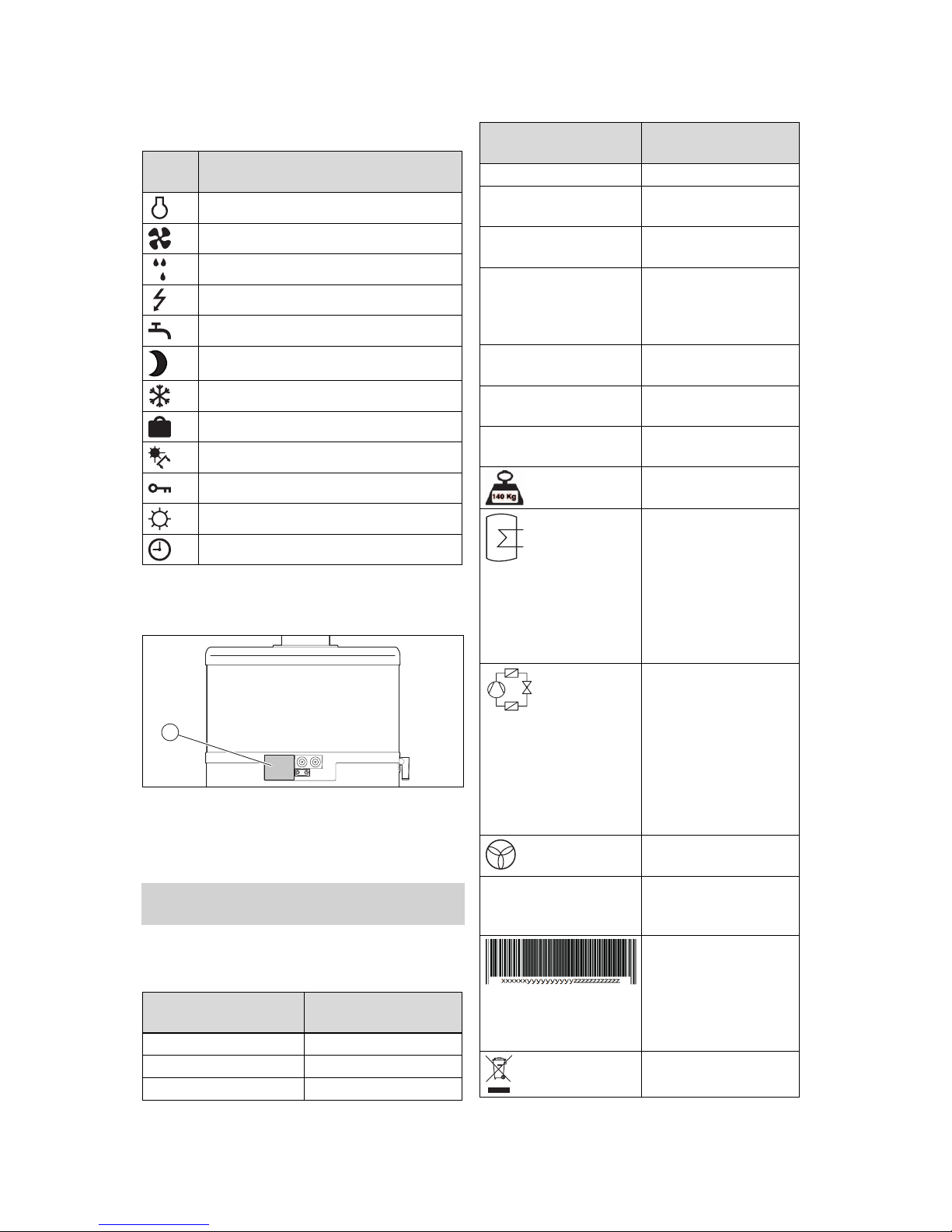

3.3 Displayed symbols

Sym-

bol

Meaning

Compressor in operation

Fan in operation

Defrosting function active

Electric back-up heater in operation

Domestic hot water demand

ECO mode active

Frost protection mode active

Holiday mode active

Photovoltaic mode active

Display locked

Comfort mode active

Programming mode active

3.4 Type designation and serial

number

The type designation and serial number

are on the data plate (1).

3.5 Information on the data plate

Validity: Great Britain

OR aroSTOR VWL B 270/5

The data plate is mounted on the right-

hand side of the product at the factory.

Information on the

data plate

Meaning

aroSTOR VWL Type designation

B Cylinder type

270 Cylinder volume

Information on the

data plate

Meaning

/5 Unit version

UK Country-specific fea-

ture

COP Coefficient of per-

formance –heating

230 V (single-phase)

~ 50 Hz

Voltage and fre-

quency of the

product's power

supply

P max Max. power con-

sumption

I max Max amperage of the

power supply circuit

IP... IP rating/protection

class

Total weight of the

empty product

Nominal capacity of

the cylinder

Max. pressure in the

domestic hot water

circuit

Max. temperature

in the domestic hot

water circuit

The refrigeration cir-

cuit

Refrigerant type, fill

quantity, permissible

rated excess pres-

sure

Nominal heat output

of the refrigeration

circuit

Max. air flow in the

heat pump

P Nominal heat output

of the electric back-

up heater

Barcode with serial

number,

The 7th to 16th digits

of the serial number

form the article num-

ber

Disposal of the pack-

aging

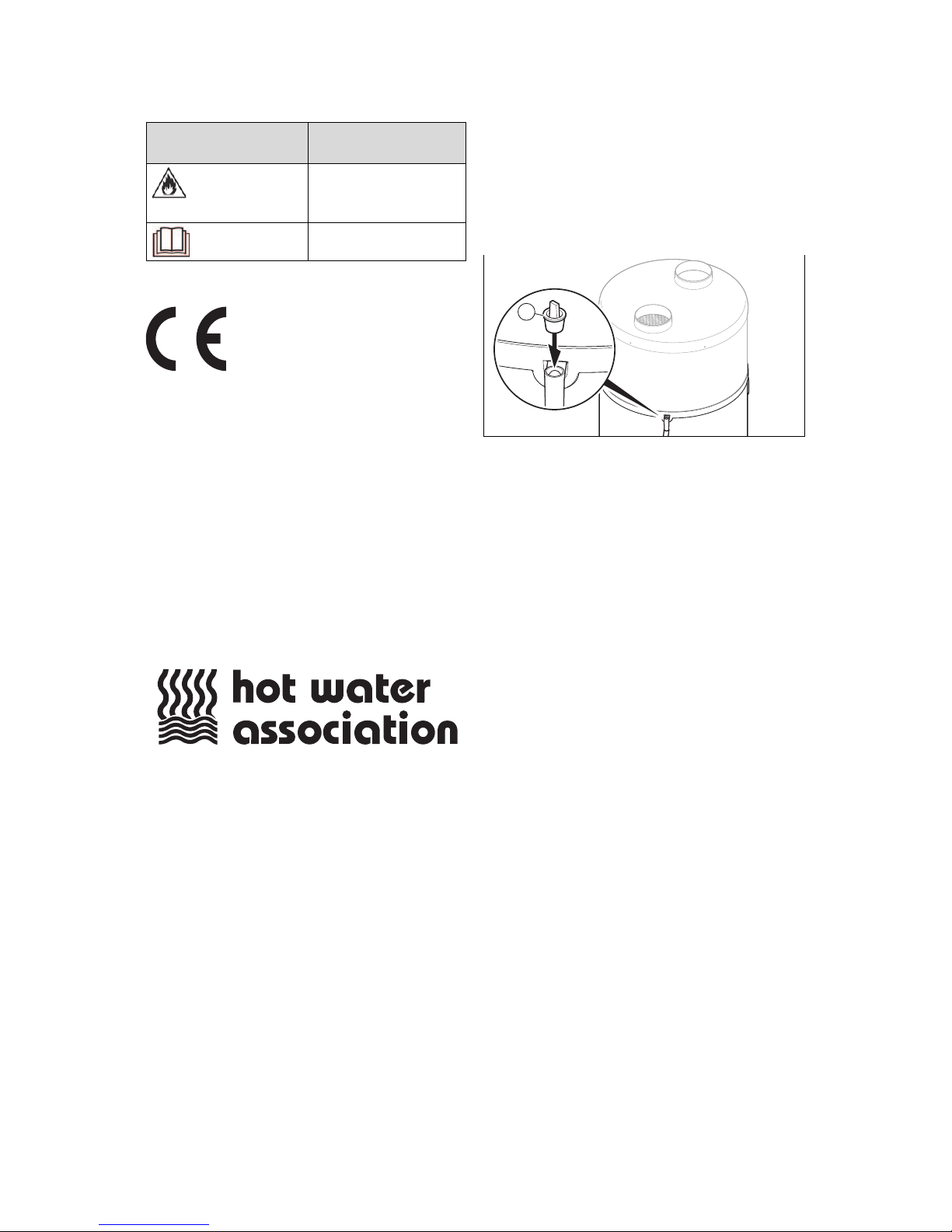

4 Function

10 Operating instructions aroSTOR 0020285064_00

Information on the

data plate

Meaning

The cylinder con-

tains a combustible

product

See instructions

3.6 CE marking

The CE marking shows that the products

comply with the basic requirements of the

applicable directives as stated on the data

plate.

The declaration of conformity can be

viewed at the manufacturer's site.

3.7 Hot Water Association

Vaillant is a full member of the Hot Water

Association and promotes the scheme

in association with its cylinder range.

Details are available on the web site

www.vaillant.co.uk

4 Function

4.1 Operating concept

You can use the three buttons to control

the product.

–You can press the menu button to ac-

cess the main menu.

–You can press the rotary knob to select

the menu items and confirm set values.

You can press the rotary knob to set

these values.

–You can use the clock button to set the

time.

The display switches off 180 seconds after

the last operation.

4.2 Switching on the product

1. Before starting up the product, ensure

that the plugs (1) have been removed

from the condensate discharge con-

nection.

2. Ensure that the stopcock upstream of

the safety group at the cold water inlet

is open.

3. Before switching on the power supply,

ensure that the domestic hot water

cylinder is full.

4. Ensure that the product has been con-

nected to the power supply.

5. Press the product's on/off button.

◁The display switches on.

◁A green LED lights up on the

display.

◁The background lighting on the

display flashes and prompts you to

set the language.

–Turn the rotary knob to set the

language. Press the rotary knob

to confirm the selection.

◁The unit only offers you the lan-

guage selection when it is switched

on for the first time. However, you

have the opportunity to change the

language setting. To do this, follow

the instructions in the section on set-

ting the language. (→Page 11)

◁The heat pump only starts when

the cold water temperature is be-

Function 4

0020285064_00 aroSTOR Operating instructions 11

low the set water temperature and

when, according to the operating

programme, the switch-on time cor-

responds to the heat-up time and

heating is permitted by the electricity

tariff.

◁When the heat pump is running,

there is an air flow at the air inlet

and outlet.

Note

After the initial start-up, de-

pending on the air intake tem-

perature and cold water tem-

perature, the heat pump re-

quires 5 to 12 hours to reach a

temperature of 55 °C.

4.3 Setting the language

▶If you want to change the current set-

ting, press the menu button.

▶Turn the rotary knob until the display

shows the language setting.

▶Press the rotary knob.

▶Select the required language using the

rotary knob.
