Miboxer Mi Light FUT035SA User manual
LED Controller
Working Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode

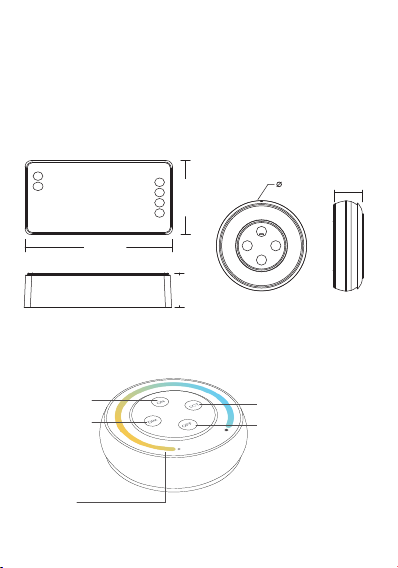

74.5mm
36mm 17mm
24mm
70mm
Controller adopt the widely used 2.4GHz wireless technology
with the features of low power consumption, long signal
transmitting and strong anti-interference, etc. Controller has
auto-transmitting function. Widely used on the controlling of
hotel lighting and home lighting.
Introduction
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Subordinate New Brand
Dual White LED Controller Kits (Model No.: FUT035SA)
Single Color LED Controller Kits (Model No.: FUT036SA)
Dual White LED Controller Kits
LED Controller
Working Voltage: DC12V~24V
Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
Dim brightness
2.4G RF wireless
transmission technology

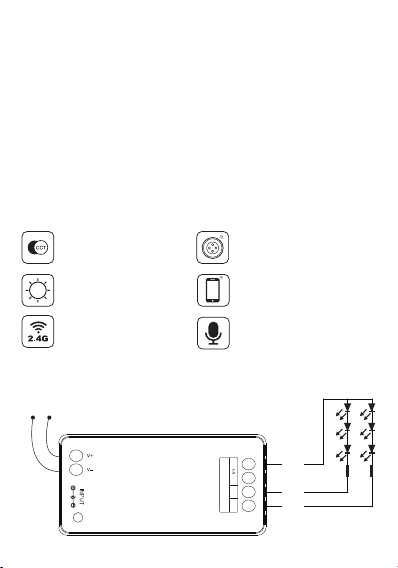

Input: DC12V/24V
V- V+
OUTPUT
LED V+
LED V-
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Single Color LED Controller Kits
Remote control
Control distance 30m
Model No.: FUT036SAModel No.: FUT035SA
Dim brightness
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
CWWW
OUTPUT
Input: DC12V/24V
V- V+
V+
WW
CW
Touch ring:
brightness, color temperature, use together.
(It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Link / Unlink
Brightness Turn off lights
Color temp.
Button Diagram
LED Controller
Working Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
74.5mm
36mm 17mm
24mm
70mm
Controller adopt the widely used 2.4GHz wireless technology
with the features of low power consumption, long signal
transmitting and strong anti-interference, etc. Controller has
auto-transmitting function. Widely used on the controlling of
hotel lighting and home lighting.
Introduction
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Subordinate New Brand
Dual White LED Controller Kits (Model No.: FUT035SA)
Single Color LED Controller Kits (Model No.: FUT036SA)
Dual White LED Controller Kits
LED Controller
Working Voltage: DC12V~24V
Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
Dim brightness
2.4G RF wireless
transmission technology
Input: DC12V/24V
V- V+
OUTPUT
LED V+
LED V-
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Single Color LED Controller Kits
Remote control
Control distance 30m
Model No.: FUT036SAModel No.: FUT035SA
Dim brightness
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
CWWW
OUTPUT
Input: DC12V/24V
V- V+
V+
WW
CW
Touch ring:
brightness, color temperature, use together.
(It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Link / Unlink
Brightness Turn off lights
Color temp.
Button Diagram
LED Controller
Working Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
74.5mm
36mm 17mm
24mm
70mm
Controller adopt the widely used 2.4GHz wireless technology
with the features of low power consumption, long signal
transmitting and strong anti-interference, etc. Controller has
auto-transmitting function. Widely used on the controlling of
hotel lighting and home lighting.
Introduction
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Subordinate New Brand
Dual White LED Controller Kits (Model No.: FUT035SA)
Single Color LED Controller Kits (Model No.: FUT036SA)
Dual White LED Controller Kits
LED Controller
Working Voltage: DC12V~24V
Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
Dim brightness
2.4G RF wireless
transmission technology
Input: DC12V/24V
V- V+
OUTPUT
LED V+
LED V-
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Single Color LED Controller Kits
Remote control
Control distance 30m
Model No.: FUT036SAModel No.: FUT035SA
Dim brightness
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
CWWW
OUTPUT
Input: DC12V/24V
V- V+
V+
WW
CW
Touch ring:
brightness, color temperature, use together.
(It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Link / Unlink
Brightness Turn off lights
Color temp.
Button Diagram
LED Controller
Working Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
74.5mm
36mm 17mm
24mm
70mm
Controller adopt the widely used 2.4GHz wireless technology
with the features of low power consumption, long signal
transmitting and strong anti-interference, etc. Controller has
auto-transmitting function. Widely used on the controlling of
hotel lighting and home lighting.
Introduction
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Subordinate New Brand
Dual White LED Controller Kits (Model No.: FUT035SA)
Single Color LED Controller Kits (Model No.: FUT036SA)
Dual White LED Controller Kits
LED Controller
Working Voltage: DC12V~24V
Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
Dim brightness
2.4G RF wireless
transmission technology
Input: DC12V/24V
V- V+
OUTPUT
LED V+
LED V-
Sunrise Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Single Color LED Controller Kits
Remote control
Control distance 30m
Model No.: FUT036SAModel No.: FUT035SA
Dim brightness
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
Smartphone APP control
(2.4GHz gateway is needed)
CWWW
OUTPUT
Input: DC12V/24V
V- V+
V+
WW
CW
Touch ring:
brightness, color temperature, use together.
(It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Link / Unlink
Brightness Turn off lights
Color temp.
Button Diagram

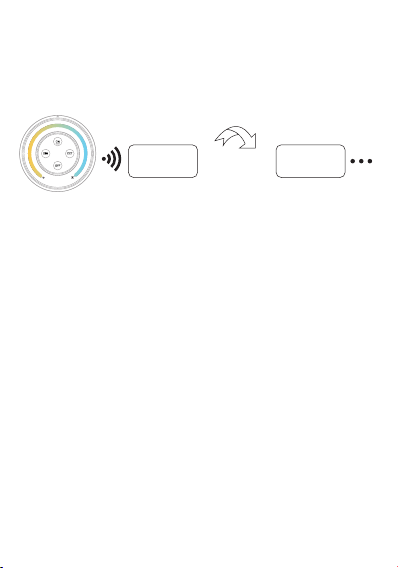

Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.
Controller Controller
Signal transmitting
Distance 30m
Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Remote Instruction
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Unlinking Code Instructions
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Link/Unlink
button
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
1 3
Power Power
1 2 3
Power Power
2
Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.
Controller Controller
Signal transmitting
Distance 30m
Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Remote Instruction
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Unlinking Code Instructions
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Link/Unlink
button
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
1 3
Power Power
1 2 3
Power Power
2
Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.
Controller Controller
Signal transmitting
Distance 30m
Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Remote Instruction
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Unlinking Code Instructions
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Link/Unlink
button
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
1 3
Power Power
1 2 3
Power Power
2
Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.
Controller Controller
Signal transmitting
Distance 30m
Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Remote Instruction
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Unlinking Code Instructions
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Link/Unlink
button
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
1 3
Power Power
1 2 3
Power Power
2
Table of contents
Other Miboxer Controllers manuals
