KS8721BL/SL Demo Board User Guide Rev. 1.0
Table of contents
KS8721BL/SL Demo Board User Guide........................................................1
Introduction .....................................................................................................3
Features............................................................................................................3
Kit Contents.....................................................................................................3
Reference Documents......................................................................................3
Hardware Description......................................................................................4
LED indicators.................................................................................................4
Jumper setting..................................................................................................4
40-Pin MII Ports..............................................................................................5
Bill of Material ................................................................................................6
Appendix .........................................................................................................7
Revision History
Revision Date Change
User Guide 0.9 09/26/02 Preliminary Release
User Guide 1.0 06/10/04 Initial Release
Micrel Confidential Information @2003 Page 2

KS8721BL/SL Demo Board User Guide Rev. 1.0
Introduction
The KS8721BL/SL evaluation board is a single port 10/100 Base Transceiver with MII
interface.
The default settings of this demo board are documented in this manual, please see
“jumper setting section” of this manual.
This board is not intended for reference design nor manufacturing. Please contact Micrel
FAE for consultation of layout and other design issues.
Features
 Micrel KS8721BL/SL Single 3.3V supply 10/100BaseTX/FX Physical Layer
Transceiver
 RJ45 jacks for Ethernet LAN port
 1 MII (media independent Interface) connector for I/F with MAC controller
 4 LEDs to indicate the status and activities
 Micrel MIC5216-3.3BM5 or MIC5207-3.3BM5 Regulator to step down to 3.3V
 Jumpers for various configurations
Kit Contents
The KS8721BL/SL Evaluation kit includes the following:
 KS8721BL/SL Evaluation Board
 KS8721BL/SL Board User Guide
Reference Documents
KS8721BL/SL Data Sheet (contact Micrel/Kendin for latest datasheet)
KS8721BL/SL Schematics
KS8721BL/SL Schematics in OrCAD format
KS8721BL/SL Gerber file
MIC5216-3.3BM5 or MIC5207-3.3BM5 Datasheet
(The latest datasheet from www.micrel.com)
AN117 Application Note – Drop-in Replacement with KS8721B/BT
Micrel Confidential Information @2003 Page 3

KS8721BL/SL Demo Board User Guide Rev. 1.0
Hardware Description
J2
RJ45
T1 U2
Jumper BanK1 Jumper Bank2
LED0-3 J13,J14,J15,J16,J12,J10 J3,J4,J5,J6,J7,J8,J9,J11
KS8721BL/SL
MII Connector
Transformer
Fig-1 KS8721BL/SL Demo Board Layout
LED indicators
There are 4 LED to indicate the traffic activities.
 LED0 – “ON” is Link, “Toggle” is Activity
 LED1 – “ON” is 100 Base, “OFF” is 10 Base
 LED2 – “ON” is Full Duplex, “OFF” is Half Duplex
 LED3 – “ON” is Collision, “OFF” is no Collision
Jumper setting
KS8721BL/SL will read the following settings during power up or RESET stage.
 J3, J4, J5, J6 and J10 -- setup the PHY address at power up, the default is 00001
when J3 to J6 and J10 are open.
 J7, “SHORT” Enable PCS Loop back, default is “OPEN”.
 J11, “SHORT” Enable ISOLATE MII mode, all MII pins are high impedance, default is
“OPEN”.
 J12 – Open for normal operation, short for POWER DOWN mode, default is “OPEN”.
 J13 (LED0) – Factory test pin.
 J14 (LED1) – Open for 100 Base, short for 10 Base, default is “OPEN”.
 J15 (LED2) – Open Full Duplex, short Half Duplex, default is “OPEN”.
 J16* (LED3) – Open Auto negotiation, short for force mode, default is “OPEN”.
* Even at Auto-negotiation mode (J16), the max advertised capability is set by J14. J15.
Micrel Confidential Information @2003 Page 4

KS8721BL/SL Demo Board User Guide Rev. 1.0
40-Pin MII Ports
Table lists the pinouts for the 40-pin MII Fast Ethernet ports.
Pin Signal Pin Signal
1 +5V 21 +5V
2 MDIO 22 Common
3 MDC 23 Common
4 RxD<3> 24 Common
5 RxD<2> 25 Common
6 RxD<1> 26 Common
7 RxD<0> 27 Common
8 Rx_DV 28 Common
9 Rx_Clk 29 Common
10 Rx_Er 30 Common
11 Tx_Er 31 Common
12 Tx_Clk 32 Common
13 Tx_En 33 Common
14 TxD<0> 34 Common
15 TxD<1> 35 Common
16 TxD<2> 36 Common
17 TxD<3> 37 Common
18 Col 38 Common
19 CRS 39 Common
20 +5V 40 +5V
Micrel Confidential Information @2003 Page 5

KS8721BL/SL Demo Board User Guide Rev. 1.0
Bill of Material
Description Quantity Reference designator Manufacturer Part Number
10/100 BaseTX/FX PHY 1 U2 Micrel KS8721BL or
KS8721SL
Low Noise µCap LDO 2 U1 Micrel MIC5216-3.3BM5 or
MIC5207-3.3BM5
Crystal 25MHZ 1 Y1 Dig-Key or
Equiv. SE3441
Cap 47UF 3 C2,C7,C23 Dig-Key or
equiv.
Cap 0.1UF 12 C4, C8, C10, C13, C14,
C15, C16, C17, C18, C19,
C21, C22
Dig-Key or
equiv.
.
Cap 100 UF 1 C6 Dig-Key or
equiv.
Cap 10uF 2 C9, C26 Dig-Key or
equiv.
Cap 22PF 2 C11, C12 Dig-Key or
equiv.
Cap 1000Pf/2KV 1 C20 Dig-Key or
equiv.
Cap 0.01UF 1 C24 Dig-Key or
equiv.
Diode 1N4148 1 D1 Dig-Key or
equiv.
FBEAD 2 FB1, FB2 Steward HI1206N101R-00
HEADER 1x1 1 TP1 Dig-Key or
equiv.
JUMPER 12
J3, J4, J5, J6, J7, J10, J11,
J12, J13, J14, J15, J16 Dig-Key or equiv.
RJ45 Jack 1 J2 Dig-Key or
equiv.. A9095-ND
Male MII connector 1 J1 AMP Inc.
LEDx3 3 LED1, LED2, LED3 Dig-Key or
equiv.
Resistor 10K 2 R1, R20 Dig-Key or
equiv.
Resistor 33 9 R3, R4, R8, R9, R10, R11,
R12, R14, R15 Dig-Key or equiv.
Resistor 49.9 1% 4 R6, R7, R32, R33 Dig-Key or
equiv.
Resistor 6.49K 1% 1 R13 Dig-Key or
equiv.
Resistor 3K 1 R16 Dig-Key or
equiv.
Micrel Confidential Information @2003 Page 6

KS8721BL/SL Demo Board User Guide Rev. 1.0
Resistor 75 4 R17, R18, R26, R39 Dig-Key or
equiv.
Resistor 1K 3 R21, R22, R23 Dig-Key or
equiv.
Resistor 220 4 R27, R28, R29, R31 Dig-Key or
equiv.
Resistor 4.7K 7 R40, R41, R42, R43, R44,
R47, R50 Dig-Key or equiv.
Transformer 1 T1 Pulse H1102
Appendix

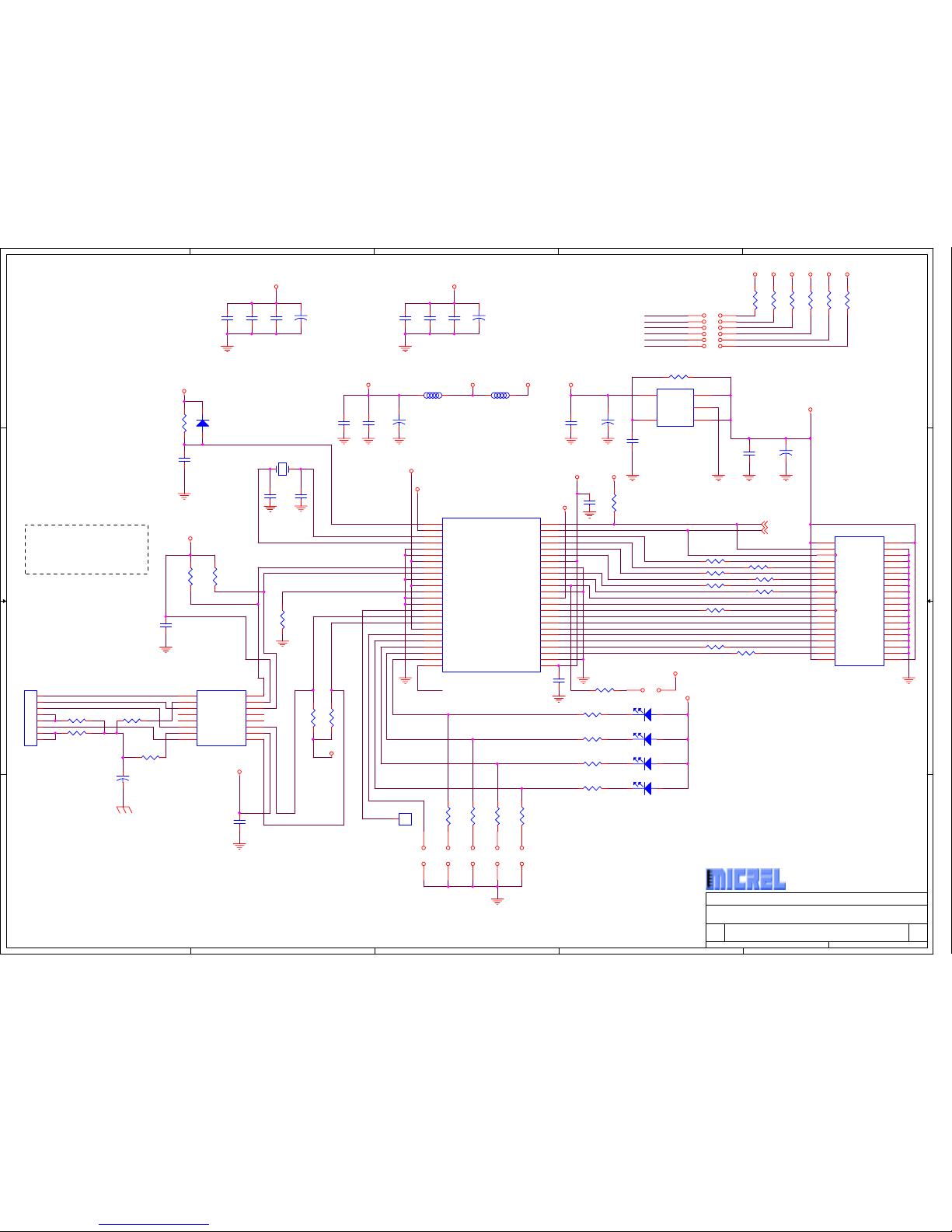

KS8721BL/SL Evaluation Board Schematics Rev 1.1
Micrel Confidential Information @2003 Page 7

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
REVISION HISTORY
