DFI KB160 Series User manual

1
KB160/KB161 Series
Mini-ITX Industrial Motherboard
User’s Manual
A-304-M-2008

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2014. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Copyright............................................................................................................. 2
Trademarks ........................................................................................................2
FCC and DOC Statement on Class B.....................................................2
About this Manual ..........................................................................................4
Warranty ............................................................................................................4
Static Electricity Precautions......................................................................4
Safety Measures ..............................................................................................4
About the Package......................................................................................... 5
Chapter 1 - Introduction .............................................................................6
Specifications ................................................................................................6
Features.......................................................................................................... 7
Chapter 2 - Hardware Installation................................................9
Board Layout................................................................................................. 9
System Memory............................................................................................ 9
Installing the DIMM Module ........................................................................ 10
Jumper Settings ......................................................................................... 11
Clear CMOS Data........................................................................................ 11
Auto Power-on Select.................................................................................. 12
USB Power Select ....................................................................................... 12
Dimming Mode Select ................................................................................. 13
PS/2 Keyboard/Mouse Select....................................................................... 13
Panel Power Select ..................................................................................... 14
Backlight Power Select................................................................................ 14
LCD/Inverter Power Select .......................................................................... 15
SATA DOM Power Select ............................................................................. 15
Digital I/O Power Select.............................................................................. 16
Digital I/O Output State.............................................................................. 16
LVDS Channel and bpp Select ..................................................................... 17
Rear Panel I/O Ports................................................................................. 18
12V DC-in (default) - KB161 Series.............................................................. 18
Graphics Interfaces..................................................................................... 19
RJ45 LAN Ports........................................................................................... 19
USB Ports................................................................................................... 20
I/O Connectors ........................................................................................... 21
Digital I/O Connector.................................................................................. 21
Digital I/O Power Connector........................................................................ 21
COM (Serial) Ports...................................................................................... 21
SATA (Serial ATA) Connectors...................................................................... 22
SATA (Serial ATA) Power Connectors - KB161 Series..................................... 22
Cooling Fan Connectors............................................................................... 23
Front Panel Connector ................................................................................ 23
LVDS LCD Panel Connector ......................................................................... 24
LCD/Inverter Power Connector .................................................................... 24
ATX Power Connector - KB160 Series .......................................................... 25
Chassis Intrusion Connector ........................................................................ 25
Expansion Slots .......................................................................................... 26
Installing an EXC Board into the EXC Interface for I/O Expansion......................... 27
EXC Power Connector ................................................................................. 28
LAN LED Connector .................................................................................... 28
Standby Power LED .................................................................................... 29
Battery....................................................................................................... 29
Chapter 3 - BIOS Setup............................................................... 30
Overview ..................................................................................................... 30
AMI BIOS Setup Utility............................................................................. 31
Main .......................................................................................................... 31
Advanced ................................................................................................... 31
Chipset ...................................................................................................... 41
Boot........................................................................................................... 46
Security...................................................................................................... 47
Save & Exit ................................................................................................ 48
Updating the BIOS .................................................................................... 48
Chapter 4 - Supported Software........................................................... 49
Chapter 5 - Digital I/O Programming Guide.................................... 57
Appendix A - Troubleshooting ................................................................ 59
Appendix B - Watchdog Sample Code................................................ 65
Appendix C - System Error Message................................................... 66
Appendix D - Troubleshooting................................................................ 67
Table of Contents

4
About this Manual
This manual can be downloaded from the website, or acquired as an electronic file included in
the optional CD/DVD. The manual is subject to change and update without notice, and may
be based on editions that do not resemble your actual products. Please visit our website or
contact our sales representatives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper instal-
lation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or con-
nectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servic-
ing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other com-
ponents. Perform the upgrade instruction procedures described at an ESD worksta-
tion only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chas-
sis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.

5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One KB160/KB161 motherboard
• One Serial ATA data cable - KB160 Series
• One Serial ATA data with power cable - KB161 Series
• One QR (Quick Reference)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB port cable
• Serial ATA data cable
• Serial ATA data with power cable - KB161 Series
• Power adapter (100W, 12V) - KB161 Series
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• Memory module
• Storage devices such as hard disk drive, CD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
I/O Connectors • 1 connector for 2 external USB 2.0/1.1 ports
• 1 vertical USB 2.0/1.1 port* (optional)
• 4 connectors for 4 external serial ports (2.0mm pitch)
- 1 RS485
- 3 RS232
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 8-bit Digital I/O connector
• 1 Digital I/O power connector
• 1 LAN LED connector
• 1 LPC connector
• 2 Serial ATA connectors
• 2 Serial ATA power connectors - KB161 Series
• 1 24-pin ATX power connector - KB160 Series
• 1 front panel connector
• 1 chassis intrusion connector
• 2 fan connectors
WatchDog Timer • Watchdog timeout programmable via software from 1 to 255 seconds
BIOS • AMI BIOS
- 32Mbit SPI BIOS
Energy Efficient
Design • Supports ACPI
• System Power Management
• Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse* (optional)
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
Damage Free
Intelligence • Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/12V/5V/DDR voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
Temperature • Operating: 0oC to 60oC
• Storage: -20oC to 85oC
Humidity • 5% to 95%
Power
Consumption • TBD
OS Support • Windows 7 Ultimate x86 & SP1 (32-bit)
• Windows 7 Ultimate x64 & SP1 (64-bit)
• Windows 8 Enterprise x86 (32-bit)
• Windows 8 Enterprise x64 (64-bit)
Dimensions • Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")
Chapter 1 - Introduction
Specifications
Processor • AMD®Embedded G-Series SoC FT3 BGA
- 420C: AMD®GX420CA, Quad Core, 2M Cache, 2.0GHz, 25W
- 415G: AMD®GX415GA, Quad Core, 2M Cache, 1.5GHz, 15W
- 217G: AMD®GX217GA, Dual Core, 1M Cache, 1.65GHz, 15W
- 210H: AMD®GX210HA, Dual Core, 1M Cache, 1.0GHz, 9W
• 28nm process technology
System Memory • Two 204-pin DDR3/DDR3L SODIMM sockets
• Supports DDR3/DDR3L 1066/1333/1600MHz
• Supports up to 8GB system memory
• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3L DRAM technologies are
supported for x8 and x16 devices, unbuffered, non-ECC
Expansion
Interfaces • 1 PCIe x4 slot
• 1 DFI Proprietary Extension Bus for PCIe/PCI expansion
• 1 Mini PCIe slot
- Supports USB and PCIe signals
- Supports mSATA (optional)
- Supports full size Mini PCIe card
• 1 DFI EXC interface for I/O expansion
- 1 PCIe x1
- 1 High Definition Audio
- 2 Serial ports
- 1 PS/2 keyboard/mouse
- 1 USB 2.0
- 1 SMBus
- 1 LPC
Graphics • AMD®HD 8000 Series Graphics
• Display ports: VGA, LVDS and DP
• VGA: resolution up to 2560x1600 @60Hz, 24-bit
• LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @60Hz
• DP: supports DP++, resolution up to 4096x2160 @30Hz
• Supports hardware acceleration for DirectX 11.1, H.264, MPEG-2, MPEG-4 AVC,
VC-1 and WMV
LAN • 2 Intel®I210 PCI Express Gigabit Ethernet controllers
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Serial ATA • 2 SATA 3.0 ports with data transfer rate up to 6Gb/s
- SATA port 1 provides adequate space for SATA DOM
- One multiplexed with mSATA (Mini PCIe)* (optional)
• Integrated Advanced Host Controller Interface (AHCI) controller
Trusted
Platform
Module - TPM*
(optional)
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
Rear Panel I/O
Ports • 1 12V DC-in jack (default) or 4-pin power connector (optional) - KB161 Series
• 1 DB-15 VGA port
• 1 DP port
• 2 RJ45 LAN ports
• 2 USB 2.0/1.1 ports
• 2 USB 3.0 ports
Chapter 1
Chapter 1 Introduction www.dfi.com
Note:
*Optional and is not supported in standard model. Please contact your sales represen-
tative for more information.

7
Chapter 1
Chapter 1 Introduction www.dfi.comChapter 1 Introduction
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR3L
DDR3L is a higher performance DDR3 DRAM interface providing less voltage and higher speed
successor. DDR3L DRAM modules support 1066/1333/1600MHz for DDR modules. DDR3L deliv-
ers increased system bandwidth and improved performance to provide its higher bandwidth
and its increase in performance at a lower power.
• Graphics
The integrated AMD®HD 8000 Series graphics engine delivers an excellent blend of graphics
performance and features to meet business needs. It provides excellent video and 3D graphics
with outstanding graphics responsiveness. These enhancements deliver the performance and
compatibility needed for today’s and tomorrow’s business applications. Supports VGA, LVDS and
DP interfaces for 3 display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions).
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
• Gigabit LAN
Two Intel®I210 PCI Express Gigabit Ethernet controllers support up to 1Gbps data transmis-
sion.
• Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows® without having to
go through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCIe LAN card that uses the PCIe PME (Power
Management Event) signal. However, if your system is in the Suspend mode, you can power-
on the system only through an IRQ or DMA interrupt.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Important:
The 5V_standby power source of your power supply must support ≥720mA.

8
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmis-
sion speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
Chapter 1
Chapter 1 Introduction www.dfi.com

www.dfi.com
9
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation

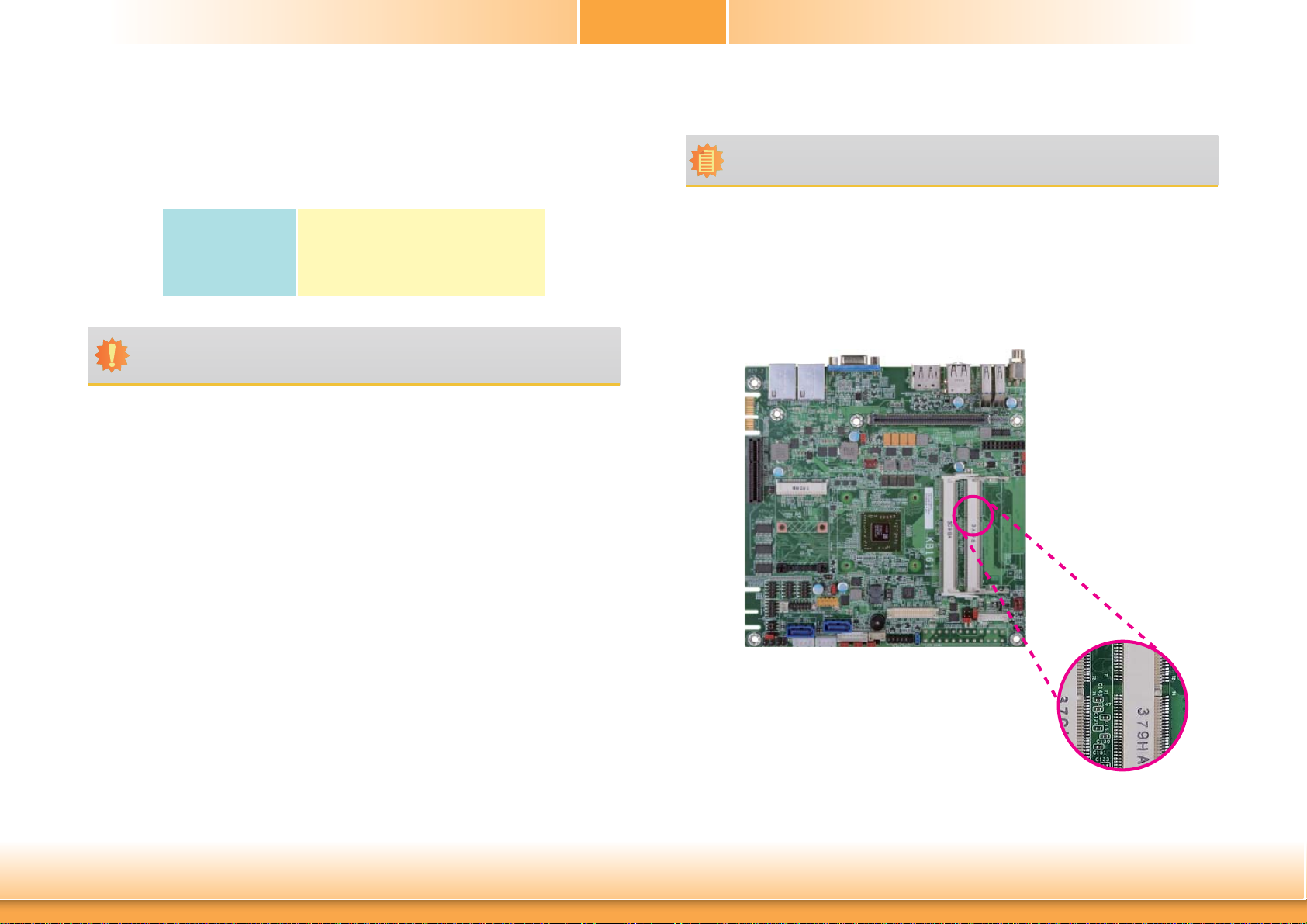

Board Layout
System Memory
Features
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lights red, it indicates that there is power on the
system board. Power-off the PC then unplug the power cord prior to installing any de-
vices. Failure to do so will cause severe damage to the motherboard and components.
Rear I/O
Onboard I/O
Storage
Expansion
DC-in
+12V 4-pin
power (optional)
DisplayPort
SPI Flash
BIOS
1
2
1
ON
1
LAN 1
LAN 2
1
Chassis
Intrusion
1
1
SATA 0
1
SATA 1
Mini PCIe
1
210
9
1
210
9
1
210
91
210
9
1
1
2Battery
1
LCD/Inverter
Power
Digital I/O
1
AMD
G-Series SoC Digital I/O
Power
PS/2 Keyboard/Mouse
Power Select (JP5)
Clear CMOS
Data (JP1)
1
USB 2-3 Power
Select (JP12)
1
Dimming Mode
Select (JP10)
1
USB3.0 0-1
Power Select
(JP11)
1
1
1
Buzzer
21
39 40
1
12
11
12
USB 0-1
USB 0
USB 1
VGA
1
1
1
DIO 0-3
Output State
(JP15)
DIO Power
Select (JP14)
Backlight Power
Select (JP7)
Auto Power-on
Select (JP2)
EXC
EXC
Power
1
USB2.0 0-1
Power Select
(JP13)
USB 3.0
USB 2.0
LVDS Channel
and bpp Select
(SW1)
DIO 4-7
Output State
(JP16)
SATA 3.0
USB 2.0
910
12
USB 2-3
PTN3460
LVDS LCD
Panel
DDR3/DDR3L_1 SODIMM
DDR3/DDR3L_2 SODIMM
COM 1
COM 3
COM 2
COM 4
Front
Panel
1
2
5
6
Panel Power
Select (JP8)
System Fan
Standby
Power LED
12 24
113
19 20
1
4
ATX
Power
LCD/Inverter
Power Select
(JP9)
1
4
CPU Fan
12
ISL62771
SATA
Power 0
SATA
Power 1
LPC
1
12
2
11
LAN1 State
LAN2 State
LAN2 State
1
LAN1 State
2
78
SATA DOM
Power
Select
(JP6)
Note:
SATA1 supports SATA DOM.
PCIe x4
DFI Proprietary
Extension Bus
DDR3/DDR3L-2
DDR3/DDR3L-1 Standby
Power LED
• Two 204-pin DDR3/DDR3L SODIMM sockets
• Supports DDR3/DDR3L 1066/1333/1600MHz
• Supports up to 8GB system memory

www.dfi.com
10
Chapter 2 Hardware Installation
Chapter 2

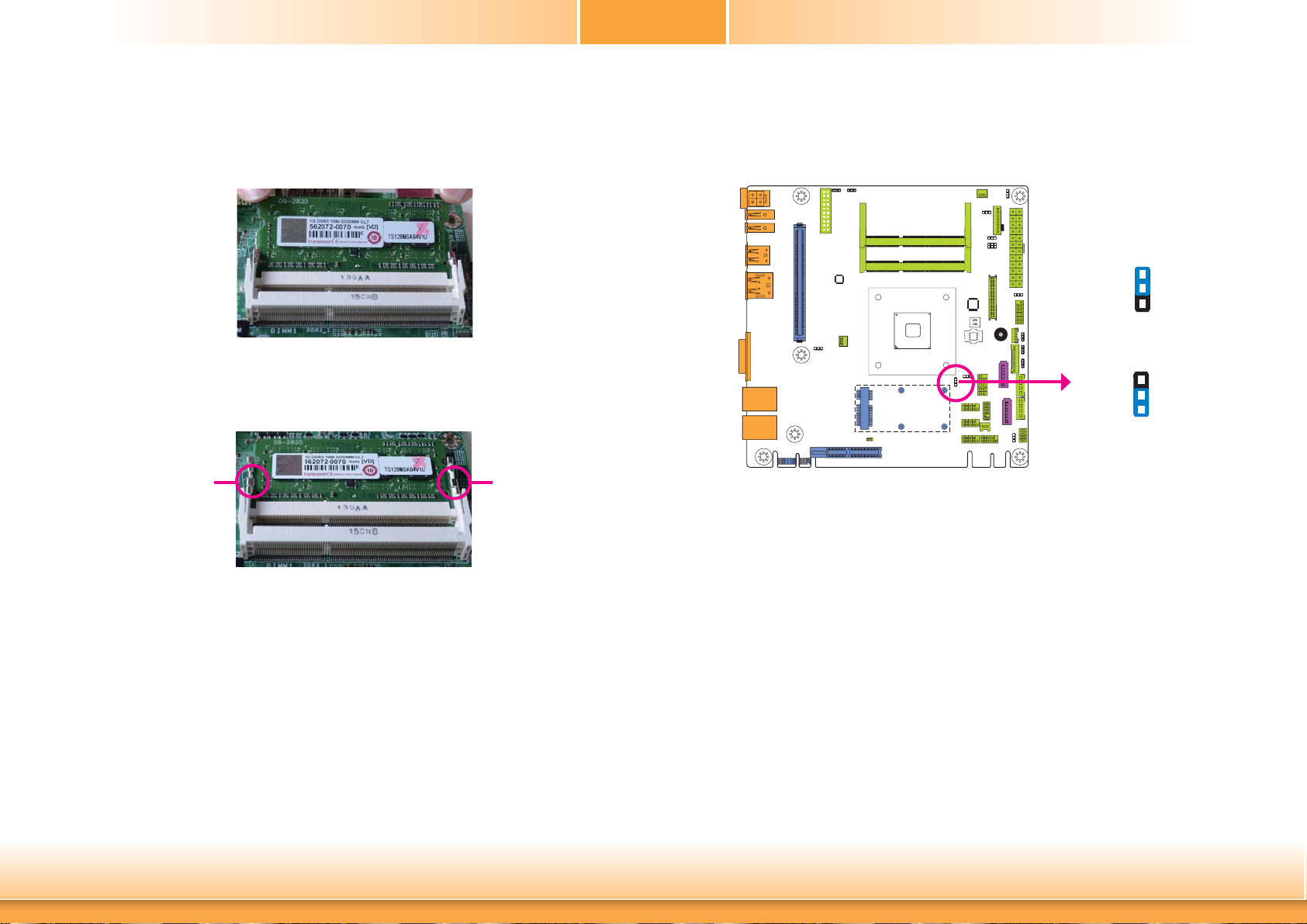

Installing the DIMM Module
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM socket on the system board.
4. Note the key on the socket. The key ensures the module can be plugged into the socket in
only one direction.
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Single Channel
DIMMs are on the same channel.
DIMMs in a channel can be identical or
completely different. However, we highly
recommend using identical DIMMs.
Not all slots need to be populated.
Important:
If you are installing one DDR3/DDR3L SODIMM only, make sure that the SODIMM 2
socket must be populated first.
