micro-trak SprayMate XRS User guide

2
111 LeRay Avenue
Eagle Lake, MN 56024
Copyright © 2019 Micro-Trak® Systems, Inc.
All rights reserved.
The SprayMate™ XRS is an specialized version of the SprayMate™ Plus. The SprayMate™ XRS has features optimized for
Orchard/Vineyard applications. The SprayMate™ XRS is an electronic control system that can help you achieve maximum
yields and operate more cost-effectively by providing the control you need to maintain proper application rates of liquid
chemicals. SprayMate™ XRS has been designed for easy installation and operation. However, since each installation will vary
depending on your equipment, please take time to familiarize yourself with this manual and the actual components before
beginning. Following the procedures described in this manual will ensure proper performance and help avoid problems or
questions once you are applying.
This manual is written specifically for the SprayMate™ XRS, which can be setup for either English or Metric units.
Please read the manual carefully and follow the instructions as they apply to your usage.
If you do encounter a problem that cannot be corrected by reviewing this manual, consult your dealer or distributor, or
contact a Micro-Trak® technician for assistance.
U.S. or Canada: Toll-free [phone] or [phone]
Fax: [phone]
www.micro-trak.com •[email protected]
System Manual
SprayMate XRS™
Orchard/Vineyard Auto Rate Controller

3
MicroTrak Systems, Inc.
Limited Warranty
MicroTrak Systems, Inc. (herein “Seller”) warrants to the original purchaser (herein “Buyer”) that, if any product or part of the
product (herein “Parts”) proves to be defective in material or workmanship, upon inspection and examination by Seller, within
three (3) years from the original dateofpurchase, and is returned to Seller with dated proofofpurchase, transportation
prepaid, within sixty (60) days after such defect is discovered, Seller will, at their option and sole discretion, either repair or
replace said part, except that the warranty for expendable Parts, including but not limited to, light bulbs and batteries shall
be thirty (30) days from the original dateofpurchase; and except that the warranty for Parts manufactured by someone
other than the Seller, including but not limited to, shutoff valves, control (servo) valves, flowmeters, pressure sensors, pumps,
compressors, tanks and tank accessories, DGPS receivers and related repeater and base stations shall be one (1) year from the
original dateofpurchase; and except that the warranty for Parts manufactured by someone other than the Seller, including
but not limited to, memory cards and drives, mapping software, terminals, PC’s, laptops, tablets and other computer devices
shall be thirty (30) days from the original dateofpurchase. Any damage or failure to said part resulting from abuse, misuse,
neglect, accidental or improper installation or maintenance, unauthorized modification, use with other parts and/or products,
or attributable to acts of God, as determined solely by the Seller, will invalidate the warranty. Said part will not be considered
defective if it substantially fulfills the performance specification. Buyer shall be responsible for all maintenance services, if
any, all in strict accordance with the procedures outlined in the manual. The warranty does not include labor, installation,
replacement parts or repairs, delivery of replacement parts or repairs or time and travel. Said warranty is nontransferable.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR
PURPOSE AND OF ANY OTHER TYPE, WHETHER EXPRESS OR IMPLIED. THE SELLER’S LIABILITY, WHETHER IN CONTRACT,
IN TORT, UNDER ANY WARRANTY, IN NEGLIGENCE OR OTHERWISE, SHALL NOT EXCEED THE RETURN OF THE AMOUNT
OF THE PURCHASE PRICE PAID, AND UNDER NO CIRCUMSTANCES SHALL THE SELLER BE LIABLE FOR SPECIAL, INDIRECT,
CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES. SELLER NEITHER ASSUMES NOR AUTHORIZES ANYONE TO ASSUME
FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SAID PART. NO ACTION, REGARDLESS OF FORM, ARISING
OUT OF THE TRANSACTIONS UNDER THIS AGREEMENT MAY BE BROUGHT MORE THAN ONE (1) YEAR AFTER THE CAUSE OF
ACTION HAS OCCURRED.
Buyer accepts these warranty terms and limitations unless the part is returned to Seller, via proper distribution channels and
approved return authorization, with dated proofofpurchase, transportation prepaid, within sixty (60) days from the dateof
purchase for refund of the purchase price.
Doc: MTS Warranty Statement_010119a Rev 2_01012019
At Micro-Trak® Systems, we believe a product that delivers quality and performance at a reasonable cost is what is needed to
help today’s operator and the operator of the future compete in the world market.
It is our goal to provide operators with a line of electronic equipment that will help build and maintain an efficient and
profitable operation that can be passed on to future generations.
We thank you for your purchase and hope that we can be of service to you in the future.
Micro-Trak® Systems, Inc.
MAIL and UPS:
Micro-Trak® Systems, Inc.
ATTN: Service Department
111 LeRay Avenue
Eagle Lake, MN 56024

4
Table of Contents
Micro-Trak®Warranty 3
Table of Contents 4
Component Parts and Hardware 5
System Overview 6
Wiring Diagram 7
Wiring Details 8
Installation 9
Function Summary 10
Calibration 11
Operating Modes & Inline/Bypass 13
Special Calibration 14
Operation 20
Pre-Field System Checkout 21
Troubleshooting 22
Appendices 26
Appendix A - Fine Tuning Speed/Distance Calibration Value 26
Appendix B - Fine Tuning Flowmeter Calibration Value 27
Appendix C - “Quick Start” Function 28
Appendix D - Pressure Based Control 29

5
Component Parts and Hardware
Branch Harness
P/N 19958
Console Quick Mount Kit
P/N 19960
SprayMateTM XRS Console
P/N 19955
Power Cable
P/N 14315-C
14” Nylon cable ties (10)
P/N 12910
5’ 16-pin Extension Cable
P/N 19313
Reference Manual
P/N 19959
Run/Hold Switch Kit
P/N 21778
Power Switch Kit
P/N 21779
AUTO

6
System Overview
16-pin GT Connector
PN 19958 - 15’ Branch Harness (branch section 3’)
PN 14315C - 15’ Battery Cable w/10A fuse
Section 1 Section 2 Control Signal Pressure Input
PN 19955 SprayMate XRS Console
(not to scale)
+-
Multifunction Output Remote Speed Input Flow Input
Speed
Input

7
Wiring Diagram
16-PIN GT
150/280 MALE
15.0 FT.
WHT/BLK
A B
C
D E F
G
H J K L
M
BLK/WHT
R
CONTROL-
RED
BLK YEL
RED
BLK
BRN RED
BLK
N/C
GRY
BLUVIO
RED/WHT
ORG
2-PIN M/P
RED/BLK
RED/BLK
GRN
YEL BRN ORG GRY VIO BLK/RED BLKWHT WHT WHT/BLK RED/WHT RED
+VES
SECTION 1 SECTION 2
M/F
GND
ACCY PWR
GND GND
P
CONTROL+
SPEED PRESS
FLOW
TOWER
N
3-PIN M/P
ACCY PWR
S
B A
C
B A
C
B A
C
B A
B
B A
C
B
C
TOWER
3-PIN W/P
TOWER
3-PIN W/P
TOWER
3-PIN W/P
SHROUD
3-PIN W/P
SHROUD
2-PIN W/P
GRN
A
A
BLK/WHT
TOWER
BLK/RED
ORG
GRN C
B A
TOWER
3-PIN M/P
BLU
SW VES OU
T
POWER
PN 19958 - SprayMate XRS Branch Harness
Overall length: 15’ Branch length: 3’

8
Wiring Details
SprayMate XRS
Branch Harness
P/N 19958
Overall Length: 15’
Branch Lengths: 3’
(With 2’ Pressure
Sensor Adapter -
PN 19286)
5’ 16-pin
Extension Cable
P/N 19313
Overall Length: 5’
Main
Connection
16-pin
GT150/280
Connection
16-pin
GT150/280
Power
2-pin
Weather-Pack
Connection
16-pin
GT150/280
Sections (2)
3-pin
Weather-Pack
Control
3-pin
Weather-Pack
Flow &
Speed
3-pin
Metri-Pack
Multifunction
3-pin
Metri-Pack
w/Dust Cover
Pressure
3-pin
Metri-Pack 150
SprayMate XRS
Power Cable
P/N 14315-C
Overall Length: 15’
Power
Connection
to harness
2-pin
Weather-Pack
To Battery
5/16” Ring
Terminal
To Battery
5/16” Ring
Terminal

9
A
B
C
RED
BLK
Constant +12VDC
Switched +12VDC (Signal)
Ground
Various
3-Pin
Weather Pack
Tower
Connector
WIRING HARNESS ORIENTATION
Wiring with multiple branches MUST be installed so that the individual wires point downward, as shown on right below.
This will protect the internal connections from exposure to liquid chemicals.
Installation
Console Mounting - Power Connection - Section Wiring
Select a mounting location that is practical and convenient. It should
be easy to reach and highly visible to the operator. DO NOT INSTALL IN
A POSITION THAT OBSTRUCTS THE VIEW OF THE WORKING AREA.
Whenever possible, avoid locations that expose the console to direct
sunlight, high temperature, strong chemicals or rain.
Place the mounting bracket in the selected location, mark holes, drill
¼” (7mm) holes and mount bracket with bolts, lock washers and nuts
provided. (Use self-tapping screws if not practical to use bolts.)
Position the console bracket inside the mounting bracket and fasten with
wingnut. Install the console knobs through the bracket, placing a rubber
washer over the threaded stud. Position console to proper viewing angle
and tighten the knobs securely.
This section explains how to connect the Spraymate XRS controller to a 12VDC power connection and wiring information
about section shut-off valve connections. The Spraymate XRS controller must be connected to a 12VDC negative ground
electrical system.
ROUTING HARNESS AND CABLING
Avoid areas where the cable may be subjected to abrasion or
excessive heat.
POWER/BATTERY CONNECTION
Locate the power cable leads on the Spraymate XRS controller
power cable and route them to the battery. Attach the BLACK
wire to ground. Connect the ORANGE wire to the positive battery
terminal. Be sure there is good metal-to-metal contact. See
illustration.
Connect the power to the SprayMate XRS console by plugging the
2-pin W/P tower on the power cable into the 2-pin M/P shroud
connected to the wiring harness.
+12 VDC
10A in-line fuse
(+)
(–)
Ground
(Black)
(Red)
(Orange)
SECTION SHUTOFF VALVES
The Spraymate XRS wiring includes connections for
2 section valves. The wiring to each Weather Pack
connector consists of +12VDC, Ground, and switched
+12VDC. See Illustration.
Verify the wiring layout of your valves before connecting
them to the system. Please refer to original valve
documentation or contact valve manufacturer if you are
unsure of the correct wiring configuration.

10
SprayMateTM XRS Console Function Summary
The SprayMateTM XRS features a large, easy-to-read liquid crystal display, easy-to-use rotary dial and lighted panel for night
use. The console also includes section switches, an audible alarm, and a serial port.
TANK: Displays gallons (liters)
of liquid remaining.
LOCK/UNLOCK: Calibration Lock/Unlock
ADJUST RATE: Enter an amount of change for on-the-go
adjustments to the target rate.
TARGET RATE: Enter the target application rate.
RATE: Displays application rate
in Gallons per Acre (Liters per
Hectare).
AREA: Keeps a running count
of the total area worked in
acres (hectares).
SEE NOTE BELOW
PRESSURE: Displays system
pressure in PSI (or Bar).
ROW WIDTH: Enter the working width of the application.
Press CAL button to select individual sections.
SPEED: Displays ground
speed in miles per hour
(kilometers per hour).
SPEED CAL: Enter the speed calibration number in inches
(cm) per pulse.
TEST SPEED: (Optional) Can be used as a test mode to
simulate ground speed for system checkout. Enter a Test
Speed in miles per hour (kilometers per hour).
MODE: Choose between Vineyard and Orchard modes.
VOLUME 1 2 3: Displays
the total volume of product
applied in gallons or liters.
SEE NOTE BELOW
FLOW CAL: Enter the calibration value of your flowmeter.
Set to 0 to enable Pressure Based Control. (Must also set
Minimum Pressure and Proportional Minimum Flow
parameters in Special Calibration.)

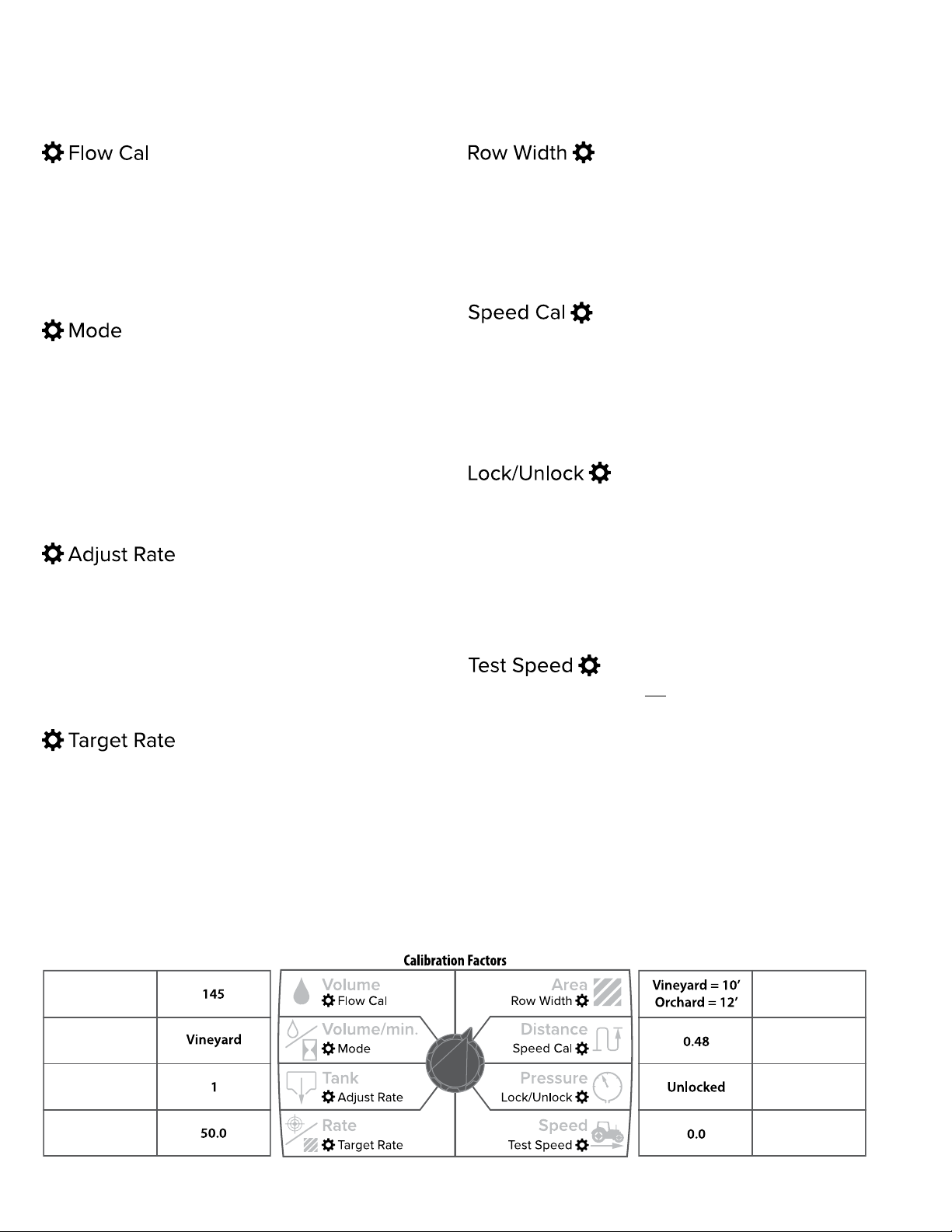

Left Side Calibration Positions Right Side Calibration Positions
VOLUME/MINUTE: Displays
total gallons (liters) of liquid
applied per minute.
DISTANCE: Displays
Distance traveled in Feet or
Meters. May be reset.
NOTE ON COUNTERS: VOLUME and AREA counters function in pairs. If the VOLUME counter 1 is reset, it also resets
AREA counter 1. There are 3 independent data sets. The number icon indicates which counter set is shown. If console is in
Calibration Lock, then only Data Set 1 can be cleared. Counters do not accumulate data when console is in HOLD or sections
are turned off.
Button Functions
Changes operation from automatic control to manual.
(If Manual Control is enabled).
• Used to enter & exit the calibration mode.
• Used to select the Section # in ‘Row Width position.
• Used to select the page # in “Special” Calibration.
• Toggles between SPEED CAL and Distance traveled while
fine tuning the SPEED CAL factor or between FLOW CAL and
Volume when fine tuning the Flow Cal factor. See Appendices
B & C.
• In normal operating modes, used to increase/decrease
application rate.
• In Volume, Area, or Distance, the “+” button selects the
counter set.
• RESET: When in Hold and not in CAL, clears the selected
counter set when held for one second.
• When in CAL, the “+” button increases and the “-”
button decreases the calibration value displayed.
RED LED WARNING LIGHT:Flashes to indicate over
or under application of +/- *10% from the Target
Rate, a low tank level, too high or too low Pressure
reading, or that Minimum Flow feature is active. Also
lit when in CAL and Unlocked.
*NOTE: % adjustable via ‘Rate Alarm Threshold’.
INCREASE/DECREASE
NOTE: Detailed descriptions of Calibration parameters can
be found on pg. 24

11
1450 CAL
Before operating the SprayMate™ XRS, it is necessary to calibrate it for the intended operation. The first step is choosing
intended UNITS (English or Metric) in Special Calibration, page 14 - this will also load default values.
CALIBRATION STEPS:
1. Stop the vehicle, if moving.
2. Switch console to HOLD, or turn all section switches OFF.
3. Press and hold the Calibration button about 1 second until the ‘CAL’ icon appears on screen and Red LED light is
on.
4. Select calibration position on rotary selector (see explanations of each position starting on page 10).
5. Adjust values using Increase/Decrease buttons.
6. To exit Calibration without saving changes - turn console OFF.
7. To save changes and exit Calibration - press and hold the CAL button for 1 second - ‘CAL’ icon on screen will turn
off and red LED light will turn off.
NOTE: When locked, Calibration settings can be viewed but not adjusted except for Target Rate and Row Width factors.
Press to enter or exit
calibration mode.
Press to increase or
decrease values.
Calibration
Indicates
Calibration Mode
Red LED indicates
Calibration Mode.
The example shown
here would set the
FLOW CAL value to
calibrate the system
to the flowmeter.
Restoring Default Calibration Values
To restore default calibration values and clear all counters (Tank, Volume, Area and Distance):
1. Change the UNITS value in Special Calibration.
2. Turn the rotary knob to a different calibration page.
3. Turn the rotary knob back to UNITS.
4. Reset UNITS value to original choice.

12
Calibration (cont.)
Calibration Positions
Adjust the value for the desired target application rate in
gallons per acre (liters per hectare). This is the application
rate that the console will lock onto when operating in AUTO.
Default: 1
Adjust the value for the desired amount of change to
be used for making on-the-go rate adjustments. When
operating in AUTO control, with RATE selected, pressing
Increase/Decrease buttons will change the TARGET RATE
by the amount entered for ADJUST RATE. This allows the
operator to make incremental changes to the TARGET RATE.
To disable this feature, simply enter a value of zero.
Default: 1
Choose between Vineyard and Orchard Modes . See
Operating Modes - pg. 13.
Vineyard Mode:
Sections are assigned consecutively left to right. Each section
has individually assignable row width.
Orchard Mode:
Row Width is defined as the active width. If both sections are
on, the Row Width is used as the active width. If one section
is shut off, the active width is halved.
Default setting is Orchard.
Calibration factor lock/unlock. To lock, enter Calibration mode
then press both Auto/Man and Increase keys at the same time.
To unlock, press both Auto/Man and Decrease keys at the same
time. Either setting is saved on exit from Calibration.
When locked, Calibration settings can be viewed but not
adjusted except for Target Rate and Row Width factors. Counter
1 can be cleared, but Counters 2&3 remain locked.
Default: Unlocked
OPTIONAL TEST SPEED is not a CALIBRATION setting. It
internally simulates a speed signal to test the system without
the vehicle moving. It allows you to test a spraying application
with water to make certain that all of the equipment is
operating properly while remaining stationary. Test speed
is cancelled by exiting CAL. Test speed will not accumulate
Distance/Area measurements and can be used if the console is
locked.
Default: .0
Default Your SettingDefault
Your Setting
This position calibrates the system to the flowmeter factory
setting. The SprayMate XRS system is designed to read
flowmeter input as Pulses per Unit x2.
Input the calibration number found on your flowmeter tag or
documentation.
Setting this number to 0 enables Pressure Based Control - see
Appendix D.
Default: 145
Adjust the effective working width for each section. Unit
increment is .1’. Use +/- buttons to adjust value. In Vineyard
Mode, quickly press and release the CAL key until the desired
Section Number is displayed in the Width window, then adjust value.
Defaults: Vineyard - each section 10.0’
Orchard - 12.0’
This position calibrates the system to the speed sensor. The
SprayMate XRS system is designed to read distance input as
Distance per Unit. Default value is .189 for Micro-Trak Astro
GPS sensor. NOTE: A fine-tuning procedure for calibration
factors is explained in Appendix C.
Default: .189
Calibration Default Settings & Change Notes

13
Operating Modes
Vineyard Mode:
Sections:
Sections are assigned consecutively left to right, as shown.
Each section has individually assignable row width.
Orchard Mode:
Sections:
Row Width is defined as the active width as illustrated
below. If both sections are on, the Row Width is used
as the active width. If one section is shut off, the active
width is halved.
SECTION 1 SECTION 2
SECTION 1 SECTION 2
Inline / Bypass (Valve Polarity)
Tank
StrainerPumpFlowmeter
To
Section
Valves
Control
Valve
Tank
StrainerPumpFlowmeter
To
Section
Valves
Control
Valve
Inline
The control valve is inline with the flowmeter.
Bypass
The control valve bypasses the flowmeter and diverts
flow back to the suction or tank.

14
Special Calibration
Page 4 Page 3 Page 2 Page 1
Minimum
Alarm Speed
Minimum
Pressure
Manual
Enable
Tank Fill
Level
Audible Alarm
Enable
Fixed
Minimum
Flow
Three-way
Valve
Enable
Tank Alarm
Level
Section Input
Polarity
Proportional
Minimum
Flow
Auto Shuto Start Speed
Time
—Rate Alarm
Threshold Start Speed
Page 1 Page 2 Page 3 Page 4
Units Pressure Oset PWM
Frequency
Multifunction
Output Flow
Trigger Threshold
Control Speed Pressure Alarm
Low
Maximum
Pulse Width
Multifunction
Output
Output Type
PWM or STD
Pressure Alarm
High
Minimum
Pulse Width
Flush Delay
Time
Hold Input
Polarity
Pressure
Full Scale —Flush Time
The UNITS position must be set before changing any other Calibration or Special Calibration settings.
These settings enable or disable other setting options to adjust applicable parameters:
• UNITS: determines which unit of measurement is used
• OUTPUT TYPE - PWM or STD: defines electronic drive signal for the control valve
• MULTIFUNCTION: defines MULTIFUNCTION output configuration
Special Calibration settings are accessed by selecting the parameter with the main rotary knob and then pressing the CAL
button to access Pages. Numbers displayed on the screen indicate which Page is active. Pressing the AUTO/MAN button once
displays an abbreviated parameter title.
See next page 15 for descriptions of Special Calibration settings.
Note: Changing UNITS will load default CAL values and reset all counters to 0.
Agitation %
Valve Polarity
STD
STD
STD = Standard 12V operation only
PWM
PWM
PWM
PWM
PWM = PWM operation only
Left Side of Rotary Dial
Right Side of Rotary Dial
SPECIAL CALIBRATION STEPS:
1. Turn ON console while pressing the CAL button - screen will display “SPEC”, then ‘CAL” and number 1 (Page 1).
2. Select a Special Calibration position using rotary knob. (See explanations of settings starting below)
3. Adjust Page 1 value or press the CAL button to access Pages 2-4.
4. Adjust parameter using Increase/Decrease buttons.
5. To exit Special Calibration without saving changes - turn console OFF.
6. To save changes and exit Special Calibration - press and hold the CAL button for 1 second - ‘CAL’ icon on screen
will turn off and red LED light will turn off.

15
Special Calibration (cont.)
Special Calibration Settings - Page 1
1 2 3 41234
TANK FILL LEVEL
TANK ALARM LEVEL
START SPEED TIME
START SPEED
Setting Locations
Page Page
UNITS
Location: PAGE 1  AREA
Description: Defines unit of measurement - English,
Metric - and loads system defaults. Changing UNITS
setting also clears all counters.
Default: English
CONTROL SPEED
Location: PAGE 1  DISTANCE
Description: OPTIONAL This position adjusts valve response
time to fine-tune the system. Example: increase Control Speed
if the system is responding slowly to rate changes because of
slow-moving valves. The range of settings is -12 to 3.
NOTE: Exercise caution when increasing the valve response
speed - the system may become unstable with higher
control speed numbers entered.
Default: -1
OUTPUT TYPE  PWM OR STD
Location: PAGE 1  PRESSURE
Description: Choose PULSE PWM OR STD reversing
polarity DC electronic drive signal for the control
valve. The display will show PULSE or Std (also
shown when console is powered up.)
Default: Standard DC
Hold Input Polarity  NOT USED
Location: PAGE 1 - SPEED
Description: This setting is NOT used in this version of the
SprayMate XRS. Do Not Adjust.
Default: Closed
UNITS
CONTROL SPEED
OUTPUT TYPE  PWM or STD
Hold Input Polarity (NOT USED)
START SPEED
Location: PAGE 1  RATE
Description: Enables “Quick Start - Speed” function and
defines the intended simulated speed in MPH (km/H).
See Appendix C for details. Setting to 0 (Off) will
disable the function.
Default: Off
START SPEED TIME
Location: PAGE 1  TANK
Description: Enables “Quick Start - Speed” function and
defines the duration of the simulated speed - up to 6
seconds. See Appendix C for details. Setting to 0 (Off)
will disable the function.
Default: Off
TANK ALARM LEVEL
Location: PAGE 1  VOLUME/MINUTE
Description: Enables and adjusts value for Tank Alarm -
set value to notify operator when level is reached. This
can be set to OFF (0) or between 1 - 65535.
Parameter units: English = gallons, Metric = liters.
Default: Off
TANK FILL LEVEL
Location: PAGE 1 - VOLUME
Description: Adjust this setting to the known capacity
of the tank. This value will be automatically entered
when in Tank position by pressing the Increase (+)
button. This can be set to OFF (0) up to 65535 max.
Parameter units:
English - gallons
Metric - liters
Default: Off

16
Special Calibration Settings - Page 2
PRESSURE OFFSET
PRESSURE ALARM LOW
PRESSURE ALARM HIGH
PRESSURE FULL SCALE
1 2 3 41234
PRESSURE OFFSET
Location: PAGE 2 - AREA
Description: Adjusts system to calculate pressure
readings when using an “Absolute” style pressure
sensor. Input Absolute Atmospheric Pressure in PSI
(bar) for your location.
Note: Leave at 0 when using optional Micro-Trak
pressure sensor(s) P/N 18757-18758, they are “gauge”
type sensors and self-adjust for ambient atmospheric
pressure.
Default: 0
PRESSURE ALARM LOW
Location: PAGE 2 - DISTANCE
Description: Enables and adjusts value for Pressure
Alarm - set value to notify operator when low level
is reached. This can be set to OFF (0) or up to 50% of
FULL SCALE setting. Parameter units: English = PSI,
Metric = bar.
Default: Off
PRESSURE ALARM HIGH
Location: PAGE 2 - PRESSURE
Description: Enables and adjusts value for Pressure
Alarm - set value to notify operator when high level
is reached. This can be set to OFF (0) or up to 100%
of FULL SCALE setting. Parameter units: English = PSI,
Metric = bar.
Default: Off
PRESSURE FULL SCALE
Location: PAGE 2 - SPEED
Description: Displays and adjusts FULL SCALE
(maximum) value for Pressure Sensor. Default setting
is 150 PSI for Micro-Trak Pressure Sensor P/N 18757.
Adjust it to 300 PSI for Micro-Trak P/N 18758.
NOTE: This measurement is always rated in PSI - even
if Metric units were specified in the UNITS Special
Calibration setting.
Default: 300
AUTO SHUTOFF  STD ONLY
Location: PAGE 2  TANK
Description: Enables Auto Shutoff feature - it runs the
control valve towards minimum flow each time HOLD
is selected, or when all (non-zero width) sections are
turned off, or when in AUTO and ground speed goes to
zero. Duration of Auto Shutoff feature is 18 seconds.
Default: Off
MANUAL ENABLE
Location: PAGE 2 - VOLUME
Description: Enables (ON) or disables (OFF) Manual
Control mode. Disabling this function means the
console will only run in AUTO mode and the AUTO/
MAN switch will be inactive.
Default: On
THREEWAY VALVE ENABLE
Location: PAGE 2 - VOLUME/MIN.
Description: Enables the use of three-way Valves with
the SprayMate XRS system. This setting changes the
internal calculations for section totals so that flow in
return lines to the tank (or to hydraulic system) is not
included when sections are turned off.
Default: Off
AGITATION PERCENTAGE  PWM ONLY
Location: PAGE 2  RATE
Description: In PWM Output, this enables Tank Agitation
when system is in Hold, and adjusts the desired duty
cycle for the agitation. This can be set to OFF (0)
or from 1 to 100%. Agitation is disabled during any
calibration mode.
Default: Off
VALVE POLARITY  STD ONLY
Location: PAGE 2  RATE
Description: In STD Output, this defines operation of the
flow control valve - choose Bypass or Inline plumbing
configuration. See page 13 for illustration of Inline vs.
Bypass plumbing.
Default: Inline
MANUAL ENABLE
THREEWAY VALVE ENABLE
AUTO SHUTOFF
AGITATION/VALVE POLARITY
Setting Locations
Page Page

17
Special Calibration Settings - Page 3
1 2 3 41234
MAXIMUM PULSE WIDTH PWM ONLY
Location: PAGE 3 - DISTANCE
Description: In PWM Output, this adjusts value for
Maximum Pulse Width. This can be set from 0 to 100%
(This value must be larger that the Minimum Pulse
Width.)
Default: 90%
MINIMUM PULSE WIDTH PWM ONLY
Location: PAGE 3 - PRESSURE
Description: In PWM Output, this adjusts value for
Minimum Pulse Width. This can be set from 0 to 100%
(This value must be smaller that the Maximum Pulse
Width.)
Default: 10%
PWM FREQUENCY  PWM ONLY
Location: PAGE 3 - AREA
Description: In PWM Output, this adjusts value for PWM
Frequency. This can be set from 50 to 500Hz. Consult
your PWM device information for optimal frequency.
Default: 200Hz.
PWM FREQUENCY
MAXIMUM PULSE WIDTH
MINIMUM PULSE WIDTH
—
MINIMUM PRESSURE
FIXED MINIMUM FLOW
PROPORTIONAL MINIMUM FLOW
RATE ALARM THRESHOLD
MINIMUM PRESSURE
Location: PAGE 3 - VOLUME
Description: When using pressure based control, this
sets an absolute minimum pressure for the system.
This parameter must be set, along with Proportional
Minimum Flow (below), for pressure based control to
function.
Default: Off
FIXED MINIMUM FLOW
Location: PAGE 3 - VOLUME/MIN.
Description: Sets a fixed absolute minimum flow (gpm)
for the system. This ensures that the flow rate is
never less than the lowest range of the flowmeter -
preventing the flowmeter from stalling.
Default: Off
PROPORTIONAL MINIMUM FLOW
Location: PAGE 3 - TANK
Description: Sets minimum flow value in Gallons/minute
for the system - proportional to the number of active
sections. This parameter must be set, along with
Minimum Pressure (above), for pressure based control
to function.
Default: Off
RATE ALARM THRESHOLD
Location: PAGE 3 - RATE
Description: Adjusts threshold value for the Rate Alarm
- can be set from 10-30%. This value is the percentage
of difference between the actual rate of application
and the intended (target) rate.
Default: 10%
Setting Locations
Page Page

18
Special Calibration Settings - Page 4
MF. FLOW TRIGGER THRESHOLD
MULTIFUNCTION OUTPUT
FLUSH DELAY TIME
FLUSH TIME
FLUSH DELAY TIME
Location: PAGE 4 - PRESSURE
Description: When Multifunction output is set to FLUSH,
this enables and adjusts a time delay from the RUN/HOLD
transition to the start of the Flush cycle. This can be set to OFF
(0) or from 1-6 seconds. Default: 0
FLUSH TIME
Location: PAGE 4 - SPEED
Description: When Multifunction output is set to FLUSH, this
enables and adjusts the duration of the Flush cycle. This can
be set to OFF (0) or from 1-12 seconds. Default: 0
MULTIFUNCTION FLOW TRIG. THRESHOLD
Location: PAGE 4 - AREA
Description: When Multifunction output is set to Fixed Flow
Trigger (F-FLO) or Proportional Flow Trigger (P-FLO), this
adjusts the threshold value in Volume/Minute for activating
the voltage output. The output will turn off if Volume/
Minute is reduced to 95% of the threshold value. This fixed
margin is maintained to reduce on/off cycling if system is
operating at or near threshold setting.
F-FLO: Threshold value turns on power to Multifunction
output based on the fixed total flow rate, regardless of
active width.
P-FLO: Threshold value turns on power to Multifunction
output based on flow rate, proportional to active width.
Example: If the threshold is set to 10gpm while running only
2 out of 5 sections, the trigger would start output at 4gpm -
(2/5 X 10).
Default: 15.0 gpm
MULTIFUNCTION OUTPUT
Location: PAGE 4 - DISTANCE
Description: Selects mode of 12VDC power sent to
Multifunction Output connection on branch harness.
Default setting this function is Master.
1. OFF = Always off
2. ON = Always on
3. RELIEF VALVE = On in Hold
4. MASTER = On in Run and at least 1 section on
(Note: there is a 1/2 second delay switching from HOLD to RUN)
5. FLUSH = Enables Flush cycle to purge chemicals from
lines when switching from Run to Hold - see below
6. F-FLO = Fixed Flow Trigger - see above
7. P-FLO = Proportional Flow Trigger- see above
8. ON IN RUN ONLY = On in Run - NOT affected by sections.
Default: Master (off in Hold)
1 2 3 41234
MINIMUM ALARM SPEED
AUDIBLE ALARM ENABLE
SECTION INPUT POLARITY
—
MINIMUM ALARM SPEED
Location: PAGE 4 - VOLUME
Description: Enables and adjusts a minimum speed
threshold for the audible alarm - this prevents unneeded
warnings while stopping and starting. This can be set
to OFF (0) or from 0.1 to 99.9 mph (km/h). Affected
alarms are Application Rate Error and Minimum Flow.
Default: Off
AUDIBLE ALARM ENABLE
Location: PAGE 4 - VOLUME/MIN.
Description: Enables (ON) or disables (OFF) Audible Alarm
function - allows user to operate system without hearing
any system warnings. Flush cycle completion alert is not
affected by this setting.
Default: On
SECTION INPUT POLARITY
Location: PAGE 4 - TANK
Description: This setting allows the user to reverse
the polarity of section inputs. This may be useful
when connecting a 3rd party mapping device to the
SprayMate XRS system for automatic section control.
Default: 12v
Setting Locations
Page Page

19
Special Calibration Default Settings & Change Notes
Special Calibration - Page 1
Special Calibration - Page 2
Special Calibration - Page 3
Special Calibration - Page 4
UNITS
CONTROL SPEED
HOLD INPUT POLARITY
OUTPUT TYPE:
PWM or STD
TANK FILL LEVEL
TANK ALARM LEVEL
START SPEED TIME
START SPEED
PRESSURE OFFSET
PRESSURE ALARM
LOW
PRESSURE ALARM
HIGH
PRESSURE FULL SCALE
MANUAL ENABLE
3-WAY VALVE
ENABLE
AUTO SHUTOFF
AGITATIONor
VALVE POLARITY
PWM FREQUENCY
MAXIMUM
PULSE WIDTH
MINIMUM
PULSE WIDTH
MINIMUM PRESSURE
FIXED
MINIMUM FLOW
PROPORTIONAL
MINIMUM FLOW
RATE ALARM
THRESHOLD
MINIMUM
ALARM SPEED
AUDIBLE ALARM
ENABLE
SECTION INPUT
POLARITY
Default Your SettingDefaultYour Setting
MULTIFUNCTION FLOW
TRIGGER THRESHOLD
MULTIFUNCTION
OUTPUT
FLUSH DELAY TIME
FLUSH TIME
—
—
Master
(O in Hold)
0
15
0

20
Operation
Make sure your system is properly calibrated before beginning to apply product. We also recommend completion of the Pre-
Field System Checkout described on page 21 prior to beginning any operations.
Automatic Operation
This mode sets and maintains the Target Rate (GPA) - the system compensates for speed changes or section switching.
1. Press the AUTO/MAN button to select Automatic mode (“AUTO” icon will be displayed).
2. Switch on the desired number of boom sections.
3. Switch the RUN/HOLD switch to RUN.
4. Drive vehicle. (Speed signal will activate system.)
Use the Section switches or the RUN/HOLD switch to Start or Stop application at any time.
ON-THE-GO RATE ADJUSTMENTS
To adjust the application rate, turn rotary knob to the RATE position and press the Increase/Decrease buttons. The increment
of this change is set in the ADJUST RATE position in Calibration. For example, if the calibrated TARGET RATE = 20.0 GPA
and ADJUST RATE = 1.0 GPA, pressing the Increase key once will increase the target rate from 20.0 to 21.0. The display will
momentarily show the new TARGET (21.0) for two seconds before it resumes showing the ACTUAL application rate. The
“adjusted” target rate is maintained until console power is turned off. NOTE: The target rate may also be adjusted while in
HOLD.
Manual Operation
Manual mode sets and maintains a steady flow rate (GPM) not affected by changes in vehicle speed. The overall application
rate (GPA) will vary depending on speed (slow vehicle speed = increased application rate, fast speed = lower application rate.)
Manual mode is most useful for system set up, spot applications, etc.
5. Press the AUTO/MAN button to select Manual mode (“MAN” icon will be displayed).
6. Adjust the flow rate by using the Increase/Decrease buttons to adjust the servo valve. The longer the buttons are held, the
faster the valve will move to allow both rapid movement and fine adjustments.
Note: Manual control can be disabled by changing the MANUAL ENABLE setting in Special Calibrate.
IN RUN:
Manual rate adjust can be done while the rotary knob is in either the RATE or VOLUME/MINUTE position.
IN HOLD:
If the console is in HOLD, or if all section valves are OFF, the rotary knob must be in the VOLUME/MINUTE position to adjust the
servo valve using the Increase/Decrease buttons. In that position only, the servo valve can be adjusted without any section valves
on, and the flow rate (GPM or LPM) can be monitored. This can be useful for system pressure tests, etc. The above applies only
when using a Standard (Std) control valve. A PWM (PULSE) control valve is always Off when in HOLD.
Care and Maintenance of your SprayMate™ XRS
Store the console in a cool dry location during the off-season.
